gtinv-257 (Ag-Sn-2022-06-12)

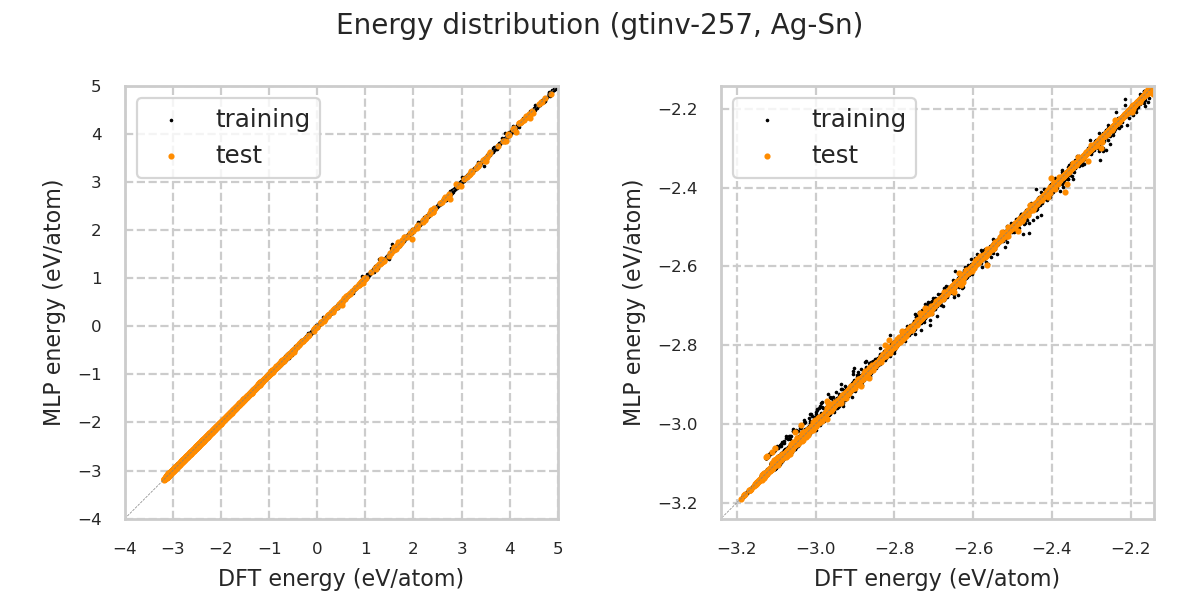

Energy distribution

Convex hull (formation energy)

Stable structures

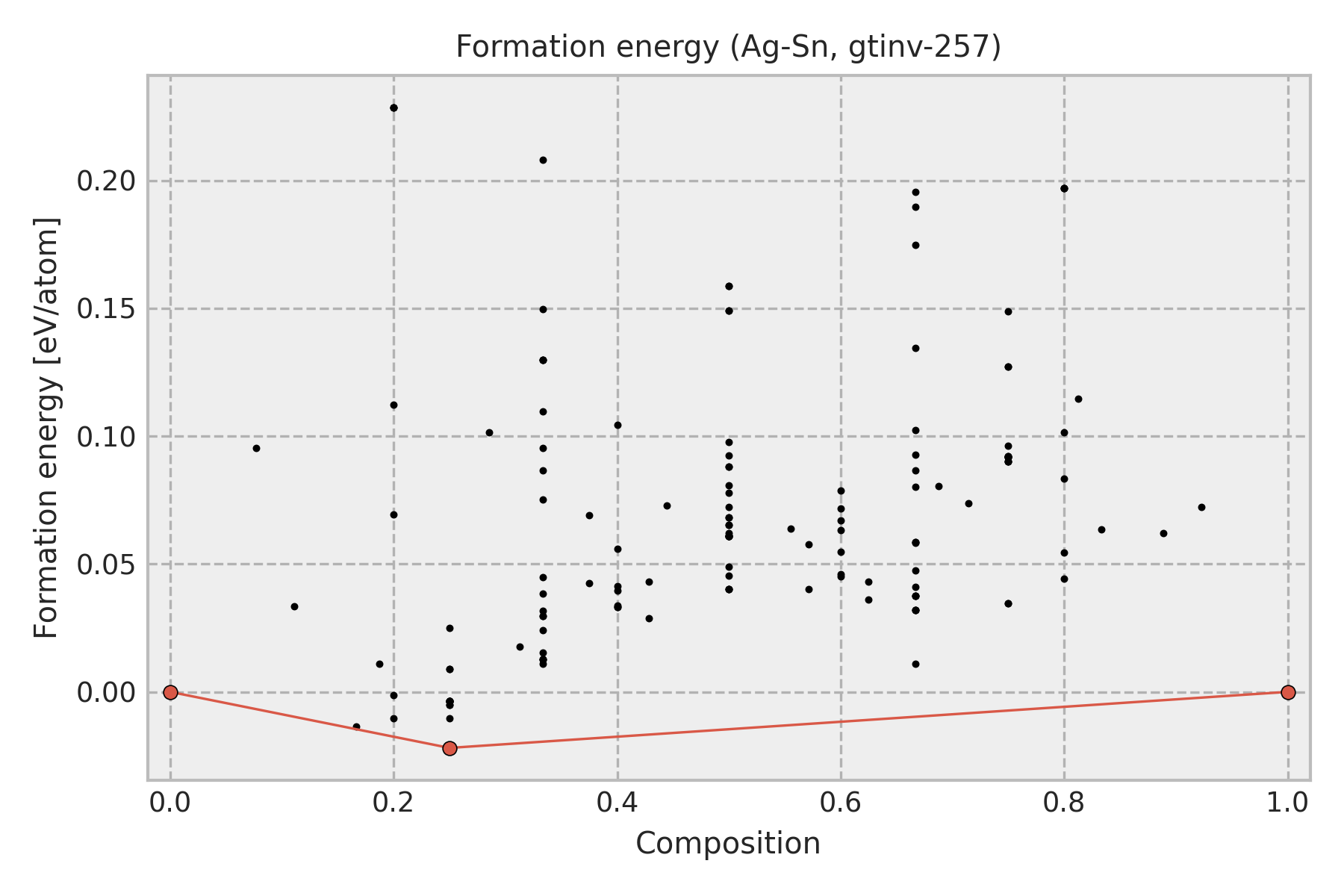

Convex hull (formation energy)

Composition	Formation energy (eV/atom)	Structure
0.0	0.0	Ag
0.25	-0.0219	icsd-104506-10-[Ni3Sn]
0.25	-0.0219	icsd-260285-10-[UCl3]
1.0	0.0	Sn

The convex hull and stable structures are obtained by performing local structure optimizations only from structure prototypes used for estimating the MLP. Therefore, they are often inconsistent with experimental structures and/or theoretical globally-stable structures. In addition, the prototype is used as the structure legend in the figure. Therefore, the structure type of the converged structure is sometimes different from that shown in the legend even if the potential energy surface predicted by MLP is almost the same as the true one.

Equation of state for each structure

Prototype structure energy

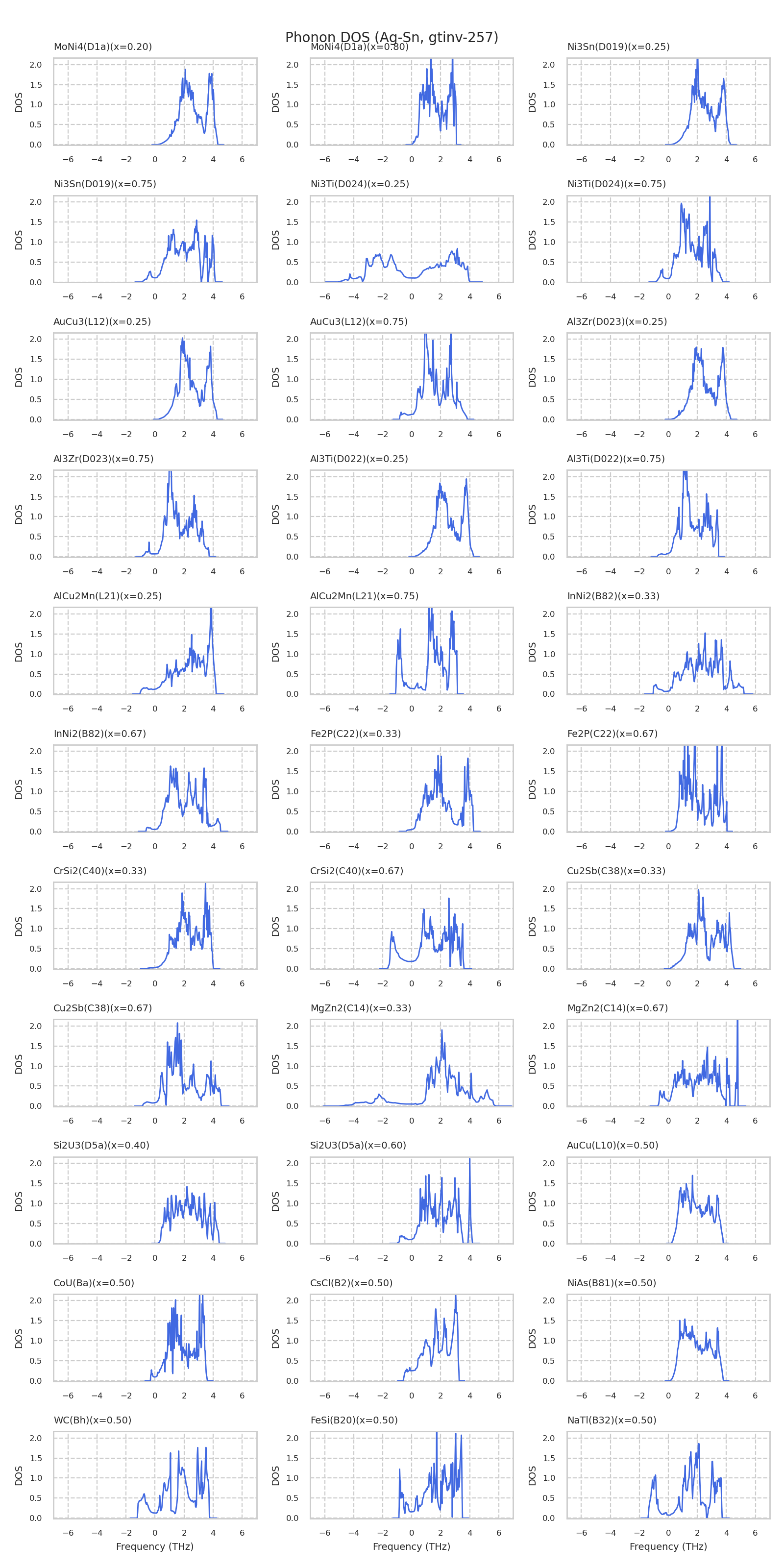

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

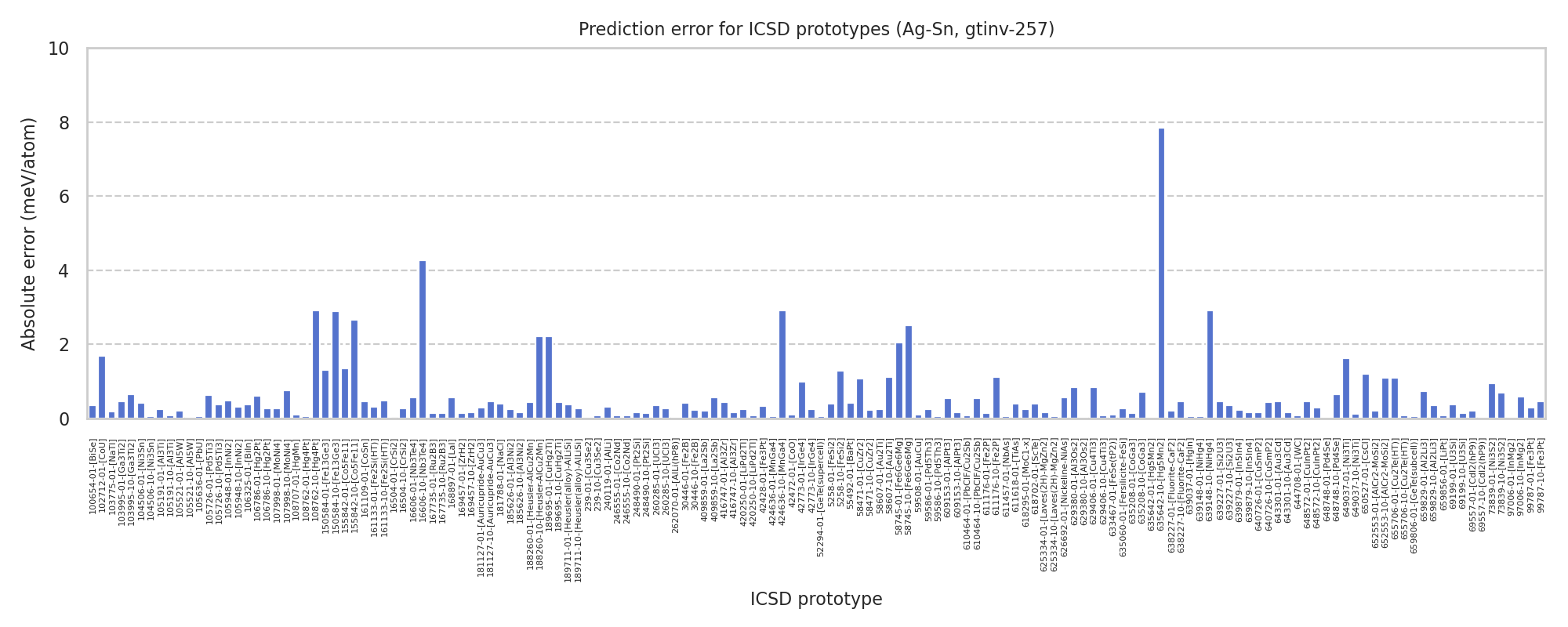

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-97006-10-[InMg2]	-3.05315	-3.05373
icsd-648748-10-[Pd4Se]	-3.00399	-3.00463
icsd-105521-10-[Al5W]	-2.98792	-2.98794
icsd-42773-10-[IrGe4]	-2.97511	-2.97536
icsd-107998-10-[MoNi4]	-2.97405	-2.97481
icsd-30446-01-[Fe2B]	-2.95919	-2.95877
icsd-167735-10-[Ru2B3]	-2.95718	-2.95732
icsd-150584-10-[Fe13Ge3]	-2.95242	-2.95531
icsd-58745-01-[Fe6Ge6Mg]	-2.93956	-2.9416
icsd-638227-10-[Fluorite-CaF2]	-2.9387	-2.93824
icsd-248490-10-[Pt2Si]	-2.9387	-2.93885
icsd-169457-10-[ZrH2]	-2.93864	-2.9388
icsd-416747-01-[Al3Zr]	-2.93544	-2.93588
icsd-643301-01-[Au3Cd]	-2.93542	-2.93588
icsd-640726-10-[CuSmP2]	-2.93542	-2.93587
icsd-69199-01-[U3Si]	-2.93392	-2.93354
icsd-609153-01-[AlPt3]	-2.93392	-2.93338
icsd-181127-10-[Auricupride-AuCu3]	-2.93392	-2.93345
icsd-99787-10-[Fe3Pt]	-2.93392	-2.93345
icsd-648572-01-[CuInPt2]	-2.93392	-2.93345
icsd-420250-01-[LiPd2Tl]	-2.93356	-2.93332
icsd-105191-01-[Al3Ti]	-2.93356	-2.93332
icsd-58471-01-[CuZr2]	-2.93174	-2.93282
icsd-652553-10-[AlCr2-MoSi2]	-2.93172	-2.93282
icsd-58607-10-[Au2Ti]	-2.93171	-2.93282
icsd-611176-01-[Fe2P]	-2.92942	-2.92929
icsd-649037-01-[Ni3Ti]	-2.9291	-2.92748
icsd-635642-01-[Hg5Mn2]	-2.92812	-2.92814
icsd-260285-01-[UCl3]	-2.92115	-2.92079
icsd-104506-01-[Ni3Sn]	-2.92109	-2.92068
icsd-69557-10-[CdI2(hP9)]	-2.91449	-2.91453
icsd-5258-01-[FeSi2]	-2.91213	-2.91253
icsd-155842-10-[Co5Fe11]	-2.90358	-2.90091
icsd-105726-01-[Pd5Ti3]	-2.89977	-2.9004
icsd-189695-01-[CuHg2Ti]	-2.89859	-2.89636
icsd-188260-10-[Heusler-AlCu2Mn]	-2.89859	-2.89636
icsd-610464-10-[PbClF/Cu2Sb]	-2.8895	-2.88895
icsd-239-10-[Cu3Se2]	-2.8812	-2.88129
icsd-409859-10-[La2Sb]	-2.88045	-2.87987
icsd-629380-10-[Al3Os2]	-2.88012	-2.88008
icsd-16504-01-[CrSi2]	-2.87782	-2.87782
icsd-655706-10-[Cu2Te(HT)]	-2.86806	-2.86815
icsd-629406-10-[Cu4Ti3]	-2.86687	-2.86694
icsd-635208-10-[CoGa3]	-2.86311	-2.86382
icsd-59586-01-[Pd5Th3]	-2.8626	-2.86235
icsd-108762-10-[Hg4Pt]	-2.86199	-2.85909
icsd-639148-10-[NiHg4]	-2.86199	-2.85909
icsd-424636-10-[MnGa4]	-2.86199	-2.85909
icsd-161133-10-[Fe2Si(HT)]	-2.86155	-2.86203
icsd-105948-01-[InNi2]	-2.86155	-2.86203
icsd-185626-10-[Al3Ni2]	-2.85912	-2.85929
icsd-103995-01-[Ga3Ti2]	-2.85441	-2.85486
icsd-639227-10-[Si2U3]	-2.84741	-2.84707
icsd-106786-10-[Hg2Pt]	-2.83587	-2.83615
icsd-639037-01-[HgIn]	-2.81982	-2.81977
icsd-659806-01-[GeTe(subcell)]	-2.81982	-2.81977
icsd-52294-01-[GeTe(supercell)]	-2.81982	-2.81977
icsd-55492-01-[BaPt]	-2.81069	-2.81028
icsd-16606-01-[Nb3Te4]	-2.80912	-2.80857
icsd-639879-10-[In5In4]	-2.80837	-2.8082
icsd-108707-01-[HgMn]	-2.79882	-2.79872
icsd-59508-01-[AuCu]	-2.79882	-2.79872
icsd-633467-01-[FeSe(tP2)]	-2.79882	-2.79872
icsd-106325-01-[BiIn]	-2.79847	-2.79884
icsd-42428-01-[Fe3Pt]	-2.79846	-2.7988
icsd-100654-01-[BiSe]	-2.79766	-2.79731
icsd-189711-01-[Heusler(alloy)-AlLiSi]	-2.79583	-2.79546
icsd-611618-01-[TiAs]	-2.79483	-2.79524
icsd-618702-01-[ScTe]	-2.79483	-2.79524
icsd-105636-01-[PbU]	-2.79185	-2.79179
icsd-611457-01-[NbAs]	-2.79185	-2.79179
icsd-102712-01-[CoU]	-2.78558	-2.78727
icsd-650527-01-[CsCl]	-2.78227	-2.78346
icsd-635060-01-[Fersilicite-FeSi]	-2.7793	-2.77902
icsd-659829-01-[Al2Li3]	-2.77806	-2.77879
icsd-659856-01-[LiPt]	-2.77187	-2.77179
icsd-644708-01-[WC]	-2.77187	-2.77179
icsd-629406-01-[Cu4Ti3]	-2.76952	-2.77036
icsd-168897-01-[LaI]	-2.76831	-2.76774
icsd-626692-01-[Nickeline-NiAs]	-2.76831	-2.76774
icsd-161109-01-[CoSn]	-2.76232	-2.76185
icsd-16606-10-[Nb3Te4]	-2.76076	-2.76504
icsd-103995-10-[Ga3Ti2]	-2.75988	-2.75922
icsd-639879-01-[In5In4]	-2.75035	-2.75011
icsd-618295-01-[MoC1-x]	-2.74426	-2.74451
icsd-610464-01-[PbClF/Cu2Sb]	-2.73844	-2.73836
icsd-185626-01-[Al3Ni2]	-2.73762	-2.73737
icsd-629380-01-[Al3Os2]	-2.73759	-2.73676
icsd-652553-01-[AlCr2-MoSi2]	-2.73634	-2.73656
icsd-58471-10-[CuZr2]	-2.73633	-2.73655
icsd-58607-01-[Au2Ti]	-2.7363	-2.73655
icsd-409859-01-[La2Sb]	-2.73327	-2.73305
icsd-105726-10-[Pd5Ti3]	-2.73315	-2.73353
icsd-16504-10-[CrSi2]	-2.72546	-2.72574
icsd-73839-10-[Ni3S2]	-2.72084	-2.72016
icsd-246555-01-[Co2Nd]	-2.71782	-2.71774
icsd-155842-01-[Co5Fe11]	-2.71773	-2.71908
icsd-104506-10-[Ni3Sn]	-2.71618	-2.71624
icsd-260285-10-[UCl3]	-2.71617	-2.71644
icsd-625334-10-[Laves(2H)-MgZn2]	-2.71105	-2.711
icsd-103775-01-[NaTl]	-2.71104	-2.71084
icsd-240119-01-[AlLi]	-2.71104	-2.71072
icsd-59586-10-[Pd5Th3]	-2.7067	-2.70676
icsd-649037-10-[Ni3Ti]	-2.70467	-2.70479
icsd-611176-10-[Fe2P]	-2.70445	-2.70335
icsd-625334-01-[Laves(2H)-MgZn2]	-2.70218	-2.70202
icsd-181788-01-[NaCl]	-2.70148	-2.70109
icsd-42472-01-[CoO]	-2.70148	-2.70138
icsd-105191-10-[Al3Ti]	-2.69951	-2.69944
icsd-420250-10-[LiPd2Tl]	-2.69951	-2.69944
icsd-643301-10-[Au3Cd]	-2.6979	-2.69807
icsd-416747-10-[Al3Zr]	-2.6979	-2.69807
icsd-640726-01-[CuSmP2]	-2.6979	-2.69807
icsd-648572-10-[CuInPt2]	-2.69787	-2.69758
icsd-181127-01-[Auricupride-AuCu3]	-2.69787	-2.69758
icsd-609153-10-[AlPt3]	-2.69787	-2.6977
icsd-69199-10-[U3Si]	-2.69786	-2.69772
icsd-99787-01-[Fe3Pt]	-2.69785	-2.69756
icsd-659829-10-[Al2Li3]	-2.69235	-2.6927
icsd-73839-01-[Ni3S2]	-2.69066	-2.6916
icsd-161133-01-[Fe2Si(HT)]	-2.69022	-2.6899
icsd-105948-10-[InNi2]	-2.69022	-2.6899
icsd-239-01-[Cu3Se2]	-2.68941	-2.68939
icsd-189695-10-[CuHg2Ti]	-2.68538	-2.68582
icsd-188260-01-[Heusler-AlCu2Mn]	-2.68538	-2.68582
icsd-69557-01-[CdI2(hP9)]	-2.67427	-2.67447
icsd-107998-01-[MoNi4]	-2.67141	-2.67115
icsd-189711-10-[Heusler(alloy)-AlLiSi]	-2.66302	-2.66276
icsd-30446-10-[Fe2B]	-2.65419	-2.65396
icsd-105521-01-[Al5W]	-2.65243	-2.65223
icsd-262070-01-[AlLi(hP8)]	-2.65169	-2.65171
icsd-639227-01-[Si2U3]	-2.64889	-2.64844
icsd-150584-01-[Fe13Ge3]	-2.64179	-2.64049
icsd-655706-01-[Cu2Te(HT)]	-2.63983	-2.64092
icsd-169457-01-[ZrH2]	-2.61977	-2.61991
icsd-638227-01-[Fluorite-CaF2]	-2.61977	-2.61956
icsd-248490-01-[Pt2Si]	-2.61977	-2.61994
icsd-635642-10-[Hg5Mn2]	-2.61646	-2.60861
icsd-42773-01-[IrGe4]	-2.60853	-2.60952
icsd-106786-01-[Hg2Pt]	-2.59966	-2.59905
icsd-246555-10-[Co2Nd]	-2.59699	-2.5969
icsd-167735-01-[Ru2B3]	-2.59144	-2.59129
icsd-97006-01-[InMg2]	-2.56859	-2.56855
icsd-648748-01-[Pd4Se]	-2.54871	-2.54866
icsd-5258-10-[FeSi2]	-2.54136	-2.54008
icsd-58745-10-[Fe6Ge6Mg]	-2.47194	-2.47444
icsd-635208-01-[CoGa3]	-2.46762	-2.46777
icsd-424636-01-[MnGa4]	-2.43267	-2.4326
icsd-108762-01-[Hg4Pt]	-2.43267	-2.4326
icsd-639148-01-[NiHg4]	-2.43267	-2.4326

Lattice parameters (CoU(Ba)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.591	7.123	7.123	7.123	90.0	90.0	90.0
DFT	22.612	7.126	7.126	7.126	90.0	90.0	90.0

Elastic constants (CoU(Ba)(x=0.50))

1	2	3	4	5	6
70.0	59.2	58.7	0.0	0.0	0.0
59.2	68.1	57.9	0.0	0.0	0.0
58.7	57.9	66.9	0.0	0.0	0.0
0.0	0.0	0.0	-5.7	0.0	0.0
0.0	0.0	0.0	0.0	-5.7	0.0
0.0	0.0	0.0	0.0	0.0	-5.8

Lattice parameters (InNi2(B82)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.074	5.286	4.721	5.663	90.0	90.0	116.52
DFT	20.776	4.907	4.907	5.979	90.0	90.0	120.0

Elastic constants (InNi2(B82)(x=0.33))

1	2	3	4	5	6
71.5	59.7	55.7	0.0	0.0	7.0
59.7	77.2	59.9	0.0	0.0	-10.8
55.7	59.9	117.3	0.0	0.0	-2.8
0.0	0.0	0.0	19.2	-4.2	0.0
0.0	0.0	0.0	-4.2	12.9	0.0
7.0	-10.8	-2.8	0.0	0.0	12.4

Lattice parameters (WC(Bh)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.87	3.384	3.384	4.611	90.0	90.0	120.0
DFT	22.805	3.391	3.391	4.58	90.0	90.0	120.0

Elastic constants (WC(Bh)(x=0.50))

1	2	3	4	5	6
60.1	52.3	52.4	0.0	0.0	0.0
52.3	60.1	52.4	0.0	0.0	0.0
52.4	52.4	80.9	0.0	0.0	0.0
0.0	0.0	0.0	5.0	0.0	0.0
0.0	0.0	0.0	0.0	5.0	0.0
0.0	0.0	0.0	0.0	0.0	3.9

Lattice parameters (MoNi4(D1a)(x=0.20))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.046	6.704	6.704	4.238	90.0	90.0	90.0
DFT	18.995	6.686	6.686	4.249	90.0	90.0	90.0

Elastic constants (MoNi4(D1a)(x=0.20))

1	2	3	4	5	6
106.6	71.6	83.4	0.0	0.0	-9.2
71.6	106.6	83.4	0.0	0.0	9.2
83.4	83.4	106.2	0.0	0.0	0.0
0.0	0.0	0.0	32.1	0.0	0.0
0.0	0.0	0.0	0.0	32.1	0.0
-9.2	9.2	0.0	0.0	0.0	24.3

Lattice parameters (Al3Ti(D022)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.392	4.782	4.782	8.884	90.0	90.0	90.0
DFT	25.323	4.781	4.781	8.861	90.0	90.0	90.0

Elastic constants (Al3Ti(D022)(x=0.75))

1	2	3	4	5	6
51.9	62.8	49.9	0.0	0.0	0.0
62.8	51.9	49.9	0.0	0.0	0.0
49.9	49.9	61.5	0.0	0.0	0.0
0.0	0.0	0.0	4.1	0.0	0.0
0.0	0.0	0.0	0.0	4.1	0.0
0.0	0.0	0.0	0.0	0.0	5.7

Lattice parameters (CsCl(B2)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.71	3.568	3.568	3.568	90.0	90.0	90.0
DFT	22.609	3.563	3.563	3.563	90.0	90.0	90.0

Elastic constants (CsCl(B2)(x=0.50))

1	2	3	4	5	6
53.3	69.8	69.8	0.0	0.0	0.0
69.8	53.3	69.8	0.0	0.0	0.0
69.8	69.8	53.3	0.0	0.0	0.0
0.0	0.0	0.0	7.1	0.0	0.0
0.0	0.0	0.0	0.0	7.1	0.0
0.0	0.0	0.0	0.0	0.0	7.1

Lattice parameters (AuCu3(L12)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.406	4.266	4.266	4.266	90.0	90.0	90.0
DFT	19.375	4.263	4.263	4.263	90.0	90.0	90.0

Elastic constants (AuCu3(L12)(x=0.25))

1	2	3	4	5	6
101.4	69.4	69.4	0.0	0.0	0.0
69.4	101.4	69.4	0.0	0.0	0.0
69.4	69.4	101.4	0.0	0.0	0.0
0.0	0.0	0.0	25.1	0.0	0.0
0.0	0.0	0.0	0.0	25.1	0.0
0.0	0.0	0.0	0.0	0.0	25.1

Lattice parameters (Cu2Sb(C38)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.087	4.252	4.252	6.999	90.0	90.0	90.0
DFT	21.093	4.253	4.253	6.996	90.0	90.0	90.0

Elastic constants (Cu2Sb(C38)(x=0.33))

1	2	3	4	5	6
78.5	63.8	55.8	0.0	0.0	0.0
63.8	78.5	55.8	0.0	0.0	0.0
55.8	55.8	105.3	0.0	0.0	0.0
0.0	0.0	0.0	2.1	0.0	0.0
0.0	0.0	0.0	0.0	2.1	0.0
0.0	0.0	0.0	0.0	0.0	24.1

Lattice parameters (Al3Zr(D023)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.404	4.702	4.702	18.383	90.0	90.0	90.0
DFT	25.392	4.738	4.738	18.095	90.0	90.0	90.0

Elastic constants (Al3Zr(D023)(x=0.75))

1	2	3	4	5	6
55.0	53.4	51.3	0.0	0.0	0.0
53.4	55.0	51.3	0.0	0.0	0.0
51.3	51.3	61.8	0.0	0.0	0.0
0.0	0.0	0.0	7.6	0.0	0.0
0.0	0.0	0.0	0.0	7.6	0.0
0.0	0.0	0.0	0.0	0.0	9.7

Lattice parameters (FeSi(B20)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.876	5.678	5.678	5.678	90.0	90.0	90.0
DFT	22.843	5.675	5.675	5.675	90.0	90.0	90.0

Elastic constants (FeSi(B20)(x=0.50))

1	2	3	4	5	6
33.9	83.7	83.7	0.0	0.0	0.0
83.7	33.8	83.7	0.0	0.0	0.0
83.7	83.7	33.8	0.0	0.0	0.0
0.0	0.0	0.0	-77.4	0.0	0.0
0.0	0.0	0.0	0.0	-77.4	0.0
0.0	0.0	0.0	0.0	0.0	-77.4

Lattice parameters (Si2U3(D5a)(x=0.40))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.033	9.62	6.984	3.279	90.0	90.0	90.0
DFT	22.776	8.068	8.068	3.499	90.0	90.0	90.0

Elastic constants (Si2U3(D5a)(x=0.40))

1	2	3	4	5	6
79.6	51.7	55.0	0.0	0.0	0.0
51.7	90.7	47.1	0.0	0.0	0.0
55.0	47.1	76.7	0.0	0.0	0.0
0.0	0.0	0.0	14.0	0.0	0.0
0.0	0.0	0.0	0.0	11.2	0.0
0.0	0.0	0.0	0.0	0.0	12.5

Lattice parameters (Ni3Sn(D019)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.423	6.077	6.077	4.859	90.0	90.0	120.0
DFT	19.359	6.064	6.064	4.863	90.0	90.0	120.0

Elastic constants (Ni3Sn(D019)(x=0.25))

1	2	3	4	5	6
95.8	58.9	63.8	0.0	0.0	0.0
58.9	95.8	63.8	0.0	0.0	0.0
63.8	63.8	113.8	0.0	0.0	0.0
0.0	0.0	0.0	24.2	0.0	0.0
0.0	0.0	0.0	0.0	24.2	0.0
0.0	0.0	0.0	0.0	0.0	18.4

Lattice parameters (Fe2P(C22)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.646	7.755	7.755	4.259	90.0	90.0	120.0
DFT	24.55	7.767	7.767	4.229	90.0	90.0	120.0

Elastic constants (Fe2P(C22)(x=0.67))

1	2	3	4	5	6
70.9	48.8	51.2	0.0	0.0	0.0
48.8	70.9	51.2	0.0	0.0	0.0
51.2	51.2	76.6	0.0	0.0	0.0
0.0	0.0	0.0	20.2	0.0	0.0
0.0	0.0	0.0	0.0	20.2	0.0
0.0	0.0	0.0	0.0	0.0	11.0

Lattice parameters (Cu2Sb(C38)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.924	4.385	4.385	7.777	90.0	90.0	90.0
DFT	25.055	4.361	4.361	7.903	90.0	90.0	90.0

Elastic constants (Cu2Sb(C38)(x=0.67))

1	2	3	4	5	6
55.5	49.7	46.8	0.0	0.0	0.0
49.7	55.5	46.8	0.0	0.0	0.0
46.8	46.8	81.9	0.0	0.0	0.0
0.0	0.0	0.0	8.7	0.0	0.0
0.0	0.0	0.0	0.0	8.7	0.0
0.0	0.0	0.0	0.0	0.0	27.5

Lattice parameters (Ni3Sn(D019)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.413	6.362	11.008	6.756	120.75	90.0	90.0
DFT	25.407	6.574	11.372	5.437	90.0	90.0	90.0

Elastic constants (Ni3Sn(D019)(x=0.75))

1	2	3	4	5	6
64.4	58.8	52.6	1.9	0.0	0.0
58.8	69.9	46.7	2.4	0.0	0.0
52.6	46.7	76.3	-1.8	0.0	0.0
1.9	2.4	-1.8	10.9	0.0	0.0
0.0	0.0	0.0	0.0	7.4	-0.1
0.0	0.0	0.0	0.0	-0.1	4.1

Lattice parameters (Ni3Ti(D024)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.389	6.562	6.562	10.895	90.0	90.0	120.0
DFT	25.424	6.604	6.604	10.771	90.0	90.0	120.0

Elastic constants (Ni3Ti(D024)(x=0.75))

1	2	3	4	5	6
74.8	57.6	44.5	0.0	0.0	0.3
57.6	74.8	44.5	0.0	0.0	0.0
44.5	44.5	58.3	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.3	0.0	0.0	0.0	0.0	8.6

Lattice parameters (Fe2P(C22)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.63	8.192	8.192	3.194	90.0	90.0	120.0
DFT	20.518	8.209	8.209	3.164	90.0	90.0	120.0

Elastic constants (Fe2P(C22)(x=0.33))

1	2	3	4	5	6
91.7	71.7	48.5	0.0	0.0	0.0
71.7	91.7	48.5	0.0	0.0	0.0
48.5	48.5	91.6	0.0	0.0	0.0
0.0	0.0	0.0	2.9	0.0	0.0
0.0	0.0	0.0	0.0	2.9	0.0
0.0	0.0	0.0	0.0	0.0	10.0

Lattice parameters (MoNi4(D1a)(x=0.80))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.959	7.672	7.672	4.41	90.0	90.0	90.0
DFT	25.825	7.919	7.919	4.119	90.0	90.0	90.0

Elastic constants (MoNi4(D1a)(x=0.80))

1	2	3	4	5	6
51.3	48.4	49.7	0.0	0.0	-1.0
48.4	51.3	49.7	0.0	0.0	1.0
49.7	49.7	56.4	0.0	0.0	0.0
0.0	0.0	0.0	11.0	0.0	0.0
0.0	0.0	0.0	0.0	11.0	0.0
-1.0	1.0	0.0	0.0	0.0	2.4

Lattice parameters (MgZn2(C14)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.099	5.691	5.691	9.027	90.0	90.0	120.0
DFT	21.045	5.691	5.691	9.005	90.0	90.0	120.0

Elastic constants (MgZn2(C14)(x=0.33))

1	2	3	4	5	6
-49691.5	-24836.4	-21054.6	0.0	0.0	-0.1
-24836.4	71.7	-24828.4	0.0	0.0	0.0
-21054.6	-24828.4	7662.4	0.0	0.0	0.0
0.0	0.0	0.0	2.5	0.0	0.0
0.0	0.0	0.0	0.0	2.5	0.0
-0.1	0.0	0.0	0.0	0.0	12.4

Lattice parameters (CrSi2(C40)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.625	5.565	5.565	8.263	90.0	90.0	120.0
DFT	24.609	5.575	5.575	8.228	90.0	90.0	120.0

Elastic constants (CrSi2(C40)(x=0.67))

1	2	3	4	5	6
70.8	65.5	48.7	0.0	0.0	0.0
65.5	70.8	48.7	0.0	0.0	0.0
48.7	48.7	80.8	0.0	0.0	0.0
0.0	0.0	0.0	3.6	0.0	0.0
0.0	0.0	0.0	0.0	3.6	0.0
0.0	0.0	0.0	0.0	0.0	2.6

Lattice parameters (AlCu2Mn(L21)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.276	7.395	7.395	7.395	90.0	90.0	90.0
DFT	25.376	7.405	7.405	7.405	90.0	90.0	90.0

Elastic constants (AlCu2Mn(L21)(x=0.75))

1	2	3	4	5	6
38.4	67.1	67.1	0.0	0.0	0.0
67.1	38.4	67.1	0.0	0.0	0.0
67.1	67.1	38.4	0.0	0.0	0.0
0.0	0.0	0.0	-11.3	0.0	0.0
0.0	0.0	0.0	0.0	-11.3	0.0
0.0	0.0	0.0	0.0	0.0	-11.3

Lattice parameters (InNi2(B82)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.468	7.069	3.462	6.187	90.0	90.0	104.18
DFT	24.539	5.122	5.122	6.481	90.0	90.0	120.0

Elastic constants (InNi2(B82)(x=0.67))

1	2	3	4	5	6
77.4	57.9	38.7	0.0	0.0	-6.9
57.9	73.9	39.5	0.0	0.0	7.8
38.7	39.5	77.0	0.0	0.0	-0.2
0.0	0.0	0.0	8.8	-1.3	0.0
0.0	0.0	0.0	-1.3	4.0	0.0
-6.9	7.8	-0.2	0.0	0.0	18.6

Lattice parameters (AuCu3(L12)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.344	4.663	4.663	4.663	90.0	90.0	90.0
DFT	25.393	4.666	4.666	4.666	90.0	90.0	90.0

Elastic constants (AuCu3(L12)(x=0.75))

1	2	3	4	5	6
59.9	51.1	51.1	0.0	0.0	0.0
51.1	59.9	51.1	0.0	0.0	0.0
51.1	51.1	59.9	0.0	0.0	0.0
0.0	0.0	0.0	11.1	0.0	0.0
0.0	0.0	0.0	0.0	11.1	0.0
0.0	0.0	0.0	0.0	0.0	11.1

Lattice parameters (NiAs(B81)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.367	3.223	4.558	8.614	90.0	90.0	135.0
DFT	22.704	3.38	3.38	9.179	90.0	90.0	120.0

Elastic constants (NiAs(B81)(x=0.50))

1	2	3	4	5	6
73.7	49.8	54.1	0.0	0.0	0.0
49.8	73.7	54.1	0.0	0.0	0.0
54.1	54.1	80.2	0.0	0.0	0.0
0.0	0.0	0.0	5.9	0.0	0.0
0.0	0.0	0.0	0.0	5.9	0.0
0.0	0.0	0.0	0.0	0.0	7.3

Lattice parameters (Al3Ti(D022)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.427	4.274	4.274	8.507	90.0	90.0	90.0
DFT	19.4	4.278	4.278	8.479	90.0	90.0	90.0

Elastic constants (Al3Ti(D022)(x=0.25))

1	2	3	4	5	6
102.1	71.7	75.3	0.0	0.0	0.0
71.7	102.1	75.3	0.0	0.0	0.0
75.3	75.3	105.4	0.0	0.0	0.0
0.0	0.0	0.0	24.2	0.0	0.0
0.0	0.0	0.0	0.0	24.2	0.0
0.0	0.0	0.0	0.0	0.0	25.4

Lattice parameters (Si2U3(D5a)(x=0.60))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.063	7.623	7.623	4.141	90.0	90.0	90.0
DFT	24.038	7.663	7.663	4.093	90.0	90.0	90.0

Elastic constants (Si2U3(D5a)(x=0.60))

1	2	3	4	5	6
62.9	53.5	47.8	0.0	0.0	0.0
53.5	62.9	47.8	0.0	0.0	0.0
47.8	47.8	60.7	0.0	0.0	0.0
0.0	0.0	0.0	14.0	0.0	0.0
0.0	0.0	0.0	0.0	14.0	0.0
0.0	0.0	0.0	0.0	0.0	11.4

Lattice parameters (MgZn2(C14)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.215	6.907	6.907	7.523	90.0	90.0	102.36
DFT	27.164	6.851	6.851	8.018	90.0	90.0	120.0

Elastic constants (MgZn2(C14)(x=0.67))

1	2	3	4	5	6
33.2	20.3	37.3	0.0	0.0	1.0
20.3	34.3	36.2	0.0	0.0	1.6
37.3	36.2	59.7	0.0	0.0	-2.5
0.0	0.0	0.0	14.3	0.0	0.0
0.0	0.0	0.0	0.0	14.3	0.0
1.0	1.6	-2.5	0.0	0.0	7.9

Lattice parameters (CrSi2(C40)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.453	5.222	5.222	7.794	90.0	90.0	120.0
DFT	20.468	5.21	5.21	7.835	90.0	90.0	120.0

Elastic constants (CrSi2(C40)(x=0.33))

1	2	3	4	5	6
104.5	69.7	60.4	0.0	0.0	0.0
69.7	104.5	60.4	0.0	0.0	0.0
60.4	60.4	93.8	0.0	0.0	0.0
0.0	0.0	0.0	-6.9	0.0	0.0
0.0	0.0	0.0	0.0	-6.9	0.0
0.0	0.0	0.0	0.0	0.0	17.4

Lattice parameters (NaTl(B32)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.907	7.156	7.156	7.156	90.0	90.0	90.0
DFT	22.884	7.154	7.154	7.154	90.0	90.0	90.0

Elastic constants (NaTl(B32)(x=0.50))

1	2	3	4	5	6
39.7	70.2	70.2	0.0	0.0	0.0
70.2	39.7	70.2	0.0	0.0	0.0
70.2	70.2	39.7	0.0	0.0	0.0
0.0	0.0	0.0	1.7	0.0	0.0
0.0	0.0	0.0	0.0	1.7	0.0
0.0	0.0	0.0	0.0	0.0	1.7

Lattice parameters (Ni3Ti(D024)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.418	6.052	6.052	9.795	90.0	90.0	120.0
DFT	19.36	6.045	6.045	9.788	90.0	90.0	120.0

Elastic constants (Ni3Ti(D024)(x=0.25))

1	2	3	4	5	6
100.1	62.7	59.4	0.0	0.0	0.0
62.7	100.1	59.4	0.0	0.0	0.0
59.4	59.4	107.5	0.0	0.0	0.0
0.0	0.0	0.0	20.0	0.0	0.0
0.0	0.0	0.0	0.0	20.0	0.0
0.0	0.0	0.0	0.0	0.0	18.7

Lattice parameters (Al3Zr(D023)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.396	4.268	4.268	17.034	90.0	90.0	90.0
DFT	19.405	4.264	4.264	17.074	90.0	90.0	90.0

Elastic constants (Al3Zr(D023)(x=0.25))

1	2	3	4	5	6
99.8	70.9	70.7	0.0	0.0	0.0
70.9	99.8	70.7	0.0	0.0	0.0
70.7	70.7	104.7	0.0	0.0	0.0
0.0	0.0	0.0	25.3	0.0	0.0
0.0	0.0	0.0	0.0	25.3	0.0
0.0	0.0	0.0	0.0	0.0	25.8

Lattice parameters (AuCu(L10)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.367	3.223	3.223	4.307	90.0	90.0	90.0
DFT	22.333	3.237	3.237	4.264	90.0	90.0	90.0

Elastic constants (AuCu(L10)(x=0.50))

1	2	3	4	5	6
73.7	49.8	54.1	0.0	0.0	0.0
49.8	73.7	54.1	0.0	0.0	0.0
54.1	54.1	80.2	0.0	0.0	0.0
0.0	0.0	0.0	5.9	0.0	0.0
0.0	0.0	0.0	0.0	5.9	0.0
0.0	0.0	0.0	0.0	0.0	7.3

Lattice parameters (AlCu2Mn(L21)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.531	6.786	6.786	6.786	90.0	90.0	90.0
DFT	19.527	6.786	6.786	6.786	90.0	90.0	90.0

Elastic constants (AlCu2Mn(L21)(x=0.25))

1	2	3	4	5	6
78.7	78.6	78.6	0.0	0.0	0.0
78.6	78.7	78.6	0.0	0.0	0.0
78.6	78.6	78.7	0.0	0.0	0.0
0.0	0.0	0.0	38.5	0.0	0.0
0.0	0.0	0.0	0.0	38.5	0.0
0.0	0.0	0.0	0.0	0.0	38.5
