gtinv-436 (Mg-Al-2022-06-12)

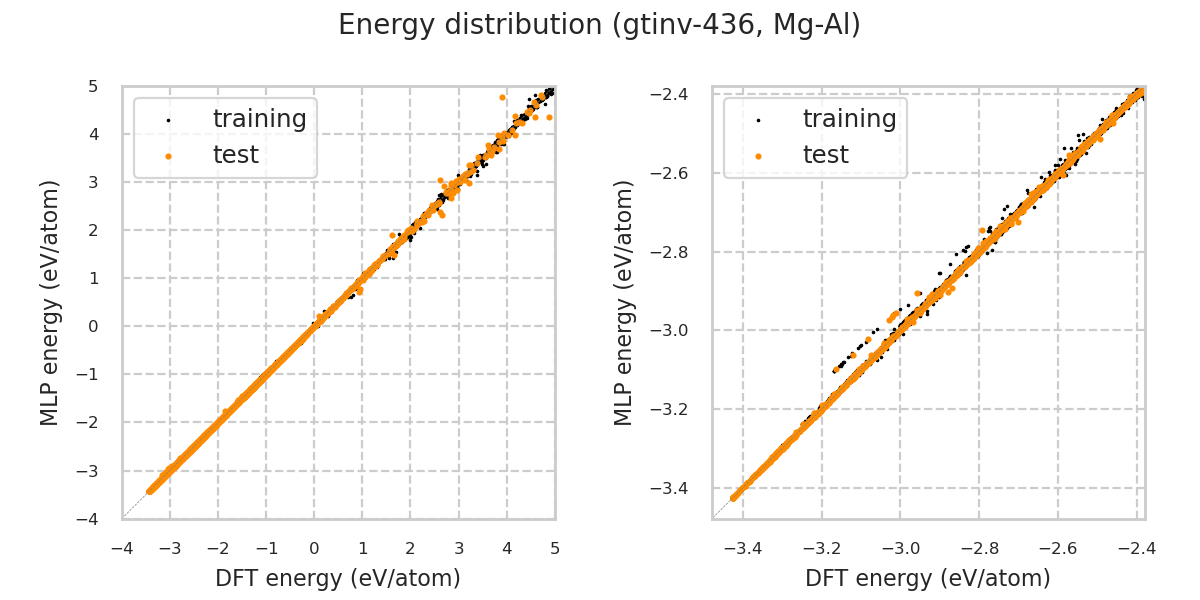

Energy distribution

Convex hull (formation energy)

Stable structures

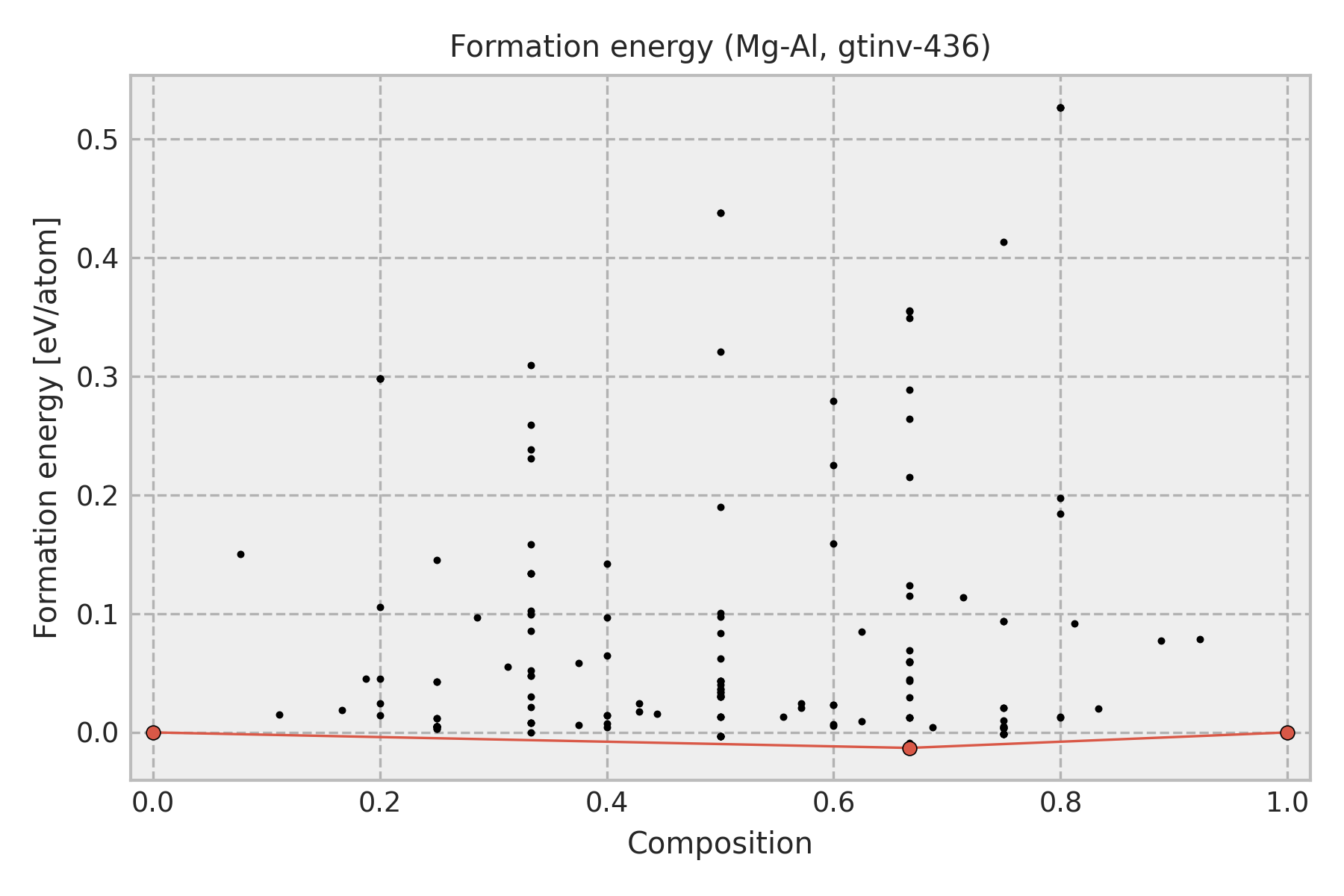

Convex hull (formation energy)

Composition	Formation energy (eV/atom)	Structure
0.0	0.0	Mg
0.6667	-0.0131	icsd-625334-01-[Laves(2H)-MgZn2]
1.0	0.0	Al

The convex hull and stable structures are obtained by performing local structure optimizations only from structure prototypes used for estimating the MLP. Therefore, they are often inconsistent with experimental structures and/or theoretical globally-stable structures. In addition, the prototype is used as the structure legend in the figure. Therefore, the structure type of the converged structure is sometimes different from that shown in the legend even if the potential energy surface predicted by MLP is almost the same as the true one.

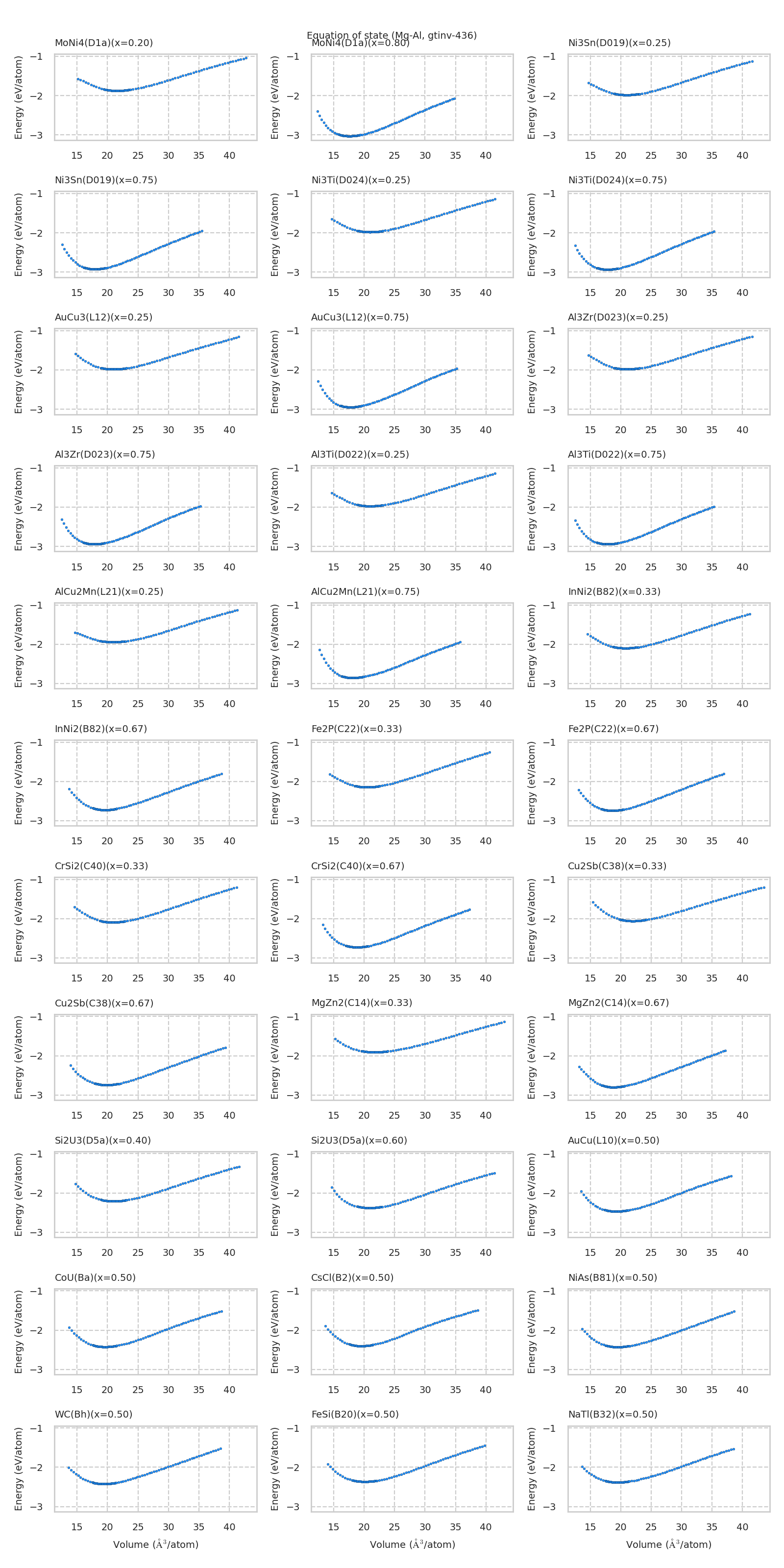

Equation of state for each structure

Prototype structure energy

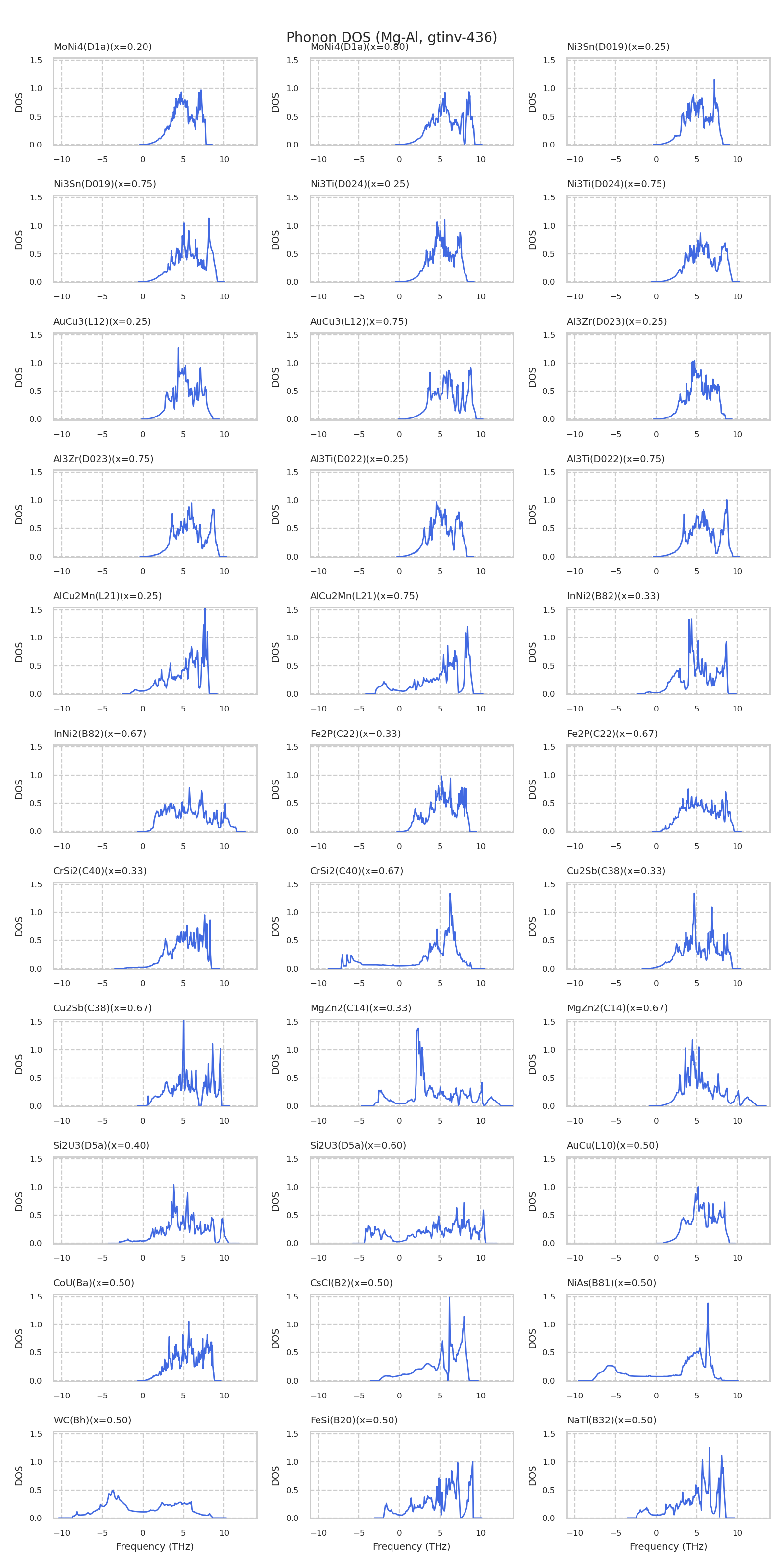

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

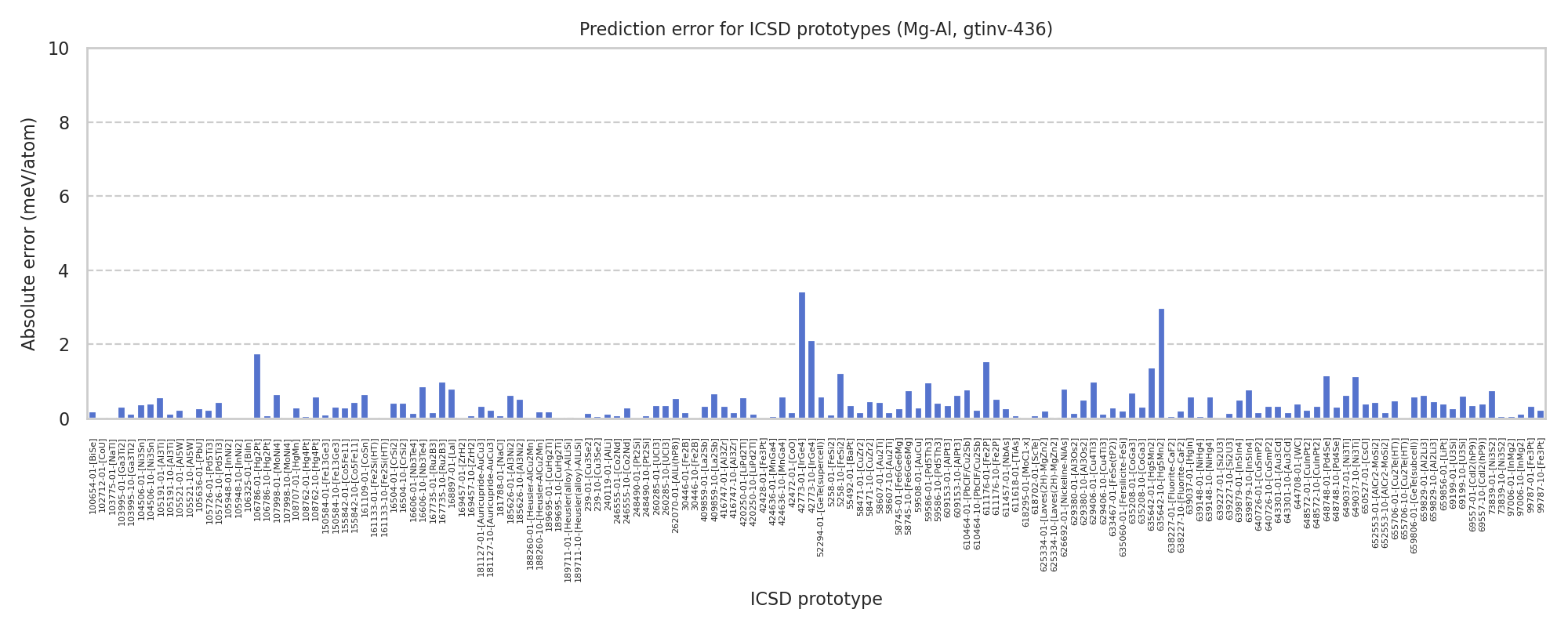

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-58745-01-[Fe6Ge6Mg]	-3.20089	-3.20116
icsd-97006-10-[InMg2]	-3.13609	-3.13621
icsd-105521-10-[Al5W]	-3.08697	-3.08698
icsd-107998-10-[MoNi4]	-3.03058	-3.03059
icsd-150584-10-[Fe13Ge3]	-2.97535	-2.97504
icsd-609153-01-[AlPt3]	-2.94797	-2.94833
icsd-69199-01-[U3Si]	-2.94797	-2.94825
icsd-181127-10-[Auricupride-AuCu3]	-2.94797	-2.9482
icsd-99787-10-[Fe3Pt]	-2.94797	-2.9482
icsd-648572-01-[CuInPt2]	-2.94797	-2.9482
icsd-640726-10-[CuSmP2]	-2.94308	-2.94341
icsd-416747-01-[Al3Zr]	-2.94308	-2.94341
icsd-643301-01-[Au3Cd]	-2.94308	-2.94341
icsd-420250-01-[LiPd2Tl]	-2.94193	-2.9425
icsd-105191-01-[Al3Ti]	-2.94193	-2.9425
icsd-649037-01-[Ni3Ti]	-2.93678	-2.93741
icsd-104506-01-[Ni3Sn]	-2.92611	-2.92648
icsd-260285-01-[UCl3]	-2.9261	-2.92645
icsd-42773-10-[IrGe4]	-2.91775	-2.91987
icsd-648748-10-[Pd4Se]	-2.85836	-2.85867
icsd-189695-01-[CuHg2Ti]	-2.85325	-2.85343
icsd-188260-10-[Heusler-AlCu2Mn]	-2.85325	-2.85343
icsd-167735-10-[Ru2B3]	-2.8446	-2.84361
icsd-155842-10-[Co5Fe11]	-2.82256	-2.82299
icsd-625334-01-[Laves(2H)-MgZn2]	-2.79975	-2.79996
icsd-246555-10-[Co2Nd]	-2.79586	-2.79558
icsd-58607-10-[Au2Ti]	-2.77399	-2.77415
icsd-652553-10-[AlCr2-MoSi2]	-2.77399	-2.77415
icsd-58471-01-[CuZr2]	-2.77399	-2.77415
icsd-635642-01-[Hg5Mn2]	-2.76401	-2.76538
icsd-69557-10-[CdI2(hP9)]	-2.75703	-2.75664
icsd-610464-10-[PbClF/Cu2Sb]	-2.74327	-2.74303
icsd-611176-01-[Fe2P]	-2.74186	-2.7434
icsd-16504-01-[CrSi2]	-2.72771	-2.72729
icsd-409859-10-[La2Sb]	-2.71754	-2.71687
icsd-105726-01-[Pd5Ti3]	-2.69749	-2.69773
icsd-189711-01-[Heusler(alloy)-AlLiSi]	-2.67165	-2.67164
icsd-5258-01-[FeSi2]	-2.66291	-2.66281
icsd-103995-01-[Ga3Ti2]	-2.65316	-2.65285
icsd-629380-10-[Al3Os2]	-2.65172	-2.65223
icsd-161133-10-[Fe2Si(HT)]	-2.6467	-2.64674
icsd-105948-01-[InNi2]	-2.6467	-2.64674
icsd-59586-01-[Pd5Th3]	-2.6209	-2.62186
icsd-629406-10-[Cu4Ti3]	-2.58325	-2.58337
icsd-659829-01-[Al2Li3]	-2.57877	-2.57941
icsd-635208-10-[CoGa3]	-2.53302	-2.5327
icsd-30446-01-[Fe2B]	-2.52214	-2.52229
icsd-639148-10-[NiHg4]	-2.51629	-2.51571
icsd-108762-10-[Hg4Pt]	-2.51629	-2.51571
icsd-424636-10-[MnGa4]	-2.51629	-2.51571
icsd-639879-10-[In5In4]	-2.50308	-2.50231
icsd-655706-10-[Cu2Te(HT)]	-2.49797	-2.49794
icsd-239-10-[Cu3Se2]	-2.49416	-2.4942
icsd-108707-01-[HgMn]	-2.46977	-2.46948
icsd-59508-01-[AuCu]	-2.46977	-2.46948
icsd-633467-01-[FeSe(tP2)]	-2.46977	-2.46948
icsd-42428-01-[Fe3Pt]	-2.46977	-2.46974
icsd-106325-01-[BiIn]	-2.46977	-2.4698
icsd-105636-01-[PbU]	-2.45318	-2.45291
icsd-611457-01-[NbAs]	-2.45318	-2.45291
icsd-659806-01-[GeTe(subcell)]	-2.43638	-2.43697
icsd-639037-01-[HgIn]	-2.43638	-2.43697
icsd-52294-01-[GeTe(supercell)]	-2.43638	-2.43697
icsd-100654-01-[BiSe]	-2.43512	-2.43531
icsd-185626-10-[Al3Ni2]	-2.43294	-2.43241
icsd-611618-01-[TiAs]	-2.43257	-2.43264
icsd-618702-01-[ScTe]	-2.43257	-2.43264
icsd-106786-10-[Hg2Pt]	-2.43189	-2.4318
icsd-169457-10-[ZrH2]	-2.43098	-2.43106
icsd-248490-10-[Pt2Si]	-2.43095	-2.43102
icsd-638227-10-[Fluorite-CaF2]	-2.43094	-2.43073
icsd-168897-01-[LaI]	-2.42991	-2.43071
icsd-626692-01-[Nickeline-NiAs]	-2.42991	-2.43071
icsd-102712-01-[CoU]	-2.42639	-2.42638
icsd-644708-01-[WC]	-2.42305	-2.42344
icsd-659856-01-[LiPt]	-2.42305	-2.42345
icsd-650527-01-[CsCl]	-2.40423	-2.40463
icsd-618295-01-[MoC1-x]	-2.39013	-2.39008
icsd-16606-01-[Nb3Te4]	-2.38938	-2.38925
icsd-240119-01-[AlLi]	-2.38314	-2.38302
icsd-103775-01-[NaTl]	-2.3831	-2.38309
icsd-639227-10-[Si2U3]	-2.3781	-2.37824
icsd-262070-01-[AlLi(hP8)]	-2.36914	-2.36859
icsd-635060-01-[Fersilicite-FeSi]	-2.36568	-2.36588
icsd-73839-10-[Ni3S2]	-2.36556	-2.36561
icsd-629406-01-[Cu4Ti3]	-2.31155	-2.31055
icsd-16606-10-[Nb3Te4]	-2.30494	-2.30408
icsd-639879-01-[In5In4]	-2.28262	-2.28212
icsd-55492-01-[BaPt]	-2.2764	-2.27674
icsd-103995-10-[Ga3Ti2]	-2.27027	-2.27014
icsd-105726-10-[Pd5Ti3]	-2.21991	-2.22036
icsd-629380-01-[Al3Os2]	-2.21353	-2.21339
icsd-639227-01-[Si2U3]	-2.20959	-2.20955
icsd-659829-10-[Al2Li3]	-2.19907	-2.1986
icsd-59586-10-[Pd5Th3]	-2.16799	-2.16841
icsd-611176-10-[Fe2P]	-2.14617	-2.14565
icsd-161109-01-[CoSn]	-2.14505	-2.1444
icsd-185626-01-[Al3Ni2]	-2.14298	-2.14235
icsd-58471-10-[CuZr2]	-2.13791	-2.13746
icsd-58607-01-[Au2Ti]	-2.13789	-2.13745
icsd-652553-01-[AlCr2-MoSi2]	-2.13788	-2.13744
icsd-239-01-[Cu3Se2]	-2.13238	-2.13223
icsd-30446-10-[Fe2B]	-2.1247	-2.12467
icsd-69557-01-[CdI2(hP9)]	-2.11635	-2.11671
icsd-105948-10-[InNi2]	-2.09828	-2.09826
icsd-161133-01-[Fe2Si(HT)]	-2.09828	-2.09826
icsd-16504-10-[CrSi2]	-2.09399	-2.09442
icsd-610464-01-[PbClF/Cu2Sb]	-2.06048	-2.06126
icsd-155842-01-[Co5Fe11]	-2.04999	-2.05029
icsd-409859-01-[La2Sb]	-2.04663	-2.0463
icsd-5258-10-[FeSi2]	-2.04393	-2.04269
icsd-42472-01-[CoO]	-2.02876	-2.02893
icsd-181788-01-[NaCl]	-2.02876	-2.02883
icsd-248490-01-[Pt2Si]	-2.01193	-2.0119
icsd-638227-01-[Fluorite-CaF2]	-2.01193	-2.01187
icsd-169457-01-[ZrH2]	-2.0119	-2.01187
icsd-106786-01-[Hg2Pt]	-1.98514	-1.9869
icsd-260285-10-[UCl3]	-1.98286	-1.98251
icsd-104506-10-[Ni3Sn]	-1.98285	-1.98245
icsd-69199-10-[U3Si]	-1.98123	-1.98183
icsd-609153-10-[AlPt3]	-1.98122	-1.98185
icsd-648572-10-[CuInPt2]	-1.98122	-1.98155
icsd-181127-01-[Auricupride-AuCu3]	-1.98122	-1.98155
icsd-99787-01-[Fe3Pt]	-1.9812	-1.98153
icsd-649037-10-[Ni3Ti]	-1.98101	-1.97987
icsd-643301-10-[Au3Cd]	-1.98074	-1.98057
icsd-416747-10-[Al3Zr]	-1.98074	-1.98057
icsd-640726-01-[CuSmP2]	-1.98074	-1.98057
icsd-420250-10-[LiPd2Tl]	-1.97405	-1.97418
icsd-105191-10-[Al3Ti]	-1.97405	-1.97418
icsd-635642-10-[Hg5Mn2]	-1.95799	-1.95502
icsd-73839-01-[Ni3S2]	-1.95327	-1.95252
icsd-189695-10-[CuHg2Ti]	-1.94349	-1.94346
icsd-188260-01-[Heusler-AlCu2Mn]	-1.94349	-1.94346
icsd-246555-01-[Co2Nd]	-1.91527	-1.91518
icsd-625334-10-[Laves(2H)-MgZn2]	-1.90759	-1.90759
icsd-655706-01-[Cu2Te(HT)]	-1.88671	-1.88718
icsd-107998-01-[MoNi4]	-1.87491	-1.87557
icsd-167735-01-[Ru2B3]	-1.86561	-1.86544
icsd-635208-01-[CoGa3]	-1.84077	-1.84006
icsd-189711-10-[Heusler(alloy)-AlLiSi]	-1.83667	-1.8367
icsd-150584-01-[Fe13Ge3]	-1.82079	-1.82089
icsd-105521-01-[Al5W]	-1.80708	-1.80731
icsd-42773-01-[IrGe4]	-1.79042	-1.787
icsd-648748-01-[Pd4Se]	-1.78288	-1.78403
icsd-97006-01-[InMg2]	-1.70413	-1.70408
icsd-639148-01-[NiHg4]	-1.59193	-1.59188
icsd-108762-01-[Hg4Pt]	-1.59193	-1.59188
icsd-424636-01-[MnGa4]	-1.59193	-1.59188
icsd-58745-10-[Fe6Ge6Mg]	-1.50338	-1.50263

Lattice parameters (CoU(Ba)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.56	6.789	6.789	6.789	90.0	90.0	90.0
DFT	19.583	6.792	6.792	6.792	90.0	90.0	90.0

Elastic constants (CoU(Ba)(x=0.50))

1	2	3	4	5	6
58.3	59.1	59.1	0.0	0.0	0.0
59.1	58.3	59.1	0.0	0.0	0.0
59.1	59.1	58.3	0.0	0.0	0.0
0.0	0.0	0.0	29.2	0.0	0.0
0.0	0.0	0.0	0.0	29.2	0.0
0.0	0.0	0.0	0.0	0.0	29.2

Lattice parameters (InNi2(B82)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.795	4.873	4.873	6.067	90.0	90.0	120.0
DFT	20.787	4.879	4.879	6.05	90.0	90.0	120.0

Elastic constants (InNi2(B82)(x=0.33))

1	2	3	4	5	6
68.7	55.2	25.2	0.0	0.0	0.0
55.2	68.7	25.2	0.0	0.0	0.0
25.2	25.2	81.3	0.0	0.0	0.0
0.0	0.0	0.0	7.4	0.0	0.0
0.0	0.0	0.0	0.0	7.4	0.0
0.0	0.0	0.0	0.0	0.0	6.8

Lattice parameters (WC(Bh)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.454	3.035	3.035	4.877	90.0	90.0	120.0
DFT	19.434	3.034	3.034	4.874	90.0	90.0	120.0

Elastic constants (WC(Bh)(x=0.50))

1	2	3	4	5	6
75.9	36.4	37.5	0.0	0.0	0.0
36.4	75.9	37.5	0.0	0.0	0.0
37.5	37.5	103.3	0.0	0.0	0.0
0.0	0.0	0.0	18.1	0.0	0.0
0.0	0.0	0.0	0.0	18.1	0.0
0.0	0.0	0.0	0.0	0.0	19.7

Lattice parameters (MoNi4(D1a)(x=0.20))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.59	7.011	7.011	4.393	90.0	90.0	90.0
DFT	21.431	6.959	6.959	4.425	90.0	90.0	90.0

Elastic constants (MoNi4(D1a)(x=0.20))

1	2	3	4	5	6
68.1	33.6	36.1	0.0	0.0	-2.2
33.6	68.1	36.1	0.0	0.0	2.2
36.1	36.1	66.3	0.0	0.0	0.0
0.0	0.0	0.0	23.7	0.0	0.0
0.0	0.0	0.0	0.0	23.7	0.0
-2.2	2.2	0.0	0.0	0.0	18.4

Lattice parameters (Al3Ti(D022)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.825	4.136	4.136	8.337	90.0	90.0	90.0
DFT	17.841	4.129	4.129	8.374	90.0	90.0	90.0

Elastic constants (Al3Ti(D022)(x=0.75))

1	2	3	4	5	6
94.5	40.8	41.7	0.0	0.0	0.0
40.8	94.5	41.7	0.0	0.0	0.0
41.7	41.7	89.0	0.0	0.0	0.0
0.0	0.0	0.0	33.9	0.0	0.0
0.0	0.0	0.0	0.0	33.9	0.0
0.0	0.0	0.0	0.0	0.0	37.2

Lattice parameters (CsCl(B2)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.51	3.392	3.392	3.392	90.0	90.0	90.0
DFT	19.412	3.386	3.386	3.386	90.0	90.0	90.0

Elastic constants (CsCl(B2)(x=0.50))

1	2	3	4	5	6
43.2	68.8	68.8	0.0	0.0	0.0
68.8	43.2	68.8	0.0	0.0	0.0
68.8	68.8	43.2	0.0	0.0	0.0
0.0	0.0	0.0	37.9	0.0	0.0
0.0	0.0	0.0	0.0	37.9	0.0
0.0	0.0	0.0	0.0	0.0	37.9

Lattice parameters (AuCu3(L12)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.986	4.379	4.379	4.379	90.0	90.0	90.0
DFT	20.936	4.375	4.375	4.375	90.0	90.0	90.0

Elastic constants (AuCu3(L12)(x=0.25))

1	2	3	4	5	6
68.4	31.0	31.0	0.0	0.0	0.0
31.0	68.4	31.0	0.0	0.0	0.0
31.0	31.0	68.4	0.0	0.0	0.0
0.0	0.0	0.0	28.0	0.0	0.0
0.0	0.0	0.0	0.0	28.0	0.0
0.0	0.0	0.0	0.0	0.0	28.0

Lattice parameters (Cu2Sb(C38)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.965	4.214	4.214	7.422	90.0	90.0	90.0
DFT	22.021	4.2	4.2	7.488	90.0	90.0	90.0

Elastic constants (Cu2Sb(C38)(x=0.33))

1	2	3	4	5	6
54.4	52.1	41.3	0.0	0.0	0.0
52.1	54.4	41.3	0.0	0.0	0.0
41.3	41.3	86.6	0.0	0.0	0.0
0.0	0.0	0.0	-2.9	0.0	0.0
0.0	0.0	0.0	0.0	-2.9	0.0
0.0	0.0	0.0	0.0	0.0	31.0

Lattice parameters (Al3Zr(D023)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.81	4.135	4.135	16.668	90.0	90.0	90.0
DFT	17.798	4.125	4.125	16.734	90.0	90.0	90.0

Elastic constants (Al3Zr(D023)(x=0.75))

1	2	3	4	5	6
100.5	47.1	44.9	0.0	0.0	0.0
47.1	100.5	44.9	0.0	0.0	0.0
44.9	44.9	92.9	0.0	0.0	0.0
0.0	0.0	0.0	31.8	0.0	0.0
0.0	0.0	0.0	0.0	31.8	0.0
0.0	0.0	0.0	0.0	0.0	35.7

Lattice parameters (FeSi(B20)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.084	5.436	5.436	5.436	90.0	90.0	90.0
DFT	20.147	5.442	5.442	5.442	90.0	90.0	90.0

Elastic constants (FeSi(B20)(x=0.50))

1	2	3	4	5	6
23.7	61.1	61.1	0.0	0.0	0.0
61.1	23.7	61.1	0.0	0.0	0.0
61.1	61.1	23.8	0.0	0.0	0.0
0.0	0.0	0.0	-38.2	0.0	0.0
0.0	0.0	0.0	0.0	-38.2	0.0
0.0	0.0	0.0	0.0	0.0	-38.2

Lattice parameters (Si2U3(D5a)(x=0.40))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.016	8.149	8.149	3.165	90.0	90.0	90.0
DFT	20.922	8.098	8.098	3.19	90.0	90.0	90.0

Elastic constants (Si2U3(D5a)(x=0.40))

1	2	3	4	5	6
39.9	58.0	40.4	0.0	0.0	0.0
58.0	39.9	40.4	0.0	0.0	0.0
40.4	40.4	70.5	0.0	0.0	0.0
0.0	0.0	0.0	25.5	0.0	0.0
0.0	0.0	0.0	0.0	25.5	0.0
0.0	0.0	0.0	0.0	0.0	18.7

Lattice parameters (Ni3Sn(D019)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.985	6.201	6.201	5.041	90.0	90.0	120.0
DFT	20.915	6.19	6.19	5.042	90.0	90.0	120.0

Elastic constants (Ni3Sn(D019)(x=0.25))

1	2	3	4	5	6
78.5	38.1	29.9	0.0	0.0	0.0
38.1	78.5	29.9	0.0	0.0	0.0
29.9	29.9	70.1	0.0	0.0	0.0
0.0	0.0	0.0	18.4	0.0	0.0
0.0	0.0	0.0	0.0	18.4	0.0
0.0	0.0	0.0	0.0	0.0	20.2

Lattice parameters (Fe2P(C22)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.652	2.956	14.225	7.983	90.0	90.0	90.0
DFT	18.606	2.968	14.081	8.015	90.0	90.0	90.0

Elastic constants (Fe2P(C22)(x=0.67))

1	2	3	4	5	6
99.3	39.2	38.7	0.0	0.0	0.0
39.2	93.0	46.0	0.0	0.0	0.0
38.7	46.0	95.7	0.0	0.0	0.0
0.0	0.0	0.0	19.7	0.0	0.0
0.0	0.0	0.0	0.0	10.5	0.0
0.0	0.0	0.0	0.0	0.0	-1.2

Lattice parameters (Cu2Sb(C38)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.869	4.081	4.081	7.156	90.0	90.0	90.0
DFT	19.828	4.085	4.085	7.13	90.0	90.0	90.0

Elastic constants (Cu2Sb(C38)(x=0.67))

1	2	3	4	5	6
70.9	50.1	48.6	0.0	0.0	0.0
50.1	70.9	48.6	0.0	0.0	0.0
48.6	48.6	73.6	0.0	0.0	0.0
0.0	0.0	0.0	9.8	0.0	0.0
0.0	0.0	0.0	0.0	9.8	0.0
0.0	0.0	0.0	0.0	0.0	28.6

Lattice parameters (Ni3Sn(D019)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.914	5.89	5.89	4.771	90.0	90.0	120.0
DFT	17.854	5.87	5.87	4.787	90.0	90.0	120.0

Elastic constants (Ni3Sn(D019)(x=0.75))

1	2	3	4	5	6
82.5	54.7	47.6	0.0	0.0	0.0
54.7	82.5	47.6	0.0	0.0	0.0
47.6	47.6	114.9	0.0	0.0	0.0
0.0	0.0	0.0	14.0	0.0	0.0
0.0	0.0	0.0	0.0	14.0	0.0
0.0	0.0	0.0	0.0	0.0	13.9

Lattice parameters (Ni3Ti(D024)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.836	5.871	5.871	9.56	90.0	90.0	120.0
DFT	17.783	5.857	5.857	9.577	90.0	90.0	120.0

Elastic constants (Ni3Ti(D024)(x=0.75))

1	2	3	4	5	6
100.5	49.9	46.6	0.0	0.0	0.0
49.9	100.5	46.6	0.0	0.0	0.0
46.6	46.6	116.1	0.0	0.0	0.0
0.0	0.0	0.0	24.4	0.0	0.0
0.0	0.0	0.0	0.0	24.4	0.0
0.0	0.0	0.0	0.0	0.0	25.3

Lattice parameters (Fe2P(C22)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.516	8.24	8.24	3.14	90.0	90.0	120.0
DFT	20.597	8.22	8.22	3.168	90.0	90.0	120.0

Elastic constants (Fe2P(C22)(x=0.33))

1	2	3	4	5	6
87.7	38.4	32.1	0.0	0.0	0.0
38.4	87.7	32.1	0.0	0.0	0.0
32.1	32.1	72.9	0.0	0.0	0.0
0.0	0.0	0.0	17.6	0.0	0.0
0.0	0.0	0.0	0.0	17.6	0.0
0.0	0.0	0.0	0.0	0.0	24.6

Lattice parameters (MoNi4(D1a)(x=0.80))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.576	6.55	6.55	4.097	90.0	90.0	90.0
DFT	17.569	6.555	6.555	4.088	90.0	90.0	90.0

Elastic constants (MoNi4(D1a)(x=0.80))

1	2	3	4	5	6
87.5	42.3	46.2	0.0	0.0	-3.7
42.3	87.5	46.2	0.0	0.0	3.7
46.2	46.2	81.0	0.0	0.0	0.0
0.0	0.0	0.0	32.2	0.0	0.0
0.0	0.0	0.0	0.0	32.2	0.0
-3.7	3.7	0.0	0.0	0.0	23.5

Lattice parameters (MgZn2(C14)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.713	5.704	5.704	9.249	90.0	90.0	120.0
DFT	21.701	5.701	5.701	9.252	90.0	90.0	120.0

Elastic constants (MgZn2(C14)(x=0.33))

1	2	3	4	5	6
37.1	22.1	34.1	0.0	0.0	-0.1
22.1	37.1	34.1	0.0	0.0	0.0
34.1	34.1	107.8	0.0	0.0	0.0
0.0	0.0	0.0	21.0	0.0	0.0
0.0	0.0	0.0	0.0	21.0	0.0
-0.1	0.0	0.0	0.0	0.0	7.5

Lattice parameters (CrSi2(C40)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.851	5.103	5.103	7.524	90.0	90.0	120.0
DFT	18.782	5.099	5.099	7.509	90.0	90.0	120.0

Elastic constants (CrSi2(C40)(x=0.67))

1	2	3	4	5	6
98.8	50.5	36.1	0.0	0.0	0.0
50.5	98.8	36.1	0.0	0.0	0.0
36.1	36.1	100.3	0.0	0.0	0.0
0.0	0.0	0.0	-19.0	0.0	0.0
0.0	0.0	0.0	0.0	-19.0	0.0
0.0	0.0	0.0	0.0	0.0	24.2

Lattice parameters (AlCu2Mn(L21)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.08	6.614	6.614	6.614	90.0	90.0	90.0
DFT	18.092	6.615	6.615	6.615	90.0	90.0	90.0

Elastic constants (AlCu2Mn(L21)(x=0.75))

1	2	3	4	5	6
36.6	71.7	71.7	0.0	0.0	0.0
71.7	36.6	71.7	0.0	0.0	0.0
71.7	71.7	36.6	0.0	0.0	0.0
0.0	0.0	0.0	35.3	0.0	0.0
0.0	0.0	0.0	0.0	35.3	0.0
0.0	0.0	0.0	0.0	0.0	35.3

Lattice parameters (InNi2(B82)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.555	5.41	4.372	5.423	90.0	90.0	113.84
DFT	18.799	4.772	4.772	5.719	90.0	90.0	120.0

Elastic constants (InNi2(B82)(x=0.67))

1	2	3	4	5	6
76.8	40.2	42.1	0.0	0.0	2.8
40.2	81.3	52.1	0.0	0.0	-5.3
42.1	52.1	116.3	0.0	0.0	-5.5
0.0	0.0	0.0	27.7	-4.2	0.0
0.0	0.0	0.0	-4.2	20.1	0.0
2.8	-5.3	-5.5	0.0	0.0	20.2

Lattice parameters (AuCu3(L12)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.784	4.143	4.143	4.143	90.0	90.0	90.0
DFT	17.718	4.138	4.138	4.138	90.0	90.0	90.0

Elastic constants (AuCu3(L12)(x=0.75))

1	2	3	4	5	6
106.5	45.8	45.8	0.0	0.0	0.0
45.8	106.5	45.8	0.0	0.0	0.0
45.8	45.8	106.5	0.0	0.0	0.0
0.0	0.0	0.0	34.1	0.0	0.0
0.0	0.0	0.0	0.0	34.1	0.0
0.0	0.0	0.0	0.0	0.0	34.1

Lattice parameters (NiAs(B81)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.496	3.051	3.051	9.675	90.0	90.0	120.0
DFT	19.481	3.047	3.047	9.692	90.0	90.0	120.0

Elastic constants (NiAs(B81)(x=0.50))

1	2	3	4	5	6
77.0	35.6	39.9	0.0	0.0	0.0
35.6	77.0	39.9	0.0	0.0	0.0
39.9	39.9	93.5	0.0	0.0	0.0
0.0	0.0	0.0	23.5	0.0	0.0
0.0	0.0	0.0	0.0	23.5	0.0
0.0	0.0	0.0	0.0	0.0	20.7

Lattice parameters (Al3Ti(D022)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.956	4.393	4.393	8.688	90.0	90.0	90.0
DFT	21.015	4.389	4.389	8.727	90.0	90.0	90.0

Elastic constants (Al3Ti(D022)(x=0.25))

1	2	3	4	5	6
66.8	27.8	33.5	0.0	0.0	0.0
27.8	66.8	33.5	0.0	0.0	0.0
33.5	33.5	59.7	0.0	0.0	0.0
0.0	0.0	0.0	23.4	0.0	0.0
0.0	0.0	0.0	0.0	23.4	0.0
0.0	0.0	0.0	0.0	0.0	25.9

Lattice parameters (Si2U3(D5a)(x=0.60))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.906	7.113	7.113	4.132	90.0	90.0	90.0
DFT	20.881	7.184	7.184	4.046	90.0	90.0	90.0

Elastic constants (Si2U3(D5a)(x=0.60))

1	2	3	4	5	6
-9.8	119.4	33.4	0.0	0.0	0.0
119.4	-9.8	33.4	0.0	0.0	0.0
33.4	33.4	68.5	0.0	0.0	0.0
0.0	0.0	0.0	17.1	0.0	0.0
0.0	0.0	0.0	0.0	17.1	0.0
0.0	0.0	0.0	0.0	0.0	11.2

Lattice parameters (MgZn2(C14)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.772	5.446	5.446	8.77	90.0	90.0	120.0
DFT	18.79	5.433	5.433	8.819	90.0	90.0	120.0

Elastic constants (MgZn2(C14)(x=0.67))

1	2	3	4	5	6
99.2	45.6	45.7	0.0	0.0	0.0
45.6	99.2	45.7	0.0	0.0	0.0
45.7	45.7	84.5	0.0	0.0	0.0
0.0	0.0	0.0	18.6	0.0	0.0
0.0	0.0	0.0	0.0	18.6	0.0
0.0	0.0	0.0	0.0	0.0	26.8

Lattice parameters (CrSi2(C40)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.796	5.263	5.263	7.801	90.0	90.0	120.0
DFT	20.836	5.262	5.262	7.819	90.0	90.0	120.0

Elastic constants (CrSi2(C40)(x=0.33))

1	2	3	4	5	6
85.3	39.2	31.9	0.0	0.0	0.0
39.2	85.3	31.9	0.0	0.0	0.0
31.9	31.9	93.3	0.0	0.0	0.0
0.0	0.0	0.0	-30.9	0.0	0.0
0.0	0.0	0.0	0.0	-30.9	0.0
0.0	0.0	0.0	0.0	0.0	23.0

Lattice parameters (NaTl(B32)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.435	6.775	6.775	6.775	90.0	90.0	90.0
DFT	19.496	6.782	6.782	6.782	90.0	90.0	90.0

Elastic constants (NaTl(B32)(x=0.50))

1	2	3	4	5	6
33.5	56.1	56.1	0.0	0.0	0.0
56.1	33.5	56.1	0.0	0.0	0.0
56.1	56.1	33.5	0.0	0.0	0.0
0.0	0.0	0.0	23.1	0.0	0.0
0.0	0.0	0.0	0.0	23.1	0.0
0.0	0.0	0.0	0.0	0.0	23.1

Lattice parameters (Ni3Ti(D024)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.967	6.2	6.2	10.076	90.0	90.0	120.0
DFT	20.943	6.184	6.184	10.119	90.0	90.0	120.0

Elastic constants (Ni3Ti(D024)(x=0.25))

1	2	3	4	5	6
79.9	34.3	29.9	0.0	0.0	0.0
34.3	79.9	29.9	0.0	0.0	0.0
29.9	29.9	76.8	0.0	0.0	0.0
0.0	0.0	0.0	20.3	0.0	0.0
0.0	0.0	0.0	0.0	20.3	0.0
0.0	0.0	0.0	0.0	0.0	22.8

Lattice parameters (Al3Zr(D023)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.979	4.38	4.38	17.5	90.0	90.0	90.0
DFT	20.951	4.396	4.396	17.344	90.0	90.0	90.0

Elastic constants (Al3Zr(D023)(x=0.25))

1	2	3	4	5	6
69.7	30.6	35.0	0.0	0.0	0.0
30.6	69.7	35.0	0.0	0.0	0.0
35.0	35.0	71.5	0.0	0.0	0.0
0.0	0.0	0.0	25.9	0.0	0.0
0.0	0.0	0.0	0.0	25.9	0.0
0.0	0.0	0.0	0.0	0.0	27.8

Lattice parameters (AuCu(L10)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.254	3.001	3.001	4.275	90.0	90.0	90.0
DFT	19.233	3.001	3.001	4.271	90.0	90.0	90.0

Elastic constants (AuCu(L10)(x=0.50))

1	2	3	4	5	6
95.2	28.4	38.6	0.0	0.0	0.0
28.4	95.2	38.6	0.0	0.0	0.0
38.6	38.6	102.3	0.0	0.0	0.0
0.0	0.0	0.0	28.3	0.0	0.0
0.0	0.0	0.0	0.0	28.3	0.0
0.0	0.0	0.0	0.0	0.0	31.0

Lattice parameters (AlCu2Mn(L21)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.873	6.938	6.938	6.938	90.0	90.0	90.0
DFT	20.901	6.941	6.941	6.941	90.0	90.0	90.0

Elastic constants (AlCu2Mn(L21)(x=0.25))

1	2	3	4	5	6
33.6	43.4	43.4	0.0	0.0	0.0
43.4	33.6	43.4	0.0	0.0	0.0
43.4	43.4	33.6	0.0	0.0	0.0
0.0	0.0	0.0	33.9	0.0	0.0
0.0	0.0	0.0	0.0	33.9	0.0
0.0	0.0	0.0	0.0	0.0	33.9
