gtinv-175 (Al-2021-08-04-all-icsd)

Energy distribution

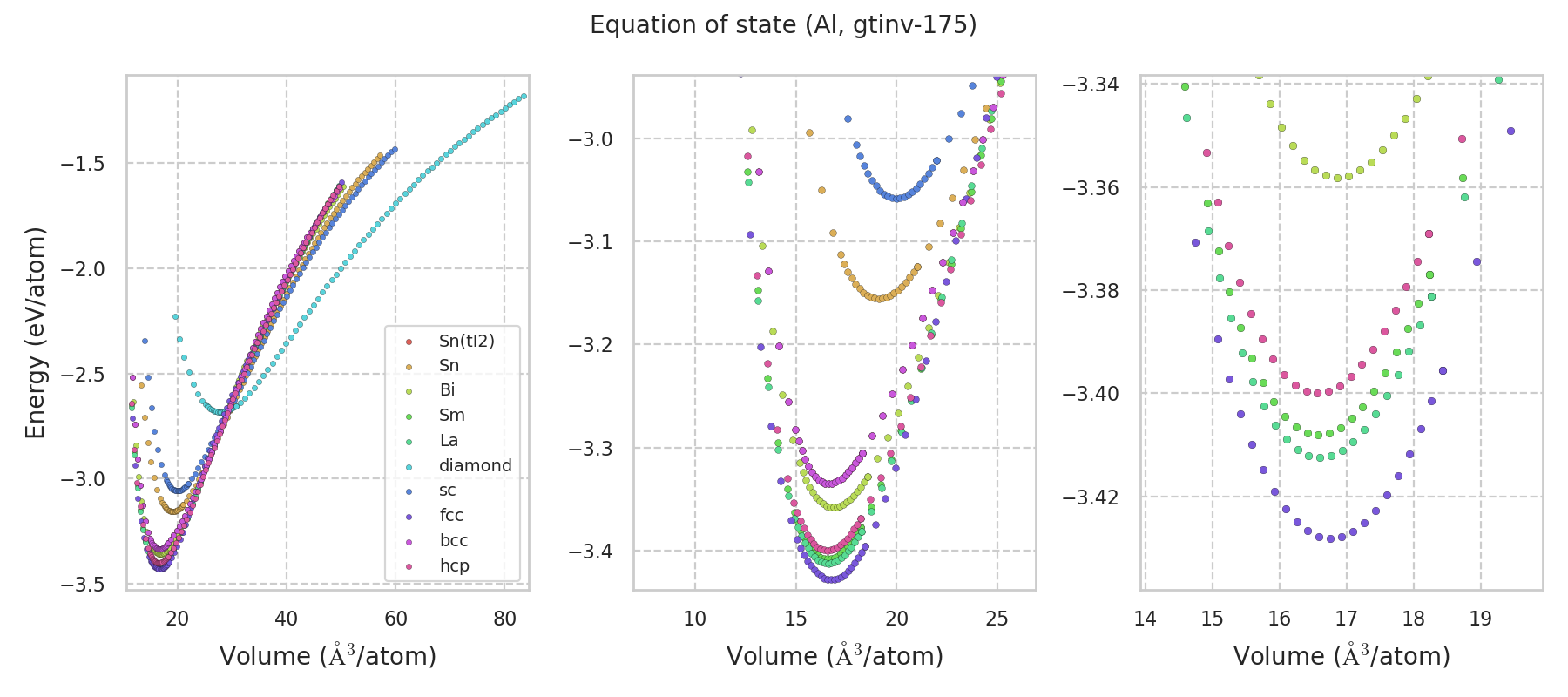

Equation of state

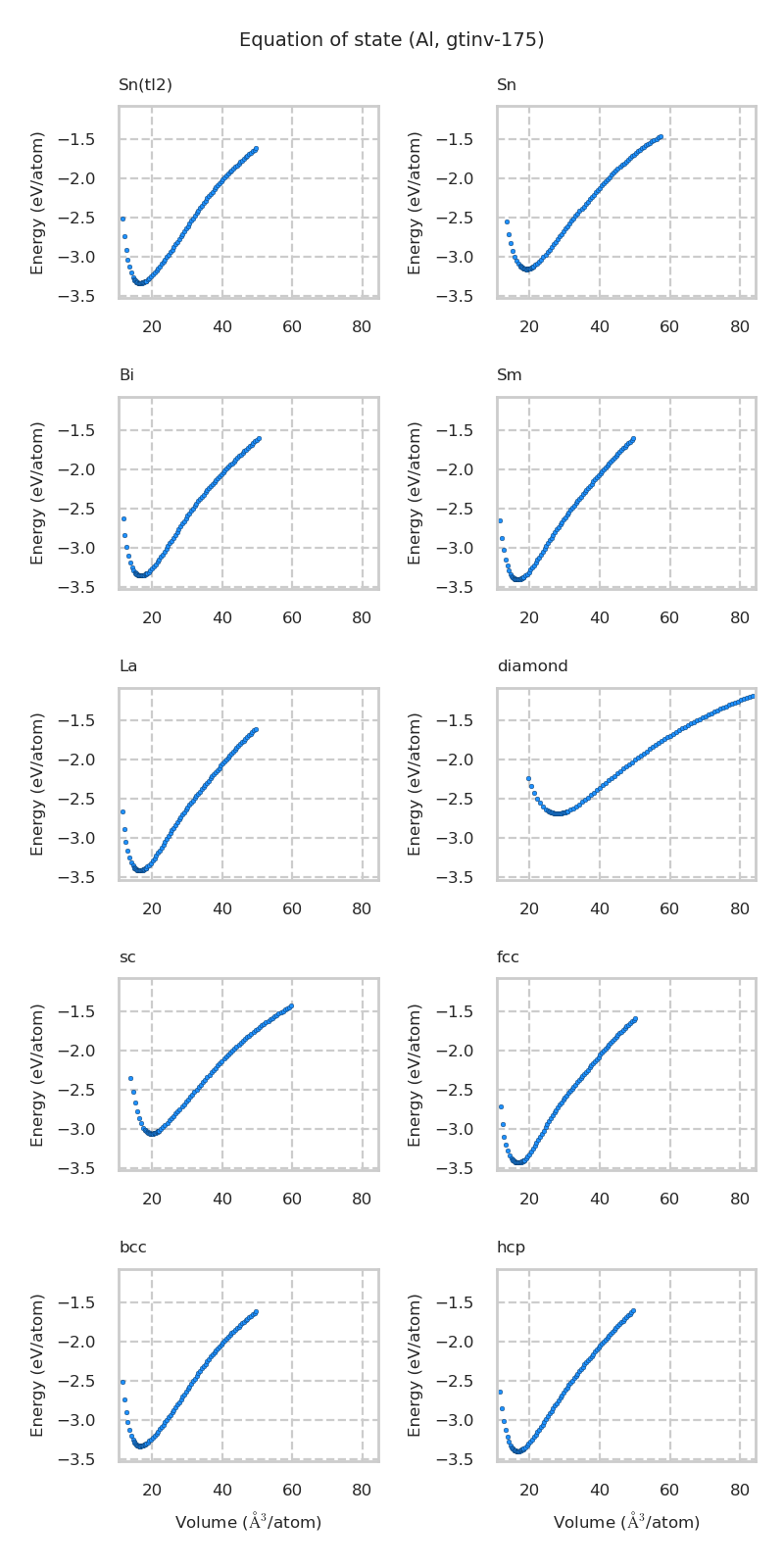

Equation of state for each structure

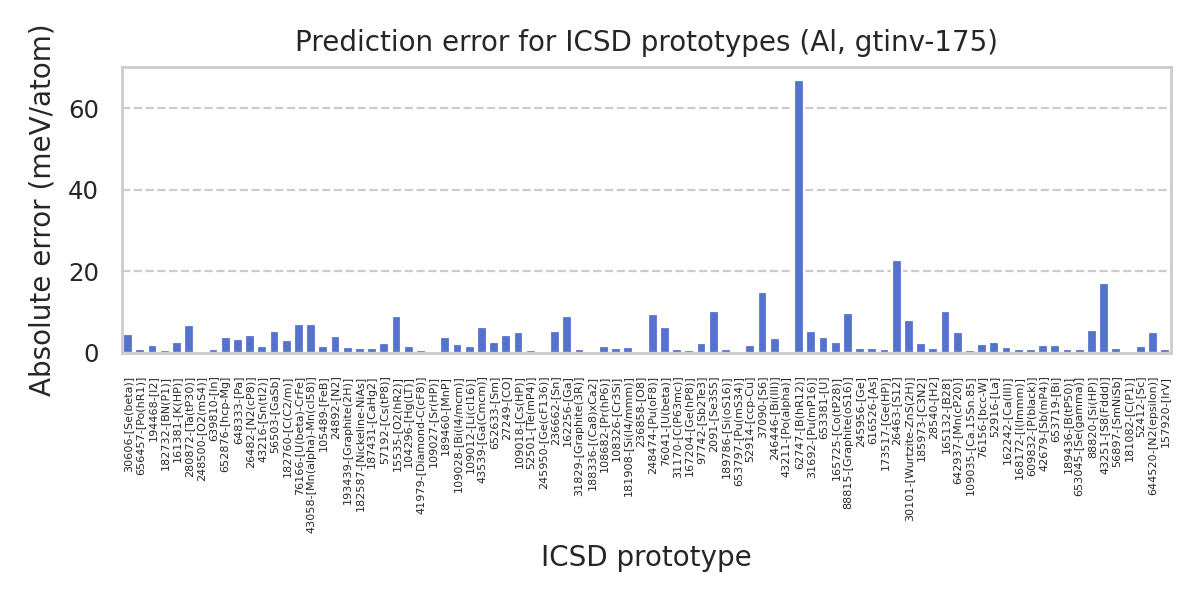

Prototype structure energy

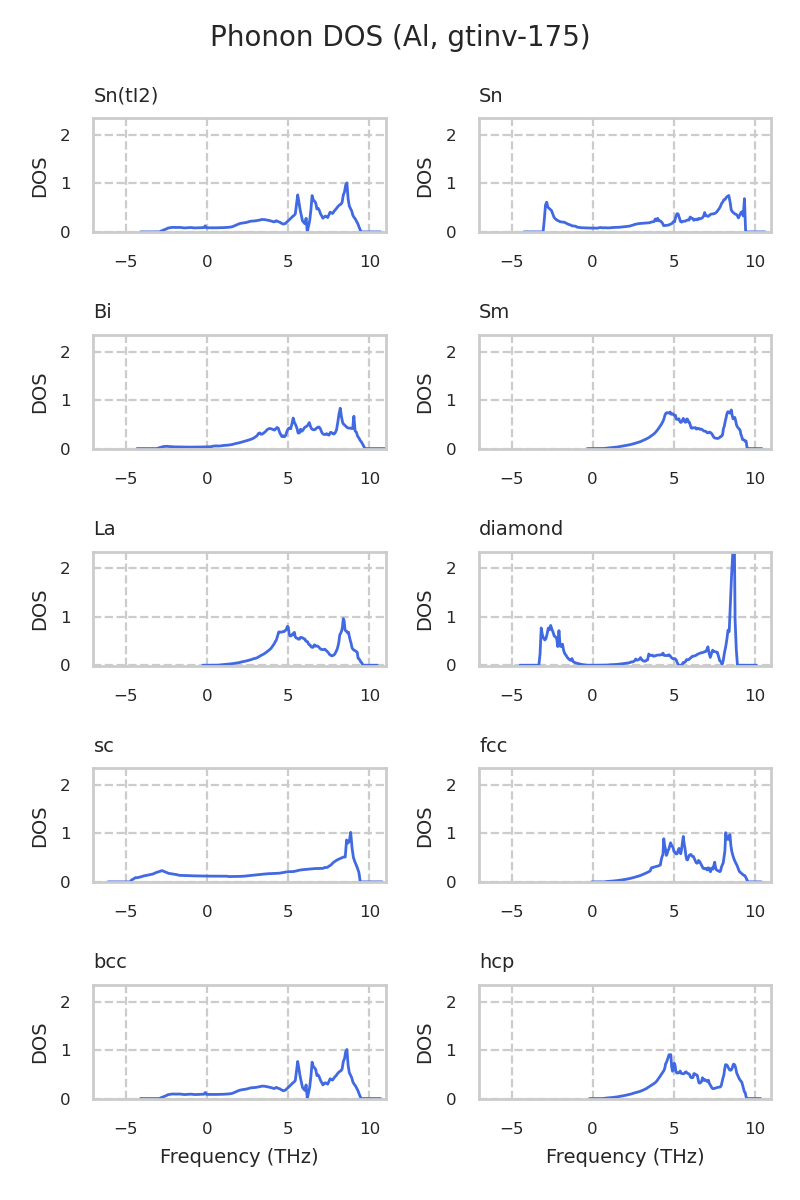

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-52914-[ccp-Cu]	-3.42724	-3.42526
icsd-236858-[O8]	-3.42716	-3.42763
icsd-248500-[O2(mS4)]	-3.42715	-3.4271
icsd-194468-[I2]	-3.42709	-3.42527
icsd-42679-[Sb(mP4)]	-3.42702	-3.42525
icsd-52501-[Te(mP4)]	-3.427	-3.4276
icsd-168172-[I(Immm)]	-3.427	-3.42781
icsd-104296-[Hg(LT)]	-3.42699	-3.42852
icsd-189786-[Si(oS16)]	-3.42695	-3.4278
icsd-157920-[IrV]	-3.42694	-3.42781
icsd-639810-[In]	-3.42691	-3.42781
icsd-108682-[Pr(hP6)]	-3.42679	-3.42836
icsd-161381-[K(HP)]	-3.41212	-3.41466
icsd-52916-[La]	-3.41209	-3.41463
icsd-652633-[Sm]	-3.40806	-3.4106
icsd-653381-[U]	-3.39993	-3.39616
icsd-189460-[MnP]	-3.39992	-3.39617
icsd-652876-[hcp-Mg]	-3.39992	-3.39616
icsd-31692-[Pu(mP16)]	-3.39991	-3.3946
icsd-248474-[Pu(oF8)]	-3.37598	-3.38532
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.37014	-3.37719
icsd-109012-[Li(cI16)]	-3.36772	-3.36944
icsd-642937-[Mn(cP20)]	-3.36054	-3.36557
icsd-76041-[U(beta)]	-3.3577	-3.364
icsd-246446-[Bi(III)]	-3.35767	-3.35409
icsd-182760-[C(C2/m)]	-3.35761	-3.3545
icsd-648333-[Pa]	-3.35749	-3.35407
icsd-97742-[Sb2Te3]	-3.35739	-3.35493
icsd-653719-[Bi]	-3.35722	-3.35535
icsd-76166-[U(beta)-CrFe]	-3.35716	-3.36407
icsd-280872-[Ta(tP30)]	-3.35715	-3.36402
icsd-52412-[Sc]	-3.35704	-3.35536
icsd-105489-[FeB]	-3.35695	-3.35539
icsd-108326-[Cr3Si]	-3.34737	-3.34838
icsd-43539-[Ga(Cmcm)]	-3.33977	-3.34598
icsd-30606-[Se(beta)]	-3.33877	-3.34326
icsd-43216-[Sn(tI2)]	-3.33458	-3.33288
icsd-76156-[bcc-W]	-3.33445	-3.33236
icsd-31829-[Graphite(3R)]	-3.3342	-3.3333
icsd-656457-[Po(hR1)]	-3.33418	-3.33331
icsd-653797-[Pu(mS34)]	-3.33287	-3.33286
icsd-165725-[Co(tP28)]	-3.32801	-3.33051
icsd-24892-[N2]	-3.32612	-3.32197
icsd-26482-[N2(cP8)]	-3.32606	-3.3217
icsd-27249-[CO]	-3.32604	-3.32169
icsd-167204-[Ge(hP8)]	-3.32533	-3.32482
icsd-2091-[Se3S5]	-3.31694	-3.32717
icsd-165132-[B28]	-3.31608	-3.32632
icsd-187431-[CaHg2]	-3.31322	-3.3143
icsd-56897-[SmNiSb]	-3.31313	-3.31422
icsd-37090-[S6]	-3.29915	-3.31409
icsd-609832-[P(black)]	-3.29795	-3.29886
icsd-28540-[H2]	-3.27761	-3.2766
icsd-57192-[Cs(tP8)]	-3.26819	-3.26584
icsd-109028-[Bi(I4/mcm)]	-3.26731	-3.2653
icsd-109018-[Cs(HP)]	-3.2486	-3.25359
icsd-43251-[S8(Fddd)]	-3.23309	-3.25018
icsd-109035-[Ca.15Sn.85]	-3.20878	-3.20945
icsd-162242-[Ca(III)]	-3.20873	-3.21008
icsd-182587-[Nickeline-NiAs]	-3.206	-3.20499
icsd-31170-[C(P63mc)]	-3.20594	-3.20505
icsd-162256-[Ga]	-3.17865	-3.16972
icsd-88815-[Graphite(oS16)]	-3.16196	-3.17179
icsd-56503-[GaSb]	-3.1555	-3.15027
icsd-236662-[Sn]	-3.15543	-3.15017
icsd-188336-[(Ca8)xCa2]	-3.14239	-3.14193
icsd-62747-[B(hR12)]	-3.10236	-3.16919
icsd-15535-[O2(hR2)]	-3.0997	-3.10874
icsd-616526-[As]	-3.05804	-3.05701
icsd-43211-[Po(alpha)]	-3.05797	-3.05811
icsd-653045-[Se(gamma)]	-3.05792	-3.05704
icsd-181082-[C(P1)]	-3.05787	-3.05812
icsd-109027-[Sr(HP)]	-3.05782	-3.05812
icsd-245956-[Ge]	-3.03665	-3.03782
icsd-644520-[N2(epsilon)]	-3.01564	-3.02057
icsd-26463-[S12]	-2.97878	-3.00145
icsd-182732-[BN(P1)]	-2.93182	-2.93124
icsd-193439-[Graphite(2H)]	-2.92721	-2.92864
icsd-189436-[B(tP50)]	-2.88414	-2.88331
icsd-88820-[Si(HP)]	-2.824	-2.81843
icsd-173517-[Ge(HP)]	-2.7633	-2.76232
icsd-30101-[Wurtzite-ZnS(2H)]	-2.68391	-2.67603
icsd-41979-[Diamond-C(cF8)]	-2.68306	-2.68362
icsd-181908-[Si(I4/mmm)]	-2.66348	-2.66215
icsd-245950-[Ge(cF136)]	-2.6568	-2.65662
icsd-185973-[C3N2]	-2.54229	-2.53989

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.567	2.844	2.844	4.729	90.0	90.0	120.0
DFT	16.628	2.853	4.931	4.728	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
122.2	56.1	49.4	0.0	0.0	0.0
56.1	122.2	49.4	0.0	0.0	0.0
49.4	49.4	107.4	0.0	0.0	0.0
0.0	0.0	0.0	16.0	0.0	0.0
0.0	0.0	0.0	0.0	16.0	0.0
0.0	0.0	0.0	0.0	0.0	33.0

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.58	2.85	2.85	21.211	90.0	90.0	120.0
DFT	16.593	2.854	2.854	21.166	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
117.9	52.5	49.9	-1.2	0.0	0.0
52.5	117.9	49.9	1.2	0.0	0.0
49.9	49.9	107.8	0.0	0.0	0.0
-1.2	1.2	0.0	20.5	0.0	0.0
0.0	0.0	0.0	0.0	20.5	-1.2
0.0	0.0	0.0	0.0	-1.2	32.7

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.602	2.854	2.854	9.413	90.0	90.0	120.0
DFT	16.521	2.867	4.943	9.324	90.0	90.0	90.0

Elastic constants (La)

1	2	3	4	5	6
115.3	50.3	50.3	0.0	0.0	0.0
50.3	115.3	50.3	0.0	0.0	0.0
50.3	50.3	107.8	0.0	0.0	0.0
0.0	0.0	0.0	23.7	0.0	0.0
0.0	0.0	0.0	0.0	23.7	0.0
0.0	0.0	0.0	0.0	0.0	32.5

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.636	3.216	3.216	3.216	90.0	90.0	90.0
DFT	16.9	3.249	3.249	3.202	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
47.8	89.4	89.4	0.0	0.0	0.0
89.4	47.8	89.4	0.0	0.0	0.0
89.4	89.4	47.8	0.0	0.0	0.0
0.0	0.0	0.0	36.2	0.0	0.0
0.0	0.0	0.0	0.0	36.2	0.0
0.0	0.0	0.0	0.0	0.0	36.2

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.124	5.294	5.294	2.729	90.0	90.0	90.0
DFT	19.161	5.312	5.312	2.716	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-928.0	1082.4	30.2	0.0	0.0	0.0
1082.4	-928.0	30.2	0.0	0.0	0.0
30.2	30.2	122.3	0.0	0.0	0.0
0.0	0.0	0.0	-22.8	0.0	0.0
0.0	0.0	0.0	0.0	-22.8	0.0
0.0	0.0	0.0	0.0	0.0	-15.8

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.636	3.216	3.216	3.216	90.0	90.0	90.0
DFT	16.873	3.232	3.232	3.232	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
47.8	89.4	89.4	0.0	0.0	0.0
89.4	47.8	89.4	0.0	0.0	0.0
89.4	89.4	47.8	0.0	0.0	0.0
0.0	0.0	0.0	36.2	0.0	0.0
0.0	0.0	0.0	0.0	36.2	0.0
0.0	0.0	0.0	0.0	0.0	36.2

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.761	4.062	4.062	4.062	90.0	90.0	90.0
DFT	16.487	4.04	4.04	4.04	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
115.3	43.0	43.0	0.0	0.0	0.0
43.0	115.3	43.0	0.0	0.0	0.0
43.0	43.0	115.3	0.0	0.0	0.0
0.0	0.0	0.0	29.6	0.0	0.0
0.0	0.0	0.0	0.0	29.6	0.0
0.0	0.0	0.0	0.0	0.0	29.6

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.9	6.066	6.066	6.066	90.0	90.0	90.0
DFT	27.566	6.042	6.042	6.042	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
28.0	42.3	42.3	0.0	0.0	0.0
42.3	28.0	42.3	0.0	0.0	0.0
42.3	42.3	28.0	0.0	0.0	0.0
0.0	0.0	0.0	-14.7	0.0	0.0
0.0	0.0	0.0	0.0	-14.7	0.0
0.0	0.0	0.0	0.0	0.0	-14.7

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.984	2.714	2.714	2.714	90.0	90.0	90.0
DFT	20.144	2.721	2.721	2.721	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
156.5	27.9	27.9	0.0	0.0	0.0
27.9	156.5	27.9	0.0	0.0	0.0
27.9	27.9	156.5	0.0	0.0	0.0
0.0	0.0	0.0	-14.0	0.0	0.0
0.0	0.0	0.0	0.0	-14.0	0.0
0.0	0.0	0.0	0.0	0.0	-14.0

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.867	3.451	3.451	2.833	90.0	90.0	90.0
DFT	16.997	3.484	3.484	2.8	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
38.6	88.9	55.5	0.0	0.0	0.0
88.9	38.6	55.5	0.0	0.0	0.0
55.5	55.5	132.2	0.0	0.0	0.0
0.0	0.0	0.0	31.8	0.0	0.0
0.0	0.0	0.0	0.0	31.8	0.0
0.0	0.0	0.0	0.0	0.0	37.5
