gtinv-298 (As-2021-09-03-all-icsd)

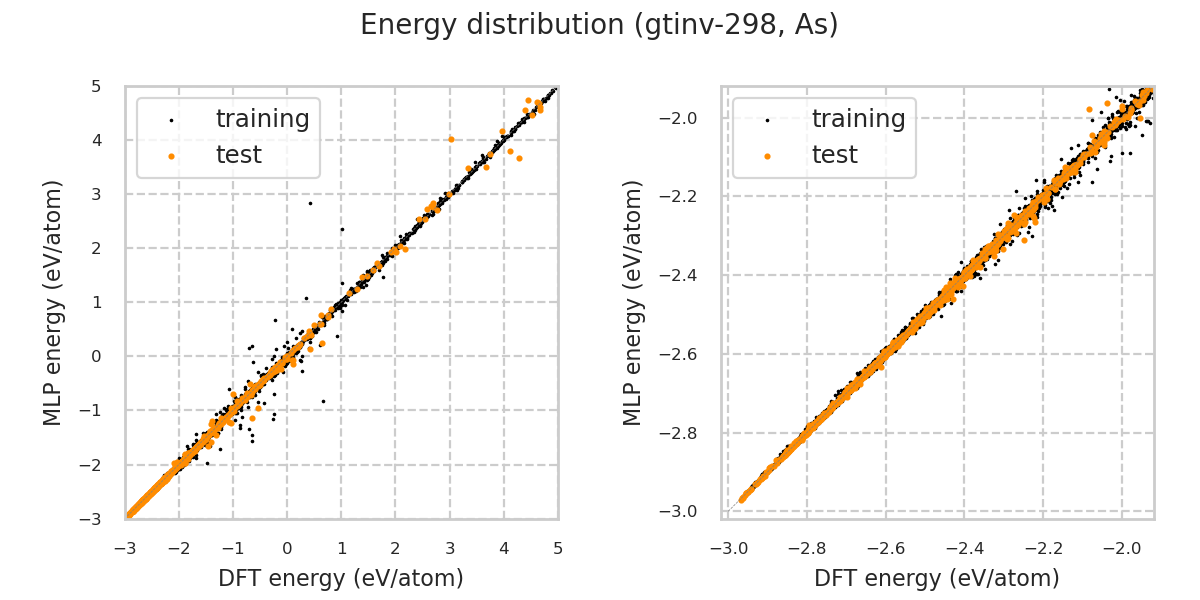

Energy distribution

../../../../_images/distribution1178.png

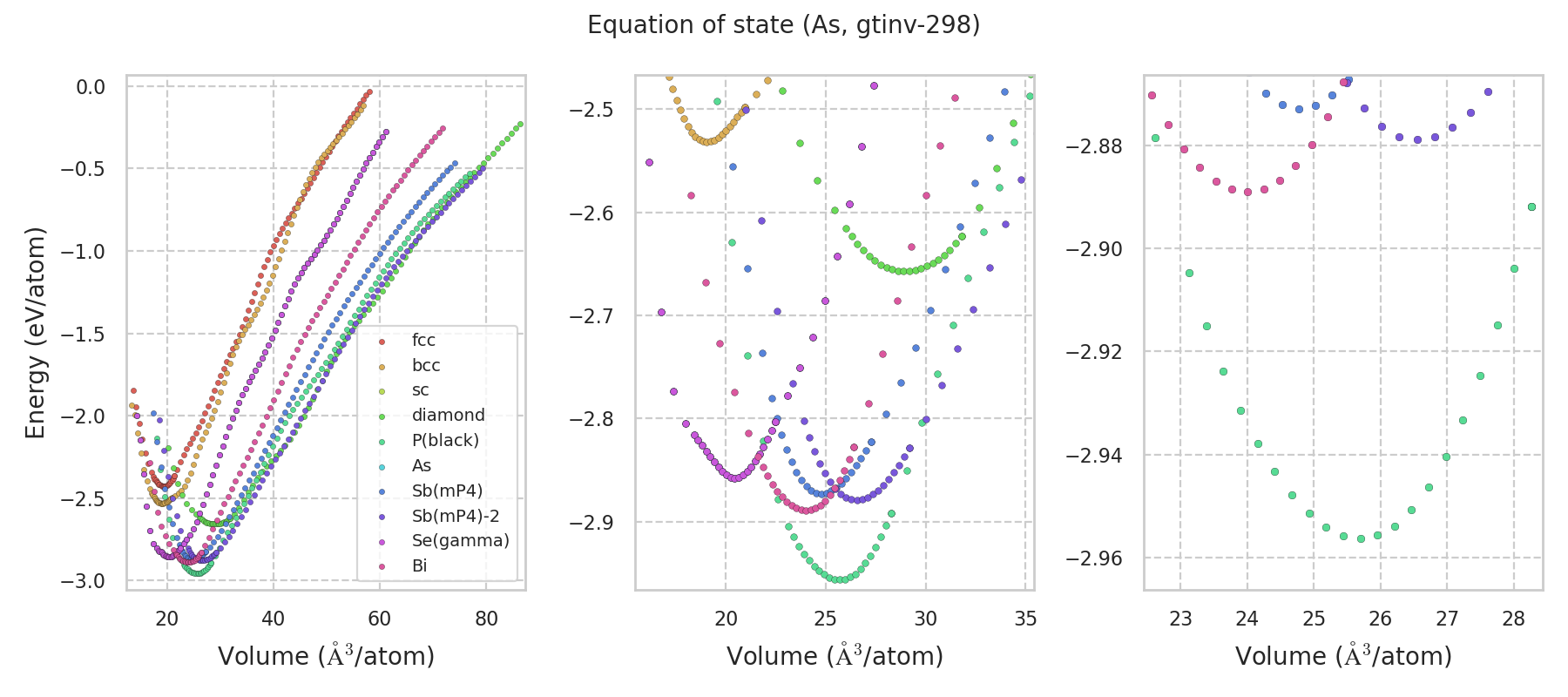

Equation of state

../../../../_images/e-v54.png

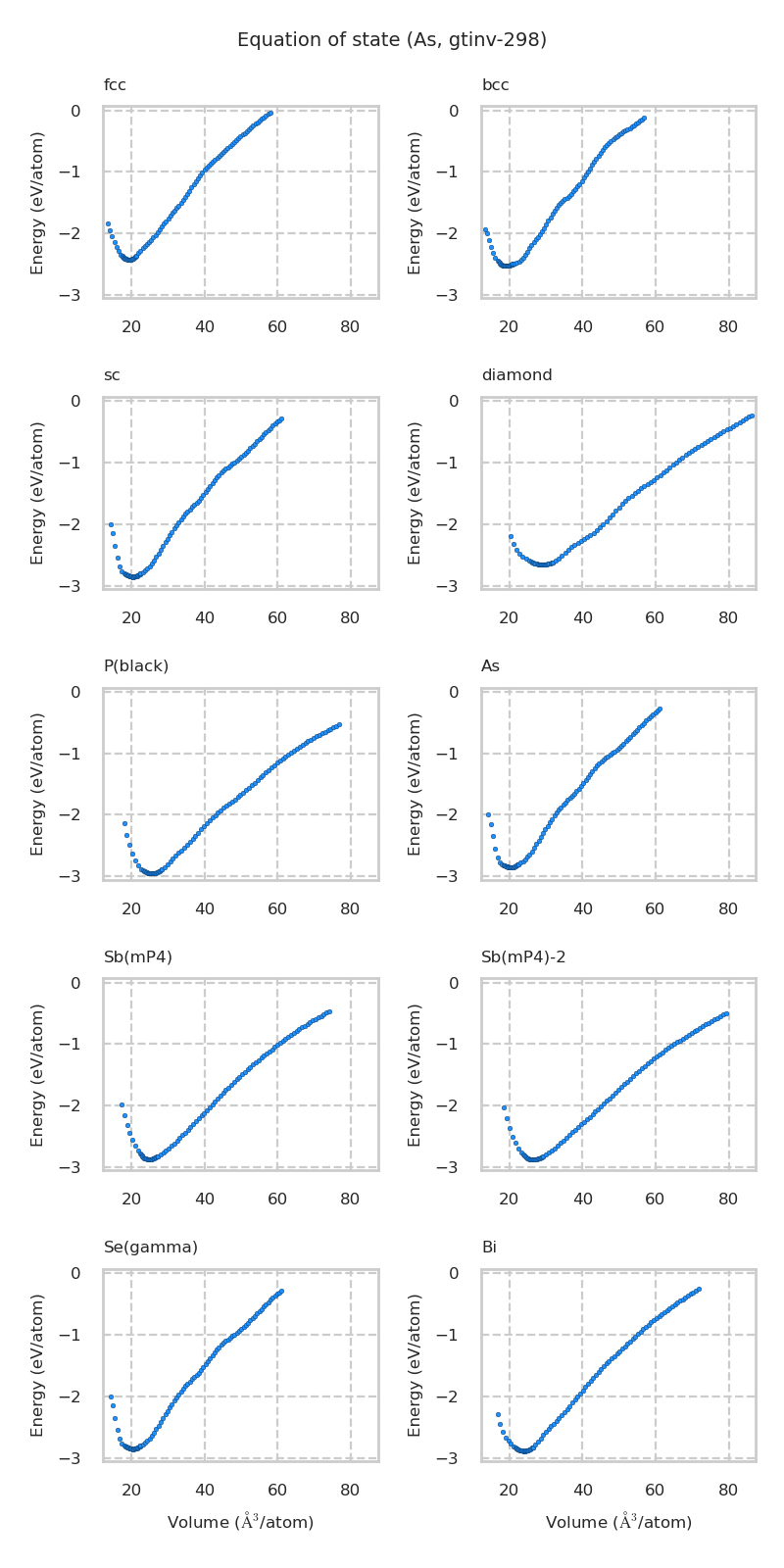

Equation of state for each structure

../../../../_images/e-v-sep1178.png

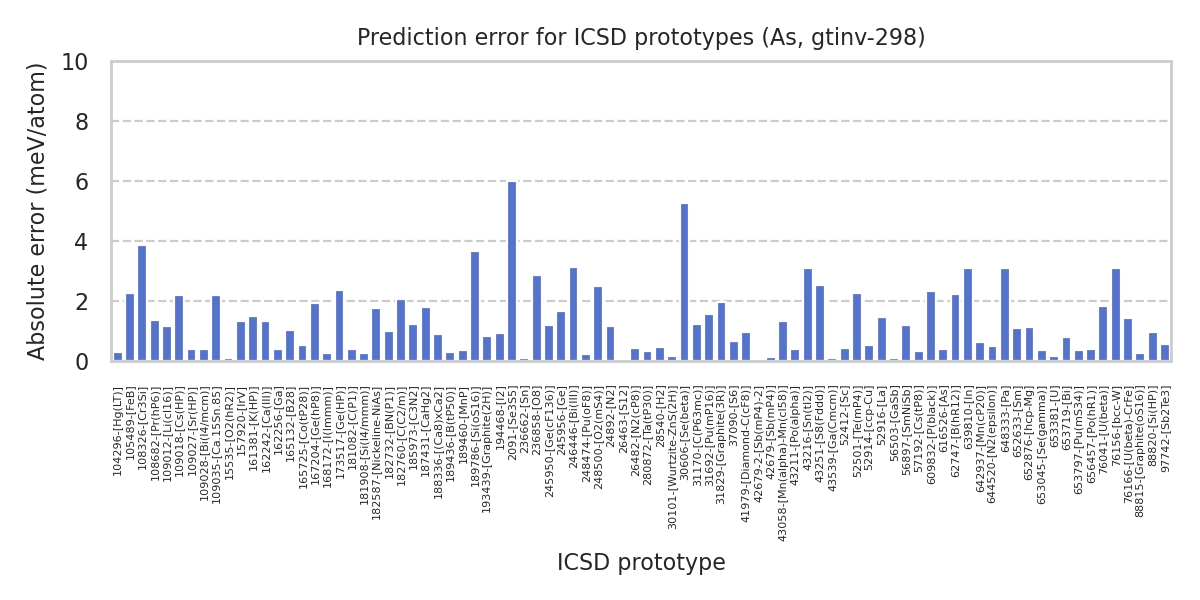

Prototype structure energy

../../../../_images/icsd-pred1178.png

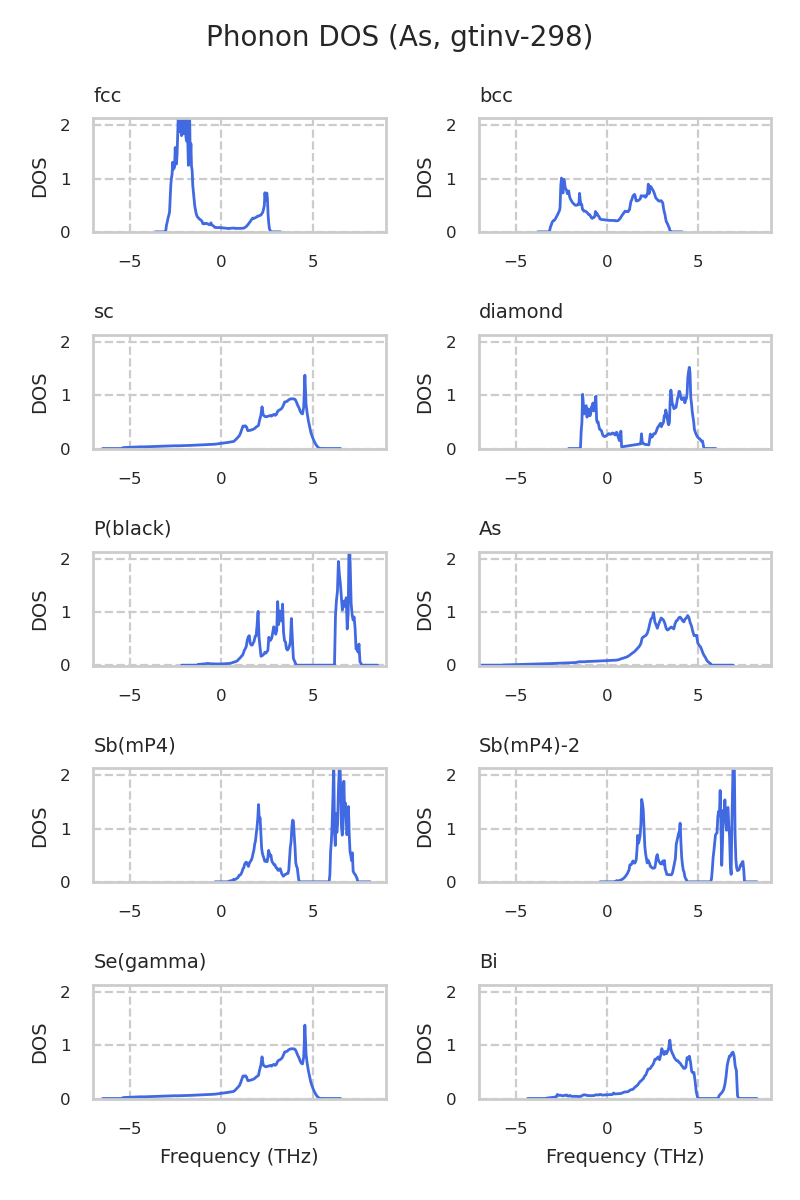

Phonon density of states

../../../../_images/dos1178.png

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype

MLP (eV/atom)

DFT (eV/atom)

icsd-248500-[O2(mS4)]

-2.97122

-2.96872

icsd-31829-[Graphite(3R)]

-2.96722

-2.96527

icsd-31170-[C(P63mc)]

-2.96569

-2.96446

icsd-108682-[Pr(hP6)]

-2.95801

-2.95664

icsd-31692-[Pu(mP16)]

-2.95411

-2.95566

icsd-609832-[P(black)]

-2.95242

-2.95009

icsd-236858-[O8]

-2.93786

-2.94074

icsd-37090-[S6]

-2.93429

-2.93493

icsd-189460-[MnP]

-2.88605

-2.88571

icsd-105489-[FeB]

-2.87374

-2.87149

icsd-52501-[Te(mP4)]

-2.87275

-2.8705

icsd-42679-2-[Sb(mP4)-2]

-2.86307

-2.86309

icsd-42679-[Sb(mP4)]

-2.86184

-2.86172

icsd-653719-[Bi]

-2.861

-2.86022

icsd-181082-[C(P1)]

-2.85768

-2.85729

icsd-109027-[Sr(HP)]

-2.85768

-2.8573

icsd-43211-[Po(alpha)]

-2.85767

-2.85729

icsd-104296-[Hg(LT)]

-2.85765

-2.85736

icsd-656457-[Po(hR1)]

-2.85765

-2.85727

icsd-616526-[As]

-2.85763

-2.85724

icsd-653045-[Se(gamma)]

-2.85762

-2.85725

icsd-97742-[Sb2Te3]

-2.8576

-2.85706

icsd-52916-[La]

-2.85758

-2.85905

icsd-162256-[Ga]

-2.85758

-2.85718

icsd-652876-[hcp-Mg]

-2.85751

-2.85637

icsd-161381-[K(HP)]

-2.85745

-2.85894

icsd-162242-[Ca(III)]

-2.85743

-2.85874

icsd-43539-[Ga(Cmcm)]

-2.85665

-2.85674

icsd-182760-[C(C2/m)]

-2.8334

-2.83547

icsd-28540-[H2]

-2.82588

-2.82544

icsd-43251-[S8(Fddd)]

-2.82382

-2.82128

icsd-2091-[Se3S5]

-2.81686

-2.82288

icsd-182732-[BN(P1)]

-2.8167

-2.81571

icsd-26463-[S12]

-2.80852

-2.80858

icsd-76041-[U(beta)]

-2.80581

-2.80763

icsd-30606-[Se(beta)]

-2.7914

-2.79669

icsd-280872-[Ta(tP30)]

-2.78712

-2.78682

icsd-173517-[Ge(HP)]

-2.77466

-2.77231

icsd-188336-[(Ca8)xCa2]

-2.75901

-2.7599

icsd-182587-[Nickeline-NiAs]

-2.75707

-2.75883

icsd-653797-[Pu(mS34)]

-2.7544

-2.75476

icsd-245956-[Ge]

-2.75065

-2.75231

icsd-30101-[Wurtzite-ZnS(2H)]

-2.73993

-2.74007

icsd-56503-[GaSb]

-2.73928

-2.73919

icsd-236662-[Sn]

-2.73927

-2.73919

icsd-652633-[Sm]

-2.73448

-2.73555

icsd-88820-[Si(HP)]

-2.72199

-2.72296

icsd-52412-[Sc]

-2.71186

-2.71145

icsd-165132-[B28]

-2.70498

-2.70599

icsd-88815-[Graphite(oS16)]

-2.70454

-2.70428

icsd-248474-[Pu(oF8)]

-2.70409

-2.70431

icsd-109018-[Cs(HP)]

-2.70342

-2.70562

icsd-15535-[O2(hR2)]

-2.69916

-2.69906

icsd-24892-[N2]

-2.69775

-2.69891

icsd-109035-[Ca.15Sn.85]

-2.69258

-2.6904

icsd-62747-[B(hR12)]

-2.69196

-2.69418

icsd-167204-[Ge(hP8)]

-2.6876

-2.68566

icsd-644520-[N2(epsilon)]

-2.66684

-2.66635

icsd-109012-[Li(cI16)]

-2.65849

-2.65733

icsd-41979-[Diamond-C(cF8)]

-2.65641

-2.65545

icsd-245950-[Ge(cF136)]

-2.61943

-2.61823

icsd-189786-[Si(oS16)]

-2.61914

-2.61548

icsd-642937-[Mn(cP20)]

-2.6179

-2.61851

icsd-181908-[Si(I4/mmm)]

-2.61043

-2.61068

icsd-76166-[U(beta)-CrFe]

-2.60993

-2.61134

icsd-109028-[Bi(I4/mcm)]

-2.60137

-2.60098

icsd-653381-[U]

-2.58495

-2.5851

icsd-185973-[C3N2]

-2.56709

-2.56587

icsd-193439-[Graphite(2H)]

-2.54574

-2.54491

icsd-639810-[In]

-2.53158

-2.52847

icsd-76156-[bcc-W]

-2.53158

-2.52847

icsd-246446-[Bi(III)]

-2.53157

-2.52846

icsd-648333-[Pa]

-2.53156

-2.52846

icsd-43216-[Sn(tI2)]

-2.53155

-2.52846

icsd-157920-[IrV]

-2.52866

-2.52997

icsd-189436-[B(tP50)]

-2.52671

-2.52701

icsd-187431-[CaHg2]

-2.5243

-2.52608

icsd-56897-[SmNiSb]

-2.52424

-2.52542

icsd-57192-[Cs(tP8)]

-2.52068

-2.52035

icsd-165725-[Co(tP28)]

-2.50182

-2.50132

icsd-168172-[I(Immm)]

-2.42711

-2.42686

icsd-52914-[ccp-Cu]

-2.42696

-2.42748

icsd-43058-[Mn(alpha)-Mn(cI58)]

-2.42529

-2.42398

icsd-108326-[Cr3Si]

-2.38065

-2.38453

icsd-26482-[N2(cP8)]

-2.13356

-2.13312

icsd-194468-[I2]

-2.12962

-2.1287
Lattice parameters (P(black))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

25.697

3.739

11.798

4.661

90.0

90.0

90.0

DFT

24.757

3.705

11.429

4.677

90.0

90.0

90.0
Elastic constants (P(black))

1

2

3

4

5

6

154.6

-24.5

55.2

0.0

0.0

0.0

-24.5

69.7

-14.4

0.0

0.0

0.0

55.2

-14.4

64.2

0.0

0.0

0.0

0.0

0.0

0.0

29.3

0.0

0.0

0.0

0.0

0.0

0.0

60.1

0.0

0.0

0.0

0.0

0.0

0.0

4.0
Lattice parameters (As)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

20.441

3.867

3.867

4.736

90.0

90.0

120.0

DFT

20.395

3.86

3.86

4.741

90.0

90.0

120.0
Elastic constants (As)

1

2

3

4

5

6

162.5

72.0

99.1

38.4

0.0

0.0

72.0

162.5

99.1

-38.4

0.0

0.0

99.1

99.1

135.4

0.0

0.0

0.0

38.4

-38.4

0.0

72.4

0.0

0.0

0.0

0.0

0.0

0.0

72.4

38.4

0.0

0.0

0.0

0.0

38.4

45.3
Lattice parameters (bcc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

19.043

3.365

3.365

3.365

90.0

90.0

90.0

DFT

19.056

3.365

3.365

3.365

90.0

90.0

90.0
Elastic constants (bcc)

1

2

3

4

5

6

105.7

74.4

74.4

0.0

0.0

0.0

74.4

105.7

74.4

0.0

0.0

0.0

74.4

74.4

105.7

0.0

0.0

0.0

0.0

0.0

0.0

2.6

0.0

0.0

0.0

0.0

0.0

0.0

2.6

0.0

0.0

0.0

0.0

0.0

0.0

2.6
Lattice parameters (fcc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

19.393

4.265

4.265

4.265

90.0

90.0

90.0

DFT

19.285

4.257

4.257

4.257

90.0

90.0

90.0
Elastic constants (fcc)

1

2

3

4

5

6

57.0

104.9

104.9

0.0

0.0

0.0

104.9

57.0

104.9

0.0

0.0

0.0

104.9

104.9

57.0

0.0

0.0

0.0

0.0

0.0

0.0

-25.9

0.0

0.0

0.0

0.0

0.0

0.0

-25.9

0.0

0.0

0.0

0.0

0.0

0.0

-25.9
Lattice parameters (diamond)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

28.903

6.138

6.138

6.138

90.0

90.0

90.0

DFT

28.581

6.115

6.115

6.115

90.0

90.0

90.0
Elastic constants (diamond)

1

2

3

4

5

6

29.1

41.7

41.7

0.0

0.0

0.0

41.7

29.1

41.7

0.0

0.0

0.0

41.7

41.7

29.1

0.0

0.0

0.0

0.0

0.0

0.0

-12.0

0.0

0.0

0.0

0.0

0.0

0.0

-12.0

0.0

0.0

0.0

0.0

0.0

0.0

-12.0
Lattice parameters (Sb(mP4))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

24.776

4.462

3.727

5.964

90.0

87.76

90.0

DFT

24.705

4.444

3.784

5.883

90.0

92.76

90.0
Elastic constants (Sb(mP4))

1

2

3

4

5

6

86.0

32.7

19.5

0.0

-7.1

0.0

32.7

84.3

16.3

0.0

-5.5

0.0

19.5

16.3

163.5

0.0

-4.0

0.0

0.0

0.0

0.0

14.6

0.0

0.5

-7.1

-5.5

-4.0

0.0

20.7

0.0

0.0

0.0

0.0

0.5

0.0

23.1
Lattice parameters (sc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

20.441

2.734

2.734

2.734

90.0

90.0

90.0

DFT

20.461

2.735

2.735

2.735

90.0

90.0

90.0
Elastic constants (sc)

1

2

3

4

5

6

244.0

44.8

44.8

0.0

0.0

0.0

44.8

244.0

44.8

0.0

0.0

0.0

44.8

44.8

244.0

0.0

0.0

0.0

0.0

0.0

0.0

18.1

0.0

0.0

0.0

0.0

0.0

0.0

18.1

0.0

0.0

0.0

0.0

0.0

0.0

18.1
Lattice parameters (Bi)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

24.005

5.424

6.338

2.793

90.0

90.0

90.0

DFT

21.746

5.414

5.736

2.801

90.0

90.0

90.0
Elastic constants (Bi)

1

2

3

4

5

6

216.2

-70.7

-5.7

0.0

0.0

0.0

-70.7

128.3

-0.1

0.0

0.0

0.0

-5.7

-0.1

313.3

0.0

0.0

0.0

0.0

0.0

0.0

12.7

0.0

0.0

0.0

0.0

0.0

0.0

48.5

0.0

0.0

0.0

0.0

0.0

0.0

-64.2
Lattice parameters (Se(gamma))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

20.441

2.734

2.734

2.734

90.0

90.0

90.0

DFT

20.384

2.732

2.732

2.732

90.0

90.0

90.0
Elastic constants (Se(gamma))

1

2

3

4

5

6

244.0

44.8

44.8

0.0

0.0

0.0

44.8

244.0

44.8

0.0

0.0

0.0

44.8

44.8

244.0

0.0

0.0

0.0

0.0

0.0

0.0

18.1

0.0

0.0

0.0

0.0

0.0

0.0

18.1

0.0

0.0

0.0

0.0

0.0

0.0

18.1
Lattice parameters (2)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

26.549

4.852

3.703

6.047

90.0

102.16

90.0

DFT

25.568

4.643

3.753

5.907

90.0

96.54

90.0
Elastic constants (2)

1

2

3

4

5

6

72.7

36.9

9.3

0.0

10.2

0.0

36.9

106.4

23.8

0.0

5.5

0.0

9.3

23.8

95.2

0.0

-16.6

0.0

0.0

0.0

0.0

13.9

0.0

1.2

10.2

5.5

-16.6

0.0

17.6

0.0

0.0

0.0

0.0

1.2

0.0

21.9
