gtinv-175 (Ba-2021-08-04-all-icsd)

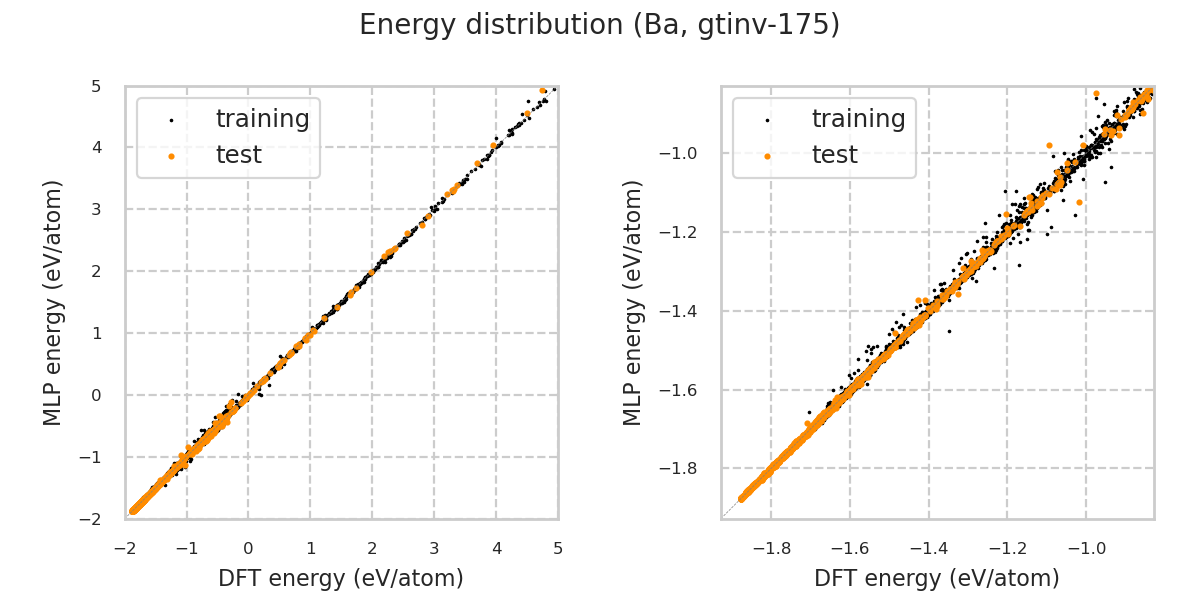

Energy distribution

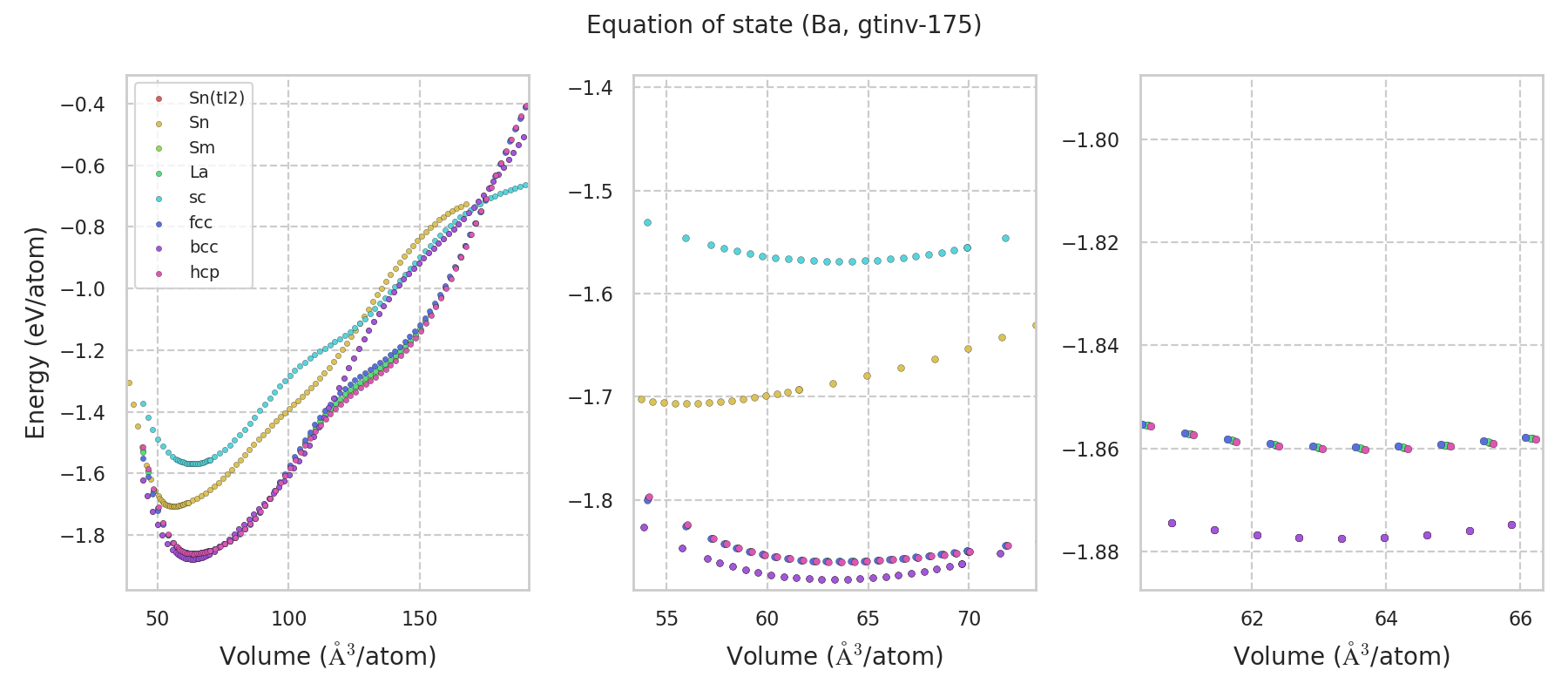

Equation of state

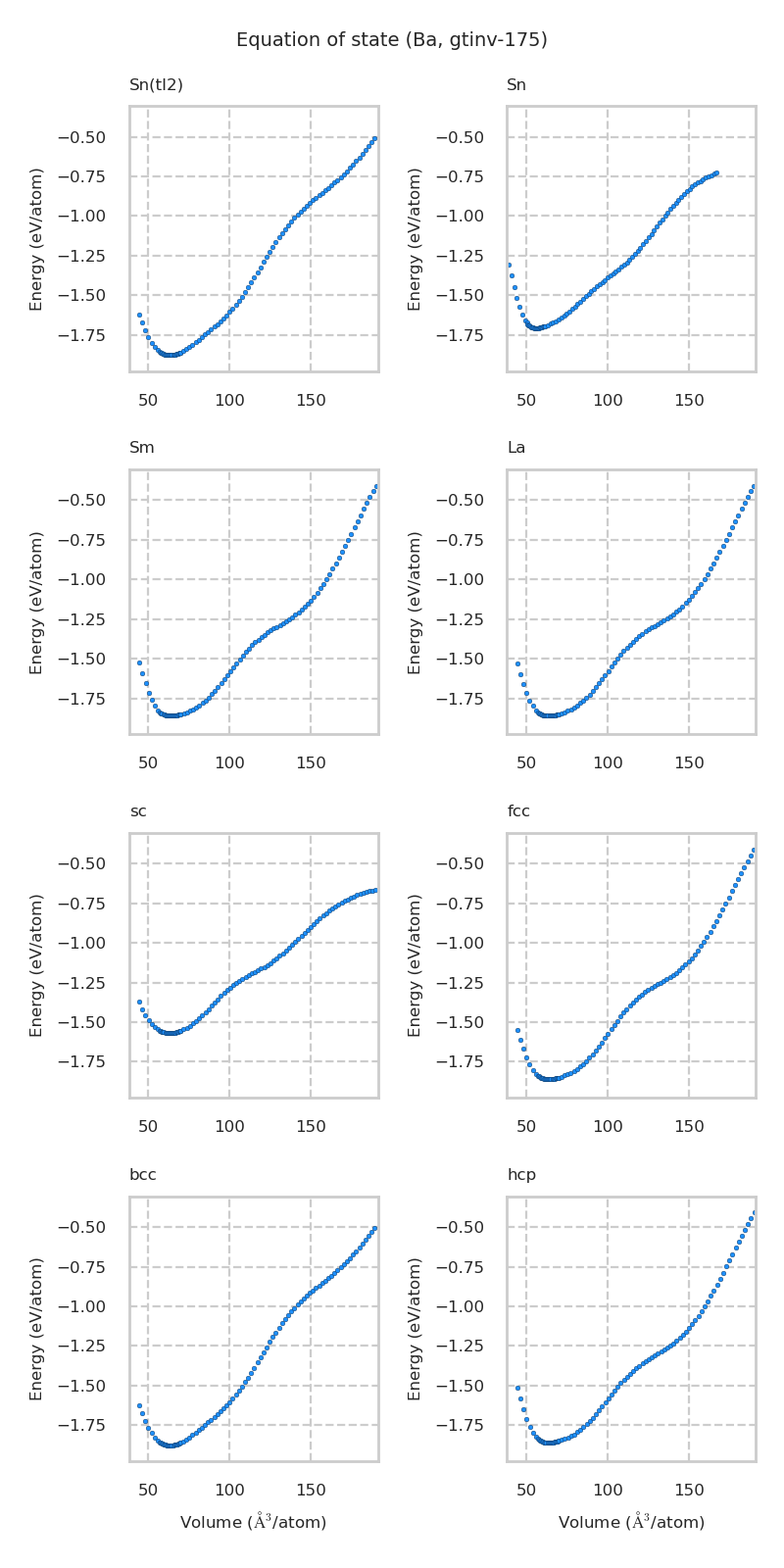

Equation of state for each structure

Prototype structure energy

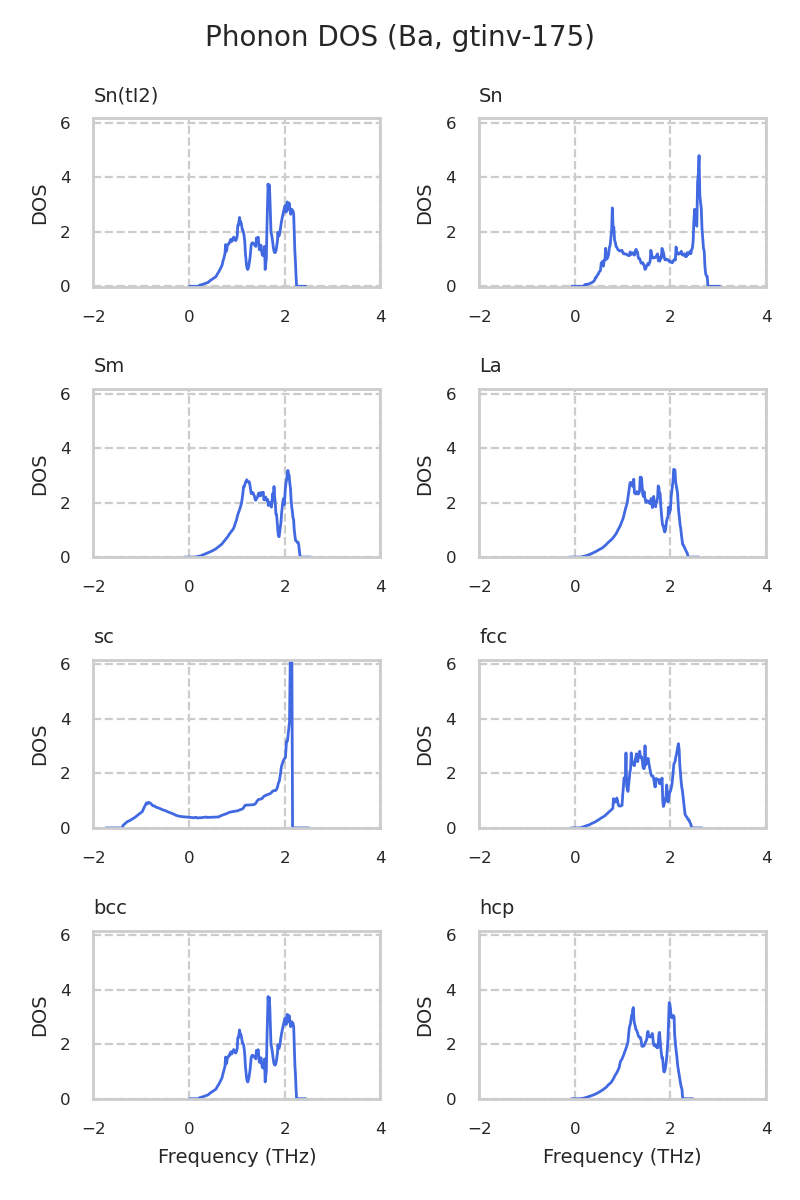

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

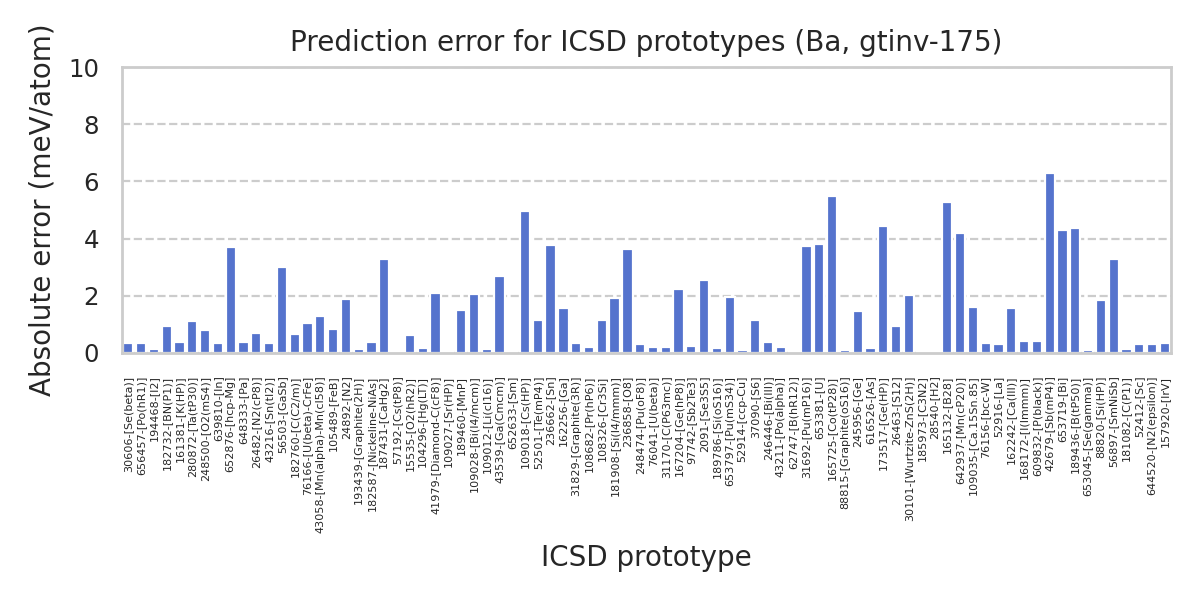

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-76156-[bcc-W]	-1.87746	-1.8778
icsd-656457-[Po(hR1)]	-1.87746	-1.87781
icsd-43216-[Sn(tI2)]	-1.87746	-1.87781
icsd-246446-[Bi(III)]	-1.87744	-1.87782
icsd-644520-[N2(epsilon)]	-1.87744	-1.87773
icsd-648333-[Pa]	-1.87743	-1.87779
icsd-30606-[Se(beta)]	-1.8774	-1.87773
icsd-97742-[Sb2Te3]	-1.87739	-1.87763
icsd-52412-[Sc]	-1.87736	-1.87767
icsd-194468-[I2]	-1.87722	-1.87735
icsd-109012-[Li(cI16)]	-1.87714	-1.87726
icsd-652876-[hcp-Mg]	-1.86011	-1.8638
icsd-236858-[O8]	-1.8601	-1.86372
icsd-31692-[Pu(mP16)]	-1.85992	-1.86367
icsd-653381-[U]	-1.8599	-1.86371
icsd-652633-[Sm]	-1.85984	-1.85978
icsd-182587-[Nickeline-NiAs]	-1.85975	-1.85937
icsd-161381-[K(HP)]	-1.85975	-1.85936
icsd-52916-[La]	-1.85966	-1.85936
icsd-104296-[Hg(LT)]	-1.85958	-1.85942
icsd-31829-[Graphite(3R)]	-1.85957	-1.85992
icsd-52914-[ccp-Cu]	-1.85956	-1.85967
icsd-57192-[Cs(tP8)]	-1.85954	-1.8595
icsd-639810-[In]	-1.85952	-1.85987
icsd-168172-[I(Immm)]	-1.85945	-1.85986
icsd-189786-[Si(oS16)]	-1.85938	-1.85954
icsd-157920-[IrV]	-1.85926	-1.85959
icsd-108682-[Pr(hP6)]	-1.85897	-1.85877
icsd-248500-[O2(mS4)]	-1.85868	-1.85949
icsd-248474-[Pu(oF8)]	-1.83844	-1.83873
icsd-193439-[Graphite(2H)]	-1.8356	-1.83549
icsd-280872-[Ta(tP30)]	-1.83353	-1.83241
icsd-76166-[U(beta)-CrFe]	-1.8335	-1.83247
icsd-76041-[U(beta)]	-1.83231	-1.83249
icsd-108326-[Cr3Si]	-1.82917	-1.83033
icsd-642937-[Mn(cP20)]	-1.82912	-1.82492
icsd-187431-[CaHg2]	-1.82807	-1.82478
icsd-56897-[SmNiSb]	-1.82807	-1.82478
icsd-182760-[C(C2/m)]	-1.82086	-1.8202
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.81894	-1.82022
icsd-653797-[Pu(mS34)]	-1.8121	-1.81406
icsd-52501-[Te(mP4)]	-1.80149	-1.80033
icsd-165725-[Co(tP28)]	-1.78952	-1.79502
icsd-26482-[N2(cP8)]	-1.78482	-1.78413
icsd-245956-[Ge]	-1.7848	-1.78335
icsd-2091-[Se3S5]	-1.77385	-1.77639
icsd-15535-[O2(hR2)]	-1.76912	-1.76972
icsd-24892-[N2]	-1.76909	-1.77095
icsd-105489-[FeB]	-1.76764	-1.76682
icsd-43539-[Ga(Cmcm)]	-1.76606	-1.76876
icsd-609832-[P(black)]	-1.76424	-1.76466
icsd-165132-[B28]	-1.73882	-1.73355
icsd-109028-[Bi(I4/mcm)]	-1.73376	-1.7358
icsd-26463-[S12]	-1.71954	-1.71863
icsd-56503-[GaSb]	-1.69727	-1.70028
icsd-189460-[MnP]	-1.69725	-1.69874
icsd-109035-[Ca.15Sn.85]	-1.6971	-1.6987
icsd-162242-[Ca(III)]	-1.69702	-1.69859
icsd-236662-[Sn]	-1.69648	-1.70026
icsd-653719-[Bi]	-1.69607	-1.70037
icsd-37090-[S6]	-1.69487	-1.69372
icsd-109018-[Cs(HP)]	-1.68061	-1.67567
icsd-42679-[Sb(mP4)]	-1.67538	-1.68168
icsd-162256-[Ga]	-1.65885	-1.66039
icsd-189436-[B(tP50)]	-1.64913	-1.64478
icsd-616526-[As]	-1.56812	-1.56796
icsd-28540-[H2]	-1.56803	-1.56802
icsd-653045-[Se(gamma)]	-1.56799	-1.56791
icsd-109027-[Sr(HP)]	-1.56793	-1.56794
icsd-181082-[C(P1)]	-1.56778	-1.5679
icsd-88815-[Graphite(oS16)]	-1.56774	-1.56782
icsd-43211-[Po(alpha)]	-1.56767	-1.56786
icsd-62747-[B(hR12)]	-1.52724	-1.52726
icsd-173517-[Ge(HP)]	-1.45883	-1.46325
icsd-185973-[C3N2]	-1.44053	-1.44058
icsd-31170-[C(P63mc)]	-1.35212	-1.35232
icsd-88820-[Si(HP)]	-1.31325	-1.3151
icsd-182732-[BN(P1)]	-1.2734	-1.27248
icsd-167204-[Ge(hP8)]	-0.89058	-0.88837
icsd-41979-[Diamond-C(cF8)]	-0.8901	-0.89217
icsd-30101-[Wurtzite-ZnS(2H)]	-0.88627	-0.88424
icsd-181908-[Si(I4/mmm)]	-0.80188	-0.79996

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.679	4.471	4.471	7.358	90.0	90.0	120.0
DFT	63.635	4.476	4.476	7.334	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
13.2	8.5	0.2	0.0	0.0	0.0
8.5	13.2	0.2	0.0	0.0	0.0
0.2	0.2	20.9	0.0	0.0	0.0
0.0	0.0	0.0	5.3	0.0	0.0
0.0	0.0	0.0	0.0	5.3	0.0
0.0	0.0	0.0	0.0	0.0	2.3

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.633	4.473	4.473	33.049	90.0	90.0	120.0
DFT	63.928	4.485	4.485	33.028	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
13.9	7.4	0.4	1.5	0.0	0.0
7.4	13.9	0.4	-1.5	0.0	0.0
0.4	0.4	20.5	0.0	0.0	0.0
1.5	-1.5	0.0	4.9	0.0	0.0
0.0	0.0	0.0	0.0	4.9	1.5
0.0	0.0	0.0	0.0	1.5	3.2

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.61	4.475	4.475	14.674	90.0	90.0	120.0
DFT	64.304	4.5	4.5	14.67	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
13.6	7.5	0.5	0.0	0.0	0.0
7.5	13.6	0.5	0.0	0.0	0.0
0.5	0.5	20.3	0.0	0.0	0.0
0.0	0.0	0.0	4.8	0.0	0.0
0.0	0.0	0.0	0.0	4.8	0.0
0.0	0.0	0.0	0.0	0.0	3.1

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.337	5.022	5.022	5.022	90.0	90.0	90.0
DFT	63.473	5.026	5.026	5.026	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
13.0	6.9	6.9	0.0	0.0	0.0
6.9	13.0	6.9	0.0	0.0	0.0
6.9	6.9	13.0	0.0	0.0	0.0
0.0	0.0	0.0	10.1	0.0	0.0
0.0	0.0	0.0	0.0	10.1	0.0
0.0	0.0	0.0	0.0	0.0	10.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	55.978	7.427	7.427	4.059	90.0	90.0	90.0
DFT	60.772	7.666	7.666	4.136	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
25.0	6.9	2.1	0.0	0.0	0.0
6.9	25.0	2.1	0.0	0.0	0.0
2.1	2.1	39.6	0.0	0.0	0.0
0.0	0.0	0.0	3.8	0.0	0.0
0.0	0.0	0.0	0.0	3.8	0.0
0.0	0.0	0.0	0.0	0.0	1.5

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.337	5.022	5.022	5.022	90.0	90.0	90.0
DFT	63.442	5.025	5.025	5.025	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
13.0	6.9	6.9	0.0	0.0	0.0
6.9	13.0	6.9	0.0	0.0	0.0
6.9	6.9	13.0	0.0	0.0	0.0
0.0	0.0	0.0	10.1	0.0	0.0
0.0	0.0	0.0	0.0	10.1	0.0
0.0	0.0	0.0	0.0	0.0	10.1

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.539	6.334	6.334	6.334	90.0	90.0	90.0
DFT	64.27	6.359	6.359	6.359	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
9.3	6.1	6.1	0.0	0.0	0.0
6.1	9.3	6.1	0.0	0.0	0.0
6.1	6.1	9.3	0.0	0.0	0.0
0.0	0.0	0.0	9.4	0.0	0.0
0.0	0.0	0.0	0.0	9.4	0.0
0.0	0.0	0.0	0.0	0.0	9.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	63.564	3.991	3.991	3.991	90.0	90.0	90.0
DFT	61.865	3.955	3.955	3.955	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
30.5	-4.5	-4.5	0.0	0.0	0.0
-4.5	30.5	-4.5	0.0	0.0	0.0
-4.5	-4.5	30.5	0.0	0.0	0.0
0.0	0.0	0.0	-3.2	0.0	0.0
0.0	0.0	0.0	0.0	-3.2	0.0
0.0	0.0	0.0	0.0	0.0	-3.2
