gtinv-194 (Be-2021-08-04-all-icsd)

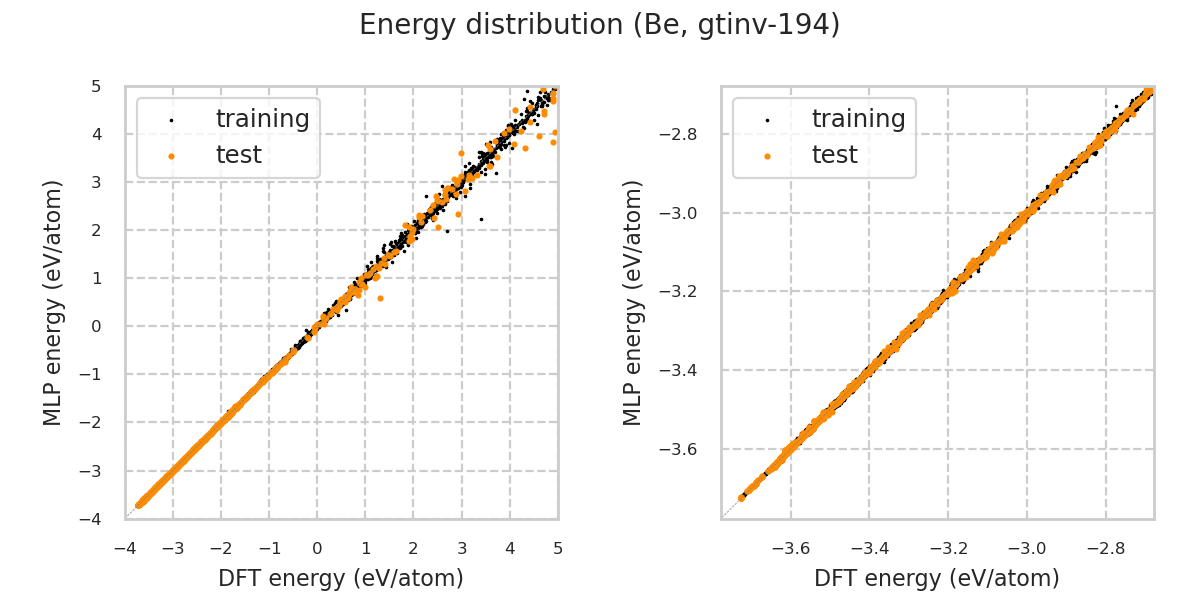

Energy distribution

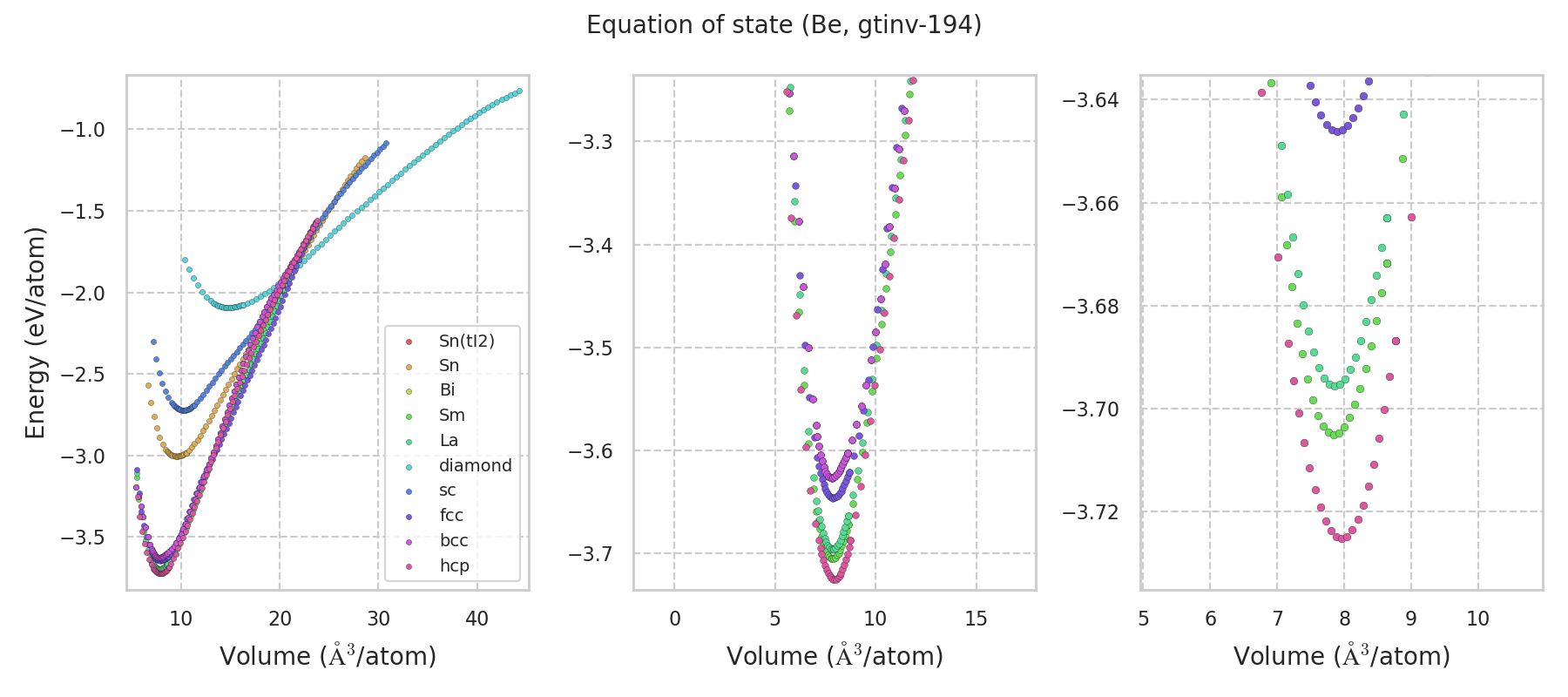

Equation of state

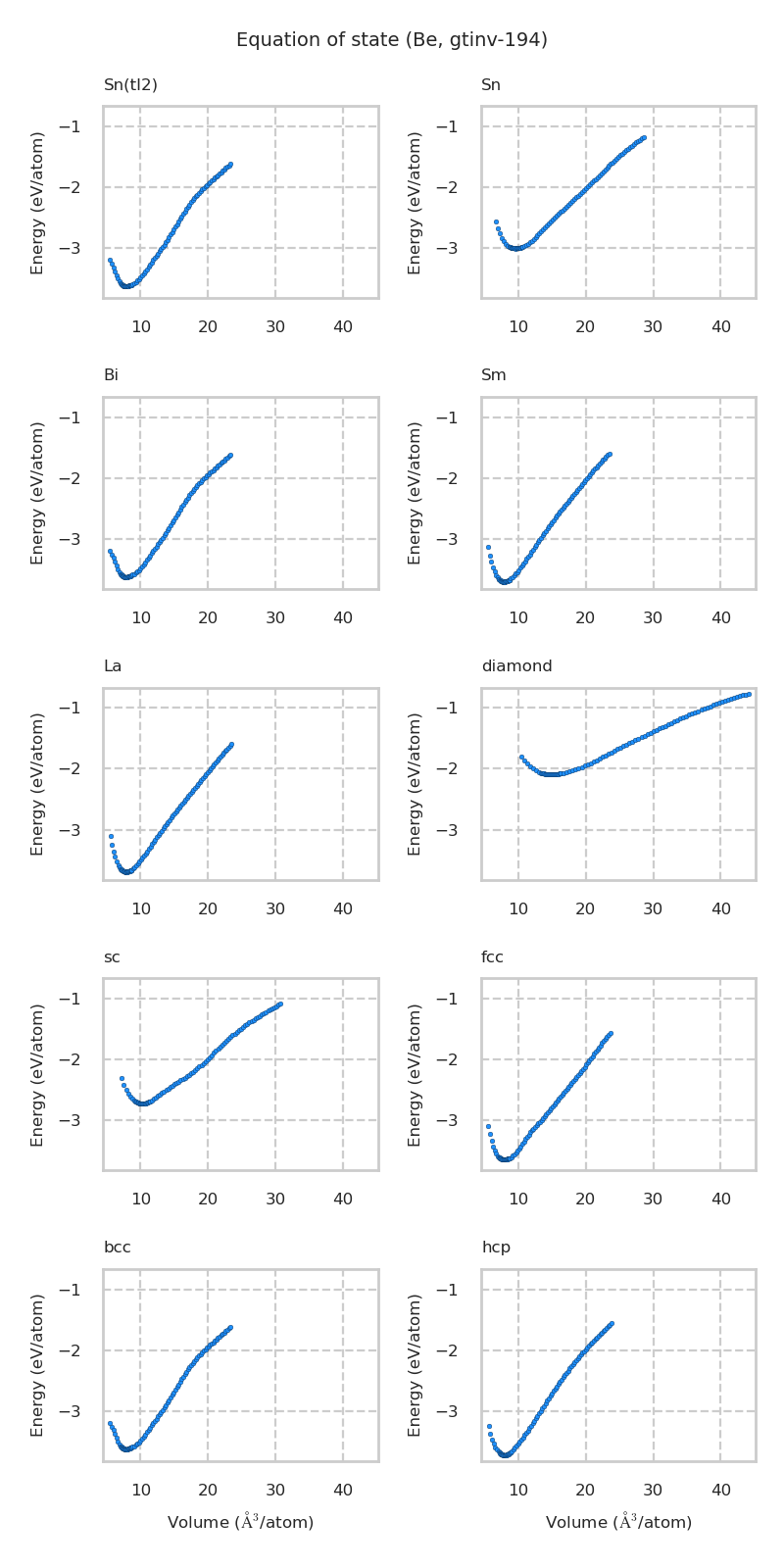

Equation of state for each structure

Prototype structure energy

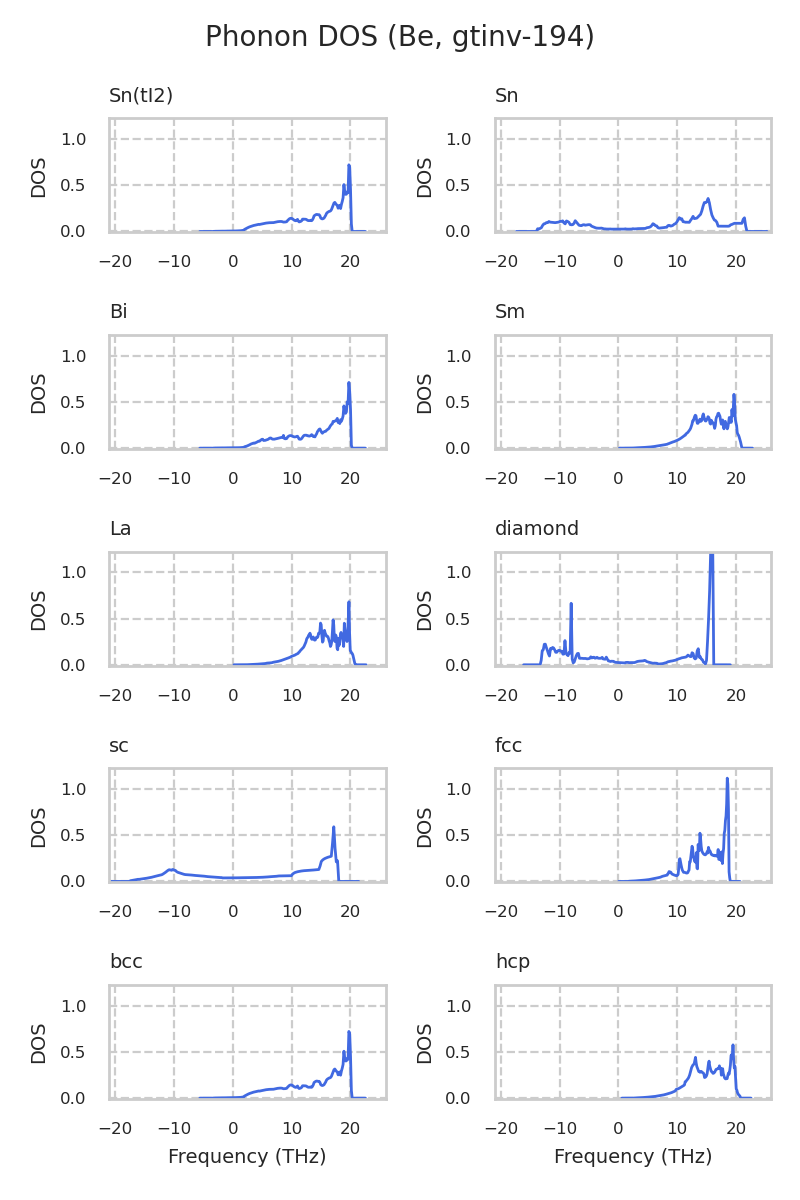

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

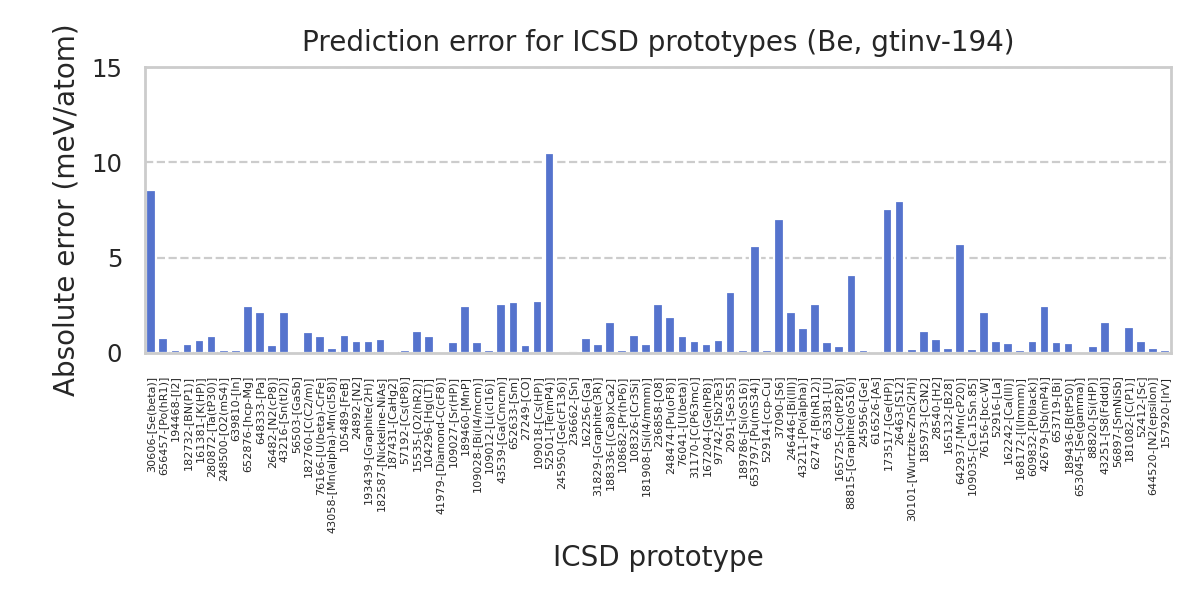

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-652876-[hcp-Mg]	-3.72497	-3.7274
icsd-42679-[Sb(mP4)]	-3.72497	-3.72741
icsd-189460-[MnP]	-3.72496	-3.72742
icsd-236858-[O8]	-3.72496	-3.7275
icsd-652633-[Sm]	-3.70445	-3.70709
icsd-52916-[La]	-3.69521	-3.69582
icsd-161381-[K(HP)]	-3.69516	-3.69582
icsd-182587-[Nickeline-NiAs]	-3.69511	-3.69581
icsd-642937-[Mn(cP20)]	-3.6526	-3.64691
icsd-194468-[I2]	-3.6462	-3.64632
icsd-104296-[Hg(LT)]	-3.64619	-3.64709
icsd-52914-[ccp-Cu]	-3.64619	-3.64631
icsd-653045-[Se(gamma)]	-3.64619	-3.64623
icsd-248500-[O2(mS4)]	-3.64619	-3.64629
icsd-57192-[Cs(tP8)]	-3.64618	-3.64634
icsd-189786-[Si(oS16)]	-3.64618	-3.64631
icsd-616526-[As]	-3.64618	-3.64623
icsd-157920-[IrV]	-3.64617	-3.64633
icsd-168172-[I(Immm)]	-3.64617	-3.64633
icsd-639810-[In]	-3.64617	-3.64632
icsd-76166-[U(beta)-CrFe]	-3.64181	-3.64092
icsd-76041-[U(beta)]	-3.6418	-3.64092
icsd-280872-[Ta(tP30)]	-3.64173	-3.64087
icsd-109012-[Li(cI16)]	-3.62929	-3.62915
icsd-97742-[Sb2Te3]	-3.62662	-3.62728
icsd-653381-[U]	-3.62661	-3.62719
icsd-653719-[Bi]	-3.62661	-3.62715
icsd-43216-[Sn(tI2)]	-3.6266	-3.62874
icsd-648333-[Pa]	-3.6266	-3.62873
icsd-246446-[Bi(III)]	-3.6266	-3.62871
icsd-31829-[Graphite(3R)]	-3.6266	-3.62703
icsd-52412-[Sc]	-3.6266	-3.62719
icsd-656457-[Po(hR1)]	-3.6266	-3.62734
icsd-76156-[bcc-W]	-3.62659	-3.62874
icsd-182760-[C(C2/m)]	-3.62656	-3.62762
icsd-108326-[Cr3Si]	-3.62235	-3.62328
icsd-30606-[Se(beta)]	-3.60898	-3.61754
icsd-52501-[Te(mP4)]	-3.60335	-3.61387
icsd-26482-[N2(cP8)]	-3.6001	-3.59971
icsd-27249-[CO]	-3.60009	-3.5997
icsd-165725-[Co(tP28)]	-3.59896	-3.59928
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.58439	-3.58462
icsd-653797-[Pu(mS34)]	-3.57281	-3.57842
icsd-105489-[FeB]	-3.56469	-3.56563
icsd-37090-[S6]	-3.56256	-3.55552
icsd-248474-[Pu(oF8)]	-3.54339	-3.54154
icsd-56897-[SmNiSb]	-3.53773	-3.53777
icsd-187431-[CaHg2]	-3.53772	-3.53778
icsd-43251-[S8(Fddd)]	-3.5039	-3.5055
icsd-26463-[S12]	-3.4803	-3.48827
icsd-2091-[Se3S5]	-3.47405	-3.47722
icsd-189436-[B(tP50)]	-3.46309	-3.46357
icsd-43539-[Ga(Cmcm)]	-3.44767	-3.44512
icsd-24892-[N2]	-3.41958	-3.4202
icsd-644520-[N2(epsilon)]	-3.39667	-3.39693
icsd-609832-[P(black)]	-3.39547	-3.3961
icsd-108682-[Pr(hP6)]	-3.29151	-3.29167
icsd-15535-[O2(hR2)]	-3.2906	-3.28945
icsd-109028-[Bi(I4/mcm)]	-3.28578	-3.28635
icsd-182732-[BN(P1)]	-3.22057	-3.22104
icsd-109035-[Ca.15Sn.85]	-3.22057	-3.22074
icsd-162242-[Ca(III)]	-3.22045	-3.22096
icsd-109018-[Cs(HP)]	-3.11706	-3.11979
icsd-162256-[Ga]	-3.10739	-3.10663
icsd-236662-[Sn]	-3.00296	-3.00296
icsd-56503-[GaSb]	-3.00295	-3.00296
icsd-165132-[B28]	-2.99781	-2.99806
icsd-31170-[C(P63mc)]	-2.89877	-2.89935
icsd-193439-[Graphite(2H)]	-2.89874	-2.89935
icsd-62747-[B(hR12)]	-2.88656	-2.88909
icsd-188336-[(Ca8)xCa2]	-2.82776	-2.82617
icsd-28540-[H2]	-2.79093	-2.79166
icsd-109027-[Sr(HP)]	-2.72744	-2.72802
icsd-43211-[Po(alpha)]	-2.72377	-2.72506
icsd-181082-[C(P1)]	-2.72369	-2.72503
icsd-245950-[Ge(cF136)]	-2.38764	-2.38765
icsd-88820-[Si(HP)]	-2.32035	-2.32003
icsd-245956-[Ge]	-2.31994	-2.32006
icsd-173517-[Ge(HP)]	-2.3197	-2.31214
icsd-181908-[Si(I4/mmm)]	-2.14203	-2.14247
icsd-30101-[Wurtzite-ZnS(2H)]	-2.11667	-2.11684
icsd-167204-[Ge(hP8)]	-2.10289	-2.10333
icsd-41979-[Diamond-C(cF8)]	-2.09274	-2.09269
icsd-88815-[Graphite(oS16)]	-2.07171	-2.06764
icsd-185973-[C3N2]	-2.04502	-2.04613

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.962	2.271	2.271	3.564	90.0	90.0	120.0
DFT	7.916	2.264	2.264	3.566	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
341.4	35.8	49.9	0.0	0.0	0.0
35.8	341.4	49.9	0.0	0.0	0.0
49.9	49.9	391.6	0.0	0.0	0.0
0.0	0.0	0.0	158.5	0.0	0.0
0.0	0.0	0.0	0.0	158.5	0.0
0.0	0.0	0.0	0.0	0.0	152.8

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.846	2.256	2.256	16.02	90.0	90.0	120.0
DFT	7.908	2.256	2.256	16.142	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
343.8	65.6	47.2	12.0	0.0	0.0
65.6	343.8	47.2	-12.0	0.0	0.0
47.2	47.2	413.0	0.0	0.0	0.0
12.0	-12.0	0.0	145.1	0.0	0.0
0.0	0.0	0.0	0.0	145.1	12.0
0.0	0.0	0.0	0.0	12.0	139.1

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.856	2.254	2.254	7.14	90.0	90.0	120.0
DFT	7.906	2.254	2.254	7.187	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
334.3	74.5	42.2	0.0	0.0	0.0
74.5	334.3	42.2	0.0	0.0	0.0
42.2	42.2	416.6	0.0	0.0	0.0
0.0	0.0	0.0	145.7	0.0	0.0
0.0	0.0	0.0	0.0	145.7	0.0
0.0	0.0	0.0	0.0	0.0	129.9

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.811	2.5	2.5	2.5	90.0	90.0	90.0
DFT	7.815	2.5	2.5	2.5	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
134.0	154.3	154.3	0.0	0.0	0.0
154.3	134.0	154.3	0.0	0.0	0.0
154.3	154.3	134.0	0.0	0.0	0.0
0.0	0.0	0.0	169.4	0.0	0.0
0.0	0.0	0.0	0.0	169.4	0.0
0.0	0.0	0.0	0.0	0.0	169.4

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	9.567	4.275	4.275	2.094	90.0	90.0	90.0
DFT	9.393	4.218	4.218	2.112	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-111247.0	991720.5	28.9	0.0	0.0	0.0
991720.5	637544.7	-445574.2	0.0	0.0	0.0
28.9	-445574.2	334.7	0.0	0.0	0.0
0.0	0.0	0.0	-72.6	0.0	0.0
0.0	0.0	0.0	0.0	-72.6	0.0
0.0	0.0	0.0	0.0	0.0	-95.2

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.811	2.5	2.5	2.5	90.0	90.0	90.0
DFT	7.825	2.501	2.501	2.501	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
134.0	154.3	154.3	0.0	0.0	0.0
154.3	134.0	154.3	0.0	0.0	0.0
154.3	154.3	134.0	0.0	0.0	0.0
0.0	0.0	0.0	169.4	0.0	0.0
0.0	0.0	0.0	0.0	169.4	0.0
0.0	0.0	0.0	0.0	0.0	169.4

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.891	3.16	3.16	3.16	90.0	90.0	90.0
DFT	7.876	3.158	3.158	3.158	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
211.6	87.3	87.3	0.0	0.0	0.0
87.3	211.6	87.3	0.0	0.0	0.0
87.3	87.3	211.6	0.0	0.0	0.0
0.0	0.0	0.0	173.4	0.0	0.0
0.0	0.0	0.0	0.0	173.4	0.0
0.0	0.0	0.0	0.0	0.0	173.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.789	4.909	4.909	4.909	90.0	90.0	90.0
DFT	14.748	4.905	4.905	4.905	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
-0.4	70.2	70.2	0.0	0.0	0.0
70.2	-0.4	70.2	0.0	0.0	0.0
70.2	70.2	-0.4	0.0	0.0	0.0
0.0	0.0	0.0	-74.8	0.0	0.0
0.0	0.0	0.0	0.0	-74.8	0.0
0.0	0.0	0.0	0.0	0.0	-74.8

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	10.289	2.175	2.175	2.175	90.0	90.0	90.0
DFT	10.295	2.175	2.175	2.175	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
53.0	130.8	130.8	0.0	0.0	0.0
130.8	53.0	130.8	0.0	0.0	0.0
130.8	130.8	53.0	0.0	0.0	0.0
0.0	0.0	0.0	-88.3	0.0	0.0
0.0	0.0	0.0	0.0	-88.3	0.0
0.0	0.0	0.0	0.0	0.0	-88.3

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	7.811	2.5	2.5	2.5	90.0	90.0	90.0
DFT	7.818	2.501	2.501	2.501	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
134.0	154.3	154.3	0.0	0.0	0.0
154.3	134.0	154.3	0.0	0.0	0.0
154.3	154.3	134.0	0.0	0.0	0.0
0.0	0.0	0.0	169.4	0.0	0.0
0.0	0.0	0.0	0.0	169.4	0.0
0.0	0.0	0.0	0.0	0.0	169.4
