gtinv-190 (Ca-2021-08-04-all-icsd)

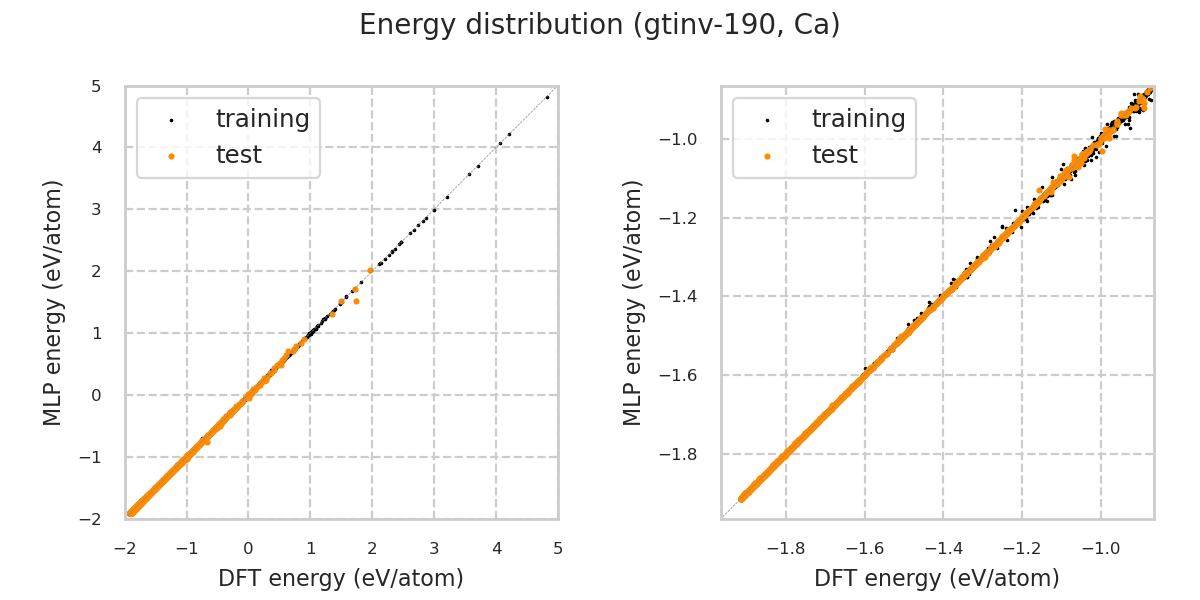

Energy distribution

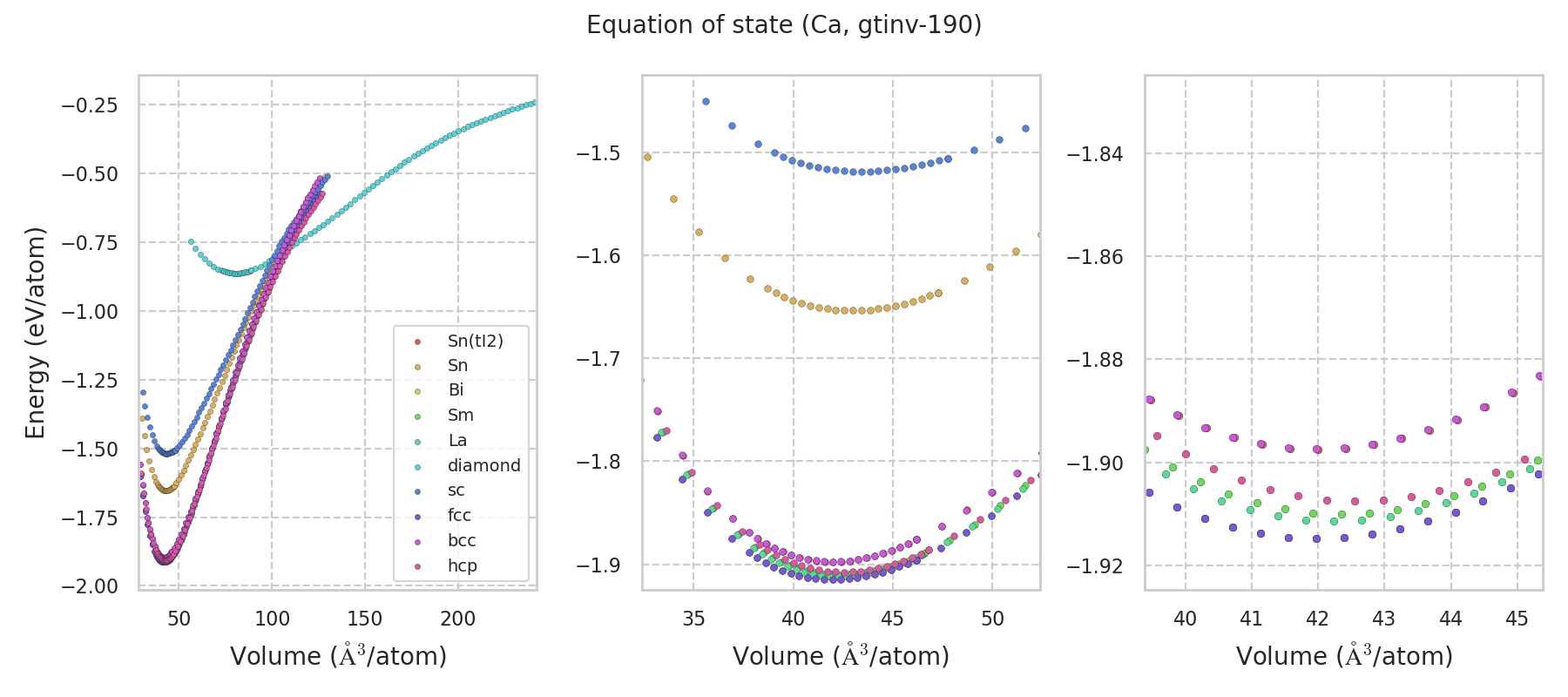

Equation of state

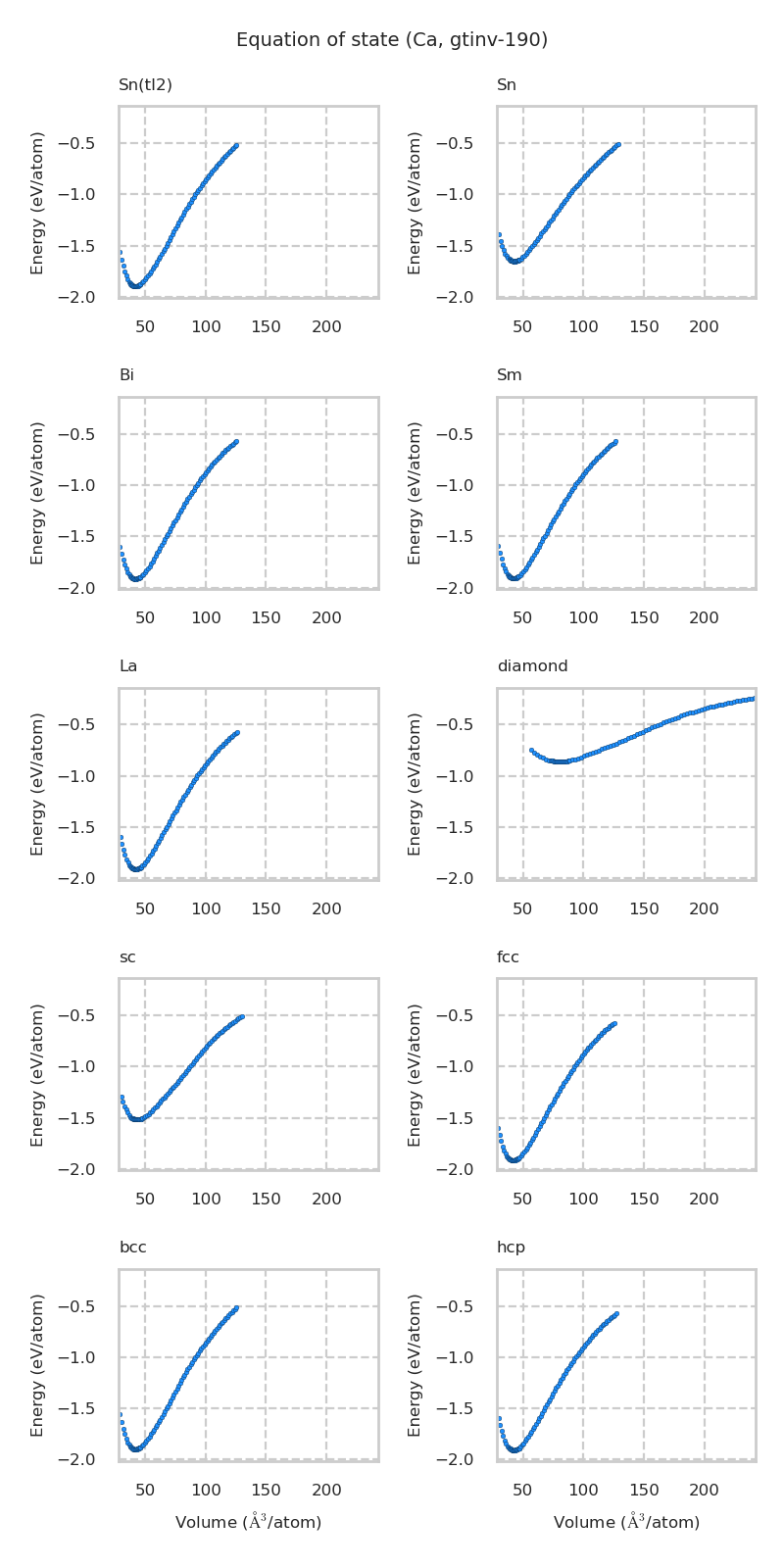

Equation of state for each structure

Prototype structure energy

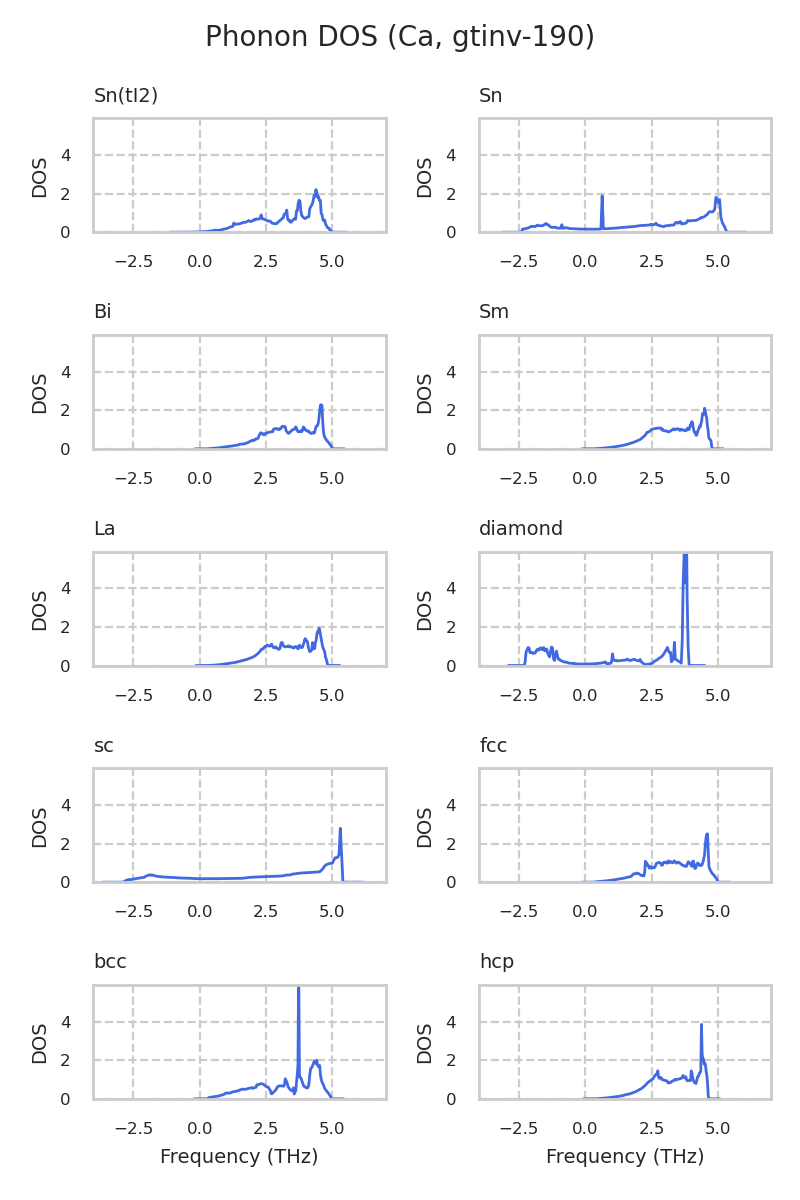

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

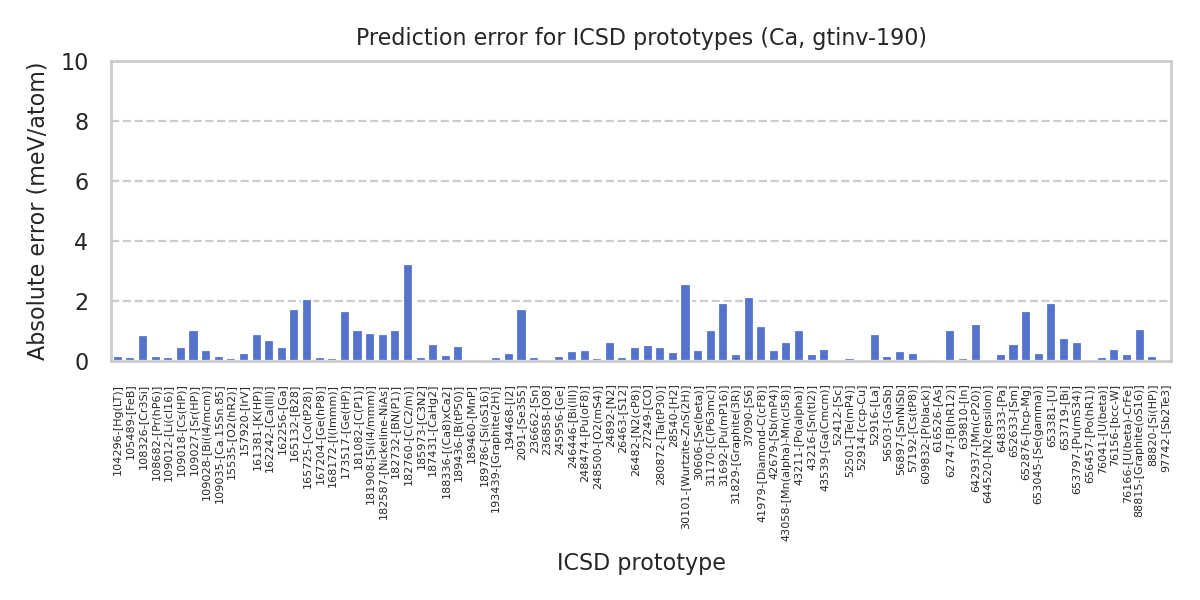

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-104296-[Hg(LT)]	-1.91476	-1.91492
icsd-52914-[ccp-Cu]	-1.91476	-1.91481
icsd-236858-[O8]	-1.91475	-1.91478
icsd-189786-[Si(oS16)]	-1.91474	-1.91473
icsd-15535-[O2(hR2)]	-1.91473	-1.91463
icsd-57192-[Cs(tP8)]	-1.91472	-1.91447
icsd-168172-[I(Immm)]	-1.91469	-1.91478
icsd-52501-[Te(mP4)]	-1.91468	-1.91461
icsd-639810-[In]	-1.91463	-1.91472
icsd-248500-[O2(mS4)]	-1.91462	-1.91469
icsd-108682-[Pr(hP6)]	-1.91447	-1.91463
icsd-52916-[La]	-1.91129	-1.91039
icsd-182587-[Nickeline-NiAs]	-1.91129	-1.9104
icsd-161381-[K(HP)]	-1.91129	-1.91038
icsd-31170-[C(P63mc)]	-1.91097	-1.90993
icsd-652633-[Sm]	-1.91003	-1.9106
icsd-652876-[hcp-Mg]	-1.90745	-1.90909
icsd-31692-[Pu(mP16)]	-1.90701	-1.90892
icsd-653381-[U]	-1.90698	-1.90889
icsd-157920-[IrV]	-1.89844	-1.89868
icsd-97742-[Sb2Te3]	-1.89764	-1.8976
icsd-648333-[Pa]	-1.89754	-1.89731
icsd-246446-[Bi(III)]	-1.89752	-1.8972
icsd-43216-[Sn(tI2)]	-1.89751	-1.89729
icsd-52412-[Sc]	-1.8975	-1.89752
icsd-105489-[FeB]	-1.89746	-1.89736
icsd-656457-[Po(hR1)]	-1.89741	-1.89735
icsd-616526-[As]	-1.89739	-1.89737
icsd-76156-[bcc-W]	-1.89739	-1.89701
icsd-194468-[I2]	-1.89735	-1.89711
icsd-109012-[Li(cI16)]	-1.89717	-1.89706
icsd-30606-[Se(beta)]	-1.88779	-1.88815
icsd-76041-[U(beta)]	-1.88267	-1.88254
icsd-76166-[U(beta)-CrFe]	-1.88267	-1.88245
icsd-280872-[Ta(tP30)]	-1.88259	-1.88213
icsd-248474-[Pu(oF8)]	-1.88072	-1.88036
icsd-642937-[Mn(cP20)]	-1.87729	-1.87851
icsd-108326-[Cr3Si]	-1.87504	-1.87591
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.86881	-1.86819
icsd-187431-[CaHg2]	-1.86032	-1.85978
icsd-56897-[SmNiSb]	-1.86013	-1.8598
icsd-653797-[Pu(mS34)]	-1.85705	-1.85766
icsd-26482-[N2(cP8)]	-1.8402	-1.84066
icsd-27249-[CO]	-1.84017	-1.84067
icsd-2091-[Se3S5]	-1.83378	-1.83551
icsd-165725-[Co(tP28)]	-1.8302	-1.83226
icsd-189436-[B(tP50)]	-1.81361	-1.8141
icsd-167204-[Ge(hP8)]	-1.7952	-1.79533
icsd-43539-[Ga(Cmcm)]	-1.7887	-1.7883
icsd-609832-[P(black)]	-1.78451	-1.78445
icsd-37090-[S6]	-1.76145	-1.75934
icsd-109028-[Bi(I4/mcm)]	-1.75678	-1.75715
icsd-644520-[N2(epsilon)]	-1.70827	-1.70825
icsd-109035-[Ca.15Sn.85]	-1.68266	-1.6825
icsd-42679-[Sb(mP4)]	-1.67068	-1.67104
icsd-189460-[MnP]	-1.66848	-1.6685
icsd-109018-[Cs(HP)]	-1.66763	-1.66719
icsd-653719-[Bi]	-1.65521	-1.65445
icsd-236662-[Sn]	-1.6532	-1.65332
icsd-56503-[GaSb]	-1.65316	-1.65332
icsd-162256-[Ga]	-1.63947	-1.63903
icsd-188336-[(Ca8)xCa2]	-1.59796	-1.59778
icsd-181082-[C(P1)]	-1.51879	-1.51777
icsd-182732-[BN(P1)]	-1.51879	-1.51778
icsd-31829-[Graphite(3R)]	-1.51877	-1.51856
icsd-109027-[Sr(HP)]	-1.51877	-1.51776
icsd-43211-[Po(alpha)]	-1.51876	-1.51776
icsd-653045-[Se(gamma)]	-1.51874	-1.5185
icsd-162242-[Ca(III)]	-1.51829	-1.51759
icsd-173517-[Ge(HP)]	-1.40876	-1.40709
icsd-88815-[Graphite(oS16)]	-1.39531	-1.39638
icsd-185973-[C3N2]	-1.37891	-1.37902
icsd-62747-[B(hR12)]	-1.33368	-1.33266
icsd-26463-[S12]	-1.3318	-1.33167
icsd-193439-[Graphite(2H)]	-1.26814	-1.26801
icsd-165132-[B28]	-1.26376	-1.26203
icsd-28540-[H2]	-1.26186	-1.26216
icsd-182760-[C(C2/m)]	-1.16389	-1.16714
icsd-88820-[Si(HP)]	-1.15979	-1.15995
icsd-245956-[Ge]	-1.15963	-1.15977
icsd-24892-[N2]	-1.13869	-1.1393
icsd-30101-[Wurtzite-ZnS(2H)]	-0.8671	-0.86454
icsd-41979-[Diamond-C(cF8)]	-0.86271	-0.86386
icsd-181908-[Si(I4/mmm)]	-0.85159	-0.85066

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	42.551	3.916	3.916	6.408	90.0	90.0	120.0
DFT	42.427	3.905	3.905	6.425	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
29.9	14.7	7.6	0.0	0.0	0.0
14.7	29.9	7.6	0.0	0.0	0.0
7.6	7.6	43.5	0.0	0.0	0.0
0.0	0.0	0.0	7.4	0.0	0.0
0.0	0.0	0.0	0.0	7.4	0.0
0.0	0.0	0.0	0.0	0.0	7.6

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	42.346	3.911	3.911	28.768	90.0	90.0	120.0
DFT	42.316	3.906	3.906	28.825	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
29.9	14.7	6.8	2.4	0.0	0.0
14.7	29.9	6.8	-2.4	0.0	0.0
6.8	6.8	42.0	0.0	0.0	0.0
2.4	-2.4	0.0	7.3	0.0	0.0
0.0	0.0	0.0	0.0	7.3	2.4
0.0	0.0	0.0	0.0	2.4	7.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	42.236	3.909	3.909	12.767	90.0	90.0	120.0
DFT	42.22	3.901	3.901	12.817	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
28.9	15.9	6.6	0.0	0.0	0.0
15.9	28.9	6.6	0.0	0.0	0.0
6.6	6.6	41.1	0.0	0.0	0.0
0.0	0.0	0.0	7.4	0.0	0.0
0.0	0.0	0.0	0.0	7.4	0.0
0.0	0.0	0.0	0.0	0.0	6.5

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	42.0	4.443	4.443	4.255	90.0	90.0	90.0
DFT	42.176	4.454	4.454	4.251	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
16.0	22.0	18.3	0.0	0.0	0.0
22.0	16.0	18.3	0.0	0.0	0.0
18.3	18.3	21.9	0.0	0.0	0.0
0.0	0.0	0.0	16.3	0.0	0.0
0.0	0.0	0.0	0.0	16.3	0.0
0.0	0.0	0.0	0.0	0.0	19.0

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	42.989	6.85	6.85	3.665	90.0	90.0	90.0
DFT	42.883	6.817	6.817	3.691	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
30.7	-63349.8	1.6	0.0	0.0	0.0
-63349.8	126741.8	4.3	0.0	0.0	0.0
1.6	4.3	47.3	0.0	0.0	0.0
0.0	0.0	0.0	-4.4	0.0	0.0
0.0	0.0	0.0	0.0	-4.4	0.0
0.0	0.0	0.0	0.0	0.0	-10.3

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	41.977	4.379	4.379	4.379	90.0	90.0	90.0
DFT	42.115	4.384	4.384	4.384	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
17.2	19.7	19.7	0.0	0.0	0.0
19.7	17.2	19.7	0.0	0.0	0.0
19.7	19.7	17.2	0.0	0.0	0.0
0.0	0.0	0.0	17.2	0.0	0.0
0.0	0.0	0.0	0.0	17.2	0.0
0.0	0.0	0.0	0.0	0.0	17.2

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	41.966	5.516	5.516	5.516	90.0	90.0	90.0
DFT	42.047	5.52	5.52	5.52	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
19.5	15.7	15.7	0.0	0.0	0.0
15.7	19.5	15.7	0.0	0.0	0.0
15.7	15.7	19.5	0.0	0.0	0.0
0.0	0.0	0.0	17.4	0.0	0.0
0.0	0.0	0.0	0.0	17.4	0.0
0.0	0.0	0.0	0.0	0.0	17.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	80.72	8.644	8.644	8.644	90.0	90.0	90.0
DFT	80.066	8.62	8.62	8.62	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
1.7	5.3	5.3	0.0	0.0	0.0
5.3	1.7	5.3	0.0	0.0	0.0
5.3	5.3	1.7	0.0	0.0	0.0
0.0	0.0	0.0	-5.3	0.0	0.0
0.0	0.0	0.0	0.0	-5.3	0.0
0.0	0.0	0.0	0.0	0.0	-5.3

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	43.41	3.514	3.514	3.514	90.0	90.0	90.0
DFT	43.221	3.509	3.509	3.509	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
49.0	-8.1	-8.1	0.0	0.0	0.0
-8.1	49.0	-8.1	0.0	0.0	0.0
-8.1	-8.1	49.0	0.0	0.0	0.0
0.0	0.0	0.0	-8.9	0.0	0.0
0.0	0.0	0.0	0.0	-8.9	0.0
0.0	0.0	0.0	0.0	0.0	-8.9

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	41.966	6.756	6.756	3.901	90.0	90.0	109.47
DFT	42.869	7.564	6.858	3.687	90.0	116.28	90.0

Elastic constants (Bi)

1	2	3	4	5	6
34.9	5.3	10.5	0.0	0.0	7.3
5.3	40.1	5.3	0.0	0.0	0.0
10.5	5.3	34.9	0.0	0.0	-7.3
0.0	0.0	0.0	7.1	-7.3	0.0
0.0	0.0	0.0	-7.3	12.2	0.0
7.3	0.0	-7.3	0.0	0.0	7.1
