gtinv-321 (Cd-2021-08-04-all-icsd)

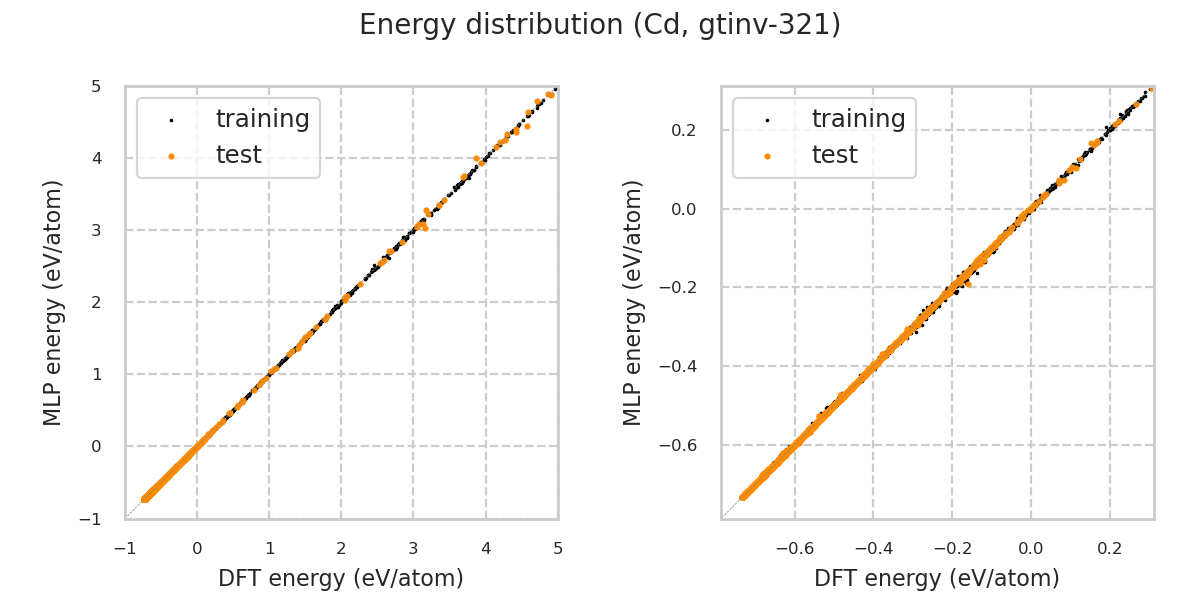

Energy distribution

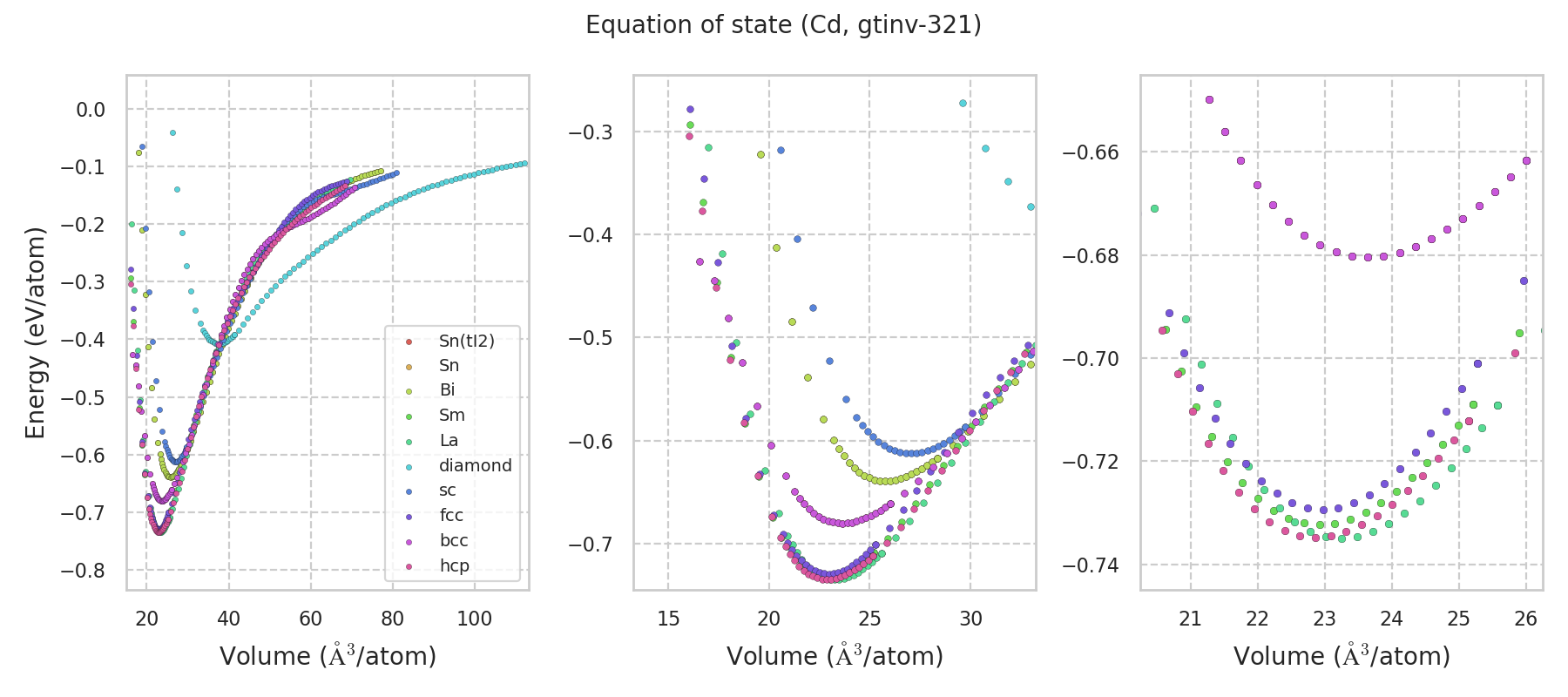

Equation of state

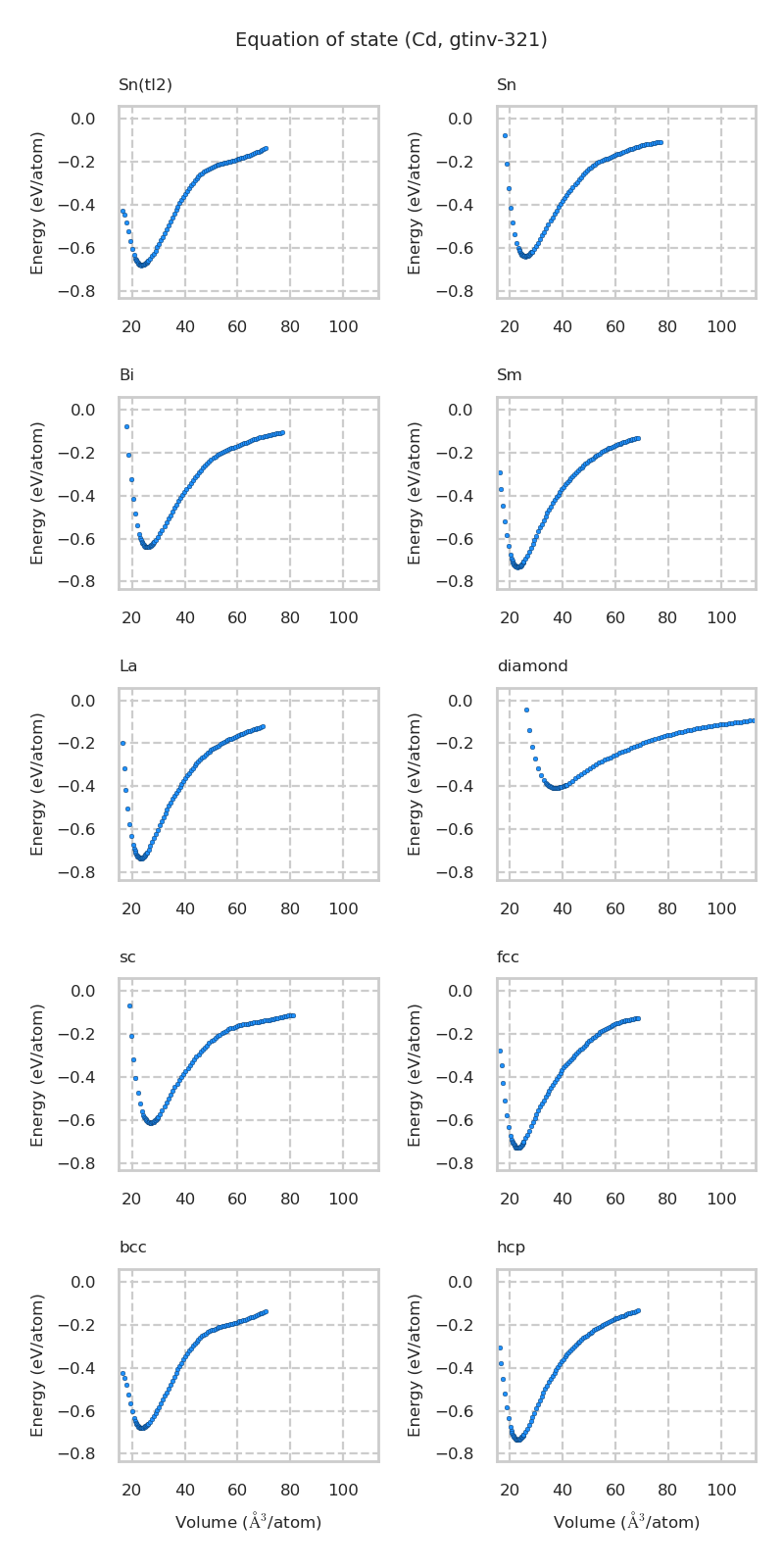

Equation of state for each structure

Prototype structure energy

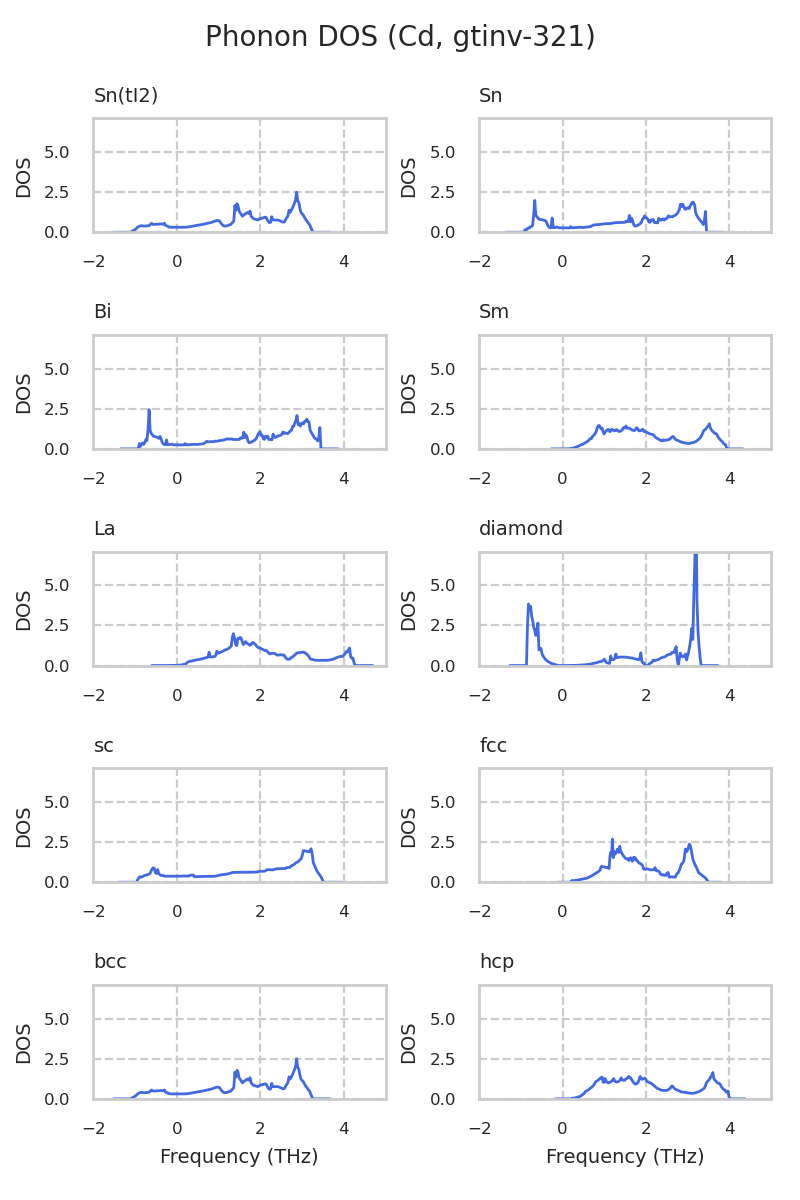

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

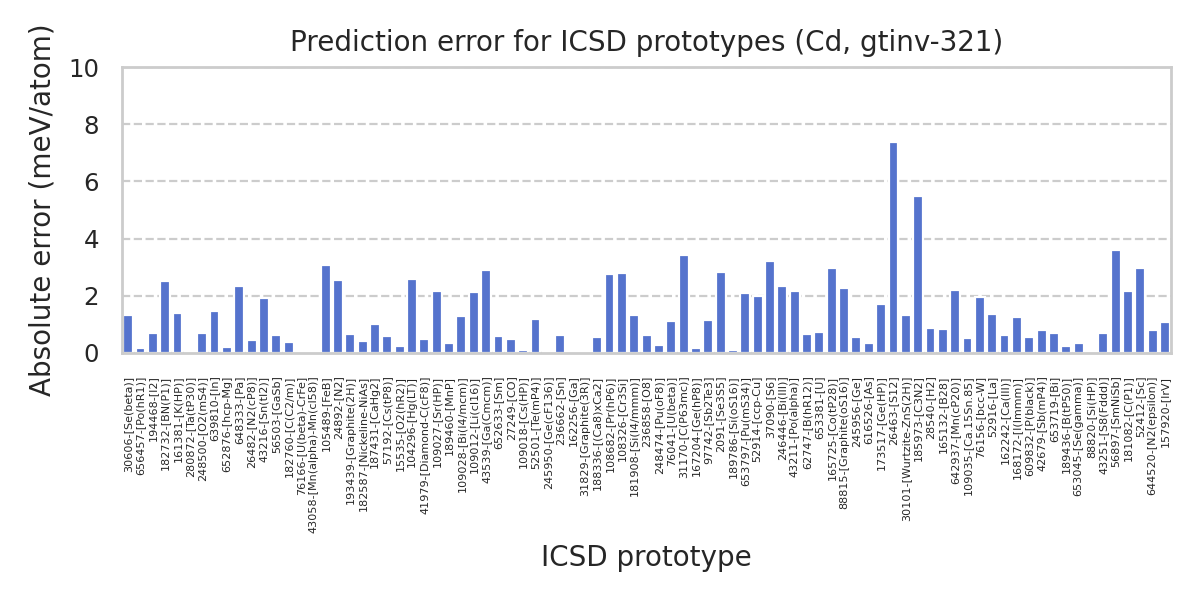

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-162256-[Ga]	-0.73466	-0.73469
icsd-52412-[Sc]	-0.73466	-0.73764
icsd-652876-[hcp-Mg]	-0.73461	-0.73479
icsd-648333-[Pa]	-0.73458	-0.73692
icsd-246446-[Bi(III)]	-0.73458	-0.73692
icsd-653381-[U]	-0.73456	-0.73529
icsd-157920-[IrV]	-0.73429	-0.73537
icsd-189460-[MnP]	-0.7342	-0.73388
icsd-31170-[C(P63mc)]	-0.73339	-0.73681
icsd-652633-[Sm]	-0.73231	-0.73288
icsd-42679-[Sb(mP4)]	-0.73164	-0.73245
icsd-52916-[La]	-0.7306	-0.73194
icsd-616526-[As]	-0.73056	-0.73088
icsd-161381-[K(HP)]	-0.73056	-0.73194
icsd-653045-[Se(gamma)]	-0.73056	-0.73088
icsd-15535-[O2(hR2)]	-0.73055	-0.73033
icsd-52501-[Te(mP4)]	-0.73042	-0.7316
icsd-97742-[Sb2Te3]	-0.73036	-0.73149
icsd-189786-[Si(oS16)]	-0.73001	-0.73011
icsd-104296-[Hg(LT)]	-0.7295	-0.72693
icsd-248500-[O2(mS4)]	-0.7294	-0.73007
icsd-52914-[ccp-Cu]	-0.72937	-0.72739
icsd-639810-[In]	-0.72936	-0.7279
icsd-236858-[O8]	-0.72931	-0.72868
icsd-168172-[I(Immm)]	-0.7293	-0.72806
icsd-194468-[I2]	-0.72928	-0.7286
icsd-108682-[Pr(hP6)]	-0.728	-0.72525
icsd-248474-[Pu(oF8)]	-0.72349	-0.72376
icsd-30606-[Se(beta)]	-0.72095	-0.71962
icsd-182760-[C(C2/m)]	-0.71824	-0.71862
icsd-43539-[Ga(Cmcm)]	-0.71628	-0.71917
icsd-76041-[U(beta)]	-0.71412	-0.71522
icsd-109012-[Li(cI16)]	-0.71214	-0.71002
icsd-642937-[Mn(cP20)]	-0.71212	-0.70993
icsd-108326-[Cr3Si]	-0.71129	-0.70851
icsd-43058-[Mn(alpha)-Mn(cI58)]	-0.7107	-0.71073
icsd-280872-[Ta(tP30)]	-0.70904	-0.70899
icsd-76166-[U(beta)-CrFe]	-0.70899	-0.70902
icsd-165132-[B28]	-0.70355	-0.70271
icsd-26482-[N2(cP8)]	-0.70128	-0.70171
icsd-27249-[CO]	-0.70127	-0.70172
icsd-165725-[Co(tP28)]	-0.70122	-0.70419
icsd-105489-[FeB]	-0.69789	-0.69482
icsd-167204-[Ge(hP8)]	-0.69415	-0.69401
icsd-31829-[Graphite(3R)]	-0.69407	-0.69407
icsd-609832-[P(black)]	-0.69003	-0.69057
icsd-188336-[(Ca8)xCa2]	-0.69002	-0.69058
icsd-187431-[CaHg2]	-0.6898	-0.6908
icsd-2091-[Se3S5]	-0.68495	-0.68777
icsd-57192-[Cs(tP8)]	-0.68457	-0.68398
icsd-653797-[Pu(mS34)]	-0.68433	-0.68225
icsd-109018-[Cs(HP)]	-0.68429	-0.68437
icsd-656457-[Po(hR1)]	-0.68343	-0.68358
icsd-56897-[SmNiSb]	-0.68077	-0.68438
icsd-76156-[bcc-W]	-0.68034	-0.67837
icsd-43216-[Sn(tI2)]	-0.68033	-0.67841
icsd-26463-[S12]	-0.67853	-0.68591
icsd-43251-[S8(Fddd)]	-0.66965	-0.66896
icsd-644520-[N2(epsilon)]	-0.6692	-0.66999
icsd-109035-[Ca.15Sn.85]	-0.66615	-0.66564
icsd-189436-[B(tP50)]	-0.65715	-0.65738
icsd-37090-[S6]	-0.65665	-0.65344
icsd-182587-[Nickeline-NiAs]	-0.6478	-0.64738
icsd-236662-[Sn]	-0.63904	-0.63966
icsd-56503-[GaSb]	-0.63903	-0.63965
icsd-653719-[Bi]	-0.6389	-0.63957
icsd-182732-[BN(P1)]	-0.61259	-0.61509
icsd-109027-[Sr(HP)]	-0.61259	-0.61045
icsd-181082-[C(P1)]	-0.61259	-0.61045
icsd-43211-[Po(alpha)]	-0.61259	-0.61045
icsd-28540-[H2]	-0.61257	-0.61343
icsd-162242-[Ca(III)]	-0.61249	-0.61189
icsd-62747-[B(hR12)]	-0.60506	-0.6057
icsd-109028-[Bi(I4/mcm)]	-0.55936	-0.55808
icsd-193439-[Graphite(2H)]	-0.51092	-0.51027
icsd-24892-[N2]	-0.50877	-0.50622
icsd-88815-[Graphite(oS16)]	-0.50727	-0.50954
icsd-245956-[Ge]	-0.48413	-0.48358
icsd-88820-[Si(HP)]	-0.48411	-0.48405
icsd-245950-[Ge(cF136)]	-0.43913	-0.43908
icsd-173517-[Ge(HP)]	-0.43788	-0.43617
icsd-30101-[Wurtzite-ZnS(2H)]	-0.41931	-0.41801
icsd-41979-[Diamond-C(cF8)]	-0.40789	-0.40836
icsd-181908-[Si(I4/mmm)]	-0.40336	-0.40205
icsd-185973-[C3N2]	-0.34719	-0.35269

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.863	3.061	3.061	5.637	90.0	90.0	120.0
DFT	22.895	3.055	3.055	5.665	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
66.3	35.5	31.0	0.0	0.0	0.0
35.5	66.4	31.0	0.0	0.0	0.0
31.0	31.0	54.0	0.0	0.0	0.0
0.0	0.0	0.0	6.7	0.0	0.0
0.0	0.0	0.0	0.0	6.7	0.0
0.0	0.0	0.0	0.0	0.0	15.4

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.922	3.07	3.07	25.276	90.0	90.0	120.0
DFT	22.882	3.068	3.068	25.263	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
55.7	36.6	31.9	-5.1	0.0	0.0
36.6	55.7	31.9	5.1	0.0	0.0
31.9	31.9	50.9	0.0	0.0	0.0
-5.1	5.1	0.0	4.0	0.0	0.0
0.0	0.0	0.0	0.0	4.0	-5.1
0.0	0.0	0.0	0.0	-5.1	9.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.254	3.17	2.972	11.178	90.0	90.0	117.95
DFT	22.903	3.064	3.064	11.265	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
62.9	36.9	29.0	0.0	0.0	-8.0
36.9	89.2	33.3	0.0	0.0	-11.4
29.0	33.3	53.7	0.0	0.0	-3.2
0.0	0.0	0.0	14.4	-7.0	0.0
0.0	0.0	0.0	-7.0	4.9	0.0
-8.0	-11.4	-3.2	0.0	0.0	20.9

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.642	3.616	3.616	3.616	90.0	90.0	90.0
DFT	23.499	3.609	3.609	3.609	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
17.0	41.0	41.0	0.0	0.0	0.0
41.0	17.0	41.0	0.0	0.0	0.0
41.0	41.0	17.0	0.0	0.0	0.0
0.0	0.0	0.0	-2.2	0.0	0.0
0.0	0.0	0.0	0.0	-2.2	0.0
0.0	0.0	0.0	0.0	0.0	-2.2

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.771	5.836	5.836	3.026	90.0	90.0	90.0
DFT	25.956	5.866	5.866	3.018	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
23.5	16.9	19.7	0.0	0.0	0.0
16.9	23.5	19.7	0.0	0.0	0.0
19.7	19.7	52.9	0.0	0.0	0.0
0.0	0.0	0.0	-6.3	0.0	0.0
0.0	0.0	0.0	0.0	-6.3	0.0
0.0	0.0	0.0	0.0	0.0	-3.3

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.642	3.616	3.616	3.616	90.0	90.0	90.0
DFT	23.531	3.61	3.61	3.61	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
17.0	41.0	41.0	0.0	0.0	0.0
41.0	17.0	41.0	0.0	0.0	0.0
41.0	41.0	17.0	0.0	0.0	0.0
0.0	0.0	0.0	-2.2	0.0	0.0
0.0	0.0	0.0	0.0	-2.2	0.0
0.0	0.0	0.0	0.0	0.0	-2.2

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.974	4.513	4.513	4.513	90.0	90.0	90.0
DFT	22.898	4.508	4.508	4.508	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
64.7	38.3	38.3	0.0	0.0	0.0
38.3	64.7	38.3	0.0	0.0	0.0
38.3	38.3	64.7	0.0	0.0	0.0
0.0	0.0	0.0	-1.3	0.0	0.0
0.0	0.0	0.0	0.0	-1.3	0.0
0.0	0.0	0.0	0.0	0.0	-1.3

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.506	6.695	6.695	6.695	90.0	90.0	90.0
DFT	37.684	6.705	6.705	6.705	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
14.4	17.4	17.4	0.0	0.0	0.0
17.4	14.4	17.4	0.0	0.0	0.0
17.4	17.4	14.4	0.0	0.0	0.0
0.0	0.0	0.0	-5.4	0.0	0.0
0.0	0.0	0.0	0.0	-5.4	0.0
0.0	0.0	0.0	0.0	0.0	-5.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.057	3.002	3.002	3.002	90.0	90.0	90.0
DFT	27.098	3.004	3.004	3.004	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
65.3	19.6	19.6	0.0	0.0	0.0
19.6	65.3	19.6	0.0	0.0	0.0
19.6	19.6	65.3	0.0	0.0	0.0
0.0	0.0	0.0	-4.7	0.0	0.0
0.0	0.0	0.0	0.0	-4.7	0.0
0.0	0.0	0.0	0.0	0.0	-4.7

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.771	5.836	5.836	3.026	90.0	90.0	90.0
DFT	25.935	5.875	5.875	3.005	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
23.5	16.9	19.7	0.0	0.0	0.0
16.9	23.5	19.7	0.0	0.0	0.0
19.7	19.7	52.9	0.0	0.0	0.0
0.0	0.0	0.0	-6.3	0.0	0.0
0.0	0.0	0.0	0.0	-6.3	0.0
0.0	0.0	0.0	0.0	0.0	-3.3
