gtinv-321 (Cs-2021-08-04-all-icsd)

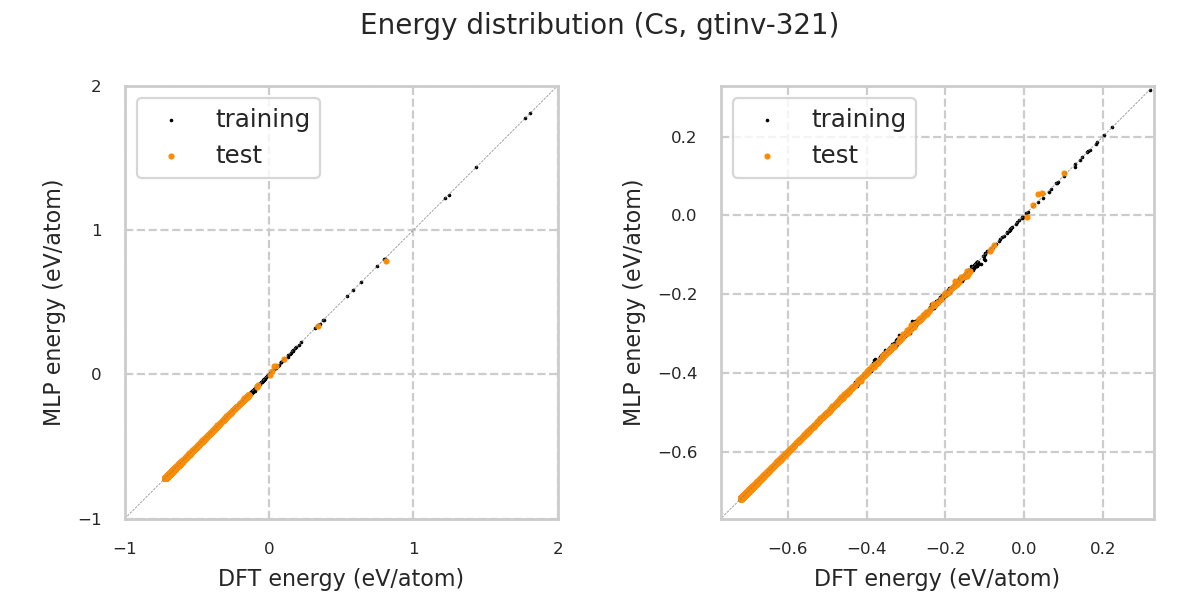

Energy distribution

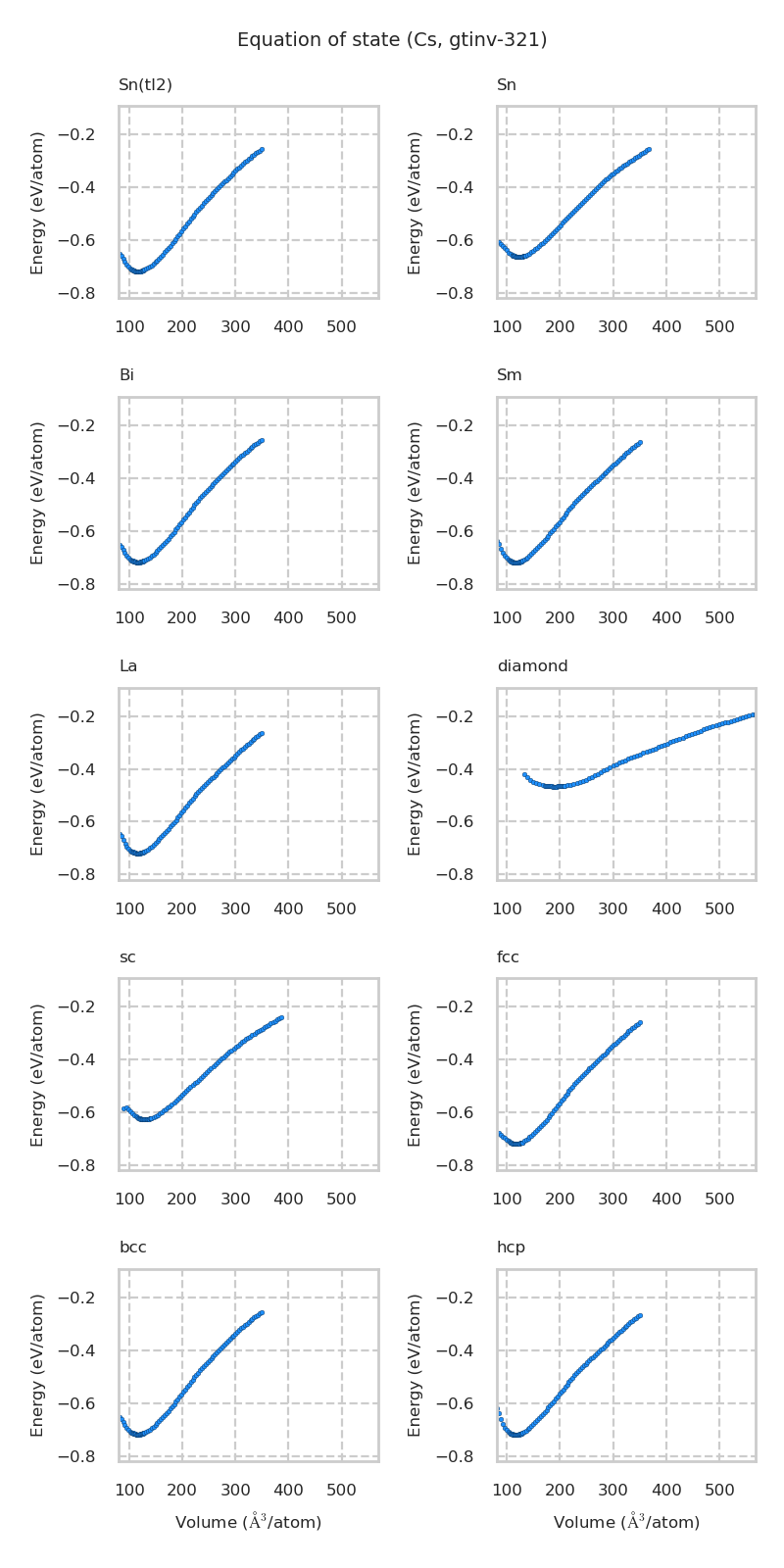

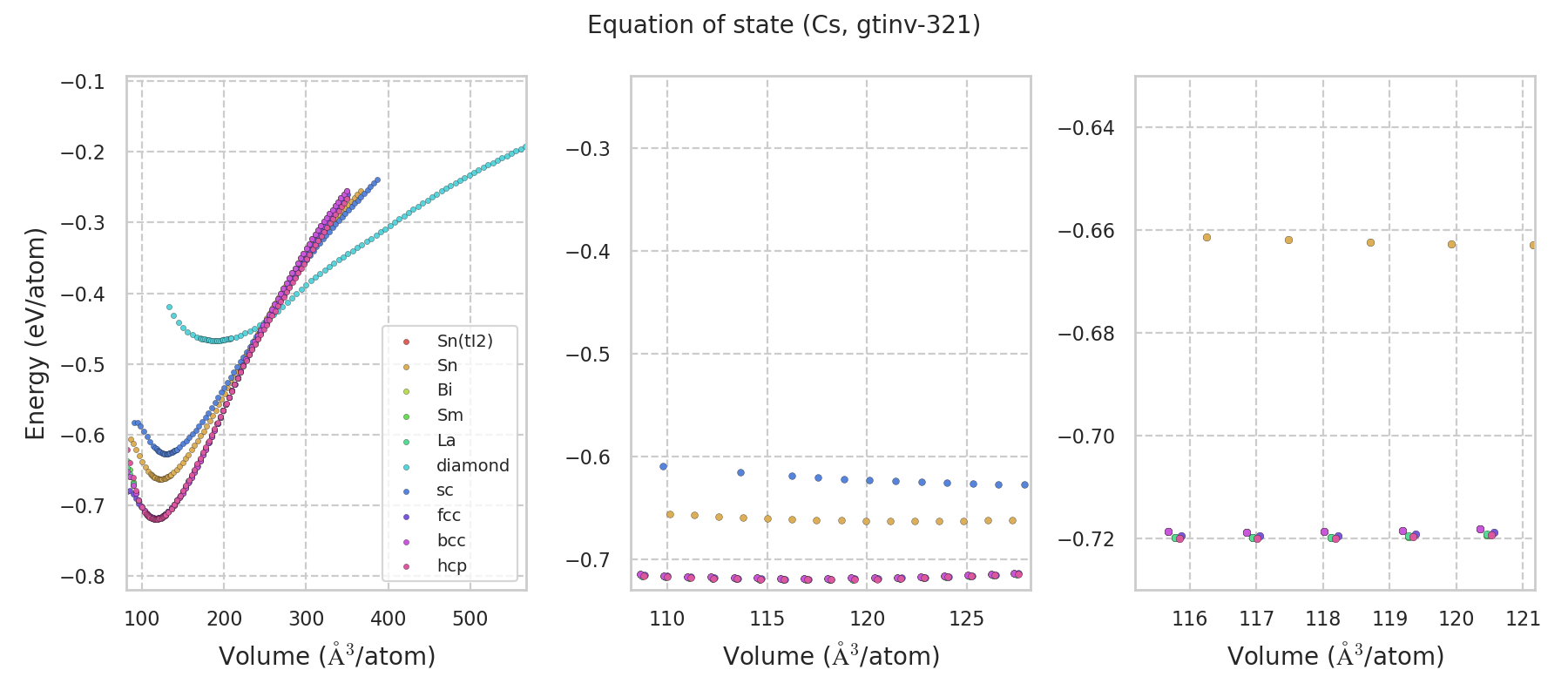

Equation of state

Equation of state for each structure

Prototype structure energy

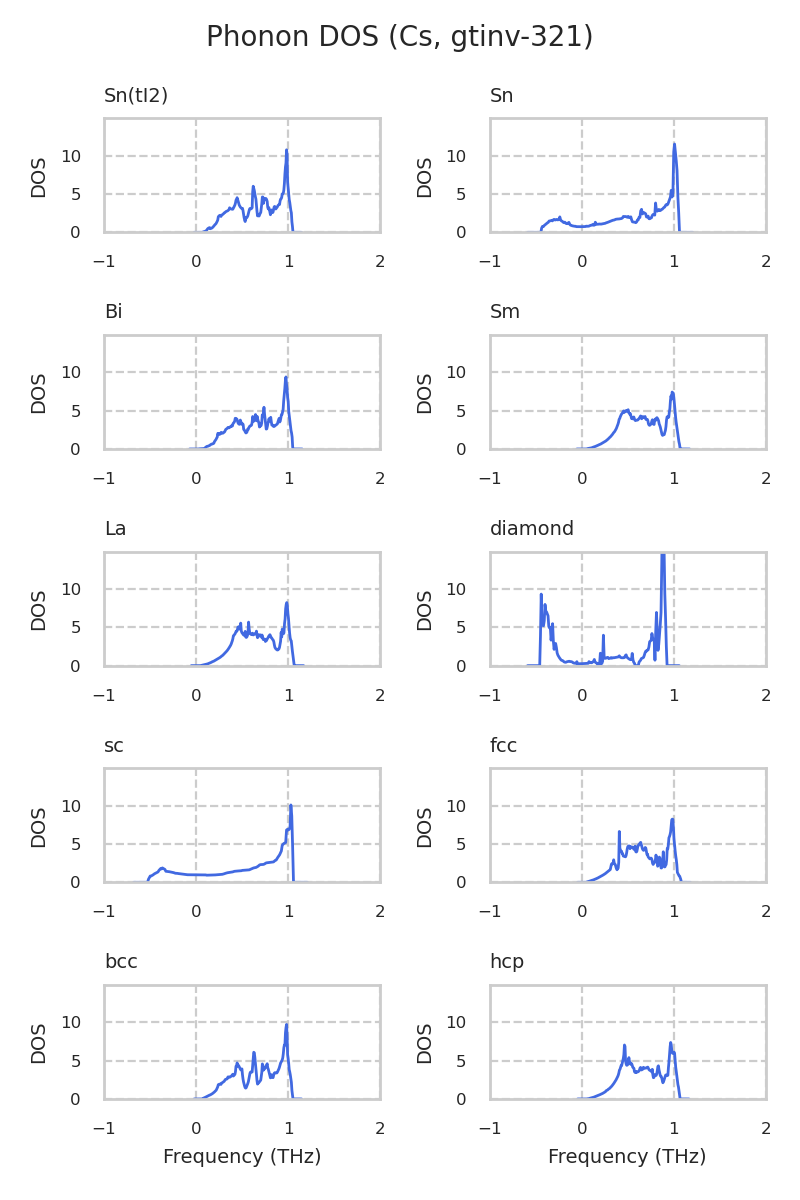

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

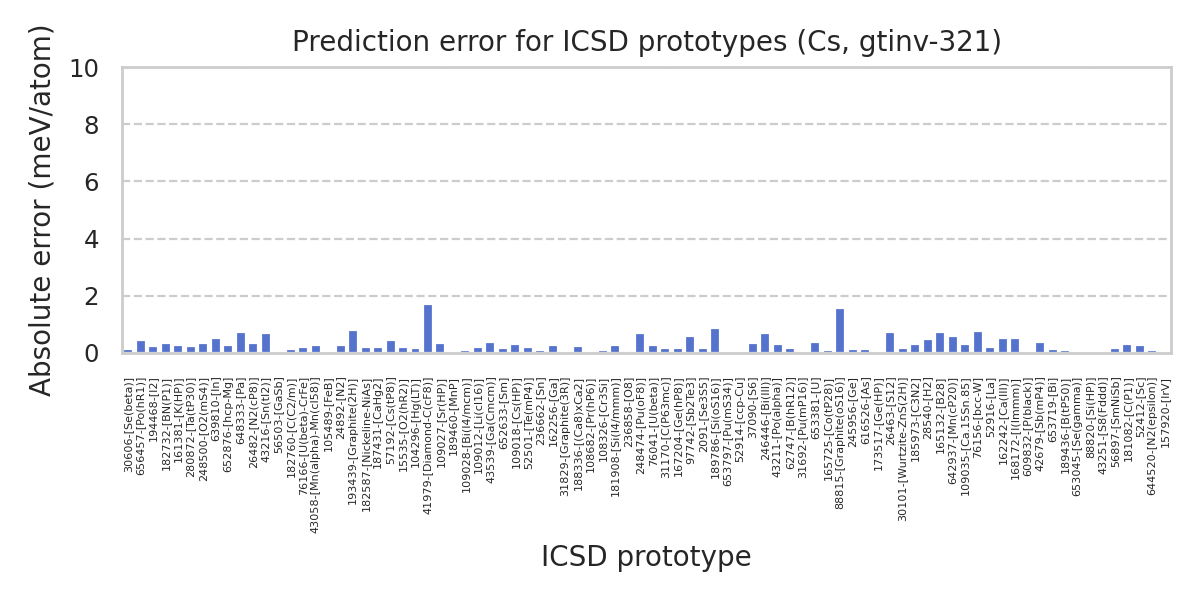

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-652876-[hcp-Mg]	-0.71993	-0.72019
icsd-161381-[K(HP)]	-0.71988	-0.72015
icsd-652633-[Sm]	-0.71985	-0.71971
icsd-182587-[Nickeline-NiAs]	-0.71981	-0.72
icsd-52916-[La]	-0.71978	-0.71999
icsd-31170-[C(P63mc)]	-0.71967	-0.71983
icsd-52914-[ccp-Cu]	-0.71958	-0.71961
icsd-104296-[Hg(LT)]	-0.71957	-0.71971
icsd-31829-[Graphite(3R)]	-0.71956	-0.71953
icsd-653045-[Se(gamma)]	-0.71945	-0.71942
icsd-168172-[I(Immm)]	-0.71942	-0.71993
icsd-189460-[MnP]	-0.71935	-0.71935
icsd-236858-[O8]	-0.71929	-0.71929
icsd-108682-[Pr(hP6)]	-0.71914	-0.71921
icsd-157920-[IrV]	-0.71913	-0.71914
icsd-2091-[Se3S5]	-0.71905	-0.7189
icsd-639810-[In]	-0.71903	-0.71954
icsd-76156-[bcc-W]	-0.71875	-0.71952
icsd-656457-[Po(hR1)]	-0.71863	-0.71906
icsd-52501-[Te(mP4)]	-0.71859	-0.71878
icsd-105489-[FeB]	-0.71857	-0.71863
icsd-97742-[Sb2Te3]	-0.71852	-0.71911
icsd-648333-[Pa]	-0.71852	-0.71924
icsd-246446-[Bi(III)]	-0.71846	-0.71914
icsd-43216-[Sn(tI2)]	-0.71845	-0.71912
icsd-52412-[Sc]	-0.71836	-0.71862
icsd-31692-[Pu(mP16)]	-0.71829	-0.71828
icsd-42679-[Sb(mP4)]	-0.71819	-0.71857
icsd-653381-[U]	-0.71794	-0.71832
icsd-248500-[O2(mS4)]	-0.7179	-0.71822
icsd-109012-[Li(cI16)]	-0.71727	-0.71747
icsd-194468-[I2]	-0.71718	-0.71742
icsd-248474-[Pu(oF8)]	-0.71286	-0.71355
icsd-189786-[Si(oS16)]	-0.71263	-0.71175
icsd-76166-[U(beta)-CrFe]	-0.7116	-0.71181
icsd-280872-[Ta(tP30)]	-0.71145	-0.71169
icsd-76041-[U(beta)]	-0.71073	-0.71101
icsd-56897-[SmNiSb]	-0.71048	-0.71063
icsd-187431-[CaHg2]	-0.71039	-0.71057
icsd-108326-[Cr3Si]	-0.71036	-0.71045
icsd-57192-[Cs(tP8)]	-0.70968	-0.70926
icsd-642937-[Mn(cP20)]	-0.70873	-0.70814
icsd-43058-[Mn(alpha)-Mn(cI58)]	-0.70867	-0.70893
icsd-182760-[C(C2/m)]	-0.70779	-0.7079
icsd-653797-[Pu(mS34)]	-0.70611	-0.70605
icsd-26482-[N2(cP8)]	-0.70315	-0.70347
icsd-245956-[Ge]	-0.70289	-0.70302
icsd-165725-[Co(tP28)]	-0.69643	-0.69635
icsd-30606-[Se(beta)]	-0.69585	-0.69573
icsd-15535-[O2(hR2)]	-0.69385	-0.69404
icsd-43539-[Ga(Cmcm)]	-0.69193	-0.69229
icsd-609832-[P(black)]	-0.69162	-0.69163
icsd-173517-[Ge(HP)]	-0.68404	-0.684
icsd-37090-[S6]	-0.67867	-0.67902
icsd-109028-[Bi(I4/mcm)]	-0.67851	-0.67842
icsd-43251-[S8(Fddd)]	-0.67725	-0.67729
icsd-165132-[B28]	-0.67576	-0.67506
icsd-644520-[N2(epsilon)]	-0.67444	-0.67451
icsd-109035-[Ca.15Sn.85]	-0.66867	-0.66898
icsd-109018-[Cs(HP)]	-0.66607	-0.66638
icsd-26463-[S12]	-0.66401	-0.66473
icsd-653719-[Bi]	-0.66365	-0.66352
icsd-56503-[GaSb]	-0.66284	-0.6629
icsd-236662-[Sn]	-0.66282	-0.66292
icsd-189436-[B(tP50)]	-0.65104	-0.65094
icsd-188336-[(Ca8)xCa2]	-0.64791	-0.64769
icsd-162256-[Ga]	-0.62939	-0.62965
icsd-616526-[As]	-0.62744	-0.62729
icsd-28540-[H2]	-0.62743	-0.62789
icsd-43211-[Po(alpha)]	-0.62738	-0.62766
icsd-181082-[C(P1)]	-0.62734	-0.62764
icsd-181908-[Si(I4/mmm)]	-0.62733	-0.62761
icsd-162242-[Ca(III)]	-0.6273	-0.62782
icsd-109027-[Sr(HP)]	-0.62729	-0.62761
icsd-182732-[BN(P1)]	-0.62694	-0.62726
icsd-62747-[B(hR12)]	-0.62143	-0.6216
icsd-185973-[C3N2]	-0.57609	-0.57578
icsd-193439-[Graphite(2H)]	-0.56174	-0.56094
icsd-88820-[Si(HP)]	-0.55733	-0.5574
icsd-88815-[Graphite(oS16)]	-0.55261	-0.55418
icsd-30101-[Wurtzite-ZnS(2H)]	-0.46722	-0.46708
icsd-41979-[Diamond-C(cF8)]	-0.46691	-0.4652
icsd-24892-[N2]	-0.46683	-0.46708
icsd-167204-[Ge(hP8)]	-0.46669	-0.46684

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	117.014	5.499	5.499	8.937	90.0	90.0	120.0
DFT	115.251	5.464	5.464	8.916	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
2.7	1.7	1.1	0.0	0.0	0.0
1.7	2.7	1.1	0.0	0.0	0.0
1.1	1.1	3.8	0.0	0.0	0.0
0.0	0.0	0.0	0.5	0.0	0.0
0.0	0.0	0.0	0.0	0.5	0.0
0.0	0.0	0.0	0.0	0.0	0.5

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	116.951	5.497	5.497	40.217	90.0	90.0	120.0
DFT	115.621	5.479	5.479	40.023	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
2.8	1.8	1.2	0.2	0.0	0.0
1.8	2.8	1.2	-0.2	0.0	0.0
1.2	1.2	3.6	0.0	0.0	0.0
0.2	-0.2	0.0	0.5	0.0	0.0
0.0	0.0	0.0	0.0	0.5	0.2
0.0	0.0	0.0	0.0	0.2	0.5

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	116.95	5.497	5.497	17.875	90.0	90.0	120.0
DFT	115.341	5.468	5.468	17.816	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
2.8	1.9	1.2	0.0	0.0	0.0
1.9	2.8	1.2	0.0	0.0	0.0
1.2	1.2	3.6	0.0	0.0	0.0
0.0	0.0	0.0	0.5	0.0	0.0
0.0	0.0	0.0	0.0	0.5	0.0
0.0	0.0	0.0	0.0	0.0	0.4

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	116.85	6.16	6.16	6.16	90.0	90.0	90.0
DFT	115.071	6.231	6.231	5.927	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
2.2	1.9	1.9	0.0	0.0	0.0
1.9	2.2	1.9	0.0	0.0	0.0
1.9	1.9	2.2	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	1.4

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	122.374	9.699	9.699	5.203	90.0	90.0	90.0
DFT	121.167	9.626	9.626	5.231	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-2650.0	7915.1	-196.6	0.0	0.0	0.0
7915.1	-2650.0	-196.6	0.0	0.0	0.0
-196.6	-196.6	4.3	0.0	0.0	0.0
0.0	0.0	0.0	-0.2	0.0	0.0
0.0	0.0	0.0	0.0	-0.2	0.0
0.0	0.0	0.0	0.0	0.0	-0.8

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	116.85	6.16	6.16	6.16	90.0	90.0	90.0
DFT	115.402	6.134	6.134	6.134	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
2.2	1.9	1.9	0.0	0.0	0.0
1.9	2.2	1.9	0.0	0.0	0.0
1.9	1.9	2.2	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	1.4

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	117.049	7.765	7.765	7.765	90.0	90.0	90.0
DFT	116.309	7.749	7.749	7.749	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
2.2	2.0	2.0	0.0	0.0	0.0
2.0	2.2	2.0	0.0	0.0	0.0
2.0	2.0	2.2	0.0	0.0	0.0
0.0	0.0	0.0	1.2	0.0	0.0
0.0	0.0	0.0	0.0	1.2	0.0
0.0	0.0	0.0	0.0	0.0	1.2

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	189.65	11.491	11.491	11.491	90.0	90.0	90.0
DFT	188.204	11.461	11.461	11.461	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
0.0	0.8	0.8	0.0	0.0	0.0
0.8	0.0	0.8	0.0	0.0	0.0
0.8	0.8	0.0	0.0	0.0	0.0
0.0	0.0	0.0	-1.2	0.0	0.0
0.0	0.0	0.0	0.0	-1.2	0.0
0.0	0.0	0.0	0.0	0.0	-1.2

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	129.166	5.055	5.055	5.055	90.0	90.0	90.0
DFT	127.779	5.037	5.037	5.037	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
5.4	0.3	0.3	0.0	0.0	0.0
0.3	5.4	0.3	0.0	0.0	0.0
0.3	0.3	5.4	0.0	0.0	0.0
0.0	0.0	0.0	-0.6	0.0	0.0
0.0	0.0	0.0	0.0	-0.6	0.0
0.0	0.0	0.0	0.0	0.0	-0.6

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	116.85	8.711	8.711	6.16	90.0	90.0	90.0
DFT	120.106	10.403	9.617	5.206	90.0	112.72	90.0

Elastic constants (Bi)

1	2	3	4	5	6
3.4	0.6	1.9	0.0	0.0	0.0
0.6	3.4	1.9	0.0	0.0	0.0
1.9	1.9	2.2	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	0.1
