gtinv-235 (Ga-2021-08-04-all-icsd)

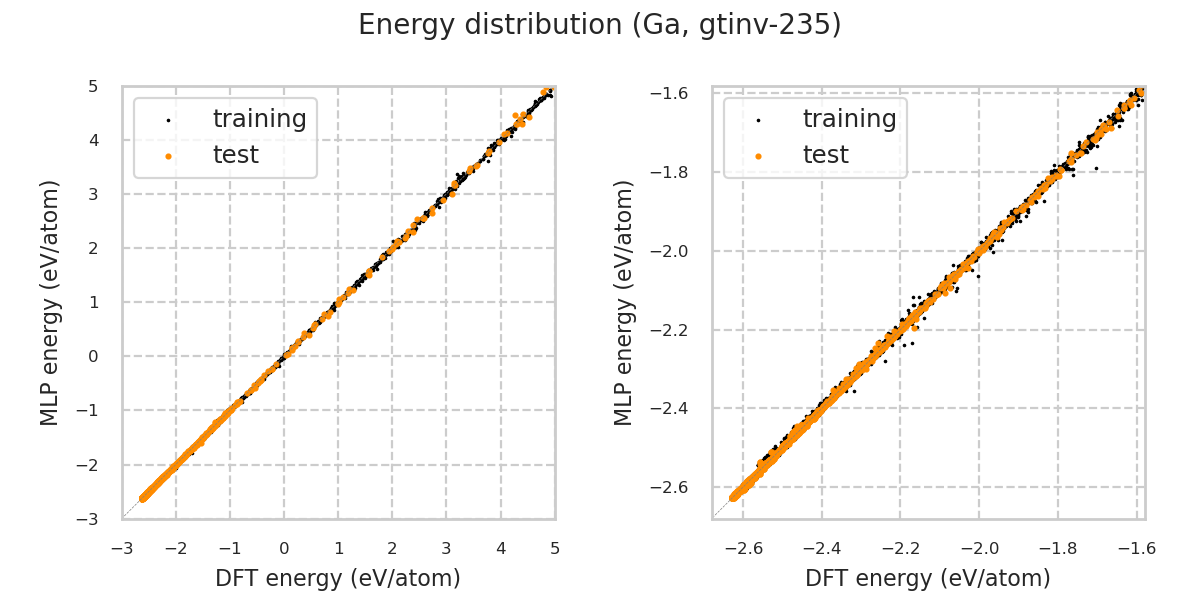

Energy distribution

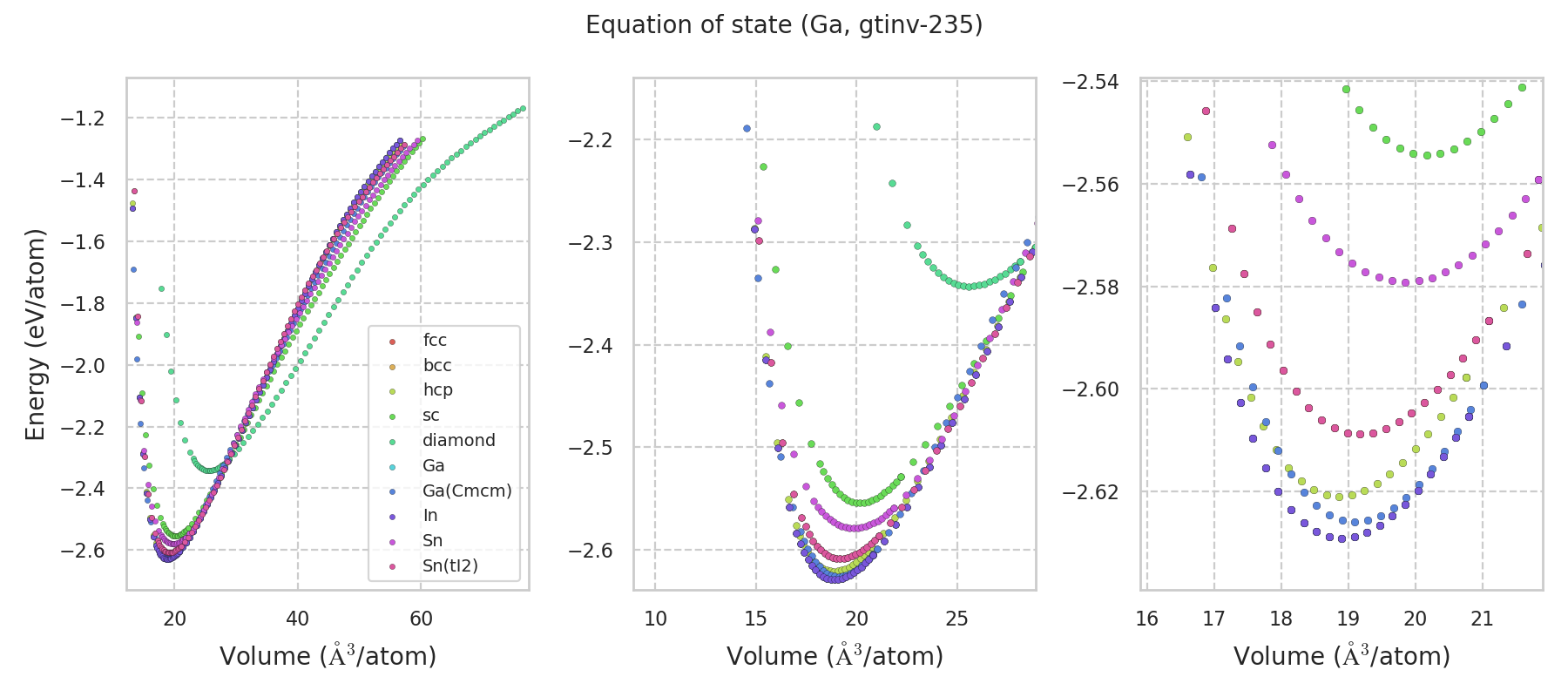

Equation of state

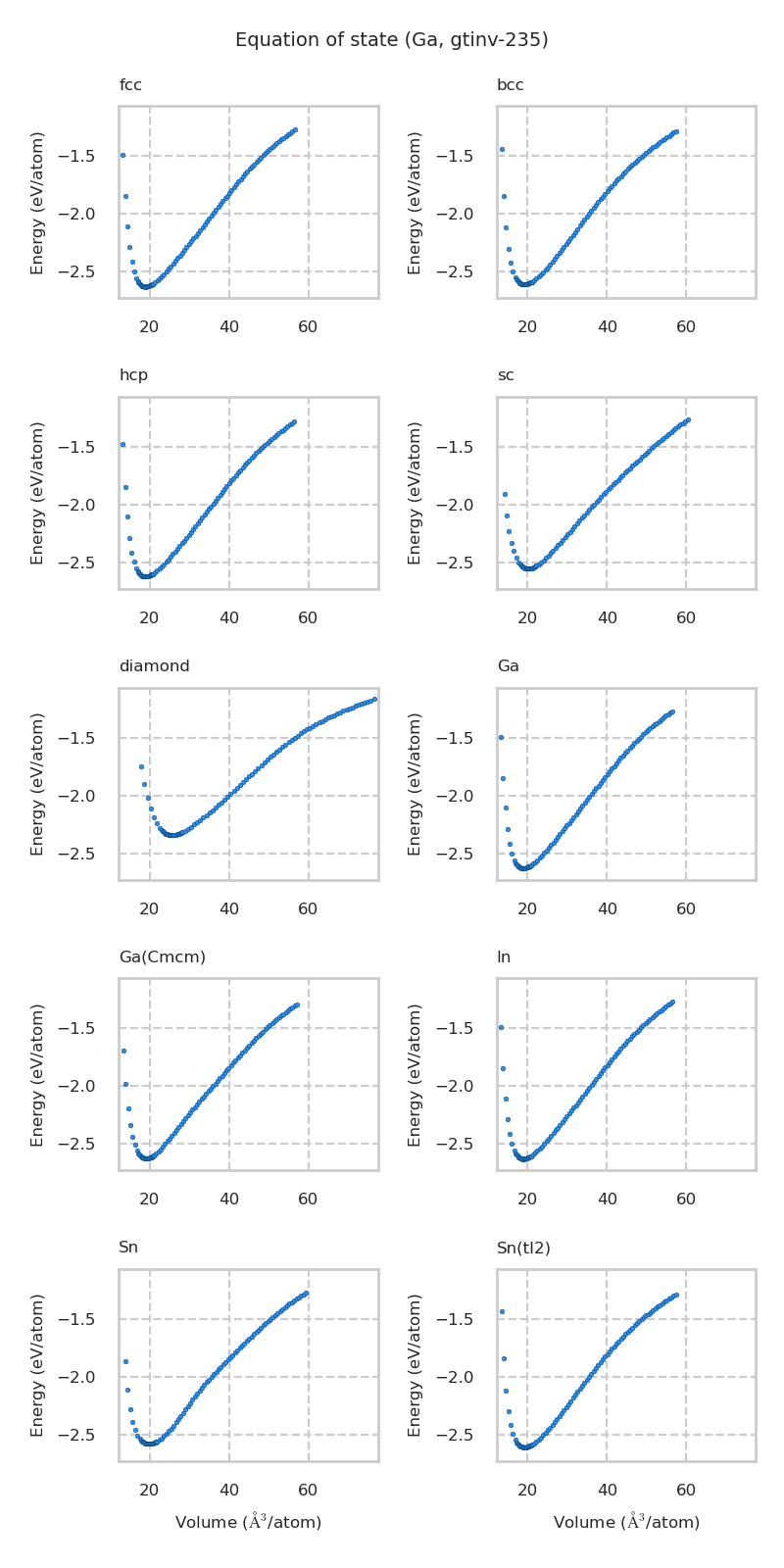

Equation of state for each structure

Prototype structure energy

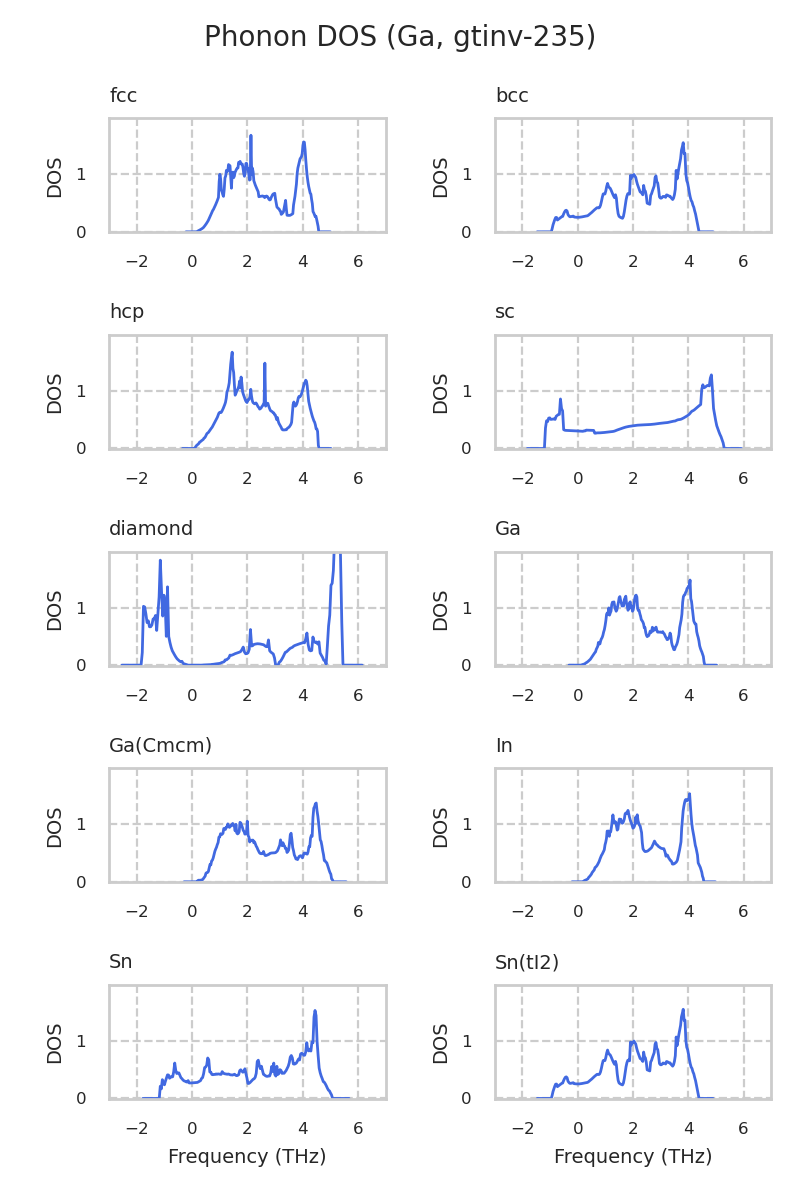

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

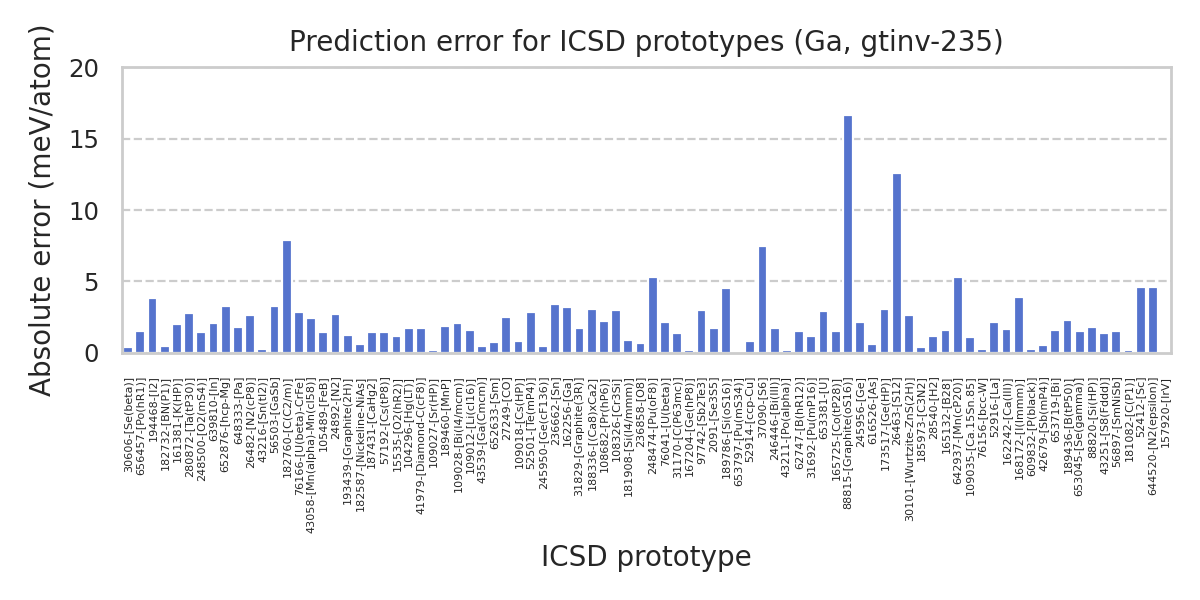

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-52914-[ccp-Cu]	-2.62921	-2.63
icsd-157920-[IrV]	-2.62912	-2.62911
icsd-653045-[Se(gamma)]	-2.62879	-2.62727
icsd-108682-[Pr(hP6)]	-2.62831	-2.62607
icsd-639810-[In]	-2.62824	-2.62619
icsd-248500-[O2(mS4)]	-2.62818	-2.62677
icsd-236858-[O8]	-2.62703	-2.62771
icsd-105489-[FeB]	-2.62663	-2.62805
icsd-57192-[Cs(tP8)]	-2.62566	-2.62708
icsd-168172-[I(Immm)]	-2.62563	-2.62951
icsd-42679-[Sb(mP4)]	-2.6248	-2.62534
icsd-161381-[K(HP)]	-2.62322	-2.62525
icsd-52916-[La]	-2.62316	-2.62529
icsd-652633-[Sm]	-2.62284	-2.62208
icsd-43539-[Ga(Cmcm)]	-2.62282	-2.62329
icsd-248474-[Pu(oF8)]	-2.62051	-2.62583
icsd-24892-[N2]	-2.62039	-2.62309
icsd-189786-[Si(oS16)]	-2.61951	-2.62405
icsd-43058-[Mn(alpha)-Mn(cI58)]	-2.61781	-2.62023
icsd-104296-[Hg(LT)]	-2.61774	-2.61947
icsd-30606-[Se(beta)]	-2.61774	-2.61814
icsd-109012-[Li(cI16)]	-2.61753	-2.61914
icsd-653381-[U]	-2.61712	-2.62006
icsd-652876-[hcp-Mg]	-2.61688	-2.62014
icsd-52501-[Te(mP4)]	-2.61679	-2.61966
icsd-648333-[Pa]	-2.61603	-2.61427
icsd-52412-[Sc]	-2.616	-2.61142
icsd-246446-[Bi(III)]	-2.61591	-2.61417
icsd-97742-[Sb2Te3]	-2.61566	-2.61265
icsd-194468-[I2]	-2.61491	-2.61106
icsd-31692-[Pu(mP16)]	-2.61444	-2.61557
icsd-653719-[Bi]	-2.61335	-2.61496
icsd-609832-[P(black)]	-2.61219	-2.61242
icsd-43216-[Sn(tI2)]	-2.60882	-2.60855
icsd-76156-[bcc-W]	-2.60882	-2.60855
icsd-656457-[Po(hR1)]	-2.60881	-2.61034
icsd-31829-[Graphite(3R)]	-2.6088	-2.61049
icsd-109018-[Cs(HP)]	-2.6085	-2.60934
icsd-62747-[B(hR12)]	-2.60736	-2.60885
icsd-182760-[C(C2/m)]	-2.60715	-2.59925
icsd-189460-[MnP]	-2.60679	-2.60865
icsd-187431-[CaHg2]	-2.60675	-2.60533
icsd-56897-[SmNiSb]	-2.60671	-2.60521
icsd-653797-[Pu(mS34)]	-2.60569	-2.60579
icsd-76041-[U(beta)]	-2.60493	-2.60709
icsd-280872-[Ta(tP30)]	-2.6038	-2.60658
icsd-76166-[U(beta)-CrFe]	-2.60379	-2.6066
icsd-642937-[Mn(cP20)]	-2.60114	-2.60647
icsd-27249-[CO]	-2.60111	-2.59861
icsd-26482-[N2(cP8)]	-2.6011	-2.59849
icsd-28540-[H2]	-2.59698	-2.59815
icsd-37090-[S6]	-2.59601	-2.60351
icsd-108326-[Cr3Si]	-2.59533	-2.59232
icsd-109035-[Ca.15Sn.85]	-2.59502	-2.59607
icsd-162242-[Ca(III)]	-2.59486	-2.59652
icsd-2091-[Se3S5]	-2.59346	-2.5952
icsd-165725-[Co(tP28)]	-2.59261	-2.59109
icsd-182587-[Nickeline-NiAs]	-2.58654	-2.58712
icsd-43251-[S8(Fddd)]	-2.58097	-2.58231
icsd-188336-[(Ca8)xCa2]	-2.57926	-2.58228
icsd-56503-[GaSb]	-2.57816	-2.58145
icsd-236662-[Sn]	-2.57808	-2.58146
icsd-162256-[Ga]	-2.57641	-2.57322
icsd-181082-[C(P1)]	-2.55438	-2.55452
icsd-109027-[Sr(HP)]	-2.55437	-2.55451
icsd-616526-[As]	-2.55436	-2.55377
icsd-43211-[Po(alpha)]	-2.55434	-2.55451
icsd-165132-[B28]	-2.54544	-2.54383
icsd-644520-[N2(epsilon)]	-2.54536	-2.54998
icsd-88815-[Graphite(oS16)]	-2.54479	-2.56143
icsd-109028-[Bi(I4/mcm)]	-2.54017	-2.53809
icsd-189436-[B(tP50)]	-2.53643	-2.53872
icsd-31170-[C(P63mc)]	-2.4902	-2.48883
icsd-193439-[Graphite(2H)]	-2.48985	-2.48859
icsd-182732-[BN(P1)]	-2.4779	-2.47839
icsd-26463-[S12]	-2.4608	-2.47337
icsd-15535-[O2(hR2)]	-2.44778	-2.44891
icsd-245956-[Ge]	-2.42559	-2.42342
icsd-88820-[Si(HP)]	-2.42544	-2.42364
icsd-173517-[Ge(HP)]	-2.3797	-2.37662
icsd-41979-[Diamond-C(cF8)]	-2.34311	-2.34482
icsd-167204-[Ge(hP8)]	-2.34104	-2.34123
icsd-30101-[Wurtzite-ZnS(2H)]	-2.33565	-2.33299
icsd-181908-[Si(I4/mmm)]	-2.32084	-2.31998
icsd-245950-[Ge(cF136)]	-2.30376	-2.30421
icsd-185973-[C3N2]	-2.2209	-2.22132

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.865	2.943	2.943	5.03	90.0	90.0	120.0
DFT	19.172	3.026	3.026	4.836	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
61.6	56.3	42.5	0.0	0.0	0.0
56.3	61.6	42.5	0.0	0.0	0.0
42.5	42.5	67.7	0.0	0.0	0.0
0.0	0.0	0.0	-0.2	0.0	0.0
0.0	0.0	0.0	0.0	-0.2	0.0
0.0	0.0	0.0	0.0	0.0	2.6

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.177	3.372	3.372	3.372	90.0	90.0	90.0
DFT	19.197	3.374	3.374	3.374	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
39.3	51.8	51.8	0.0	0.0	0.0
51.8	39.3	51.8	0.0	0.0	0.0
51.8	51.8	39.3	0.0	0.0	0.0
0.0	0.0	0.0	3.8	0.0	0.0
0.0	0.0	0.0	0.0	3.8	0.0
0.0	0.0	0.0	0.0	0.0	3.8

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.852	5.291	5.291	2.837	90.0	90.0	90.0
DFT	19.683	5.337	5.337	2.764	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
63929.7	-63854.1	29.6	0.0	0.0	0.0
-63854.1	63929.7	29.6	0.0	0.0	0.0
29.6	29.6	35.9	0.0	0.0	0.0
0.0	0.0	0.0	-8.6	0.0	0.0
0.0	0.0	0.0	0.0	-8.6	0.0
0.0	0.0	0.0	0.0	0.0	-6.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.177	3.372	3.372	3.372	90.0	90.0	90.0
DFT	19.182	3.373	3.373	3.373	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
39.3	51.8	51.8	0.0	0.0	0.0
51.8	39.3	51.8	0.0	0.0	0.0
51.8	51.8	39.3	0.0	0.0	0.0
0.0	0.0	0.0	3.8	0.0	0.0
0.0	0.0	0.0	0.0	3.8	0.0
0.0	0.0	0.0	0.0	0.0	3.8

Lattice parameters (In)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.902	2.99	2.99	4.229	90.0	90.0	90.0
DFT	18.885	2.927	2.927	4.408	90.0	90.0	90.0

Elastic constants (In)

1	2	3	4	5	6
63.5	43.3	50.0	0.0	0.0	0.0
43.3	63.5	50.0	0.0	0.0	0.0
50.0	50.0	56.8	0.0	0.0	0.0
0.0	0.0	0.0	10.1	0.0	0.0
0.0	0.0	0.0	0.0	10.1	0.0
0.0	0.0	0.0	0.0	0.0	3.4

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.902	4.229	4.229	4.229	90.0	90.0	90.0
DFT	18.907	4.229	4.229	4.229	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
56.8	50.0	50.0	0.0	0.0	0.0
50.0	56.8	50.0	0.0	0.0	0.0
50.0	50.0	56.8	0.0	0.0	0.0
0.0	0.0	0.0	10.1	0.0	0.0
0.0	0.0	0.0	0.0	10.1	0.0
0.0	0.0	0.0	0.0	0.0	10.1

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.576	5.893	5.893	5.893	90.0	90.0	90.0
DFT	25.558	5.891	5.891	5.891	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
31.7	42.3	42.3	0.0	0.0	0.0
42.3	31.7	42.3	0.0	0.0	0.0
42.3	42.3	31.7	0.0	0.0	0.0
0.0	0.0	0.0	-9.2	0.0	0.0
0.0	0.0	0.0	0.0	-9.2	0.0
0.0	0.0	0.0	0.0	0.0	-9.2

Lattice parameters (Ga)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.902	5.98	5.98	5.179	90.0	54.74	90.0
DFT	19.767	5.365	5.522	5.338	90.0	90.0	90.0

Elastic constants (Ga)

1	2	3	4	5	6
63.5	43.3	50.0	0.0	0.0	0.0
43.3	63.5	50.0	0.0	0.0	0.0
50.0	50.0	56.8	0.0	0.0	0.0
0.0	0.0	0.0	10.1	0.0	0.0
0.0	0.0	0.0	0.0	10.1	0.0
0.0	0.0	0.0	0.0	0.0	3.4

Lattice parameters (Ga(Cmcm))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.1	2.825	9.049	2.988	90.0	90.0	90.0
DFT	19.229	2.82	8.168	3.339	90.0	90.0	90.0

Elastic constants (Ga(Cmcm))

1	2	3	4	5	6
86.9	49.1	42.2	0.0	0.0	0.0
49.1	59.1	55.5	0.0	0.0	0.0
42.2	55.5	59.1	0.0	0.0	0.0
0.0	0.0	0.0	12.0	0.0	0.0
0.0	0.0	0.0	0.0	4.0	0.0
0.0	0.0	0.0	0.0	0.0	7.1

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.17	2.722	2.722	2.722	90.0	90.0	90.0
DFT	20.236	2.725	2.725	2.725	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
91.5	29.4	29.4	0.0	0.0	0.0
29.4	91.5	29.4	0.0	0.0	0.0
29.4	29.4	91.5	0.0	0.0	0.0
0.0	0.0	0.0	-9.5	0.0	0.0
0.0	0.0	0.0	0.0	-9.5	0.0
0.0	0.0	0.0	0.0	0.0	-9.5
