gtinv-237 (Ge-2021-08-04-all-icsd)

Energy distribution

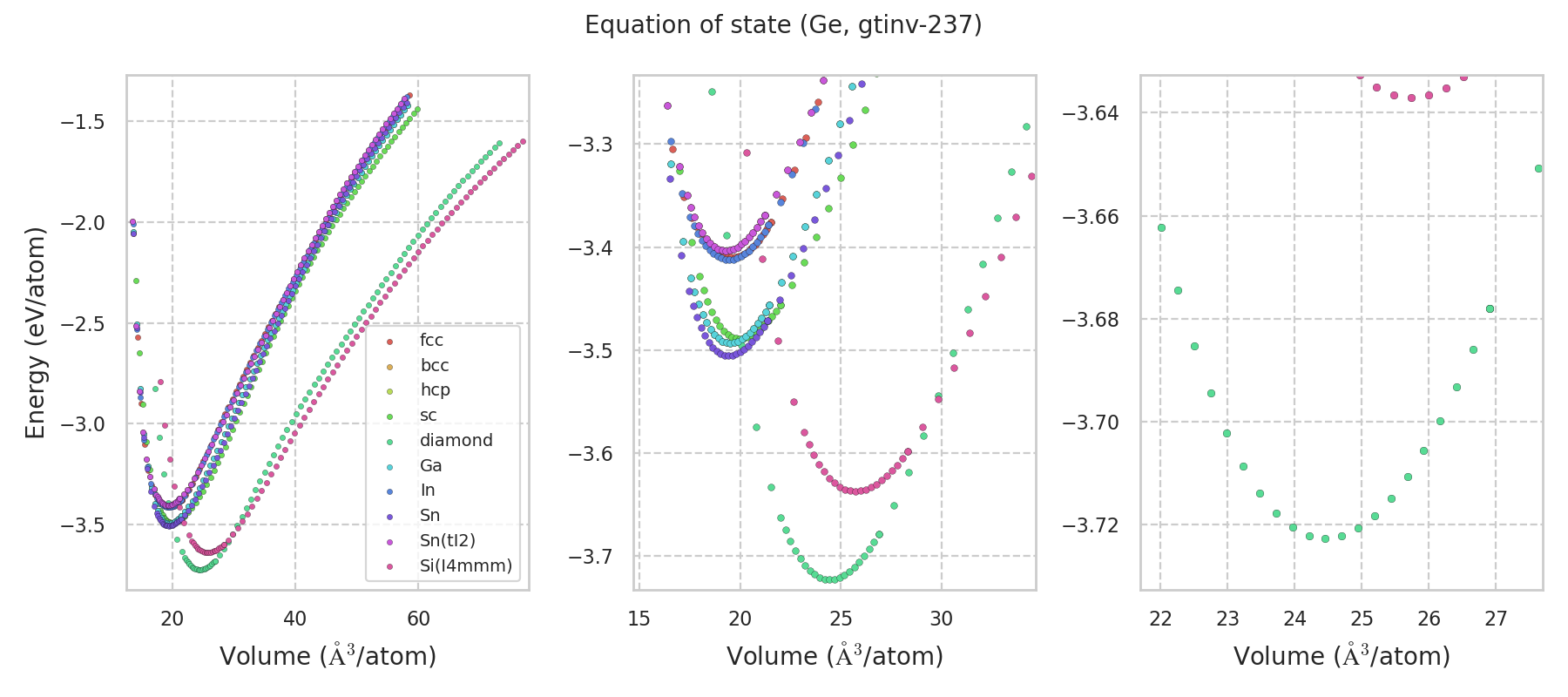

Equation of state

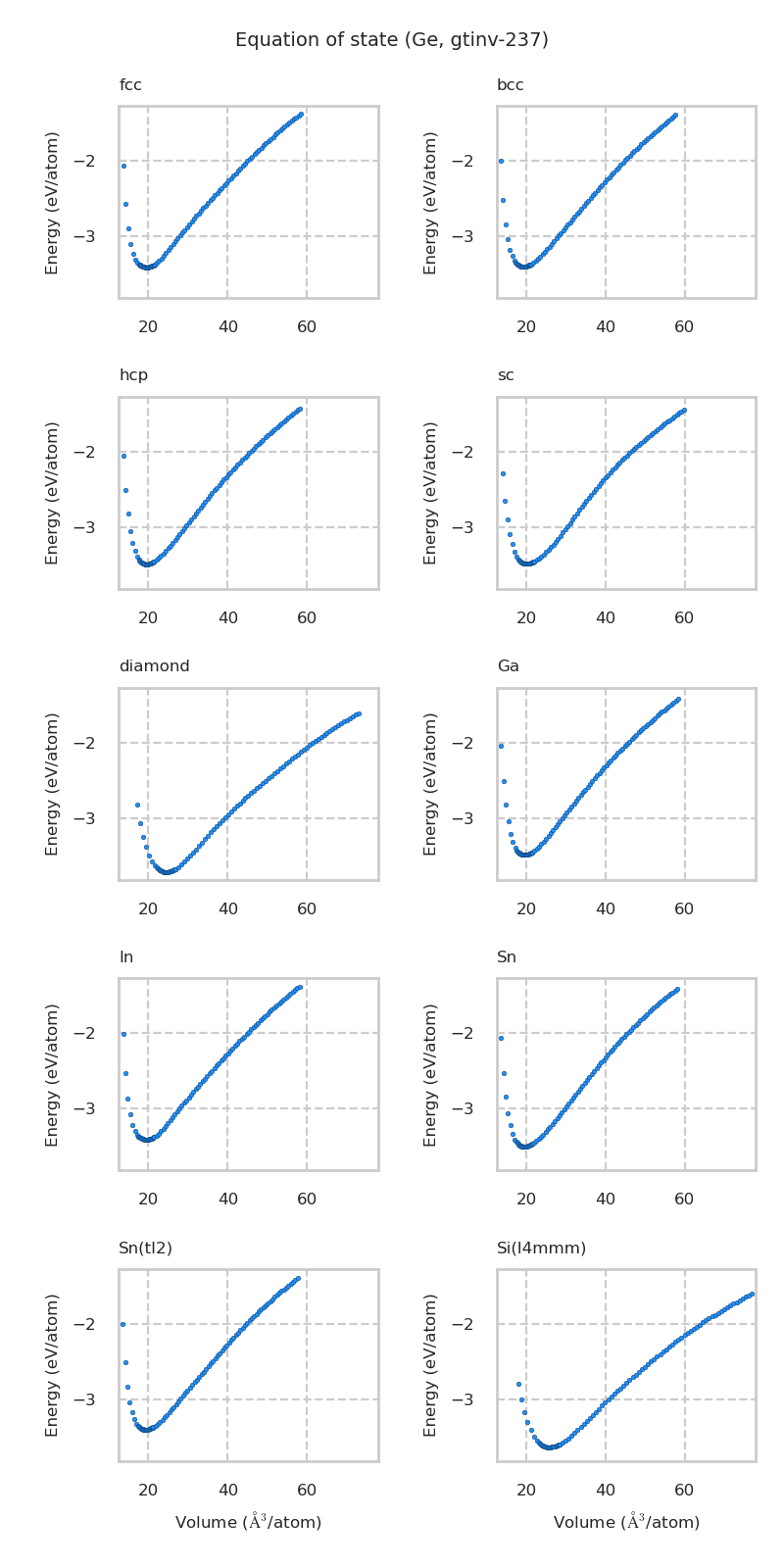

Equation of state for each structure

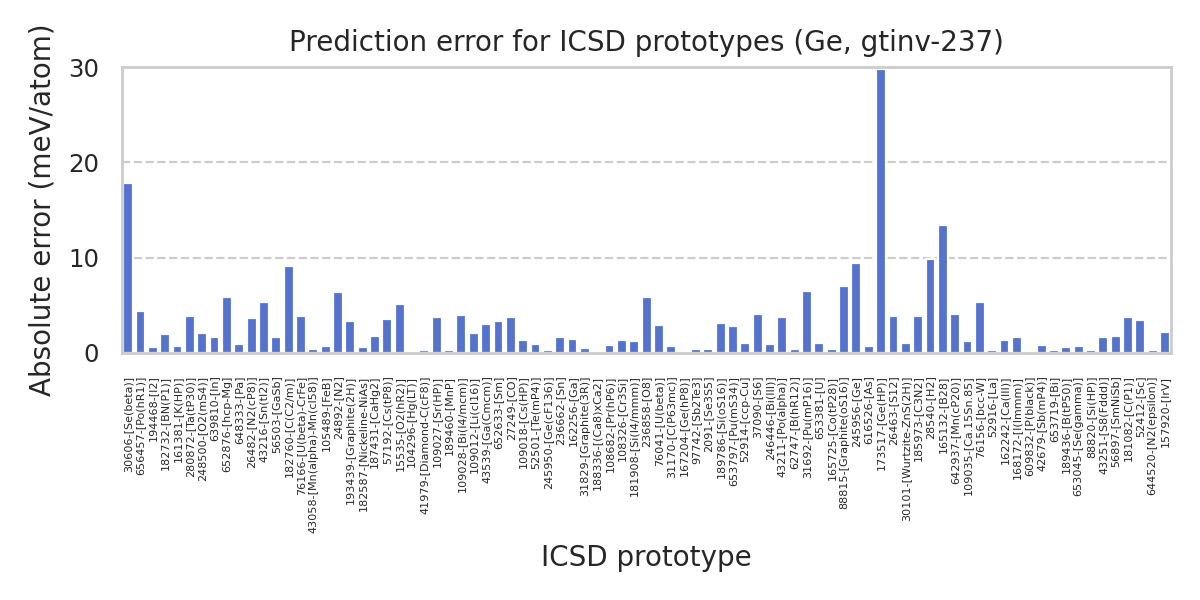

Prototype structure energy

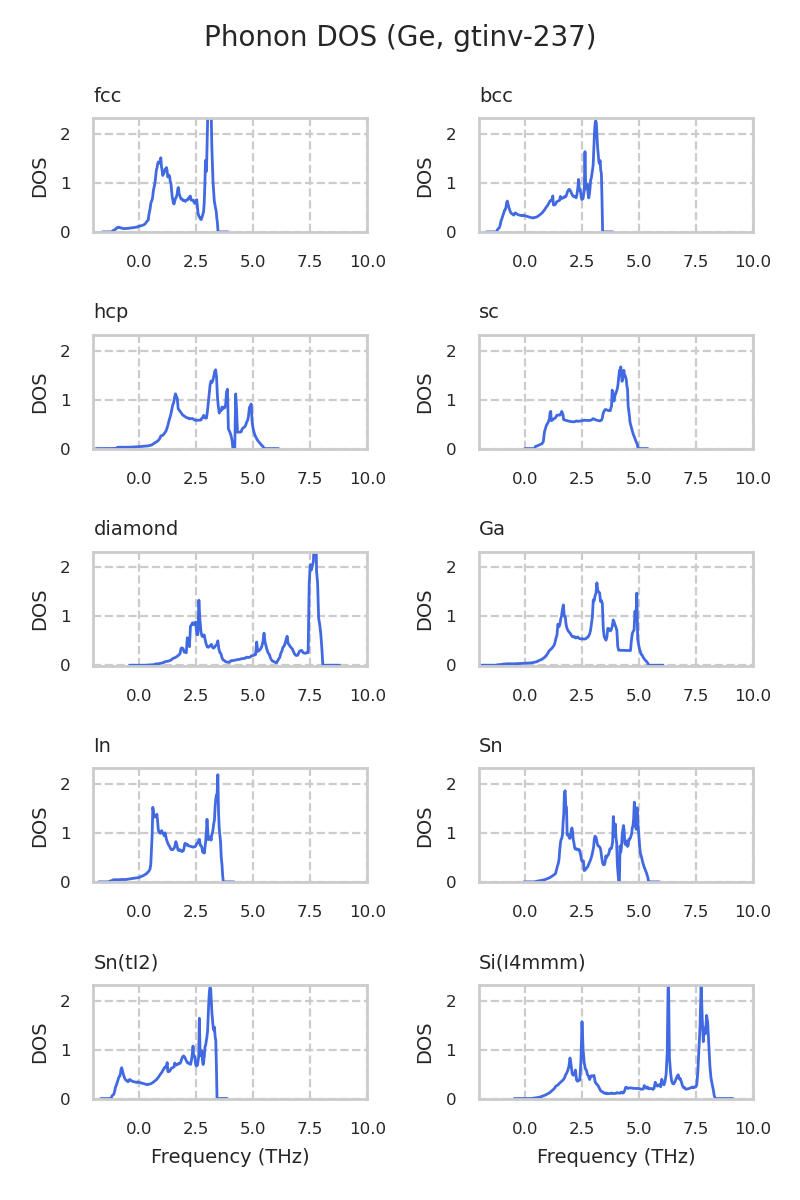

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-41979-[Diamond-C(cF8)]	-3.72196	-3.72168
icsd-31829-[Graphite(3R)]	-3.72195	-3.7215
icsd-167204-[Ge(hP8)]	-3.71319	-3.71303
icsd-30101-[Wurtzite-ZnS(2H)]	-3.70264	-3.70369
icsd-245950-[Ge(cF136)]	-3.69592	-3.69567
icsd-181908-[Si(I4/mmm)]	-3.63668	-3.63795
icsd-165132-[B28]	-3.59772	-3.61113
icsd-88820-[Si(HP)]	-3.58455	-3.58433
icsd-245956-[Ge]	-3.57009	-3.57956
icsd-173517-[Ge(HP)]	-3.55257	-3.58241
icsd-182732-[BN(P1)]	-3.5069	-3.50883
icsd-236662-[Sn]	-3.50552	-3.50711
icsd-56503-[GaSb]	-3.50552	-3.50711
icsd-653719-[Bi]	-3.50534	-3.50565
icsd-109012-[Li(cI16)]	-3.50271	-3.50066
icsd-189786-[Si(oS16)]	-3.49732	-3.50047
icsd-109035-[Ca.15Sn.85]	-3.49314	-3.49196
icsd-97742-[Sb2Te3]	-3.49302	-3.49261
icsd-162256-[Ga]	-3.49257	-3.49396
icsd-52501-[Te(mP4)]	-3.49257	-3.49352
icsd-653381-[U]	-3.4924	-3.49344
icsd-42679-[Sb(mP4)]	-3.48927	-3.49002
icsd-644520-[N2(epsilon)]	-3.48927	-3.48896
icsd-57192-[Cs(tP8)]	-3.48926	-3.49278
icsd-109027-[Sr(HP)]	-3.48899	-3.49268
icsd-181082-[C(P1)]	-3.48898	-3.49268
icsd-43211-[Po(alpha)]	-3.48897	-3.49268
icsd-162242-[Ca(III)]	-3.48896	-3.49027
icsd-26482-[N2(cP8)]	-3.48896	-3.49263
icsd-52412-[Sc]	-3.48895	-3.49237
icsd-616526-[As]	-3.48892	-3.48961
icsd-653045-[Se(gamma)]	-3.48892	-3.48962
icsd-27249-[CO]	-3.48875	-3.49255
icsd-31692-[Pu(mP16)]	-3.4849	-3.4914
icsd-182587-[Nickeline-NiAs]	-3.46935	-3.46989
icsd-189460-[MnP]	-3.46929	-3.46955
icsd-31170-[C(P63mc)]	-3.46926	-3.4699
icsd-43251-[S8(Fddd)]	-3.46495	-3.46655
icsd-30606-[Se(beta)]	-3.44596	-3.46384
icsd-109018-[Cs(HP)]	-3.43611	-3.43745
icsd-653797-[Pu(mS34)]	-3.42726	-3.43003
icsd-236858-[O8]	-3.42702	-3.42114
icsd-182760-[C(C2/m)]	-3.42416	-3.43327
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.42025	-3.41987
icsd-648333-[Pa]	-3.41776	-3.41686
icsd-246446-[Bi(III)]	-3.41776	-3.41686
icsd-187431-[CaHg2]	-3.41477	-3.41302
icsd-56897-[SmNiSb]	-3.41474	-3.41304
icsd-194468-[I2]	-3.41387	-3.41442
icsd-189436-[B(tP50)]	-3.41377	-3.41433
icsd-24892-[N2]	-3.41185	-3.41822
icsd-639810-[In]	-3.41089	-3.41248
icsd-168172-[I(Immm)]	-3.41087	-3.41246
icsd-248500-[O2(mS4)]	-3.41074	-3.41279
icsd-52914-[ccp-Cu]	-3.41006	-3.41107
icsd-157920-[IrV]	-3.41004	-3.41222
icsd-104296-[Hg(LT)]	-3.41001	-3.41006
icsd-108682-[Pr(hP6)]	-3.40968	-3.41049
icsd-15535-[O2(hR2)]	-3.40928	-3.4144
icsd-652633-[Sm]	-3.40743	-3.41076
icsd-652876-[hcp-Mg]	-3.40619	-3.41203
icsd-52916-[La]	-3.40602	-3.40631
icsd-161381-[K(HP)]	-3.40563	-3.40636
icsd-43216-[Sn(tI2)]	-3.40351	-3.3982
icsd-76156-[bcc-W]	-3.40348	-3.39819
icsd-76166-[U(beta)-CrFe]	-3.39579	-3.3996
icsd-280872-[Ta(tP30)]	-3.39573	-3.39954
icsd-76041-[U(beta)]	-3.39498	-3.3979
icsd-43539-[Ga(Cmcm)]	-3.39316	-3.39012
icsd-609832-[P(black)]	-3.39299	-3.3931
icsd-188336-[(Ca8)xCa2]	-3.38856	-3.3885
icsd-2091-[Se3S5]	-3.38671	-3.38706
icsd-165725-[Co(tP28)]	-3.38369	-3.38407
icsd-642937-[Mn(cP20)]	-3.38333	-3.37927
icsd-656457-[Po(hR1)]	-3.37546	-3.37108
icsd-37090-[S6]	-3.37479	-3.37884
icsd-109028-[Bi(I4/mcm)]	-3.37255	-3.37646
icsd-105489-[FeB]	-3.35989	-3.36059
icsd-62747-[B(hR12)]	-3.35906	-3.35866
icsd-108326-[Cr3Si]	-3.35841	-3.35974
icsd-26463-[S12]	-3.34594	-3.34975
icsd-185973-[C3N2]	-3.34412	-3.34024
icsd-193439-[Graphite(2H)]	-3.29473	-3.29801
icsd-88815-[Graphite(oS16)]	-3.27566	-3.28265
icsd-28540-[H2]	-3.0272	-3.03709

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.504	2.888	2.888	5.402	90.0	90.0	120.0
DFT	19.556	2.984	2.984	5.074	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
140.7	93.8	14.4	0.0	0.0	0.0
93.8	140.7	14.4	0.0	0.0	0.0
14.4	14.4	159.1	0.0	0.0	0.0
0.0	0.0	0.0	25.0	0.0	0.0
0.0	0.0	0.0	0.0	25.0	0.0
0.0	0.0	0.0	0.0	0.0	23.4

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.291	3.379	3.379	3.379	90.0	90.0	90.0
DFT	19.319	3.381	3.381	3.381	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
56.6	76.3	76.3	0.0	0.0	0.0
76.3	56.6	76.3	0.0	0.0	0.0
76.3	76.3	56.6	0.0	0.0	0.0
0.0	0.0	0.0	21.8	0.0	0.0
0.0	0.0	0.0	0.0	21.8	0.0
0.0	0.0	0.0	0.0	0.0	21.8

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.427	5.207	5.207	2.866	90.0	90.0	90.0
DFT	19.441	5.209	5.209	2.866	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
114.5	62.0	43.5	0.0	0.0	0.0
62.0	114.5	43.5	0.0	0.0	0.0
43.5	43.5	138.9	0.0	0.0	0.0
0.0	0.0	0.0	25.5	0.0	0.0
0.0	0.0	0.0	0.0	25.5	0.0
0.0	0.0	0.0	0.0	0.0	30.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.291	3.379	3.379	3.379	90.0	90.0	90.0
DFT	19.344	3.382	3.382	3.382	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
56.6	76.3	76.3	0.0	0.0	0.0
76.3	56.6	76.3	0.0	0.0	0.0
76.3	76.3	56.6	0.0	0.0	0.0
0.0	0.0	0.0	21.8	0.0	0.0
0.0	0.0	0.0	0.0	21.8	0.0
0.0	0.0	0.0	0.0	0.0	21.8

Lattice parameters (In)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.462	2.91	2.91	4.596	90.0	90.0	90.0
DFT	19.571	2.974	2.974	4.425	90.0	90.0	90.0

Elastic constants (In)

1	2	3	4	5	6
88.9	22.5	55.4	0.0	0.0	0.0
22.5	88.9	55.4	0.0	0.0	0.0
55.4	55.4	77.7	0.0	0.0	0.0
0.0	0.0	0.0	9.8	0.0	0.0
0.0	0.0	0.0	0.0	9.8	0.0
0.0	0.0	0.0	0.0	0.0	-2.5

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.564	4.277	4.277	4.277	90.0	90.0	90.0
DFT	19.598	4.28	4.28	4.28	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
50.1	59.7	59.7	0.0	0.0	0.0
59.7	50.1	59.7	0.0	0.0	0.0
59.7	59.7	50.1	0.0	0.0	0.0
0.0	0.0	0.0	16.4	0.0	0.0
0.0	0.0	0.0	0.0	16.4	0.0
0.0	0.0	0.0	0.0	0.0	16.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.456	5.805	5.805	5.805	90.0	90.0	90.0
DFT	24.182	5.784	5.784	5.784	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
97.0	53.0	53.0	0.0	0.0	0.0
53.0	97.0	53.0	0.0	0.0	0.0
53.0	53.0	97.0	0.0	0.0	0.0
0.0	0.0	0.0	37.6	0.0	0.0
0.0	0.0	0.0	0.0	37.6	0.0
0.0	0.0	0.0	0.0	0.0	37.6

Lattice parameters (Ga)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.504	5.002	2.701	2.888	90.0	90.0	90.0
DFT	19.56	5.08	2.694	2.858	90.0	90.0	90.0

Elastic constants (Ga)

1	2	3	4	5	6
140.7	14.4	93.8	0.0	0.0	0.0
14.4	159.1	14.4	0.0	0.0	0.0
93.8	14.4	140.7	0.0	0.0	0.0
0.0	0.0	0.0	25.0	0.0	0.0
0.0	0.0	0.0	0.0	23.4	0.0
0.0	0.0	0.0	0.0	0.0	25.0

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.997	2.714	2.714	2.714	90.0	90.0	90.0
DFT	20.048	2.717	2.717	2.717	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
149.3	27.9	27.9	0.0	0.0	0.0
27.9	149.3	27.9	0.0	0.0	0.0
27.9	27.9	149.3	0.0	0.0	0.0
0.0	0.0	0.0	6.7	0.0	0.0
0.0	0.0	0.0	0.0	6.7	0.0
0.0	0.0	0.0	0.0	0.0	6.7

Lattice parameters (Si(I4mmm))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.738	7.114	7.114	4.069	90.0	90.0	90.0
DFT	25.6	7.076	7.076	4.09	90.0	90.0	90.0

Elastic constants (Si(I4mmm))

1	2	3	4	5	6
92.7	37.4	42.1	0.0	0.0	0.0
37.4	92.7	42.1	0.0	0.0	0.0
42.1	42.1	92.4	0.0	0.0	0.0
0.0	0.0	0.0	20.1	0.0	0.0
0.0	0.0	0.0	0.0	20.1	0.0
0.0	0.0	0.0	0.0	0.0	16.1
