gtinv-241 (Hf-2021-08-04-all-icsd)

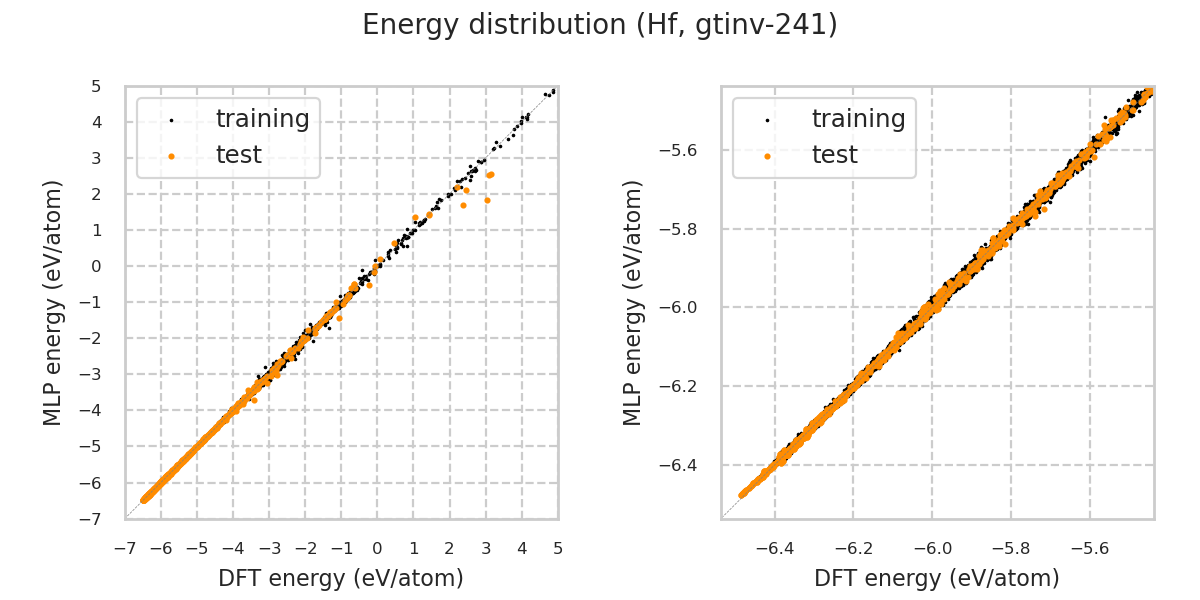

Energy distribution

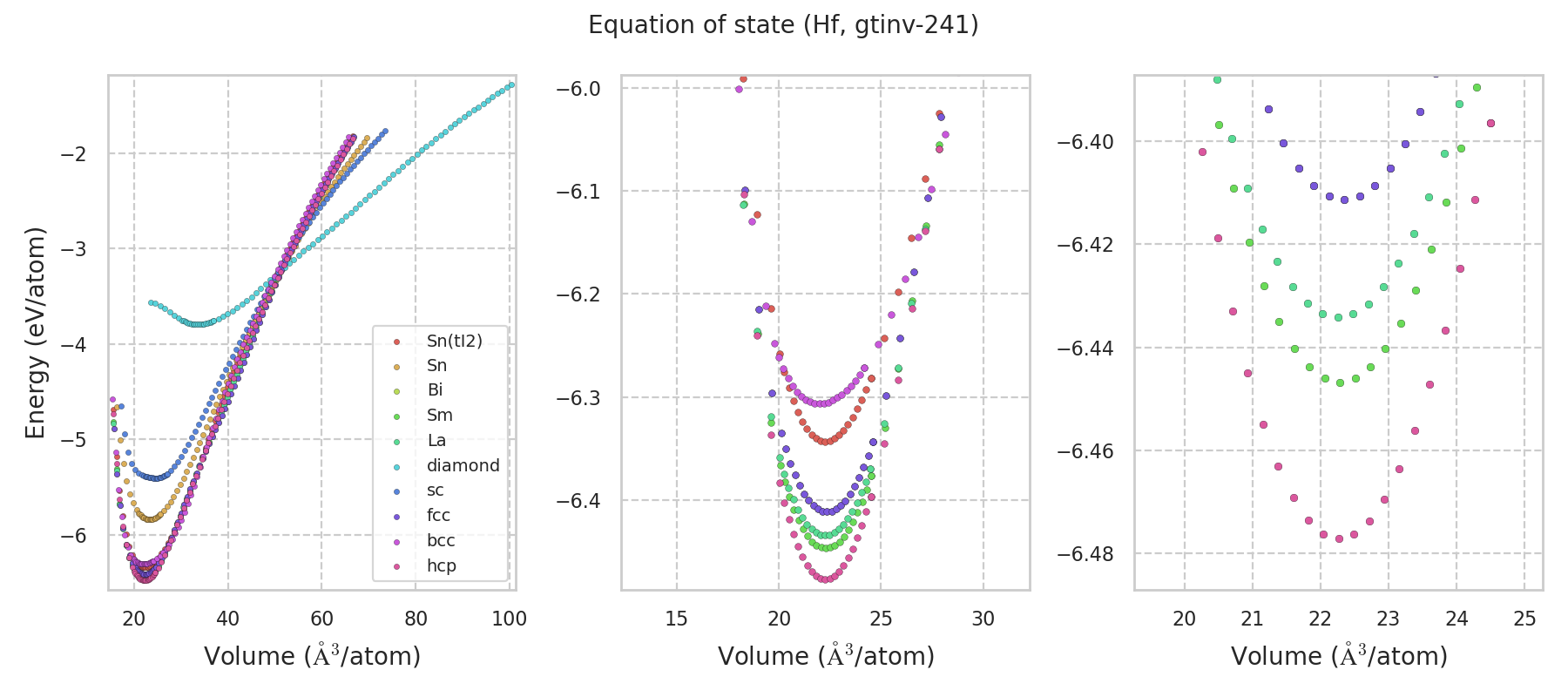

Equation of state

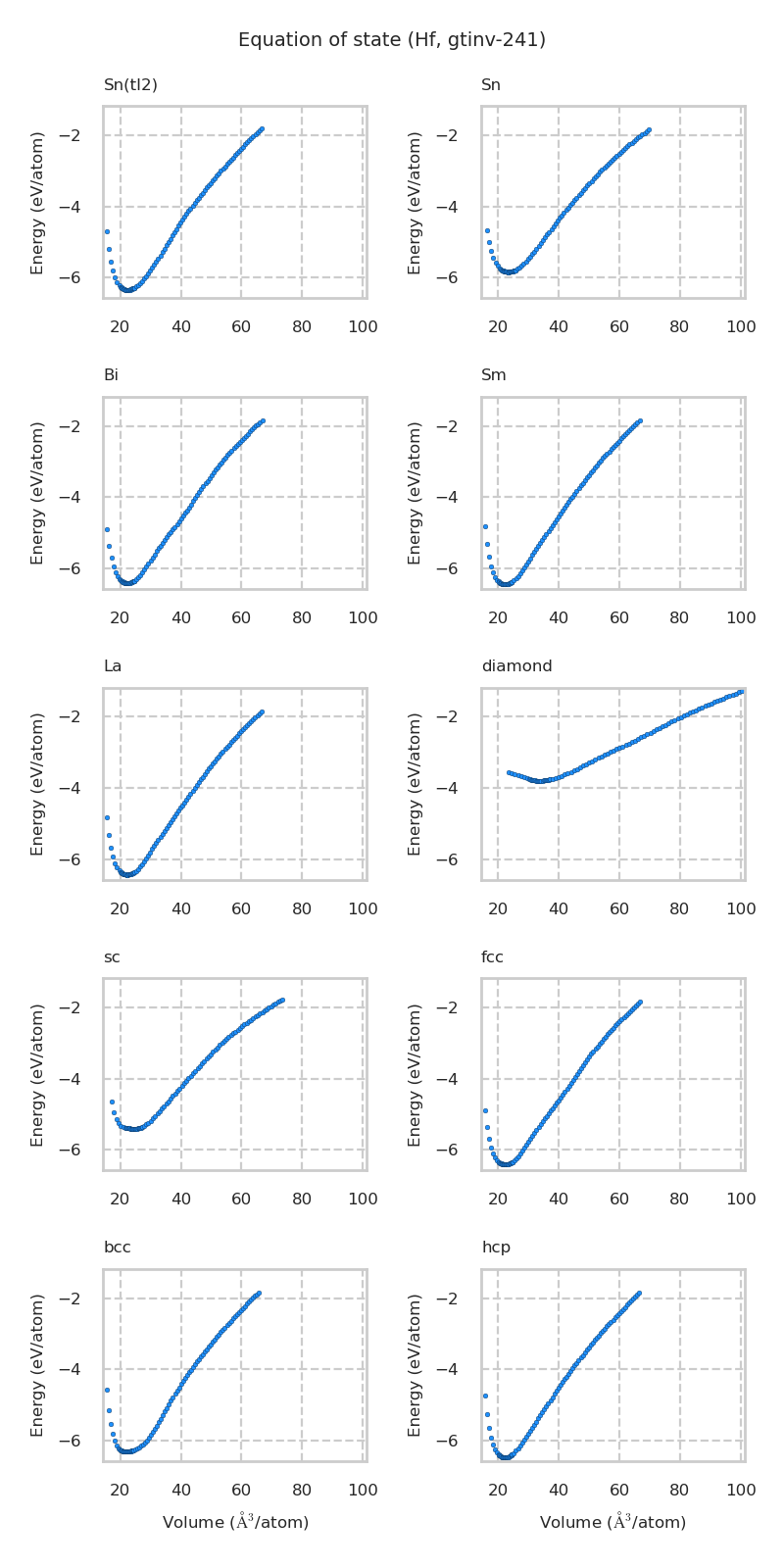

Equation of state for each structure

Prototype structure energy

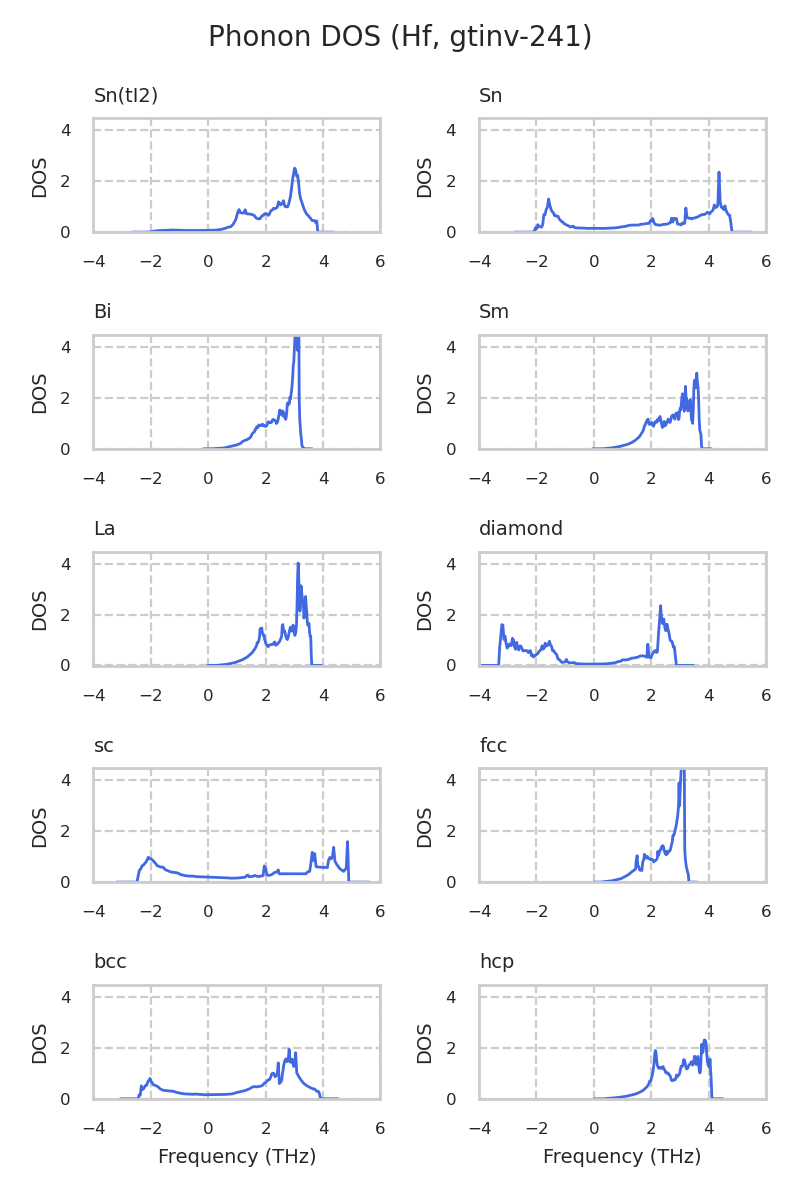

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

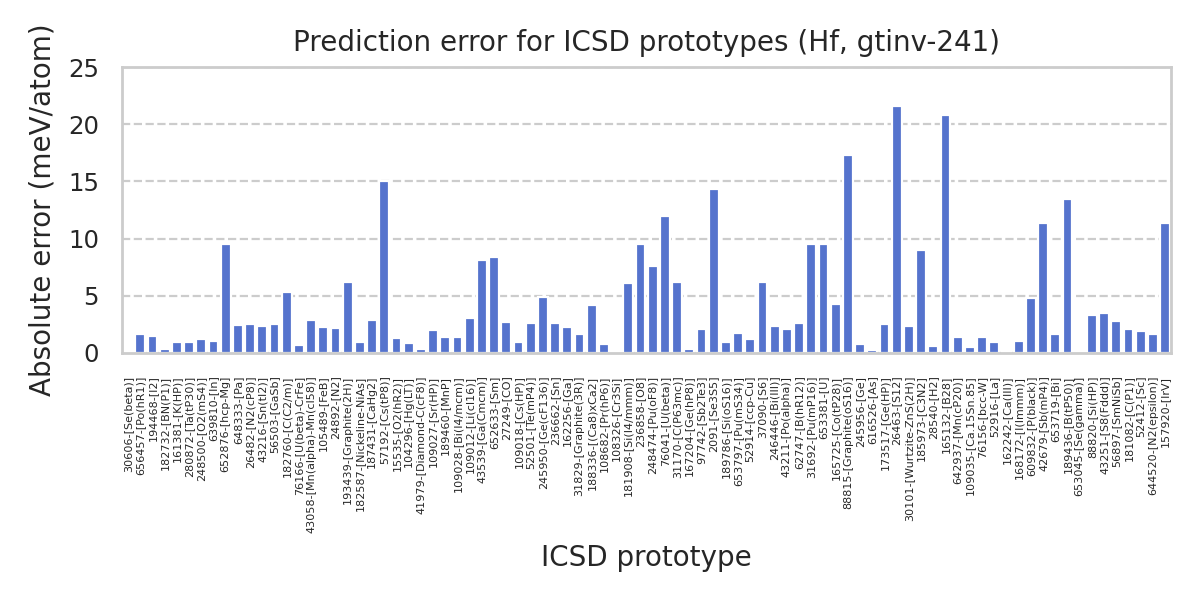

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-31692-[Pu(mP16)]	-6.4769	-6.48644
icsd-653381-[U]	-6.47689	-6.48639
icsd-236858-[O8]	-6.47688	-6.48644
icsd-652876-[hcp-Mg]	-6.47687	-6.48639
icsd-652633-[Sm]	-6.44583	-6.45421
icsd-56897-[SmNiSb]	-6.44252	-6.44527
icsd-187431-[CaHg2]	-6.44247	-6.44529
icsd-182760-[C(C2/m)]	-6.43641	-6.44168
icsd-31170-[C(P63mc)]	-6.43345	-6.4396
icsd-193439-[Graphite(2H)]	-6.4334	-6.43963
icsd-52916-[La]	-6.43215	-6.43309
icsd-161381-[K(HP)]	-6.43213	-6.43309
icsd-182587-[Nickeline-NiAs]	-6.43208	-6.433
icsd-30606-[Se(beta)]	-6.42378	-6.42373
icsd-168172-[I(Immm)]	-6.4113	-6.41228
icsd-248500-[O2(mS4)]	-6.4113	-6.41245
icsd-639810-[In]	-6.41129	-6.41228
icsd-104296-[Hg(LT)]	-6.41129	-6.41214
icsd-52914-[ccp-Cu]	-6.41129	-6.41246
icsd-189786-[Si(oS16)]	-6.41129	-6.41226
icsd-15535-[O2(hR2)]	-6.41127	-6.41254
icsd-108682-[Pr(hP6)]	-6.41111	-6.4119
icsd-157920-[IrV]	-6.39571	-6.38438
icsd-109012-[Li(cI16)]	-6.38832	-6.38531
icsd-245956-[Ge]	-6.37833	-6.37758
icsd-57192-[Cs(tP8)]	-6.37221	-6.38729
icsd-642937-[Mn(cP20)]	-6.34515	-6.34654
icsd-648333-[Pa]	-6.34239	-6.33999
icsd-105489-[FeB]	-6.34234	-6.34011
icsd-43216-[Sn(tI2)]	-6.34231	-6.33997
icsd-246446-[Bi(III)]	-6.3423	-6.33998
icsd-52412-[Sc]	-6.34222	-6.34031
icsd-26482-[N2(cP8)]	-6.34106	-6.34359
icsd-27249-[CO]	-6.34094	-6.3436
icsd-24892-[N2]	-6.3344	-6.33659
icsd-653797-[Pu(mS34)]	-6.33432	-6.33601
icsd-248474-[Pu(oF8)]	-6.33189	-6.32432
icsd-97742-[Sb2Te3]	-6.30687	-6.30482
icsd-76156-[bcc-W]	-6.30643	-6.30505
icsd-656457-[Po(hR1)]	-6.30642	-6.30483
icsd-31829-[Graphite(3R)]	-6.30642	-6.3048
icsd-644520-[N2(epsilon)]	-6.3064	-6.3048
icsd-194468-[I2]	-6.30629	-6.30482
icsd-76041-[U(beta)]	-6.29791	-6.30989
icsd-43539-[Ga(Cmcm)]	-6.28077	-6.28892
icsd-76166-[U(beta)-CrFe]	-6.27786	-6.27854
icsd-280872-[Ta(tP30)]	-6.27764	-6.27855
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.2676	-6.26471
icsd-52501-[Te(mP4)]	-6.25397	-6.25654
icsd-189436-[B(tP50)]	-6.24565	-6.25914
icsd-108326-[Cr3Si]	-6.24386	-6.24374
icsd-609832-[P(black)]	-6.23746	-6.23271
icsd-173517-[Ge(HP)]	-6.18989	-6.18739
icsd-2091-[Se3S5]	-6.17904	-6.19336
icsd-165725-[Co(tP28)]	-6.16189	-6.16613
icsd-43251-[S8(Fddd)]	-6.14271	-6.14621
icsd-37090-[S6]	-6.08859	-6.08237
icsd-26463-[S12]	-6.06446	-6.08611
icsd-109028-[Bi(I4/mcm)]	-6.06074	-6.05935
icsd-162242-[Ca(III)]	-6.01768	-6.01772
icsd-109035-[Ca.15Sn.85]	-6.01747	-6.01797
icsd-189460-[MnP]	-6.01677	-6.01539
icsd-42679-[Sb(mP4)]	-6.0158	-6.02717
icsd-109018-[Cs(HP)]	-6.00883	-6.00794
icsd-165132-[B28]	-6.00232	-6.02314
icsd-653719-[Bi]	-5.89357	-5.89524
icsd-162256-[Ga]	-5.89064	-5.89288
icsd-56503-[GaSb]	-5.83109	-5.83357
icsd-236662-[Sn]	-5.83089	-5.83352
icsd-188336-[(Ca8)xCa2]	-5.76974	-5.76562
icsd-653045-[Se(gamma)]	-5.40611	-5.4062
icsd-109027-[Sr(HP)]	-5.40605	-5.40802
icsd-182732-[BN(P1)]	-5.40603	-5.40634
icsd-181082-[C(P1)]	-5.40597	-5.40802
icsd-43211-[Po(alpha)]	-5.40597	-5.40802
icsd-616526-[As]	-5.40596	-5.40617
icsd-28540-[H2]	-5.40595	-5.40648
icsd-88815-[Graphite(oS16)]	-5.33732	-5.31998
icsd-62747-[B(hR12)]	-4.99292	-4.99031
icsd-245950-[Ge(cF136)]	-4.78062	-4.77571
icsd-88820-[Si(HP)]	-4.68248	-4.67916
icsd-30101-[Wurtzite-ZnS(2H)]	-3.8498	-3.85214
icsd-181908-[Si(I4/mmm)]	-3.84807	-3.85415
icsd-167204-[Ge(hP8)]	-3.82766	-3.82735
icsd-41979-[Diamond-C(cF8)]	-3.79683	-3.79648
icsd-185973-[C3N2]	-3.56477	-3.55576

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.27	3.201	3.201	5.02	90.0	90.0	120.0
DFT	22.253	3.193	3.193	5.04	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
189.0	80.5	91.7	0.0	0.0	0.0
80.5	189.0	91.7	0.0	0.0	0.0
91.7	91.7	205.2	0.0	0.0	0.0
0.0	0.0	0.0	51.2	0.0	0.0
0.0	0.0	0.0	0.0	51.2	0.0
0.0	0.0	0.0	0.0	0.0	54.3

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.286	3.176	3.176	22.968	90.0	90.0	120.0
DFT	22.326	3.186	3.186	22.859	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
157.1	72.6	72.0	6.7	0.0	0.0
72.6	157.1	72.0	-6.7	0.0	0.0
72.0	72.0	190.6	0.0	0.0	0.0
6.7	-6.7	0.0	41.0	0.0	0.0
0.0	0.0	0.0	0.0	41.0	6.7
0.0	0.0	0.0	0.0	6.7	42.2

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.257	3.164	3.164	10.268	90.0	90.0	120.0
DFT	22.4	3.191	3.191	10.162	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
146.7	71.5	60.3	0.0	0.0	0.0
71.5	146.7	60.3	0.0	0.0	0.0
60.3	60.3	169.8	0.0	0.0	0.0
0.0	0.0	0.0	35.8	0.0	0.0
0.0	0.0	0.0	0.0	35.8	0.0
0.0	0.0	0.0	0.0	0.0	37.6

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.265	3.748	3.748	3.17	90.0	90.0	90.0
DFT	22.082	3.73	3.73	3.174	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
99.7	135.9	76.3	0.0	0.0	0.0
135.9	99.7	76.3	0.0	0.0	0.0
76.3	76.3	139.9	0.0	0.0	0.0
0.0	0.0	0.0	74.0	0.0	0.0
0.0	0.0	0.0	0.0	74.0	0.0
0.0	0.0	0.0	0.0	0.0	67.7

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.298	5.608	5.608	2.963	90.0	90.0	90.0
DFT	22.875	5.523	5.523	2.999	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-722293.4	722555.6	58.5	-131207.0	0.0	0.0
722555.6	-722293.4	58.5	-299029.6	0.0	0.0
58.5	58.5	155.0	90589.8	0.0	0.0
-131207.0	-299029.6	90589.8	-13.9	0.0	0.0
0.0	0.0	0.0	0.0	-46.8	0.0
0.0	0.0	0.0	0.0	0.0	-22.0

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.979	3.529	3.529	3.529	90.0	90.0	90.0
DFT	22.021	3.531	3.531	3.531	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
3.9	83.4	83.4	0.0	0.0	0.0
83.4	3.9	83.4	0.0	0.0	0.0
83.4	83.4	3.9	0.0	0.0	0.0
0.0	0.0	0.0	69.3	0.0	0.0
0.0	0.0	0.0	0.0	69.3	0.0
0.0	0.0	0.0	0.0	0.0	69.3

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.351	4.471	4.471	4.471	90.0	90.0	90.0
DFT	22.278	4.467	4.467	4.467	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
125.9	84.3	84.3	0.0	0.0	0.0
84.3	125.9	84.3	0.0	0.0	0.0
84.3	84.3	125.9	0.0	0.0	0.0
0.0	0.0	0.0	54.7	0.0	0.0
0.0	0.0	0.0	0.0	54.7	0.0
0.0	0.0	0.0	0.0	0.0	54.7

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	33.58	6.452	6.452	6.452	90.0	90.0	90.0
DFT	33.782	6.465	6.465	6.465	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
-21.7	74.8	74.8	-54408.7	47781.4	15785.6
74.8	-21.7	74.8	54569.4	0.0	7456.6
74.8	74.8	-21.7	6788.2	-47781.4	-12553.6
-54408.7	54569.4	6788.2	127567.5	16128.1	-116140.1
47781.4	0.0	-47781.4	16128.1	109542.6	88679.9
15785.6	7456.6	-12553.6	-116140.1	88679.9	-72785.9

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.575	2.907	2.907	2.907	90.0	90.0	90.0
DFT	24.273	2.895	2.895	2.895	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
88.0	27.9	27.9	0.0	0.0	0.0
27.9	88.0	27.9	0.0	0.0	0.0
27.9	27.9	88.0	0.0	0.0	0.0
0.0	0.0	0.0	-49.4	0.0	0.0
0.0	0.0	0.0	0.0	-49.4	0.0
0.0	0.0	0.0	0.0	0.0	-49.4

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.351	5.476	5.476	3.162	90.0	90.0	109.47
DFT	23.272	5.77	5.754	3.035	90.0	112.51	90.0

Elastic constants (Bi)

1	2	3	4	5	6
159.8	61.7	73.0	0.0	0.0	16.0
61.7	171.1	61.7	0.0	0.0	0.0
73.0	61.7	159.8	0.0	0.0	-16.0
0.0	0.0	0.0	32.1	-16.0	0.0
0.0	0.0	0.0	-16.0	43.4	0.0
16.0	0.0	-16.0	0.0	0.0	32.1
