gtinv-264 (Hg-2021-08-10-all-icsd)

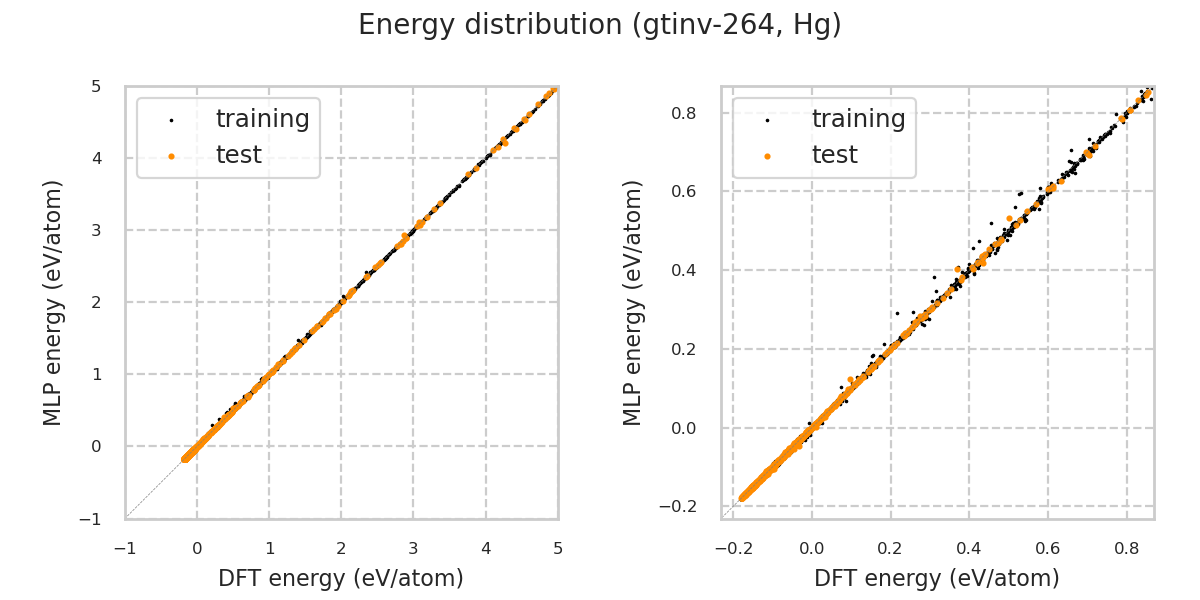

Energy distribution

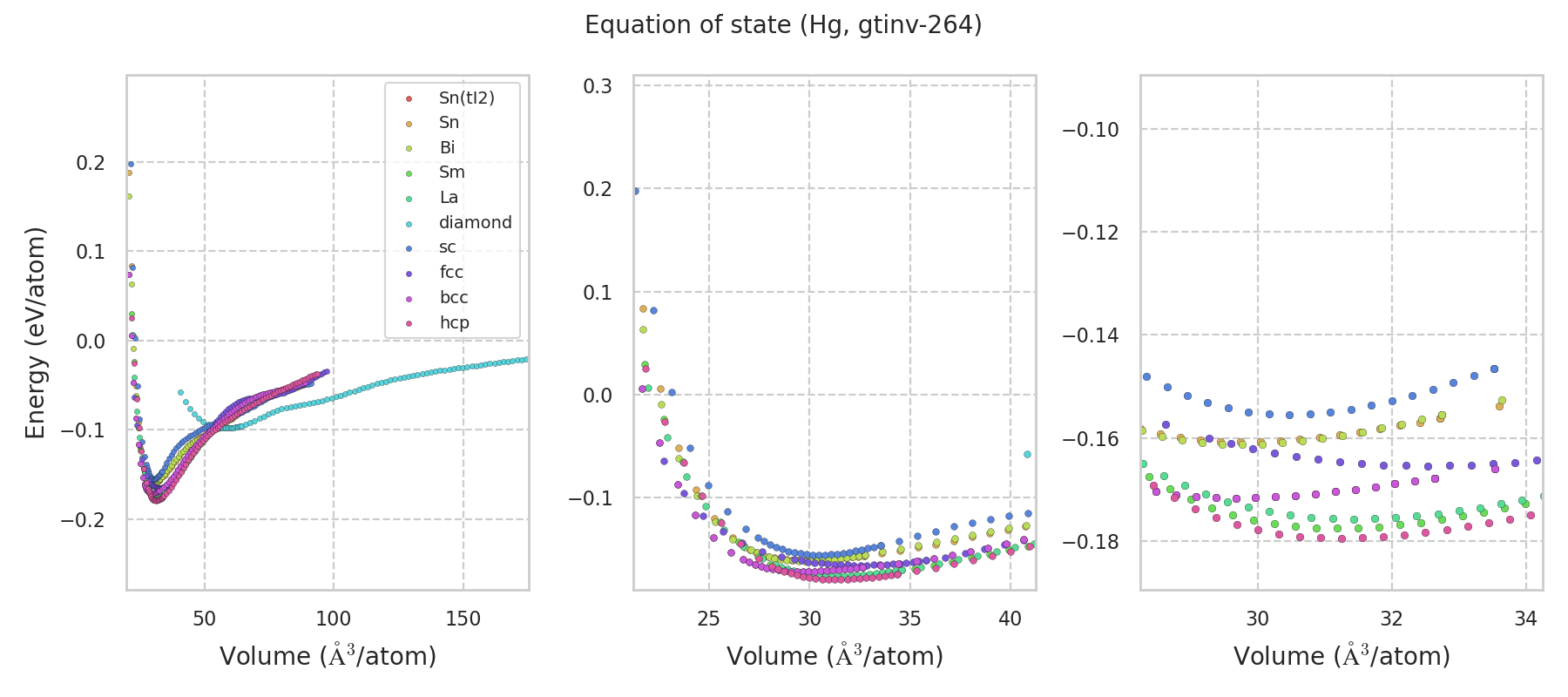

Equation of state

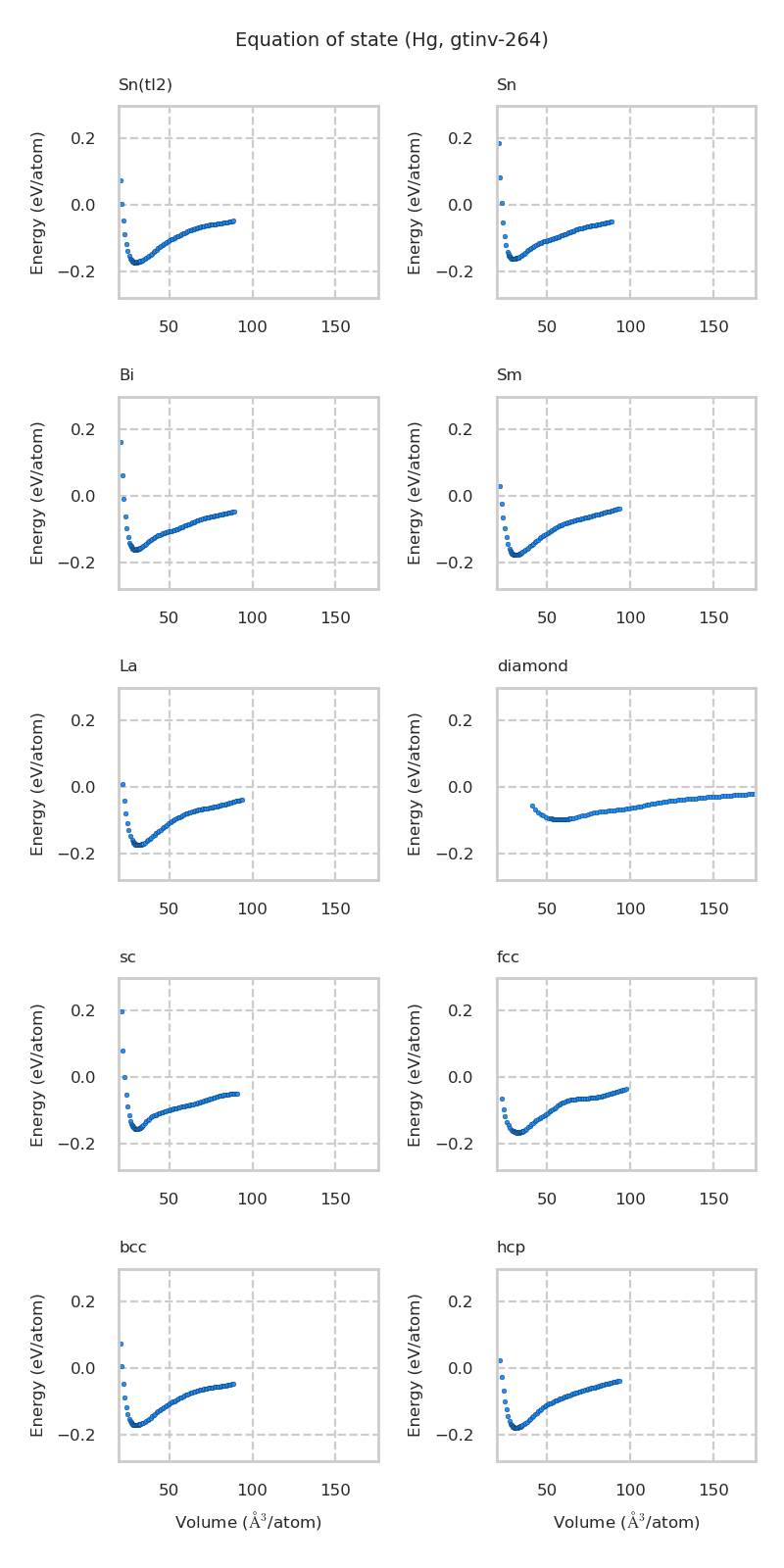

Equation of state for each structure

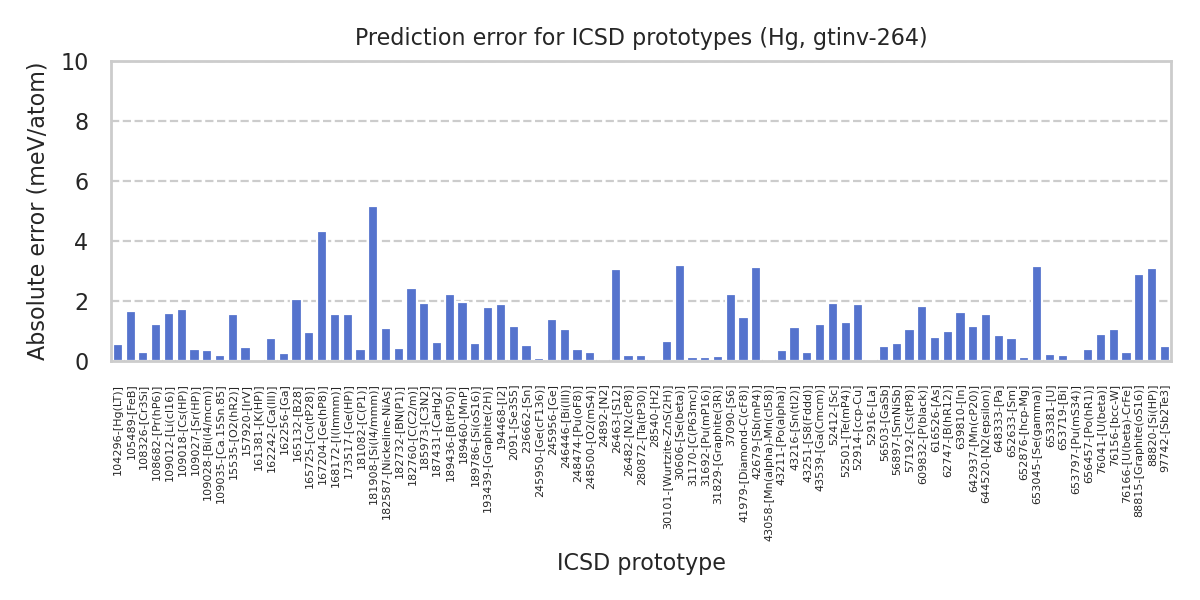

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-189786-[Si(oS16)]	-0.1785	-0.17793
icsd-31692-[Pu(mP16)]	-0.17578	-0.17589
icsd-652876-[hcp-Mg]	-0.17533	-0.17544
icsd-653381-[U]	-0.17413	-0.17433
icsd-76041-[U(beta)]	-0.17401	-0.17489
icsd-30606-[Se(beta)]	-0.17388	-0.17706
icsd-652633-[Sm]	-0.17381	-0.17304
icsd-43058-[Mn(alpha)-Mn(cI58)]	-0.17256	-0.17263
icsd-642937-[Mn(cP20)]	-0.17246	-0.17362
icsd-52916-[La]	-0.17147	-0.17143
icsd-161381-[K(HP)]	-0.17144	-0.17142
icsd-109012-[Li(cI16)]	-0.17141	-0.1698
icsd-653797-[Pu(mS34)]	-0.1707	-0.17076
icsd-105489-[FeB]	-0.17042	-0.16877
icsd-76166-[U(beta)-CrFe]	-0.17029	-0.17001
icsd-182760-[C(C2/m)]	-0.17029	-0.17271
icsd-280872-[Ta(tP30)]	-0.17013	-0.16994
icsd-31170-[C(P63mc)]	-0.16999	-0.17012
icsd-26482-[N2(cP8)]	-0.16966	-0.16986
icsd-52412-[Sc]	-0.16879	-0.17071
icsd-97742-[Sb2Te3]	-0.16878	-0.16926
icsd-157920-[IrV]	-0.16876	-0.1683
icsd-56897-[SmNiSb]	-0.16871	-0.1693
icsd-187431-[CaHg2]	-0.16863	-0.16925
icsd-648333-[Pa]	-0.16839	-0.16925
icsd-173517-[Ge(HP)]	-0.16832	-0.16988
icsd-656457-[Po(hR1)]	-0.16818	-0.16855
icsd-245956-[Ge]	-0.16815	-0.16954
icsd-194468-[I2]	-0.16774	-0.16965
icsd-644520-[N2(epsilon)]	-0.16771	-0.16926
icsd-76156-[bcc-W]	-0.16754	-0.16861
icsd-246446-[Bi(III)]	-0.16747	-0.16852
icsd-43216-[Sn(tI2)]	-0.16713	-0.16827
icsd-52501-[Te(mP4)]	-0.16674	-0.16544
icsd-165725-[Co(tP28)]	-0.16624	-0.16719
icsd-57192-[Cs(tP8)]	-0.16577	-0.16471
icsd-108682-[Pr(hP6)]	-0.16532	-0.16411
icsd-108326-[Cr3Si]	-0.16479	-0.16451
icsd-43251-[S8(Fddd)]	-0.1635	-0.16379
icsd-248474-[Pu(oF8)]	-0.16312	-0.1635
icsd-2091-[Se3S5]	-0.16234	-0.1635
icsd-52914-[ccp-Cu]	-0.16136	-0.15948
icsd-37090-[S6]	-0.16091	-0.15868
icsd-109018-[Cs(HP)]	-0.16055	-0.15882
icsd-109035-[Ca.15Sn.85]	-0.15993	-0.15975
icsd-162256-[Ga]	-0.15973	-0.1595
icsd-189460-[MnP]	-0.15953	-0.16148
icsd-639810-[In]	-0.15949	-0.15787
icsd-609832-[P(black)]	-0.15943	-0.16126
icsd-168172-[I(Immm)]	-0.15922	-0.15766
icsd-248500-[O2(mS4)]	-0.15864	-0.15834
icsd-236662-[Sn]	-0.15836	-0.15783
icsd-56503-[GaSb]	-0.15832	-0.15784
icsd-653719-[Bi]	-0.158	-0.1578
icsd-42679-[Sb(mP4)]	-0.15746	-0.16057
icsd-165132-[B28]	-0.15698	-0.15905
icsd-43539-[Ga(Cmcm)]	-0.15697	-0.1582
icsd-104296-[Hg(LT)]	-0.15445	-0.1539
icsd-31829-[Graphite(3R)]	-0.15441	-0.15456
icsd-162242-[Ca(III)]	-0.1537	-0.15295
icsd-189436-[B(tP50)]	-0.15354	-0.15577
icsd-26463-[S12]	-0.1534	-0.15645
icsd-653045-[Se(gamma)]	-0.15335	-0.1502
icsd-28540-[H2]	-0.15246	-0.1525
icsd-616526-[As]	-0.15242	-0.15322
icsd-15535-[O2(hR2)]	-0.15225	-0.15382
icsd-109027-[Sr(HP)]	-0.15213	-0.15251
icsd-182732-[BN(P1)]	-0.15213	-0.15254
icsd-181082-[C(P1)]	-0.15211	-0.15249
icsd-43211-[Po(alpha)]	-0.15209	-0.15245
icsd-24892-[N2]	-0.15185	-0.15192
icsd-182587-[Nickeline-NiAs]	-0.14913	-0.14805
icsd-245950-[Ge(cF136)]	-0.14534	-0.14543
icsd-62747-[B(hR12)]	-0.14492	-0.14592
icsd-185973-[C3N2]	-0.1325	-0.13056
icsd-109028-[Bi(I4/mcm)]	-0.12055	-0.12089
icsd-88815-[Graphite(oS16)]	-0.1172	-0.12009
icsd-193439-[Graphite(2H)]	-0.11594	-0.11414
icsd-88820-[Si(HP)]	-0.11198	-0.11509
icsd-181908-[Si(I4/mmm)]	-0.09873	-0.09358
icsd-41979-[Diamond-C(cF8)]	-0.07923	-0.08069
icsd-30101-[Wurtzite-ZnS(2H)]	-0.07462	-0.07526
icsd-167204-[Ge(hP8)]	-0.07089	-0.07521

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.255	3.602	6.238	5.564	90.0	90.0	90.0
DFT	29.421	3.535	6.069	5.485	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
13.1	9.1	6.9	0.0	0.0	0.0
9.1	13.1	6.9	0.0	0.0	0.0
6.9	6.9	8.6	0.0	0.0	0.0
0.0	0.0	0.0	2.5	0.0	0.0
0.0	0.0	0.0	0.0	2.5	0.0
0.0	0.0	0.0	0.0	0.0	2.0

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.183	3.624	3.624	24.672	90.0	90.0	120.0
DFT	29.482	3.514	3.514	24.805	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
10.7	7.7	6.9	0.2	0.0	0.0
7.7	10.7	6.9	-0.2	0.0	0.0
6.9	6.9	13.0	0.0	0.0	0.0
0.2	-0.2	0.0	3.2	0.0	0.0
0.0	0.0	0.0	0.0	3.2	0.2
0.0	0.0	0.0	0.0	0.2	1.5

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.432	3.602	3.602	11.19	90.0	90.0	120.0
DFT	29.34	3.506	3.506	11.025	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
9.7	6.1	5.8	0.0	0.0	0.0
6.1	9.7	5.8	0.0	0.0	0.0
5.8	5.8	13.2	0.0	0.0	0.0
0.0	0.0	0.0	2.6	0.0	0.0
0.0	0.0	0.0	0.0	2.6	0.0
0.0	0.0	0.0	0.0	0.0	1.8

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.675	3.901	3.901	3.901	90.0	90.0	90.0
DFT	27.652	3.81	3.81	3.81	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
7.3	7.2	7.2	0.0	0.0	0.0
7.2	7.3	7.2	0.0	0.0	0.0
7.2	7.2	7.3	0.0	0.0	0.0
0.0	0.0	0.0	3.1	0.0	0.0
0.0	0.0	0.0	0.0	3.1	0.0
0.0	0.0	0.0	0.0	0.0	3.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.743	6.089	6.089	3.209	90.0	90.0	90.0
DFT	28.254	5.979	5.979	3.161	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
14.9	2.9	2.2	0.0	0.0	0.0
2.9	14.9	2.2	0.0	0.0	0.0
2.2	2.2	28.1	0.0	0.0	0.0
0.0	0.0	0.0	-0.6	0.0	0.0
0.0	0.0	0.0	0.0	-0.6	0.0
0.0	0.0	0.0	0.0	0.0	0.2

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.675	3.901	3.901	3.901	90.0	90.0	90.0
DFT	27.731	3.814	3.814	3.814	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
7.3	7.2	7.2	0.0	0.0	0.0
7.2	7.3	7.2	0.0	0.0	0.0
7.2	7.2	7.3	0.0	0.0	0.0
0.0	0.0	0.0	3.1	0.0	0.0
0.0	0.0	0.0	0.0	3.1	0.0
0.0	0.0	0.0	0.0	0.0	3.1

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.533	5.068	5.068	5.068	90.0	90.0	90.0
DFT	29.68	4.915	4.915	4.915	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
5.2	3.6	3.6	0.0	0.0	0.0
3.6	5.2	3.6	0.0	0.0	0.0
3.6	3.6	5.2	0.0	0.0	0.0
0.0	0.0	0.0	2.3	0.0	0.0
0.0	0.0	0.0	0.0	2.3	0.0
0.0	0.0	0.0	0.0	0.0	2.3

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	58.318	7.756	7.756	7.756	90.0	90.0	90.0
DFT	45.142	7.121	7.121	7.121	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
1.1	1.8	1.8	0.0	0.0	0.0
1.8	1.1	1.8	0.0	0.0	0.0
1.8	1.8	1.1	0.0	0.0	0.0
0.0	0.0	0.0	0.6	0.0	0.0
0.0	0.0	0.0	0.0	0.6	0.0
0.0	0.0	0.0	0.0	0.0	0.6

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.478	3.124	3.124	3.124	90.0	90.0	90.0
DFT	29.002	3.072	3.072	3.072	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
27.2	6.0	6.0	0.0	0.0	0.0
6.0	27.2	6.0	0.0	0.0	0.0
6.0	6.0	27.2	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.772	6.499	6.152	3.222	90.0	112.42	90.0
DFT	28.241	6.386	6.007	3.171	90.0	111.77	90.0

Elastic constants (Bi)

1	2	3	4	5	6
14.3	3.6	9.2	0.0	0.4	0.0
3.6	21.5	0.7	0.0	-0.9	0.0
9.2	0.7	20.2	0.0	-4.8	0.0
0.0	0.0	0.0	0.6	0.0	0.6
0.4	-0.9	-4.8	0.0	4.8	0.0
0.0	0.0	0.0	0.6	0.0	0.7
