gtinv-239 (Ir-2021-08-05-all-icsd)

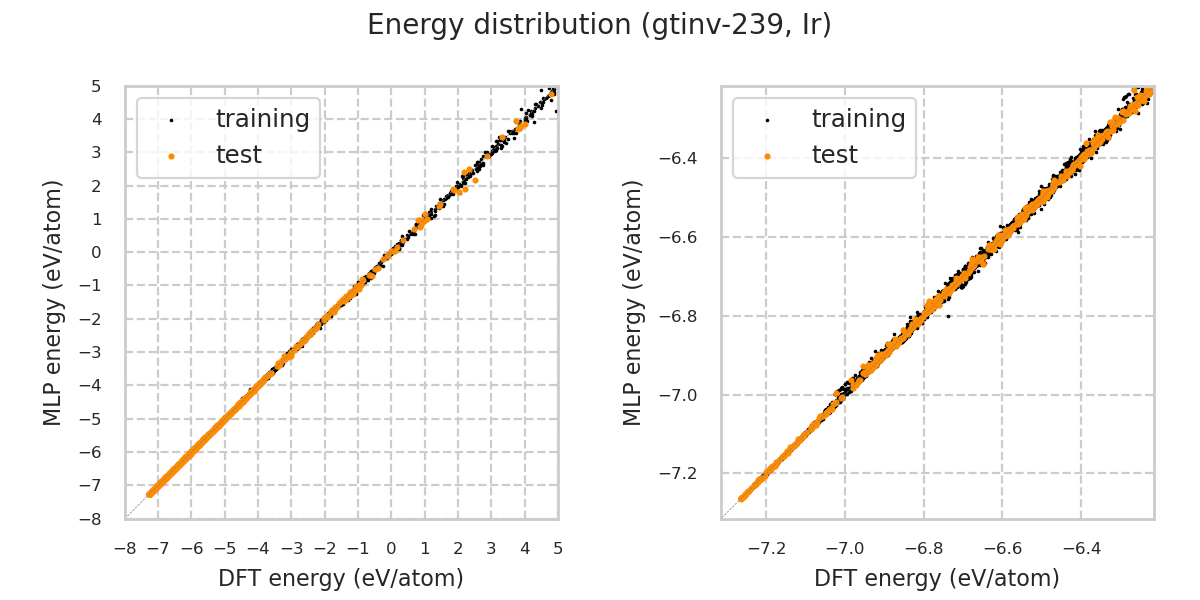

Energy distribution

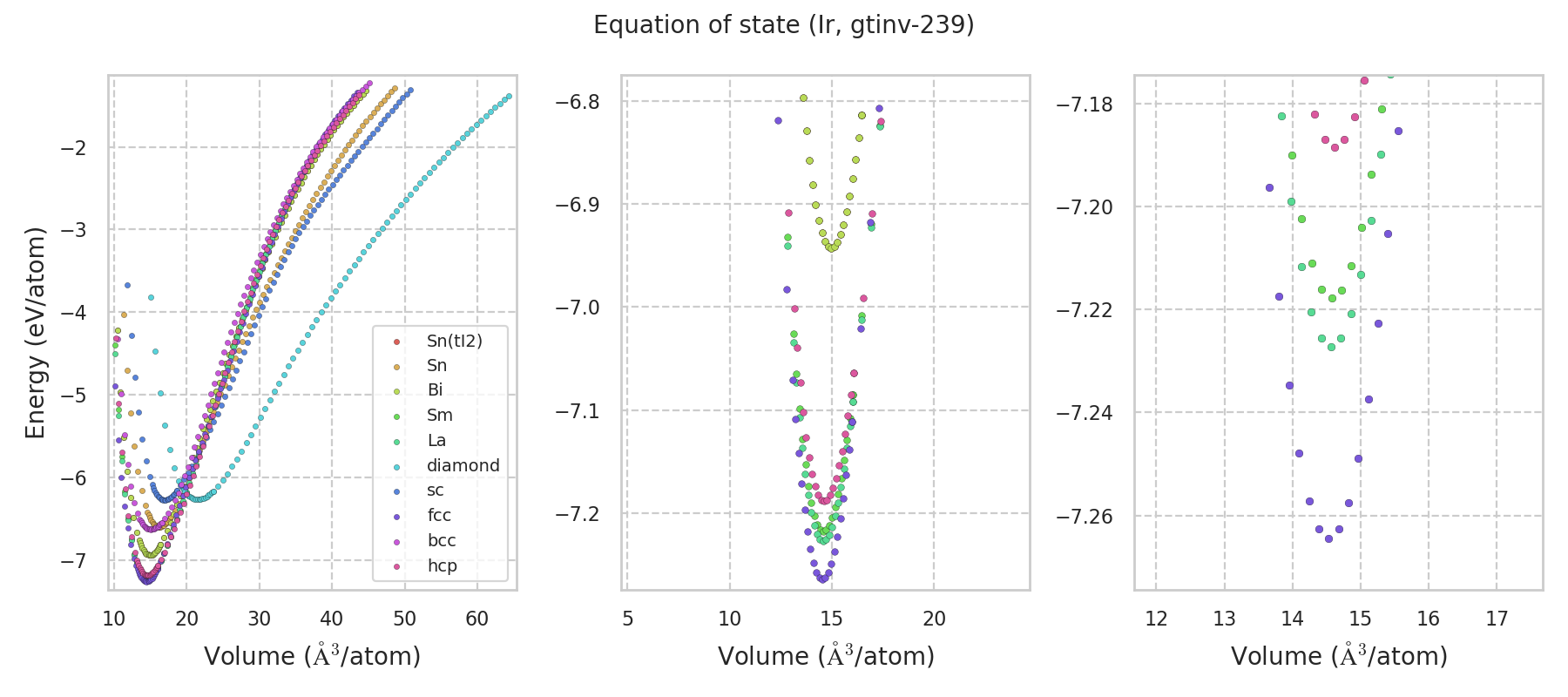

Equation of state

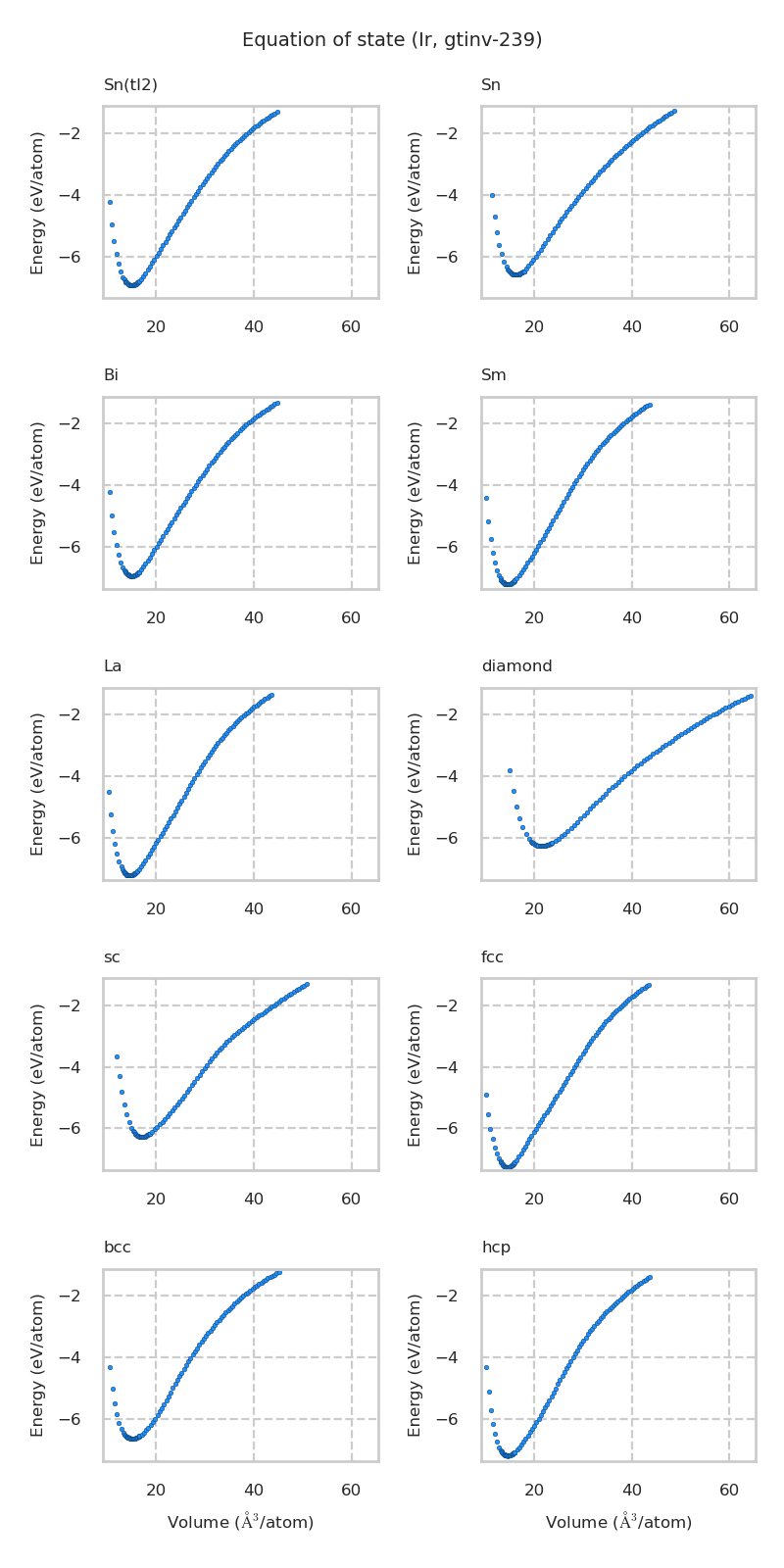

Equation of state for each structure

Prototype structure energy

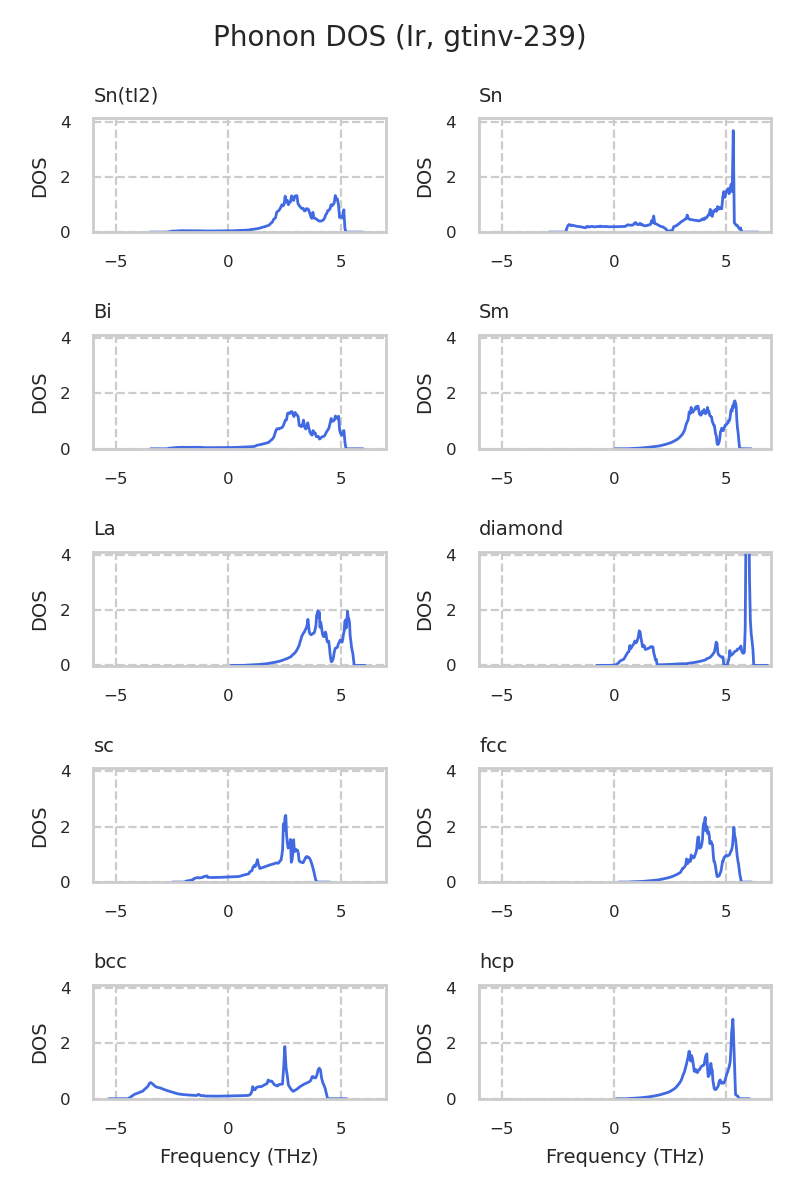

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

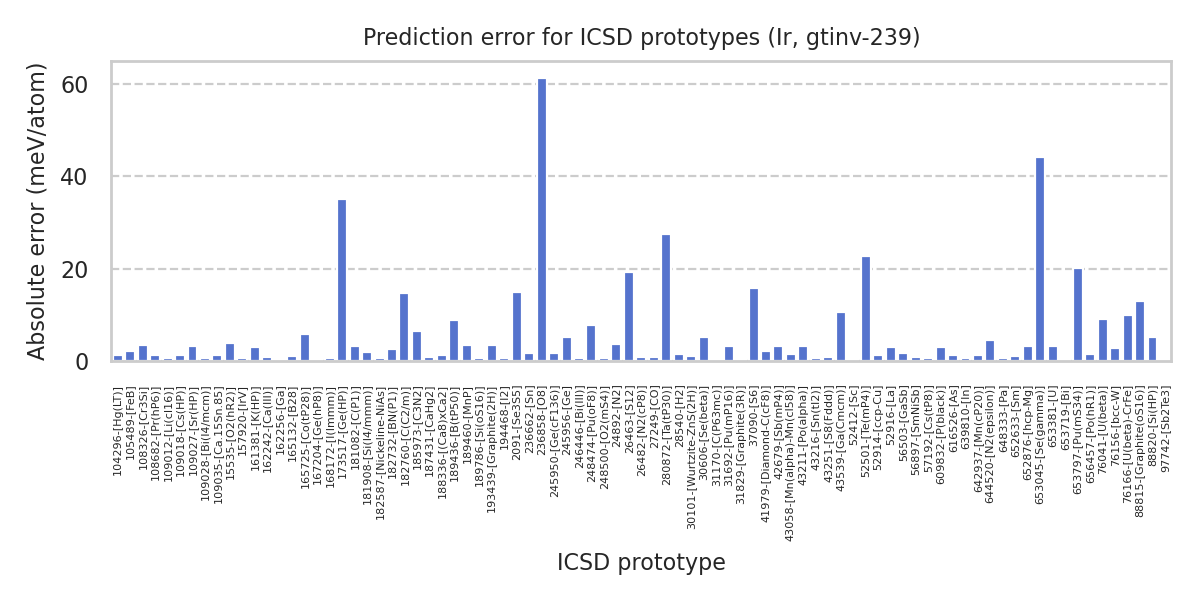

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-104296-[Hg(LT)]	-7.2644	-7.26312
icsd-108682-[Pr(hP6)]	-7.26435	-7.26308
icsd-168172-[I(Immm)]	-7.26416	-7.26462
icsd-639810-[In]	-7.26416	-7.26463
icsd-248500-[O2(mS4)]	-7.26416	-7.26361
icsd-97742-[Sb2Te3]	-7.26416	-7.26402
icsd-57192-[Cs(tP8)]	-7.26416	-7.26464
icsd-157920-[IrV]	-7.26415	-7.26478
icsd-194468-[I2]	-7.26415	-7.26466
icsd-189786-[Si(oS16)]	-7.26414	-7.2648
icsd-52914-[ccp-Cu]	-7.26414	-7.26534
icsd-52916-[La]	-7.22691	-7.22989
icsd-161381-[K(HP)]	-7.22691	-7.22989
icsd-652633-[Sm]	-7.21745	-7.2164
icsd-105489-[FeB]	-7.1881	-7.19015
icsd-652876-[hcp-Mg]	-7.18778	-7.19084
icsd-653381-[U]	-7.18777	-7.19084
icsd-42679-[Sb(mP4)]	-7.18776	-7.19084
icsd-31692-[Pu(mP16)]	-7.18771	-7.19098
icsd-30606-[Se(beta)]	-7.11189	-7.117
icsd-109012-[Li(cI16)]	-7.08079	-7.08015
icsd-248474-[Pu(oF8)]	-7.05697	-7.06465
icsd-43539-[Ga(Cmcm)]	-7.04061	-7.05114
icsd-280872-[Ta(tP30)]	-6.99767	-7.02528
icsd-642937-[Mn(cP20)]	-6.98139	-6.98261
icsd-76041-[U(beta)]	-6.95114	-6.96011
icsd-37090-[S6]	-6.94572	-6.96151
icsd-43216-[Sn(tI2)]	-6.94282	-6.94333
icsd-162256-[Ga]	-6.94282	-6.94281
icsd-246446-[Bi(III)]	-6.94282	-6.94333
icsd-52412-[Sc]	-6.94282	-6.94299
icsd-31170-[C(P63mc)]	-6.94282	-6.94281
icsd-648333-[Pa]	-6.94281	-6.94331
icsd-653719-[Bi]	-6.9428	-6.94298
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.94093	-6.93943
icsd-187431-[CaHg2]	-6.93384	-6.93318
icsd-56897-[SmNiSb]	-6.93383	-6.93316
icsd-26482-[N2(cP8)]	-6.92826	-6.92901
icsd-27249-[CO]	-6.92825	-6.929
icsd-109028-[Bi(I4/mcm)]	-6.92218	-6.92157
icsd-609832-[P(black)]	-6.92154	-6.91867
icsd-182760-[C(C2/m)]	-6.91917	-6.93381
icsd-653797-[Pu(mS34)]	-6.89575	-6.91586
icsd-173517-[Ge(HP)]	-6.88983	-6.92495
icsd-188336-[(Ca8)xCa2]	-6.88581	-6.88692
icsd-76166-[U(beta)-CrFe]	-6.86534	-6.85541
icsd-109018-[Cs(HP)]	-6.86491	-6.86373
icsd-43251-[S8(Fddd)]	-6.82928	-6.8285
icsd-189460-[MnP]	-6.82147	-6.81804
icsd-236858-[O8]	-6.79931	-6.73784
icsd-165725-[Co(tP28)]	-6.796	-6.80178
icsd-2091-[Se3S5]	-6.74942	-6.76423
icsd-108326-[Cr3Si]	-6.74678	-6.75023
icsd-52501-[Te(mP4)]	-6.72728	-6.70466
icsd-26463-[S12]	-6.71887	-6.73821
icsd-109035-[Ca.15Sn.85]	-6.70628	-6.70742
icsd-162242-[Ca(III)]	-6.70628	-6.707
icsd-193439-[Graphite(2H)]	-6.7062	-6.70949
icsd-189436-[B(tP50)]	-6.695	-6.70377
icsd-76156-[bcc-W]	-6.63144	-6.62878
icsd-656457-[Po(hR1)]	-6.63139	-6.62988
icsd-56503-[GaSb]	-6.59775	-6.59606
icsd-236662-[Sn]	-6.5977	-6.59609
icsd-182587-[Nickeline-NiAs]	-6.58147	-6.58098
icsd-88815-[Graphite(oS16)]	-6.55071	-6.56367
icsd-165132-[B28]	-6.48369	-6.48467
icsd-245956-[Ge]	-6.48364	-6.47846
icsd-88820-[Si(HP)]	-6.48338	-6.47835
icsd-644520-[N2(epsilon)]	-6.45291	-6.4484
icsd-43211-[Po(alpha)]	-6.27629	-6.27314
icsd-181082-[C(P1)]	-6.27629	-6.27314
icsd-109027-[Sr(HP)]	-6.27629	-6.27314
icsd-28540-[H2]	-6.27626	-6.27775
icsd-616526-[As]	-6.27625	-6.27735
icsd-181908-[Si(I4/mmm)]	-6.27499	-6.2769
icsd-41979-[Diamond-C(cF8)]	-6.26888	-6.26683
icsd-31829-[Graphite(3R)]	-6.26888	-6.26872
icsd-653045-[Se(gamma)]	-6.24843	-6.29262
icsd-167204-[Ge(hP8)]	-6.24102	-6.2412
icsd-182732-[BN(P1)]	-6.22032	-6.2178
icsd-30101-[Wurtzite-ZnS(2H)]	-6.21904	-6.21798
icsd-24892-[N2]	-6.20045	-6.20398
icsd-15535-[O2(hR2)]	-6.17148	-6.17531
icsd-245950-[Ge(cF136)]	-6.02826	-6.02982
icsd-185973-[C3N2]	-5.87689	-5.87057

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.617	2.746	2.746	4.478	90.0	90.0	120.0
DFT	14.542	2.746	2.746	4.453	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
557.1	217.6	236.4	0.0	0.0	0.0
217.6	557.1	236.4	0.0	0.0	0.0
236.4	236.4	545.0	0.0	0.0	0.0
0.0	0.0	0.0	111.0	0.0	0.0
0.0	0.0	0.0	0.0	111.0	0.0
0.0	0.0	0.0	0.0	0.0	169.7

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.574	2.742	2.742	20.151	90.0	90.0	120.0
DFT	14.521	2.739	2.739	20.118	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
611.8	234.2	231.2	3.2	0.0	0.0
234.2	611.8	231.2	-3.2	0.0	0.0
231.2	231.2	582.4	0.0	0.0	0.0
3.2	-3.2	0.0	146.3	0.0	0.0
0.0	0.0	0.0	0.0	146.3	3.2
0.0	0.0	0.0	0.0	3.2	188.8

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.567	2.741	2.741	8.957	90.0	90.0	120.0
DFT	14.504	2.738	2.738	8.938	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
631.9	239.9	227.9	0.0	0.0	0.0
239.9	631.9	227.9	0.0	0.0	0.0
227.9	227.9	599.0	0.0	0.0	0.0
0.0	0.0	0.0	168.6	0.0	0.0
0.0	0.0	0.0	0.0	168.6	0.0
0.0	0.0	0.0	0.0	0.0	196.0

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.958	3.348	3.348	2.669	90.0	90.0	90.0
DFT	14.94	3.348	3.348	2.665	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
308.8	507.6	142.4	0.0	0.0	0.0
507.6	308.8	142.4	0.0	0.0	0.0
142.4	142.4	786.1	0.0	0.0	0.0
0.0	0.0	0.0	186.9	0.0	0.0
0.0	0.0	0.0	0.0	186.9	0.0
0.0	0.0	0.0	0.0	0.0	216.5

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.261	4.885	4.885	2.726	90.0	90.0	90.0
DFT	16.186	4.849	4.849	2.753	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
323.8	408.5	187.0	0.0	0.0	0.0
408.5	323.8	187.0	0.0	0.0	0.0
187.0	187.0	426.2	0.0	0.0	0.0
0.0	0.0	0.0	-42.8	0.0	0.0
0.0	0.0	0.0	0.0	-42.8	0.0
0.0	0.0	0.0	0.0	0.0	53.2

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.085	3.113	3.113	3.113	90.0	90.0	90.0
DFT	15.035	3.11	3.11	3.11	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
-88.6	360.0	360.0	0.0	0.0	0.0
360.0	-88.6	360.0	0.0	0.0	0.0
360.0	360.0	-88.6	0.0	0.0	0.0
0.0	0.0	0.0	120.8	0.0	0.0
0.0	0.0	0.0	0.0	120.8	0.0
0.0	0.0	0.0	0.0	0.0	120.8

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.532	3.874	3.874	3.874	90.0	90.0	90.0
DFT	14.475	3.869	3.869	3.869	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
665.8	257.8	257.8	0.0	0.0	0.0
257.8	665.8	257.8	0.0	0.0	0.0
257.8	257.8	665.8	0.0	0.0	0.0
0.0	0.0	0.0	227.2	0.0	0.0
0.0	0.0	0.0	0.0	227.2	0.0
0.0	0.0	0.0	0.0	0.0	227.2

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.527	5.564	5.564	5.564	90.0	90.0	90.0
DFT	21.474	5.559	5.559	5.559	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
183.4	178.7	178.7	0.0	0.0	0.0
178.7	183.4	178.7	0.0	0.0	0.0
178.7	178.7	183.4	0.0	0.0	0.0
0.0	0.0	0.0	42.4	0.0	0.0
0.0	0.0	0.0	0.0	42.4	0.0
0.0	0.0	0.0	0.0	0.0	42.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.972	2.57	2.57	2.57	90.0	90.0	90.0
DFT	16.951	2.569	2.569	2.569	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
530.4	153.2	153.2	0.0	0.0	0.0
153.2	530.4	153.2	0.0	0.0	0.0
153.2	153.2	530.4	0.0	0.0	0.0
0.0	0.0	0.0	51.9	0.0	0.0
0.0	0.0	0.0	0.0	51.9	0.0
0.0	0.0	0.0	0.0	0.0	51.9

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.958	4.735	4.735	2.669	90.0	90.0	90.0
DFT	14.939	4.735	4.735	2.665	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
624.8	191.7	142.4	0.0	0.0	0.0
191.7	624.8	142.4	0.0	0.0	0.0
142.4	142.4	786.1	0.0	0.0	0.0
0.0	0.0	0.0	186.9	0.0	0.0
0.0	0.0	0.0	0.0	186.9	0.0
0.0	0.0	0.0	0.0	0.0	-99.4
