gtinv-292 (K-2021-08-04-all-icsd)

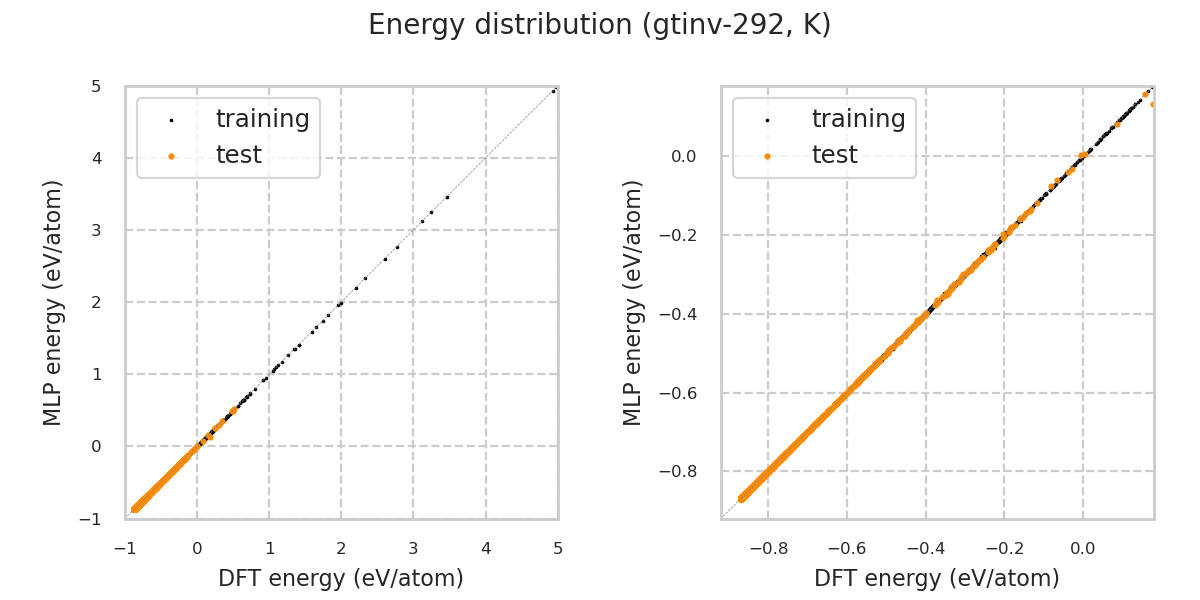

Energy distribution

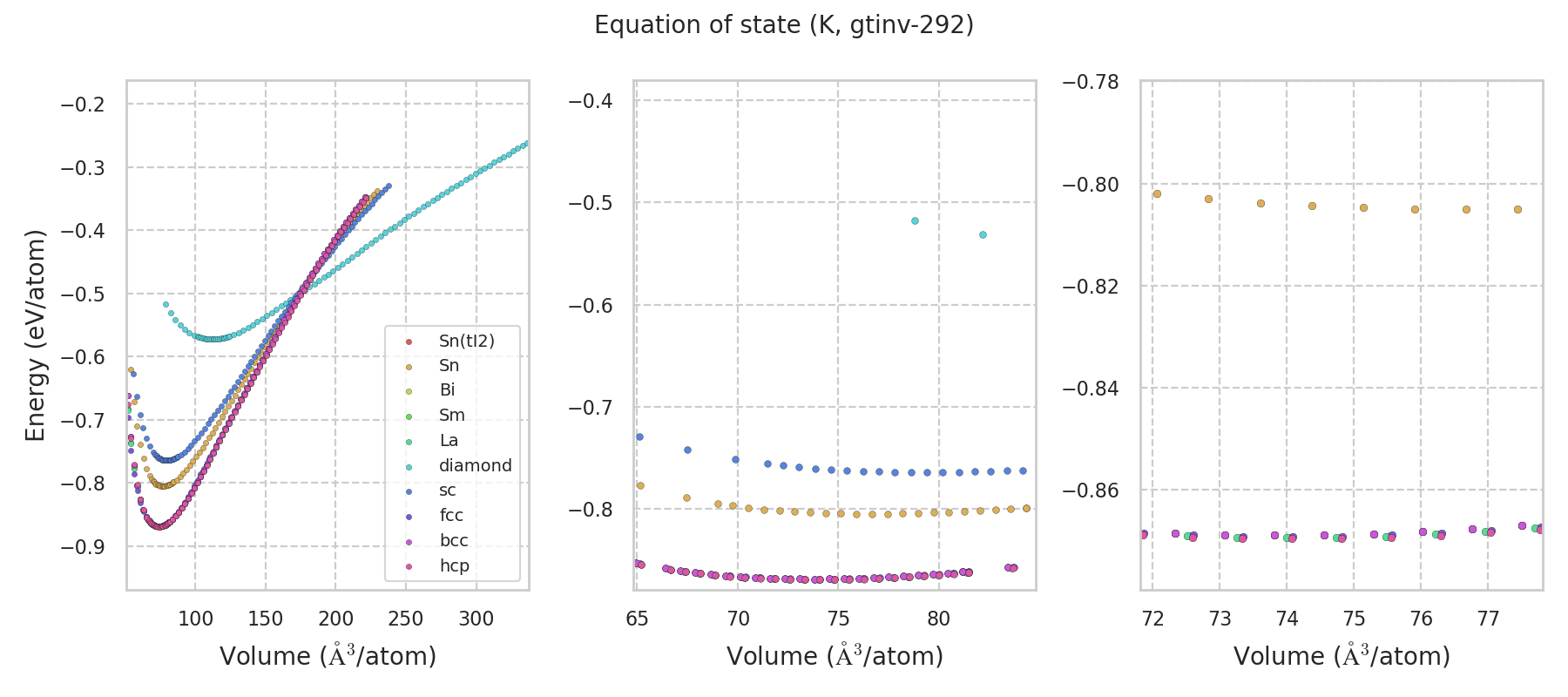

Equation of state

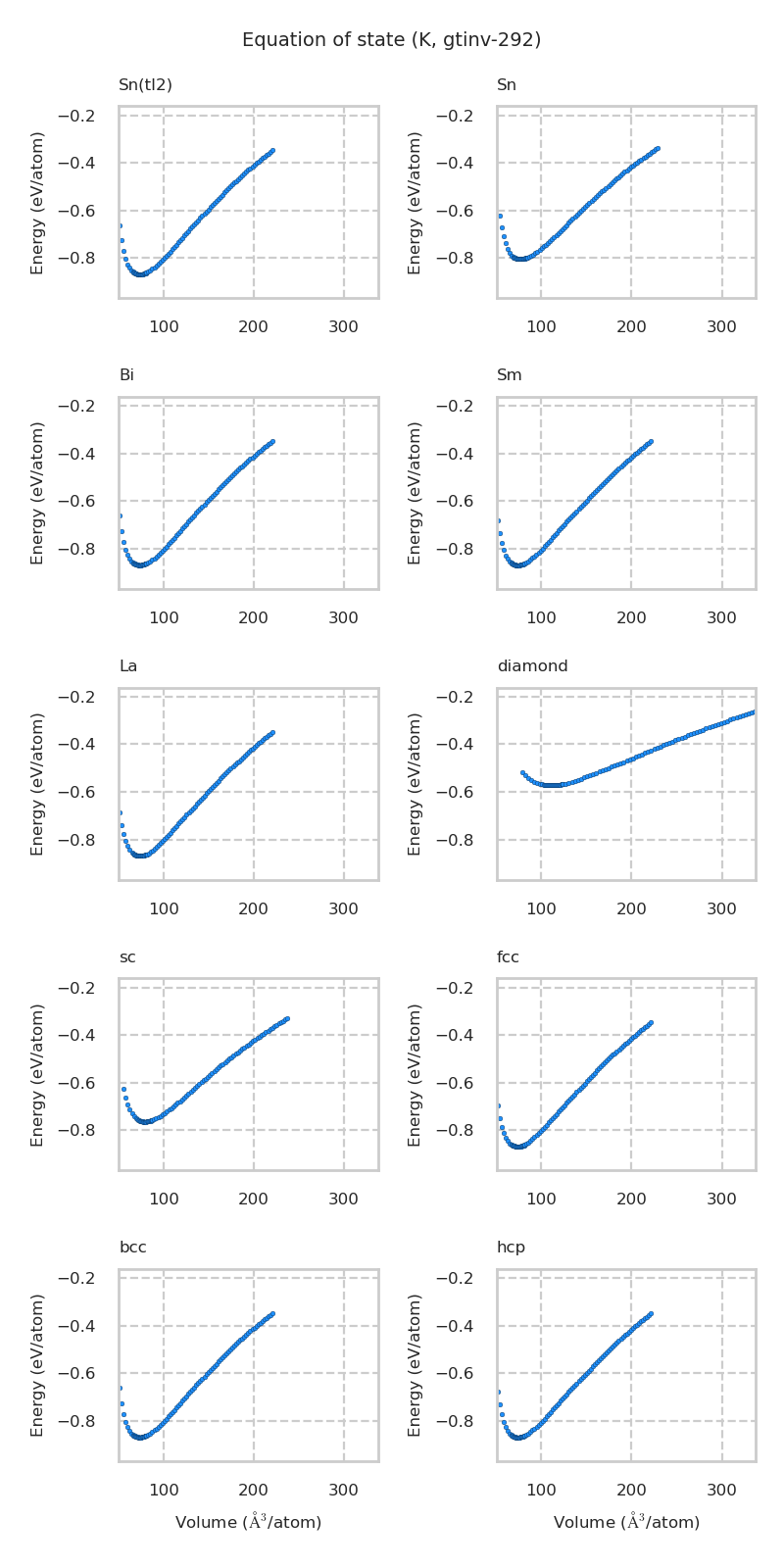

Equation of state for each structure

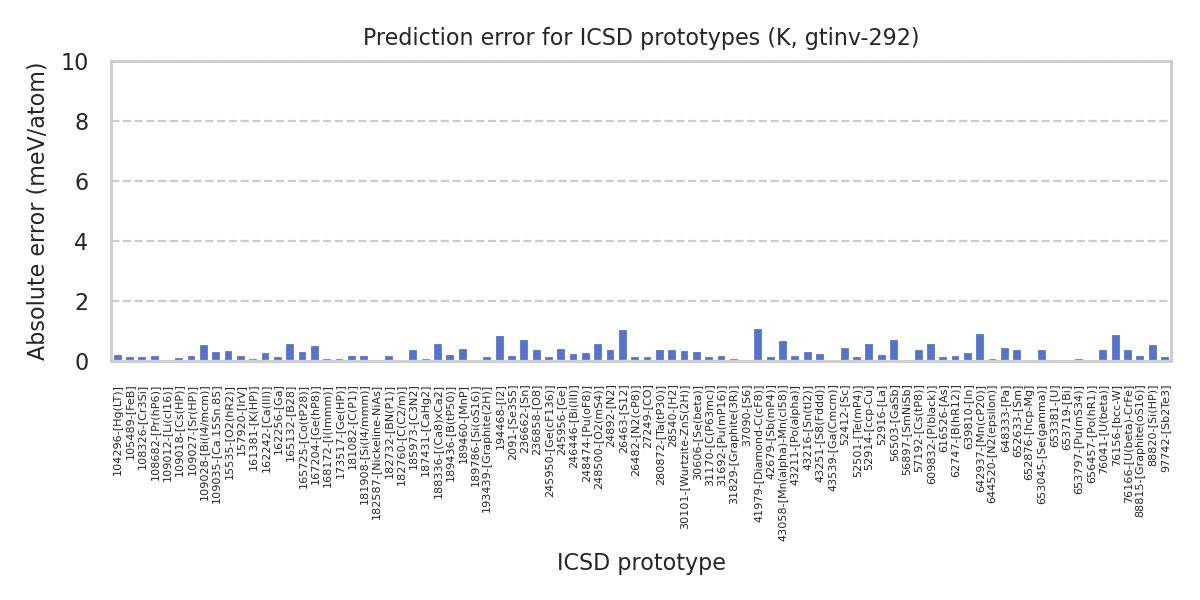

Prototype structure energy

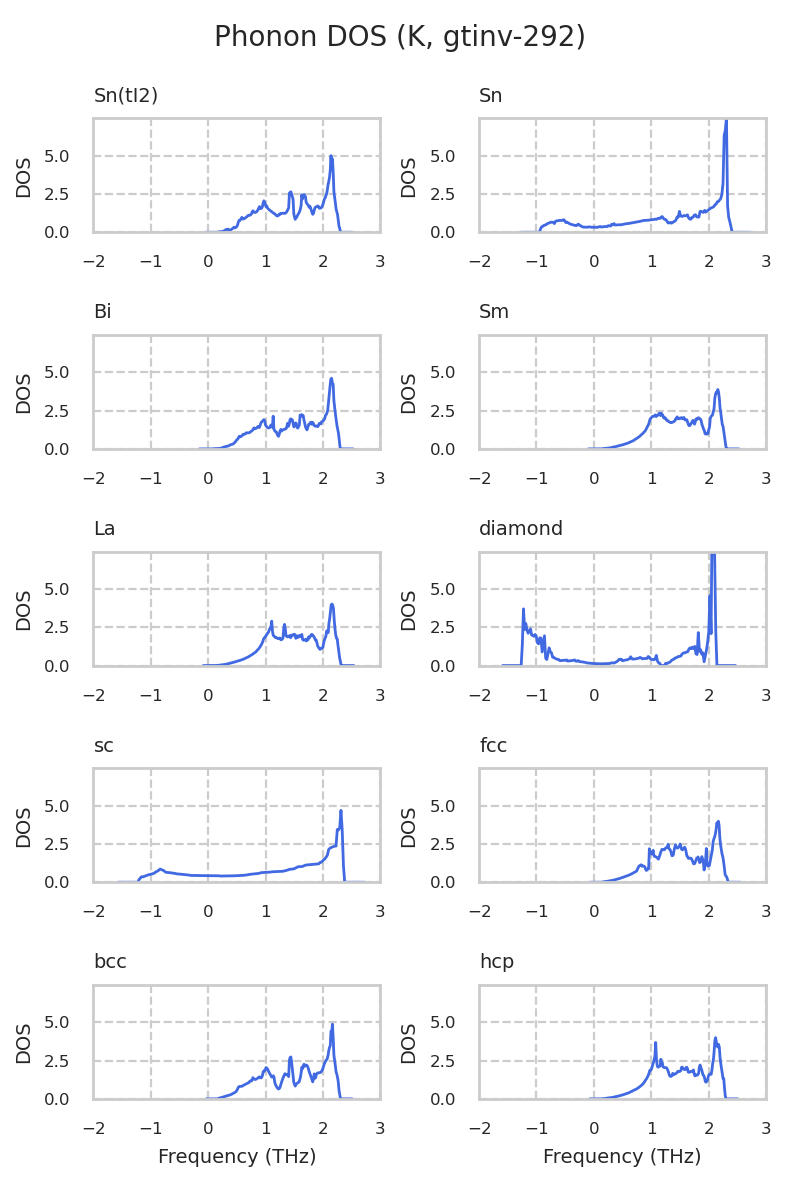

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-652876-[hcp-Mg]	-0.86964	-0.8696
icsd-189460-[MnP]	-0.86957	-0.87001
icsd-161381-[K(HP)]	-0.86946	-0.86937
icsd-52916-[La]	-0.86943	-0.86921
icsd-31170-[C(P63mc)]	-0.86943	-0.86928
icsd-182587-[Nickeline-NiAs]	-0.86942	-0.86937
icsd-652633-[Sm]	-0.86942	-0.86981
icsd-104296-[Hg(LT)]	-0.86927	-0.86906
icsd-15535-[O2(hR2)]	-0.86926	-0.86961
icsd-52914-[ccp-Cu]	-0.86917	-0.86859
icsd-656457-[Po(hR1)]	-0.86898	-0.86892
icsd-168172-[I(Immm)]	-0.86898	-0.86908
icsd-236858-[O8]	-0.86894	-0.86855
icsd-246446-[Bi(III)]	-0.86893	-0.86919
icsd-76156-[bcc-W]	-0.86891	-0.86979
icsd-43216-[Sn(tI2)]	-0.86889	-0.8692
icsd-639810-[In]	-0.86878	-0.86905
icsd-189786-[Si(oS16)]	-0.86875	-0.86872
icsd-97742-[Sb2Te3]	-0.86871	-0.86855
icsd-644520-[N2(epsilon)]	-0.86868	-0.8686
icsd-52412-[Sc]	-0.86856	-0.86812
icsd-648333-[Pa]	-0.86855	-0.86902
icsd-31692-[Pu(mP16)]	-0.86851	-0.86832
icsd-105489-[FeB]	-0.86834	-0.8682
icsd-2091-[Se3S5]	-0.8683	-0.86811
icsd-109012-[Li(cI16)]	-0.86825	-0.86822
icsd-108682-[Pr(hP6)]	-0.86824	-0.86805
icsd-653381-[U]	-0.86818	-0.86819
icsd-52501-[Te(mP4)]	-0.86817	-0.86833
icsd-653045-[Se(gamma)]	-0.86802	-0.86842
icsd-248500-[O2(mS4)]	-0.86788	-0.86846
icsd-157920-[IrV]	-0.86781	-0.86799
icsd-194468-[I2]	-0.86761	-0.86674
icsd-57192-[Cs(tP8)]	-0.86729	-0.86766
icsd-248474-[Pu(oF8)]	-0.86206	-0.86234
icsd-30606-[Se(beta)]	-0.86173	-0.86142
icsd-76166-[U(beta)-CrFe]	-0.86024	-0.86061
icsd-187431-[CaHg2]	-0.86018	-0.86011
icsd-280872-[Ta(tP30)]	-0.86012	-0.86049
icsd-56897-[SmNiSb]	-0.86012	-0.86007
icsd-76041-[U(beta)]	-0.86002	-0.86039
icsd-642937-[Mn(cP20)]	-0.85851	-0.85758
icsd-43058-[Mn(alpha)-Mn(cI58)]	-0.85805	-0.85872
icsd-108326-[Cr3Si]	-0.85726	-0.85741
icsd-653797-[Pu(mS34)]	-0.85468	-0.85459
icsd-26482-[N2(cP8)]	-0.85055	-0.85071
icsd-27249-[CO]	-0.85048	-0.85065
icsd-165725-[Co(tP28)]	-0.84139	-0.84171
icsd-31829-[Graphite(3R)]	-0.84002	-0.83992
icsd-24892-[N2]	-0.83977	-0.84016
icsd-173517-[Ge(HP)]	-0.82972	-0.8298
icsd-26463-[S12]	-0.82641	-0.82745
icsd-37090-[S6]	-0.82192	-0.82186
icsd-43251-[S8(Fddd)]	-0.81835	-0.81809
icsd-609832-[P(black)]	-0.81333	-0.81391
icsd-188336-[(Ca8)xCa2]	-0.8133	-0.81388
icsd-109035-[Ca.15Sn.85]	-0.81102	-0.81134
icsd-162242-[Ca(III)]	-0.81099	-0.81129
icsd-43539-[Ga(Cmcm)]	-0.80971	-0.80972
icsd-42679-[Sb(mP4)]	-0.80681	-0.80696
icsd-109018-[Cs(HP)]	-0.80661	-0.8065
icsd-653719-[Bi]	-0.80522	-0.80528
icsd-236662-[Sn]	-0.80501	-0.80575
icsd-56503-[GaSb]	-0.80501	-0.80574
icsd-182760-[C(C2/m)]	-0.80352	-0.80352
icsd-162256-[Ga]	-0.79897	-0.79912
icsd-62747-[B(hR12)]	-0.79356	-0.79339
icsd-189436-[B(tP50)]	-0.7827	-0.78294
icsd-165132-[B28]	-0.78082	-0.78023
icsd-181082-[C(P1)]	-0.76445	-0.76462
icsd-43211-[Po(alpha)]	-0.76444	-0.76462
icsd-616526-[As]	-0.76443	-0.76428
icsd-88815-[Graphite(oS16)]	-0.76443	-0.76462
icsd-28540-[H2]	-0.76443	-0.76481
icsd-109027-[Sr(HP)]	-0.76439	-0.76457
icsd-181908-[Si(I4/mmm)]	-0.76432	-0.7645
icsd-182732-[BN(P1)]	-0.76429	-0.76447
icsd-109028-[Bi(I4/mcm)]	-0.73722	-0.73668
icsd-185973-[C3N2]	-0.71093	-0.71054
icsd-193439-[Graphite(2H)]	-0.69184	-0.6917
icsd-245956-[Ge]	-0.68034	-0.67994
icsd-88820-[Si(HP)]	-0.67999	-0.67943
icsd-30101-[Wurtzite-ZnS(2H)]	-0.57411	-0.57446
icsd-167204-[Ge(hP8)]	-0.57282	-0.57334
icsd-41979-[Diamond-C(cF8)]	-0.57243	-0.57133
icsd-245950-[Ge(cF136)]	-0.56088	-0.56073

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	74.077	4.718	4.718	7.685	90.0	90.0	120.0
DFT	73.785	4.707	4.707	7.692	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
5.1	3.2	1.7	0.0	0.0	0.0
3.2	5.1	1.7	0.0	0.0	0.0
1.7	1.7	7.1	0.0	0.0	0.0
0.0	0.0	0.0	1.3	0.0	0.0
0.0	0.0	0.0	0.0	1.3	0.0
0.0	0.0	0.0	0.0	0.0	1.0

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	74.067	4.714	4.714	34.644	90.0	90.0	120.0
DFT	74.118	4.727	4.727	34.478	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
5.3	3.2	1.7	0.3	0.0	0.0
3.2	5.3	1.7	-0.3	0.0	0.0
1.7	1.7	6.9	0.0	0.0	0.0
0.3	-0.3	0.0	1.2	0.0	0.0
0.0	0.0	0.0	0.0	1.2	0.3
0.0	0.0	0.0	0.0	0.3	1.1

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	73.998	4.714	4.714	15.38	90.0	90.0	120.0
DFT	74.127	4.728	4.728	15.318	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
5.3	3.3	1.8	0.0	0.0	0.0
3.3	5.3	1.8	0.0	0.0	0.0
1.8	1.8	7.1	0.0	0.0	0.0
0.0	0.0	0.0	1.2	0.0	0.0
0.0	0.0	0.0	0.0	1.2	0.0
0.0	0.0	0.0	0.0	0.0	1.0

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	73.813	5.285	5.285	5.285	90.0	90.0	90.0
DFT	73.867	5.341	5.341	5.179	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
3.9	3.4	3.4	0.0	0.0	0.0
3.4	3.9	3.4	0.0	0.0	0.0
3.4	3.4	3.9	0.0	0.0	0.0
0.0	0.0	0.0	2.7	0.0	0.0
0.0	0.0	0.0	0.0	2.7	0.0
0.0	0.0	0.0	0.0	0.0	2.7

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	76.668	8.281	8.281	4.472	90.0	90.0	90.0
DFT	76.538	8.271	8.271	4.475	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
12112.8	-4164.8	-3979.4	0.0	0.0	0.0
-4164.8	6.1	1.8	0.0	0.0	0.0
-3979.4	1.8	8.1	0.0	0.0	0.0
0.0	0.0	0.0	-0.3	0.0	0.0
0.0	0.0	0.0	0.0	-0.3	0.0
0.0	0.0	0.0	0.0	0.0	-1.4

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	73.813	5.285	5.285	5.285	90.0	90.0	90.0
DFT	73.1	5.268	5.268	5.268	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
3.9	3.4	3.4	0.0	0.0	0.0
3.4	3.9	3.4	0.0	0.0	0.0
3.4	3.4	3.9	0.0	0.0	0.0
0.0	0.0	0.0	2.7	0.0	0.0
0.0	0.0	0.0	0.0	2.7	0.0
0.0	0.0	0.0	0.0	0.0	2.7

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	74.085	6.667	6.667	6.667	90.0	90.0	90.0
DFT	73.231	6.641	6.641	6.641	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
4.3	3.2	3.2	0.0	0.0	0.0
3.2	4.3	3.2	0.0	0.0	0.0
3.2	3.2	4.3	0.0	0.0	0.0
0.0	0.0	0.0	2.6	0.0	0.0
0.0	0.0	0.0	0.0	2.6	0.0
0.0	0.0	0.0	0.0	0.0	2.6

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	112.546	9.656	9.656	9.656	90.0	90.0	90.0
DFT	112.203	9.646	9.646	9.646	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
0.0	1.8	1.8	0.0	0.0	0.0
1.8	0.0	1.8	0.0	0.0	0.0
1.8	1.8	0.0	0.0	0.0	0.0
0.0	0.0	0.0	-2.4	0.0	0.0
0.0	0.0	0.0	0.0	-2.4	0.0
0.0	0.0	0.0	0.0	0.0	-2.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	79.405	4.298	4.298	4.298	90.0	90.0	90.0
DFT	79.107	4.293	4.293	4.293	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
8.7	-0.3	-0.3	0.0	0.0	0.0
-0.3	8.7	-0.3	0.0	0.0	0.0
-0.3	-0.3	8.7	0.0	0.0	0.0
0.0	0.0	0.0	-1.3	0.0	0.0
0.0	0.0	0.0	0.0	-1.3	0.0
0.0	0.0	0.0	0.0	0.0	-1.3

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	73.813	7.474	7.474	5.285	90.0	90.0	90.0
DFT	76.37	9.134	8.284	4.472	90.0	115.47	90.0

Elastic constants (Bi)

1	2	3	4	5	6
6.4	1.0	3.4	0.0	0.0	0.0
1.0	6.4	3.4	0.0	0.0	0.0
3.4	3.4	3.9	0.0	0.0	0.0
0.0	0.0	0.0	2.7	0.0	0.0
0.0	0.0	0.0	0.0	2.7	0.0
0.0	0.0	0.0	0.0	0.0	0.3
