gtinv-192 (La-2021-08-04-all-icsd)

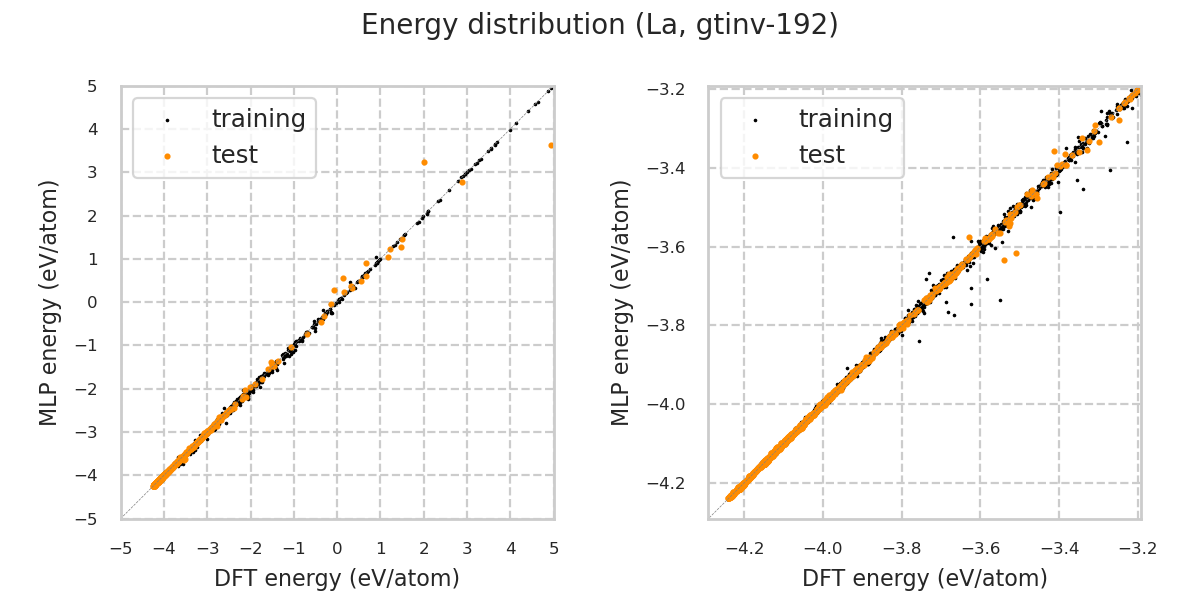

Energy distribution

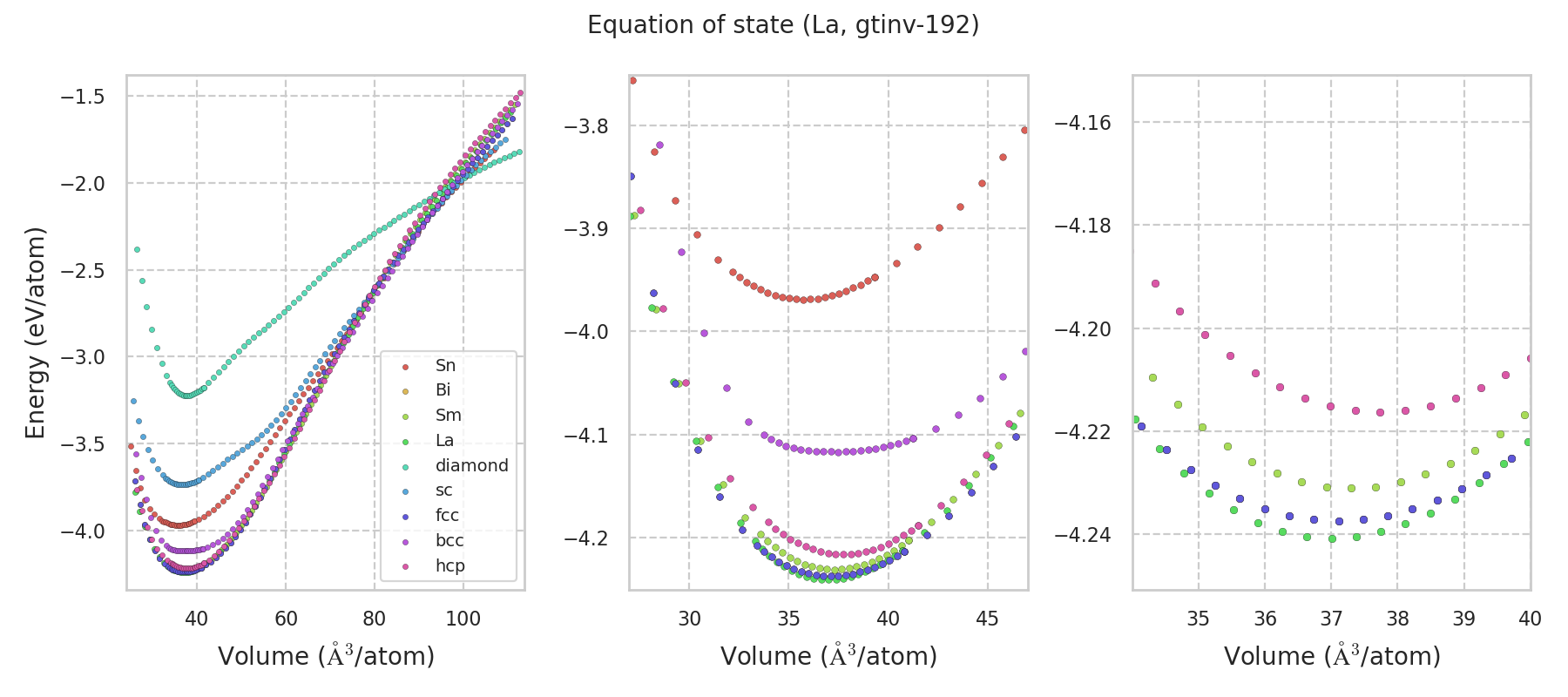

Equation of state

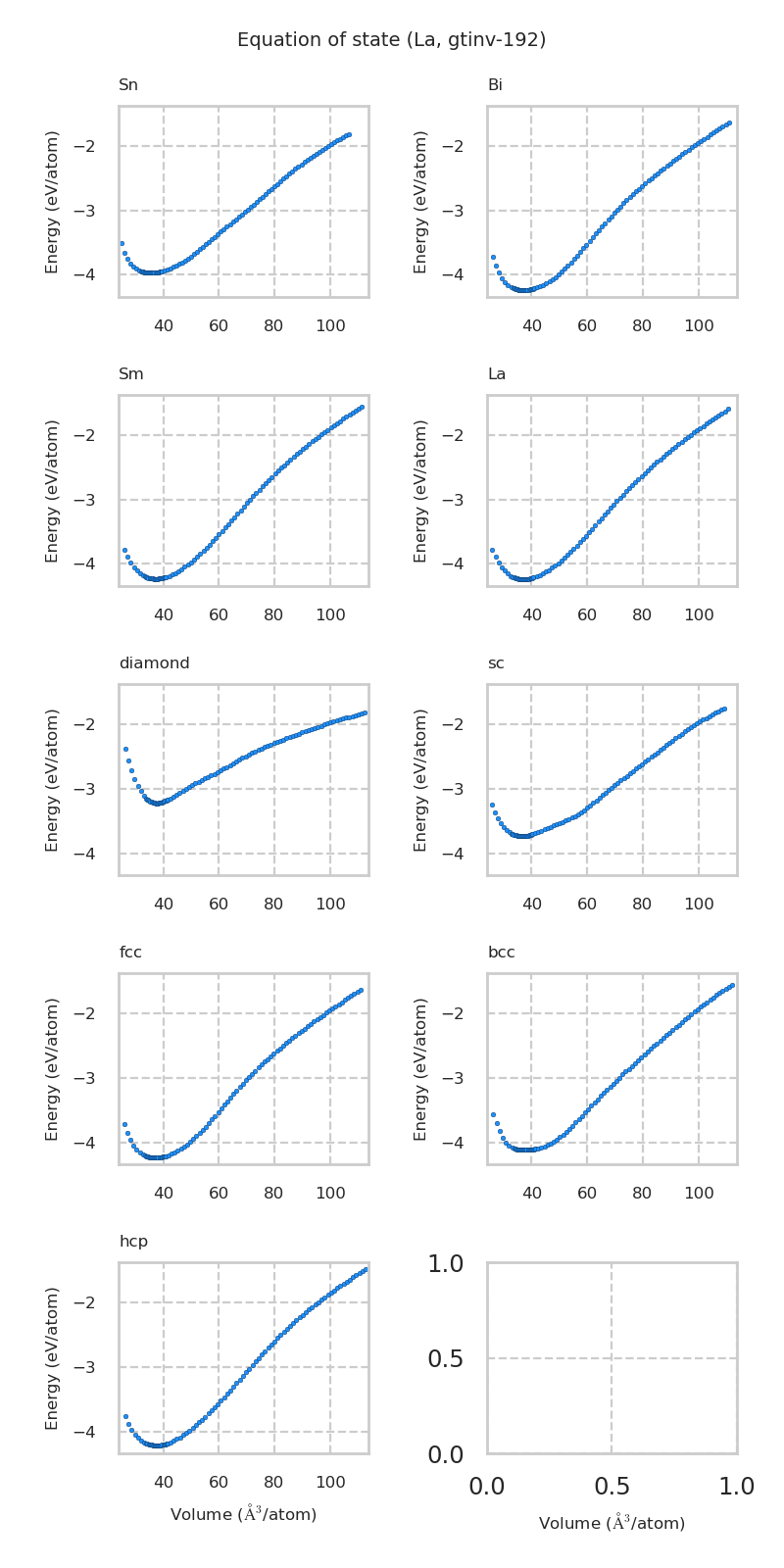

Equation of state for each structure

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

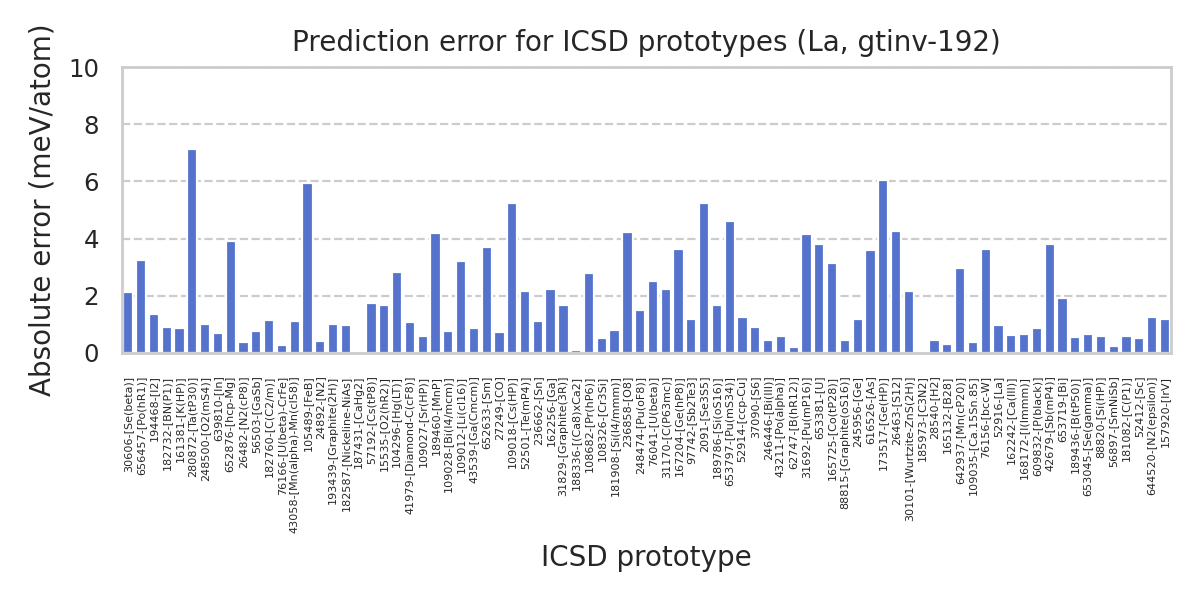

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-52916-[La]	-4.24003	-4.24098
icsd-182587-[Nickeline-NiAs]	-4.24003	-4.241
icsd-161381-[K(HP)]	-4.24	-4.24087
icsd-104296-[Hg(LT)]	-4.23735	-4.24017
icsd-182760-[C(C2/m)]	-4.2373	-4.23618
icsd-15535-[O2(hR2)]	-4.23725	-4.23557
icsd-108682-[Pr(hP6)]	-4.2372	-4.24
icsd-97742-[Sb2Te3]	-4.23716	-4.236
icsd-57192-[Cs(tP8)]	-4.23716	-4.23542
icsd-31829-[Graphite(3R)]	-4.23711	-4.23543
icsd-52914-[ccp-Cu]	-4.23708	-4.23583
icsd-189786-[Si(oS16)]	-4.23702	-4.23533
icsd-194468-[I2]	-4.23699	-4.23566
icsd-168172-[I(Immm)]	-4.23672	-4.23605
icsd-248500-[O2(mS4)]	-4.23668	-4.2357
icsd-157920-[IrV]	-4.23668	-4.2355
icsd-639810-[In]	-4.23666	-4.23599
icsd-652633-[Sm]	-4.23097	-4.23468
icsd-652876-[hcp-Mg]	-4.21553	-4.2116
icsd-236858-[O8]	-4.21549	-4.21127
icsd-189460-[MnP]	-4.21535	-4.21117
icsd-31692-[Pu(mP16)]	-4.21531	-4.21114
icsd-42679-[Sb(mP4)]	-4.21511	-4.21131
icsd-653381-[U]	-4.21491	-4.21111
icsd-193439-[Graphite(2H)]	-4.21076	-4.21175
icsd-187431-[CaHg2]	-4.21057	-4.21058
icsd-56897-[SmNiSb]	-4.21027	-4.21048
icsd-30606-[Se(beta)]	-4.20283	-4.20495
icsd-248474-[Pu(oF8)]	-4.18097	-4.17947
icsd-26482-[N2(cP8)]	-4.17934	-4.17973
icsd-27249-[CO]	-4.17928	-4.18001
icsd-167204-[Ge(hP8)]	-4.17762	-4.18126
icsd-52412-[Sc]	-4.16152	-4.16203
icsd-105489-[FeB]	-4.16093	-4.16688
icsd-109012-[Li(cI16)]	-4.15866	-4.16188
icsd-31170-[C(P63mc)]	-4.15147	-4.14923
icsd-162256-[Ga]	-4.15142	-4.14918
icsd-246446-[Bi(III)]	-4.15107	-4.15063
icsd-653797-[Pu(mS34)]	-4.15098	-4.14637
icsd-280872-[Ta(tP30)]	-4.1507	-4.15784
icsd-642937-[Mn(cP20)]	-4.14472	-4.1477
icsd-76041-[U(beta)]	-4.13437	-4.13688
icsd-43058-[Mn(alpha)-Mn(cI58)]	-4.13258	-4.1337
icsd-76166-[U(beta)-CrFe]	-4.12389	-4.12415
icsd-182732-[BN(P1)]	-4.12308	-4.12219
icsd-52501-[Te(mP4)]	-4.12093	-4.12308
icsd-2091-[Se3S5]	-4.12026	-4.12551
icsd-656457-[Po(hR1)]	-4.1168	-4.11357
icsd-76156-[bcc-W]	-4.1168	-4.11318
icsd-108326-[Cr3Si]	-4.11492	-4.11542
icsd-165132-[B28]	-4.11441	-4.11471
icsd-173517-[Ge(HP)]	-4.11295	-4.11901
icsd-165725-[Co(tP28)]	-4.08988	-4.09301
icsd-188336-[(Ca8)xCa2]	-4.08988	-4.08996
icsd-109028-[Bi(I4/mcm)]	-4.0845	-4.08525
icsd-43539-[Ga(Cmcm)]	-4.08316	-4.08231
icsd-644520-[N2(epsilon)]	-4.07704	-4.0758
icsd-26463-[S12]	-4.0574	-4.06167
icsd-609832-[P(black)]	-4.00193	-4.00107
icsd-28540-[H2]	-4.00165	-4.00122
icsd-189436-[B(tP50)]	-3.98066	-3.98013
icsd-653719-[Bi]	-3.97746	-3.97936
icsd-56503-[GaSb]	-3.96785	-3.96859
icsd-236662-[Sn]	-3.96738	-3.96849
icsd-162242-[Ca(III)]	-3.95868	-3.95929
icsd-109035-[Ca.15Sn.85]	-3.95866	-3.95902
icsd-109018-[Cs(HP)]	-3.95575	-3.96098
icsd-37090-[S6]	-3.88668	-3.88578
icsd-62747-[B(hR12)]	-3.85866	-3.85846
icsd-616526-[As]	-3.73882	-3.73521
icsd-653045-[Se(gamma)]	-3.73618	-3.73554
icsd-181082-[C(P1)]	-3.73609	-3.73666
icsd-109027-[Sr(HP)]	-3.73598	-3.73656
icsd-43211-[Po(alpha)]	-3.73592	-3.73649
icsd-88815-[Graphite(oS16)]	-3.73579	-3.73622
icsd-245956-[Ge]	-3.67549	-3.67432
icsd-185973-[C3N2]	-3.66108	-3.66104
icsd-88820-[Si(HP)]	-3.58112	-3.58053
icsd-30101-[Wurtzite-ZnS(2H)]	-3.24796	-3.25013
icsd-41979-[Diamond-C(cF8)]	-3.22166	-3.22274
icsd-24892-[N2]	-3.18368	-3.18327
icsd-181908-[Si(I4/mmm)]	-3.09762	-3.09684

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.738	3.759	3.759	6.168	90.0	90.0	120.0
DFT	37.812	3.781	3.781	6.109	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
48.7	9.8	13.8	0.0	0.0	0.0
9.8	48.7	13.8	0.0	0.0	0.0
13.8	13.8	53.1	0.0	0.0	0.0
0.0	0.0	0.0	7.5	0.0	0.0
0.0	0.0	0.0	0.0	7.5	0.0
0.0	0.0	0.0	0.0	0.0	19.4

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.298	3.773	3.773	27.224	90.0	90.0	120.0
DFT	37.195	3.772	3.772	27.173	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
50.6	12.1	15.7	0.5	0.0	0.0
12.1	50.6	15.7	-0.5	0.0	0.0
15.7	15.7	52.0	0.0	0.0	0.0
0.5	-0.5	0.0	11.7	0.0	0.0
0.0	0.0	0.0	0.0	11.7	0.5
0.0	0.0	0.0	0.0	0.5	19.2

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.006	3.783	3.783	11.941	90.0	90.0	120.0
DFT	37.044	3.764	3.764	12.079	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
52.2	13.9	16.8	0.0	0.0	0.0
13.9	52.3	16.8	0.0	0.0	0.0
16.8	16.8	54.0	0.0	0.0	0.0
0.0	0.0	0.0	16.4	0.0	0.0
0.0	0.0	0.0	0.0	16.4	0.0
0.0	0.0	0.0	0.0	0.0	19.2

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	35.743	6.251	6.251	3.658	90.0	90.0	90.0
DFT	35.241	6.179	6.179	3.692	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
7.7	48.9	12.2	0.0	0.0	0.0
48.9	7.7	12.2	0.0	0.0	0.0
12.2	12.2	48.1	0.0	0.0	0.0
0.0	0.0	0.0	-7.8	0.0	0.0
0.0	0.0	0.0	0.0	-7.8	0.0
0.0	0.0	0.0	0.0	0.0	-7.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.494	4.217	4.217	4.217	90.0	90.0	90.0
DFT	37.427	4.214	4.214	4.214	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
-23.0	20.5	20.5	0.0	0.0	0.0
20.5	-23.0	20.5	0.0	0.0	0.0
20.5	20.5	-23.0	0.0	0.0	0.0
0.0	0.0	0.0	13.8	0.0	0.0
0.0	0.0	0.0	0.0	13.8	0.0
0.0	0.0	0.0	0.0	0.0	13.8

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.109	5.295	5.295	5.295	90.0	90.0	90.0
DFT	36.687	5.275	5.275	5.275	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
35.7	16.0	16.0	0.0	0.0	0.0
16.0	35.7	16.0	0.0	0.0	0.0
16.0	16.0	35.7	0.0	0.0	0.0
0.0	0.0	0.0	24.0	0.0	0.0
0.0	0.0	0.0	0.0	24.0	0.0
0.0	0.0	0.0	0.0	0.0	24.0

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.663	6.704	6.704	6.704	90.0	90.0	90.0
DFT	37.025	6.666	6.666	6.666	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
48.4	55.1	55.1	0.0	0.0	0.0
55.1	48.4	55.1	0.0	0.0	0.0
55.1	55.1	48.4	0.0	0.0	0.0
0.0	0.0	0.0	-1.9	0.0	0.0
0.0	0.0	0.0	0.0	-1.9	0.0
0.0	0.0	0.0	0.0	0.0	-1.9

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.589	3.32	3.32	3.32	90.0	90.0	90.0
DFT	36.184	3.308	3.308	3.308	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
76.1	5.6	5.6	0.0	0.0	0.0
5.6	76.1	5.6	0.0	0.0	0.0
5.6	5.6	76.1	0.0	0.0	0.0
0.0	0.0	0.0	-8.1	0.0	0.0
0.0	0.0	0.0	0.0	-8.1	0.0
0.0	0.0	0.0	0.0	0.0	-8.1

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	37.109	6.485	6.485	3.744	90.0	90.0	70.53
DFT	35.712	6.775	6.375	3.652	90.0	115.11	90.0

Elastic constants (Bi)

1	2	3	4	5	6
49.9	6.5	11.3	0.0	0.0	-6.7
6.5	54.6	6.5	0.0	0.0	0.0
11.3	6.5	49.9	0.0	0.0	6.7
0.0	0.0	0.0	14.6	6.7	0.0
0.0	0.0	0.0	6.7	19.3	0.0
-6.7	0.0	6.7	0.0	0.0	14.6
