gtinv-190 (Mg-2021-08-10-all-icsd)

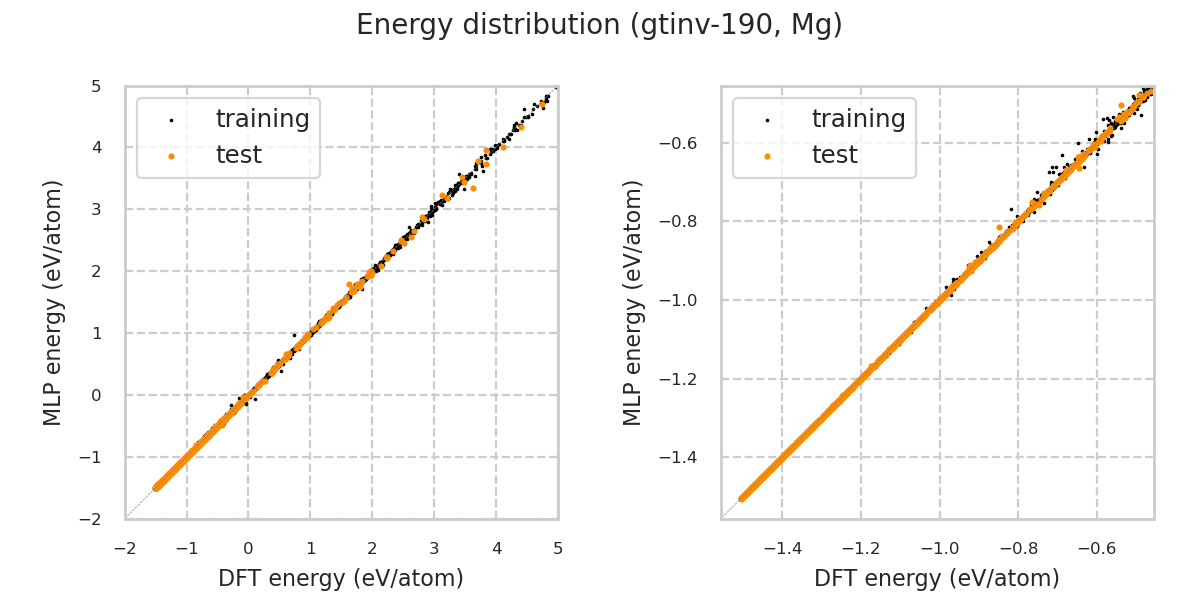

Energy distribution

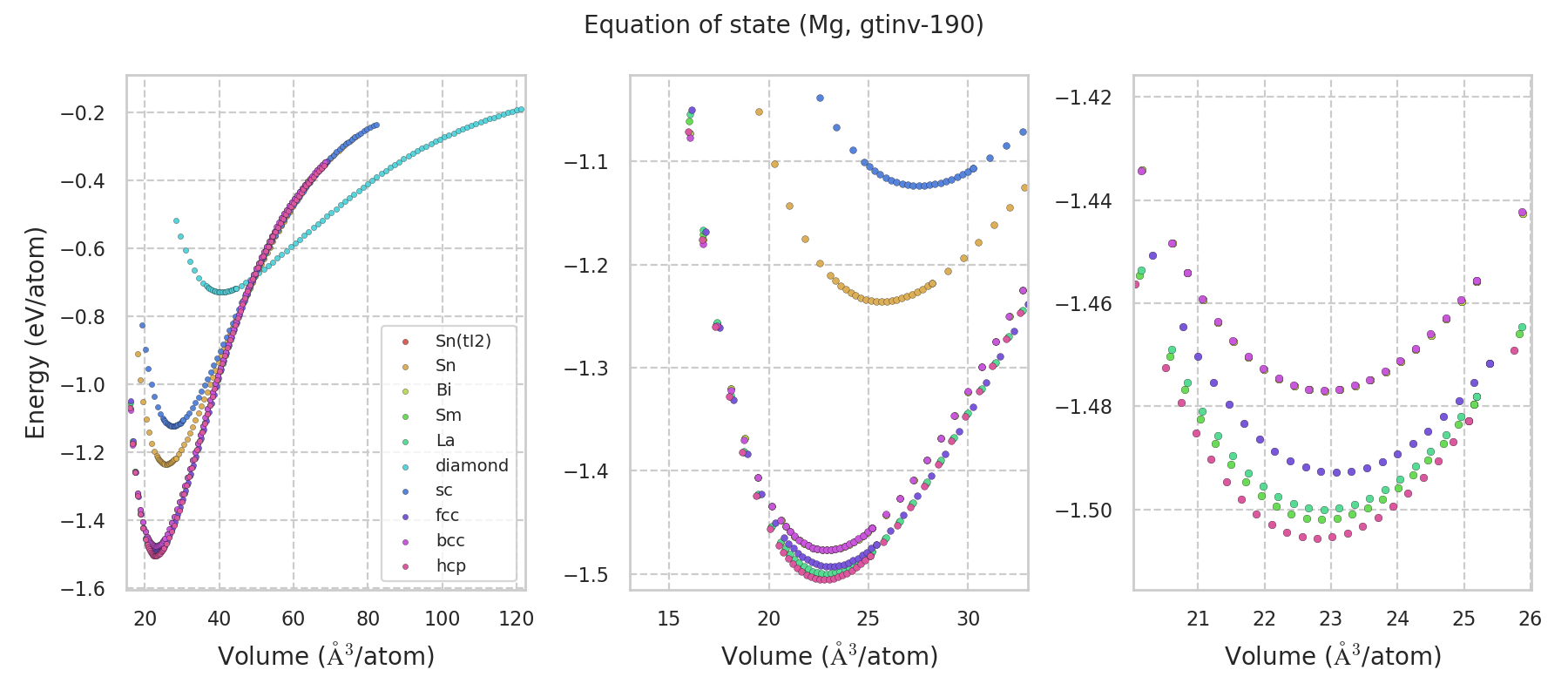

Equation of state

Equation of state for each structure

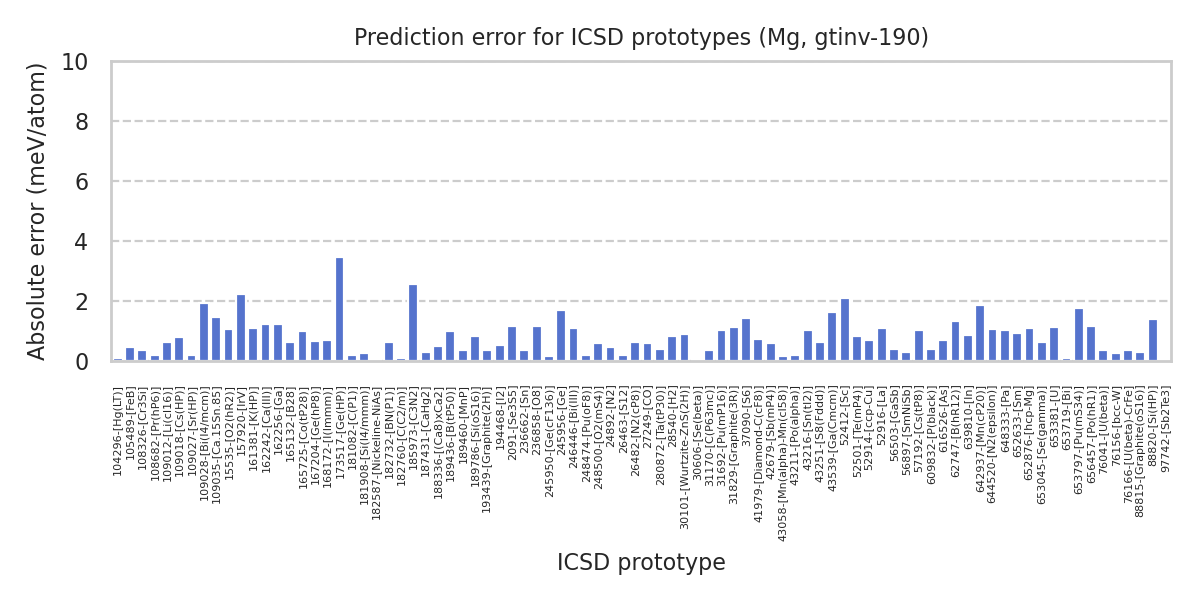

Prototype structure energy

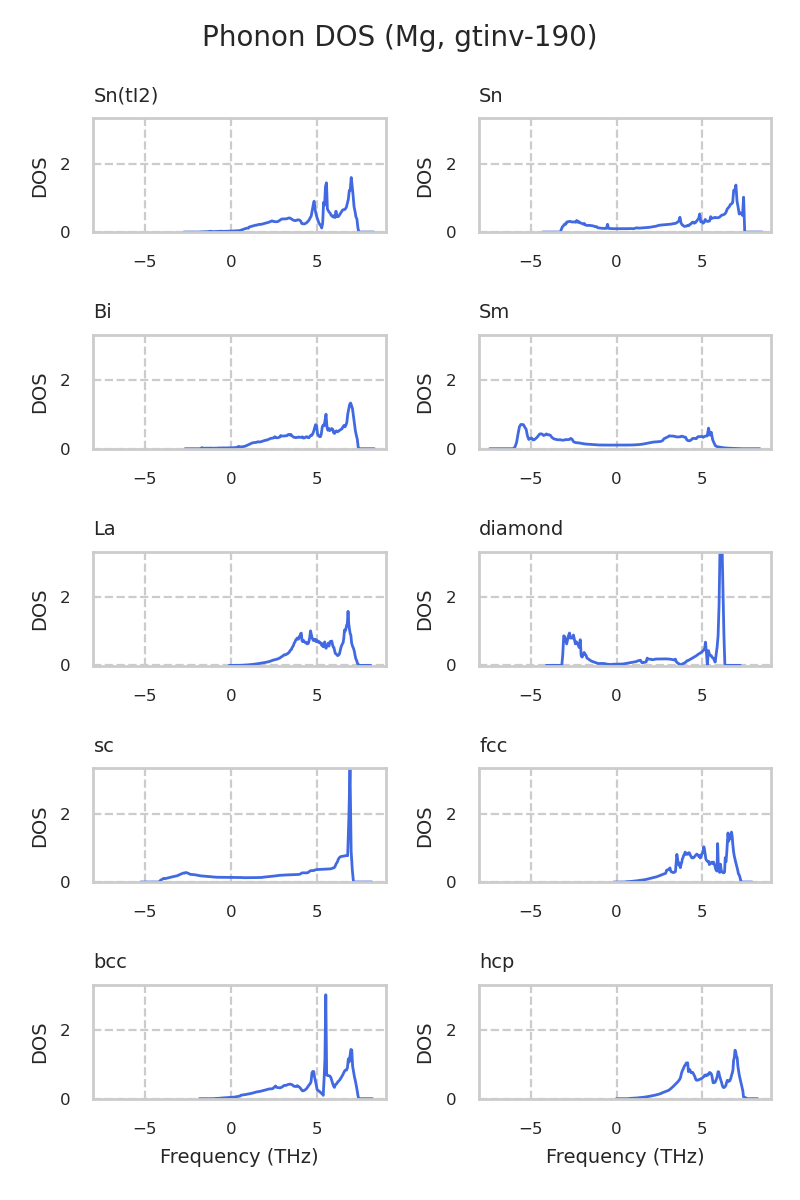

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-236858-[O8]	-1.50557	-1.50441
icsd-652876-[hcp-Mg]	-1.50553	-1.50446
icsd-653381-[U]	-1.50548	-1.50437
icsd-31692-[Pu(mP16)]	-1.50546	-1.50444
icsd-652633-[Sm]	-1.50195	-1.50287
icsd-161381-[K(HP)]	-1.49993	-1.49883
icsd-52916-[La]	-1.49987	-1.49877
icsd-52914-[ccp-Cu]	-1.49286	-1.49216
icsd-639810-[In]	-1.49285	-1.492
icsd-15535-[O2(hR2)]	-1.49285	-1.49178
icsd-104296-[Hg(LT)]	-1.49284	-1.49275
icsd-52501-[Te(mP4)]	-1.49282	-1.49199
icsd-168172-[I(Immm)]	-1.49281	-1.49213
icsd-189786-[Si(oS16)]	-1.49277	-1.49194
icsd-108682-[Pr(hP6)]	-1.49273	-1.49292
icsd-248500-[O2(mS4)]	-1.49268	-1.4921
icsd-157920-[IrV]	-1.48184	-1.48405
icsd-109012-[Li(cI16)]	-1.47825	-1.47763
icsd-245956-[Ge]	-1.47767	-1.47599
icsd-648333-[Pa]	-1.47704	-1.47601
icsd-43216-[Sn(tI2)]	-1.47704	-1.47602
icsd-105489-[FeB]	-1.47701	-1.47748
icsd-246446-[Bi(III)]	-1.47698	-1.47589
icsd-97742-[Sb2Te3]	-1.47695	-1.477
icsd-76156-[bcc-W]	-1.47692	-1.47665
icsd-194468-[I2]	-1.47691	-1.47744
icsd-656457-[Po(hR1)]	-1.4769	-1.47575
icsd-52412-[Sc]	-1.47689	-1.47479
icsd-644520-[N2(epsilon)]	-1.47689	-1.47582
icsd-31829-[Graphite(3R)]	-1.47688	-1.47574
icsd-642937-[Mn(cP20)]	-1.47546	-1.47359
icsd-76166-[U(beta)-CrFe]	-1.47214	-1.4725
icsd-76041-[U(beta)]	-1.47204	-1.47238
icsd-280872-[Ta(tP30)]	-1.47204	-1.47243
icsd-182760-[C(C2/m)]	-1.47113	-1.47103
icsd-108326-[Cr3Si]	-1.46067	-1.46102
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.45939	-1.45955
icsd-248474-[Pu(oF8)]	-1.45758	-1.45777
icsd-30606-[Se(beta)]	-1.45304	-1.45306
icsd-56897-[SmNiSb]	-1.44834	-1.44862
icsd-187431-[CaHg2]	-1.44832	-1.44862
icsd-653797-[Pu(mS34)]	-1.44723	-1.44899
icsd-165725-[Co(tP28)]	-1.43404	-1.43304
icsd-189436-[B(tP50)]	-1.41916	-1.42017
icsd-2091-[Se3S5]	-1.41372	-1.41489
icsd-57192-[Cs(tP8)]	-1.39163	-1.3906
icsd-37090-[S6]	-1.38841	-1.38985
icsd-43539-[Ga(Cmcm)]	-1.3883	-1.38667
icsd-24892-[N2]	-1.38195	-1.3824
icsd-609832-[P(black)]	-1.3667	-1.36633
icsd-43251-[S8(Fddd)]	-1.35532	-1.35595
icsd-189460-[MnP]	-1.3153	-1.31494
icsd-42679-[Sb(mP4)]	-1.30198	-1.30258
icsd-165132-[B28]	-1.2952	-1.29581
icsd-109018-[Cs(HP)]	-1.27997	-1.28076
icsd-109035-[Ca.15Sn.85]	-1.27612	-1.27467
icsd-162242-[Ca(III)]	-1.2761	-1.2749
icsd-162256-[Ga]	-1.2468	-1.24802
icsd-653719-[Bi]	-1.23575	-1.23567
icsd-56503-[GaSb]	-1.23572	-1.23535
icsd-236662-[Sn]	-1.23567	-1.23531
icsd-62747-[B(hR12)]	-1.20195	-1.20064
icsd-188336-[(Ca8)xCa2]	-1.20037	-1.19989
icsd-182587-[Nickeline-NiAs]	-1.18398	-1.184
icsd-109028-[Bi(I4/mcm)]	-1.14832	-1.14641
icsd-26482-[N2(cP8)]	-1.12358	-1.12297
icsd-616526-[As]	-1.12351	-1.12282
icsd-27249-[CO]	-1.12348	-1.12287
icsd-181082-[C(P1)]	-1.12346	-1.12364
icsd-43211-[Po(alpha)]	-1.12345	-1.12363
icsd-182732-[BN(P1)]	-1.12345	-1.12285
icsd-28540-[H2]	-1.12345	-1.12425
icsd-109027-[Sr(HP)]	-1.12344	-1.12364
icsd-653045-[Se(gamma)]	-1.12341	-1.12278
icsd-26463-[S12]	-1.05949	-1.05966
icsd-185973-[C3N2]	-1.05179	-1.04924
icsd-31170-[C(P63mc)]	-0.99637	-0.99672
icsd-193439-[Graphite(2H)]	-0.99637	-0.99672
icsd-88820-[Si(HP)]	-0.89366	-0.89228
icsd-173517-[Ge(HP)]	-0.82045	-0.81699
icsd-30101-[Wurtzite-ZnS(2H)]	-0.73727	-0.73814
icsd-167204-[Ge(hP8)]	-0.73404	-0.73337
icsd-41979-[Diamond-C(cF8)]	-0.72995	-0.72922
icsd-245950-[Ge(cF136)]	-0.72315	-0.7233
icsd-181908-[Si(I4/mmm)]	-0.71911	-0.71938
icsd-88815-[Graphite(oS16)]	-0.66186	-0.66157

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.79	3.191	3.191	5.168	90.0	90.0	120.0
DFT	22.892	3.191	3.191	5.192	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
67.0	27.9	21.6	0.0	0.0	0.0
27.9	67.0	21.6	0.0	0.0	0.0
21.6	21.6	69.5	0.0	0.0	0.0
0.0	0.0	0.0	20.2	0.0	0.0
0.0	0.0	0.0	0.0	20.2	0.0
0.0	0.0	0.0	0.0	0.0	19.6

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.861	3.193	3.193	23.302	90.0	90.0	120.0
DFT	22.908	3.195	3.195	23.328	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
64.3	27.2	20.7	2.6	0.0	0.0
27.2	64.3	20.7	-2.6	0.0	0.0
20.7	20.7	68.1	0.0	0.0	0.0
2.6	-2.6	0.0	18.2	0.0	0.0
0.0	0.0	0.0	0.0	18.2	2.6
0.0	0.0	0.0	0.0	2.6	18.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.894	3.194	5.532	10.366	90.0	90.0	90.0
DFT	22.954	3.194	5.518	10.421	90.0	90.0	90.0

Elastic constants (La)

1	2	3	4	5	6
62.3	27.4	19.9	0.0	0.0	0.0
27.4	62.3	19.9	0.0	0.0	0.0
19.9	19.9	66.5	0.0	0.0	0.0
0.0	0.0	0.0	17.5	0.0	0.0
0.0	0.0	0.0	0.0	17.5	0.0
0.0	0.0	0.0	0.0	0.0	17.4

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.904	3.642	3.642	3.454	90.0	90.0	90.0
DFT	22.864	3.651	3.651	3.431	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
31.3	37.4	33.5	0.0	0.0	0.0
37.4	31.3	33.5	0.0	0.0	0.0
33.5	33.5	37.8	0.0	0.0	0.0
0.0	0.0	0.0	32.4	0.0	0.0
0.0	0.0	0.0	0.0	32.4	0.0
0.0	0.0	0.0	0.0	0.0	32.4

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.649	5.82	5.82	3.028	90.0	90.0	90.0
DFT	25.612	5.81	5.81	3.035	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
44.4	8.7	11.5	0.0	0.0	0.0
8.7	17.0	9.2	0.0	0.0	0.0
11.5	9.2	69.1	0.0	0.0	0.0
0.0	0.0	0.0	-9.4	0.0	0.0
0.0	0.0	0.0	0.0	-9.4	0.0
0.0	0.0	0.0	0.0	0.0	-13.3

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.895	3.578	3.578	3.578	90.0	90.0	90.0
DFT	22.868	3.576	3.576	3.576	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
32.7	35.4	35.4	0.0	0.0	0.0
35.4	32.7	35.4	0.0	0.0	0.0
35.4	35.4	32.7	0.0	0.0	0.0
0.0	0.0	0.0	32.6	0.0	0.0
0.0	0.0	0.0	0.0	32.6	0.0
0.0	0.0	0.0	0.0	0.0	32.6

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.077	4.519	4.519	4.519	90.0	90.0	90.0
DFT	23.08	4.52	4.52	4.52	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
44.6	28.2	28.2	0.0	0.0	0.0
28.2	44.6	28.2	0.0	0.0	0.0
28.2	28.2	44.6	0.0	0.0	0.0
0.0	0.0	0.0	23.4	0.0	0.0
0.0	0.0	0.0	0.0	23.4	0.0
0.0	0.0	0.0	0.0	0.0	23.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	40.559	6.872	6.872	6.872	90.0	90.0	90.0
DFT	40.311	6.858	6.858	6.858	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
5.5	14.9	14.9	0.0	0.0	0.0
14.9	5.5	14.9	0.0	0.0	0.0
14.9	14.9	5.5	0.0	0.0	0.0
0.0	0.0	0.0	-11.4	0.0	0.0
0.0	0.0	0.0	0.0	-11.4	0.0
0.0	0.0	0.0	0.0	0.0	-11.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.516	3.019	3.019	3.019	90.0	90.0	90.0
DFT	27.548	3.02	3.02	3.02	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
61.2	4.0	4.0	0.0	0.0	0.0
4.0	61.2	4.0	0.0	0.0	0.0
4.0	4.0	61.2	0.0	0.0	0.0
0.0	0.0	0.0	-12.6	0.0	0.0
0.0	0.0	0.0	0.0	-12.6	0.0
0.0	0.0	0.0	0.0	0.0	-12.6

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.904	5.15	5.15	3.454	90.0	90.0	90.0
DFT	25.64	6.548	5.804	3.031	90.0	117.07	90.0

Elastic constants (Bi)

1	2	3	4	5	6
71.7	2.1	33.5	0.0	0.0	0.0
2.1	67.6	32.4	0.0	0.0	0.0
33.5	32.4	35.0	0.0	0.0	0.0
0.0	0.0	0.0	30.0	0.0	0.0
0.0	0.0	0.0	0.0	30.0	0.0
0.0	0.0	0.0	0.0	0.0	-3.1
