gtinv-172 (Mo-2021-08-10-all-icsd)

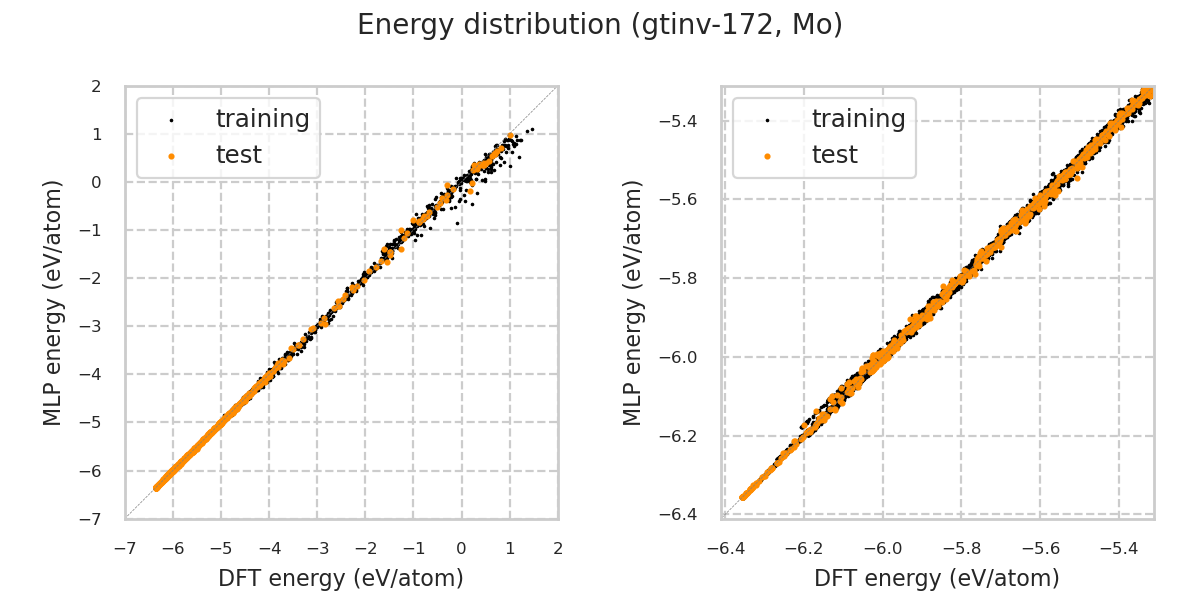

Energy distribution

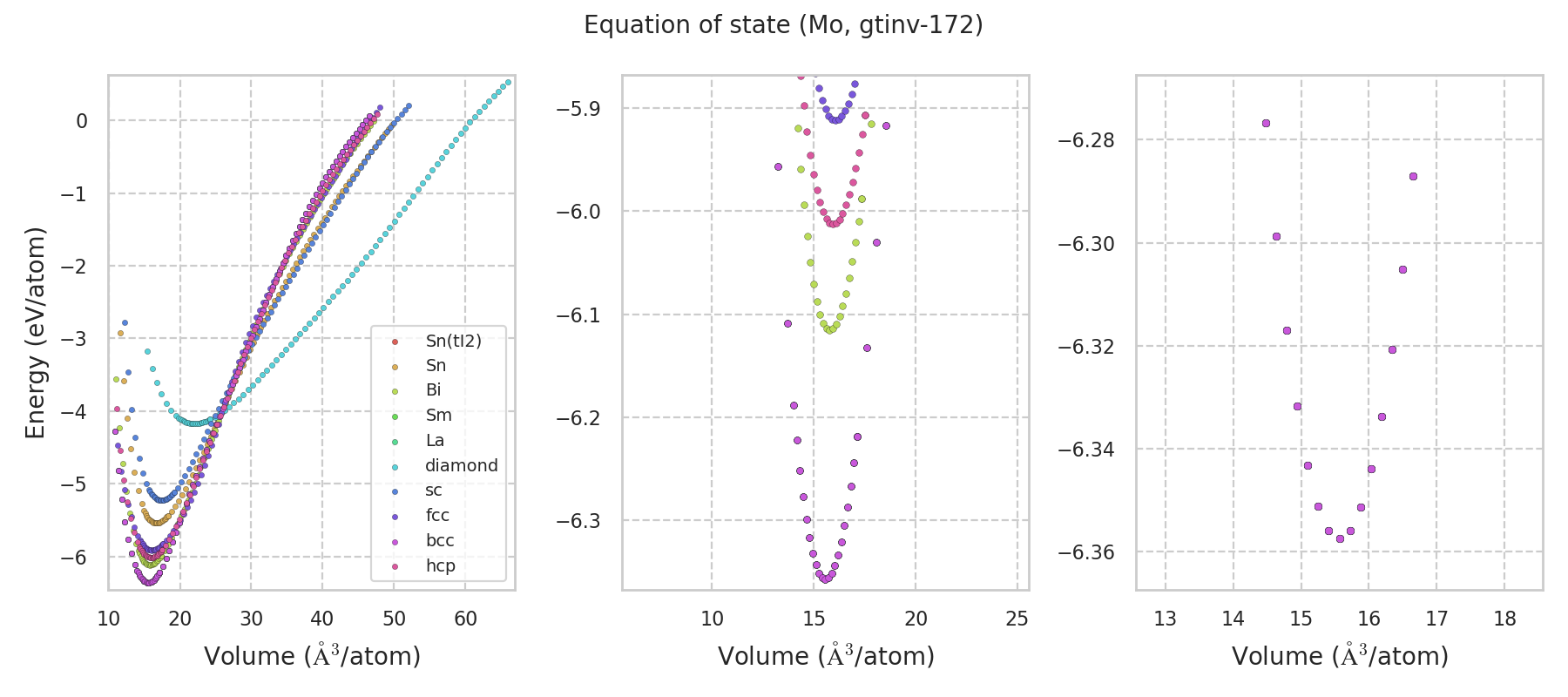

Equation of state

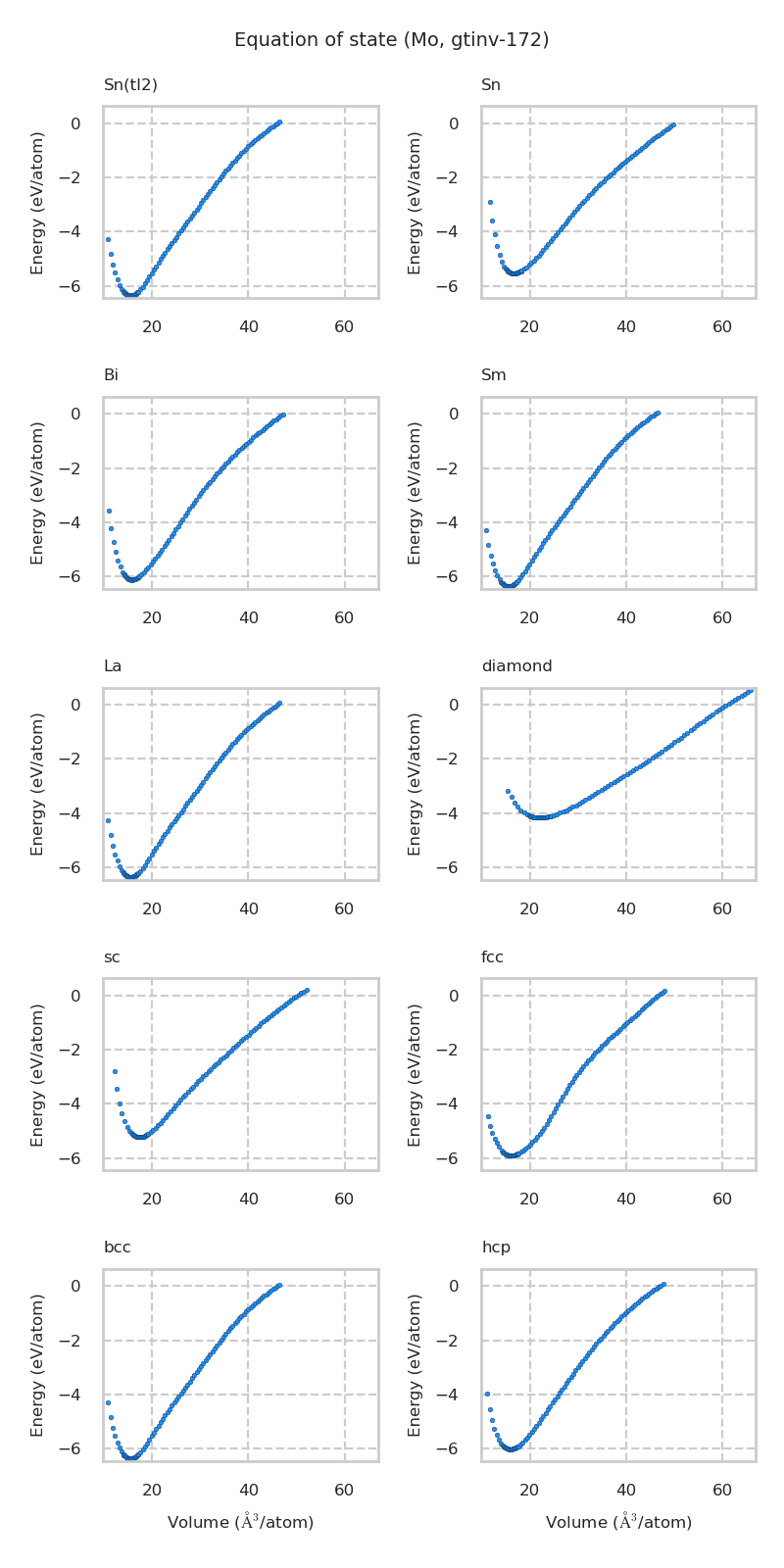

Equation of state for each structure

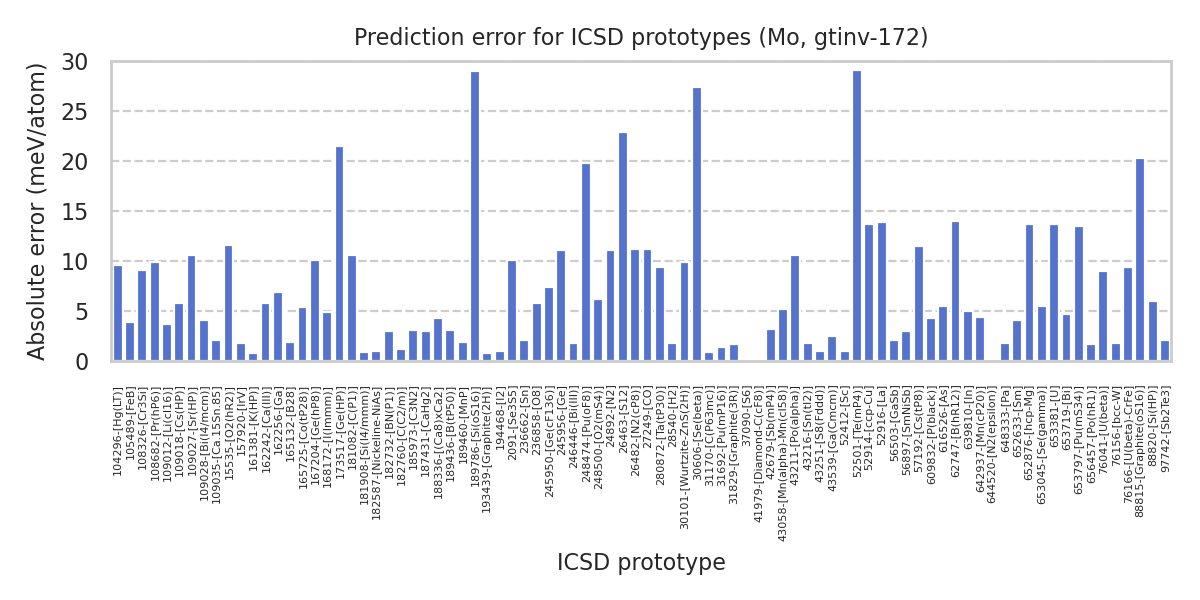

Prototype structure energy

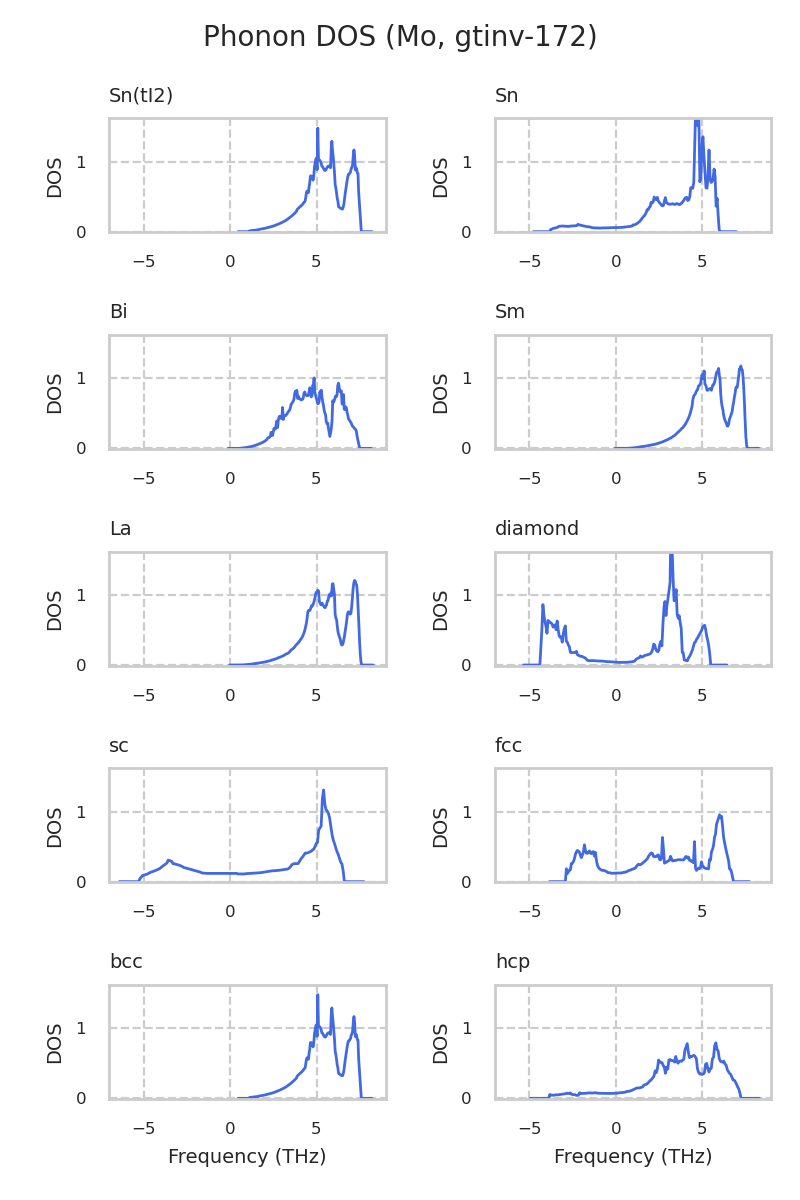

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-157920-[IrV]	-6.35735	-6.35556
icsd-246446-[Bi(III)]	-6.35735	-6.35556
icsd-648333-[Pa]	-6.35735	-6.35556
icsd-43216-[Sn(tI2)]	-6.35735	-6.35556
icsd-31829-[Graphite(3R)]	-6.35735	-6.35566
icsd-76156-[bcc-W]	-6.35735	-6.35556
icsd-656457-[Po(hR1)]	-6.35734	-6.35568
icsd-194468-[I2]	-6.35734	-6.35642
icsd-644520-[N2(epsilon)]	-6.35734	-6.35745
icsd-97742-[Sb2Te3]	-6.35734	-6.35532
icsd-52412-[Sc]	-6.35733	-6.35641
icsd-31692-[Pu(mP16)]	-6.35733	-6.35594
icsd-109012-[Li(cI16)]	-6.35709	-6.36074
icsd-105489-[FeB]	-6.35705	-6.36097
icsd-108326-[Cr3Si]	-6.25993	-6.26901
icsd-76166-[U(beta)-CrFe]	-6.19907	-6.18966
icsd-280872-[Ta(tP30)]	-6.19905	-6.18965
icsd-76041-[U(beta)]	-6.19867	-6.18967
icsd-30606-[Se(beta)]	-6.17856	-6.20598
icsd-57192-[Cs(tP8)]	-6.13524	-6.12375
icsd-2091-[Se3S5]	-6.11605	-6.12609
icsd-248474-[Pu(oF8)]	-6.11333	-6.1331
icsd-189786-[Si(oS16)]	-6.10971	-6.13875
icsd-52501-[Te(mP4)]	-6.1093	-6.13847
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.08129	-6.08647
icsd-653797-[Pu(mS34)]	-6.07495	-6.08846
icsd-165725-[Co(tP28)]	-6.07451	-6.06914
icsd-642937-[Mn(cP20)]	-6.04535	-6.041
icsd-248500-[O2(mS4)]	-6.03872	-6.03254
icsd-639810-[In]	-6.03866	-6.03372
icsd-168172-[I(Immm)]	-6.03859	-6.03373
icsd-245956-[Ge]	-6.02013	-6.03124
icsd-26482-[N2(cP8)]	-6.02008	-6.0313
icsd-27249-[CO]	-6.02006	-6.03129
icsd-652876-[hcp-Mg]	-6.01105	-5.99735
icsd-653381-[U]	-6.01105	-5.99735
icsd-236858-[O8]	-5.98256	-5.98831
icsd-616526-[As]	-5.9825	-5.98798
icsd-653045-[Se(gamma)]	-5.98243	-5.98792
icsd-104296-[Hg(LT)]	-5.98198	-5.9916
icsd-108682-[Pr(hP6)]	-5.9818	-5.99165
icsd-187431-[CaHg2]	-5.96524	-5.96225
icsd-56897-[SmNiSb]	-5.96524	-5.96225
icsd-161381-[K(HP)]	-5.92505	-5.92426
icsd-652633-[Sm]	-5.91655	-5.92066
icsd-52916-[La]	-5.91503	-5.90112
icsd-52914-[ccp-Cu]	-5.91023	-5.92394
icsd-37090-[S6]	-5.9075	-5.90747
icsd-165132-[B28]	-5.88716	-5.88533
icsd-609832-[P(black)]	-5.82074	-5.82498
icsd-188336-[(Ca8)xCa2]	-5.82073	-5.82498
icsd-42679-[Sb(mP4)]	-5.82073	-5.82394
icsd-43251-[S8(Fddd)]	-5.78427	-5.78334
icsd-43539-[Ga(Cmcm)]	-5.74987	-5.74741
icsd-189460-[MnP]	-5.74106	-5.74291
icsd-189436-[B(tP50)]	-5.70698	-5.7039
icsd-182760-[C(C2/m)]	-5.68923	-5.69039
icsd-26463-[S12]	-5.67735	-5.7003
icsd-173517-[Ge(HP)]	-5.65921	-5.63765
icsd-15535-[O2(hR2)]	-5.65434	-5.64276
icsd-30101-[Wurtzite-ZnS(2H)]	-5.62425	-5.63417
icsd-24892-[N2]	-5.62232	-5.63345
icsd-236662-[Sn]	-5.53801	-5.54006
icsd-56503-[GaSb]	-5.538	-5.54007
icsd-109018-[Cs(HP)]	-5.53576	-5.54151
icsd-653719-[Bi]	-5.53511	-5.5398
icsd-162242-[Ca(III)]	-5.53012	-5.52431
icsd-109035-[Ca.15Sn.85]	-5.49857	-5.50067
icsd-162256-[Ga]	-5.43676	-5.44368
icsd-62747-[B(hR12)]	-5.41207	-5.42605
icsd-182587-[Nickeline-NiAs]	-5.37522	-5.37619
icsd-109028-[Bi(I4/mcm)]	-5.29211	-5.28809
icsd-182732-[BN(P1)]	-5.2273	-5.22432
icsd-28540-[H2]	-5.22713	-5.2254
icsd-181082-[C(P1)]	-5.22711	-5.2165
icsd-109027-[Sr(HP)]	-5.22711	-5.2165
icsd-43211-[Po(alpha)]	-5.22707	-5.21648
icsd-31170-[C(P63mc)]	-5.14503	-5.14414
icsd-193439-[Graphite(2H)]	-5.14491	-5.14411
icsd-88815-[Graphite(oS16)]	-4.98838	-5.00871
icsd-88820-[Si(HP)]	-4.67387	-4.66789
icsd-185973-[C3N2]	-4.22655	-4.22964
icsd-167204-[Ge(hP8)]	-4.20616	-4.21625
icsd-245950-[Ge(cF136)]	-4.17303	-4.18039
icsd-41979-[Diamond-C(cF8)]	-4.16741	-4.16738
icsd-181908-[Si(I4/mmm)]	-4.08236	-4.08322

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.938	2.571	5.33	4.652	90.0	90.0	90.0
DFT	15.915	2.547	5.339	4.682	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
349.9	177.7	210.7	0.0	0.0	0.0
177.7	389.3	187.2	0.0	0.0	0.0
210.7	187.2	291.8	0.0	0.0	0.0
0.0	0.0	0.0	31.3	0.0	0.0
0.0	0.0	0.0	0.0	-52.9	0.0
0.0	0.0	0.0	0.0	0.0	-1371106.3

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.564	2.724	3.146	20.142	90.0	84.83	125.26
DFT	15.965	2.963	2.963	18.896	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
451.1	250.5	250.5	0.0	0.0	0.0
250.5	481.7	219.9	0.0	0.0	-43.2
250.5	219.9	481.7	0.0	0.0	43.2
0.0	0.0	0.0	130.9	43.2	-1.4
0.0	0.0	0.0	43.2	161.4	-5.2
0.0	-43.2	43.2	-1.4	-5.2	161.4

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.564	2.724	3.146	8.897	90.0	90.0	125.26
DFT	15.85	2.864	2.864	8.924	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
451.1	250.5	250.5	0.0	0.0	0.0
250.5	481.7	219.9	0.0	0.0	-43.2
250.5	219.9	481.7	0.0	0.0	43.2
0.0	0.0	0.0	130.9	43.2	0.0
0.0	0.0	0.0	43.2	161.4	0.0
0.0	-43.2	43.2	0.0	0.0	161.4

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.564	3.146	3.146	3.146	90.0	90.0	90.0
DFT	15.587	3.147	3.147	3.147	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
573.4	189.4	189.4	0.0	0.0	0.0
189.4	573.4	189.4	0.0	0.0	0.0
189.4	189.4	573.4	0.0	0.0	0.0
0.0	0.0	0.0	100.3	0.0	0.0
0.0	0.0	0.0	0.0	100.3	0.0
0.0	0.0	0.0	0.0	0.0	100.3

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.643	5.064	5.064	2.596	90.0	90.0	90.0
DFT	16.627	5.035	5.035	2.623	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
266.9	218.3	215.3	0.0	0.0	0.0
218.3	266.9	215.3	0.0	0.0	0.0
215.3	215.3	499.5	0.0	0.0	0.0
0.0	0.0	0.0	29.9	0.0	0.0
0.0	0.0	0.0	0.0	29.9	0.0
0.0	0.0	0.0	0.0	0.0	-124.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.564	3.146	3.146	3.146	90.0	90.0	90.0
DFT	15.588	3.147	3.147	3.147	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
573.4	189.4	189.4	0.0	0.0	0.0
189.4	573.4	189.4	0.0	0.0	0.0
189.4	189.4	573.4	0.0	0.0	0.0
0.0	0.0	0.0	100.3	0.0	0.0
0.0	0.0	0.0	0.0	100.3	0.0
0.0	0.0	0.0	0.0	0.0	100.3

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.054	4.004	4.004	4.004	90.0	90.0	90.0
DFT	15.857	3.988	3.988	3.988	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
113.2	287.0	287.0	0.0	0.0	0.0
287.0	113.2	287.0	0.0	0.0	0.0
287.0	287.0	113.2	0.0	0.0	0.0
0.0	0.0	0.0	-31.0	0.0	0.0
0.0	0.0	0.0	0.0	-31.0	0.0
0.0	0.0	0.0	0.0	0.0	-31.0

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.044	5.608	5.608	5.608	90.0	90.0	90.0
DFT	22.311	5.63	5.63	5.63	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
72.4	101.2	101.2	-27181.8	-42615.4	84501.3
101.2	72.4	101.2	202490.7	-67762.1	82209.7
101.2	101.2	72.4	126417.2	-77232.3	92028.2
-27181.8	202490.7	126417.2	46160.7	-32449.6	-44378.2
-42615.4	-67762.1	-77232.3	-32449.6	-50681.3	-81431.6
84501.3	82209.7	92028.2	-44378.2	-81431.6	88769.7

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.411	2.592	2.592	2.592	90.0	90.0	90.0
DFT	17.303	2.586	2.586	2.586	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
372.8	173.9	173.9	0.0	0.0	0.0
173.9	372.8	173.9	0.0	0.0	0.0
173.9	173.9	372.8	0.0	0.0	0.0
0.0	0.0	0.0	-117.0	0.0	0.0
0.0	0.0	0.0	0.0	-117.0	0.0
0.0	0.0	0.0	0.0	0.0	-117.0

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.778	5.849	5.23	2.619	90.0	116.6	115.04
DFT	16.625	5.618	5.034	2.641	90.0	117.07	90.0

Elastic constants (Bi)

1	2	3	4	5	6
432.0	283.2	280.8	5.6	11.7	-14.0
283.2	448.6	259.9	23.0	28.8	1.1
280.8	259.9	429.0	-29.7	-27.2	-0.8
5.6	23.0	-29.7	80.3	14.8	18.8
11.7	28.8	-27.2	14.8	98.4	17.7
-14.0	1.1	-0.8	18.8	17.7	82.4
