gtinv-332 (Na-2021-08-04-all-icsd)

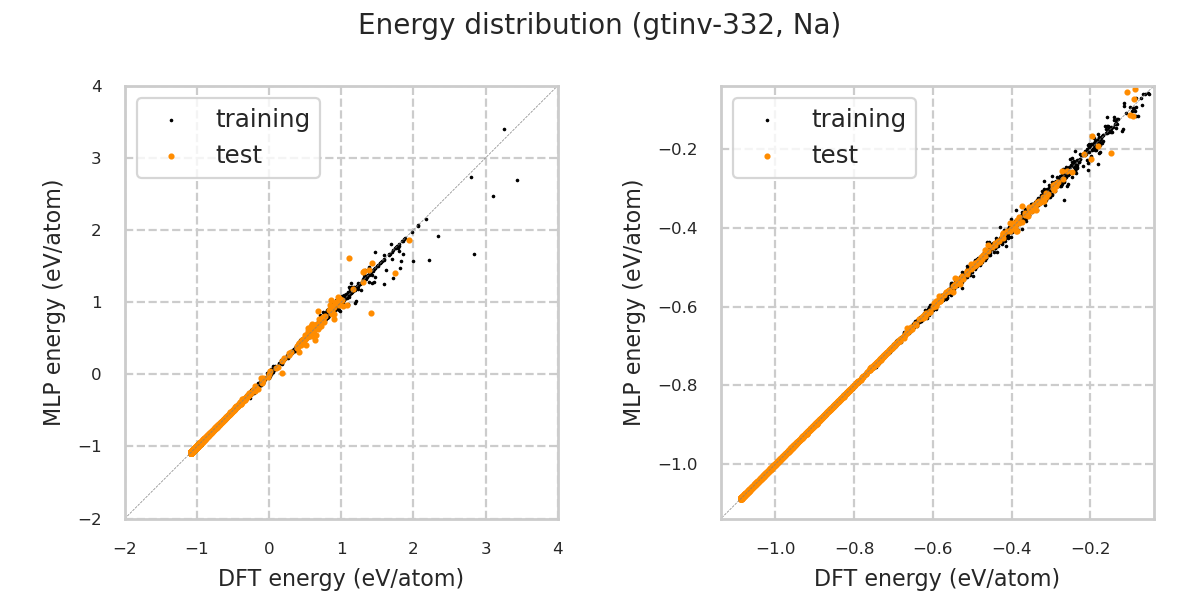

Energy distribution

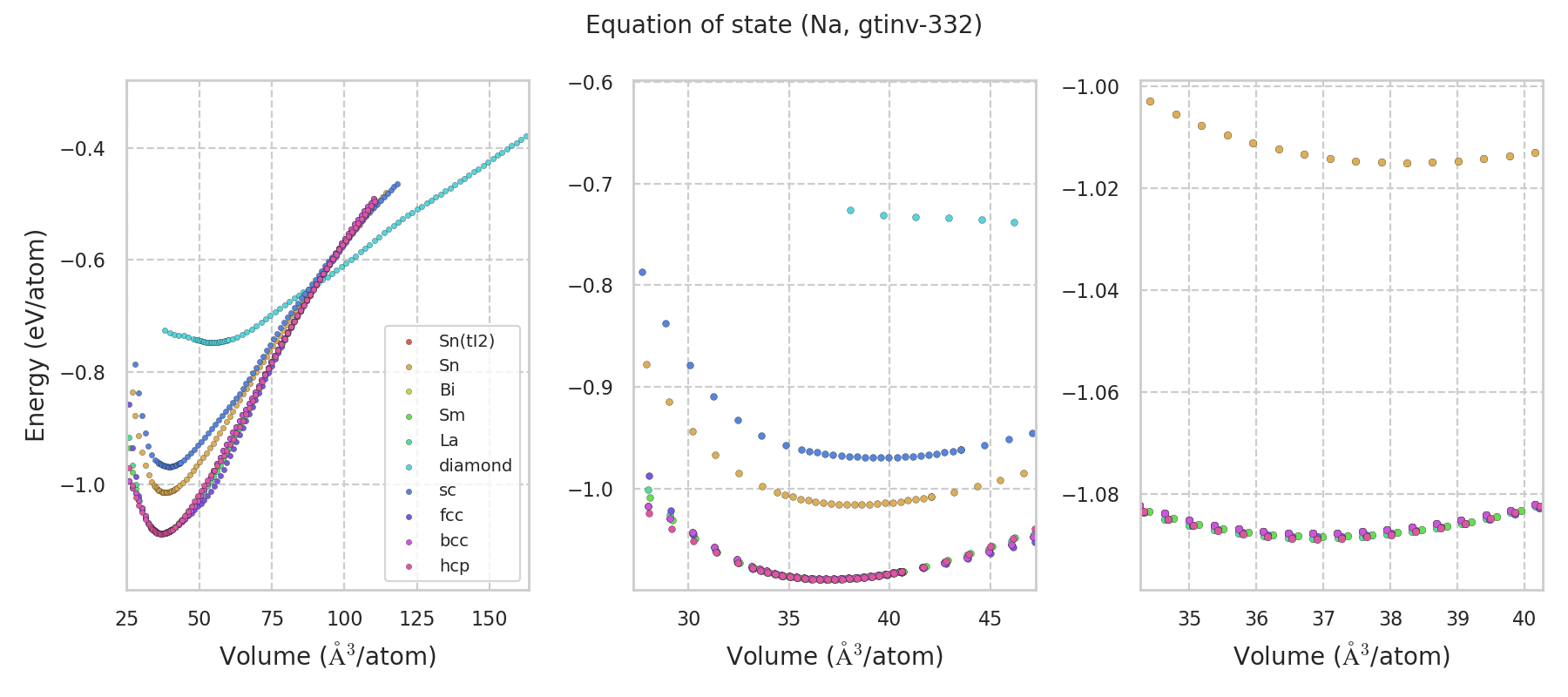

Equation of state

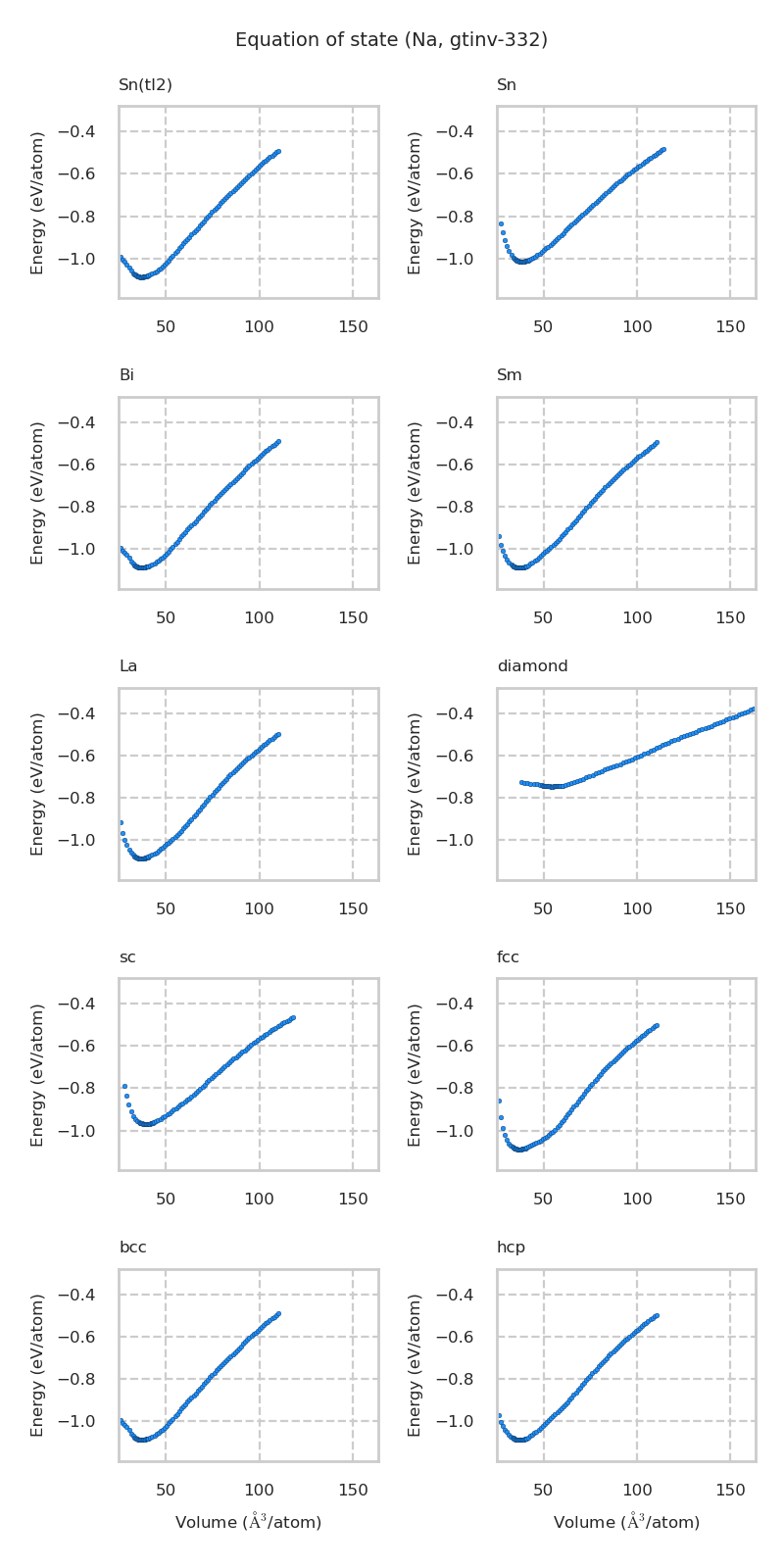

Equation of state for each structure

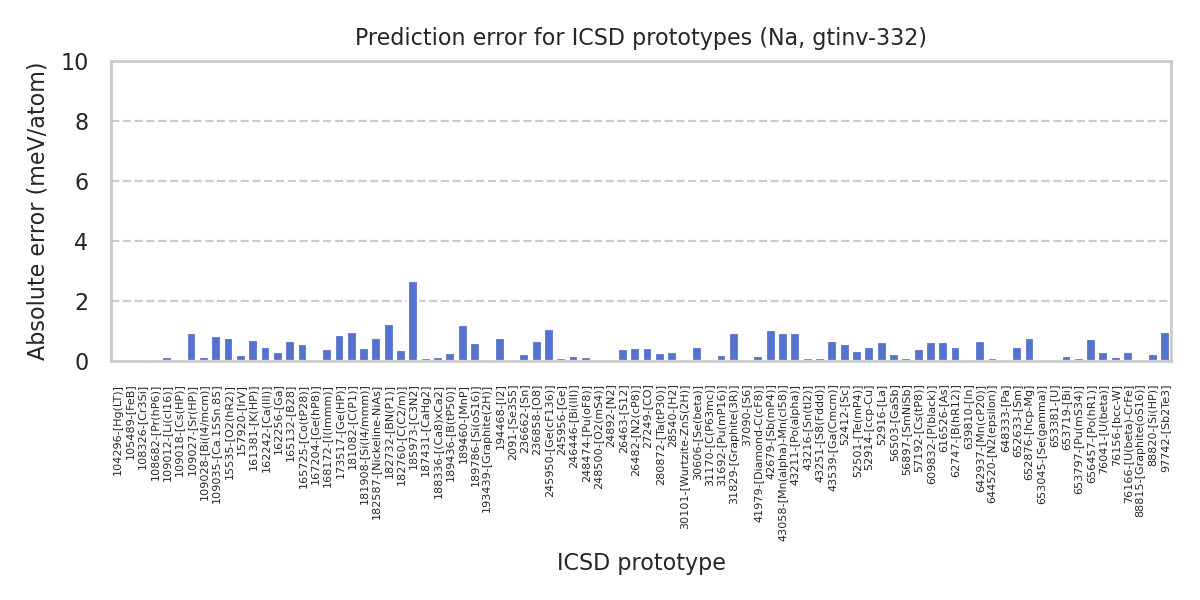

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-27249-[CO]	0.48726	0.48683
icsd-26482-[N2(cP8)]	0.48703	0.48662
icsd-644520-[N2(epsilon)]	0.46163	0.46153
icsd-236858-[O8]	0.4385	0.43914
icsd-15535-[O2(hR2)]	0.43735	0.43812
icsd-24892-[N2]	0.43501	0.43502
icsd-652876-[hcp-Mg]	-1.08879	-1.08803
icsd-161381-[K(HP)]	-1.08863	-1.08796
icsd-653381-[U]	-1.08853	-1.0886
icsd-52916-[La]	-1.08853	-1.08791
icsd-182587-[Nickeline-NiAs]	-1.08852	-1.08776
icsd-52914-[ccp-Cu]	-1.08839	-1.08793
icsd-104296-[Hg(LT)]	-1.08838	-1.08837
icsd-168172-[I(Immm)]	-1.08836	-1.08798
icsd-652633-[Sm]	-1.08832	-1.08787
icsd-189786-[Si(oS16)]	-1.08819	-1.08878
icsd-639810-[In]	-1.08808	-1.08806
icsd-31692-[Pu(mP16)]	-1.08797	-1.08779
icsd-108682-[Pr(hP6)]	-1.08796	-1.08794
icsd-57192-[Cs(tP8)]	-1.08783	-1.08822
icsd-76156-[bcc-W]	-1.08777	-1.08764
icsd-656457-[Po(hR1)]	-1.08771	-1.08843
icsd-31829-[Graphite(3R)]	-1.08765	-1.08856
icsd-97742-[Sb2Te3]	-1.08756	-1.0885
icsd-648333-[Pa]	-1.08748	-1.08749
icsd-248500-[O2(mS4)]	-1.08746	-1.0875
icsd-194468-[I2]	-1.08737	-1.08813
icsd-43216-[Sn(tI2)]	-1.08735	-1.08742
icsd-105489-[FeB]	-1.08733	-1.08731
icsd-246446-[Bi(III)]	-1.08715	-1.08729
icsd-52412-[Sc]	-1.08708	-1.08763
icsd-157920-[IrV]	-1.08692	-1.08709
icsd-109012-[Li(cI16)]	-1.08594	-1.08606
icsd-30606-[Se(beta)]	-1.08177	-1.08133
icsd-248474-[Pu(oF8)]	-1.08028	-1.08018
icsd-76166-[U(beta)-CrFe]	-1.07777	-1.07805
icsd-280872-[Ta(tP30)]	-1.07769	-1.07795
icsd-76041-[U(beta)]	-1.07767	-1.07795
icsd-187431-[CaHg2]	-1.07765	-1.07758
icsd-56897-[SmNiSb]	-1.07764	-1.07754
icsd-642937-[Mn(cP20)]	-1.07685	-1.0775
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.07549	-1.07642
icsd-108326-[Cr3Si]	-1.07384	-1.07382
icsd-653797-[Pu(mS34)]	-1.07154	-1.07146
icsd-52501-[Te(mP4)]	-1.06501	-1.06468
icsd-165725-[Co(tP28)]	-1.05618	-1.05563
icsd-609832-[P(black)]	-1.05134	-1.05072
icsd-43539-[Ga(Cmcm)]	-1.05107	-1.05041
icsd-37090-[S6]	-1.03358	-1.03364
icsd-165132-[B28]	-1.02662	-1.02596
icsd-182760-[C(C2/m)]	-1.02652	-1.02686
icsd-109035-[Ca.15Sn.85]	-1.02197	-1.02116
icsd-42679-[Sb(mP4)]	-1.01734	-1.01633
icsd-109018-[Cs(HP)]	-1.01664	-1.01658
icsd-653719-[Bi]	-1.01524	-1.01507
icsd-56503-[GaSb]	-1.01498	-1.01521
icsd-236662-[Sn]	-1.01493	-1.01517
icsd-189460-[MnP]	-1.01287	-1.01169
icsd-162256-[Ga]	-1.00821	-1.00851
icsd-43251-[S8(Fddd)]	-0.99478	-0.99471
icsd-2091-[Se3S5]	-0.98849	-0.98846
icsd-616526-[As]	-0.96914	-0.96851
icsd-109027-[Sr(HP)]	-0.96894	-0.96801
icsd-43211-[Po(alpha)]	-0.96894	-0.96801
icsd-162242-[Ca(III)]	-0.96893	-0.96848
icsd-181082-[C(P1)]	-0.96884	-0.9679
icsd-182732-[BN(P1)]	-0.96881	-0.97003
icsd-653045-[Se(gamma)]	-0.96879	-0.96875
icsd-173517-[Ge(HP)]	-0.93904	-0.93817
icsd-109028-[Bi(I4/mcm)]	-0.93301	-0.93288
icsd-185973-[C3N2]	-0.91103	-0.91369
icsd-26463-[S12]	-0.90463	-0.905
icsd-245956-[Ge]	-0.90089	-0.90097
icsd-28540-[H2]	-0.88869	-0.88898
icsd-31170-[C(P63mc)]	-0.88793	-0.88789
icsd-193439-[Graphite(2H)]	-0.8877	-0.88765
icsd-88820-[Si(HP)]	-0.86987	-0.86964
icsd-62747-[B(hR12)]	-0.84961	-0.85008
icsd-188336-[(Ca8)xCa2]	-0.84144	-0.84157
icsd-88815-[Graphite(oS16)]	-0.84135	-0.84131
icsd-189436-[B(tP50)]	-0.80029	-0.80005
icsd-30101-[Wurtzite-ZnS(2H)]	-0.74963	-0.74958
icsd-167204-[Ge(hP8)]	-0.74868	-0.74864
icsd-41979-[Diamond-C(cF8)]	-0.74763	-0.74778
icsd-181908-[Si(I4/mmm)]	-0.73182	-0.73223
icsd-245950-[Ge(cF136)]	-0.7295	-0.72845

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.902	3.74	3.74	6.091	90.0	90.0	120.0
DFT	37.1	3.745	3.745	6.11	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
13.0	9.2	3.8	0.0	0.0	0.0
9.2	13.0	3.8	0.0	0.0	0.0
3.8	3.8	14.8	0.0	0.0	0.0
0.0	0.0	0.0	2.9	0.0	0.0
0.0	0.0	0.0	0.0	2.9	0.0
0.0	0.0	0.0	0.0	0.0	1.9

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.986	3.744	3.744	27.424	90.0	90.0	120.0
DFT	36.932	3.75	3.75	27.295	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
11.4	7.4	3.5	0.9	0.0	0.0
7.4	11.4	3.5	-0.9	0.0	0.0
3.5	3.5	17.1	0.0	0.0	0.0
0.9	-0.9	0.0	2.7	0.0	0.0
0.0	0.0	0.0	0.0	2.7	0.9
0.0	0.0	0.0	0.0	0.9	2.0

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.844	3.738	3.738	12.177	90.0	90.0	120.0
DFT	37.109	3.759	3.759	12.128	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
11.8	7.8	3.6	0.0	0.0	0.0
7.8	11.8	3.6	0.0	0.0	0.0
3.6	3.6	17.5	0.0	0.0	0.0
0.0	0.0	0.0	3.2	0.0	0.0
0.0	0.0	0.0	0.0	3.2	0.0
0.0	0.0	0.0	0.0	0.0	2.0

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.84	4.192	4.192	4.192	90.0	90.0	90.0
DFT	36.961	4.279	4.279	4.037	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
8.7	7.3	7.3	0.0	0.0	0.0
7.3	8.7	7.3	0.0	0.0	0.0
7.3	7.3	8.7	0.0	0.0	0.0
0.0	0.0	0.0	6.1	0.0	0.0
0.0	0.0	0.0	0.0	6.1	0.0
0.0	0.0	0.0	0.0	0.0	6.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	38.242	6.569	6.569	3.545	90.0	90.0	90.0
DFT	38.057	6.544	6.544	3.555	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
14.7	3.2	2.2	0.0	0.0	0.0
3.2	16.7	4.9	0.0	0.0	0.0
2.2	4.9	19.7	0.0	0.0	0.0
0.0	0.0	0.0	-0.5	0.0	0.0
0.0	0.0	0.0	0.0	-0.5	0.0
0.0	0.0	0.0	0.0	0.0	-3.3

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.84	4.192	4.192	4.192	90.0	90.0	90.0
DFT	36.812	4.191	4.191	4.191	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
8.7	7.3	7.3	0.0	0.0	0.0
7.3	8.7	7.3	0.0	0.0	0.0
7.3	7.3	8.7	0.0	0.0	0.0
0.0	0.0	0.0	6.1	0.0	0.0
0.0	0.0	0.0	0.0	6.1	0.0
0.0	0.0	0.0	0.0	0.0	6.1

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.899	5.285	5.285	5.285	90.0	90.0	90.0
DFT	36.748	5.278	5.278	5.278	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
7.6	7.1	7.1	0.0	0.0	0.0
7.1	7.6	7.1	0.0	0.0	0.0
7.1	7.1	7.6	0.0	0.0	0.0
0.0	0.0	0.0	6.1	0.0	0.0
0.0	0.0	0.0	0.0	6.1	0.0
0.0	0.0	0.0	0.0	0.0	6.1

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	54.358	7.576	7.576	7.576	90.0	90.0	90.0
DFT	53.756	7.548	7.548	7.548	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
0.7	4.3	4.3	0.0	0.0	0.0
4.3	0.7	4.3	0.0	0.0	0.0
4.3	4.3	0.7	0.0	0.0	0.0
0.0	0.0	0.0	-6.0	0.0	0.0
0.0	0.0	0.0	0.0	-6.0	0.0
0.0	0.0	0.0	0.0	0.0	-6.0

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	39.574	3.408	3.408	3.408	90.0	90.0	90.0
DFT	39.538	3.407	3.407	3.407	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
21.4	-1.7	-1.7	0.0	0.0	0.0
-1.7	21.4	-1.7	0.0	0.0	0.0
-1.7	-1.7	21.4	0.0	0.0	0.0
0.0	0.0	0.0	-2.6	0.0	0.0
0.0	0.0	0.0	0.0	-2.6	0.0
0.0	0.0	0.0	0.0	0.0	-2.6

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.84	5.929	5.929	4.192	90.0	90.0	90.0
DFT	38.336	7.223	6.595	3.552	90.0	115.02	90.0

Elastic constants (Bi)

1	2	3	4	5	6
14.1	1.9	7.3	0.0	0.0	0.0
1.9	14.1	7.3	0.0	0.0	0.0
7.3	7.3	8.7	0.0	0.0	0.0
0.0	0.0	0.0	6.1	0.0	0.0
0.0	0.0	0.0	0.0	6.1	0.0
0.0	0.0	0.0	0.0	0.0	0.7
