gtinv-222 (Nb-2021-08-25-all-icsd)

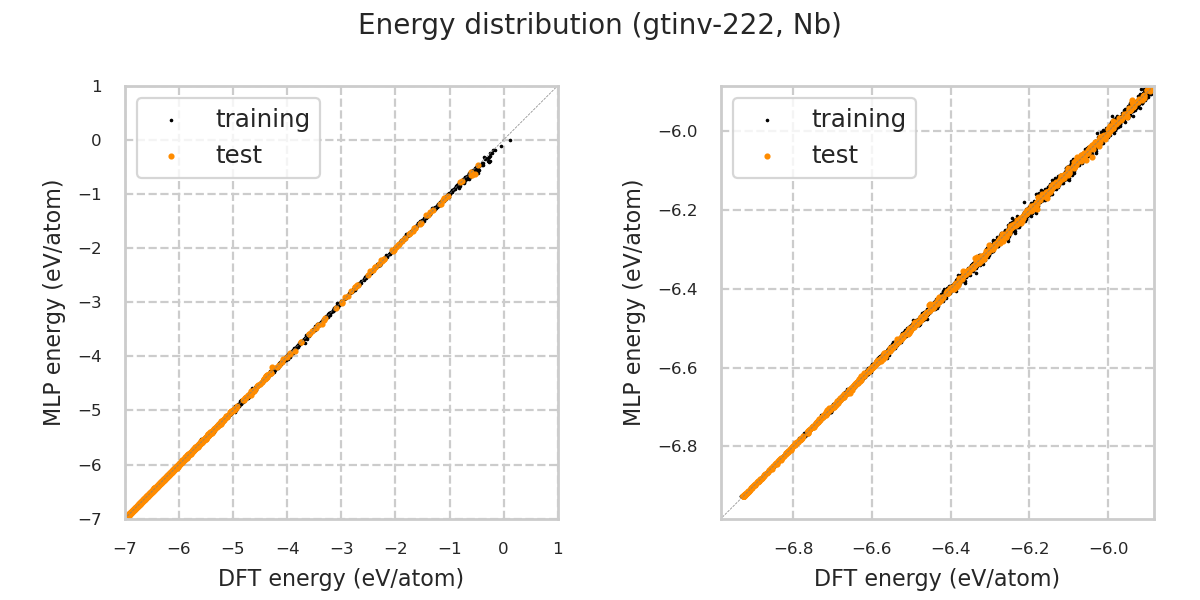

Energy distribution

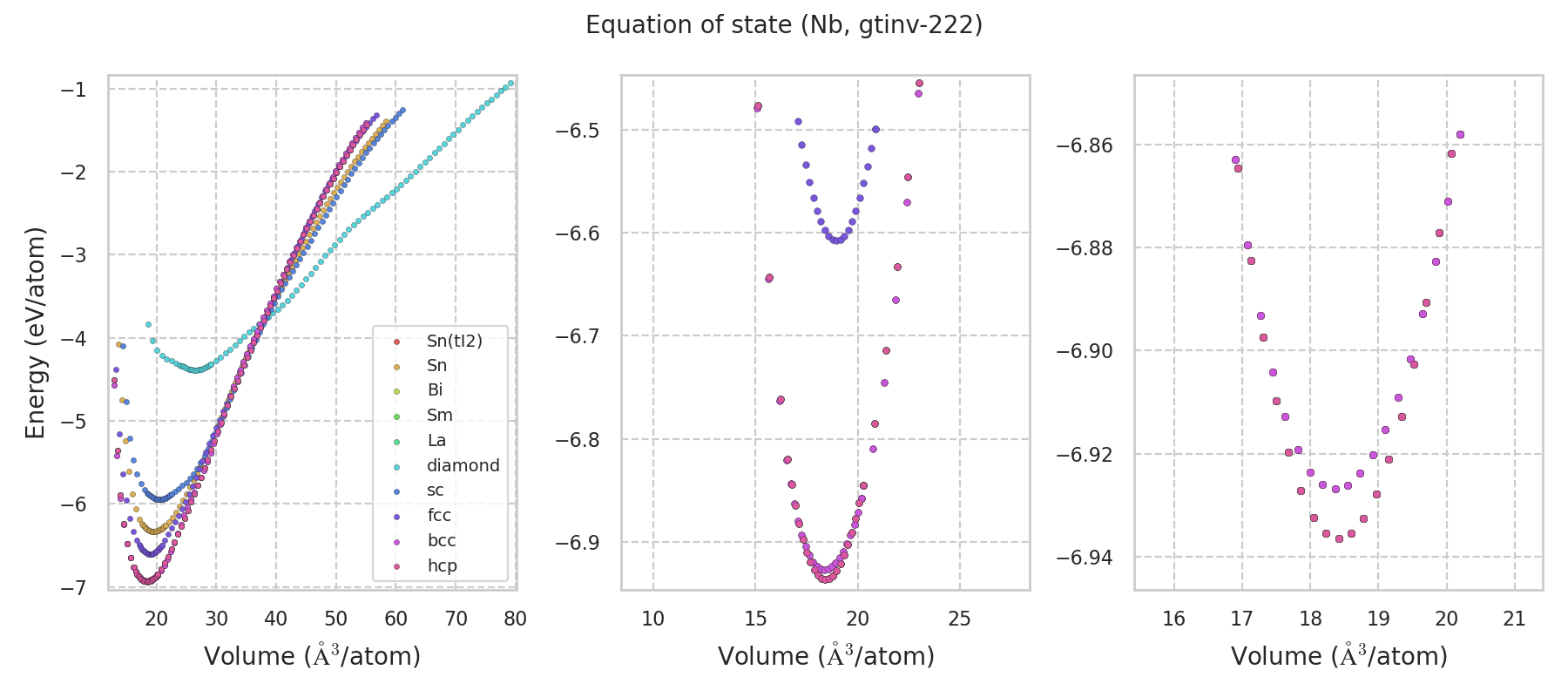

Equation of state

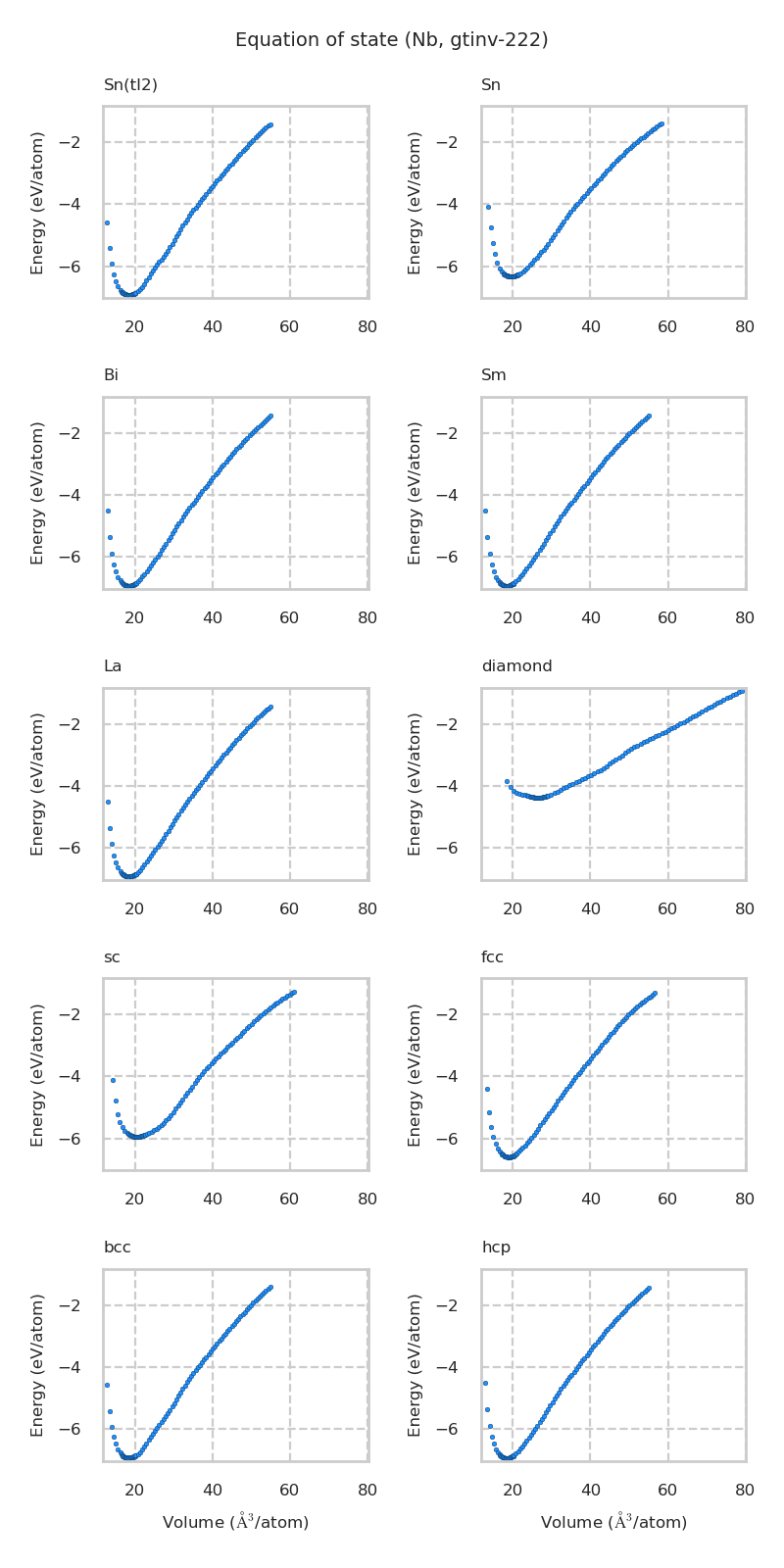

Equation of state for each structure

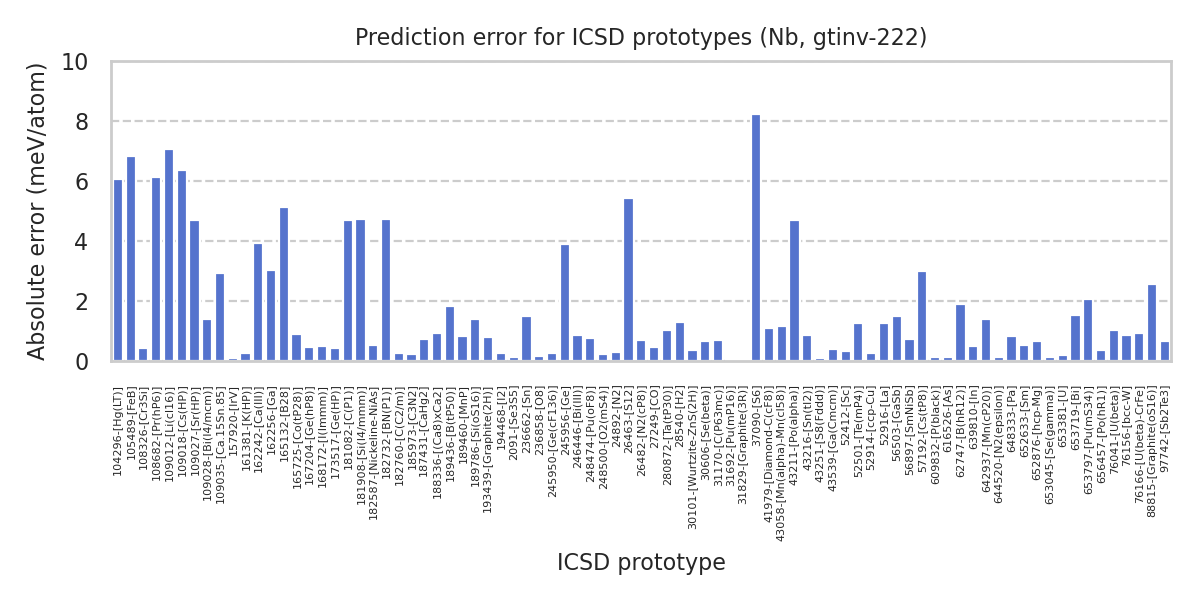

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-105489-[FeB]	-6.92689	-6.93372
icsd-109012-[Li(cI16)]	-6.92686	-6.93392
icsd-182760-[C(C2/m)]	-6.92668	-6.92643
icsd-31692-[Pu(mP16)]	-6.92661	-6.92655
icsd-246446-[Bi(III)]	-6.9266	-6.92576
icsd-648333-[Pa]	-6.9266	-6.92576
icsd-76156-[bcc-W]	-6.9266	-6.92575
icsd-43216-[Sn(tI2)]	-6.92659	-6.92575
icsd-31829-[Graphite(3R)]	-6.92659	-6.92661
icsd-161381-[K(HP)]	-6.92659	-6.92632
icsd-236858-[O8]	-6.92658	-6.92642
icsd-97742-[Sb2Te3]	-6.92658	-6.92593
icsd-157920-[IrV]	-6.92658	-6.92648
icsd-2091-[Se3S5]	-6.92657	-6.92646
icsd-194468-[I2]	-6.92656	-6.92632
icsd-656457-[Po(hR1)]	-6.92654	-6.92619
icsd-644520-[N2(epsilon)]	-6.92653	-6.92665
icsd-52412-[Sc]	-6.92648	-6.92617
icsd-76166-[U(beta)-CrFe]	-6.8444	-6.84531
icsd-76041-[U(beta)]	-6.84435	-6.84536
icsd-280872-[Ta(tP30)]	-6.84422	-6.84526
icsd-108326-[Cr3Si]	-6.8234	-6.82297
icsd-30606-[Se(beta)]	-6.81506	-6.81572
icsd-57192-[Cs(tP8)]	-6.8088	-6.81179
icsd-52501-[Te(mP4)]	-6.79954	-6.80081
icsd-189786-[Si(oS16)]	-6.79943	-6.80082
icsd-248500-[O2(mS4)]	-6.78443	-6.78464
icsd-639810-[In]	-6.78442	-6.78491
icsd-168172-[I(Immm)]	-6.78441	-6.78491
icsd-248474-[Pu(oF8)]	-6.78328	-6.78252
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.76104	-6.76221
icsd-653797-[Pu(mS34)]	-6.74243	-6.74448
icsd-52916-[La]	-6.73749	-6.73625
icsd-189460-[MnP]	-6.73334	-6.73253
icsd-653381-[U]	-6.7331	-6.73328
icsd-31170-[C(P63mc)]	-6.72966	-6.73036
icsd-56897-[SmNiSb]	-6.72676	-6.72747
icsd-187431-[CaHg2]	-6.72676	-6.72747
icsd-165725-[Co(tP28)]	-6.72315	-6.72228
icsd-642937-[Mn(cP20)]	-6.71709	-6.7157
icsd-104296-[Hg(LT)]	-6.66161	-6.6677
icsd-108682-[Pr(hP6)]	-6.66153	-6.66768
icsd-616526-[As]	-6.6614	-6.66128
icsd-653045-[Se(gamma)]	-6.66139	-6.66126
icsd-182587-[Nickeline-NiAs]	-6.64613	-6.64561
icsd-652633-[Sm]	-6.63718	-6.63769
icsd-652876-[hcp-Mg]	-6.63319	-6.63255
icsd-26482-[N2(cP8)]	-6.6277	-6.62701
icsd-27249-[CO]	-6.62754	-6.62709
icsd-245956-[Ge]	-6.6205	-6.6244
icsd-52914-[ccp-Cu]	-6.6074	-6.60716
icsd-193439-[Graphite(2H)]	-6.60663	-6.60586
icsd-609832-[P(black)]	-6.58674	-6.58687
icsd-24892-[N2]	-6.58663	-6.58691
icsd-30101-[Wurtzite-ZnS(2H)]	-6.58656	-6.58691
icsd-26463-[S12]	-6.58325	-6.5887
icsd-188336-[(Ca8)xCa2]	-6.55137	-6.55045
icsd-43539-[Ga(Cmcm)]	-6.53704	-6.53741
icsd-37090-[S6]	-6.51637	-6.52462
icsd-43251-[S8(Fddd)]	-6.5004	-6.50048
icsd-173517-[Ge(HP)]	-6.47559	-6.47601
icsd-189436-[B(tP50)]	-6.44592	-6.4441
icsd-165132-[B28]	-6.44148	-6.44663
icsd-28540-[H2]	-6.35742	-6.3587
icsd-653719-[Bi]	-6.33034	-6.3288
icsd-56503-[GaSb]	-6.33032	-6.32883
icsd-236662-[Sn]	-6.33026	-6.32878
icsd-109035-[Ca.15Sn.85]	-6.31403	-6.31696
icsd-162242-[Ca(III)]	-6.31397	-6.31791
icsd-109018-[Cs(HP)]	-6.28741	-6.29378
icsd-109028-[Bi(I4/mcm)]	-6.28306	-6.28168
icsd-162256-[Ga]	-6.24286	-6.24588
icsd-88815-[Graphite(oS16)]	-5.94604	-5.94859
icsd-43211-[Po(alpha)]	-5.94601	-5.9507
icsd-109027-[Sr(HP)]	-5.946	-5.95069
icsd-181082-[C(P1)]	-5.94599	-5.9507
icsd-181908-[Si(I4/mmm)]	-5.94596	-5.9507
icsd-182732-[BN(P1)]	-5.94596	-5.9507
icsd-62747-[B(hR12)]	-5.93658	-5.93846
icsd-245950-[Ge(cF136)]	-5.67483	-5.67508
icsd-185973-[C3N2]	-5.56401	-5.56378
icsd-167204-[Ge(hP8)]	-4.39108	-4.39063
icsd-41979-[Diamond-C(cF8)]	-4.3889	-4.38998

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.415	2.948	2.697	4.863	90.0	90.0	107.76
DFT	18.799	2.877	2.877	5.245	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
170.8	156.8	158.9	0.0	0.0	-4.7
156.8	313.0	132.1	0.0	0.0	-20.9
158.9	132.1	182.3	0.0	0.0	-15.6
0.0	0.0	0.0	31.1	-24.8	0.0
0.0	0.0	0.0	-24.8	32.0	0.0
-4.7	-20.9	-15.6	0.0	0.0	58.7

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.415	2.697	2.948	22.003	85.08	94.69	107.76
DFT	18.8	2.874	2.874	23.65	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
327.7	143.7	143.7	0.0	0.0	0.0
143.7	182.3	147.3	0.0	0.0	20.5
143.7	147.3	182.3	0.0	0.0	-20.5
0.0	0.0	0.0	17.5	-20.5	0.7
0.0	0.0	0.0	-20.5	45.6	-1.5
0.0	20.5	-20.5	0.7	-1.5	45.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.415	2.697	5.687	9.726	90.0	90.0	99.1
DFT	18.68	2.741	5.555	9.814	90.0	90.0	90.0

Elastic constants (La)

1	2	3	4	5	6
327.7	143.7	143.7	0.0	0.0	0.0
143.7	182.3	147.3	0.0	0.0	-20.5
143.7	147.3	182.3	0.0	0.0	20.5
0.0	0.0	0.0	17.5	20.5	0.0
0.0	0.0	0.0	20.5	45.6	0.0
0.0	-20.5	20.5	0.0	0.0	45.6

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.365	3.324	3.324	3.324	90.0	90.0	90.0
DFT	18.258	3.318	3.318	3.318	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
211.0	99.2	99.2	0.0	0.0	0.0
99.2	211.0	99.2	0.0	0.0	0.0
99.2	99.2	211.0	0.0	0.0	0.0
0.0	0.0	0.0	-16.1	0.0	0.0
0.0	0.0	0.0	0.0	-16.1	0.0
0.0	0.0	0.0	0.0	0.0	-16.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.52	5.249	5.249	2.834	90.0	90.0	90.0
DFT	19.343	5.215	5.215	2.845	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
218.2	83.0	59.1	0.0	0.0	0.0
83.0	218.2	59.1	0.0	0.0	0.0
59.1	59.1	308.6	0.0	0.0	0.0
0.0	0.0	0.0	3.4	0.0	0.0
0.0	0.0	0.0	0.0	3.4	0.0
0.0	0.0	0.0	0.0	0.0	-58.4

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.365	3.324	3.324	3.324	90.0	90.0	90.0
DFT	18.256	3.317	3.317	3.317	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
211.0	99.2	99.2	0.0	0.0	0.0
99.2	211.0	99.2	0.0	0.0	0.0
99.2	99.2	211.0	0.0	0.0	0.0
0.0	0.0	0.0	-16.1	0.0	0.0
0.0	0.0	0.0	0.0	-16.1	0.0
0.0	0.0	0.0	0.0	0.0	-16.1

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.96	4.233	4.233	4.233	90.0	90.0	90.0
DFT	18.869	4.226	4.226	4.226	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
38.6	285.1	285.1	0.0	0.0	0.0
285.1	38.6	285.1	0.0	0.0	0.0
285.1	285.1	38.6	0.0	0.0	0.0
0.0	0.0	0.0	-53.2	0.0	0.0
0.0	0.0	0.0	0.0	-53.2	0.0
0.0	0.0	0.0	0.0	0.0	-53.2

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	26.467	5.96	5.96	5.96	90.0	90.0	90.0
DFT	26.332	5.95	5.95	5.95	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
54.0	125.7	125.7	-10282.4	0.0	12926.8
125.7	54.0	125.7	-70566.9	0.0	-75943.3
125.7	125.7	54.0	-35440.6	0.0	1729.8
-10282.4	-70566.9	-35440.6	20159.7	-21247.4	55952.6
0.0	0.0	0.0	-21247.4	-1025454.3	-10667.4
12926.8	-75943.3	1729.8	55952.6	-10667.4	91775.6

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.445	2.734	2.734	2.734	90.0	90.0	90.0
DFT	20.278	2.727	2.727	2.727	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
260.9	46.6	46.6	0.0	0.0	0.0
46.6	260.9	46.6	0.0	0.0	0.0
46.6	46.6	260.9	0.0	0.0	0.0
0.0	0.0	0.0	-89.1	0.0	0.0
0.0	0.0	0.0	0.0	-89.1	0.0
0.0	0.0	0.0	0.0	0.0	-89.1

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.415	5.896	5.896	2.697	72.24	107.76	68.87
DFT	19.359	5.927	5.228	2.845	90.0	118.53	90.0

Elastic constants (Bi)

1	2	3	4	5	6
170.8	158.4	157.2	-0.9	-4.1	-1.1
158.4	192.6	150.3	14.6	-5.2	-24.6
157.2	150.3	266.3	39.4	-27.0	16.1
-0.9	14.6	39.4	49.3	4.6	-14.6
-4.1	-5.2	-27.0	4.6	52.8	-2.9
-1.1	-24.6	16.1	-14.6	-2.9	32.0
