gtinv-224 (Os-2021-08-25-all-icsd)

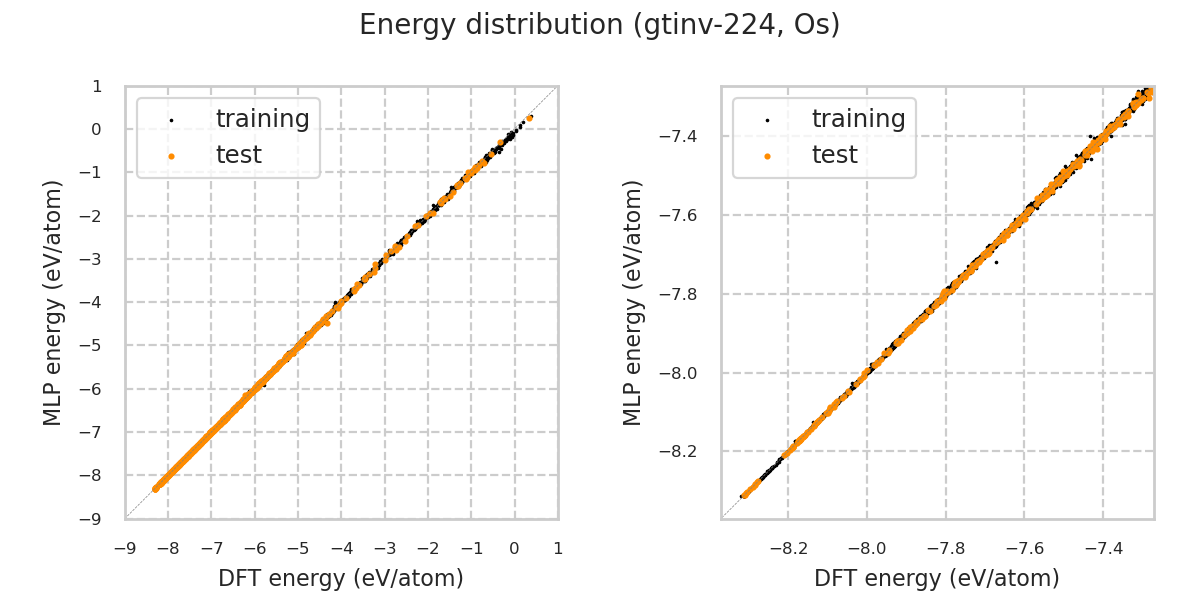

Energy distribution

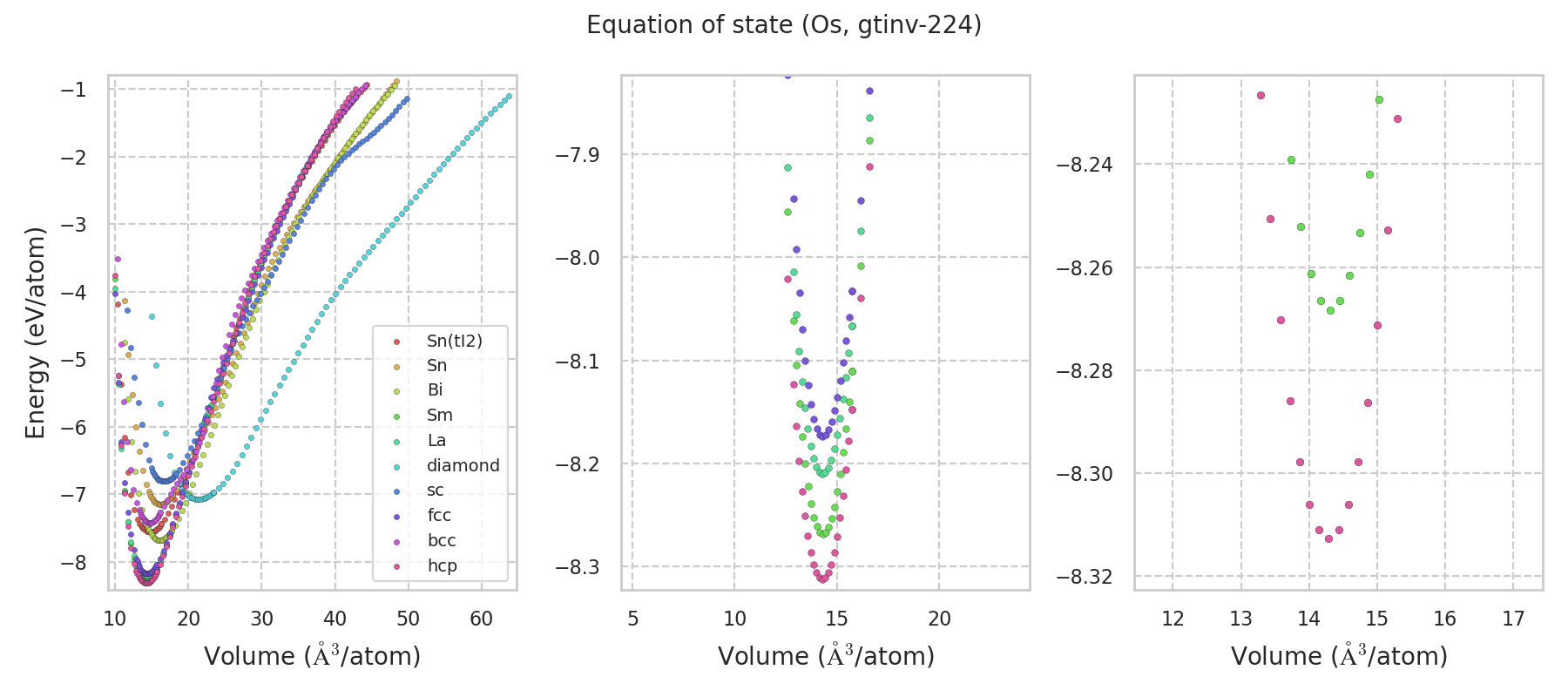

Equation of state

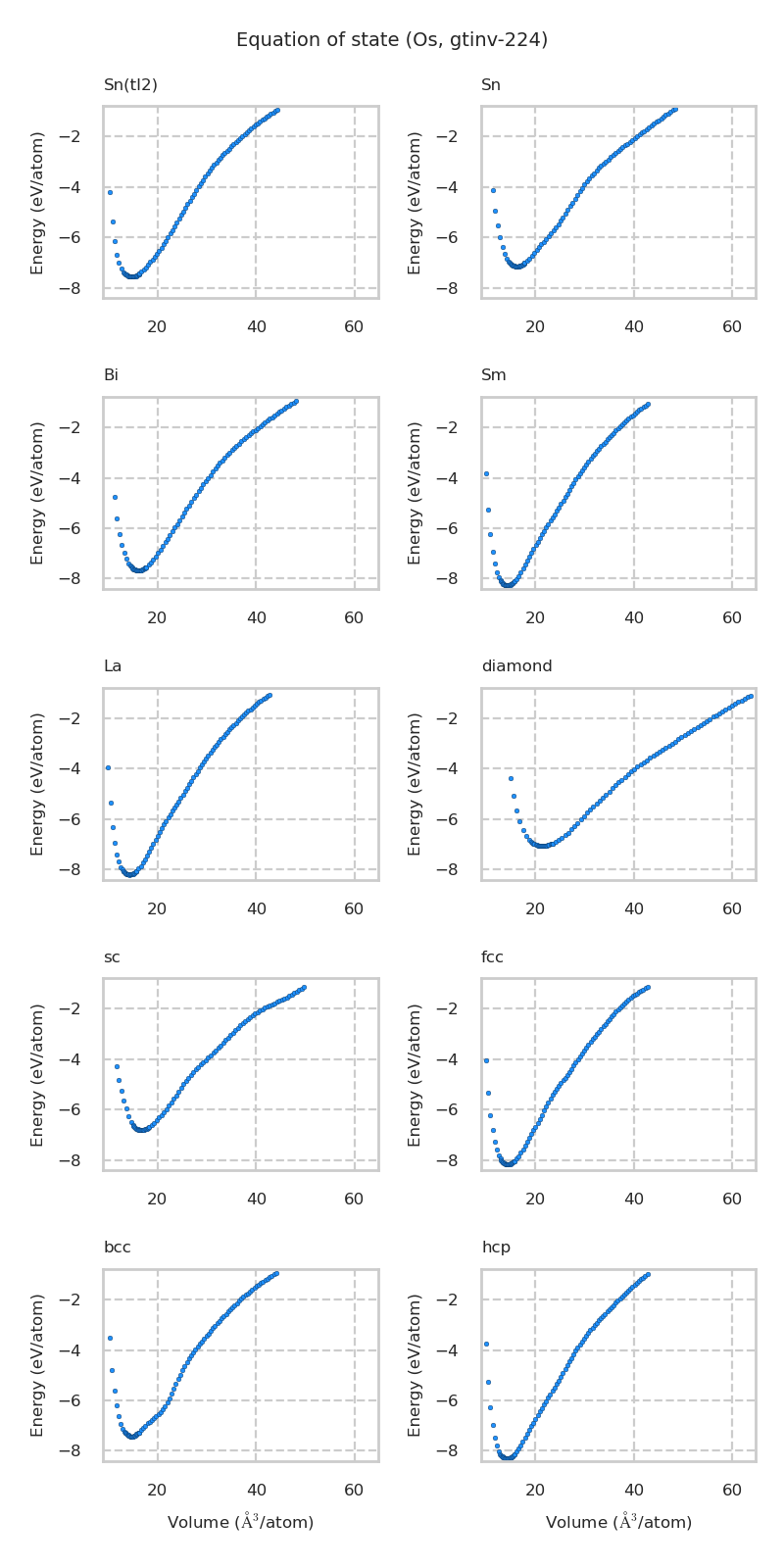

Equation of state for each structure

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

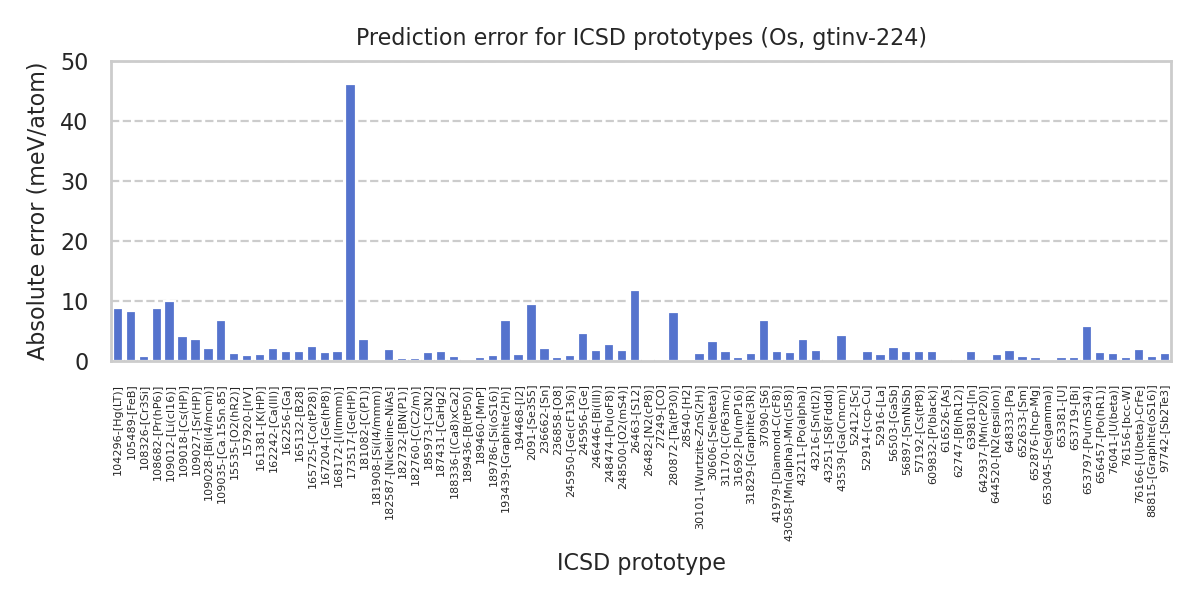

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-105489-[FeB]	-8.3125	-8.32085
icsd-189460-[MnP]	-8.31203	-8.31264
icsd-31692-[Pu(mP16)]	-8.31202	-8.31262
icsd-653381-[U]	-8.31202	-8.31261
icsd-236858-[O8]	-8.31202	-8.31262
icsd-652876-[hcp-Mg]	-8.31201	-8.3126
icsd-652633-[Sm]	-8.26782	-8.26704
icsd-161381-[K(HP)]	-8.21004	-8.21114
icsd-52916-[La]	-8.21003	-8.21114
icsd-104296-[Hg(LT)]	-8.17355	-8.18231
icsd-108682-[Pr(hP6)]	-8.17353	-8.1823
icsd-157920-[IrV]	-8.17347	-8.1744
icsd-653045-[Se(gamma)]	-8.17345	-8.17347
icsd-57192-[Cs(tP8)]	-8.17344	-8.17499
icsd-168172-[I(Immm)]	-8.17343	-8.17499
icsd-189786-[Si(oS16)]	-8.17343	-8.17437
icsd-194468-[I2]	-8.17343	-8.17444
icsd-52914-[ccp-Cu]	-8.17343	-8.17506
icsd-248500-[O2(mS4)]	-8.17342	-8.17519
icsd-639810-[In]	-8.17341	-8.17498
icsd-109012-[Li(cI16)]	-8.12576	-8.1358
icsd-30606-[Se(beta)]	-8.10451	-8.10778
icsd-642937-[Mn(cP20)]	-8.01004	-8.01024
icsd-43058-[Mn(alpha)-Mn(cI58)]	-7.98058	-7.98194
icsd-56897-[SmNiSb]	-7.96633	-7.96476
icsd-187431-[CaHg2]	-7.96632	-7.96476
icsd-43539-[Ga(Cmcm)]	-7.9562	-7.9519
icsd-280872-[Ta(tP30)]	-7.92689	-7.93505
icsd-653797-[Pu(mS34)]	-7.92385	-7.92957
icsd-76041-[U(beta)]	-7.89045	-7.89166
icsd-248474-[Pu(oF8)]	-7.88053	-7.87776
icsd-76166-[U(beta)-CrFe]	-7.84294	-7.84105
icsd-27249-[CO]	-7.82741	-7.8272
icsd-26482-[N2(cP8)]	-7.8274	-7.8272
icsd-182760-[C(C2/m)]	-7.82655	-7.82609
icsd-609832-[P(black)]	-7.81311	-7.81155
icsd-37090-[S6]	-7.81305	-7.80632
icsd-28540-[H2]	-7.81305	-7.81297
icsd-165725-[Co(tP28)]	-7.81116	-7.81365
icsd-2091-[Se3S5]	-7.8004	-7.80982
icsd-43251-[S8(Fddd)]	-7.72285	-7.72275
icsd-173517-[Ge(HP)]	-7.71892	-7.6727
icsd-165132-[B28]	-7.69828	-7.69671
icsd-108326-[Cr3Si]	-7.69638	-7.69567
icsd-189436-[B(tP50)]	-7.68146	-7.68168
icsd-653719-[Bi]	-7.67283	-7.67343
icsd-644520-[N2(epsilon)]	-7.64977	-7.64869
icsd-188336-[(Ca8)xCa2]	-7.63079	-7.63003
icsd-52412-[Sc]	-7.55526	-7.55551
icsd-246446-[Bi(III)]	-7.55158	-7.54977
icsd-648333-[Pa]	-7.55155	-7.54977
icsd-43216-[Sn(tI2)]	-7.55152	-7.54976
icsd-31170-[C(P63mc)]	-7.55148	-7.54992
icsd-162256-[Ga]	-7.55148	-7.54993
icsd-26463-[S12]	-7.53463	-7.54642
icsd-76156-[bcc-W]	-7.42742	-7.42683
icsd-15535-[O2(hR2)]	-7.42742	-7.42864
icsd-656457-[Po(hR1)]	-7.42741	-7.42602
icsd-109018-[Cs(HP)]	-7.41497	-7.41904
icsd-88815-[Graphite(oS16)]	-7.26583	-7.26509
icsd-62747-[B(hR12)]	-7.24586	-7.24555
icsd-182587-[Nickeline-NiAs]	-7.19621	-7.19428
icsd-109035-[Ca.15Sn.85]	-7.18861	-7.18183
icsd-193439-[Graphite(2H)]	-7.18853	-7.18168
icsd-245956-[Ge]	-7.14137	-7.13678
icsd-56503-[GaSb]	-7.14002	-7.13772
icsd-236662-[Sn]	-7.13976	-7.13764
icsd-41979-[Diamond-C(cF8)]	-7.07311	-7.0747
icsd-31829-[Graphite(3R)]	-7.07311	-7.07444
icsd-245950-[Ge(cF136)]	-7.06793	-7.06702
icsd-30101-[Wurtzite-ZnS(2H)]	-7.05529	-7.05649
icsd-167204-[Ge(hP8)]	-7.05524	-7.05381
icsd-182732-[BN(P1)]	-7.05439	-7.05489
icsd-181908-[Si(I4/mmm)]	-6.95805	-6.95825
icsd-109028-[Bi(I4/mcm)]	-6.8296	-6.82756
icsd-616526-[As]	-6.80515	-6.80535
icsd-162242-[Ca(III)]	-6.80514	-6.80309
icsd-109027-[Sr(HP)]	-6.80512	-6.8015
icsd-43211-[Po(alpha)]	-6.80512	-6.8015
icsd-181082-[C(P1)]	-6.80512	-6.8015
icsd-97742-[Sb2Te3]	-6.80295	-6.80165
icsd-185973-[C3N2]	-6.61403	-6.61261

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.29	2.758	2.758	4.339	90.0	90.0	120.0
DFT	14.209	2.75	2.75	4.339	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
700.0	146.1	215.3	0.0	0.0	0.0
146.1	700.0	215.3	0.0	0.0	0.0
215.3	215.3	753.0	0.0	0.0	0.0
0.0	0.0	0.0	245.3	0.0	0.0
0.0	0.0	0.0	0.0	245.3	0.0
0.0	0.0	0.0	0.0	0.0	276.9

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.309	2.748	2.748	19.698	90.0	90.0	120.0
DFT	14.241	2.745	2.745	19.645	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
737.4	165.9	207.2	2.1	0.0	0.0
165.9	737.4	207.2	-2.1	0.0	0.0
207.2	207.2	811.1	0.0	0.0	0.0
2.1	-2.1	0.0	252.1	0.0	0.0
0.0	0.0	0.0	0.0	252.1	2.1
0.0	0.0	0.0	0.0	2.1	285.8

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.292	2.739	2.739	8.8	90.0	90.0	120.0
DFT	14.255	2.736	2.736	8.798	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
626.0	175.2	196.0	0.0	0.0	0.0
175.2	626.0	196.0	0.0	0.0	0.0
196.0	196.0	846.2	0.0	0.0	0.0
0.0	0.0	0.0	203.8	0.0	0.0
0.0	0.0	0.0	0.0	203.8	0.0
0.0	0.0	0.0	0.0	0.0	225.4

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.838	3.285	3.285	2.749	90.0	90.0	90.0
DFT	14.767	3.284	3.284	2.738	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
-217.8	590.9	169.0	0.0	0.0	0.0
590.9	-217.8	169.0	0.0	0.0	0.0
169.0	169.0	630.6	0.0	0.0	0.0
0.0	0.0	0.0	156.2	0.0	0.0
0.0	0.0	0.0	0.0	156.2	0.0
0.0	0.0	0.0	0.0	0.0	165.4

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.196	4.76	4.76	2.859	90.0	90.0	90.0
DFT	16.104	4.831	4.831	2.76	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
168.4	598.1	246.9	0.0	0.0	0.0
598.1	168.4	246.9	0.0	0.0	0.0
246.9	246.9	315.8	0.0	0.0	0.0
0.0	0.0	0.0	-66.0	0.0	0.0
0.0	0.0	0.0	0.0	-66.0	0.0
0.0	0.0	0.0	0.0	0.0	-26.3

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.741	3.089	3.089	3.089	90.0	90.0	90.0
DFT	14.708	3.087	3.087	3.087	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
154.4	541.7	541.7	0.0	0.0	0.0
541.7	154.4	541.7	0.0	0.0	0.0
541.7	541.7	154.4	0.0	0.0	0.0
0.0	0.0	0.0	291.9	0.0	0.0
0.0	0.0	0.0	0.0	291.9	0.0
0.0	0.0	0.0	0.0	0.0	291.9

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.306	3.854	3.854	3.854	90.0	90.0	90.0
DFT	14.262	3.85	3.85	3.85	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
569.4	289.4	289.4	0.0	0.0	0.0
289.4	569.4	289.4	0.0	0.0	0.0
289.4	289.4	569.4	0.0	0.0	0.0
0.0	0.0	0.0	310.0	0.0	0.0
0.0	0.0	0.0	0.0	310.0	0.0
0.0	0.0	0.0	0.0	0.0	310.0

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.318	5.546	5.546	5.546	90.0	90.0	90.0
DFT	21.236	5.538	5.538	5.538	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
201.8	185.8	185.8	0.0	0.0	0.0
185.8	201.8	185.8	0.0	0.0	0.0
185.8	185.8	201.8	0.0	0.0	0.0
0.0	0.0	0.0	4.1	0.0	0.0
0.0	0.0	0.0	0.0	4.1	0.0
0.0	0.0	0.0	0.0	0.0	4.1

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.648	2.553	2.553	2.553	90.0	90.0	90.0
DFT	16.618	2.552	2.552	2.552	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
226.9	206.2	206.2	0.0	0.0	0.0
206.2	226.9	206.2	0.0	0.0	0.0
206.2	206.2	226.9	0.0	0.0	0.0
0.0	0.0	0.0	-6.0	0.0	0.0
0.0	0.0	0.0	0.0	-6.0	0.0
0.0	0.0	0.0	0.0	0.0	-6.0

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.092	4.444	5.363	2.701	90.0	90.0	90.0
DFT	16.296	4.312	5.599	2.7	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
592.3	247.8	183.7	0.0	0.0	0.0
247.8	199.8	106.4	0.0	0.0	0.0
183.7	106.4	713.9	0.0	0.0	0.0
0.0	0.0	0.0	48.9	0.0	0.0
0.0	0.0	0.0	0.0	189.9	0.0
0.0	0.0	0.0	0.0	0.0	-21.3
