gtinv-339 (P-2021-09-09-all-icsd)

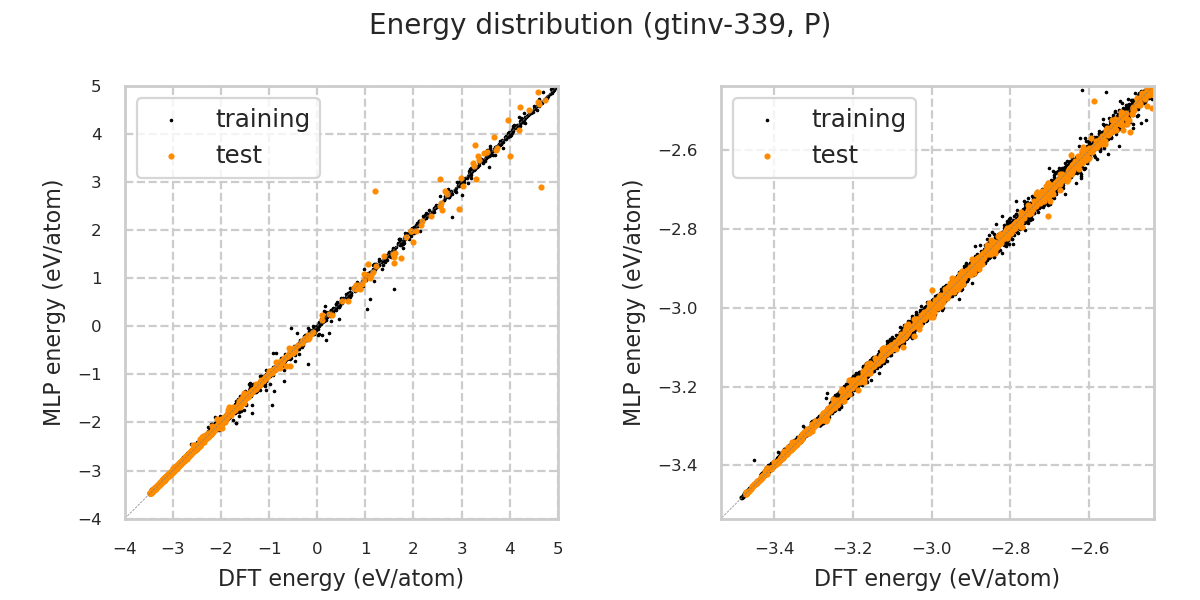

Energy distribution

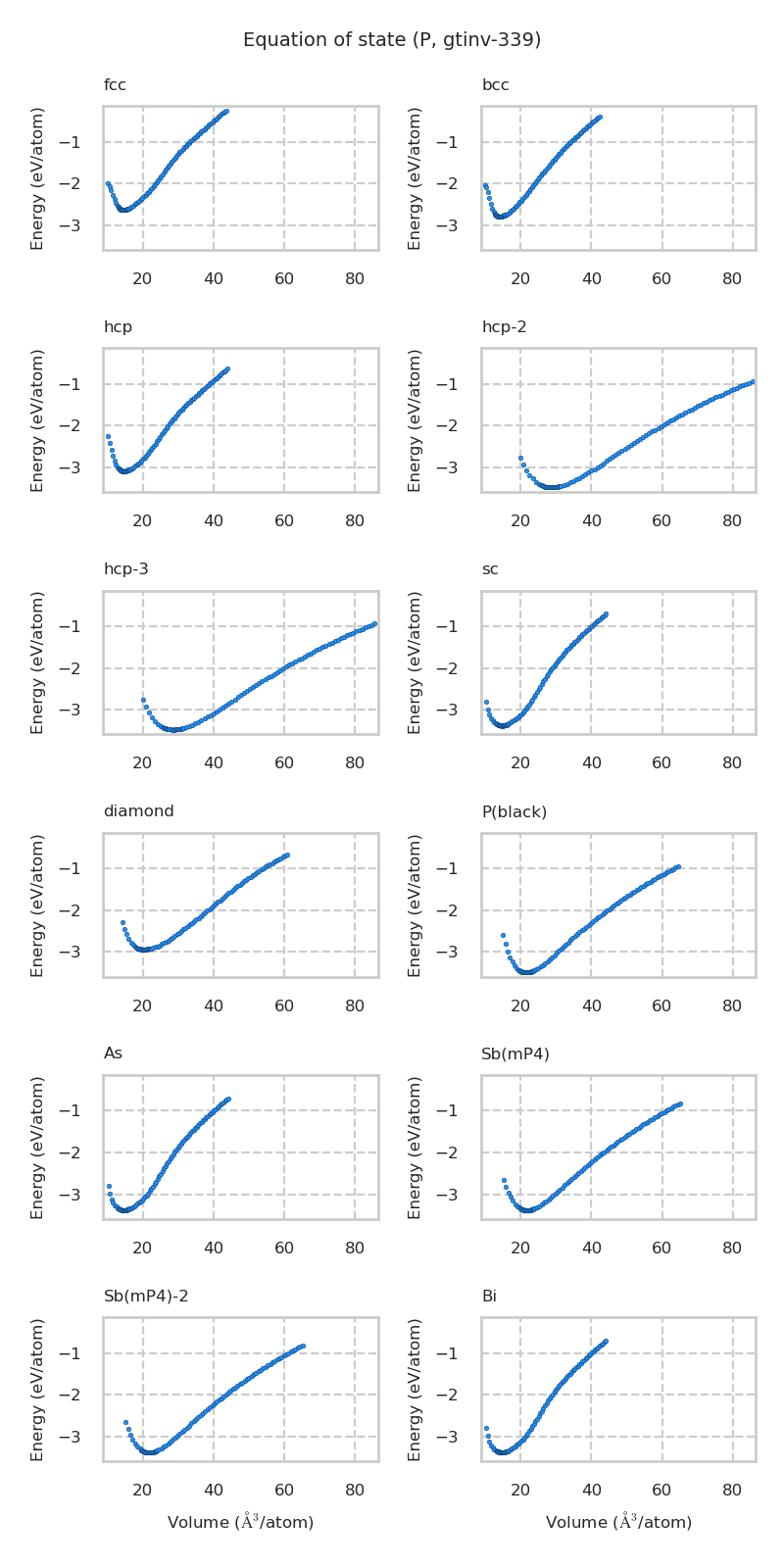

Equation of state

Equation of state for each structure

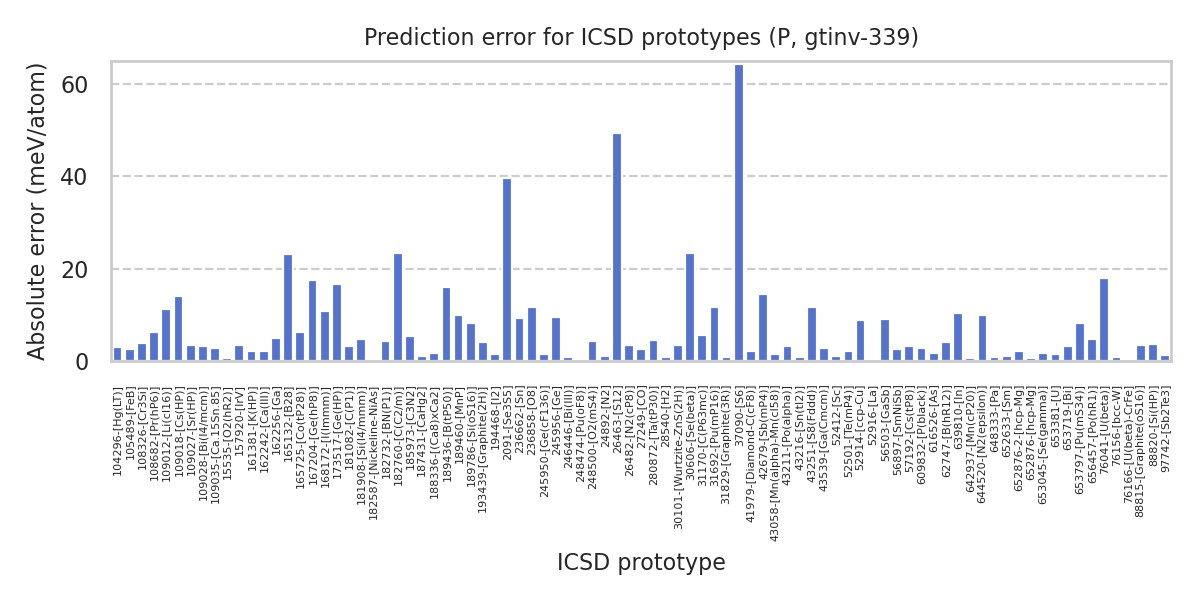

Prototype structure energy

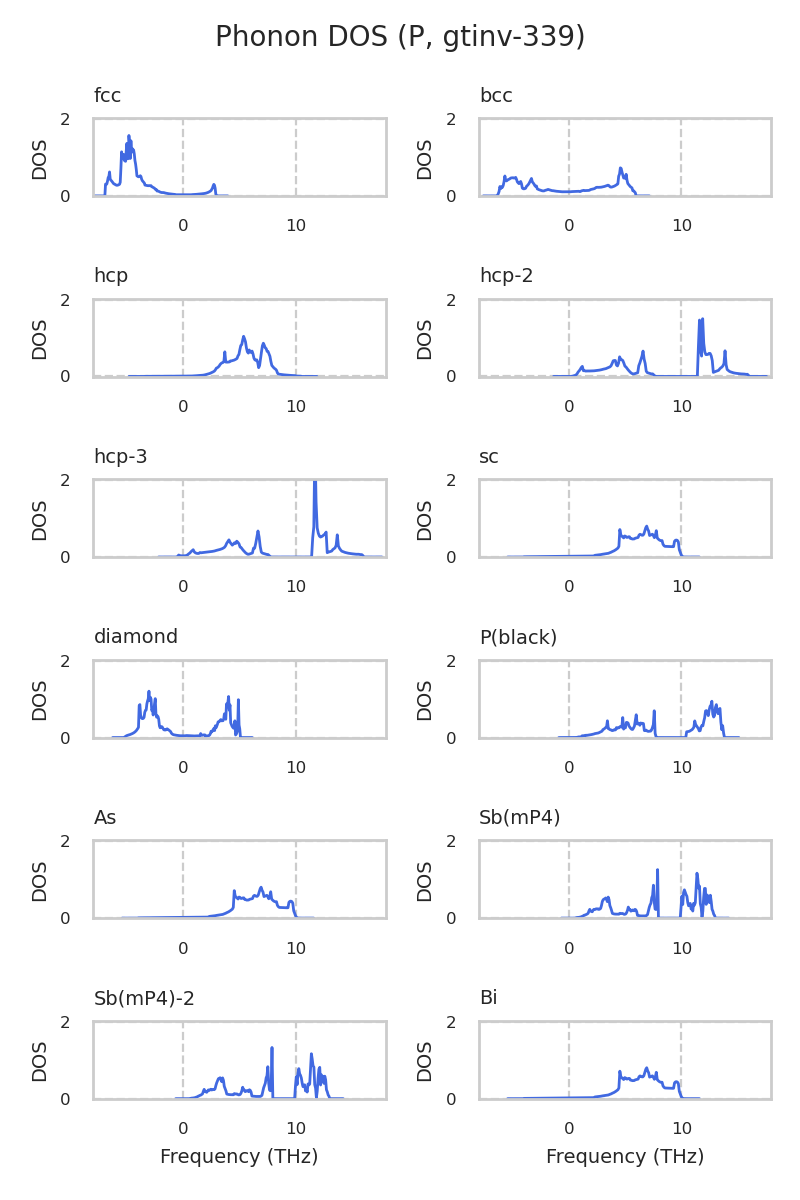

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-105489-[FeB]	-3.48277	-3.4853
icsd-609832-[P(black)]	-3.48034	-3.48297
icsd-24892-[N2]	-3.47324	-3.47222
icsd-15535-[O2(hR2)]	-3.47298	-3.47234
icsd-108682-[Pr(hP6)]	-3.46974	-3.47595
icsd-248500-[O2(mS4)]	-3.46865	-3.47297
icsd-652876-2-[hcp-Mg]	-3.46202	-3.46403
icsd-27249-[CO]	-3.44542	-3.44797
icsd-644520-[N2(epsilon)]	-3.42327	-3.43313
icsd-31692-[Pu(mP16)]	-3.41175	-3.42345
icsd-182732-[BN(P1)]	-3.39763	-3.39338
icsd-193439-[Graphite(2H)]	-3.39727	-3.39329
icsd-37090-[S6]	-3.3856	-3.4501
icsd-104296-[Hg(LT)]	-3.38281	-3.38565
icsd-26482-[N2(cP8)]	-3.38267	-3.3792
icsd-109027-[Sr(HP)]	-3.38264	-3.37919
icsd-653045-[Se(gamma)]	-3.38259	-3.38087
icsd-88815-[Graphite(oS16)]	-3.38246	-3.37913
icsd-52501-[Te(mP4)]	-3.3824	-3.38457
icsd-162242-[Ca(III)]	-3.3824	-3.38457
icsd-653719-[Bi]	-3.38239	-3.37914
icsd-43211-[Po(alpha)]	-3.38237	-3.37912
icsd-616526-[As]	-3.38236	-3.38082
icsd-57192-[Cs(tP8)]	-3.38234	-3.3791
icsd-181082-[C(P1)]	-3.38233	-3.3791
icsd-109028-[Bi(I4/mcm)]	-3.38233	-3.37911
icsd-97742-[Sb2Te3]	-3.38232	-3.38123
icsd-189460-[MnP]	-3.37967	-3.38961
icsd-30606-[Se(beta)]	-3.36599	-3.38946
icsd-42679-[Sb(mP4)]	-3.35937	-3.37389
icsd-43539-[Ga(Cmcm)]	-3.29976	-3.29705
icsd-236858-[O8]	-3.29686	-3.28528
icsd-28540-[H2]	-3.27948	-3.28018
icsd-280872-[Ta(tP30)]	-3.27393	-3.27831
icsd-62747-[B(hR12)]	-3.25517	-3.2592
icsd-43251-[S8(Fddd)]	-3.25494	-3.26659
icsd-31170-[C(P63mc)]	-3.2433	-3.24882
icsd-2091-[Se3S5]	-3.228	-3.26773
icsd-182760-[C(C2/m)]	-3.2279	-3.25136
icsd-26463-[S12]	-3.21735	-3.26675
icsd-52412-[Sc]	-3.20892	-3.20796
icsd-653797-[Pu(mS34)]	-3.20259	-3.21075
icsd-188336-[(Ca8)xCa2]	-3.19651	-3.19823
icsd-31829-[Graphite(3R)]	-3.18747	-3.18681
icsd-189436-[B(tP50)]	-3.18635	-3.17027
icsd-76041-[U(beta)]	-3.18587	-3.20373
icsd-165132-[B28]	-3.18309	-3.2062
icsd-52916-[La]	-3.17672	-3.17642
icsd-182587-[Nickeline-NiAs]	-3.17671	-3.17644
icsd-652633-[Sm]	-3.17213	-3.17122
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.14342	-3.14194
icsd-173517-[Ge(HP)]	-3.12322	-3.13987
icsd-165725-[Co(tP28)]	-3.10311	-3.10941
icsd-194468-[I2]	-3.08841	-3.08708
icsd-652876-[hcp-Mg]	-3.08664	-3.08611
icsd-248474-[Pu(oF8)]	-3.08329	-3.0836
icsd-162256-[Ga]	-3.07871	-3.08352
icsd-56503-[GaSb]	-3.07446	-3.08345
icsd-236662-[Sn]	-3.07431	-3.08345
icsd-109018-[Cs(HP)]	-3.05727	-3.07123
icsd-88820-[Si(HP)]	-3.05591	-3.05944
icsd-653381-[U]	-3.03991	-3.0413
icsd-109035-[Ca.15Sn.85]	-3.03406	-3.03684
icsd-245956-[Ge]	-3.02007	-3.01052
icsd-185973-[C3N2]	-3.00406	-2.99883
icsd-56897-[SmNiSb]	-2.99762	-2.99518
icsd-76166-[U(beta)-CrFe]	-2.99585	-2.99612
icsd-30101-[Wurtzite-ZnS(2H)]	-2.98314	-2.98656
icsd-642937-[Mn(cP20)]	-2.97989	-2.98037
icsd-639810-[In]	-2.97939	-2.96917
icsd-168172-[I(Immm)]	-2.96722	-2.97797
icsd-167204-[Ge(hP8)]	-2.95651	-2.93905
icsd-181908-[Si(I4/mmm)]	-2.93818	-2.93344
icsd-41979-[Diamond-C(cF8)]	-2.93575	-2.93363
icsd-189786-[Si(oS16)]	-2.92452	-2.93272
icsd-245950-[Ge(cF136)]	-2.91487	-2.91354
icsd-157920-[IrV]	-2.86576	-2.86248
icsd-161381-[K(HP)]	-2.79345	-2.79542
icsd-656457-[Po(hR1)]	-2.79078	-2.79543
icsd-76156-[bcc-W]	-2.7907	-2.78984
icsd-43216-[Sn(tI2)]	-2.79066	-2.78992
icsd-648333-[Pa]	-2.79065	-2.78992
icsd-246446-[Bi(III)]	-2.79065	-2.78993
icsd-187431-[CaHg2]	-2.78937	-2.79045
icsd-109012-[Li(cI16)]	-2.71039	-2.72161
icsd-52914-[ccp-Cu]	-2.63303	-2.6242
icsd-108326-[Cr3Si]	-2.60333	-2.6072

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.66	3.255	3.255	3.195	90.0	90.0	120.0
DFT	15.069	3.292	3.292	3.212	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
140.0	78.2	54.7	0.0	0.0	0.0
78.2	140.0	54.7	0.0	0.0	0.0
54.7	54.7	256.5	0.0	0.0	0.0
0.0	0.0	0.0	49.8	0.0	0.0
0.0	0.0	0.0	0.0	49.8	0.0
0.0	0.0	0.0	0.0	0.0	30.9

Lattice parameters (P(black))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.556	3.28	11.511	4.568	90.0	90.0	90.0
DFT	20.778	3.308	11.087	4.532	90.0	90.0	90.0

Elastic constants (P(black))

1	2	3	4	5	6
133.9	26.2	21.3	0.0	0.0	0.0
26.2	96.4	16.3	0.0	0.0	0.0
21.3	16.3	77.4	0.0	0.0	0.0
0.0	0.0	0.0	9.1	0.0	0.0
0.0	0.0	0.0	0.0	44.4	0.0
0.0	0.0	0.0	0.0	0.0	6.4

Lattice parameters (3)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.569	3.277	3.277	18.429	90.0	90.0	120.0
DFT	30.841	3.277	3.277	19.898	90.0	90.0	120.0

Elastic constants (3)

1	2	3	4	5	6
96.5	29.6	5.4	0.3	0.0	0.0
29.6	96.5	5.4	-0.3	0.0	0.0
5.4	5.4	17.5	0.0	0.0	0.0
0.3	-0.3	0.0	0.9	0.0	0.0
0.0	0.0	0.0	0.0	0.9	0.3
0.0	0.0	0.0	0.0	0.3	33.5

Lattice parameters (As)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.76	2.453	2.453	2.453	90.0	90.0	90.0
DFT	14.549	2.441	2.441	2.441	90.0	90.0	90.0

Elastic constants (As)

1	2	3	4	5	6
286.5	-0.6	-0.6	0.0	0.0	0.0
-0.6	286.5	-0.6	0.0	0.0	0.0
-0.6	-0.6	286.5	0.0	0.0	0.0
0.0	0.0	0.0	60.4	0.0	0.0
0.0	0.0	0.0	0.0	60.4	0.0
0.0	0.0	0.0	0.0	0.0	60.4

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.128	3.046	3.046	3.046	90.0	90.0	90.0
DFT	14.164	3.048	3.048	3.048	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
157.7	75.3	75.3	0.0	0.0	0.0
75.3	157.7	75.3	0.0	0.0	0.0
75.3	75.3	157.7	0.0	0.0	0.0
0.0	0.0	0.0	-12.7	0.0	0.0
0.0	0.0	0.0	0.0	-12.7	0.0
0.0	0.0	0.0	0.0	0.0	-12.7

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.571	3.877	3.877	3.877	90.0	90.0	90.0
DFT	14.444	3.866	3.866	3.866	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
27.5	141.2	141.2	0.0	0.0	0.0
141.2	27.5	141.2	0.0	0.0	0.0
141.2	141.2	27.5	0.0	0.0	0.0
0.0	0.0	0.0	-31.0	0.0	0.0
0.0	0.0	0.0	0.0	-31.0	0.0
0.0	0.0	0.0	0.0	0.0	-31.0

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.332	5.459	5.459	5.459	90.0	90.0	90.0
DFT	20.594	5.482	5.482	5.482	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
20.3	50.9	50.9	0.0	0.0	0.0
50.9	20.3	50.9	0.0	0.0	0.0
50.9	50.9	20.3	0.0	0.0	0.0
0.0	0.0	0.0	-28.2	0.0	0.0
0.0	0.0	0.0	0.0	-28.2	0.0
0.0	0.0	0.0	0.0	0.0	-28.2

Lattice parameters (Sb(mP4))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.772	4.266	3.443	5.955	90.0	95.22	90.0
DFT	19.597	4.183	3.439	5.545	90.0	100.7	90.0

Elastic constants (Sb(mP4))

1	2	3	4	5	6
55.5	32.3	27.9	0.0	-1.1	0.0
32.3	141.4	16.9	0.0	1.6	0.0
27.9	16.9	66.7	0.0	-9.9	0.0
0.0	0.0	0.0	16.2	0.0	1.3
-1.1	1.6	-9.9	0.0	14.3	0.0
0.0	0.0	0.0	1.3	0.0	32.6

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.76	2.453	2.453	2.453	90.0	90.0	90.0
DFT	14.55	2.441	2.441	2.441	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
286.5	-0.6	-0.6	0.0	0.0	0.0
-0.6	286.5	-0.6	0.0	0.0	0.0
-0.6	-0.6	286.5	0.0	0.0	0.0
0.0	0.0	0.0	60.4	0.0	0.0
0.0	0.0	0.0	0.0	60.4	0.0
0.0	0.0	0.0	0.0	0.0	60.4

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.76	2.453	2.453	2.453	90.0	90.0	90.0
DFT	14.553	2.441	2.441	2.441	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
286.5	-0.6	-0.6	0.0	0.0	0.0
-0.6	286.5	-0.6	0.0	0.0	0.0
-0.6	-0.6	286.5	0.0	0.0	0.0
0.0	0.0	0.0	60.4	0.0	0.0
0.0	0.0	0.0	0.0	60.4	0.0
0.0	0.0	0.0	0.0	0.0	60.4

Lattice parameters (2)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.569	3.277	3.277	18.429	90.0	90.0	120.0
DFT	23.478	3.285	3.285	15.076	90.0	90.0	120.0

Elastic constants (2)

1	2	3	4	5	6
96.5	29.6	5.4	0.3	0.0	0.0
29.6	96.5	5.4	-0.3	0.0	0.0
5.4	5.4	17.5	0.0	0.0	0.0
0.3	-0.3	0.0	0.9	0.0	0.0
0.0	0.0	0.0	0.0	0.9	0.3
0.0	0.0	0.0	0.0	0.3	33.5

Lattice parameters (2)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.772	4.266	3.443	5.955	90.0	95.22	90.0
DFT	23.104	4.114	3.435	6.544	90.0	91.96	90.0

Elastic constants (2)

1	2	3	4	5	6
55.5	32.3	27.9	0.0	-1.1	0.0
32.3	141.4	16.9	0.0	1.6	0.0
27.9	16.9	66.7	0.0	-9.9	0.0
0.0	0.0	0.0	16.2	0.0	1.3
-1.1	1.6	-9.9	0.0	14.3	0.0
0.0	0.0	0.0	1.3	0.0	32.6
