gtinv-256 (Pd-2021-08-04-all-icsd)

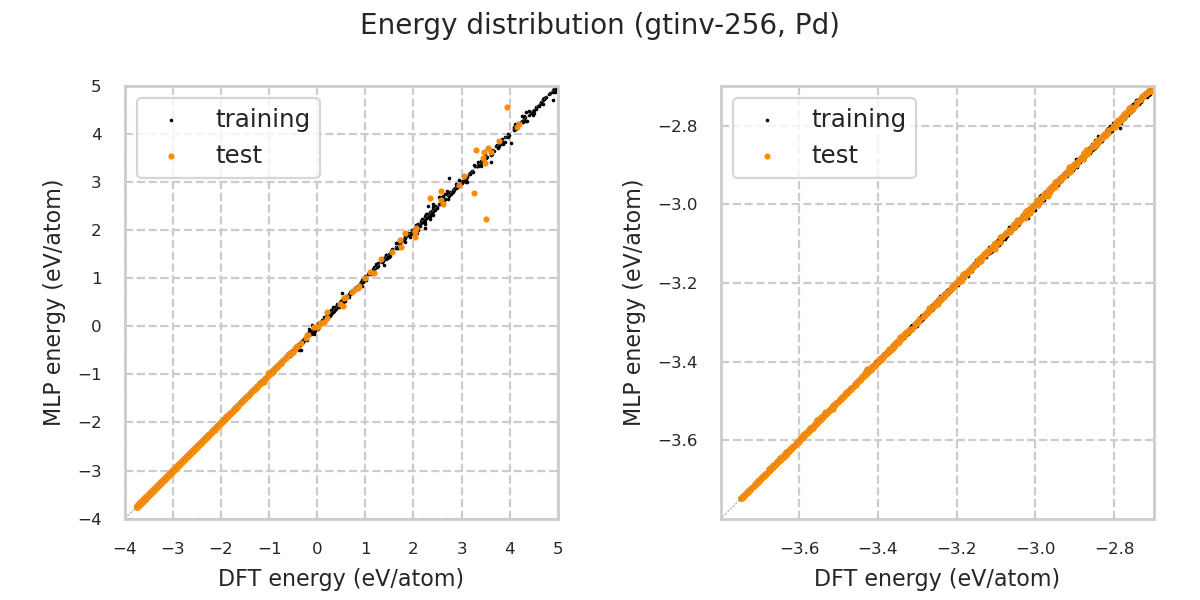

Energy distribution

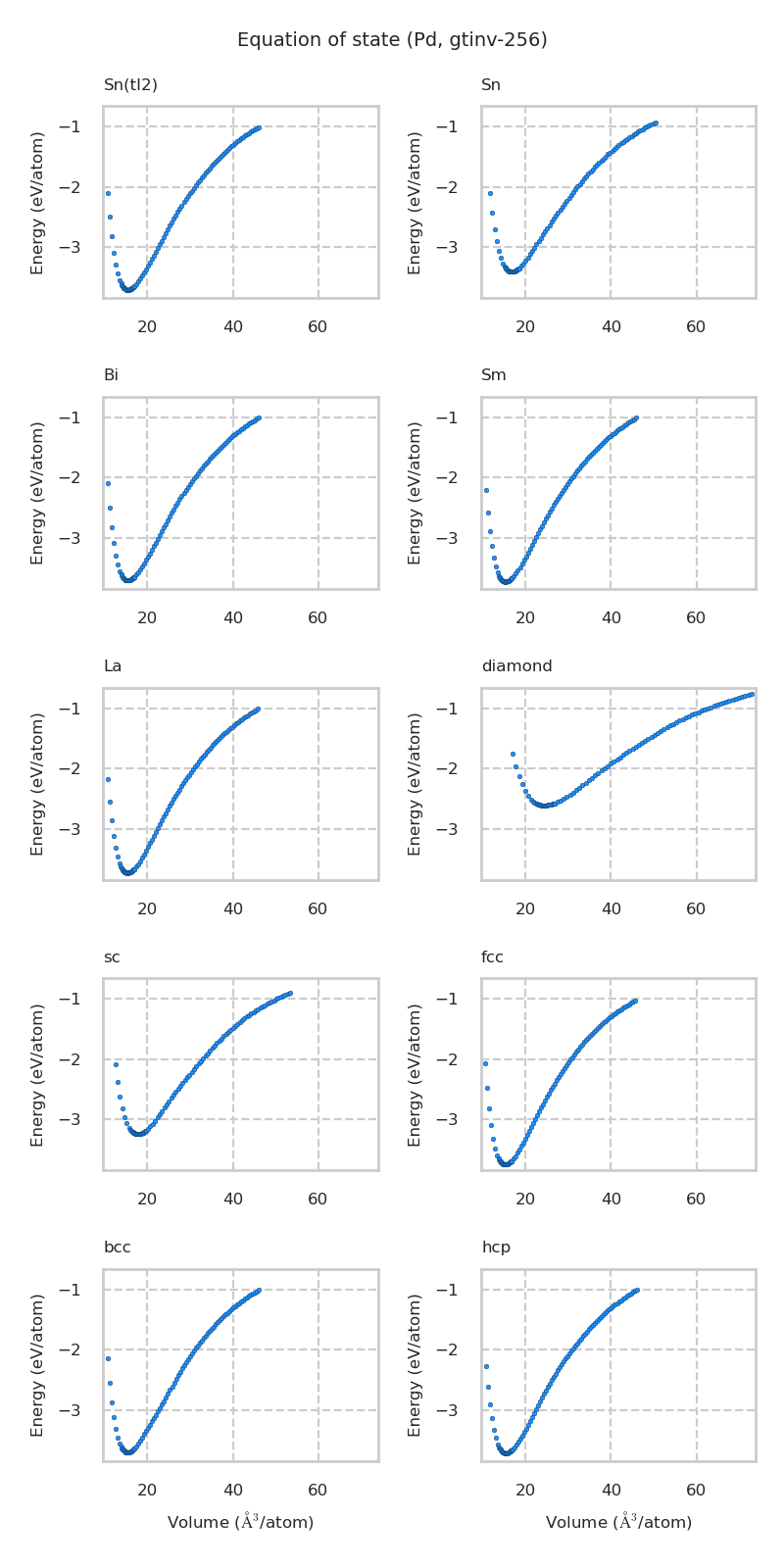

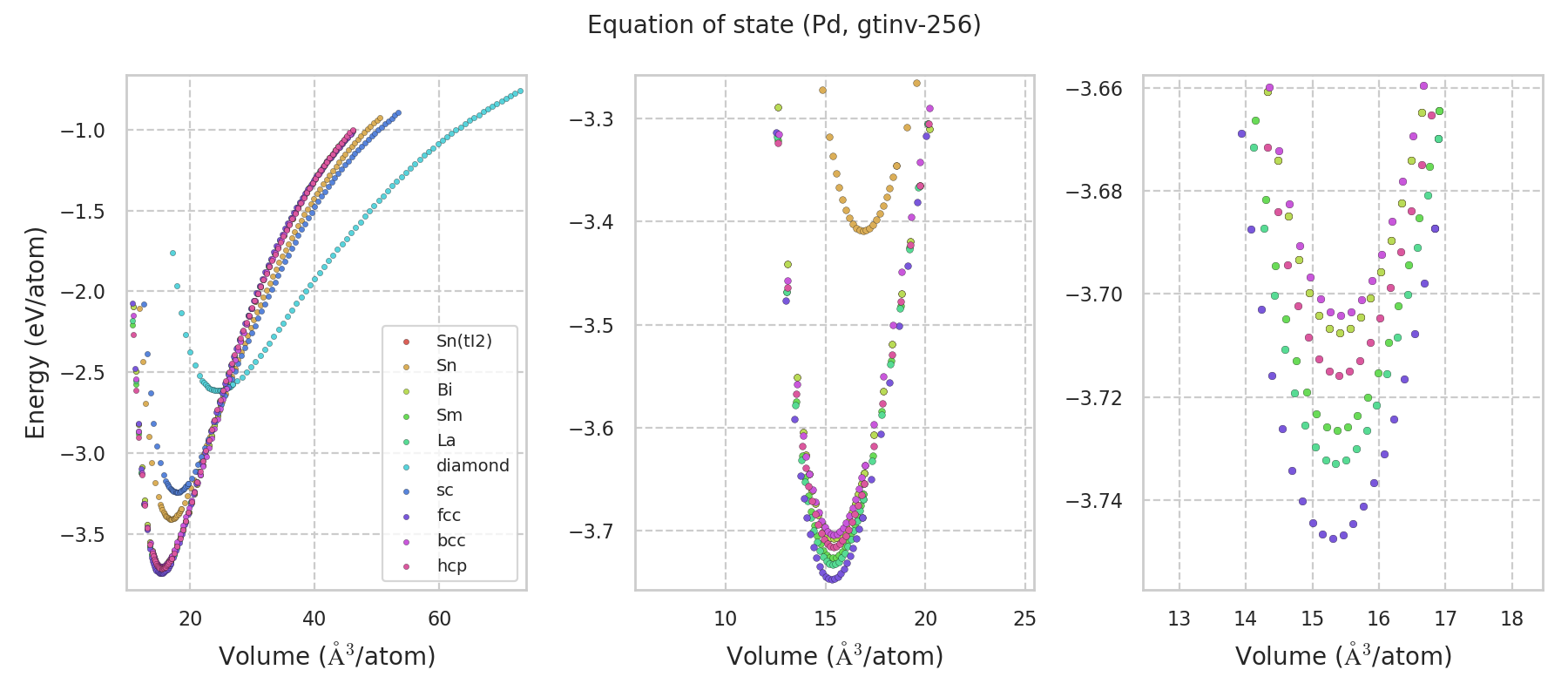

Equation of state

Equation of state for each structure

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

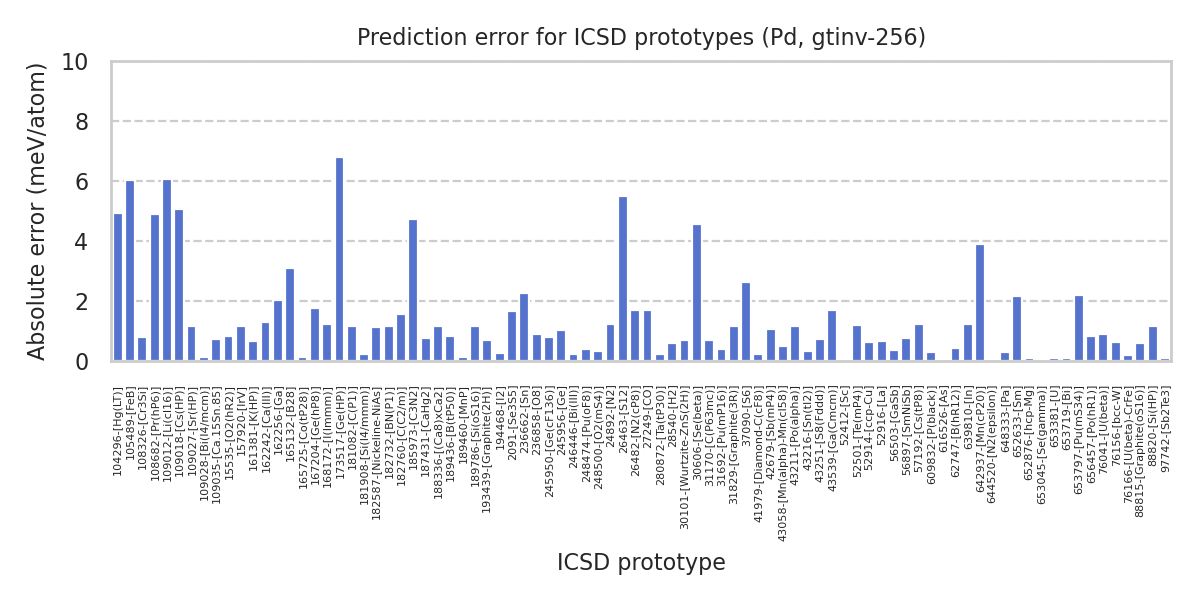

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-639810-[In]	-3.74742	-3.74864
icsd-168172-[I(Immm)]	-3.74742	-3.74864
icsd-31829-[Graphite(3R)]	-3.74742	-3.74858
icsd-52914-[ccp-Cu]	-3.74741	-3.74802
icsd-57192-[Cs(tP8)]	-3.74741	-3.74865
icsd-248500-[O2(mS4)]	-3.74741	-3.74773
icsd-236858-[O8]	-3.74741	-3.74829
icsd-97742-[Sb2Te3]	-3.7474	-3.74732
icsd-157920-[IrV]	-3.7474	-3.74854
icsd-189786-[Si(oS16)]	-3.7474	-3.74857
icsd-104296-[Hg(LT)]	-3.74735	-3.74242
icsd-108682-[Pr(hP6)]	-3.74716	-3.74225
icsd-52916-[La]	-3.73292	-3.73359
icsd-161381-[K(HP)]	-3.73292	-3.73359
icsd-31170-[C(P63mc)]	-3.73286	-3.73353
icsd-182760-[C(C2/m)]	-3.73186	-3.73342
icsd-652633-[Sm]	-3.72642	-3.72858
icsd-652876-[hcp-Mg]	-3.71574	-3.71583
icsd-31692-[Pu(mP16)]	-3.71573	-3.71612
icsd-653381-[U]	-3.71572	-3.71581
icsd-189460-[MnP]	-3.71568	-3.7158
icsd-246446-[Bi(III)]	-3.7075	-3.70728
icsd-52412-[Sc]	-3.70747	-3.70747
icsd-105489-[FeB]	-3.70747	-3.70144
icsd-43216-[Sn(tI2)]	-3.70747	-3.70714
icsd-648333-[Pa]	-3.70734	-3.70705
icsd-653719-[Bi]	-3.70727	-3.70734
icsd-644520-[N2(epsilon)]	-3.70421	-3.70419
icsd-194468-[I2]	-3.70421	-3.70445
icsd-656457-[Po(hR1)]	-3.7042	-3.70503
icsd-76156-[bcc-W]	-3.7042	-3.70482
icsd-15535-[O2(hR2)]	-3.70417	-3.70499
icsd-109012-[Li(cI16)]	-3.70409	-3.69801
icsd-248474-[Pu(oF8)]	-3.67886	-3.67926
icsd-30606-[Se(beta)]	-3.67207	-3.67665
icsd-76166-[U(beta)-CrFe]	-3.65268	-3.65251
icsd-280872-[Ta(tP30)]	-3.65263	-3.6524
icsd-642937-[Mn(cP20)]	-3.65246	-3.64857
icsd-76041-[U(beta)]	-3.65225	-3.65314
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.65162	-3.6521
icsd-52501-[Te(mP4)]	-3.64915	-3.64798
icsd-56897-[SmNiSb]	-3.64319	-3.64243
icsd-187431-[CaHg2]	-3.64313	-3.64237
icsd-108326-[Cr3Si]	-3.6272	-3.62642
icsd-653797-[Pu(mS34)]	-3.61724	-3.61943
icsd-27249-[CO]	-3.60313	-3.60143
icsd-26482-[N2(cP8)]	-3.60312	-3.60143
icsd-165725-[Co(tP28)]	-3.59809	-3.59819
icsd-2091-[Se3S5]	-3.57682	-3.57849
icsd-37090-[S6]	-3.55233	-3.55494
icsd-26463-[S12]	-3.55071	-3.55621
icsd-109028-[Bi(I4/mcm)]	-3.53066	-3.53079
icsd-109035-[Ca.15Sn.85]	-3.49702	-3.4963
icsd-56503-[GaSb]	-3.49702	-3.49736
icsd-162242-[Ca(III)]	-3.49701	-3.49574
icsd-43539-[Ga(Cmcm)]	-3.49585	-3.49754
icsd-28540-[H2]	-3.49351	-3.4929
icsd-193439-[Graphite(2H)]	-3.49345	-3.49275
icsd-609832-[P(black)]	-3.4934	-3.49312
icsd-42679-[Sb(mP4)]	-3.47598	-3.47704
icsd-109018-[Cs(HP)]	-3.47158	-3.46652
icsd-189436-[B(tP50)]	-3.45105	-3.45023
icsd-162256-[Ga]	-3.42715	-3.42916
icsd-165132-[B28]	-3.4208	-3.42388
icsd-236662-[Sn]	-3.40857	-3.4063
icsd-43251-[S8(Fddd)]	-3.38722	-3.38794
icsd-188336-[(Ca8)xCa2]	-3.376	-3.37715
icsd-182732-[BN(P1)]	-3.37599	-3.37715
icsd-24892-[N2]	-3.37595	-3.37716
icsd-182587-[Nickeline-NiAs]	-3.30596	-3.30709
icsd-653045-[Se(gamma)]	-3.24299	-3.24303
icsd-616526-[As]	-3.24299	-3.24303
icsd-181082-[C(P1)]	-3.24299	-3.24184
icsd-43211-[Po(alpha)]	-3.24299	-3.24184
icsd-109027-[Sr(HP)]	-3.24299	-3.24184
icsd-62747-[B(hR12)]	-3.21294	-3.21336
icsd-88815-[Graphite(oS16)]	-3.13534	-3.13592
icsd-173517-[Ge(HP)]	-3.124	-3.11718
icsd-185973-[C3N2]	-2.99245	-2.99718
icsd-88820-[Si(HP)]	-2.87665	-2.87551
icsd-245956-[Ge]	-2.87658	-2.87558
icsd-30101-[Wurtzite-ZnS(2H)]	-2.64089	-2.64158
icsd-181908-[Si(I4/mmm)]	-2.63926	-2.63949
icsd-167204-[Ge(hP8)]	-2.62656	-2.62831
icsd-41979-[Diamond-C(cF8)]	-2.61407	-2.61385
icsd-245950-[Ge(cF136)]	-2.56661	-2.56581

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.403	2.772	2.772	4.631	90.0	90.0	120.0
DFT	15.367	2.769	2.769	4.627	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
205.0	153.9	112.7	0.0	0.0	0.0
153.9	205.0	112.7	0.0	0.0	0.0
112.7	112.7	256.2	0.0	0.0	0.0
0.0	0.0	0.0	26.8	0.0	0.0
0.0	0.0	0.0	0.0	26.8	0.0
0.0	0.0	0.0	0.0	0.0	25.6

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.37	2.779	2.779	20.688	90.0	90.0	120.0
DFT	15.339	2.778	2.778	20.656	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
212.5	148.3	116.7	4.0	0.0	0.0
148.3	212.5	116.7	-4.0	0.0	0.0
116.7	116.7	250.3	0.0	0.0	0.0
4.0	-4.0	0.0	30.1	0.0	0.0
0.0	0.0	0.0	0.0	30.1	4.0
0.0	0.0	0.0	0.0	4.0	32.1

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.351	2.782	2.782	9.161	90.0	90.0	120.0
DFT	15.325	2.78	2.78	9.16	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
218.1	148.4	120.3	0.0	0.0	0.0
148.4	218.1	120.3	0.0	0.0	0.0
120.3	120.3	251.0	0.0	0.0	0.0
0.0	0.0	0.0	33.5	0.0	0.0
0.0	0.0	0.0	0.0	33.5	0.0
0.0	0.0	0.0	0.0	0.0	34.9

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.411	3.271	3.271	2.88	90.0	90.0	90.0
DFT	15.413	3.279	3.279	2.866	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
161.1	179.3	159.1	0.0	0.0	0.0
179.3	161.1	159.1	0.0	0.0	0.0
159.1	159.1	189.0	0.0	0.0	0.0
0.0	0.0	0.0	60.0	0.0	0.0
0.0	0.0	0.0	0.0	60.0	0.0
0.0	0.0	0.0	0.0	0.0	103.0

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.875	5.024	5.024	2.674	90.0	90.0	90.0
DFT	16.812	5.002	5.002	2.688	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-987.7	1343.8	78.9	0.0	0.0	0.0
1343.8	-987.7	78.9	0.0	0.0	0.0
78.9	78.9	274.8	0.0	0.0	0.0
0.0	0.0	0.0	-23.8	0.0	0.0
0.0	0.0	0.0	0.0	-23.8	0.0
0.0	0.0	0.0	0.0	0.0	-19.6

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.427	3.136	3.136	3.136	90.0	90.0	90.0
DFT	15.393	3.134	3.134	3.134	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
158.8	170.4	170.4	0.0	0.0	0.0
170.4	158.8	170.4	0.0	0.0	0.0
170.4	170.4	158.8	0.0	0.0	0.0
0.0	0.0	0.0	81.7	0.0	0.0
0.0	0.0	0.0	0.0	81.7	0.0
0.0	0.0	0.0	0.0	0.0	81.7

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.308	3.941	3.941	3.941	90.0	90.0	90.0
DFT	15.291	3.94	3.94	3.94	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
185.6	138.4	138.4	0.0	0.0	0.0
138.4	185.6	138.4	0.0	0.0	0.0
138.4	138.4	185.6	0.0	0.0	0.0
0.0	0.0	0.0	61.6	0.0	0.0
0.0	0.0	0.0	0.0	61.6	0.0
0.0	0.0	0.0	0.0	0.0	61.6

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.38	5.799	5.799	5.799	90.0	90.0	90.0
DFT	24.307	5.793	5.793	5.793	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
36.5	73.7	73.7	0.0	0.0	0.0
73.7	36.5	73.7	0.0	0.0	0.0
73.7	73.7	36.5	0.0	0.0	0.0
0.0	0.0	0.0	-31.5	0.0	0.0
0.0	0.0	0.0	0.0	-31.5	0.0
0.0	0.0	0.0	0.0	0.0	-31.5

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.859	2.614	2.614	2.614	90.0	90.0	90.0
DFT	17.778	2.61	2.61	2.61	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
271.0	26.7	26.7	0.0	0.0	0.0
26.7	271.0	26.7	0.0	0.0	0.0
26.7	26.7	271.0	0.0	0.0	0.0
0.0	0.0	0.0	-14.3	0.0	0.0
0.0	0.0	0.0	0.0	-14.3	0.0
0.0	0.0	0.0	0.0	0.0	-14.3

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.411	3.271	3.271	2.88	90.0	90.0	90.0
DFT	15.426	3.29	3.29	2.851	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
161.1	179.3	159.1	0.0	0.0	0.0
179.3	161.1	159.1	0.0	0.0	0.0
159.1	159.1	189.0	0.0	0.0	0.0
0.0	0.0	0.0	60.0	0.0	0.0
0.0	0.0	0.0	0.0	60.0	0.0
0.0	0.0	0.0	0.0	0.0	103.0
