gtinv-264 (Pt-2021-08-04-all-icsd)

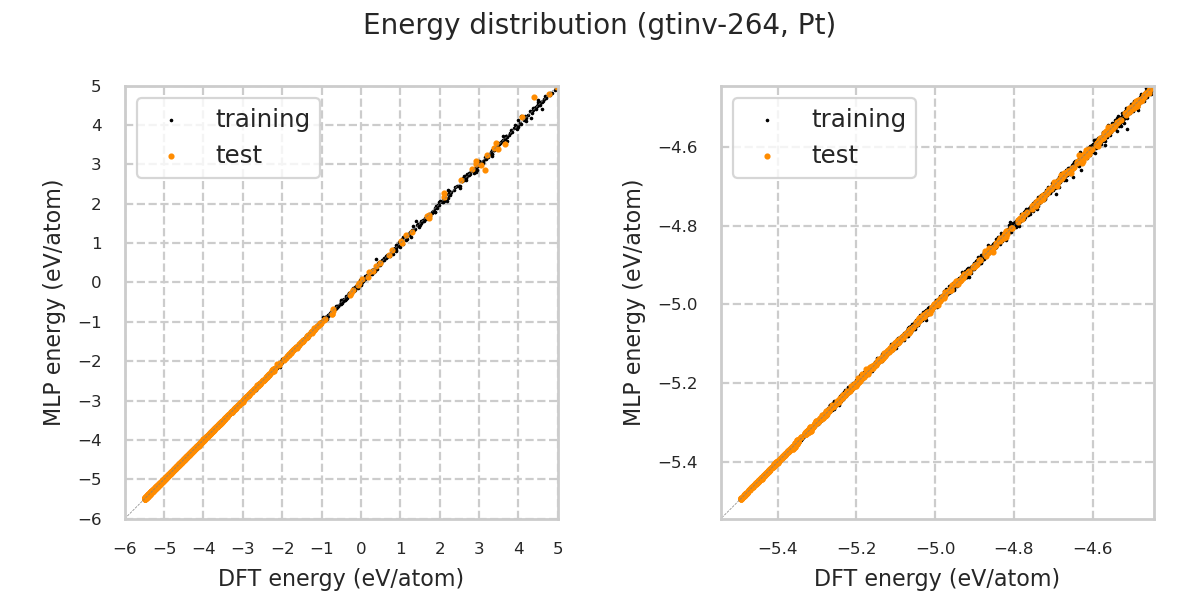

Energy distribution

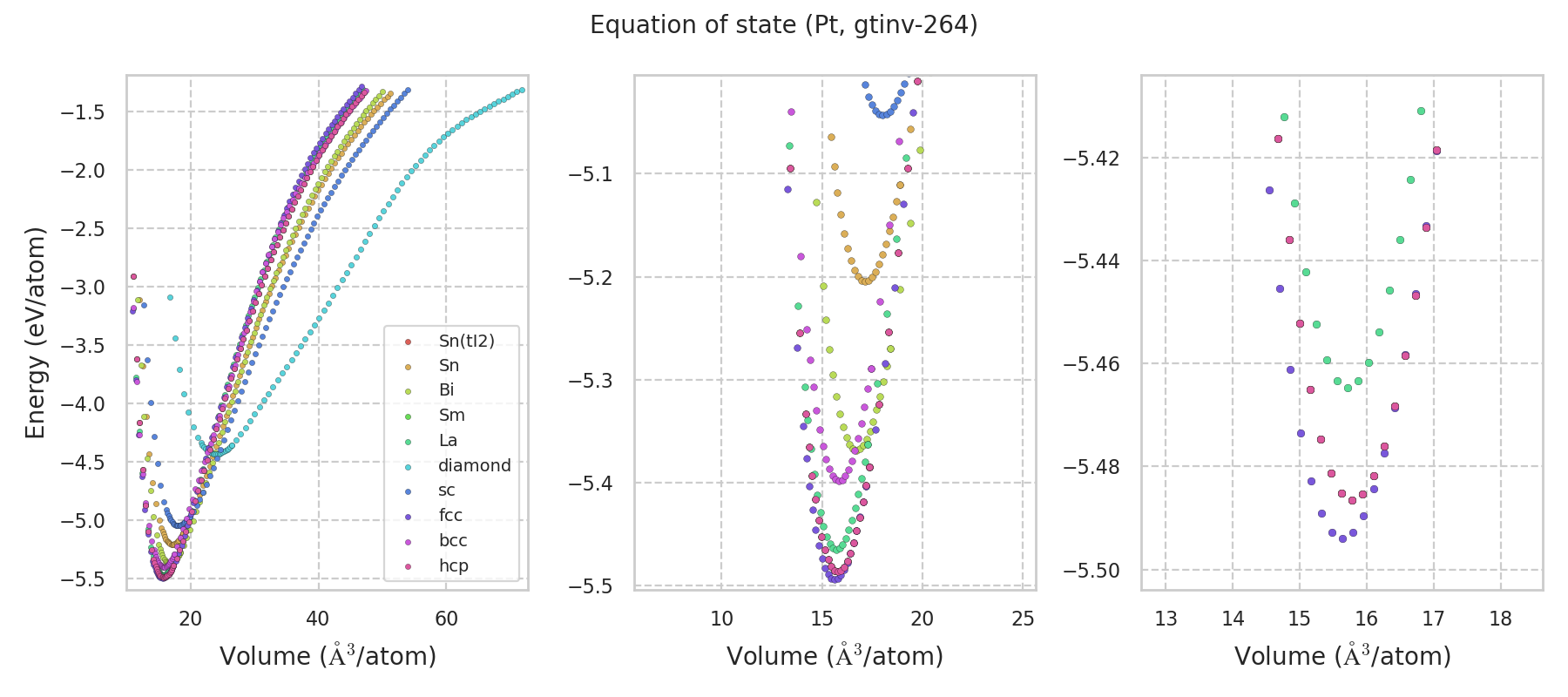

Equation of state

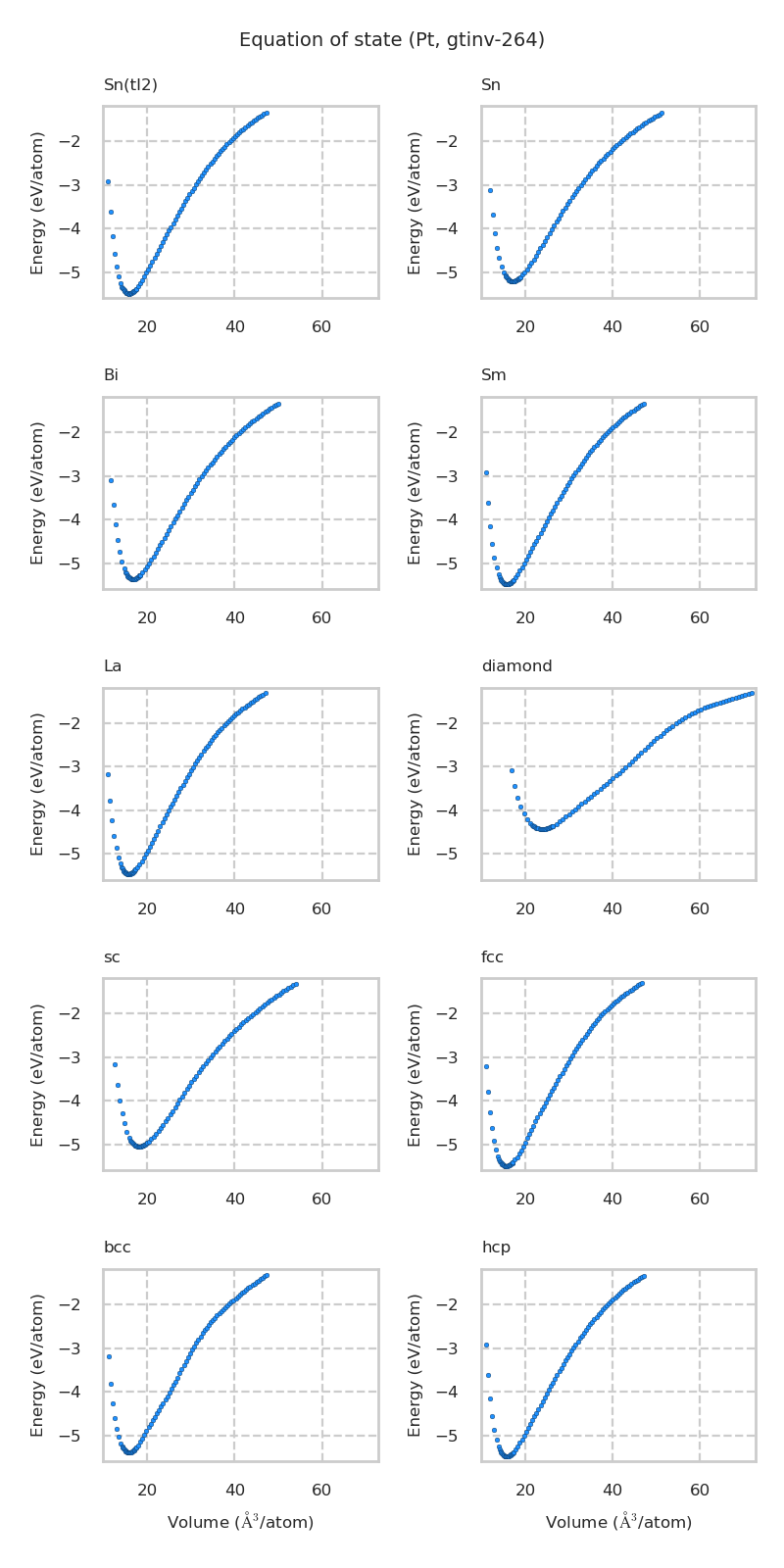

Equation of state for each structure

Prototype structure energy

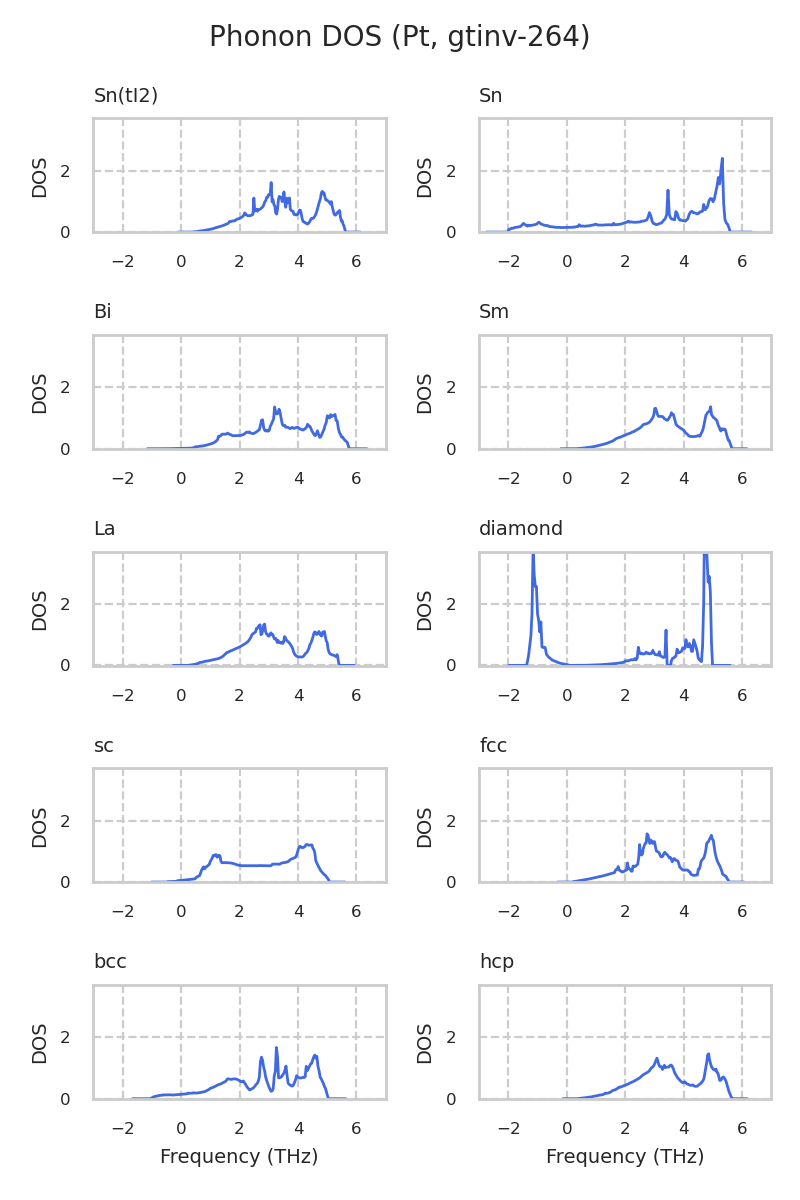

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

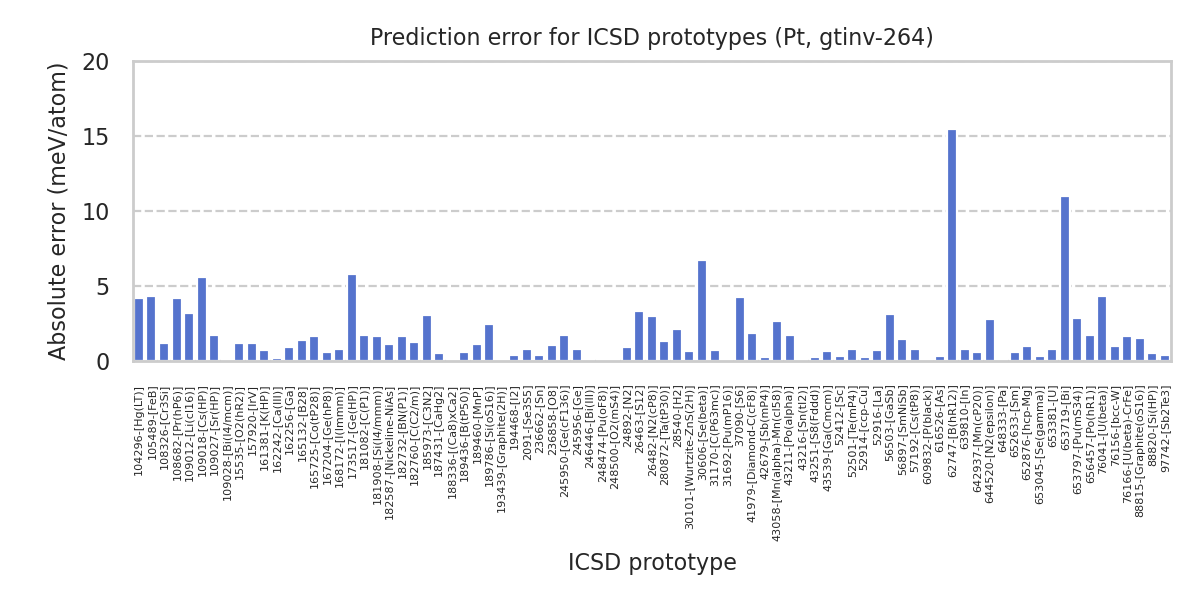

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-105489-[FeB]	-5.4939	-5.48959
icsd-104296-[Hg(LT)]	-5.4939	-5.48973
icsd-108682-[Pr(hP6)]	-5.49379	-5.48961
icsd-639810-[In]	-5.49376	-5.49298
icsd-168172-[I(Immm)]	-5.49376	-5.49299
icsd-52914-[ccp-Cu]	-5.49375	-5.49352
icsd-57192-[Cs(tP8)]	-5.49375	-5.49299
icsd-248500-[O2(mS4)]	-5.49375	-5.49376
icsd-97742-[Sb2Te3]	-5.49374	-5.49412
icsd-52501-[Te(mP4)]	-5.49373	-5.49295
icsd-648333-[Pa]	-5.48616	-5.48624
icsd-43216-[Sn(tI2)]	-5.48615	-5.48624
icsd-2091-[Se3S5]	-5.48614	-5.48691
icsd-31692-[Pu(mP16)]	-5.48613	-5.48615
icsd-246446-[Bi(III)]	-5.48611	-5.48623
icsd-52412-[Sc]	-5.48607	-5.48637
icsd-194468-[I2]	-5.48606	-5.4864
icsd-157920-[IrV]	-5.47896	-5.4801
icsd-182760-[C(C2/m)]	-5.46546	-5.46423
icsd-31170-[C(P63mc)]	-5.46298	-5.46368
icsd-52916-[La]	-5.46258	-5.46329
icsd-161381-[K(HP)]	-5.46255	-5.46328
icsd-652633-[Sm]	-5.45267	-5.45327
icsd-653381-[U]	-5.43502	-5.43579
icsd-652876-[hcp-Mg]	-5.43489	-5.43588
icsd-236858-[O8]	-5.43488	-5.43593
icsd-248474-[Pu(oF8)]	-5.4267	-5.42659
icsd-188336-[(Ca8)xCa2]	-5.42456	-5.42443
icsd-609832-[P(black)]	-5.42446	-5.42442
icsd-15535-[O2(hR2)]	-5.41737	-5.41619
icsd-24892-[N2]	-5.4164	-5.41548
icsd-193439-[Graphite(2H)]	-5.41526	-5.41531
icsd-189786-[Si(oS16)]	-5.40452	-5.4021
icsd-109012-[Li(cI16)]	-5.40023	-5.39708
icsd-76156-[bcc-W]	-5.39774	-5.39868
icsd-656457-[Po(hR1)]	-5.39771	-5.39939
icsd-644520-[N2(epsilon)]	-5.39765	-5.40042
icsd-187431-[CaHg2]	-5.38513	-5.38565
icsd-189460-[MnP]	-5.37581	-5.37472
icsd-56503-[GaSb]	-5.36781	-5.37089
icsd-173517-[Ge(HP)]	-5.35595	-5.35018
icsd-56897-[SmNiSb]	-5.35168	-5.35023
icsd-43058-[Mn(alpha)-Mn(cI58)]	-5.34908	-5.35174
icsd-76041-[U(beta)]	-5.34121	-5.34555
icsd-109028-[Bi(I4/mcm)]	-5.33677	-5.33681
icsd-653797-[Pu(mS34)]	-5.3301	-5.33294
icsd-280872-[Ta(tP30)]	-5.32526	-5.32396
icsd-642937-[Mn(cP20)]	-5.32446	-5.32386
icsd-76166-[U(beta)-CrFe]	-5.31408	-5.31243
icsd-43539-[Ga(Cmcm)]	-5.30632	-5.30695
icsd-37090-[S6]	-5.30153	-5.30577
icsd-109018-[Cs(HP)]	-5.29327	-5.28769
icsd-26482-[N2(cP8)]	-5.28124	-5.27823
icsd-30606-[Se(beta)]	-5.28061	-5.28732
icsd-162256-[Ga]	-5.27975	-5.28068
icsd-42679-[Sb(mP4)]	-5.27766	-5.27745
icsd-165725-[Co(tP28)]	-5.26684	-5.26849
icsd-653719-[Bi]	-5.25581	-5.26684
icsd-43251-[S8(Fddd)]	-5.24418	-5.24445
icsd-108326-[Cr3Si]	-5.24009	-5.24127
icsd-245956-[Ge]	-5.23709	-5.23635
icsd-165132-[B28]	-5.23322	-5.23462
icsd-26463-[S12]	-5.23089	-5.23421
icsd-189436-[B(tP50)]	-5.21063	-5.21118
icsd-236662-[Sn]	-5.20263	-5.20298
icsd-182587-[Nickeline-NiAs]	-5.14254	-5.14143
icsd-181908-[Si(I4/mmm)]	-5.04322	-5.04156
icsd-182732-[BN(P1)]	-5.04319	-5.04154
icsd-616526-[As]	-5.04317	-5.04284
icsd-43211-[Po(alpha)]	-5.04317	-5.04147
icsd-181082-[C(P1)]	-5.04317	-5.04148
icsd-109027-[Sr(HP)]	-5.04317	-5.04147
icsd-653045-[Se(gamma)]	-5.04315	-5.04281
icsd-62747-[B(hR12)]	-5.03963	-5.02415
icsd-162242-[Ca(III)]	-5.03664	-5.03648
icsd-28540-[H2]	-4.97025	-4.96814
icsd-88815-[Graphite(oS16)]	-4.93092	-4.93244
icsd-185973-[C3N2]	-4.76729	-4.77036
icsd-88820-[Si(HP)]	-4.61428	-4.6138
icsd-30101-[Wurtzite-ZnS(2H)]	-4.46915	-4.46981
icsd-167204-[Ge(hP8)]	-4.45422	-4.45365
icsd-41979-[Diamond-C(cF8)]	-4.43136	-4.42955
icsd-245950-[Ge(cF136)]	-4.32396	-4.32225

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.784	2.766	2.766	4.815	90.0	90.0	121.01
DFT	15.675	2.758	2.758	4.757	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
368.7	226.3	148.6	0.0	0.0	-12.8
226.3	401.6	171.4	0.0	0.0	40.2
148.6	171.4	397.3	0.0	0.0	19.0
0.0	0.0	0.0	52.9	18.8	0.0
0.0	0.0	0.0	18.8	30.3	0.0
-12.8	40.2	19.0	0.0	0.0	107.6

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.784	2.766	2.724	21.8	90.0	84.48	119.5
DFT	15.632	2.779	2.779	21.043	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
368.7	226.3	148.6	0.0	0.0	12.8
226.3	401.6	171.4	0.0	0.0	-40.2
148.6	171.4	397.3	0.0	0.0	-19.0
0.0	0.0	0.0	52.9	-18.8	0.5
0.0	0.0	0.0	-18.8	30.3	-0.8
12.8	-40.2	-19.0	0.5	-0.8	107.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.713	2.77	2.77	9.455	90.0	90.0	120.0
DFT	15.612	2.782	2.782	9.316	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
333.4	258.1	210.1	0.0	0.0	0.0
258.1	333.4	210.1	0.0	0.0	0.0
210.1	210.1	340.0	0.0	0.0	0.0
0.0	0.0	0.0	23.1	0.0	0.0
0.0	0.0	0.0	0.0	23.1	0.0
0.0	0.0	0.0	0.0	0.0	37.6

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.784	3.405	3.405	2.724	90.0	90.0	90.0
DFT	15.737	3.394	3.394	2.732	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
287.2	248.0	182.1	0.0	0.0	0.0
248.0	287.2	182.1	0.0	0.0	0.0
182.1	182.1	461.3	0.0	0.0	0.0
0.0	0.0	0.0	63.5	0.0	0.0
0.0	0.0	0.0	0.0	63.5	0.0
0.0	0.0	0.0	0.0	0.0	129.7

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.151	5.053	5.053	2.686	90.0	90.0	90.0
DFT	17.043	5.022	5.022	2.703	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-231.1	767.1	114.2	0.0	0.0	0.0
767.1	-231.1	114.2	0.0	0.0	0.0
114.2	114.2	420.9	0.0	0.0	0.0
0.0	0.0	0.0	-44.9	0.0	0.0
0.0	0.0	0.0	0.0	-44.9	0.0
0.0	0.0	0.0	0.0	0.0	-2.8

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.845	3.165	3.165	3.165	90.0	90.0	90.0
DFT	15.747	3.158	3.158	3.158	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
205.6	281.1	281.1	0.0	0.0	0.0
281.1	205.6	281.1	0.0	0.0	0.0
281.1	281.1	205.6	0.0	0.0	0.0
0.0	0.0	0.0	109.7	0.0	0.0
0.0	0.0	0.0	0.0	109.7	0.0
0.0	0.0	0.0	0.0	0.0	109.7

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.632	3.969	3.969	3.969	90.0	90.0	90.0
DFT	15.57	3.964	3.964	3.964	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
268.3	219.3	219.3	0.0	0.0	0.0
219.3	268.3	219.3	0.0	0.0	0.0
219.3	219.3	268.3	0.0	0.0	0.0
0.0	0.0	0.0	34.6	0.0	0.0
0.0	0.0	0.0	0.0	34.6	0.0
0.0	0.0	0.0	0.0	0.0	34.6

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.007	5.77	5.77	5.77	90.0	90.0	90.0
DFT	23.911	5.762	5.762	5.762	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
109.1	115.0	115.0	0.0	0.0	0.0
115.0	109.1	115.0	0.0	0.0	0.0
115.0	115.0	109.1	0.0	0.0	0.0
0.0	0.0	0.0	1.7	0.0	0.0
0.0	0.0	0.0	0.0	1.7	0.0
0.0	0.0	0.0	0.0	0.0	1.7

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.033	2.622	2.622	2.622	90.0	90.0	90.0
DFT	17.958	2.619	2.619	2.619	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
460.4	40.5	40.5	0.0	0.0	0.0
40.5	460.4	40.5	0.0	0.0	0.0
40.5	40.5	460.4	0.0	0.0	0.0
0.0	0.0	0.0	16.9	0.0	0.0
0.0	0.0	0.0	0.0	16.9	0.0
0.0	0.0	0.0	0.0	0.0	16.9

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.718	5.359	5.378	2.679	90.0	120.0	90.0
DFT	16.995	5.255	5.232	2.693	90.0	113.33	90.0

Elastic constants (Bi)

1	2	3	4	5	6
513.4	70.9	164.6	0.0	0.0	0.0
70.9	524.9	70.9	0.0	0.0	0.0
164.6	70.9	513.4	0.0	0.0	0.0
0.0	0.0	0.0	0.6	0.0	0.0
0.0	0.0	0.0	0.0	174.4	0.0
0.0	0.0	0.0	0.0	0.0	0.6
