gtinv-321 (Rb-2021-08-04-all-icsd)

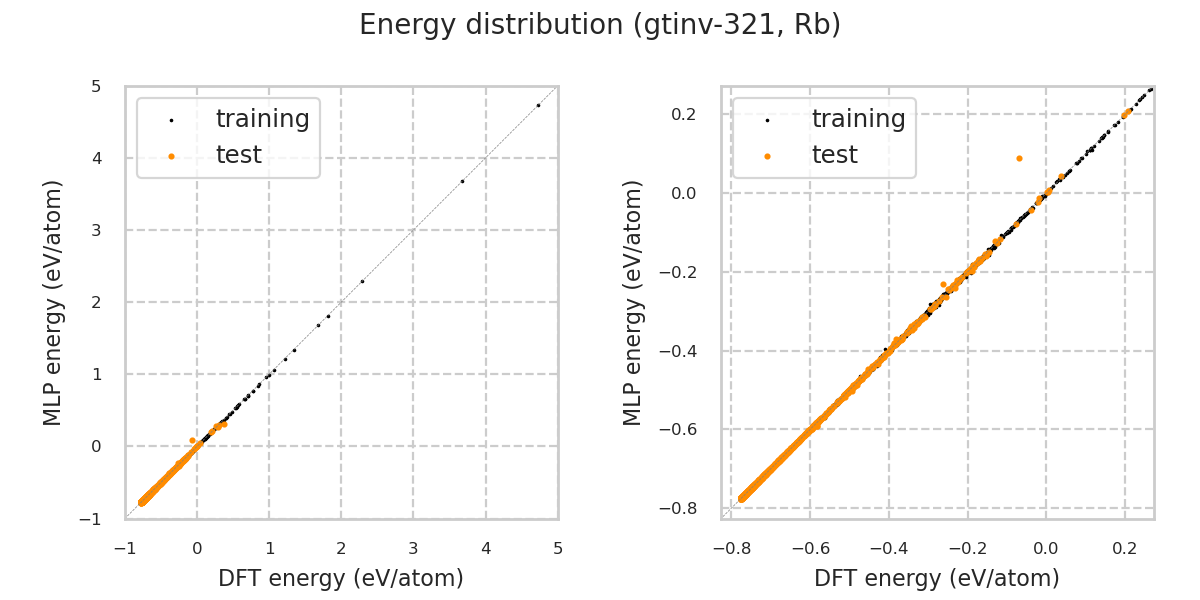

Energy distribution

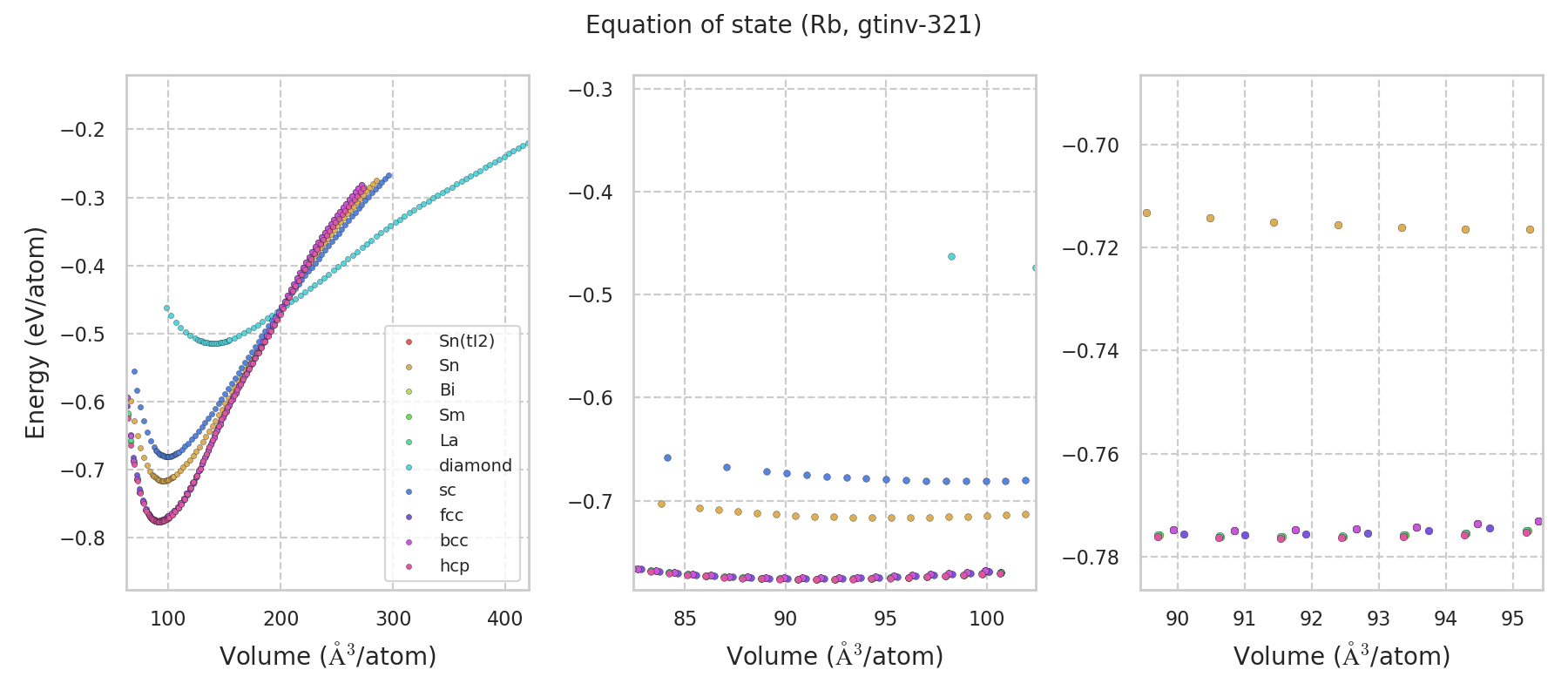

Equation of state

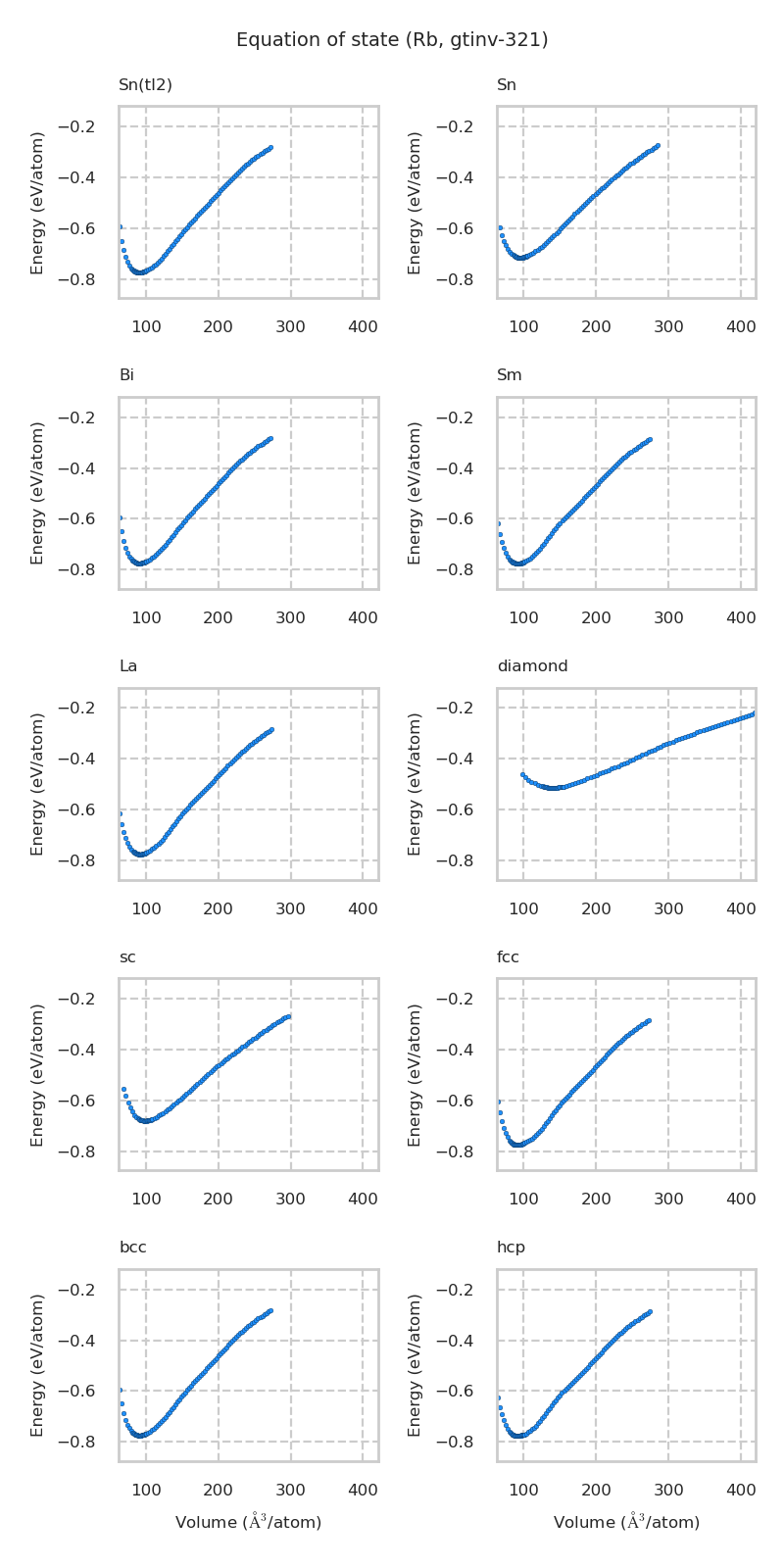

Equation of state for each structure

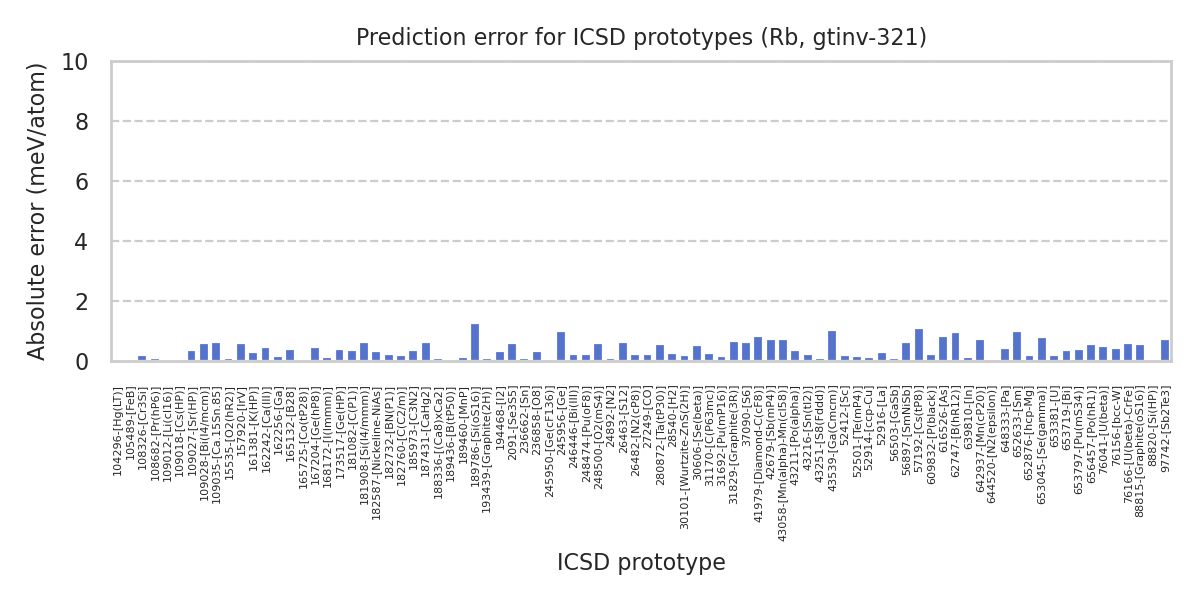

Prototype structure energy

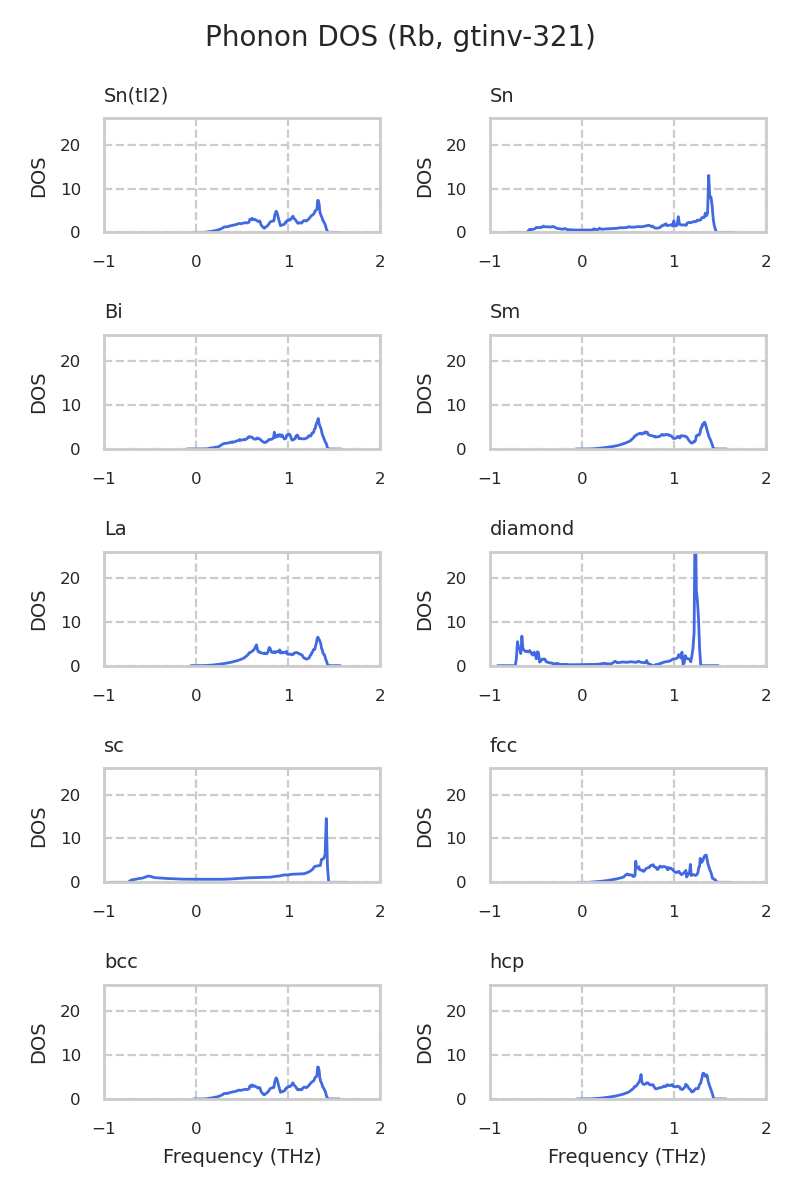

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-652876-[hcp-Mg]	-0.77644	-0.77663
icsd-189460-[MnP]	-0.77614	-0.77626
icsd-652633-[Sm]	-0.77613	-0.77514
icsd-161381-[K(HP)]	-0.77604	-0.77631
icsd-31170-[C(P63mc)]	-0.77603	-0.77628
icsd-52916-[La]	-0.77601	-0.77631
icsd-182587-[Nickeline-NiAs]	-0.776	-0.77632
icsd-52914-[ccp-Cu]	-0.77572	-0.77584
icsd-104296-[Hg(LT)]	-0.77567	-0.77565
icsd-168172-[I(Immm)]	-0.77533	-0.77523
icsd-639810-[In]	-0.77532	-0.7752
icsd-31692-[Pu(mP16)]	-0.7753	-0.77515
icsd-108682-[Pr(hP6)]	-0.77515	-0.77508
icsd-648333-[Pa]	-0.77491	-0.77532
icsd-76156-[bcc-W]	-0.7749	-0.77531
icsd-653381-[U]	-0.77484	-0.77465
icsd-31829-[Graphite(3R)]	-0.77482	-0.77416
icsd-656457-[Po(hR1)]	-0.77482	-0.77427
icsd-644520-[N2(epsilon)]	-0.77472	-0.7747
icsd-52412-[Sc]	-0.77471	-0.77451
icsd-105489-[FeB]	-0.77468	-0.77462
icsd-97742-[Sb2Te3]	-0.77467	-0.77396
icsd-109012-[Li(cI16)]	-0.77465	-0.7746
icsd-246446-[Bi(III)]	-0.77459	-0.77482
icsd-43216-[Sn(tI2)]	-0.77455	-0.77477
icsd-248500-[O2(mS4)]	-0.77391	-0.77451
icsd-236858-[O8]	-0.77366	-0.77333
icsd-157920-[IrV]	-0.77357	-0.77416
icsd-194468-[I2]	-0.7734	-0.7731
icsd-2091-[Se3S5]	-0.77038	-0.76979
icsd-57192-[Cs(tP8)]	-0.77003	-0.76895
icsd-248474-[Pu(oF8)]	-0.7689	-0.76867
icsd-30606-[Se(beta)]	-0.76878	-0.76827
icsd-189786-[Si(oS16)]	-0.76832	-0.76707
icsd-280872-[Ta(tP30)]	-0.76754	-0.76808
icsd-76166-[U(beta)-CrFe]	-0.76746	-0.76804
icsd-56897-[SmNiSb]	-0.76694	-0.76631
icsd-187431-[CaHg2]	-0.76694	-0.76631
icsd-76041-[U(beta)]	-0.76678	-0.76726
icsd-642937-[Mn(cP20)]	-0.76552	-0.76479
icsd-108326-[Cr3Si]	-0.7654	-0.7656
icsd-43058-[Mn(alpha)-Mn(cI58)]	-0.76481	-0.76552
icsd-653797-[Pu(mS34)]	-0.76169	-0.76208
icsd-26482-[N2(cP8)]	-0.75894	-0.75916
icsd-27249-[CO]	-0.75891	-0.75911
icsd-52501-[Te(mP4)]	-0.75732	-0.75716
icsd-165725-[Co(tP28)]	-0.75138	-0.75132
icsd-24892-[N2]	-0.74854	-0.74846
icsd-15535-[O2(hR2)]	-0.74849	-0.74839
icsd-189436-[B(tP50)]	-0.74783	-0.74783
icsd-43539-[Ga(Cmcm)]	-0.74659	-0.74559
icsd-609832-[P(black)]	-0.74569	-0.74592
icsd-26463-[S12]	-0.73736	-0.73797
icsd-37090-[S6]	-0.73451	-0.73389
icsd-165132-[B28]	-0.73333	-0.73294
icsd-43251-[S8(Fddd)]	-0.73113	-0.7312
icsd-188336-[(Ca8)xCa2]	-0.72521	-0.72528
icsd-109035-[Ca.15Sn.85]	-0.72249	-0.72187
icsd-162242-[Ca(III)]	-0.72249	-0.72204
icsd-42679-[Sb(mP4)]	-0.72009	-0.71938
icsd-109018-[Cs(HP)]	-0.71958	-0.71961
icsd-653719-[Bi]	-0.71673	-0.71709
icsd-182760-[C(C2/m)]	-0.71671	-0.71688
icsd-236662-[Sn]	-0.71645	-0.71637
icsd-56503-[GaSb]	-0.71645	-0.71638
icsd-162256-[Ga]	-0.71169	-0.71183
icsd-182732-[BN(P1)]	-0.70045	-0.70067
icsd-109027-[Sr(HP)]	-0.68065	-0.68029
icsd-181908-[Si(I4/mmm)]	-0.68064	-0.68128
icsd-181082-[C(P1)]	-0.68064	-0.68028
icsd-616526-[As]	-0.68063	-0.67982
icsd-28540-[H2]	-0.68055	-0.6808
icsd-43211-[Po(alpha)]	-0.68053	-0.68018
icsd-88815-[Graphite(oS16)]	-0.68048	-0.68105
icsd-653045-[Se(gamma)]	-0.68034	-0.67956
icsd-173517-[Ge(HP)]	-0.65788	-0.65826
icsd-109028-[Bi(I4/mcm)]	-0.65778	-0.6572
icsd-185973-[C3N2]	-0.62949	-0.62914
icsd-193439-[Graphite(2H)]	-0.61371	-0.6138
icsd-245956-[Ge]	-0.60561	-0.60462
icsd-88820-[Si(HP)]	-0.60526	-0.60523
icsd-62747-[B(hR12)]	-0.59331	-0.59235
icsd-30101-[Wurtzite-ZnS(2H)]	-0.51476	-0.51493
icsd-167204-[Ge(hP8)]	-0.51471	-0.51515
icsd-41979-[Diamond-C(cF8)]	-0.51435	-0.51352
icsd-245950-[Ge(cF136)]	-0.50475	-0.50475

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	91.526	5.067	5.067	8.233	90.0	90.0	120.0
DFT	91.324	5.055	5.055	8.252	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
3.8	2.5	1.5	0.0	0.0	0.0
2.5	3.8	1.5	0.0	0.0	0.0
1.5	1.5	5.2	0.0	0.0	0.0
0.0	0.0	0.0	0.9	0.0	0.0
0.0	0.0	0.0	0.0	0.9	0.0
0.0	0.0	0.0	0.0	0.0	0.7

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	91.553	5.06	5.06	37.162	90.0	90.0	120.0
DFT	91.353	5.067	5.067	36.976	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
4.0	2.4	1.6	0.3	0.0	0.0
2.4	4.0	1.6	-0.3	0.0	0.0
1.6	1.6	5.4	0.0	0.0	0.0
0.3	-0.3	0.0	0.9	0.0	0.0
0.0	0.0	0.0	0.0	0.9	0.3
0.0	0.0	0.0	0.0	0.3	0.8

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	91.531	5.056	5.056	16.536	90.0	90.0	120.0
DFT	91.228	5.067	5.067	16.414	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
4.0	2.6	1.7	0.0	0.0	0.0
2.6	4.0	1.7	0.0	0.0	0.0
1.7	1.7	5.6	0.0	0.0	0.0
0.0	0.0	0.0	0.9	0.0	0.0
0.0	0.0	0.0	0.0	0.9	0.0
0.0	0.0	0.0	0.0	0.0	0.7

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	90.837	5.664	5.664	5.664	90.0	90.0	90.0
DFT	91.281	5.789	5.789	5.447	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
3.2	2.9	2.9	0.0	0.0	0.0
2.9	3.2	2.9	0.0	0.0	0.0
2.9	2.9	3.2	0.0	0.0	0.0
0.0	0.0	0.0	2.0	0.0	0.0
0.0	0.0	0.0	0.0	2.0	0.0
0.0	0.0	0.0	0.0	0.0	2.0

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	95.24	8.906	8.906	4.803	90.0	90.0	90.0
DFT	95.282	8.913	8.913	4.798	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
3.8	0.5	1.4	0.0	0.0	0.0
0.5	4.1	0.9	0.0	0.0	0.0
1.4	0.9	5.8	0.0	0.0	0.0
0.0	0.0	0.0	-0.3	0.0	0.0
0.0	0.0	0.0	0.0	-0.3	0.0
0.0	0.0	0.0	0.0	0.0	-0.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	90.837	5.664	5.664	5.664	90.0	90.0	90.0
DFT	90.387	5.654	5.654	5.654	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
3.2	2.9	2.9	0.0	0.0	0.0
2.9	3.2	2.9	0.0	0.0	0.0
2.9	2.9	3.2	0.0	0.0	0.0
0.0	0.0	0.0	2.0	0.0	0.0
0.0	0.0	0.0	0.0	2.0	0.0
0.0	0.0	0.0	0.0	0.0	2.0

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	91.003	7.14	7.14	7.14	90.0	90.0	90.0
DFT	90.566	7.129	7.129	7.129	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
3.7	3.0	3.0	0.0	0.0	0.0
3.0	3.7	3.0	0.0	0.0	0.0
3.0	3.0	3.7	0.0	0.0	0.0
0.0	0.0	0.0	1.9	0.0	0.0
0.0	0.0	0.0	0.0	1.9	0.0
0.0	0.0	0.0	0.0	0.0	1.9

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	140.333	10.393	10.393	10.393	90.0	90.0	90.0
DFT	138.72	10.353	10.353	10.353	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
0.5	1.6	1.6	0.0	0.0	0.0
1.6	0.5	1.6	0.0	0.0	0.0
1.6	1.6	0.5	0.0	0.0	0.0
0.0	0.0	0.0	-1.4	0.0	0.0
0.0	0.0	0.0	0.0	-1.4	0.0
0.0	0.0	0.0	0.0	0.0	-1.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	98.963	4.625	4.625	4.625	90.0	90.0	90.0
DFT	97.68	4.605	4.605	4.605	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
6.8	0.2	0.2	0.0	0.0	0.0
0.2	6.8	0.2	0.0	0.0	0.0
0.2	0.2	6.8	0.0	0.0	0.0
0.0	0.0	0.0	-1.0	0.0	0.0
0.0	0.0	0.0	0.0	-1.0	0.0
0.0	0.0	0.0	0.0	0.0	-1.0

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	90.837	8.01	8.01	5.664	90.0	90.0	90.0
DFT	95.201	9.733	8.926	4.803	90.0	114.14	90.0

Elastic constants (Bi)

1	2	3	4	5	6
5.0	1.1	2.9	0.0	0.0	0.0
1.1	5.0	2.9	0.0	0.0	0.0
2.9	2.9	3.2	0.0	0.0	0.0
0.0	0.0	0.0	2.0	0.0	0.0
0.0	0.0	0.0	0.0	2.0	0.0
0.0	0.0	0.0	0.0	0.0	0.2
