gtinv-172 (Rh-2021-08-04-all-icsd)

Energy distribution

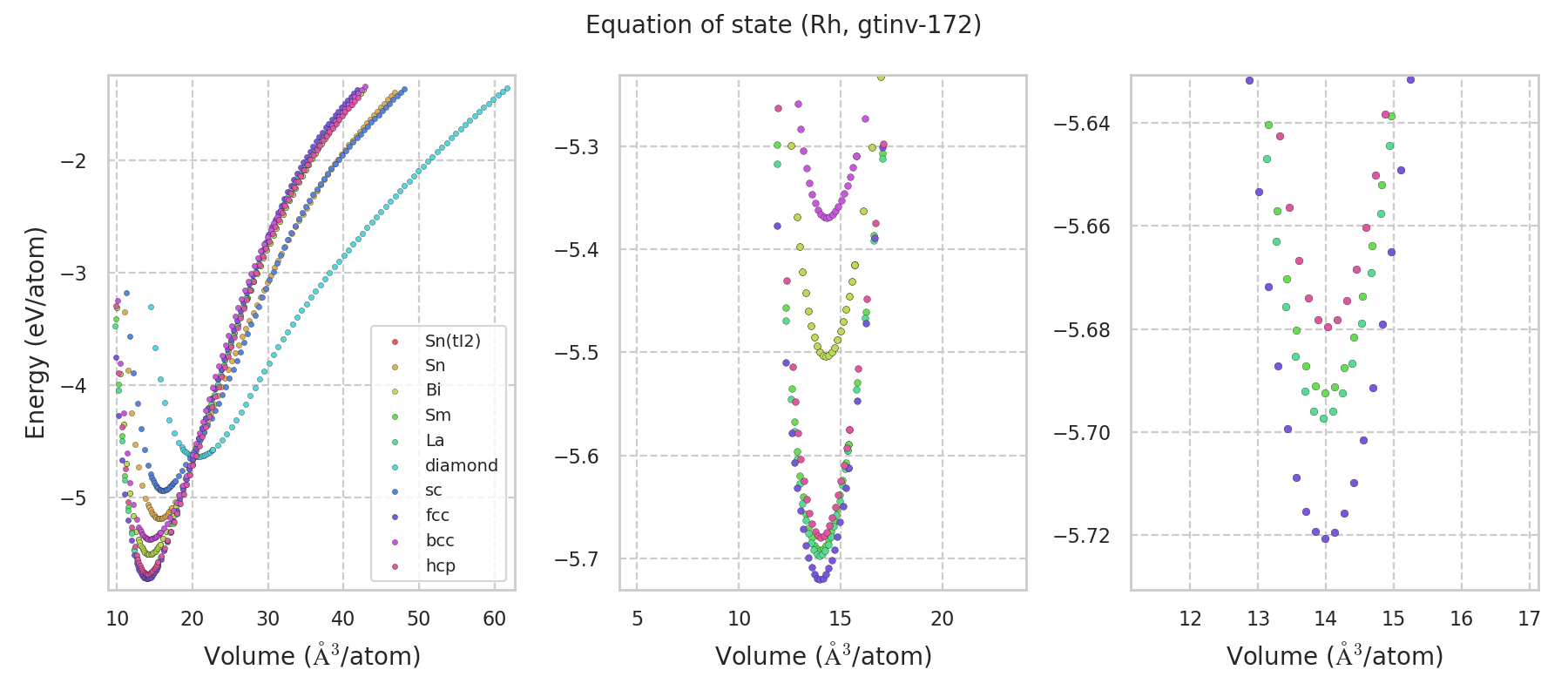

Equation of state

Equation of state for each structure

Prototype structure energy

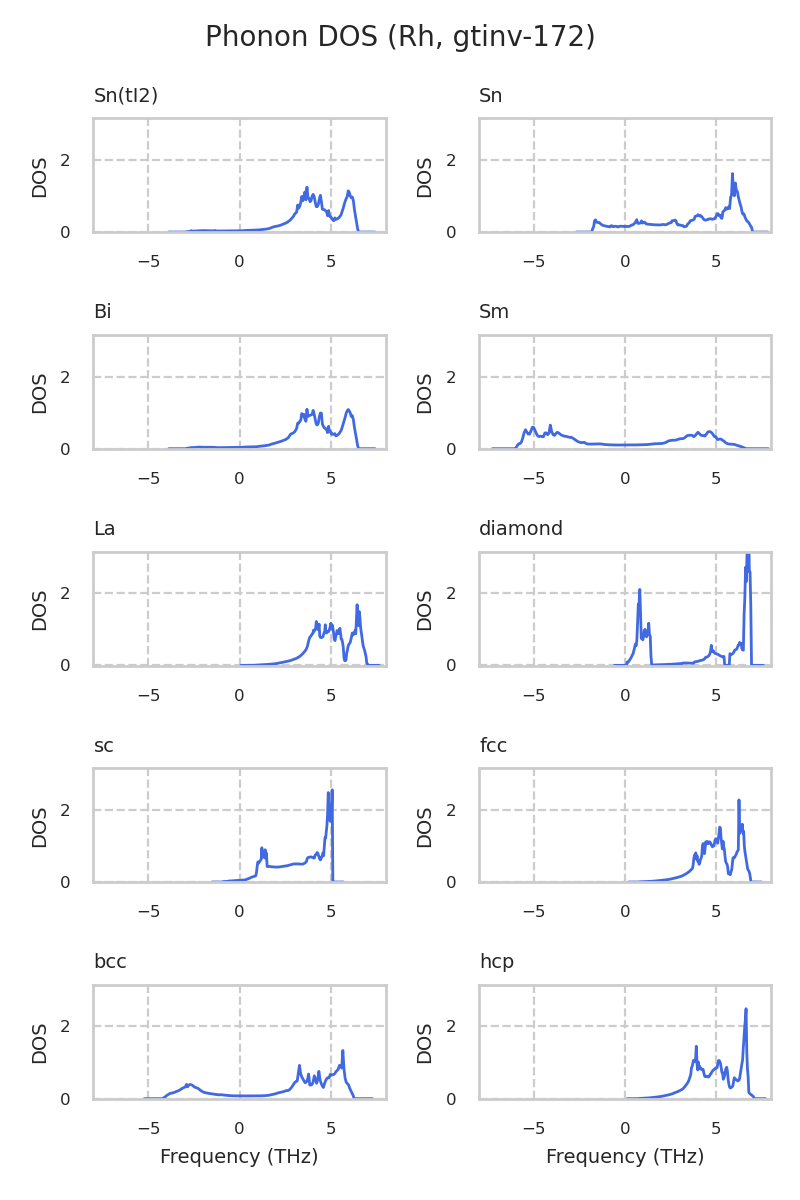

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-104296-[Hg(LT)]	-5.72062	-5.71544
icsd-108682-[Pr(hP6)]	-5.72062	-5.71539
icsd-52501-[Te(mP4)]	-5.72041	-5.71958
icsd-52914-[ccp-Cu]	-5.72041	-5.7194
icsd-168172-[I(Immm)]	-5.72041	-5.71959
icsd-639810-[In]	-5.72041	-5.71959
icsd-2091-[Se3S5]	-5.7204	-5.71898
icsd-194468-[I2]	-5.7204	-5.7195
icsd-236858-[O8]	-5.7204	-5.71916
icsd-189786-[Si(oS16)]	-5.7204	-5.71902
icsd-157920-[IrV]	-5.7204	-5.71912
icsd-248500-[O2(mS4)]	-5.72039	-5.71952
icsd-161381-[K(HP)]	-5.69719	-5.70023
icsd-31170-[C(P63mc)]	-5.69718	-5.70024
icsd-52916-[La]	-5.69718	-5.70023
icsd-652633-[Sm]	-5.69172	-5.69238
icsd-652876-[hcp-Mg]	-5.67936	-5.68112
icsd-653381-[U]	-5.67935	-5.68113
icsd-31692-[Pu(mP16)]	-5.67934	-5.68067
icsd-30606-[Se(beta)]	-5.61997	-5.61912
icsd-109012-[Li(cI16)]	-5.57845	-5.57426
icsd-248474-[Pu(oF8)]	-5.55883	-5.56761
icsd-24892-[N2]	-5.55665	-5.55825
icsd-642937-[Mn(cP20)]	-5.54493	-5.54341
icsd-15535-[O2(hR2)]	-5.5442	-5.54841
icsd-43058-[Mn(alpha)-Mn(cI58)]	-5.51977	-5.51991
icsd-76041-[U(beta)]	-5.51707	-5.51916
icsd-280872-[Ta(tP30)]	-5.51206	-5.53081
icsd-52412-[Sc]	-5.50411	-5.50462
icsd-246446-[Bi(III)]	-5.50411	-5.50438
icsd-653719-[Bi]	-5.5041	-5.50463
icsd-648333-[Pa]	-5.50409	-5.50438
icsd-43216-[Sn(tI2)]	-5.50408	-5.50438
icsd-97742-[Sb2Te3]	-5.50407	-5.50377
icsd-187431-[CaHg2]	-5.49526	-5.49694
icsd-56897-[SmNiSb]	-5.49524	-5.49694
icsd-76166-[U(beta)-CrFe]	-5.48925	-5.48252
icsd-653797-[Pu(mS34)]	-5.48799	-5.49589
icsd-43539-[Ga(Cmcm)]	-5.48452	-5.51199
icsd-27249-[CO]	-5.47767	-5.48326
icsd-26482-[N2(cP8)]	-5.47765	-5.48327
icsd-105489-[FeB]	-5.43422	-5.42499
icsd-26463-[S12]	-5.43358	-5.46305
icsd-189436-[B(tP50)]	-5.43027	-5.43194
icsd-108326-[Cr3Si]	-5.42308	-5.42557
icsd-165725-[Co(tP28)]	-5.41522	-5.42068
icsd-109028-[Bi(I4/mcm)]	-5.39942	-5.39851
icsd-57192-[Cs(tP8)]	-5.38587	-5.38128
icsd-43251-[S8(Fddd)]	-5.37952	-5.38286
icsd-609832-[P(black)]	-5.37921	-5.37805
icsd-644520-[N2(epsilon)]	-5.36937	-5.36755
icsd-76156-[bcc-W]	-5.36936	-5.36742
icsd-656457-[Po(hR1)]	-5.36936	-5.36656
icsd-182760-[C(C2/m)]	-5.34258	-5.35116
icsd-109018-[Cs(HP)]	-5.33639	-5.32641
icsd-189460-[MnP]	-5.33601	-5.33511
icsd-37090-[S6]	-5.26884	-5.24271
icsd-109035-[Ca.15Sn.85]	-5.23315	-5.23419
icsd-236662-[Sn]	-5.18403	-5.18429
icsd-56503-[GaSb]	-5.18402	-5.18427
icsd-162256-[Ga]	-5.18079	-5.18012
icsd-88815-[Graphite(oS16)]	-5.13198	-5.14093
icsd-188336-[(Ca8)xCa2]	-5.13189	-5.14046
icsd-182587-[Nickeline-NiAs]	-5.10115	-5.09981
icsd-165132-[B28]	-5.0288	-5.03235
icsd-88820-[Si(HP)]	-4.97132	-4.96834
icsd-245956-[Ge]	-4.97089	-4.96805
icsd-173517-[Ge(HP)]	-4.96465	-4.92766
icsd-181082-[C(P1)]	-4.93655	-4.93717
icsd-109027-[Sr(HP)]	-4.93655	-4.93716
icsd-181908-[Si(I4/mmm)]	-4.93653	-4.93718
icsd-43211-[Po(alpha)]	-4.93652	-4.93721
icsd-31829-[Graphite(3R)]	-4.93652	-4.93555
icsd-616526-[As]	-4.93644	-4.93559
icsd-162242-[Ca(III)]	-4.92063	-4.9263
icsd-28540-[H2]	-4.90487	-4.89946
icsd-182732-[BN(P1)]	-4.90436	-4.9075
icsd-653045-[Se(gamma)]	-4.89958	-4.90388
icsd-62747-[B(hR12)]	-4.87224	-4.87304
icsd-41979-[Diamond-C(cF8)]	-4.63637	-4.63528
icsd-167204-[Ge(hP8)]	-4.63305	-4.63571
icsd-30101-[Wurtzite-ZnS(2H)]	-4.62763	-4.62622
icsd-185973-[C3N2]	-4.59936	-4.59646
icsd-193439-[Graphite(2H)]	-4.58693	-4.58158
icsd-245950-[Ge(cF136)]	-4.49266	-4.49238

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.025	2.717	2.717	4.386	90.0	90.0	120.0
DFT	13.982	2.715	2.715	4.38	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
475.1	198.2	220.4	0.0	0.0	0.0
198.2	475.1	220.4	0.0	0.0	0.0
220.4	220.4	483.1	0.0	0.0	0.0
0.0	0.0	0.0	90.6	0.0	0.0
0.0	0.0	0.0	0.0	90.6	0.0
0.0	0.0	0.0	0.0	0.0	138.5

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.985	2.71	2.71	19.782	90.0	90.0	120.0
DFT	13.966	2.705	2.705	19.833	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
482.9	190.7	198.6	-0.7	0.0	0.0
190.7	482.9	198.6	0.7	0.0	0.0
198.6	198.6	487.4	0.0	0.0	0.0
-0.7	0.7	0.0	109.2	0.0	0.0
0.0	0.0	0.0	0.0	109.2	-0.7
0.0	0.0	0.0	0.0	-0.7	146.1

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.964	2.707	2.707	8.803	90.0	90.0	120.0
DFT	13.955	2.703	2.703	8.819	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
486.7	186.6	184.5	0.0	0.0	0.0
186.6	486.7	184.5	0.0	0.0	0.0
184.5	184.5	484.4	0.0	0.0	0.0
0.0	0.0	0.0	120.7	0.0	0.0
0.0	0.0	0.0	0.0	120.7	0.0
0.0	0.0	0.0	0.0	0.0	150.0

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.27	3.275	3.275	2.661	90.0	90.0	90.0
DFT	14.286	3.271	3.271	2.671	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
201.3	347.0	138.1	0.0	0.0	0.0
347.0	201.3	138.1	0.0	0.0	0.0
138.1	138.1	540.3	0.0	0.0	0.0
0.0	0.0	0.0	125.8	0.0	0.0
0.0	0.0	0.0	0.0	125.8	0.0
0.0	0.0	0.0	0.0	0.0	153.4

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.659	4.776	4.776	2.746	90.0	90.0	90.0
DFT	15.455	4.767	4.767	2.721	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
268.4	291.0	140.5	0.0	0.0	0.0
291.0	268.4	140.5	0.0	0.0	0.0
140.5	140.5	297.4	0.0	0.0	0.0
0.0	0.0	0.0	-32.7	0.0	0.0
0.0	0.0	0.0	0.0	-32.7	0.0
0.0	0.0	0.0	0.0	0.0	17.0

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.316	3.059	3.059	3.059	90.0	90.0	90.0
DFT	14.355	3.062	3.062	3.062	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
15.2	246.5	246.5	0.0	0.0	0.0
246.5	15.2	246.5	0.0	0.0	0.0
246.5	246.5	15.2	0.0	0.0	0.0
0.0	0.0	0.0	126.4	0.0	0.0
0.0	0.0	0.0	0.0	126.4	0.0
0.0	0.0	0.0	0.0	0.0	126.4

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.988	3.825	3.825	3.825	90.0	90.0	90.0
DFT	13.928	3.819	3.819	3.819	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
485.8	190.7	190.7	0.0	0.0	0.0
190.7	485.8	190.7	0.0	0.0	0.0
190.7	190.7	485.8	0.0	0.0	0.0
0.0	0.0	0.0	160.1	0.0	0.0
0.0	0.0	0.0	0.0	160.1	0.0
0.0	0.0	0.0	0.0	0.0	160.1

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.636	5.486	5.486	5.486	90.0	90.0	90.0
DFT	20.576	5.48	5.48	5.48	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
117.0	108.1	108.1	0.0	0.0	0.0
108.1	117.0	108.1	0.0	0.0	0.0
108.1	108.1	117.0	0.0	0.0	0.0
0.0	0.0	0.0	0.4	0.0	0.0
0.0	0.0	0.0	0.0	0.4	0.0
0.0	0.0	0.0	0.0	0.0	0.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.064	2.523	2.523	2.523	90.0	90.0	90.0
DFT	16.135	2.527	2.527	2.527	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
410.4	138.0	138.0	0.0	0.0	0.0
138.0	410.4	138.0	0.0	0.0	0.0
138.0	138.0	410.4	0.0	0.0	0.0
0.0	0.0	0.0	26.5	0.0	0.0
0.0	0.0	0.0	0.0	26.5	0.0
0.0	0.0	0.0	0.0	0.0	26.5

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.27	3.275	3.275	2.661	90.0	90.0	90.0
DFT	14.286	3.271	3.271	2.671	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
201.3	347.0	138.1	0.0	0.0	0.0
347.0	201.3	138.1	0.0	0.0	0.0
138.1	138.1	540.3	0.0	0.0	0.0
0.0	0.0	0.0	125.8	0.0	0.0
0.0	0.0	0.0	0.0	125.8	0.0
0.0	0.0	0.0	0.0	0.0	153.4
