gtinv-258 (Ru-2021-08-04-all-icsd)

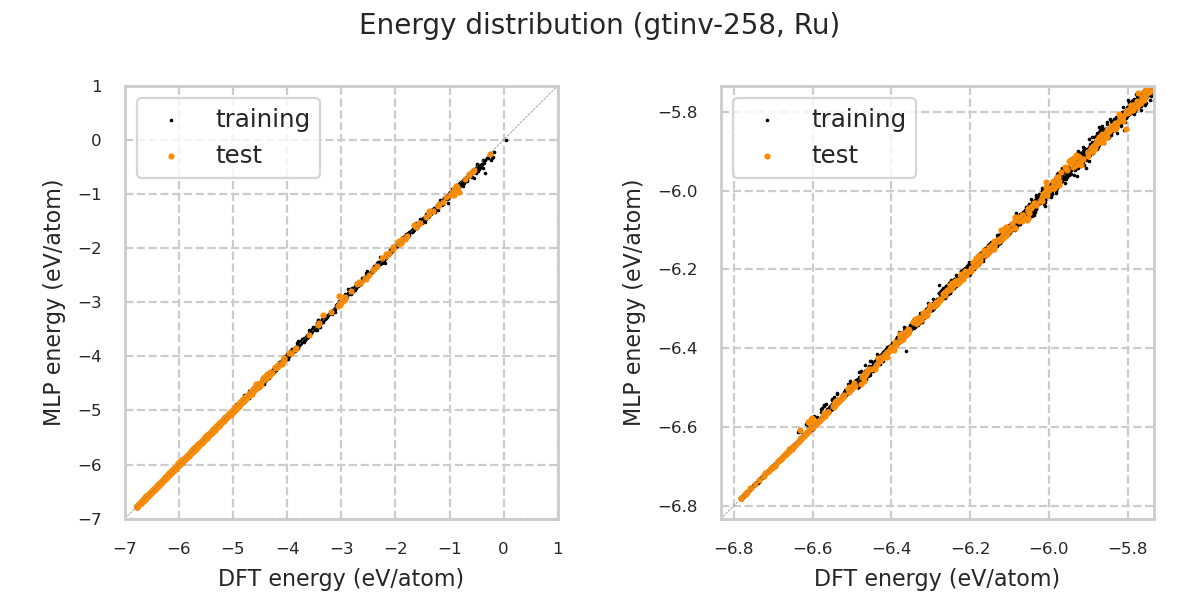

Energy distribution

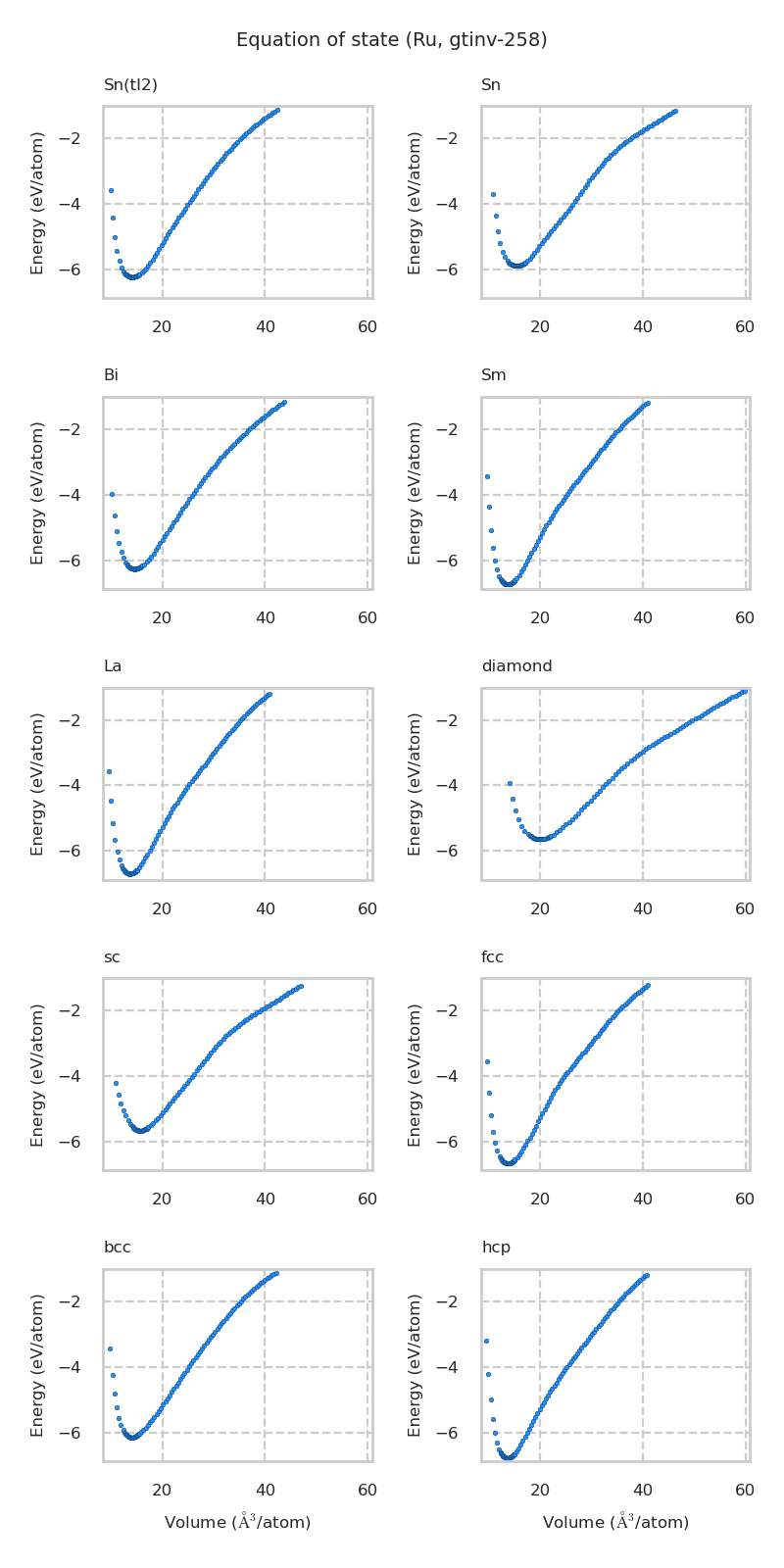

Equation of state

Equation of state for each structure

Prototype structure energy

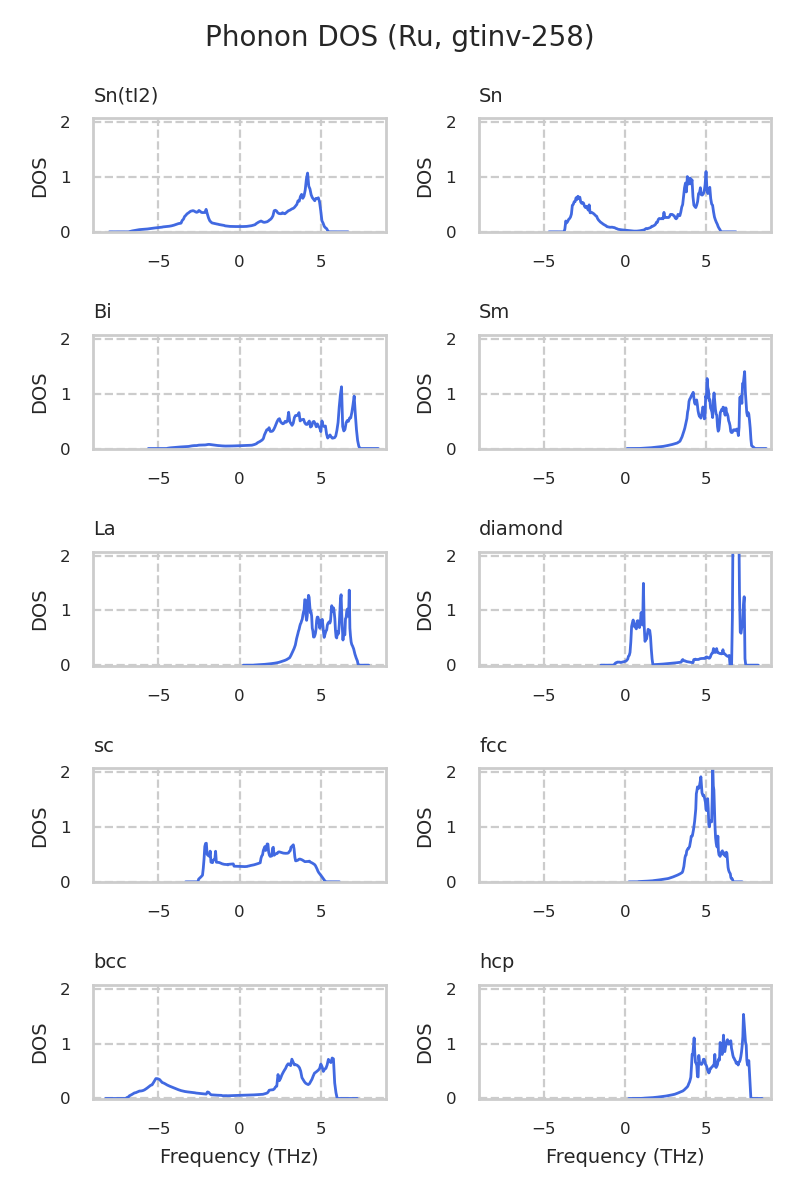

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-31692-[Pu(mP16)]	-6.78282	-6.78338
icsd-189460-[MnP]	-6.78276	-6.78319
icsd-653381-[U]	-6.78276	-6.78317
icsd-652876-[hcp-Mg]	-6.78275	-6.78316
icsd-105489-[FeB]	-6.78254	-6.78092
icsd-652633-[Sm]	-6.74238	-6.74367
icsd-161381-[K(HP)]	-6.70207	-6.70042
icsd-52916-[La]	-6.70202	-6.70041
icsd-104296-[Hg(LT)]	-6.66895	-6.66605
icsd-97742-[Sb2Te3]	-6.66893	-6.66816
icsd-168172-[I(Immm)]	-6.66892	-6.66959
icsd-52914-[ccp-Cu]	-6.66892	-6.66864
icsd-57192-[Cs(tP8)]	-6.66892	-6.66894
icsd-639810-[In]	-6.66892	-6.66959
icsd-42679-[Sb(mP4)]	-6.66891	-6.66862
icsd-108682-[Pr(hP6)]	-6.66891	-6.66601
icsd-236858-[O8]	-6.66891	-6.66883
icsd-157920-[IrV]	-6.66891	-6.66905
icsd-52501-[Te(mP4)]	-6.6689	-6.66916
icsd-189786-[Si(oS16)]	-6.6689	-6.66873
icsd-248500-[O2(mS4)]	-6.66888	-6.66869
icsd-109012-[Li(cI16)]	-6.61217	-6.63406
icsd-194468-[I2]	-6.6051	-6.60542
icsd-642937-[Mn(cP20)]	-6.56699	-6.5738
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.55863	-6.56039
icsd-56897-[SmNiSb]	-6.53177	-6.52888
icsd-187431-[CaHg2]	-6.53174	-6.5289
icsd-245956-[Ge]	-6.49994	-6.48569
icsd-76041-[U(beta)]	-6.4878	-6.495
icsd-653797-[Pu(mS34)]	-6.47545	-6.47296
icsd-248474-[Pu(oF8)]	-6.47423	-6.47208
icsd-76166-[U(beta)-CrFe]	-6.47333	-6.47549
icsd-280872-[Ta(tP30)]	-6.4733	-6.47549
icsd-43539-[Ga(Cmcm)]	-6.46826	-6.46831
icsd-189436-[B(tP50)]	-6.43385	-6.44302
icsd-26482-[N2(cP8)]	-6.43302	-6.43184
icsd-27249-[CO]	-6.43302	-6.43184
icsd-165725-[Co(tP28)]	-6.41082	-6.41788
icsd-37090-[S6]	-6.4069	-6.36363
icsd-108326-[Cr3Si]	-6.39321	-6.39408
icsd-182732-[BN(P1)]	-6.37995	-6.37788
icsd-28540-[H2]	-6.37995	-6.37963
icsd-609832-[P(black)]	-6.37994	-6.37789
icsd-30606-[Se(beta)]	-6.36343	-6.37201
icsd-43251-[S8(Fddd)]	-6.33041	-6.33047
icsd-24892-[N2]	-6.32939	-6.3262
icsd-15535-[O2(hR2)]	-6.32825	-6.333
icsd-2091-[Se3S5]	-6.26003	-6.27943
icsd-653719-[Bi]	-6.24037	-6.27947
icsd-246446-[Bi(III)]	-6.23399	-6.23132
icsd-648333-[Pa]	-6.23398	-6.23132
icsd-43216-[Sn(tI2)]	-6.23398	-6.23133
icsd-162256-[Ga]	-6.23395	-6.23087
icsd-52412-[Sc]	-6.23392	-6.23082
icsd-182760-[C(C2/m)]	-6.19765	-6.20456
icsd-26463-[S12]	-6.17097	-6.18433
icsd-76156-[bcc-W]	-6.15765	-6.1557
icsd-656457-[Po(hR1)]	-6.15765	-6.15599
icsd-165132-[B28]	-6.15581	-6.15618
icsd-109018-[Cs(HP)]	-6.12705	-6.12561
icsd-109035-[Ca.15Sn.85]	-5.94698	-5.9468
icsd-173517-[Ge(HP)]	-5.92548	-5.94852
icsd-236662-[Sn]	-5.88507	-5.88383
icsd-56503-[GaSb]	-5.88507	-5.88382
icsd-644520-[N2(epsilon)]	-5.86247	-5.86271
icsd-62747-[B(hR12)]	-5.85772	-5.85822
icsd-188336-[(Ca8)xCa2]	-5.85514	-5.85353
icsd-182587-[Nickeline-NiAs]	-5.84161	-5.84084
icsd-88820-[Si(HP)]	-5.7306	-5.73254
icsd-31170-[C(P63mc)]	-5.7147	-5.71551
icsd-88815-[Graphite(oS16)]	-5.67237	-5.67517
icsd-162242-[Ca(III)]	-5.66759	-5.66612
icsd-43211-[Po(alpha)]	-5.66759	-5.6672
icsd-181082-[C(P1)]	-5.66759	-5.6672
icsd-109027-[Sr(HP)]	-5.66759	-5.66721
icsd-653045-[Se(gamma)]	-5.66755	-5.66763
icsd-616526-[As]	-5.66752	-5.66762
icsd-41979-[Diamond-C(cF8)]	-5.64644	-5.6471
icsd-31829-[Graphite(3R)]	-5.64623	-5.64714
icsd-245950-[Ge(cF136)]	-5.63832	-5.63806
icsd-167204-[Ge(hP8)]	-5.62977	-5.63418
icsd-109028-[Bi(I4/mcm)]	-5.62904	-5.63157
icsd-30101-[Wurtzite-ZnS(2H)]	-5.62531	-5.62565
icsd-181908-[Si(I4/mmm)]	-5.52979	-5.52964
icsd-193439-[Graphite(2H)]	-5.47529	-5.47614
icsd-185973-[C3N2]	-5.43028	-5.42758

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.62	2.721	2.721	4.248	90.0	90.0	120.0
DFT	13.626	2.713	2.713	4.276	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
569.2	130.2	196.0	0.0	0.0	0.0
130.2	569.2	196.0	0.0	0.0	0.0
196.0	196.0	683.9	0.0	0.0	0.0
0.0	0.0	0.0	183.8	0.0	0.0
0.0	0.0	0.0	0.0	183.8	0.0
0.0	0.0	0.0	0.0	0.0	219.5

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.682	2.719	2.719	19.235	90.0	90.0	120.0
DFT	13.667	2.709	2.709	19.361	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
601.0	159.0	191.7	17.9	0.0	0.0
159.0	601.0	191.7	-17.9	0.0	0.0
191.7	191.7	688.4	0.0	0.0	0.0
17.9	-17.9	0.0	193.2	0.0	0.0
0.0	0.0	0.0	0.0	193.2	17.9
0.0	0.0	0.0	0.0	17.9	221.0

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.691	2.707	2.707	8.632	90.0	90.0	120.0
DFT	13.679	2.699	2.699	8.676	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
592.0	188.0	188.1	0.0	0.0	0.0
188.0	592.0	188.1	0.0	0.0	0.0
188.1	188.1	703.4	0.0	0.0	0.0
0.0	0.0	0.0	182.3	0.0	0.0
0.0	0.0	0.0	0.0	182.3	0.0
0.0	0.0	0.0	0.0	0.0	202.0

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.152	3.221	3.221	2.729	90.0	90.0	90.0
DFT	14.118	3.22	3.22	2.723	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
-30.8	477.6	134.7	0.0	0.0	0.0
477.6	-30.8	134.7	0.0	0.0	0.0
134.7	134.7	447.8	0.0	0.0	0.0
0.0	0.0	0.0	157.1	0.0	0.0
0.0	0.0	0.0	0.0	157.1	0.0
0.0	0.0	0.0	0.0	0.0	200.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.493	4.658	4.658	2.857	90.0	90.0	90.0
DFT	15.309	4.694	4.694	2.779	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
177.9	325.6	126.4	0.0	0.0	0.0
325.6	177.9	126.4	0.0	0.0	0.0
126.4	126.4	158.5	0.0	0.0	0.0
0.0	0.0	0.0	-43.4	0.0	0.0
0.0	0.0	0.0	0.0	-43.4	0.0
0.0	0.0	0.0	0.0	0.0	-9.8

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.087	3.043	3.043	3.043	90.0	90.0	90.0
DFT	14.084	3.043	3.043	3.043	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
104.4	387.9	387.9	0.0	0.0	0.0
387.9	104.4	387.9	0.0	0.0	0.0
387.9	387.9	104.4	0.0	0.0	0.0
0.0	0.0	0.0	231.4	0.0	0.0
0.0	0.0	0.0	0.0	231.4	0.0
0.0	0.0	0.0	0.0	0.0	231.4

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.718	3.8	3.8	3.8	90.0	90.0	90.0
DFT	13.691	3.798	3.798	3.798	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
539.3	201.9	201.9	0.0	0.0	0.0
201.9	539.3	201.9	0.0	0.0	0.0
201.9	201.9	539.3	0.0	0.0	0.0
0.0	0.0	0.0	248.4	0.0	0.0
0.0	0.0	0.0	0.0	248.4	0.0
0.0	0.0	0.0	0.0	0.0	248.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.011	5.43	5.43	5.43	90.0	90.0	90.0
DFT	19.825	5.413	5.413	5.413	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
161.1	157.7	157.7	0.0	0.0	0.0
157.7	161.1	157.7	0.0	0.0	0.0
157.7	157.7	161.1	0.0	0.0	0.0
0.0	0.0	0.0	10.2	0.0	0.0
0.0	0.0	0.0	0.0	10.2	0.0
0.0	0.0	0.0	0.0	0.0	10.2

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.702	2.504	2.504	2.504	90.0	90.0	90.0
DFT	15.618	2.5	2.5	2.5	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
302.4	208.7	208.7	0.0	0.0	0.0
208.7	302.4	208.7	0.0	0.0	0.0
208.7	208.7	302.4	0.0	0.0	0.0
0.0	0.0	0.0	41.8	0.0	0.0
0.0	0.0	0.0	0.0	41.8	0.0
0.0	0.0	0.0	0.0	0.0	41.8

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.62	4.538	4.833	2.666	90.0	90.0	90.0
DFT	14.877	4.397	5.022	2.695	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
487.7	82.6	155.0	0.0	0.0	0.0
82.6	226.9	139.4	0.0	0.0	0.0
155.0	139.4	542.7	0.0	0.0	0.0
0.0	0.0	0.0	48.7	0.0	0.0
0.0	0.0	0.0	0.0	143.3	0.0
0.0	0.0	0.0	0.0	0.0	-133.4
