gtinv-343 (Sb-2021-08-31-all-icsd)

Energy distribution

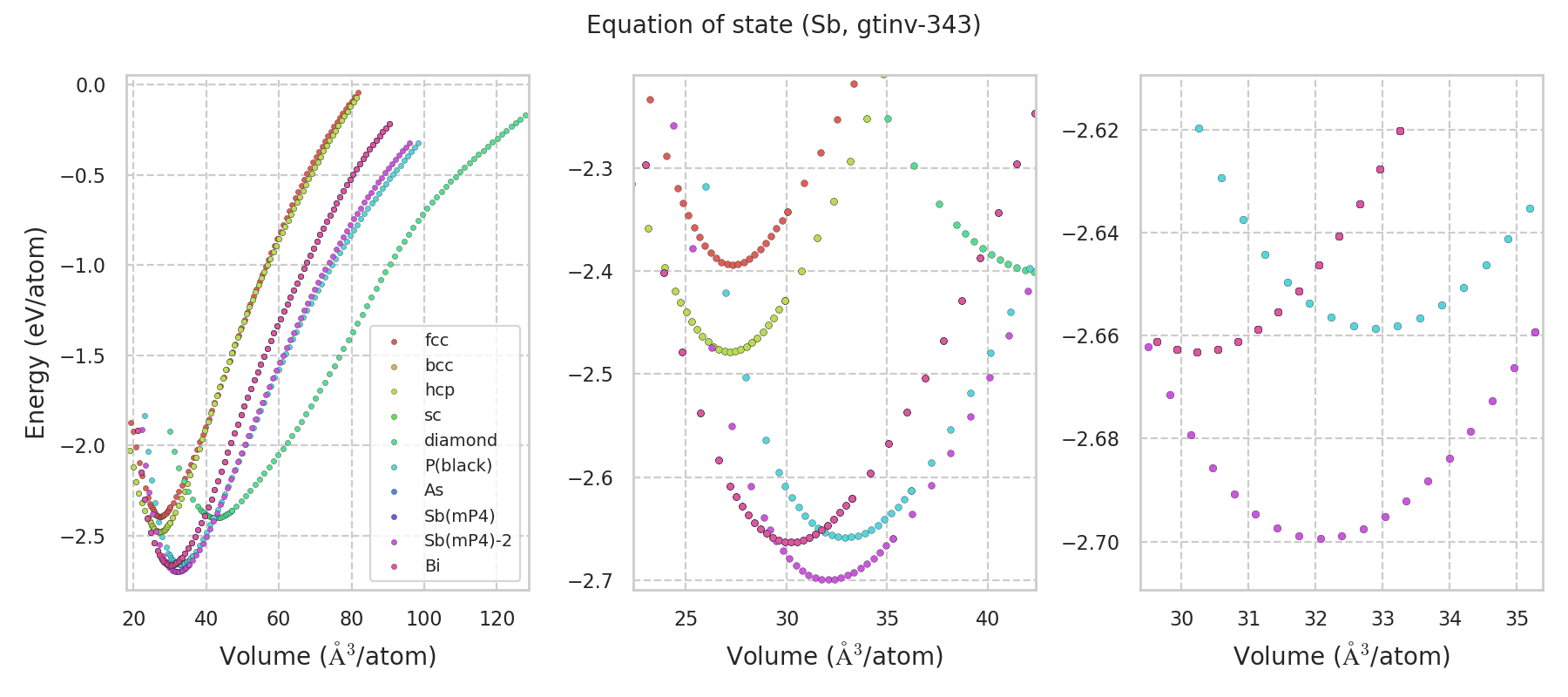

Equation of state

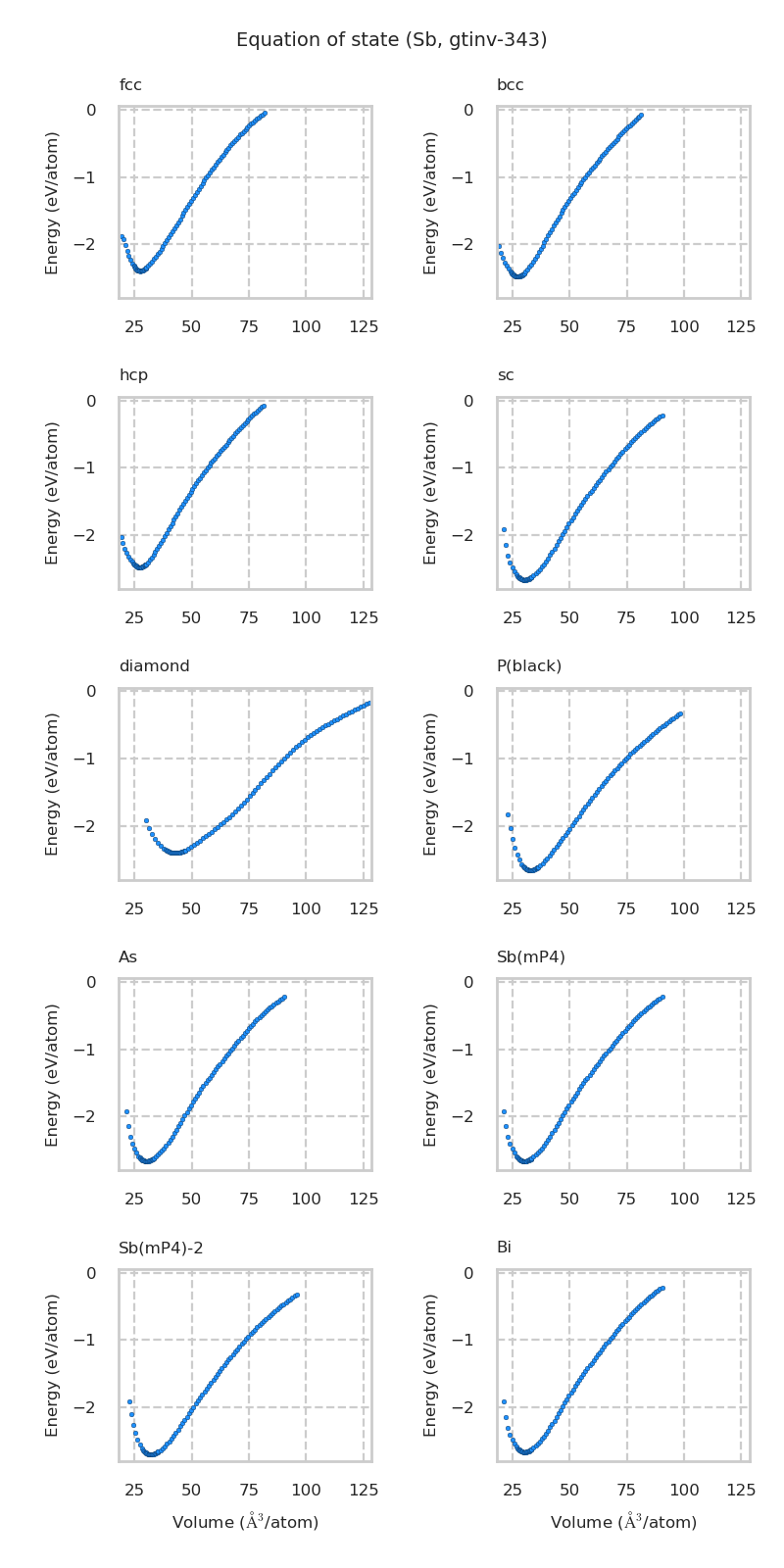

Equation of state for each structure

Prototype structure energy

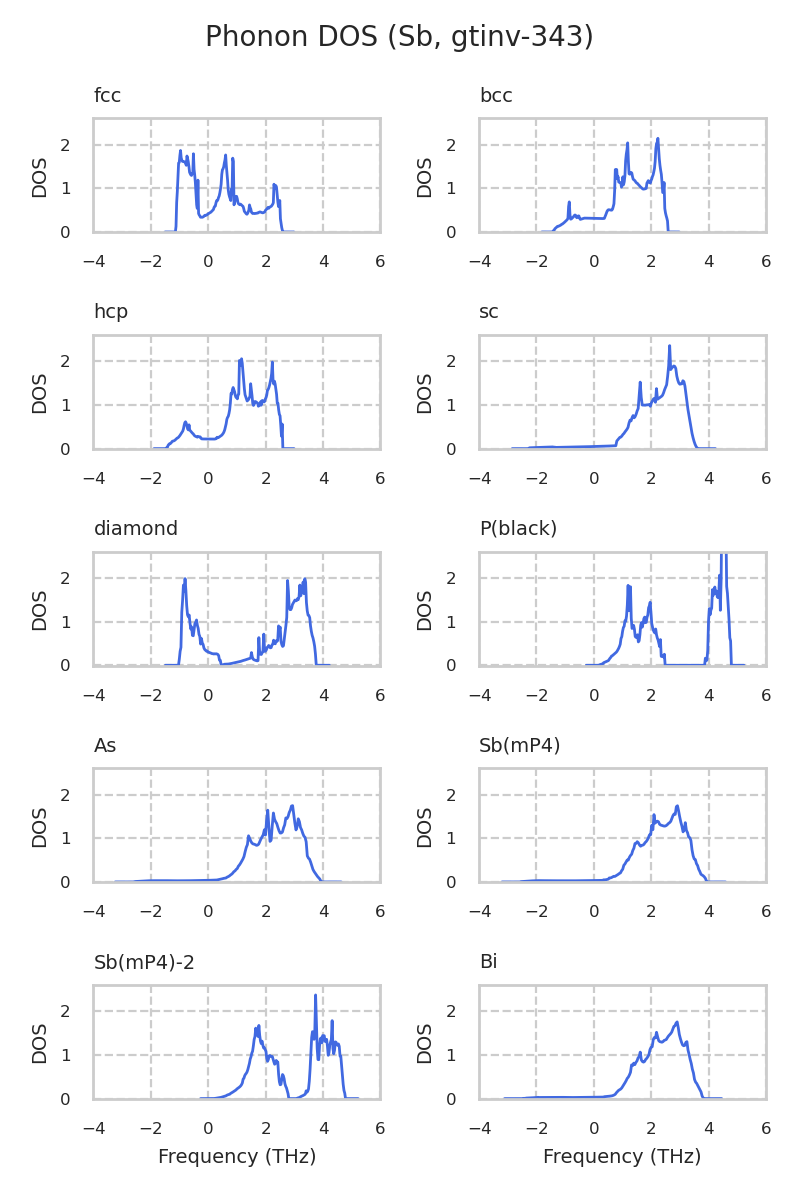

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

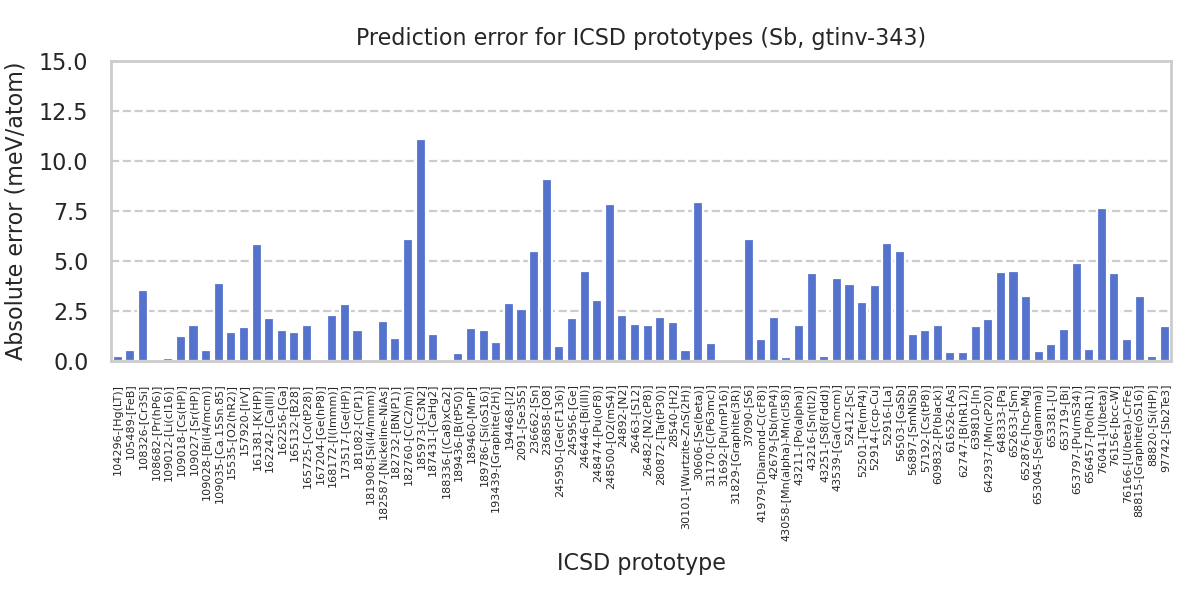

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-248500-[O2(mS4)]	-2.69848	-2.70634
icsd-31692-[Pu(mP16)]	-2.68648	-2.68648
icsd-31170-[C(P63mc)]	-2.6665	-2.66561
icsd-656457-[Po(hR1)]	-2.66297	-2.66241
icsd-653045-[Se(gamma)]	-2.66293	-2.66244
icsd-162242-[Ca(III)]	-2.66293	-2.66078
icsd-109027-[Sr(HP)]	-2.66292	-2.66114
icsd-43211-[Po(alpha)]	-2.66291	-2.66114
icsd-97742-[Sb2Te3]	-2.66291	-2.6612
icsd-26482-[N2(cP8)]	-2.6629	-2.66113
icsd-42679-[Sb(mP4)]	-2.66285	-2.66068
icsd-105489-[FeB]	-2.66285	-2.6623
icsd-616526-[As]	-2.66284	-2.66244
icsd-162256-[Ga]	-2.6627	-2.66114
icsd-181082-[C(P1)]	-2.66265	-2.66114
icsd-57192-[Cs(tP8)]	-2.66264	-2.66111
icsd-653719-[Bi]	-2.66256	-2.661
icsd-609832-[P(black)]	-2.6577	-2.65949
icsd-236858-[O8]	-2.64638	-2.65548
icsd-37090-[S6]	-2.63259	-2.63871
icsd-52501-[Te(mP4)]	-2.62648	-2.62356
icsd-31829-[Graphite(3R)]	-2.62648	-2.62643
icsd-43539-[Ga(Cmcm)]	-2.62616	-2.62203
icsd-28540-[H2]	-2.6192	-2.61724
icsd-194468-[I2]	-2.61877	-2.61589
icsd-56503-[GaSb]	-2.59185	-2.58634
icsd-236662-[Sn]	-2.59185	-2.58634
icsd-182587-[Nickeline-NiAs]	-2.58987	-2.58791
icsd-182732-[BN(P1)]	-2.57889	-2.57775
icsd-30606-[Se(beta)]	-2.57686	-2.5848
icsd-185973-[C3N2]	-2.57329	-2.56217
icsd-109018-[Cs(HP)]	-2.57005	-2.56883
icsd-245956-[Ge]	-2.56593	-2.56809
icsd-188336-[(Ca8)xCa2]	-2.56542	-2.56551
icsd-76041-[U(beta)]	-2.56211	-2.56979
icsd-653381-[U]	-2.55891	-2.55973
icsd-109035-[Ca.15Sn.85]	-2.55885	-2.56272
icsd-280872-[Ta(tP30)]	-2.55864	-2.56084
icsd-30101-[Wurtzite-ZnS(2H)]	-2.55441	-2.55388
icsd-189460-[MnP]	-2.55237	-2.55073
icsd-167204-[Ge(hP8)]	-2.55014	-2.55014
icsd-43058-[Mn(alpha)-Mn(cI58)]	-2.5501	-2.55028
icsd-24892-[N2]	-2.5442	-2.54194
icsd-15535-[O2(hR2)]	-2.54405	-2.54548
icsd-165132-[B28]	-2.54244	-2.54384
icsd-2091-[Se3S5]	-2.54148	-2.54409
icsd-173517-[Ge(HP)]	-2.54	-2.53718
icsd-43251-[S8(Fddd)]	-2.52718	-2.52697
icsd-52412-[Sc]	-2.5187	-2.51488
icsd-189786-[Si(oS16)]	-2.51597	-2.51442
icsd-165725-[Co(tP28)]	-2.51377	-2.51197
icsd-653797-[Pu(mS34)]	-2.50891	-2.51379
icsd-189436-[B(tP50)]	-2.50844	-2.50881
icsd-246446-[Bi(III)]	-2.4786	-2.47413
icsd-157920-[IrV]	-2.47858	-2.48027
icsd-648333-[Pa]	-2.47854	-2.47412
icsd-43216-[Sn(tI2)]	-2.47854	-2.47412
icsd-76156-[bcc-W]	-2.47854	-2.47413
icsd-109012-[Li(cI16)]	-2.47853	-2.47867
icsd-652876-[hcp-Mg]	-2.4785	-2.48173
icsd-182760-[C(C2/m)]	-2.47232	-2.47839
icsd-88820-[Si(HP)]	-2.46789	-2.46813
icsd-187431-[CaHg2]	-2.46079	-2.46212
icsd-56897-[SmNiSb]	-2.46069	-2.46204
icsd-76166-[U(beta)-CrFe]	-2.45681	-2.45572
icsd-109028-[Bi(I4/mcm)]	-2.44986	-2.44932
icsd-248474-[Pu(oF8)]	-2.43419	-2.43721
icsd-652633-[Sm]	-2.42277	-2.42724
icsd-88815-[Graphite(oS16)]	-2.42058	-2.41732
icsd-161381-[K(HP)]	-2.41859	-2.42445
icsd-52916-[La]	-2.41852	-2.4244
icsd-639810-[In]	-2.40984	-2.41156
icsd-168172-[I(Immm)]	-2.40938	-2.41167
icsd-41979-[Diamond-C(cF8)]	-2.40083	-2.4019
icsd-642937-[Mn(cP20)]	-2.39567	-2.39359
icsd-108682-[Pr(hP6)]	-2.39396	-2.39396
icsd-104296-[Hg(LT)]	-2.39383	-2.39362
icsd-52914-[ccp-Cu]	-2.39361	-2.38983
icsd-26463-[S12]	-2.37772	-2.37954
icsd-245950-[Ge(cF136)]	-2.35393	-2.35321
icsd-181908-[Si(I4/mmm)]	-2.35376	-2.35365
icsd-62747-[B(hR12)]	-2.3472	-2.34676
icsd-193439-[Graphite(2H)]	-2.33473	-2.33565
icsd-108326-[Cr3Si]	-2.33091	-2.33447

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.185	3.788	5.358	5.358	90.0	90.0	90.0
DFT	27.072	3.8	5.341	5.335	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
84.6	64.6	64.6	0.0	0.0	0.0
64.6	100.8	48.4	0.0	0.0	0.0
64.6	48.4	100.8	0.0	0.0	0.0
0.0	0.0	0.0	10.0	0.0	0.0
0.0	0.0	0.0	0.0	26.2	0.0
0.0	0.0	0.0	0.0	0.0	26.2

Lattice parameters (P(black))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.893	4.312	12.46	4.898	90.0	90.0	90.0
DFT	32.482	4.353	12.4	4.814	90.0	90.0	90.0

Elastic constants (P(black))

1	2	3	4	5	6
66.1	4.9	28.2	0.0	0.0	0.0
4.9	62.2	0.1	0.0	0.0	0.0
28.2	0.1	37.7	0.0	0.0	0.0
0.0	0.0	0.0	6.6	0.0	0.0
0.0	0.0	0.0	0.0	26.3	0.0
0.0	0.0	0.0	0.0	0.0	4.7

Lattice parameters (As)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.235	4.406	4.406	5.396	90.0	90.0	120.0
DFT	29.982	4.389	4.389	5.392	90.0	90.0	120.0

Elastic constants (As)

1	2	3	4	5	6
89.7	20.7	50.6	42.3	0.0	0.0
20.7	89.7	50.6	-42.3	0.0	0.0
50.6	50.6	59.8	0.0	0.0	0.0
42.3	-42.3	0.0	64.4	0.0	0.0
0.0	0.0	0.0	0.0	64.4	42.3
0.0	0.0	0.0	0.0	42.3	34.5

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.185	3.788	3.788	3.788	90.0	90.0	90.0
DFT	27.058	3.782	3.782	3.782	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
84.6	64.6	64.6	0.0	0.0	0.0
64.6	84.6	64.6	0.0	0.0	0.0
64.6	64.6	84.6	0.0	0.0	0.0
0.0	0.0	0.0	26.2	0.0	0.0
0.0	0.0	0.0	0.0	26.2	0.0
0.0	0.0	0.0	0.0	0.0	26.2

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.32	4.781	4.781	4.781	90.0	90.0	90.0
DFT	27.505	4.792	4.792	4.792	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
61.1	89.5	89.5	0.0	0.0	0.0
89.5	61.1	89.5	0.0	0.0	0.0
89.5	89.5	61.1	0.0	0.0	0.0
0.0	0.0	0.0	1.8	0.0	0.0
0.0	0.0	0.0	0.0	1.8	0.0
0.0	0.0	0.0	0.0	0.0	1.8

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	42.726	6.992	6.992	6.992	90.0	90.0	90.0
DFT	42.678	6.989	6.989	6.989	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
30.1	36.1	36.1	0.0	0.0	0.0
36.1	30.1	36.1	0.0	0.0	0.0
36.1	36.1	30.1	0.0	0.0	0.0
0.0	0.0	0.0	-12.0	0.0	0.0
0.0	0.0	0.0	0.0	-12.0	0.0
0.0	0.0	0.0	0.0	0.0	-12.0

Lattice parameters (Sb(mP4))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.235	4.406	4.406	6.231	90.0	90.0	90.0
DFT	30.024	4.397	4.398	6.211	90.0	90.12	90.0

Elastic constants (Sb(mP4))

1	2	3	4	5	6
101240.4	28303.8	39429.1	0.0	34783.8	50591.9
28303.8	88.9	-9.2	0.0	28236.0	28235.5
39429.1	-9.2	182.7	0.0	39418.5	39413.7
0.0	0.0	0.0	7.8	0.0	13.7
34783.8	28236.0	39418.5	0.0	-31609.8	-15808.4
50591.9	28235.5	39413.7	13.7	-15808.4	28.5

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.235	3.115	3.115	3.115	90.0	90.0	90.0
DFT	30.005	3.107	3.107	3.107	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
179.5	-9.2	-9.2	0.0	0.0	0.0
-9.2	179.5	-9.2	0.0	0.0	0.0
-9.2	-9.2	179.5	0.0	0.0	0.0
0.0	0.0	0.0	4.6	0.0	0.0
0.0	0.0	0.0	0.0	4.6	0.0
0.0	0.0	0.0	0.0	0.0	4.6

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.235	4.406	4.406	3.115	90.0	90.0	90.0
DFT	29.921	4.39	4.39	3.105	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
89.7	80.5	-9.2	0.0	0.0	0.0
80.5	89.7	-9.2	0.0	0.0	0.0
-9.2	-9.2	179.5	0.0	0.0	0.0
0.0	0.0	0.0	4.6	0.0	0.0
0.0	0.0	0.0	0.0	4.6	0.0
0.0	0.0	0.0	0.0	0.0	94.3

Lattice parameters (2)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.068	4.365	4.365	11.659	90.0	90.0	120.0
DFT	31.869	4.38	4.38	11.507	90.0	90.0	120.0

Elastic constants (2)

1	2	3	4	5	6
72.9	32.5	18.8	-4.9	0.0	0.0
32.5	72.9	18.8	4.9	0.0	0.0
18.8	18.8	34.4	0.0	0.0	0.0
-4.9	4.9	0.0	9.7	0.0	0.0
0.0	0.0	0.0	0.0	9.7	-4.9
0.0	0.0	0.0	0.0	-4.9	20.2
