gtinv-193 (Si-2021-08-04-all-icsd)

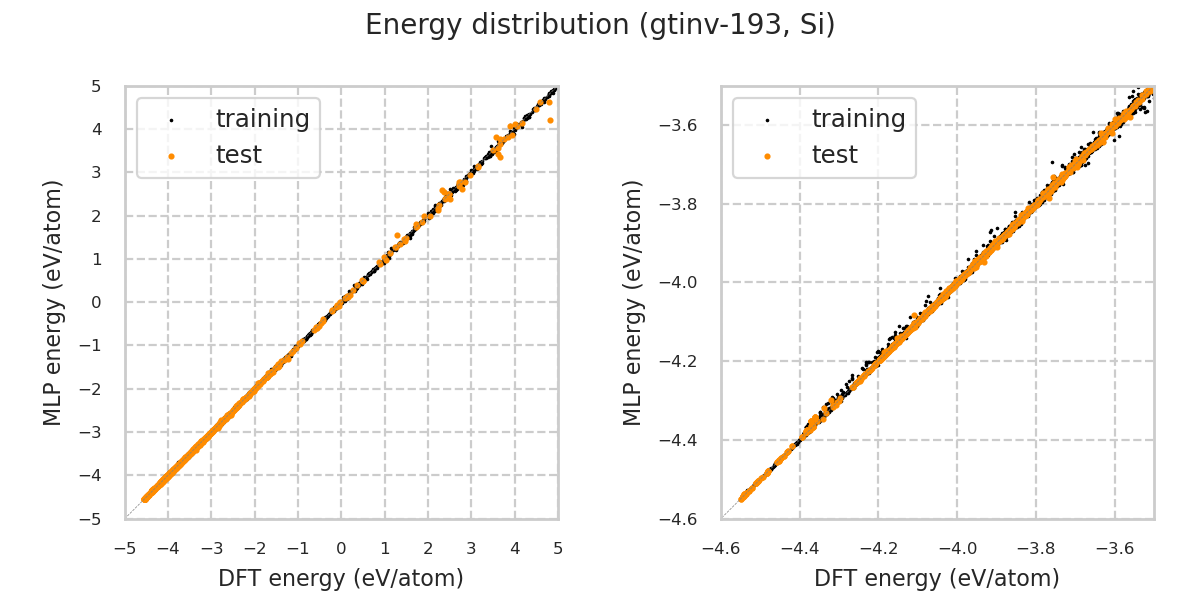

Energy distribution

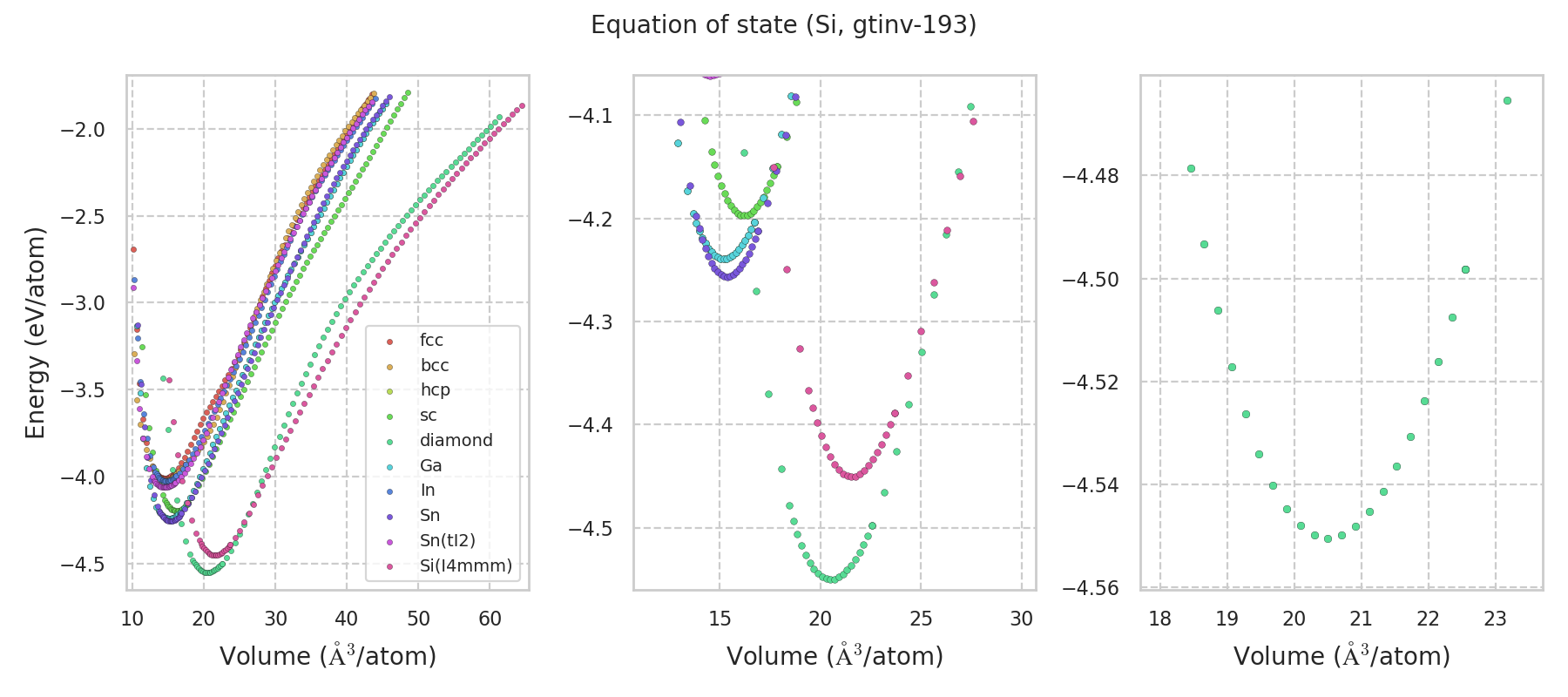

Equation of state

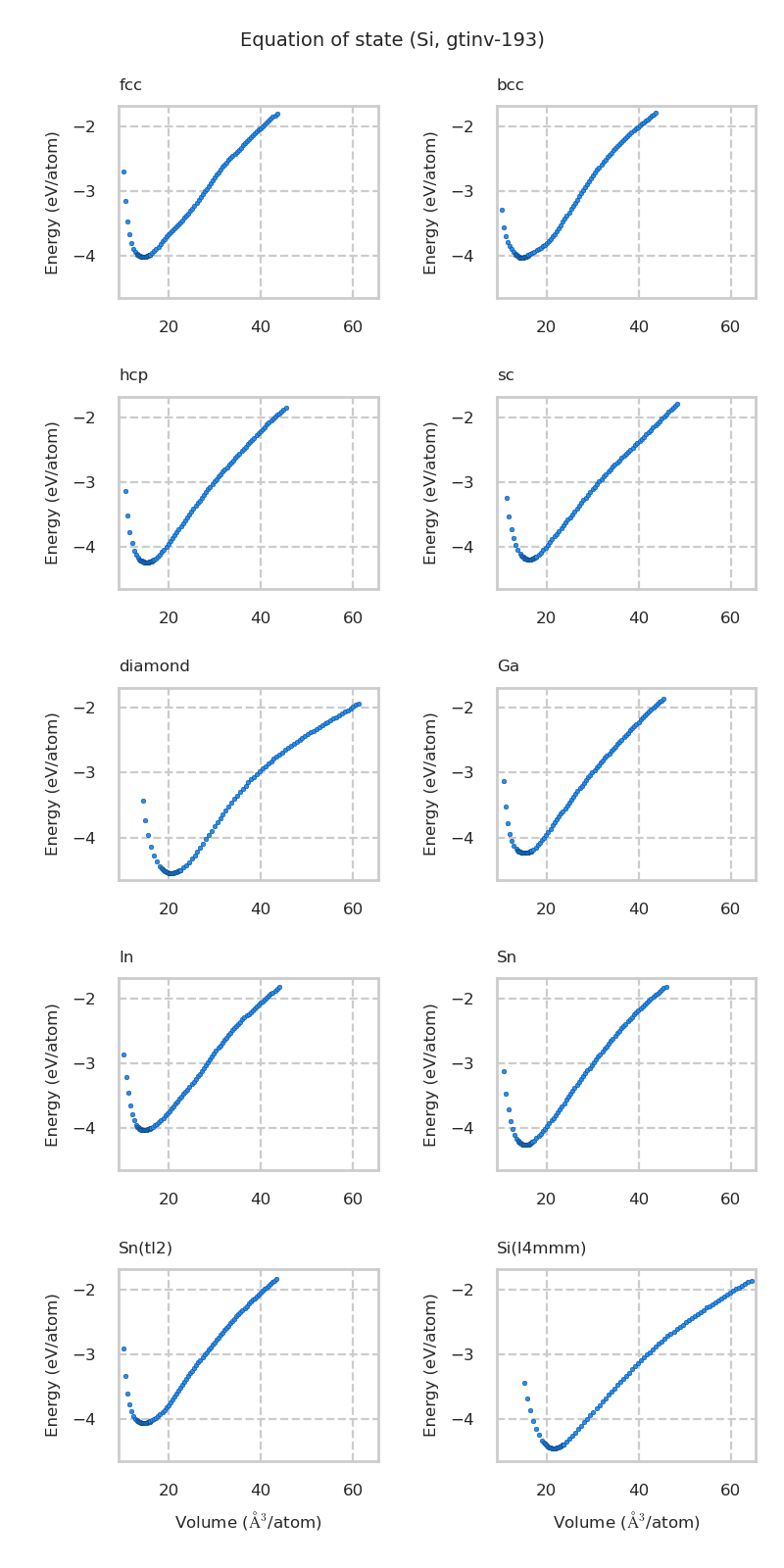

Equation of state for each structure

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

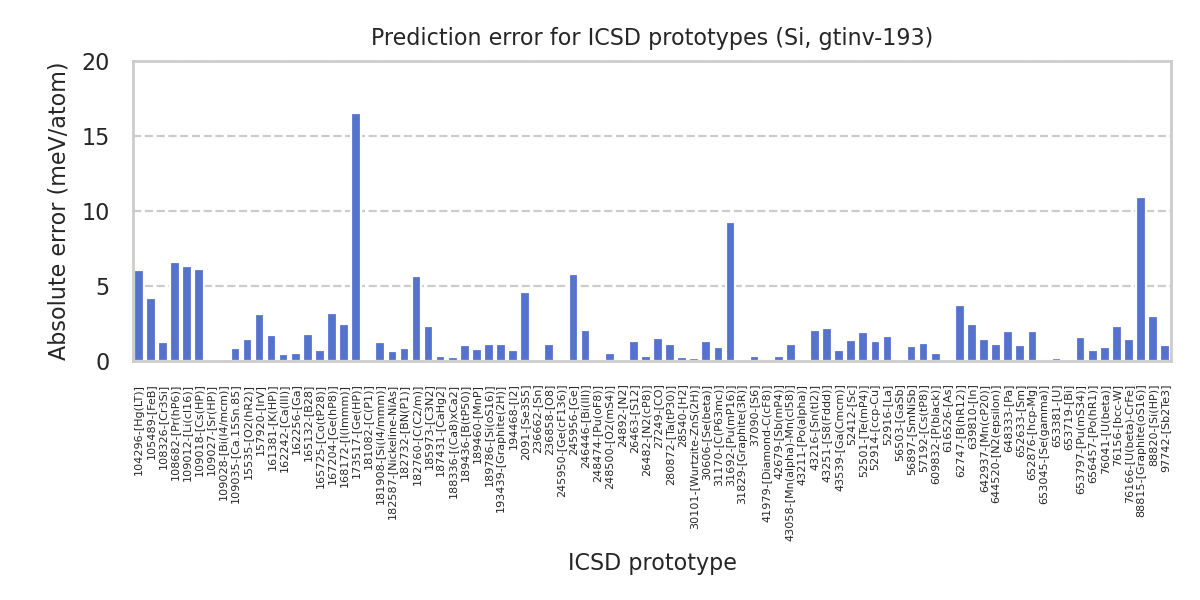

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-31829-[Graphite(3R)]	-4.55031	-4.55027
icsd-41979-[Diamond-C(cF8)]	-4.55028	-4.55028
icsd-167204-[Ge(hP8)]	-4.54358	-4.54678
icsd-24892-[N2]	-4.53904	-4.53915
icsd-30101-[Wurtzite-ZnS(2H)]	-4.53897	-4.53916
icsd-245950-[Ge(cF136)]	-4.49746	-4.49753
icsd-181908-[Si(I4/mmm)]	-4.45022	-4.44895
icsd-189786-[Si(oS16)]	-4.45018	-4.44905
icsd-88820-[Si(HP)]	-4.3944	-4.39145
icsd-245956-[Ge]	-4.38357	-4.38935
icsd-173517-[Ge(HP)]	-4.36718	-4.38372
icsd-28540-[H2]	-4.26161	-4.26185
icsd-248474-[Pu(oF8)]	-4.25643	-4.25655
icsd-653719-[Bi]	-4.25622	-4.25625
icsd-56503-[GaSb]	-4.256	-4.25589
icsd-236662-[Sn]	-4.25596	-4.25594
icsd-109035-[Ca.15Sn.85]	-4.23874	-4.23787
icsd-162256-[Ga]	-4.23868	-4.23818
icsd-653381-[U]	-4.23863	-4.23883
icsd-182732-[BN(P1)]	-4.21644	-4.21563
icsd-57192-[Cs(tP8)]	-4.20832	-4.20716
icsd-52412-[Sc]	-4.2017	-4.20031
icsd-27249-[CO]	-4.19921	-4.20071
icsd-42679-[Sb(mP4)]	-4.19916	-4.19948
icsd-26482-[N2(cP8)]	-4.19727	-4.19756
icsd-181082-[C(P1)]	-4.19707	-4.1971
icsd-43211-[Po(alpha)]	-4.19705	-4.19711
icsd-97742-[Sb2Te3]	-4.19705	-4.196
icsd-616526-[As]	-4.19703	-4.19713
icsd-653045-[Se(gamma)]	-4.19702	-4.19713
icsd-109027-[Sr(HP)]	-4.19699	-4.19709
icsd-162242-[Ca(III)]	-4.19696	-4.19741
icsd-31692-[Pu(mP16)]	-4.19376	-4.20304
icsd-182587-[Nickeline-NiAs]	-4.18108	-4.18045
icsd-189460-[MnP]	-4.1808	-4.18005
icsd-43251-[S8(Fddd)]	-4.1806	-4.18278
icsd-165132-[B28]	-4.17478	-4.17654
icsd-30606-[Se(beta)]	-4.17374	-4.17246
icsd-52501-[Te(mP4)]	-4.16686	-4.16498
icsd-31170-[C(P63mc)]	-4.16649	-4.16742
icsd-2091-[Se3S5]	-4.16067	-4.16527
icsd-26463-[S12]	-4.15644	-4.15516
icsd-193439-[Graphite(2H)]	-4.1556	-4.1567
icsd-109018-[Cs(HP)]	-4.15252	-4.15864
icsd-43058-[Mn(alpha)-Mn(cI58)]	-4.14915	-4.15023
icsd-280872-[Ta(tP30)]	-4.14885	-4.14777
icsd-76041-[U(beta)]	-4.14881	-4.14792
icsd-43539-[Ga(Cmcm)]	-4.13164	-4.13235
icsd-653797-[Pu(mS34)]	-4.12898	-4.13058
icsd-62747-[B(hR12)]	-4.10594	-4.10223
icsd-236858-[O8]	-4.09318	-4.09428
icsd-189436-[B(tP50)]	-4.08745	-4.08847
icsd-609832-[P(black)]	-4.07181	-4.07132
icsd-188336-[(Ca8)xCa2]	-4.0716	-4.07134
icsd-248500-[O2(mS4)]	-4.07077	-4.07029
icsd-15535-[O2(hR2)]	-4.07043	-4.07185
icsd-648333-[Pa]	-4.06122	-4.06322
icsd-43216-[Sn(tI2)]	-4.0612	-4.06322
icsd-246446-[Bi(III)]	-4.0612	-4.06322
icsd-109028-[Bi(I4/mcm)]	-4.05377	-4.05367
icsd-37090-[S6]	-4.05155	-4.05188
icsd-56897-[SmNiSb]	-4.04729	-4.04632
icsd-187431-[CaHg2]	-4.04588	-4.04616
icsd-652876-[hcp-Mg]	-4.03702	-4.03902
icsd-639810-[In]	-4.02467	-4.02224
icsd-642937-[Mn(cP20)]	-4.02465	-4.0261
icsd-168172-[I(Immm)]	-4.02463	-4.02218
icsd-194468-[I2]	-4.02413	-4.02484
icsd-109012-[Li(cI16)]	-4.02374	-4.03006
icsd-76156-[bcc-W]	-4.02364	-4.02131
icsd-652633-[Sm]	-4.02098	-4.01996
icsd-52916-[La]	-4.01879	-4.02042
icsd-161381-[K(HP)]	-4.01865	-4.02036
icsd-656457-[Po(hR1)]	-4.01465	-4.01536
icsd-157920-[IrV]	-4.00983	-4.01296
icsd-108682-[Pr(hP6)]	-4.00946	-4.01603
icsd-52914-[ccp-Cu]	-4.00935	-4.00802
icsd-76166-[U(beta)-CrFe]	-4.00497	-4.00642
icsd-104296-[Hg(LT)]	-4.00167	-4.00771
icsd-105489-[FeB]	-3.98871	-3.99289
icsd-165725-[Co(tP28)]	-3.98202	-3.98275
icsd-182760-[C(C2/m)]	-3.95231	-3.95799
icsd-88815-[Graphite(oS16)]	-3.95127	-3.96221
icsd-108326-[Cr3Si]	-3.95058	-3.95185
icsd-185973-[C3N2]	-3.9466	-3.9489
icsd-644520-[N2(epsilon)]	-3.94448	-3.94558

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.195	2.656	4.601	4.973	90.0	90.0	90.0
DFT	14.317	2.717	4.677	4.506	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
155.3	75.3	5.5	0.0	0.0	0.0
75.3	155.3	5.5	0.0	0.0	0.0
5.5	5.5	239.0	0.0	0.0	0.0
0.0	0.0	0.0	86.7	0.0	0.0
0.0	0.0	0.0	0.0	86.7	0.0
0.0	0.0	0.0	0.0	0.0	40.0

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.534	3.315	3.315	2.644	90.0	90.0	90.0
DFT	14.464	3.317	3.317	2.629	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
135.8	31.8	42.4	0.0	0.0	0.0
31.8	135.8	42.4	0.0	0.0	0.0
42.4	42.4	120.3	0.0	0.0	0.0
0.0	0.0	0.0	20.9	0.0	0.0
0.0	0.0	0.0	0.0	20.9	0.0
0.0	0.0	0.0	0.0	0.0	32.2

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.368	4.81	4.81	2.657	90.0	90.0	90.0
DFT	15.349	4.79	4.79	2.676	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
211.4	80.8	53.6	0.0	0.0	0.0
80.8	211.4	53.6	0.0	0.0	0.0
53.6	53.6	151.5	0.0	0.0	0.0
0.0	0.0	0.0	59.1	0.0	0.0
0.0	0.0	0.0	0.0	59.1	0.0
0.0	0.0	0.0	0.0	0.0	94.5

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.625	3.081	3.081	3.081	90.0	90.0	90.0
DFT	14.607	3.08	3.08	3.08	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
86.6	129.9	129.9	0.0	0.0	0.0
129.9	86.6	129.9	0.0	0.0	0.0
129.9	129.9	86.6	0.0	0.0	0.0
0.0	0.0	0.0	14.5	0.0	0.0
0.0	0.0	0.0	0.0	14.5	0.0
0.0	0.0	0.0	0.0	0.0	14.5

Lattice parameters (In)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.702	2.57	2.57	4.451	90.0	90.0	90.0
DFT	14.73	2.557	2.557	4.505	90.0	90.0	90.0

Elastic constants (In)

1	2	3	4	5	6
169.4	15.8	56.8	0.0	0.0	0.0
15.8	169.4	56.8	0.0	0.0	0.0
56.8	56.8	74.7	0.0	0.0	0.0
0.0	0.0	0.0	-7.3	0.0	0.0
0.0	0.0	0.0	0.0	-7.3	0.0
0.0	0.0	0.0	0.0	0.0	2.6

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.553	3.876	3.876	3.876	90.0	90.0	90.0
DFT	14.502	3.871	3.871	3.871	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
61.9	89.8	89.8	0.0	0.0	0.0
89.8	61.9	89.8	0.0	0.0	0.0
89.8	89.8	61.9	0.0	0.0	0.0
0.0	0.0	0.0	13.5	0.0	0.0
0.0	0.0	0.0	0.0	13.5	0.0
0.0	0.0	0.0	0.0	0.0	13.5

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.504	5.474	5.474	5.474	90.0	90.0	90.0
DFT	20.395	5.464	5.464	5.464	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
151.8	65.4	65.4	0.0	0.0	0.0
65.4	151.8	65.4	0.0	0.0	0.0
65.4	65.4	151.8	0.0	0.0	0.0
0.0	0.0	0.0	72.2	0.0	0.0
0.0	0.0	0.0	0.0	72.2	0.0
0.0	0.0	0.0	0.0	0.0	72.2

Lattice parameters (Ga)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.195	4.601	2.487	2.656	90.0	90.0	90.0
DFT	15.054	4.572	2.486	2.649	90.0	90.0	90.0

Elastic constants (Ga)

1	2	3	4	5	6
155.3	5.5	75.3	0.0	0.0	0.0
5.5	239.0	5.5	0.0	0.0	0.0
75.3	5.5	155.3	0.0	0.0	0.0
0.0	0.0	0.0	86.7	0.0	0.0
0.0	0.0	0.0	0.0	40.0	0.0
0.0	0.0	0.0	0.0	0.0	86.7

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.207	2.531	2.531	2.531	90.0	90.0	90.0
DFT	16.175	2.529	2.529	2.529	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
217.3	53.7	53.7	0.0	0.0	0.0
53.7	217.3	53.7	0.0	0.0	0.0
53.7	53.7	217.3	0.0	0.0	0.0
0.0	0.0	0.0	9.8	0.0	0.0
0.0	0.0	0.0	0.0	9.8	0.0
0.0	0.0	0.0	0.0	0.0	9.8

Lattice parameters (Si(I4mmm))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.549	6.661	6.661	3.885	90.0	90.0	90.0
DFT	21.541	6.685	6.685	3.856	90.0	90.0	90.0

Elastic constants (Si(I4mmm))

1	2	3	4	5	6
172.9	58.4	76.0	0.0	0.0	0.0
58.4	172.9	76.0	0.0	0.0	0.0
76.0	76.0	200.1	0.0	0.0	0.0
0.0	0.0	0.0	55.0	0.0	0.0
0.0	0.0	0.0	0.0	55.0	0.0
0.0	0.0	0.0	0.0	0.0	38.2
