gtinv-190 (Sn-2021-08-04-all-icsd)

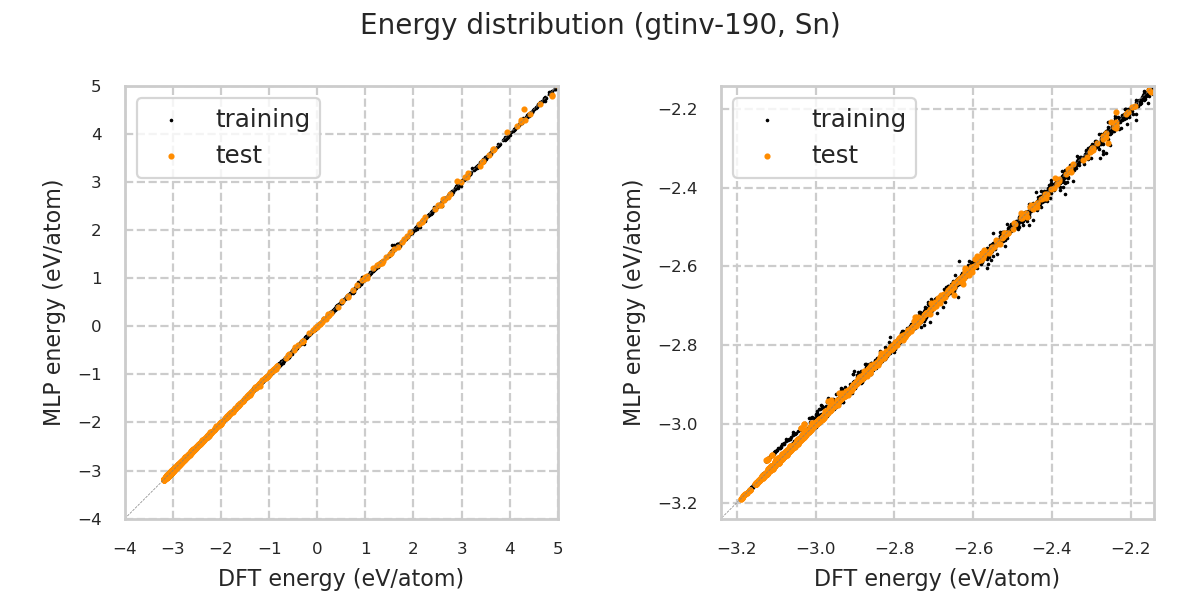

Energy distribution

../../../../_images/distribution1922.png

Equation of state

../../../../_images/e-v798.png

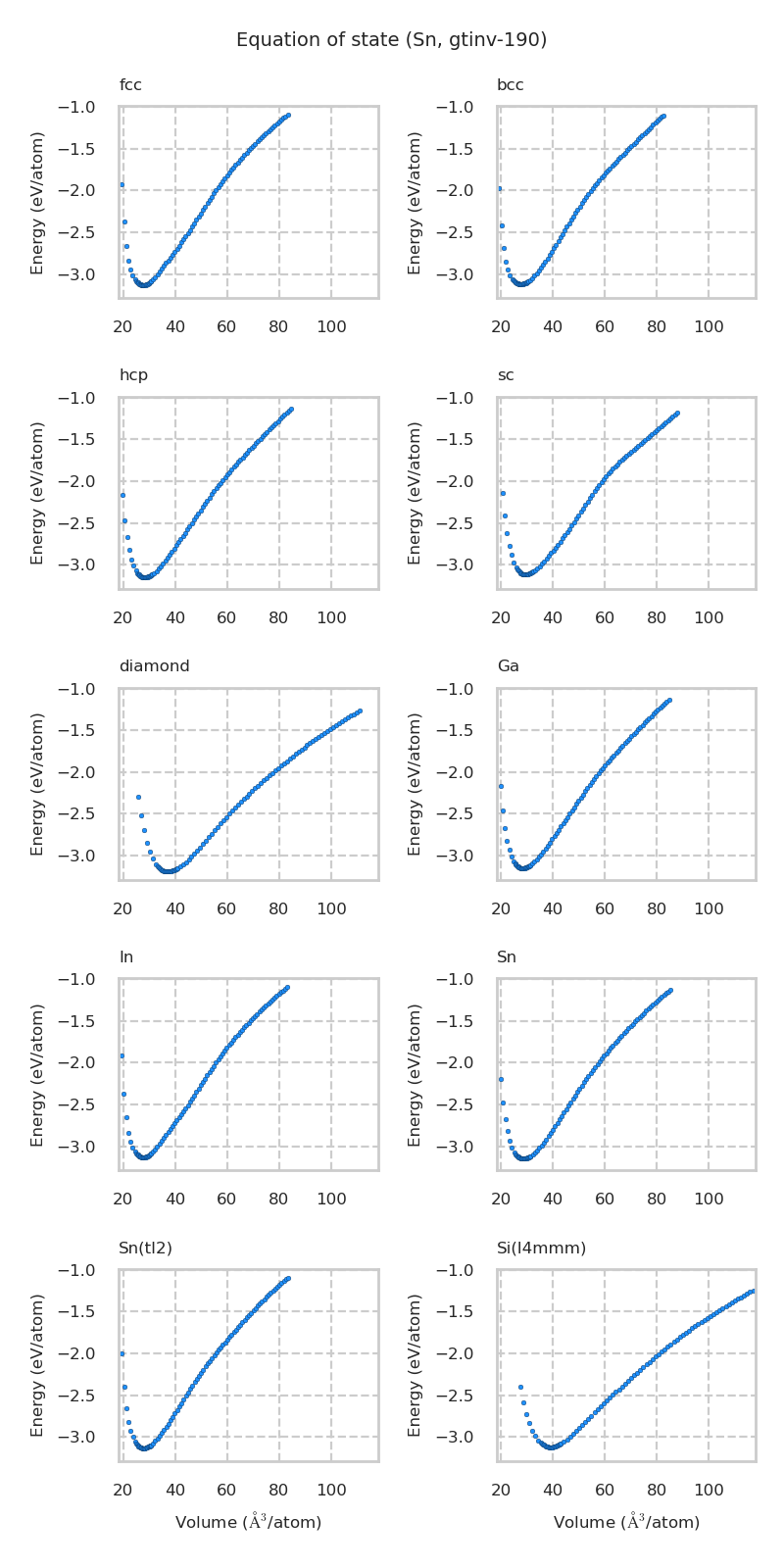

Equation of state for each structure

../../../../_images/e-v-sep1922.png

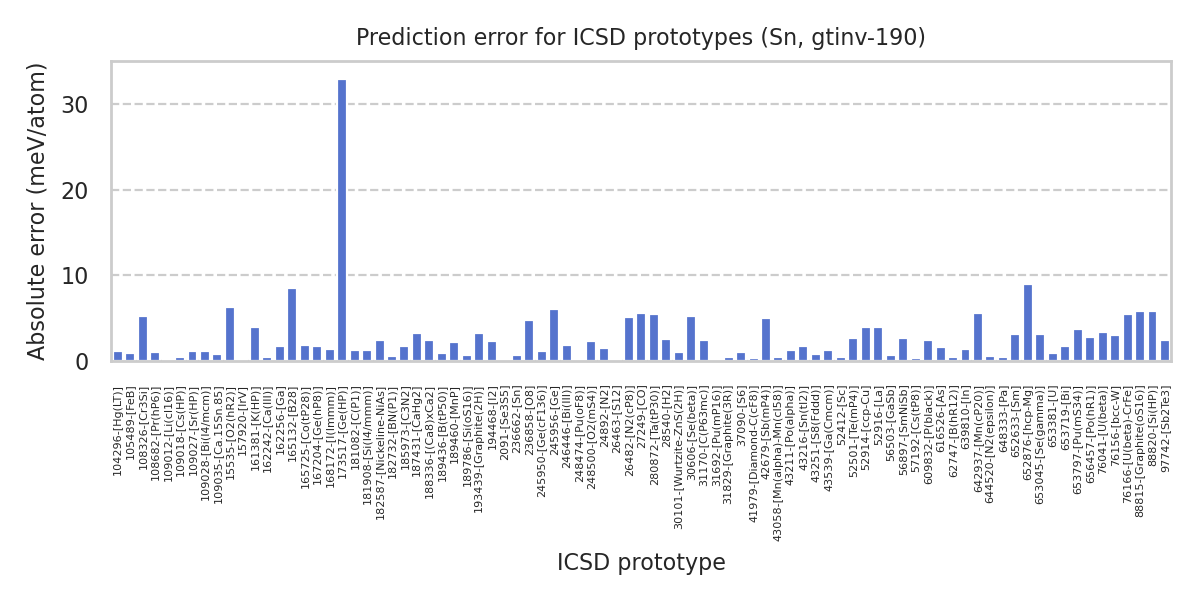

Prototype structure energy

../../../../_images/icsd-pred1922.png

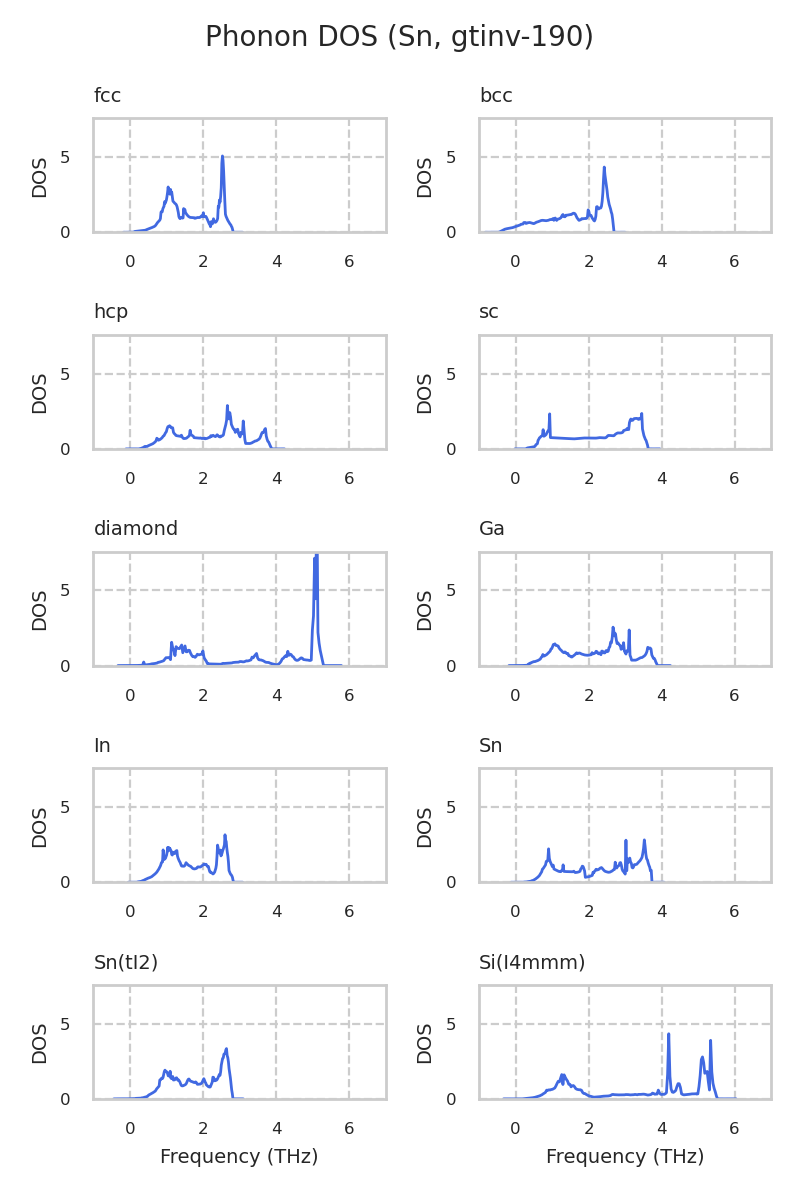

Phonon density of states

../../../../_images/dos1922.png

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype

MLP (eV/atom)

DFT (eV/atom)

icsd-41979-[Diamond-C(cF8)]

-3.19123

-3.1909

icsd-31829-[Graphite(3R)]

-3.1912

-3.19079

icsd-167204-[Ge(hP8)]

-3.18074

-3.18246

icsd-30101-[Wurtzite-ZnS(2H)]

-3.17355

-3.17459

icsd-245950-[Ge(cF136)]

-3.16843

-3.16732

icsd-109035-[Ca.15Sn.85]

-3.15248

-3.15322

icsd-31692-[Pu(mP16)]

-3.15217

-3.15205

icsd-162256-[Ga]

-3.15216

-3.15048

icsd-236662-[Sn]

-3.15111

-3.15043

icsd-56503-[GaSb]

-3.1511

-3.15043

icsd-653381-[U]

-3.15088

-3.15006

icsd-189786-[Si(oS16)]

-3.13784

-3.13718

icsd-105489-[FeB]

-3.13704

-3.13795

icsd-52412-[Sc]

-3.13703

-3.13661

icsd-194468-[I2]

-3.13421

-3.13197

icsd-189460-[MnP]

-3.13417

-3.13197

icsd-43216-[Sn(tI2)]

-3.13383

-3.13553

icsd-97742-[Sb2Te3]

-3.13377

-3.13143

icsd-246446-[Bi(III)]

-3.13373

-3.1355

icsd-236858-[O8]

-3.13349

-3.1382

icsd-639810-[In]

-3.13319

-3.13455

icsd-168172-[I(Immm)]

-3.13317

-3.13455

icsd-157920-[IrV]

-3.13297

-3.13317

icsd-57192-[Cs(tP8)]

-3.1329

-3.13255

icsd-52914-[ccp-Cu]

-3.13283

-3.12895

icsd-248500-[O2(mS4)]

-3.13279

-3.13503

icsd-648333-[Pa]

-3.13268

-3.1331

icsd-108682-[Pr(hP6)]

-3.13257

-3.13351

icsd-104296-[Hg(LT)]

-3.13255

-3.13368

icsd-15535-[O2(hR2)]

-3.13233

-3.1386

icsd-161381-[K(HP)]

-3.13185

-3.13574

icsd-52916-[La]

-3.13176

-3.13572

icsd-652633-[Sm]

-3.13013

-3.13323

icsd-27249-[CO]

-3.12947

-3.12389

icsd-652876-[hcp-Mg]

-3.12859

-3.13751

icsd-26482-[N2(cP8)]

-3.12813

-3.123

icsd-248474-[Pu(oF8)]

-3.12458

-3.12474

icsd-182732-[BN(P1)]

-3.12403

-3.12354

icsd-181908-[Si(I4/mmm)]

-3.12236

-3.12361

icsd-56897-[SmNiSb]

-3.12209

-3.12477

icsd-109012-[Li(cI16)]

-3.12171

-3.12155

icsd-187431-[CaHg2]

-3.12169

-3.12488

icsd-76156-[bcc-W]

-3.12168

-3.11864

icsd-656457-[Po(hR1)]

-3.12165

-3.12435

icsd-181082-[C(P1)]

-3.11724

-3.116

icsd-43211-[Po(alpha)]

-3.11723

-3.116

icsd-162242-[Ca(III)]

-3.11722

-3.11758

icsd-109027-[Sr(HP)]

-3.11715

-3.11598

icsd-616526-[As]

-3.11679

-3.11839

icsd-24892-[N2]

-3.11537

-3.11386

icsd-653045-[Se(gamma)]

-3.11525

-3.11832

icsd-188336-[(Ca8)xCa2]

-3.11508

-3.11268

icsd-609832-[P(black)]

-3.11495

-3.11255

icsd-88820-[Si(HP)]

-3.1117

-3.10596

icsd-653719-[Bi]

-3.11146

-3.10976

icsd-43058-[Mn(alpha)-Mn(cI58)]

-3.11139

-3.11184

icsd-245956-[Ge]

-3.10776

-3.11377

icsd-182587-[Nickeline-NiAs]

-3.1067

-3.10429

icsd-31170-[C(P63mc)]

-3.10668

-3.1043

icsd-37090-[S6]

-3.1064

-3.10743

icsd-109018-[Cs(HP)]

-3.10473

-3.1052

icsd-653797-[Pu(mS34)]

-3.10138

-3.10511

icsd-280872-[Ta(tP30)]

-3.10082

-3.10628

icsd-76166-[U(beta)-CrFe]

-3.10081

-3.10632

icsd-642937-[Mn(cP20)]

-3.09999

-3.09444

icsd-26463-[S12]

-3.09778

-3.09756

icsd-30606-[Se(beta)]

-3.09433

-3.09958

icsd-173517-[Ge(HP)]

-3.09378

-3.1267

icsd-165132-[B28]

-3.09354

-3.10203

icsd-42679-[Sb(mP4)]

-3.09231

-3.09735

icsd-76041-[U(beta)]

-3.09189

-3.09523

icsd-165725-[Co(tP28)]

-3.08864

-3.08682

icsd-52501-[Te(mP4)]

-3.08825

-3.09093

icsd-43251-[S8(Fddd)]

-3.08821

-3.08892

icsd-2091-[Se3S5]

-3.08805

-3.08807

icsd-43539-[Ga(Cmcm)]

-3.08614

-3.08736

icsd-108326-[Cr3Si]

-3.07451

-3.06935

icsd-644520-[N2(epsilon)]

-3.07366

-3.07312

icsd-189436-[B(tP50)]

-3.03066

-3.02976

icsd-62747-[B(hR12)]

-3.01025

-3.01063

icsd-88815-[Graphite(oS16)]

-2.98263

-2.98844

icsd-109028-[Bi(I4/mcm)]

-2.98086

-2.97969

icsd-185973-[C3N2]

-2.91481

-2.91648

icsd-193439-[Graphite(2H)]

-2.8969

-2.89371

icsd-28540-[H2]

-2.66944

-2.66689
Lattice parameters (hcp)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

28.316

3.261

5.648

6.149

90.0

90.0

90.0

DFT

27.594

3.384

5.884

5.542

90.0

90.0

90.0
Elastic constants (hcp)

1

2

3

4

5

6

90.0

64.6

3.5

0.0

0.0

0.0

64.6

90.0

3.5

0.0

0.0

0.0

3.5

3.5

98.3

0.0

0.0

0.0

0.0

0.0

0.0

11.2

0.0

0.0

0.0

0.0

0.0

0.0

11.2

0.0

0.0

0.0

0.0

0.0

0.0

12.7
Lattice parameters (Sn(tI2))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.935

4.066

4.066

3.379

90.0

90.0

90.0

DFT

27.741

4.022

4.022

3.43

90.0

90.0

90.0
Elastic constants (Sn(tI2))

1

2

3

4

5

6

43.9

41.5

48.1

0.0

0.0

0.0

41.5

43.9

48.1

0.0

0.0

0.0

48.1

48.1

88.0

0.0

0.0

0.0

0.0

0.0

0.0

13.2

0.0

0.0

0.0

0.0

0.0

0.0

13.2

0.0

0.0

0.0

0.0

0.0

0.0

32.7
Lattice parameters (Sn)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

28.535

5.949

5.949

3.225

90.0

90.0

90.0

DFT

28.33

5.94

5.94

3.212

90.0

90.0

90.0
Elastic constants (Sn)

1

2

3

4

5

6

59.4

48.3

26.3

0.0

0.0

0.0

48.3

59.4

26.3

0.0

0.0

0.0

26.3

26.3

78.2

0.0

0.0

0.0

0.0

0.0

0.0

9.5

0.0

0.0

0.0

0.0

0.0

0.0

9.5

0.0

0.0

0.0

0.0

0.0

0.0

13.1
Lattice parameters (bcc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.644

3.81

3.81

3.81

90.0

90.0

90.0

DFT

27.54

3.805

3.805

3.805

90.0

90.0

90.0
Elastic constants (bcc)

1

2

3

4

5

6

31.6

46.0

46.0

0.0

0.0

0.0

46.0

31.6

46.0

0.0

0.0

0.0

46.0

46.0

31.6

0.0

0.0

0.0

0.0

0.0

0.0

19.6

0.0

0.0

0.0

0.0

0.0

0.0

19.6

0.0

0.0

0.0

0.0

0.0

0.0

19.6
Lattice parameters (In)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.86

3.342

3.342

4.989

90.0

90.0

90.0

DFT

27.911

3.342

3.342

4.999

90.0

90.0

90.0
Elastic constants (In)

1

2

3

4

5

6

70.5

29.5

49.5

0.0

0.0

0.0

29.5

70.5

49.5

0.0

0.0

0.0

49.5

49.5

56.7

0.0

0.0

0.0

0.0

0.0

0.0

12.3

0.0

0.0

0.0

0.0

0.0

0.0

12.3

0.0

0.0

0.0

0.0

0.0

0.0

-2.4
Lattice parameters (fcc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.881

4.813

4.813

4.813

90.0

90.0

90.0

DFT

28.031

4.822

4.822

4.822

90.0

90.0

90.0
Elastic constants (fcc)

1

2

3

4

5

6

48.8

52.3

52.3

0.0

0.0

0.0

52.3

48.8

52.3

0.0

0.0

0.0

52.3

52.3

48.8

0.0

0.0

0.0

0.0

0.0

0.0

14.8

0.0

0.0

0.0

0.0

0.0

0.0

14.8

0.0

0.0

0.0

0.0

0.0

0.0

14.8
Lattice parameters (diamond)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

37.077

6.669

6.669

6.669

90.0

90.0

90.0

DFT

36.802

6.653

6.653

6.653

90.0

90.0

90.0
Elastic constants (diamond)

1

2

3

4

5

6

47.1

34.6

34.6

0.0

0.0

0.0

34.6

47.1

34.6

0.0

0.0

0.0

34.6

34.6

47.1

0.0

0.0

0.0

0.0

0.0

0.0

19.1

0.0

0.0

0.0

0.0

0.0

0.0

19.1

0.0

0.0

0.0

0.0

0.0

0.0

19.1
Lattice parameters (Ga)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

28.316

6.149

6.522

5.648

90.0

90.0

90.0

DFT

28.397

6.162

6.488

5.682

90.0

90.0

90.0
Elastic constants (Ga)

1

2

3

4

5

6

98.3

3.5

3.5

0.0

0.0

0.0

3.5

90.0

64.6

0.0

0.0

0.0

3.5

64.6

90.0

0.0

0.0

0.0

0.0

0.0

0.0

12.7

0.0

0.0

0.0

0.0

0.0

0.0

11.2

0.0

0.0

0.0

0.0

0.0

0.0

11.2
Lattice parameters (sc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

29.345

3.084

3.084

3.084

90.0

90.0

90.0

DFT

29.396

3.086

3.086

3.086

90.0

90.0

90.0
Elastic constants (sc)

1

2

3

4

5

6

105.8

19.4

19.4

0.0

0.0

0.0

19.4

105.8

19.4

0.0

0.0

0.0

19.4

19.4

105.8

0.0

0.0

0.0

0.0

0.0

0.0

4.3

0.0

0.0

0.0

0.0

0.0

0.0

4.3

0.0

0.0

0.0

0.0

0.0

0.0

4.3
Lattice parameters (Si(I4mmm))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

39.139

8.101

8.101

4.772

90.0

90.0

90.0

DFT

38.962

8.142

8.142

4.702

90.0

90.0

90.0
Elastic constants (Si(I4mmm))

1

2

3

4

5

6

59.2

38.8

28.1

0.0

0.0

0.0

38.8

59.2

28.1

0.0

0.0

0.0

28.1

28.1

51.6

0.0

0.0

0.0

0.0

0.0

0.0

12.3

0.0

0.0

0.0

0.0

0.0

0.0

12.3

0.0

0.0

0.0

0.0

0.0

0.0

10.5
