gtinv-197 (Sn-2021-08-04-all-icsd)

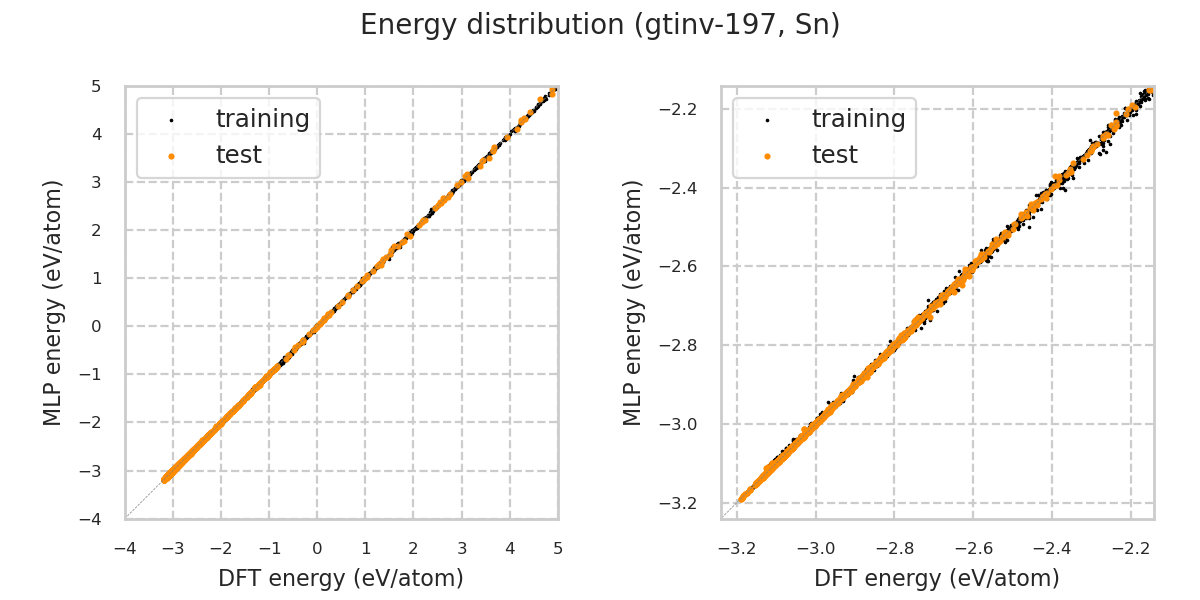

Energy distribution

../../../../_images/distribution1924.png

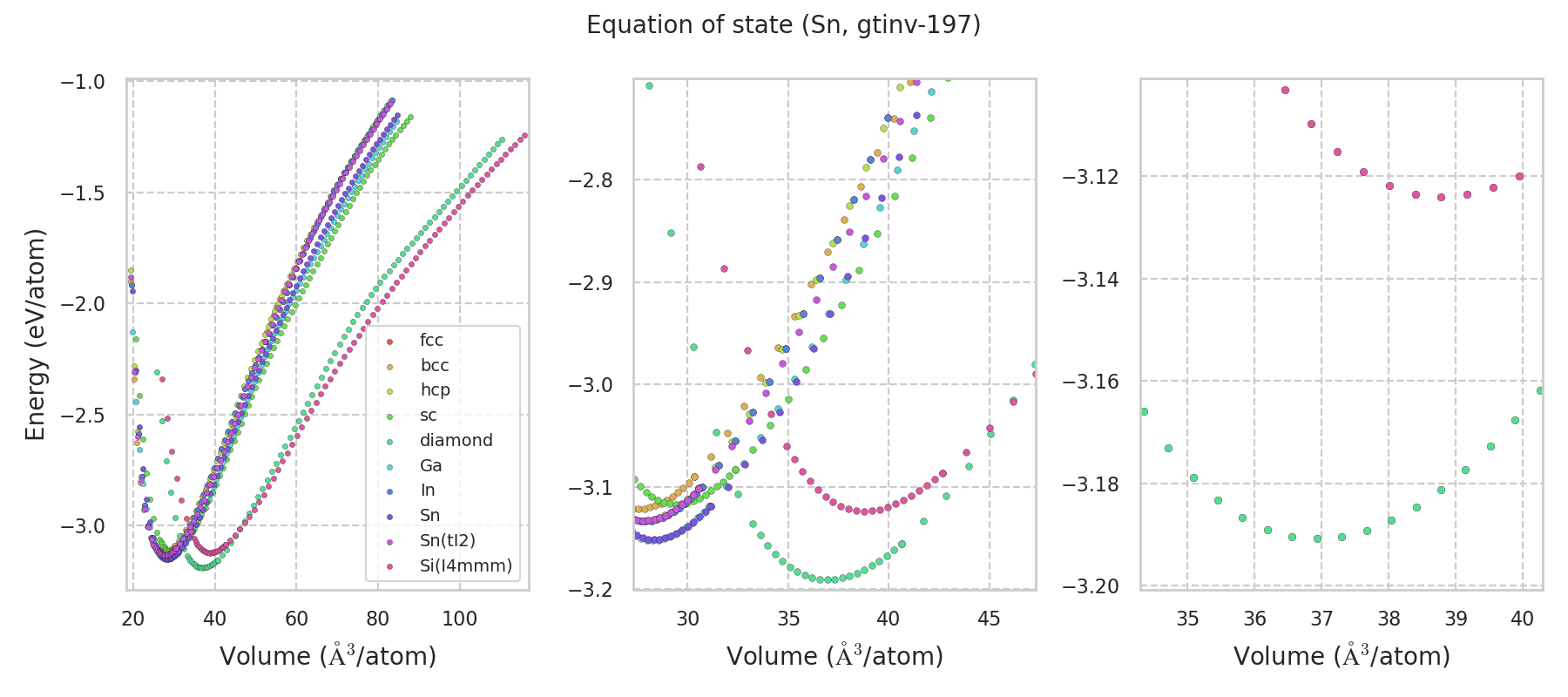

Equation of state

../../../../_images/e-v800.png

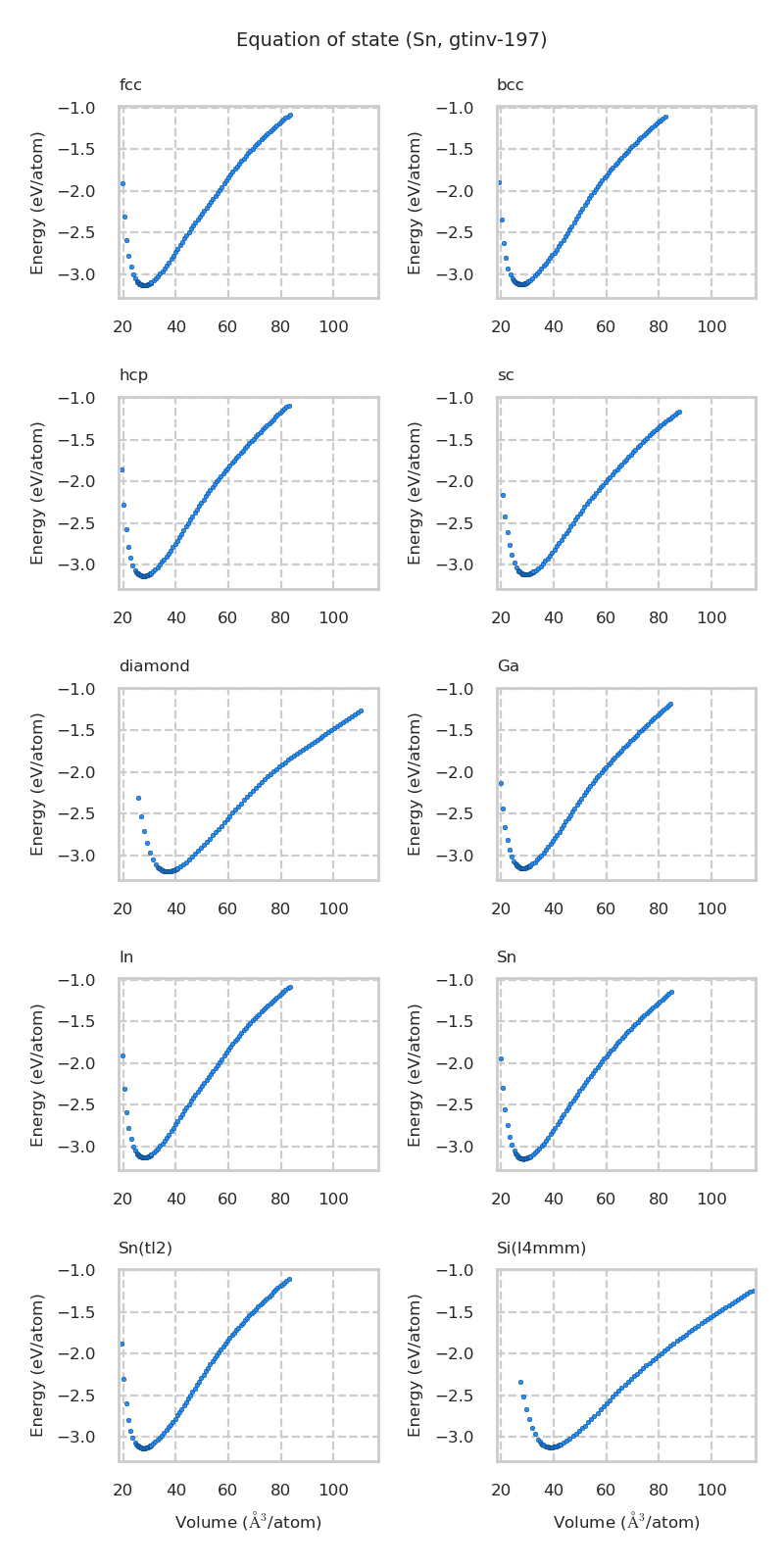

Equation of state for each structure

../../../../_images/e-v-sep1924.png

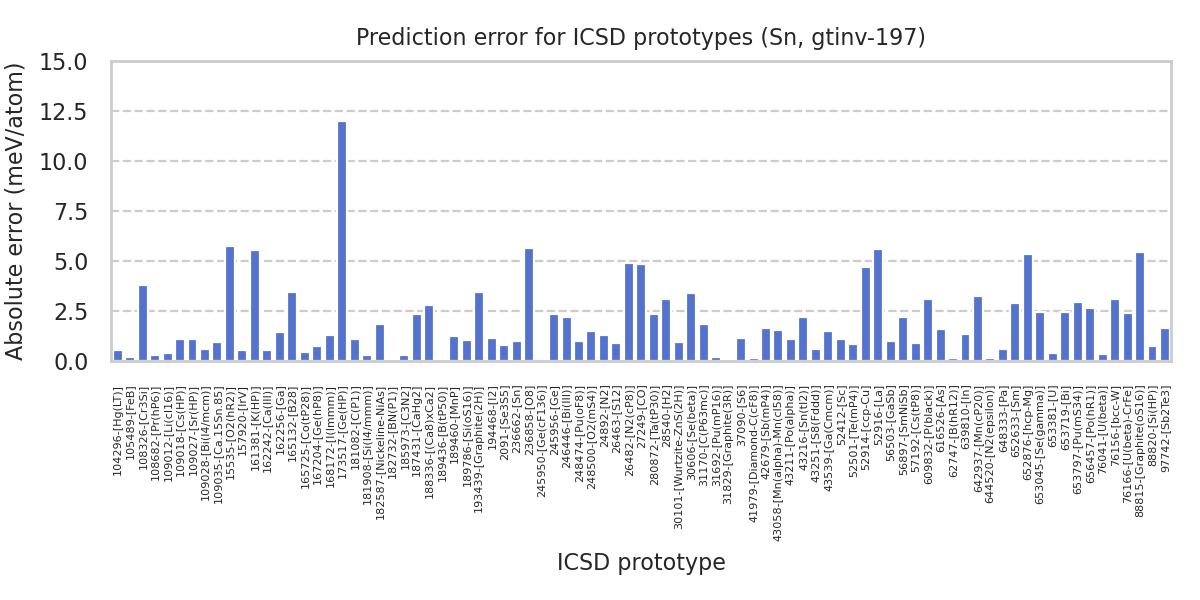

Prototype structure energy

../../../../_images/icsd-pred1924.png

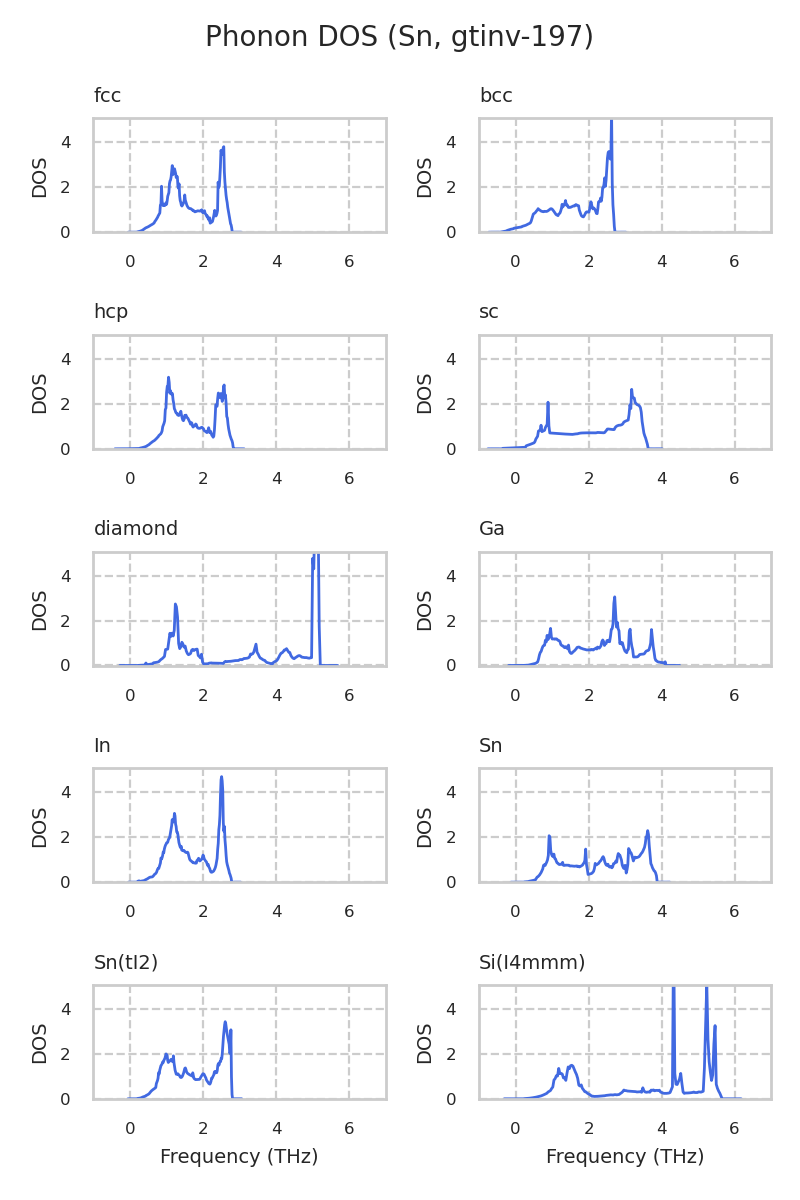

Phonon density of states

../../../../_images/dos1924.png

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype

MLP (eV/atom)

DFT (eV/atom)

icsd-41979-[Diamond-C(cF8)]

-3.19078

-3.1909

icsd-31829-[Graphite(3R)]

-3.19076

-3.19079

icsd-167204-[Ge(hP8)]

-3.18172

-3.18246

icsd-30101-[Wurtzite-ZnS(2H)]

-3.17365

-3.17459

icsd-245950-[Ge(cF136)]

-3.16732

-3.16732

icsd-109035-[Ca.15Sn.85]

-3.15228

-3.15322

icsd-162256-[Ga]

-3.15191

-3.15048

icsd-31692-[Pu(mP16)]

-3.15186

-3.15205

icsd-236662-[Sn]

-3.15141

-3.15043

icsd-56503-[GaSb]

-3.15141

-3.15043

icsd-653381-[U]

-3.15041

-3.15006

icsd-189786-[Si(oS16)]

-3.13821

-3.13718

icsd-105489-[FeB]

-3.13778

-3.13795

icsd-52412-[Sc]

-3.13768

-3.13661

icsd-52914-[ccp-Cu]

-3.13363

-3.12895

icsd-248500-[O2(mS4)]

-3.13354

-3.13503

icsd-57192-[Cs(tP8)]

-3.13342

-3.13255

icsd-43216-[Sn(tI2)]

-3.13336

-3.13553

icsd-246446-[Bi(III)]

-3.13331

-3.1355

icsd-168172-[I(Immm)]

-3.13326

-3.13455

icsd-639810-[In]

-3.13324

-3.13455

icsd-108682-[Pr(hP6)]

-3.13322

-3.13351

icsd-189460-[MnP]

-3.13318

-3.13197

icsd-104296-[Hg(LT)]

-3.13316

-3.13368

icsd-194468-[I2]

-3.13311

-3.13197

icsd-97742-[Sb2Te3]

-3.13305

-3.13143

icsd-15535-[O2(hR2)]

-3.13286

-3.1386

icsd-157920-[IrV]

-3.13262

-3.13317

icsd-236858-[O8]

-3.13257

-3.1382

icsd-648333-[Pa]

-3.13254

-3.1331

icsd-652876-[hcp-Mg]

-3.13217

-3.13751

icsd-652633-[Sm]

-3.13036

-3.13323

icsd-161381-[K(HP)]

-3.1302

-3.13574

icsd-52916-[La]

-3.13012

-3.13572

icsd-27249-[CO]

-3.12873

-3.12389

icsd-26482-[N2(cP8)]

-3.12787

-3.123

icsd-181908-[Si(I4/mmm)]

-3.1239

-3.12361

icsd-248474-[Pu(oF8)]

-3.12375

-3.12474

icsd-182732-[BN(P1)]

-3.12357

-3.12354

icsd-56897-[SmNiSb]

-3.12259

-3.12477

icsd-187431-[CaHg2]

-3.12253

-3.12488

icsd-109012-[Li(cI16)]

-3.1219

-3.12155

icsd-76156-[bcc-W]

-3.12174

-3.11864

icsd-656457-[Po(hR1)]

-3.1217

-3.12435

icsd-43211-[Po(alpha)]

-3.11708

-3.116

icsd-181082-[C(P1)]

-3.11707

-3.116

icsd-162242-[Ca(III)]

-3.11707

-3.11758

icsd-109027-[Sr(HP)]

-3.11704

-3.11598

icsd-616526-[As]

-3.11683

-3.11839

icsd-653045-[Se(gamma)]

-3.11589

-3.11832

icsd-609832-[P(black)]

-3.11561

-3.11255

icsd-188336-[(Ca8)xCa2]

-3.11548

-3.11268

icsd-24892-[N2]

-3.11516

-3.11386

icsd-173517-[Ge(HP)]

-3.11468

-3.1267

icsd-653719-[Bi]

-3.11222

-3.10976

icsd-245956-[Ge]

-3.11145

-3.11377

icsd-43058-[Mn(alpha)-Mn(cI58)]

-3.11033

-3.11184

icsd-37090-[S6]

-3.10858

-3.10743

icsd-182587-[Nickeline-NiAs]

-3.10615

-3.10429

icsd-31170-[C(P63mc)]

-3.10614

-3.1043

icsd-88820-[Si(HP)]

-3.10523

-3.10596

icsd-109018-[Cs(HP)]

-3.10414

-3.1052

icsd-280872-[Ta(tP30)]

-3.10395

-3.10628

icsd-76166-[U(beta)-CrFe]

-3.10394

-3.10632

icsd-653797-[Pu(mS34)]

-3.10215

-3.10511

icsd-165132-[B28]

-3.09858

-3.10203

icsd-642937-[Mn(cP20)]

-3.09769

-3.09444

icsd-26463-[S12]

-3.09667

-3.09756

icsd-30606-[Se(beta)]

-3.09621

-3.09958

icsd-42679-[Sb(mP4)]

-3.09573

-3.09735

icsd-76041-[U(beta)]

-3.09492

-3.09523

icsd-52501-[Te(mP4)]

-3.09012

-3.09093

icsd-43251-[S8(Fddd)]

-3.08836

-3.08892

icsd-2091-[Se3S5]

-3.0873

-3.08807

icsd-165725-[Co(tP28)]

-3.08726

-3.08682

icsd-43539-[Ga(Cmcm)]

-3.08586

-3.08736

icsd-644520-[N2(epsilon)]

-3.07327

-3.07312

icsd-108326-[Cr3Si]

-3.07314

-3.06935

icsd-189436-[B(tP50)]

-3.02968

-3.02976

icsd-62747-[B(hR12)]

-3.01077

-3.01063

icsd-88815-[Graphite(oS16)]

-2.98297

-2.98844

icsd-109028-[Bi(I4/mcm)]

-2.98025

-2.97969

icsd-185973-[C3N2]

-2.91621

-2.91648

icsd-193439-[Graphite(2H)]

-2.89714

-2.89371

icsd-28540-[H2]

-2.66997

-2.66689
Lattice parameters (hcp)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.762

3.374

5.844

5.631

90.0

90.0

90.0

DFT

27.594

3.384

5.884

5.542

90.0

90.0

90.0
Elastic constants (hcp)

1

2

3

4

5

6

53.0

51.3

24.0

0.0

0.0

0.0

51.3

53.0

24.0

0.0

0.0

0.0

24.0

24.0

63.8

0.0

0.0

0.0

0.0

0.0

0.0

6.4

0.0

0.0

0.0

0.0

0.0

0.0

6.4

0.0

0.0

0.0

0.0

0.0

0.0

0.9
Lattice parameters (Sn(tI2))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.765

4.033

4.033

3.413

90.0

90.0

90.0

DFT

27.741

4.022

4.022

3.43

90.0

90.0

90.0
Elastic constants (Sn(tI2))

1

2

3

4

5

6

47.0

36.6

34.0

0.0

0.0

0.0

36.6

47.0

34.0

0.0

0.0

0.0

34.0

34.0

68.2

0.0

0.0

0.0

0.0

0.0

0.0

12.8

0.0

0.0

0.0

0.0

0.0

0.0

12.8

0.0

0.0

0.0

0.0

0.0

0.0

28.8
Lattice parameters (Sn)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

28.32

5.931

5.931

3.22

90.0

90.0

90.0

DFT

28.33

5.94

5.94

3.212

90.0

90.0

90.0
Elastic constants (Sn)

1

2

3

4

5

6

69.7

55.6

27.3

0.0

0.0

0.0

55.6

69.6

27.3

0.0

0.0

0.0

27.3

27.3

93.6

0.0

0.0

0.0

0.0

0.0

0.0

11.9

0.0

0.0

0.0

0.0

0.0

0.0

11.9

0.0

0.0

0.0

0.0

0.0

0.0

15.6
Lattice parameters (bcc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.568

3.806

3.806

3.806

90.0

90.0

90.0

DFT

27.54

3.805

3.805

3.805

90.0

90.0

90.0
Elastic constants (bcc)

1

2

3

4

5

6

35.2

45.7

45.7

0.0

0.0

0.0

45.7

35.2

45.7

0.0

0.0

0.0

45.7

45.7

35.2

0.0

0.0

0.0

0.0

0.0

0.0

16.0

0.0

0.0

0.0

0.0

0.0

0.0

16.0

0.0

0.0

0.0

0.0

0.0

0.0

16.0
Lattice parameters (In)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.913

3.405

3.405

4.815

90.0

90.0

90.0

DFT

27.911

3.342

3.342

4.999

90.0

90.0

90.0
Elastic constants (In)

1

2

3

4

5

6

64.9

25.9

45.2

0.0

0.0

0.0

25.9

64.9

45.2

0.0

0.0

0.0

45.2

45.2

45.6

0.0

0.0

0.0

0.0

0.0

0.0

19.5

0.0

0.0

0.0

0.0

0.0

0.0

19.5

0.0

0.0

0.0

0.0

0.0

0.0

0.2
Lattice parameters (fcc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

27.913

4.815

4.815

4.815

90.0

90.0

90.0

DFT

28.031

4.822

4.822

4.822

90.0

90.0

90.0
Elastic constants (fcc)

1

2

3

4

5

6

45.6

45.2

45.2

0.0

0.0

0.0

45.2

45.6

45.2

0.0

0.0

0.0

45.2

45.2

45.6

0.0

0.0

0.0

0.0

0.0

0.0

19.5

0.0

0.0

0.0

0.0

0.0

0.0

19.5

0.0

0.0

0.0

0.0

0.0

0.0

19.5
Lattice parameters (diamond)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

36.929

6.66

6.66

6.66

90.0

90.0

90.0

DFT

36.802

6.653

6.653

6.653

90.0

90.0

90.0
Elastic constants (diamond)

1

2

3

4

5

6

50.0

30.2

30.2

0.0

0.0

0.0

30.2

50.0

30.2

0.0

0.0

0.0

30.2

30.2

50.0

0.0

0.0

0.0

0.0

0.0

0.0

25.6

0.0

0.0

0.0

0.0

0.0

0.0

25.6

0.0

0.0

0.0

0.0

0.0

0.0

25.6
Lattice parameters (Ga)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

28.252

6.133

6.523

5.649

90.0

90.0

90.0

DFT

28.397

6.162

6.488

5.682

90.0

90.0

90.0
Elastic constants (Ga)

1

2

3

4

5

6

121.3

4.7

4.7

0.0

0.0

0.0

4.7

83.4

56.4

0.0

0.0

0.0

4.7

56.4

83.4

0.0

0.0

0.0

0.0

0.0

0.0

13.5

0.0

0.0

0.0

0.0

0.0

0.0

14.2

0.0

0.0

0.0

0.0

0.0

0.0

14.2
Lattice parameters (sc)

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

29.399

3.086

3.086

3.086

90.0

90.0

90.0

DFT

29.396

3.086

3.086

3.086

90.0

90.0

90.0
Elastic constants (sc)

1

2

3

4

5

6

104.6

15.2

15.2

0.0

0.0

0.0

15.2

104.6

15.2

0.0

0.0

0.0

15.2

15.2

104.6

0.0

0.0

0.0

0.0

0.0

0.0

2.3

0.0

0.0

0.0

0.0

0.0

0.0

2.3

0.0

0.0

0.0

0.0

0.0

0.0

2.3
Lattice parameters (Si(I4mmm))

V (A^3/atom)

a (A)

b (A)

c (A)

alpha

beta

gamma

MLP

38.781

8.126

8.126

4.698

90.0

90.0

90.0

DFT

38.962

8.142

8.142

4.702

90.0

90.0

90.0
Elastic constants (Si(I4mmm))

1

2

3

4

5

6

61.8

27.0

32.3

0.0

0.0

0.0

27.0

61.8

32.3

0.0

0.0

0.0

32.3

32.3

59.0

0.0

0.0

0.0

0.0

0.0

0.0

14.5

0.0

0.0

0.0

0.0

0.0

0.0

14.5

0.0

0.0

0.0

0.0

0.0

0.0

13.4
