gtinv-260 (Sn-2021-08-04-all-icsd)

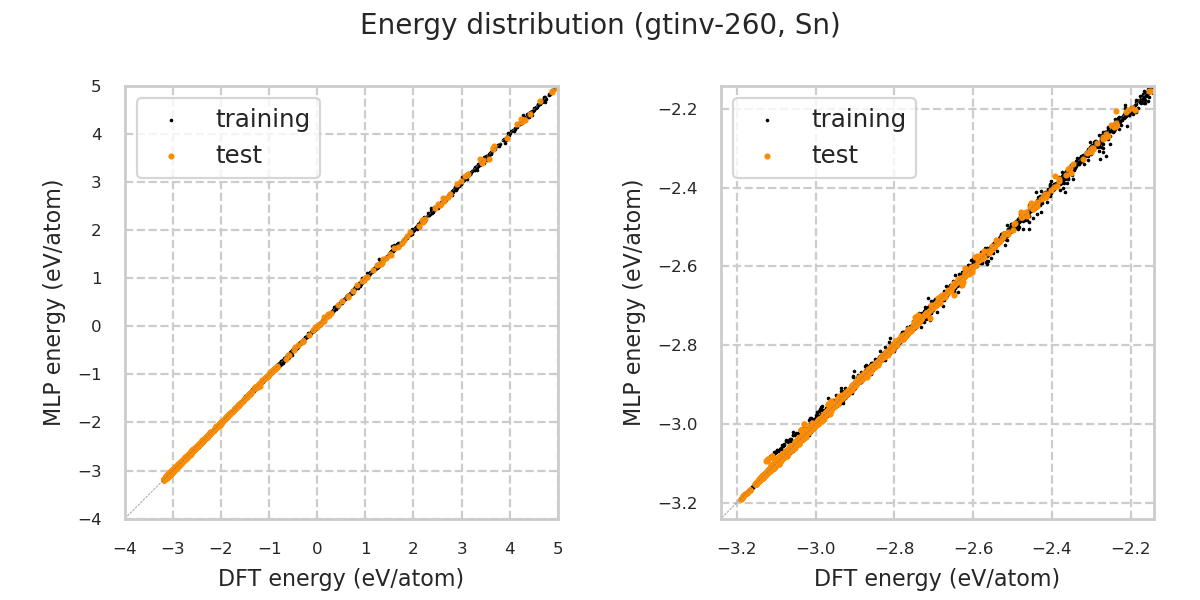

Energy distribution

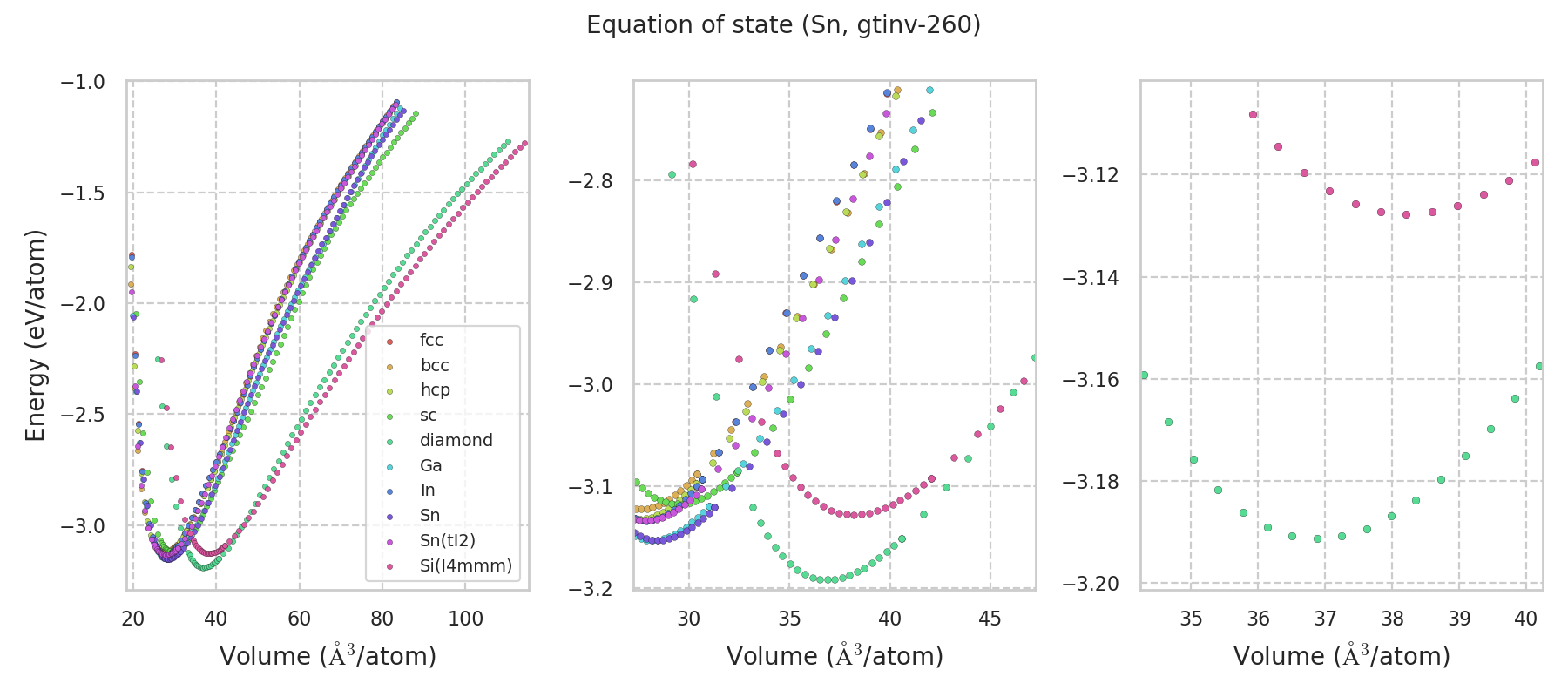

Equation of state

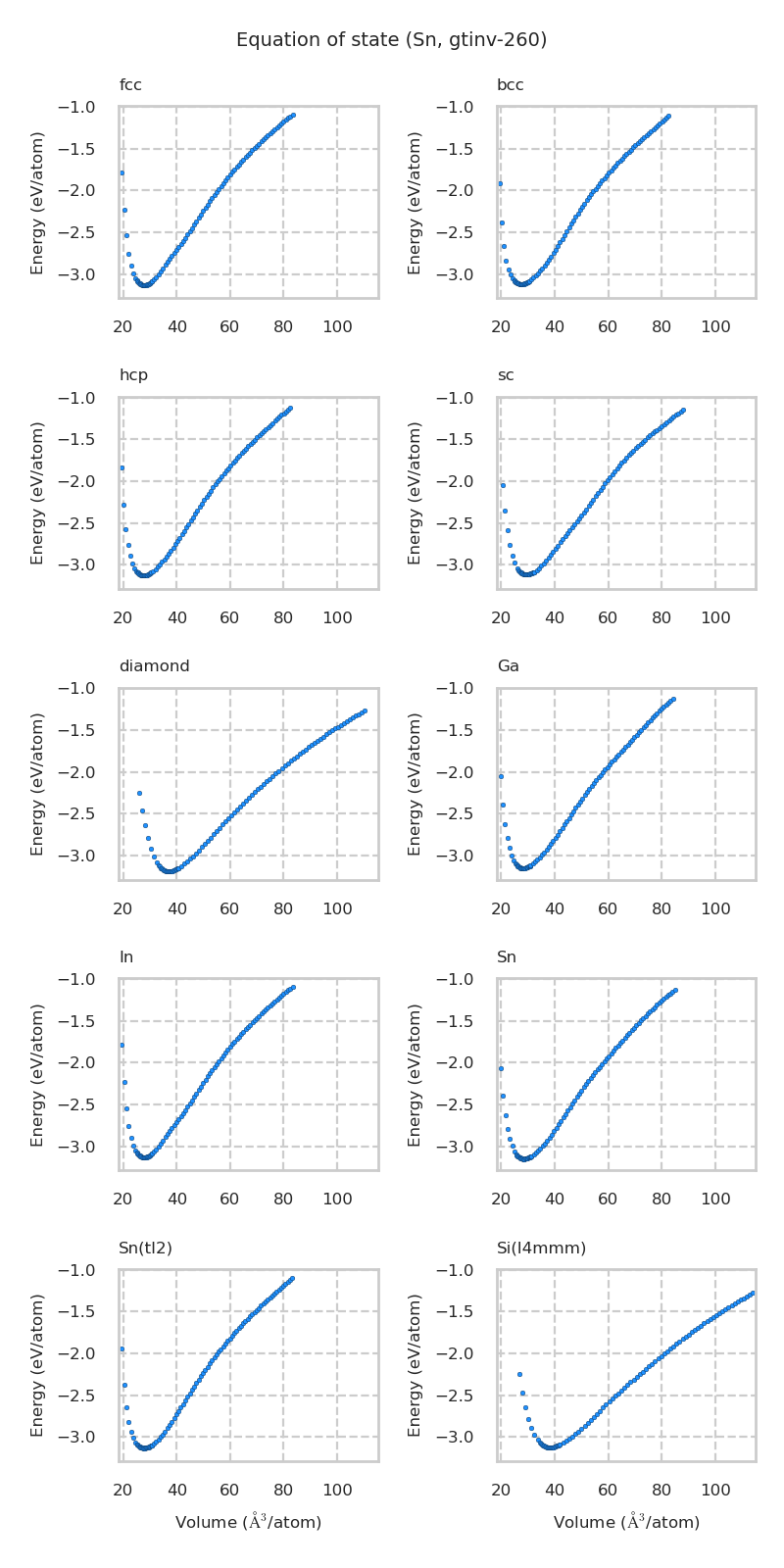

Equation of state for each structure

Prototype structure energy

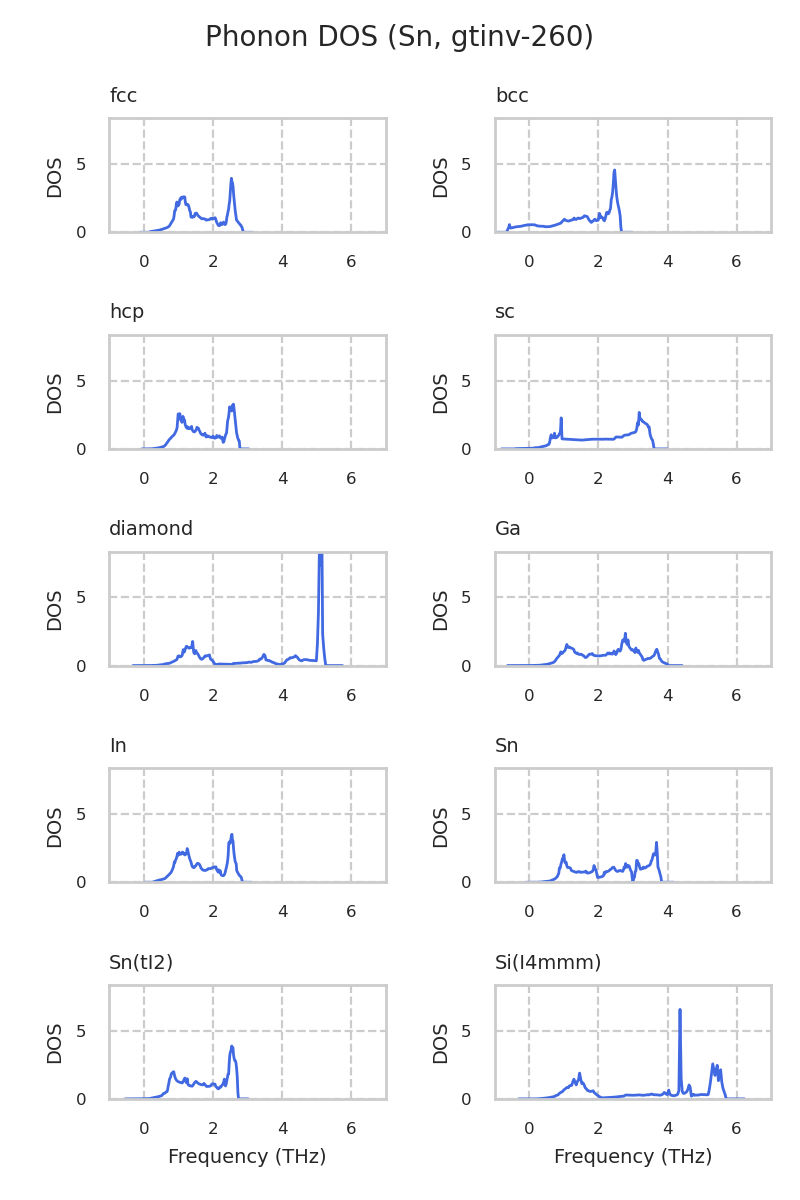

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

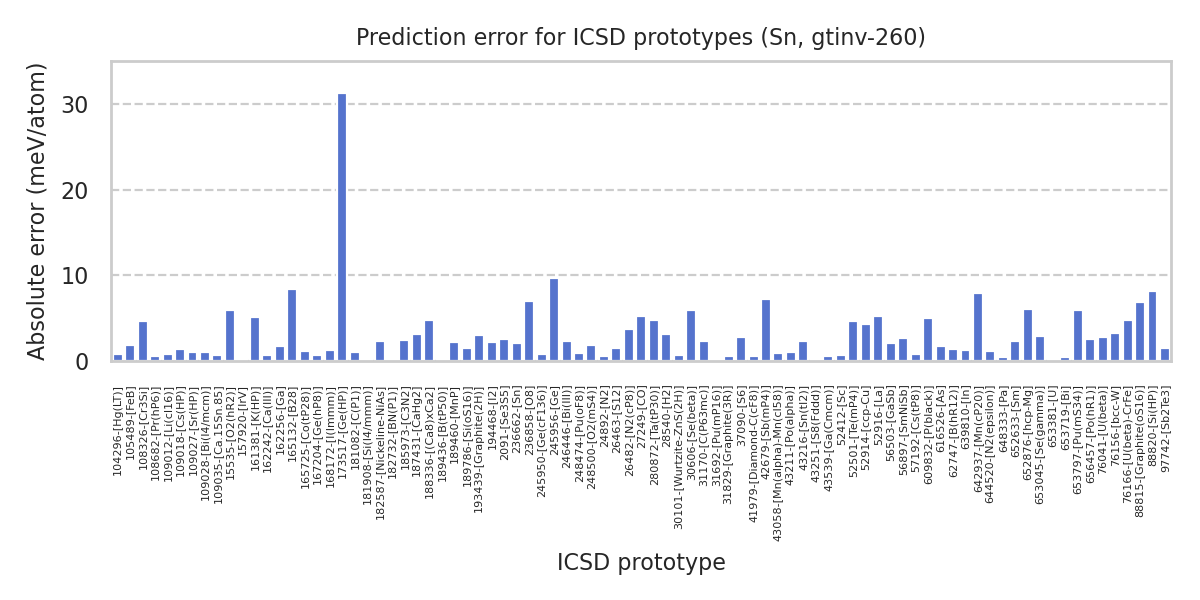

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-41979-[Diamond-C(cF8)]	-3.19137	-3.1909
icsd-31829-[Graphite(3R)]	-3.19135	-3.19079
icsd-167204-[Ge(hP8)]	-3.18178	-3.18246
icsd-30101-[Wurtzite-ZnS(2H)]	-3.17394	-3.17459
icsd-245950-[Ge(cF136)]	-3.16807	-3.16732
icsd-109035-[Ca.15Sn.85]	-3.1526	-3.15322
icsd-236662-[Sn]	-3.15247	-3.15043
icsd-56503-[GaSb]	-3.15246	-3.15043
icsd-162256-[Ga]	-3.15216	-3.15048
icsd-31692-[Pu(mP16)]	-3.15186	-3.15205
icsd-653381-[U]	-3.14996	-3.15006
icsd-189786-[Si(oS16)]	-3.13866	-3.13718
icsd-105489-[FeB]	-3.13618	-3.13795
icsd-52412-[Sc]	-3.13595	-3.13661
icsd-189460-[MnP]	-3.13409	-3.13197
icsd-194468-[I2]	-3.13408	-3.13197
icsd-639810-[In]	-3.13335	-3.13455
icsd-168172-[I(Immm)]	-3.13334	-3.13455
icsd-43216-[Sn(tI2)]	-3.13329	-3.13553
icsd-57192-[Cs(tP8)]	-3.13326	-3.13255
icsd-246446-[Bi(III)]	-3.13325	-3.1355
icsd-52914-[ccp-Cu]	-3.13325	-3.12895
icsd-248500-[O2(mS4)]	-3.13322	-3.13503
icsd-157920-[IrV]	-3.133	-3.13317
icsd-108682-[Pr(hP6)]	-3.13296	-3.13351
icsd-104296-[Hg(LT)]	-3.13293	-3.13368
icsd-97742-[Sb2Te3]	-3.13284	-3.13143
icsd-15535-[O2(hR2)]	-3.13269	-3.1386
icsd-648333-[Pa]	-3.13268	-3.1331
icsd-652876-[hcp-Mg]	-3.13148	-3.13751
icsd-236858-[O8]	-3.13124	-3.1382
icsd-652633-[Sm]	-3.13091	-3.13323
icsd-161381-[K(HP)]	-3.13063	-3.13574
icsd-52916-[La]	-3.13054	-3.13572
icsd-27249-[CO]	-3.12907	-3.12389
icsd-26482-[N2(cP8)]	-3.12667	-3.123
icsd-248474-[Pu(oF8)]	-3.1238	-3.12474
icsd-181908-[Si(I4/mmm)]	-3.1234	-3.12361
icsd-182732-[BN(P1)]	-3.12338	-3.12354
icsd-109012-[Li(cI16)]	-3.12237	-3.12155
icsd-56897-[SmNiSb]	-3.12209	-3.12477
icsd-76156-[bcc-W]	-3.12189	-3.11864
icsd-656457-[Po(hR1)]	-3.12186	-3.12435
icsd-187431-[CaHg2]	-3.12176	-3.12488
icsd-609832-[P(black)]	-3.11753	-3.11255
icsd-188336-[(Ca8)xCa2]	-3.11742	-3.11268
icsd-109027-[Sr(HP)]	-3.11698	-3.11598
icsd-43211-[Po(alpha)]	-3.11697	-3.116
icsd-181082-[C(P1)]	-3.11696	-3.116
icsd-162242-[Ca(III)]	-3.11696	-3.11758
icsd-616526-[As]	-3.11664	-3.11839
icsd-653045-[Se(gamma)]	-3.11546	-3.11832
icsd-24892-[N2]	-3.11439	-3.11386
icsd-88820-[Si(HP)]	-3.11407	-3.10596
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.11098	-3.11184
icsd-37090-[S6]	-3.11024	-3.10743
icsd-653719-[Bi]	-3.10933	-3.10976
icsd-182587-[Nickeline-NiAs]	-3.10661	-3.10429
icsd-31170-[C(P63mc)]	-3.10659	-3.1043
icsd-245956-[Ge]	-3.10413	-3.11377
icsd-109018-[Cs(HP)]	-3.10381	-3.1052
icsd-642937-[Mn(cP20)]	-3.10231	-3.09444
icsd-280872-[Ta(tP30)]	-3.10157	-3.10628
icsd-76166-[U(beta)-CrFe]	-3.10153	-3.10632
icsd-653797-[Pu(mS34)]	-3.09924	-3.10511
icsd-26463-[S12]	-3.09607	-3.09756
icsd-173517-[Ge(HP)]	-3.09543	-3.1267
icsd-165132-[B28]	-3.09368	-3.10203
icsd-30606-[Se(beta)]	-3.09361	-3.09958
icsd-76041-[U(beta)]	-3.09244	-3.09523
icsd-42679-[Sb(mP4)]	-3.09018	-3.09735
icsd-43251-[S8(Fddd)]	-3.08873	-3.08892
icsd-165725-[Co(tP28)]	-3.08792	-3.08682
icsd-43539-[Ga(Cmcm)]	-3.0868	-3.08736
icsd-52501-[Te(mP4)]	-3.0863	-3.09093
icsd-2091-[Se3S5]	-3.08553	-3.08807
icsd-644520-[N2(epsilon)]	-3.07418	-3.07312
icsd-108326-[Cr3Si]	-3.07401	-3.06935
icsd-189436-[B(tP50)]	-3.02967	-3.02976
icsd-62747-[B(hR12)]	-3.00934	-3.01063
icsd-88815-[Graphite(oS16)]	-2.98157	-2.98844
icsd-109028-[Bi(I4/mcm)]	-2.98067	-2.97969
icsd-185973-[C3N2]	-2.91412	-2.91648
icsd-193439-[Graphite(2H)]	-2.89665	-2.89371
icsd-28540-[H2]	-2.67	-2.66689

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.596	3.378	5.851	5.584	90.0	90.0	90.0
DFT	27.594	3.384	5.884	5.542	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
66.8	51.7	37.4	0.0	0.0	0.0
51.7	66.8	37.4	0.0	0.0	0.0
37.4	37.4	75.0	0.0	0.0	0.0
0.0	0.0	0.0	7.9	0.0	0.0
0.0	0.0	0.0	0.0	7.9	0.0
0.0	0.0	0.0	0.0	0.0	7.5

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.838	4.033	4.033	3.423	90.0	90.0	90.0
DFT	27.741	4.022	4.022	3.43	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
41.6	35.5	36.7	0.0	0.0	0.0
35.5	41.6	36.7	0.0	0.0	0.0
36.7	36.7	73.4	0.0	0.0	0.0
0.0	0.0	0.0	14.1	0.0	0.0
0.0	0.0	0.0	0.0	14.1	0.0
0.0	0.0	0.0	0.0	0.0	30.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.442	5.931	5.931	3.234	90.0	90.0	90.0
DFT	28.33	5.94	5.94	3.212	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
72.2	44.7	26.6	0.0	0.0	0.0
44.7	72.2	26.6	0.0	0.0	0.0
26.6	26.6	97.6	0.0	0.0	0.0
0.0	0.0	0.0	13.2	0.0	0.0
0.0	0.0	0.0	0.0	13.2	0.0
0.0	0.0	0.0	0.0	0.0	13.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.648	3.81	3.81	3.81	90.0	90.0	90.0
DFT	27.54	3.805	3.805	3.805	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
37.1	51.6	51.6	0.0	0.0	0.0
51.6	37.1	51.6	0.0	0.0	0.0
51.6	51.6	37.1	0.0	0.0	0.0
0.0	0.0	0.0	17.9	0.0	0.0
0.0	0.0	0.0	0.0	17.9	0.0
0.0	0.0	0.0	0.0	0.0	17.9

Lattice parameters (In)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.872	3.363	3.363	4.93	90.0	90.0	90.0
DFT	27.911	3.342	3.342	4.999	90.0	90.0	90.0

Elastic constants (In)

1	2	3	4	5	6
72.4	32.7	50.2	0.0	0.0	0.0
32.7	72.4	50.2	0.0	0.0	0.0
50.2	50.2	53.3	0.0	0.0	0.0
0.0	0.0	0.0	15.3	0.0	0.0
0.0	0.0	0.0	0.0	15.3	0.0
0.0	0.0	0.0	0.0	0.0	-2.0

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.867	4.813	4.813	4.813	90.0	90.0	90.0
DFT	28.031	4.822	4.822	4.822	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
49.4	52.0	52.0	0.0	0.0	0.0
52.0	49.4	52.0	0.0	0.0	0.0
52.0	52.0	49.4	0.0	0.0	0.0
0.0	0.0	0.0	17.0	0.0	0.0
0.0	0.0	0.0	0.0	17.0	0.0
0.0	0.0	0.0	0.0	0.0	17.0

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.875	6.657	6.657	6.657	90.0	90.0	90.0
DFT	36.802	6.653	6.653	6.653	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
56.7	41.8	41.8	0.0	0.0	0.0
41.8	56.7	41.8	0.0	0.0	0.0
41.8	41.8	56.7	0.0	0.0	0.0
0.0	0.0	0.0	20.0	0.0	0.0
0.0	0.0	0.0	0.0	20.0	0.0
0.0	0.0	0.0	0.0	0.0	20.0

Lattice parameters (Ga)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.174	6.144	6.508	5.636	90.0	90.0	90.0
DFT	28.397	6.162	6.488	5.682	90.0	90.0	90.0

Elastic constants (Ga)

1	2	3	4	5	6
97.5	7.8	7.8	0.0	0.0	0.0
7.8	94.2	62.5	0.0	0.0	0.0
7.8	62.5	94.2	0.0	0.0	0.0
0.0	0.0	0.0	15.9	0.0	0.0
0.0	0.0	0.0	0.0	12.6	0.0
0.0	0.0	0.0	0.0	0.0	12.6

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.445	3.088	3.088	3.088	90.0	90.0	90.0
DFT	29.396	3.086	3.086	3.086	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
88.9	14.7	14.7	0.0	0.0	0.0
14.7	88.9	14.7	0.0	0.0	0.0
14.7	14.7	88.9	0.0	0.0	0.0
0.0	0.0	0.0	3.8	0.0	0.0
0.0	0.0	0.0	0.0	3.8	0.0
0.0	0.0	0.0	0.0	0.0	3.8

Lattice parameters (Si(I4mmm))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	38.209	8.004	8.004	4.772	90.0	90.0	90.0
DFT	38.962	8.142	8.142	4.702	90.0	90.0	90.0

Elastic constants (Si(I4mmm))

1	2	3	4	5	6
64.1	23.8	26.8	0.0	0.0	0.0
23.8	64.1	26.8	0.0	0.0	0.0
26.8	26.8	63.9	0.0	0.0	0.0
0.0	0.0	0.0	12.7	0.0	0.0
0.0	0.0	0.0	0.0	12.7	0.0
0.0	0.0	0.0	0.0	0.0	8.0
