gtinv-224 (Ta-2021-08-04-all-icsd)

Energy distribution

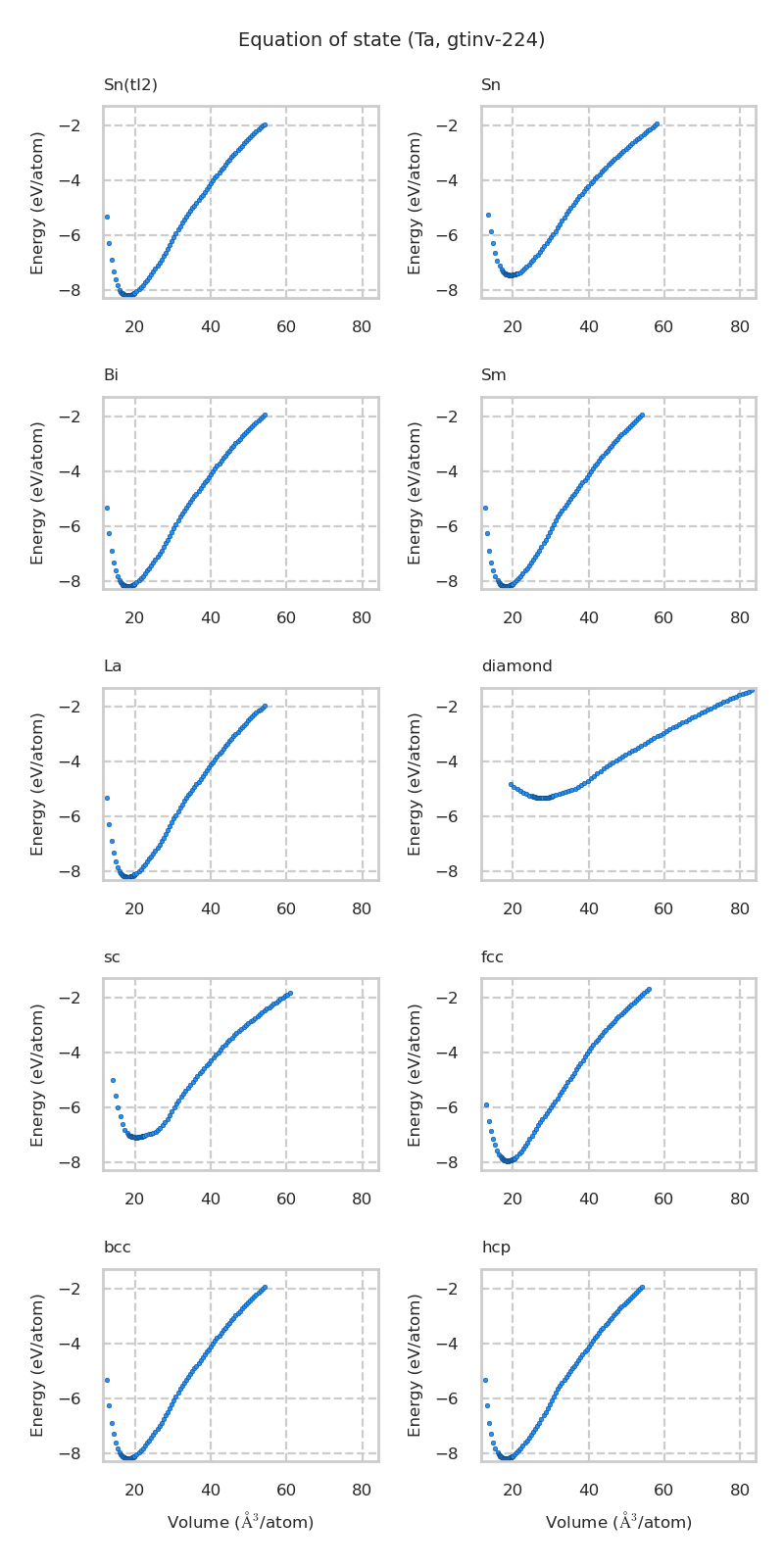

Equation of state

Equation of state for each structure

Prototype structure energy

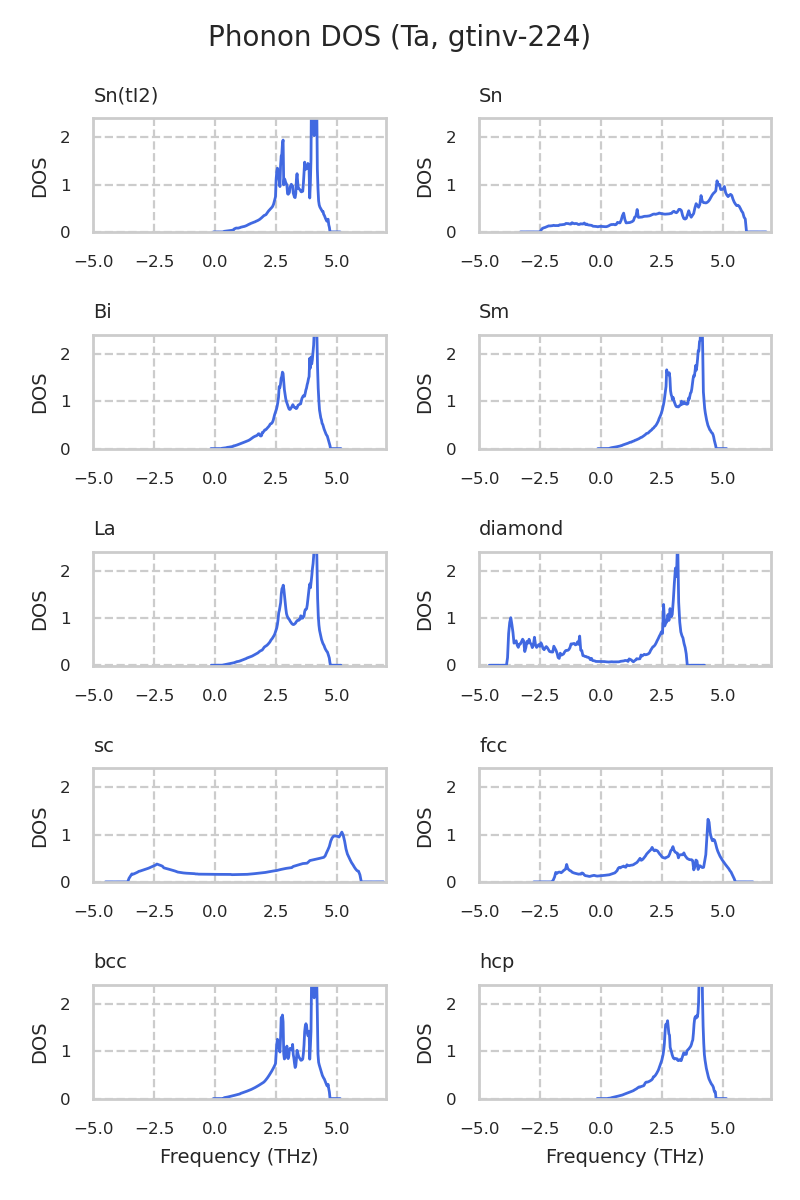

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

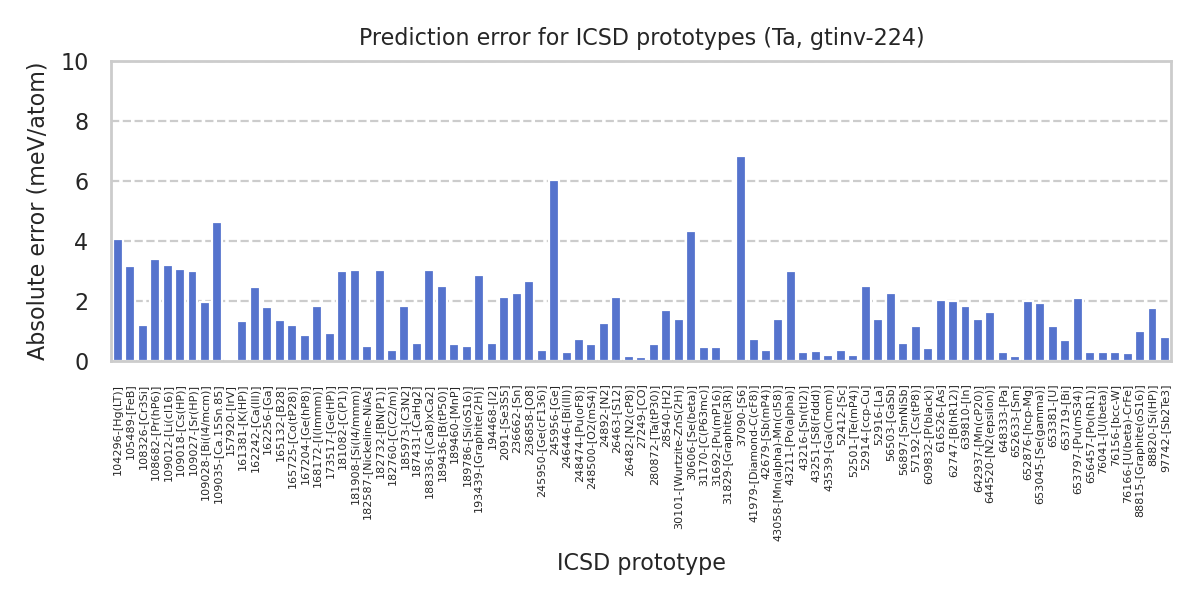

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-76166-[U(beta)-CrFe]	-8.19532	-8.19558
icsd-76041-[U(beta)]	-8.1953	-8.19558
icsd-280872-[Ta(tP30)]	-8.19503	-8.19557
icsd-105489-[FeB]	-8.1946	-8.19778
icsd-109012-[Li(cI16)]	-8.19458	-8.19777
icsd-656457-[Po(hR1)]	-8.19457	-8.19484
icsd-52412-[Sc]	-8.19457	-8.19492
icsd-42679-[Sb(mP4)]	-8.19457	-8.19492
icsd-76156-[bcc-W]	-8.19457	-8.19484
icsd-246446-[Bi(III)]	-8.19457	-8.19484
icsd-648333-[Pa]	-8.19457	-8.19484
icsd-43216-[Sn(tI2)]	-8.19457	-8.19484
icsd-182760-[C(C2/m)]	-8.19457	-8.19491
icsd-194468-[I2]	-8.19456	-8.19513
icsd-157920-[IrV]	-8.19456	-8.19454
icsd-31829-[Graphite(3R)]	-8.19456	-8.19462
icsd-97742-[Sb2Te3]	-8.19455	-8.19535
icsd-31692-[Pu(mP16)]	-8.19453	-8.19498
icsd-108326-[Cr3Si]	-8.16767	-8.16885
icsd-43058-[Mn(alpha)-Mn(cI58)]	-8.10743	-8.10881
icsd-30606-[Se(beta)]	-8.10502	-8.10936
icsd-173517-[Ge(HP)]	-8.08265	-8.08174
icsd-57192-[Cs(tP8)]	-8.0646	-8.06575
icsd-248474-[Pu(oF8)]	-8.06269	-8.06342
icsd-52501-[Te(mP4)]	-8.05894	-8.05913
icsd-189786-[Si(oS16)]	-8.05886	-8.05934
icsd-642937-[Mn(cP20)]	-8.05374	-8.05235
icsd-165725-[Co(tP28)]	-8.04145	-8.04027
icsd-653797-[Pu(mS34)]	-8.0408	-8.04289
icsd-639810-[In]	-8.03176	-8.02993
icsd-168172-[I(Immm)]	-8.03175	-8.02993
icsd-2091-[Se3S5]	-8.01556	-8.01768
icsd-182587-[Nickeline-NiAs]	-7.9976	-7.99711
icsd-31170-[C(P63mc)]	-7.99759	-7.99713
icsd-653381-[U]	-7.98993	-7.9911
icsd-193439-[Graphite(2H)]	-7.97949	-7.98233
icsd-187431-[CaHg2]	-7.97366	-7.97423
icsd-56897-[SmNiSb]	-7.97366	-7.97423
icsd-108682-[Pr(hP6)]	-7.94683	-7.95024
icsd-653045-[Se(gamma)]	-7.94582	-7.94773
icsd-248500-[O2(mS4)]	-7.94579	-7.94525
icsd-616526-[As]	-7.94504	-7.94707
icsd-104296-[Hg(LT)]	-7.94503	-7.94908
icsd-236858-[O8]	-7.945	-7.94764
icsd-52914-[ccp-Cu]	-7.945	-7.94748
icsd-161381-[K(HP)]	-7.93511	-7.93643
icsd-52916-[La]	-7.93506	-7.93645
icsd-652633-[Sm]	-7.92065	-7.92078
icsd-652876-[hcp-Mg]	-7.90859	-7.91059
icsd-245956-[Ge]	-7.89662	-7.90267
icsd-26482-[N2(cP8)]	-7.87056	-7.87042
icsd-27249-[CO]	-7.87056	-7.87042
icsd-609832-[P(black)]	-7.79097	-7.79054
icsd-37090-[S6]	-7.74443	-7.75127
icsd-43251-[S8(Fddd)]	-7.72248	-7.72214
icsd-165132-[B28]	-7.67682	-7.67818
icsd-24892-[N2]	-7.67457	-7.67584
icsd-189460-[MnP]	-7.59152	-7.59208
icsd-644520-[N2(epsilon)]	-7.58944	-7.58784
icsd-43539-[Ga(Cmcm)]	-7.53421	-7.53401
icsd-109035-[Ca.15Sn.85]	-7.51068	-7.5153
icsd-162242-[Ca(III)]	-7.51067	-7.51311
icsd-162256-[Ga]	-7.51066	-7.51246
icsd-109018-[Cs(HP)]	-7.50507	-7.50813
icsd-109028-[Bi(I4/mcm)]	-7.4867	-7.48865
icsd-189436-[B(tP50)]	-7.46408	-7.46656
icsd-653719-[Bi]	-7.44881	-7.44811
icsd-56503-[GaSb]	-7.44591	-7.44366
icsd-236662-[Sn]	-7.44589	-7.44365
icsd-62747-[B(hR12)]	-7.42927	-7.43125
icsd-43211-[Po(alpha)]	-7.08808	-7.09108
icsd-181082-[C(P1)]	-7.08808	-7.09108
icsd-109027-[Sr(HP)]	-7.08808	-7.09106
icsd-188336-[(Ca8)xCa2]	-7.08807	-7.09109
icsd-181908-[Si(I4/mmm)]	-7.08807	-7.09109
icsd-182732-[BN(P1)]	-7.08807	-7.09108
icsd-26463-[S12]	-6.96099	-6.96313
icsd-28540-[H2]	-6.53981	-6.53811
icsd-88820-[Si(HP)]	-6.24371	-6.24547
icsd-245950-[Ge(cF136)]	-6.0309	-6.03127
icsd-185973-[C3N2]	-5.69366	-5.69547
icsd-30101-[Wurtzite-ZnS(2H)]	-5.36229	-5.36089
icsd-167204-[Ge(hP8)]	-5.34652	-5.34739
icsd-41979-[Diamond-C(cF8)]	-5.3261	-5.32682
icsd-88815-[Graphite(oS16)]	-5.262	-5.26101

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.123	2.866	2.866	4.68	90.0	90.0	109.47
DFT	18.55	2.888	2.888	5.135	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
232.2	162.4	162.4	0.0	0.0	0.0
162.4	236.1	158.5	0.0	0.0	5.5
162.4	158.5	236.1	0.0	0.0	-5.5
0.0	0.0	0.0	38.8	-5.5	0.0
0.0	0.0	0.0	-5.5	42.7	0.0
0.0	5.5	-5.5	0.0	0.0	42.7

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.123	2.866	2.866	21.191	84.83	95.17	109.47
DFT	18.573	2.898	2.898	22.977	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
232.2	162.4	162.4	0.0	0.0	0.0
162.4	236.1	158.5	0.0	0.0	5.5
162.4	158.5	236.1	0.0	0.0	-5.5
0.0	0.0	0.0	38.8	-5.5	0.2
0.0	0.0	0.0	-5.5	42.7	-1.4
0.0	5.5	-5.5	0.2	-1.4	42.7

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.123	2.866	3.309	9.36	90.0	90.0	125.26
DFT	18.582	2.929	2.929	10.007	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
232.2	162.4	162.4	0.0	0.0	0.0
162.4	236.1	158.5	0.0	0.0	-5.5
162.4	158.5	236.1	0.0	0.0	5.5
0.0	0.0	0.0	38.8	5.5	0.0
0.0	0.0	0.0	5.5	42.7	0.0
0.0	-5.5	5.5	0.0	0.0	42.7

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.123	3.309	3.309	3.309	90.0	90.0	90.0
DFT	18.084	3.307	3.307	3.307	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
247.8	154.6	154.6	0.0	0.0	0.0
154.6	247.8	154.6	0.0	0.0	0.0
154.6	154.6	247.8	0.0	0.0	0.0
0.0	0.0	0.0	34.9	0.0	0.0
0.0	0.0	0.0	0.0	34.9	0.0
0.0	0.0	0.0	0.0	0.0	34.9

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	19.382	5.255	5.255	2.808	90.0	90.0	90.0
DFT	19.367	5.256	5.256	2.804	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
106.4	165.5	39.5	0.0	0.0	0.0
165.5	106.4	39.5	0.0	0.0	0.0
39.5	39.5	387.9	0.0	0.0	0.0
0.0	0.0	0.0	-46.1	0.0	0.0
0.0	0.0	0.0	0.0	-46.1	0.0
0.0	0.0	0.0	0.0	0.0	-102.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.123	3.309	3.309	3.309	90.0	90.0	90.0
DFT	18.084	3.307	3.307	3.307	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
247.8	154.6	154.6	0.0	0.0	0.0
154.6	247.8	154.6	0.0	0.0	0.0
154.6	154.6	247.8	0.0	0.0	0.0
0.0	0.0	0.0	34.9	0.0	0.0
0.0	0.0	0.0	0.0	34.9	0.0
0.0	0.0	0.0	0.0	0.0	34.9

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.67	4.211	4.211	4.211	90.0	90.0	90.0
DFT	18.63	4.208	4.208	4.208	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
79.7	267.8	267.8	0.0	0.0	0.0
267.8	79.7	267.8	0.0	0.0	0.0
267.8	267.8	79.7	0.0	0.0	0.0
0.0	0.0	0.0	16.6	0.0	0.0
0.0	0.0	0.0	0.0	16.6	0.0
0.0	0.0	0.0	0.0	0.0	16.6

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.798	6.059	6.059	6.059	90.0	90.0	90.0
DFT	27.645	6.047	6.047	6.047	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
35.9	130.3	130.3	0.0	0.0	0.0
130.3	35.9	130.3	0.0	0.0	0.0
130.3	130.3	35.9	0.0	0.0	0.0
0.0	0.0	0.0	-337.9	0.0	0.0
0.0	0.0	0.0	0.0	-337.9	0.0
0.0	0.0	0.0	0.0	0.0	-337.9

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.368	2.731	2.731	2.731	90.0	90.0	90.0
DFT	20.264	2.726	2.726	2.726	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
304.0	16.3	16.3	0.0	0.0	0.0
16.3	304.0	16.3	0.0	0.0	0.0
16.3	16.3	304.0	0.0	0.0	0.0
0.0	0.0	0.0	-72.7	0.0	0.0
0.0	0.0	0.0	0.0	-72.7	0.0
0.0	0.0	0.0	0.0	0.0	-72.7

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.123	5.732	5.732	2.866	70.53	109.47	70.53
DFT	19.489	5.639	5.38	2.8	90.0	113.42	90.0

Elastic constants (Bi)

1	2	3	4	5	6
232.2	162.4	162.4	0.0	0.0	0.0
162.4	236.1	158.5	0.0	0.0	-5.5
162.4	158.5	236.1	0.0	0.0	5.5
0.0	0.0	0.0	38.8	5.5	-1.6
0.0	0.0	0.0	5.5	42.7	-12.3
0.0	-5.5	5.5	-1.6	-12.3	42.7
