gtinv-357 (Te-2021-09-03-all-icsd)

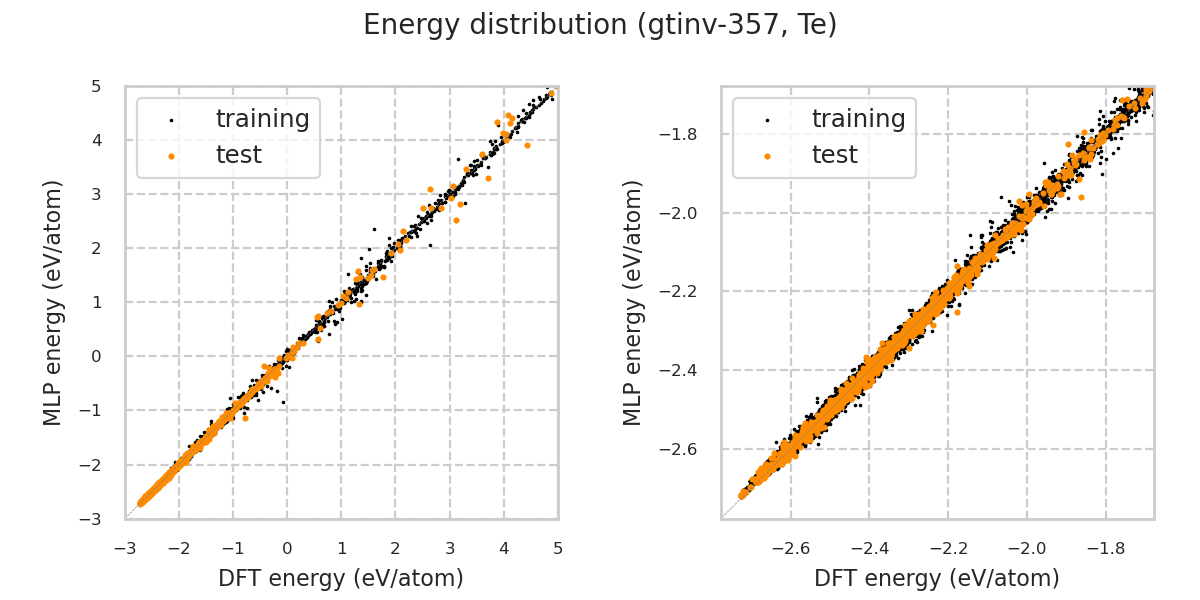

Energy distribution

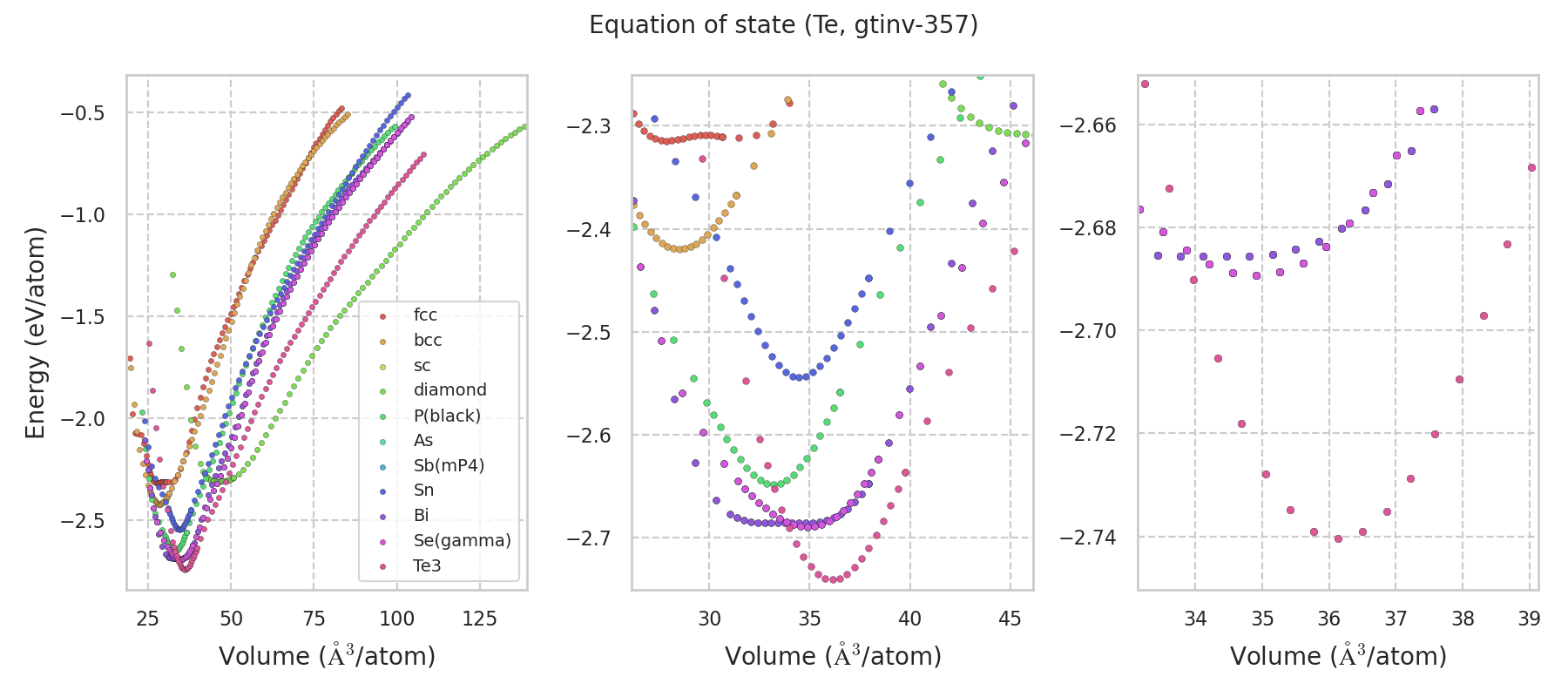

Equation of state

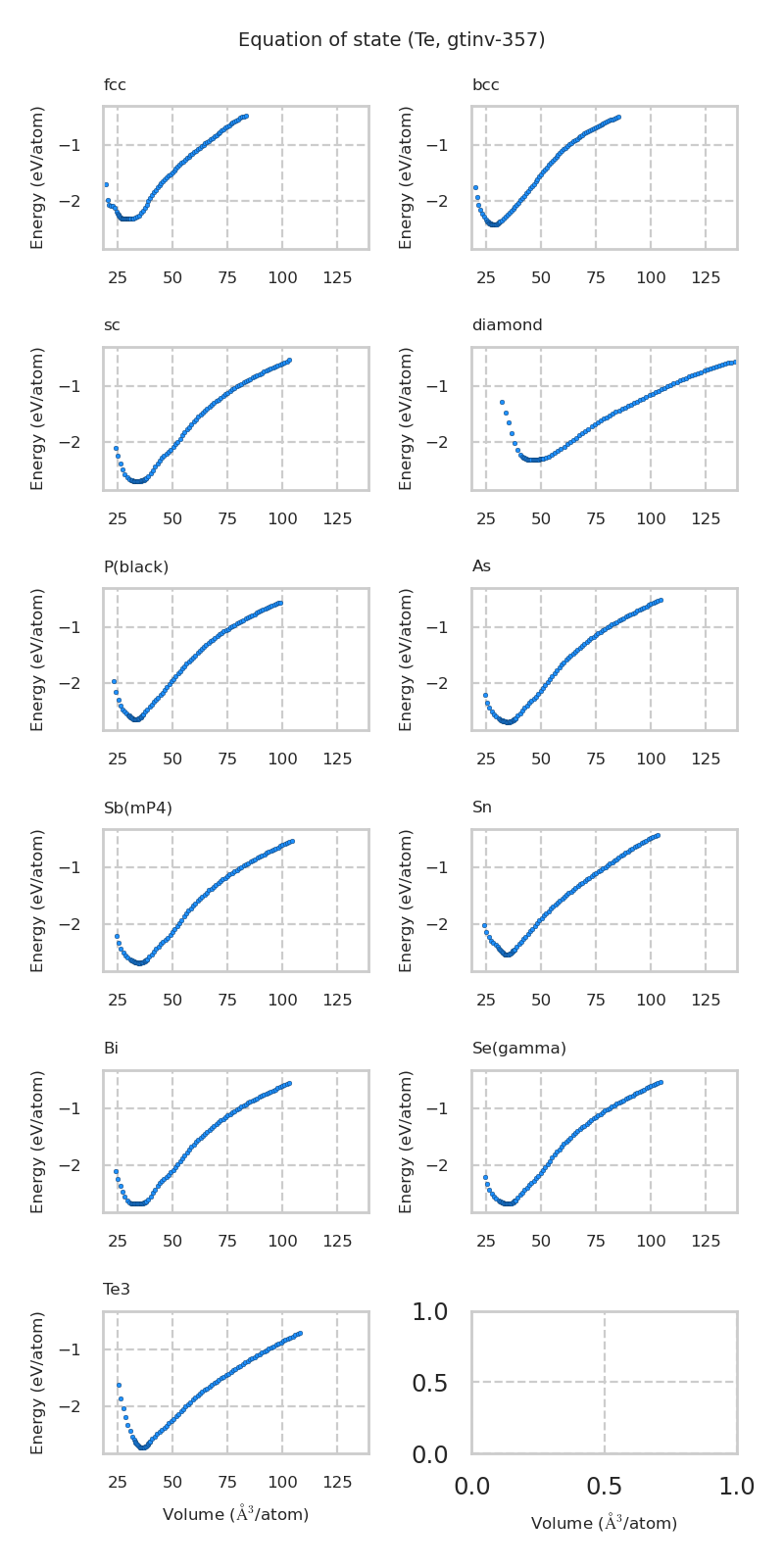

Equation of state for each structure

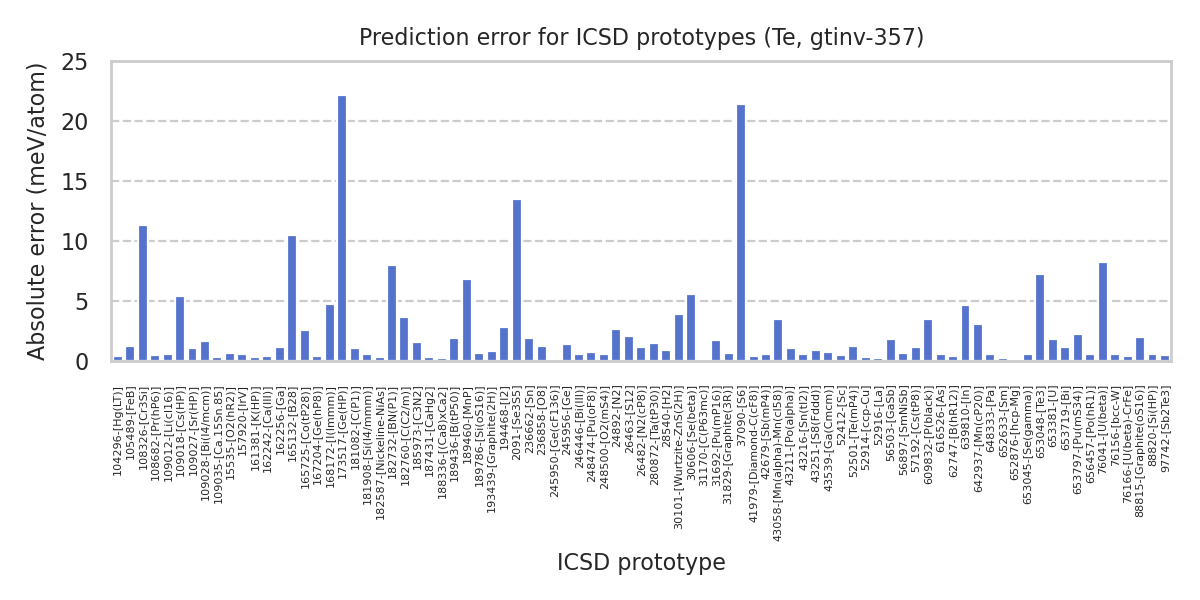

Prototype structure energy

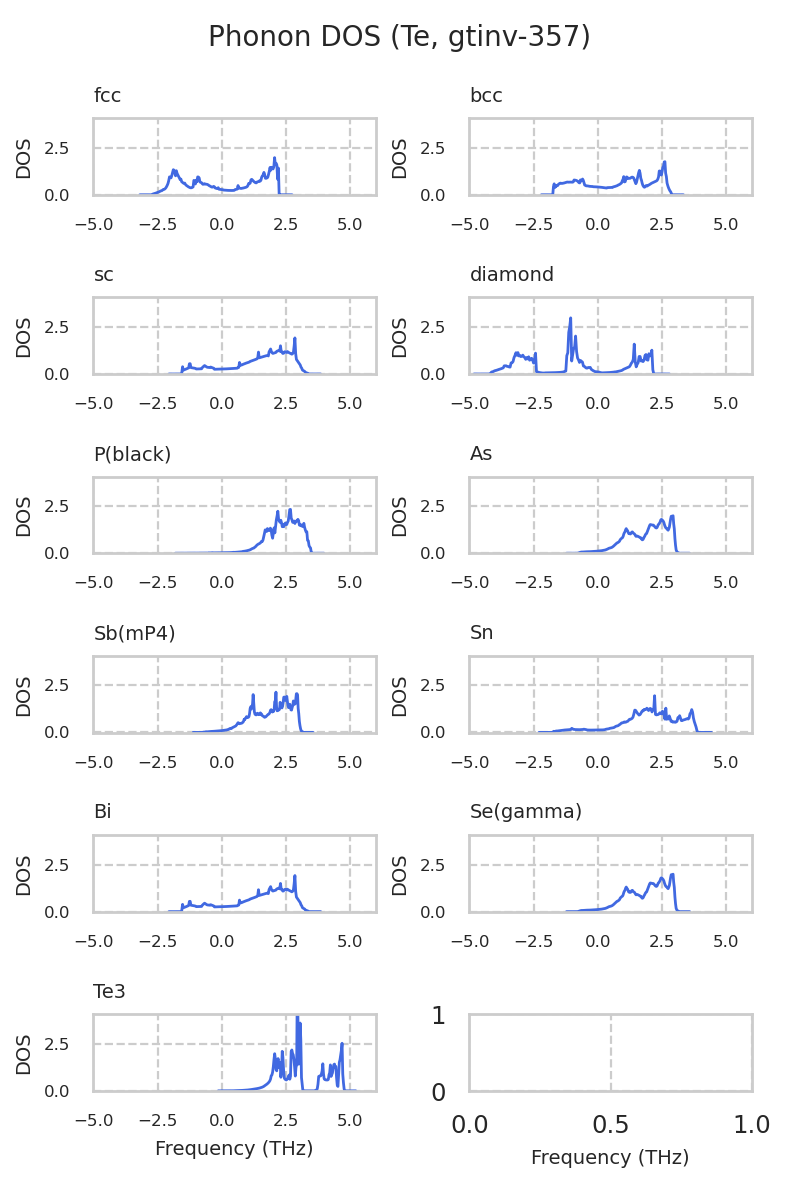

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-653048-[Te3]	-2.72013	-2.72736
icsd-248500-[O2(mS4)]	-2.68533	-2.68587
icsd-162242-[Ca(III)]	-2.68533	-2.68573
icsd-43211-[Po(alpha)]	-2.68533	-2.68639
icsd-656457-[Po(hR1)]	-2.68532	-2.68589
icsd-616526-[As]	-2.68532	-2.68588
icsd-653045-[Se(gamma)]	-2.68532	-2.68589
icsd-181082-[C(P1)]	-2.68532	-2.68639
icsd-109027-[Sr(HP)]	-2.68532	-2.68639
icsd-105489-[FeB]	-2.68532	-2.68654
icsd-97742-[Sb2Te3]	-2.68532	-2.68579
icsd-236858-[O8]	-2.68531	-2.68652
icsd-52501-[Te(mP4)]	-2.68531	-2.68652
icsd-653719-[Bi]	-2.68528	-2.68638
icsd-162256-[Ga]	-2.68528	-2.68637
icsd-26482-[N2(cP8)]	-2.68528	-2.68637
icsd-108682-[Pr(hP6)]	-2.68527	-2.68575
icsd-31692-[Pu(mP16)]	-2.68521	-2.68693
icsd-57192-[Cs(tP8)]	-2.6852	-2.68631
icsd-104296-[Hg(LT)]	-2.68518	-2.68557
icsd-42679-[Sb(mP4)]	-2.68512	-2.68563
icsd-37090-[S6]	-2.68227	-2.70372
icsd-173517-[Ge(HP)]	-2.65765	-2.67988
icsd-652633-[Sm]	-2.65301	-2.65318
icsd-182732-[BN(P1)]	-2.63329	-2.62531
icsd-26463-[S12]	-2.62985	-2.63193
icsd-43058-[Mn(alpha)-Mn(cI58)]	-2.62125	-2.61781
icsd-188336-[(Ca8)xCa2]	-2.6193	-2.61954
icsd-43539-[Ga(Cmcm)]	-2.61874	-2.618
icsd-280872-[Ta(tP30)]	-2.60302	-2.60446
icsd-609832-[P(black)]	-2.60291	-2.59946
icsd-194468-[I2]	-2.60261	-2.59979
icsd-76041-[U(beta)]	-2.60094	-2.60917
icsd-189460-[MnP]	-2.60088	-2.60766
icsd-182760-[C(C2/m)]	-2.60039	-2.59674
icsd-52412-[Sc]	-2.59971	-2.59924
icsd-28540-[H2]	-2.59921	-2.59835
icsd-2091-[Se3S5]	-2.5977	-2.61124
icsd-52916-[La]	-2.59758	-2.59779
icsd-31170-[C(P63mc)]	-2.59751	-2.59755
icsd-161381-[K(HP)]	-2.59751	-2.59782
icsd-182587-[Nickeline-NiAs]	-2.5975	-2.59777
icsd-30606-[Se(beta)]	-2.58221	-2.58774
icsd-165132-[B28]	-2.58044	-2.59095
icsd-88815-[Graphite(oS16)]	-2.57826	-2.58022
icsd-43251-[S8(Fddd)]	-2.5731	-2.57398
icsd-109018-[Cs(HP)]	-2.56768	-2.5623
icsd-109028-[Bi(I4/mcm)]	-2.56755	-2.56595
icsd-168172-[I(Immm)]	-2.5661	-2.56139
icsd-639810-[In]	-2.5661	-2.56141
icsd-187431-[CaHg2]	-2.54664	-2.54695
icsd-56897-[SmNiSb]	-2.54638	-2.54698
icsd-189786-[Si(oS16)]	-2.54142	-2.54204
icsd-165725-[Co(tP28)]	-2.53166	-2.53421
icsd-653797-[Pu(mS34)]	-2.52774	-2.52994
icsd-189436-[B(tP50)]	-2.52546	-2.52733
icsd-24892-[N2]	-2.51329	-2.51068
icsd-248474-[Pu(oF8)]	-2.51215	-2.51285
icsd-15535-[O2(hR2)]	-2.51182	-2.51121
icsd-56503-[GaSb]	-2.51117	-2.51293
icsd-236662-[Sn]	-2.51107	-2.51293
icsd-76166-[U(beta)-CrFe]	-2.51087	-2.51125
icsd-245956-[Ge]	-2.51004	-2.51146
icsd-30101-[Wurtzite-ZnS(2H)]	-2.50976	-2.51363
icsd-185973-[C3N2]	-2.50928	-2.50775
icsd-109035-[Ca.15Sn.85]	-2.50771	-2.50802
icsd-653381-[U]	-2.50766	-2.50947
icsd-167204-[Ge(hP8)]	-2.49339	-2.49302
icsd-62747-[B(hR12)]	-2.49115	-2.49074
icsd-642937-[Mn(cP20)]	-2.48755	-2.48449
icsd-181908-[Si(I4/mmm)]	-2.46283	-2.46231
icsd-31829-[Graphite(3R)]	-2.45726	-2.45659
icsd-88820-[Si(HP)]	-2.4421	-2.44265
icsd-76156-[bcc-W]	-2.41998	-2.41941
icsd-246446-[Bi(III)]	-2.41997	-2.41941
icsd-43216-[Sn(tI2)]	-2.41996	-2.4194
icsd-648333-[Pa]	-2.41996	-2.4194
icsd-109012-[Li(cI16)]	-2.41994	-2.41939
icsd-652876-[hcp-Mg]	-2.41992	-2.41979
icsd-157920-[IrV]	-2.41989	-2.41937
icsd-193439-[Graphite(2H)]	-2.39616	-2.39696
icsd-245950-[Ge(cF136)]	-2.33679	-2.33675
icsd-52914-[ccp-Cu]	-2.31421	-2.31447
icsd-41979-[Diamond-C(cF8)]	-2.30862	-2.30899
icsd-108326-[Cr3Si]	-2.27017	-2.25882

Lattice parameters (P(black))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	33.194	4.407	4.407	13.672	90.0	90.0	90.0
DFT	32.062	4.491	4.517	12.644	90.0	90.0	90.0

Elastic constants (P(black))

1	2	3	4	5	6
146.4	97.4	56.4	27908.3	0.0	0.0
97.4	146.4	56.4	27908.3	0.0	0.0
56.4	56.4	186.6	10816.3	0.0	0.0
27908.3	27908.3	10816.3	-27.9	0.1	6418.5
0.0	0.0	0.0	0.1	-55.0	0.0
0.0	0.0	0.0	6418.5	0.0	50.7

Lattice parameters (As)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.911	4.695	4.496	5.67	90.0	86.06	118.61
DFT	32.743	4.519	4.519	5.553	90.0	90.0	120.0

Elastic constants (As)

1	2	3	4	5	6
69.0	44.0	45.7	2.8	-3.5	-2.5
44.0	79.5	40.6	-2.7	3.8	-5.6
45.7	40.6	75.8	-3.2	-5.9	4.1
2.8	-2.7	-3.2	17.7	-1.5	-3.7
-3.5	3.8	-5.9	-1.5	15.7	-1.6
-2.5	-5.6	4.1	-3.7	-1.6	16.6

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.48	6.738	6.738	3.038	90.0	90.0	90.0
DFT	32.088	6.374	6.374	3.159	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
-364195.1	364441.7	79.0	0.0	0.0	0.0
364441.7	-364195.1	79.0	0.0	0.0	0.0
79.0	79.0	284.0	0.0	0.0	0.0
0.0	0.0	0.0	-8.0	0.0	0.0
0.0	0.0	0.0	0.0	-8.0	0.0
0.0	0.0	0.0	0.0	0.0	19.4

Lattice parameters (Te3)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	36.137	4.571	4.571	5.991	90.0	90.0	120.0
DFT	34.957	4.507	4.507	5.962	90.0	90.0	120.0

Elastic constants (Te3)

1	2	3	4	5	6
158.7	65.3	89.8	-21.0	0.0	0.0
65.3	158.7	89.8	21.0	0.0	0.0
89.8	89.8	181.3	0.0	0.0	0.0
-21.0	21.0	0.0	61.9	0.0	0.0
0.0	0.0	0.0	0.0	61.9	-21.0
0.0	0.0	0.0	0.0	-21.0	46.7

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.489	3.848	3.848	3.848	90.0	90.0	90.0
DFT	28.45	3.846	3.846	3.846	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
100.3	60.5	60.5	0.0	0.0	0.0
60.5	100.3	60.5	0.0	0.0	0.0
60.5	60.5	100.3	0.0	0.0	0.0
0.0	0.0	0.0	-9.9	0.0	0.0
0.0	0.0	0.0	0.0	-9.9	0.0
0.0	0.0	0.0	0.0	0.0	-9.9

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	27.857	4.812	4.812	4.812	90.0	90.0	90.0
DFT	28.196	4.832	4.832	4.832	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
48.4	63.7	63.7	0.0	0.0	0.0
63.7	48.4	63.7	0.0	0.0	0.0
63.7	63.7	48.4	0.0	0.0	0.0
0.0	0.0	0.0	-2.6	0.0	0.0
0.0	0.0	0.0	0.0	-2.6	0.0
0.0	0.0	0.0	0.0	0.0	-2.6

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	46.235	7.178	7.178	7.178	90.0	90.0	90.0
DFT	46.291	7.181	7.181	7.181	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
6.3	16.9	16.9	0.0	27979.1	0.0
16.9	6.3	16.9	0.0	27664.8	0.0
16.9	16.9	6.3	0.0	27979.6	0.0
0.0	0.0	0.0	-78203.9	6198.1	0.0
27979.1	27664.8	27979.6	6198.1	-26699.2	6198.0
0.0	0.0	0.0	0.0	6198.0	-78203.9

Lattice parameters (Sb(mP4))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.911	4.496	4.496	6.91	90.0	90.0	90.0
DFT	32.745	4.521	4.519	6.411	90.0	90.0	90.0

Elastic constants (Sb(mP4))

1	2	3	4	5	6
86.3	36.1	44.0	0.0	0.0	0.0
36.1	86.3	44.0	0.0	0.0	0.0
44.0	44.0	64.3	0.0	0.0	0.0
0.0	0.0	0.0	11.0	0.0	0.0
0.0	0.0	0.0	0.0	11.0	0.0
0.0	0.0	0.0	0.0	0.0	21.8

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.466	3.254	3.254	3.254	90.0	90.0	90.0
DFT	32.749	3.199	3.199	3.199	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
0.7	8.8	8.8	0.0	0.0	0.0
8.8	0.7	8.8	0.0	0.0	0.0
8.8	8.8	0.7	0.0	0.0	0.0
0.0	0.0	0.0	9.1	0.0	0.0
0.0	0.0	0.0	0.0	9.1	0.0
0.0	0.0	0.0	0.0	0.0	9.1

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.466	3.254	3.254	3.254	90.0	90.0	90.0
DFT	32.684	3.197	3.197	3.197	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
0.7	8.8	8.8	0.0	0.0	0.0
8.8	0.7	8.8	0.0	0.0	0.0
8.8	8.8	0.7	0.0	0.0	0.0
0.0	0.0	0.0	9.1	0.0	0.0
0.0	0.0	0.0	0.0	9.1	0.0
0.0	0.0	0.0	0.0	0.0	9.1

Lattice parameters (Se(gamma))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.911	4.695	4.496	5.67	90.0	86.06	118.61
DFT	32.743	4.521	4.521	5.55	90.0	90.0	120.0

Elastic constants (Se(gamma))

1	2	3	4	5	6
69.0	44.0	45.7	2.8	-3.5	-2.5
44.0	79.5	40.6	-2.7	3.8	-5.6
45.7	40.6	75.8	-3.2	-5.9	4.1
2.8	-2.7	-3.2	17.7	-1.5	-3.7
-3.5	3.8	-5.9	-1.5	15.7	-1.6
-2.5	-5.6	4.1	-3.7	-1.6	16.6
