gtinv-220 (Tl-2021-08-04-all-icsd)

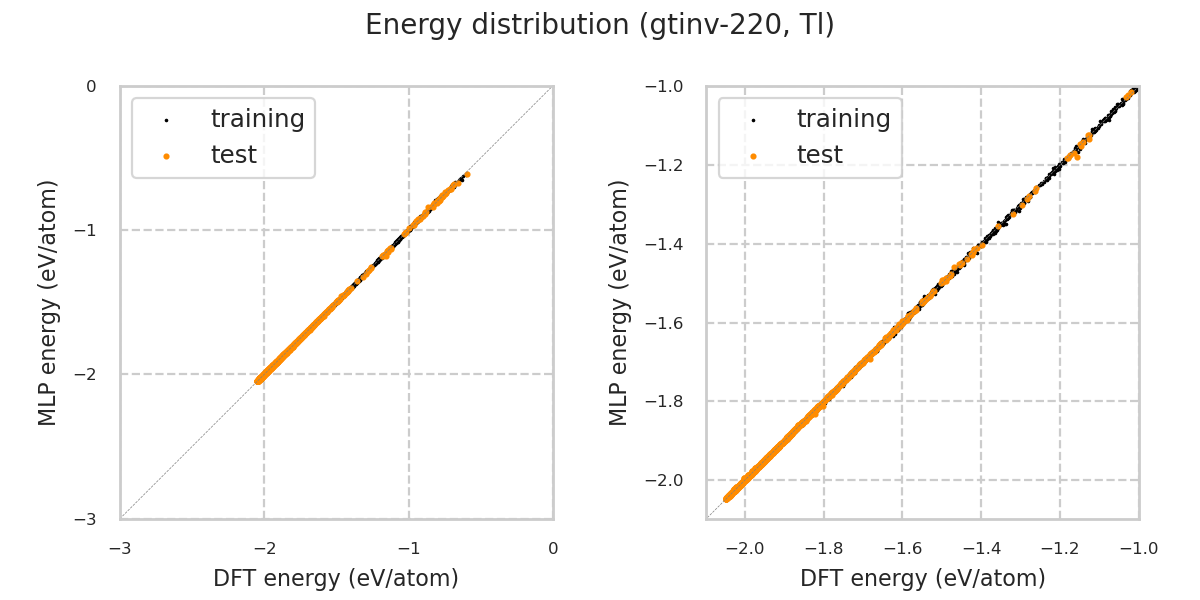

Energy distribution

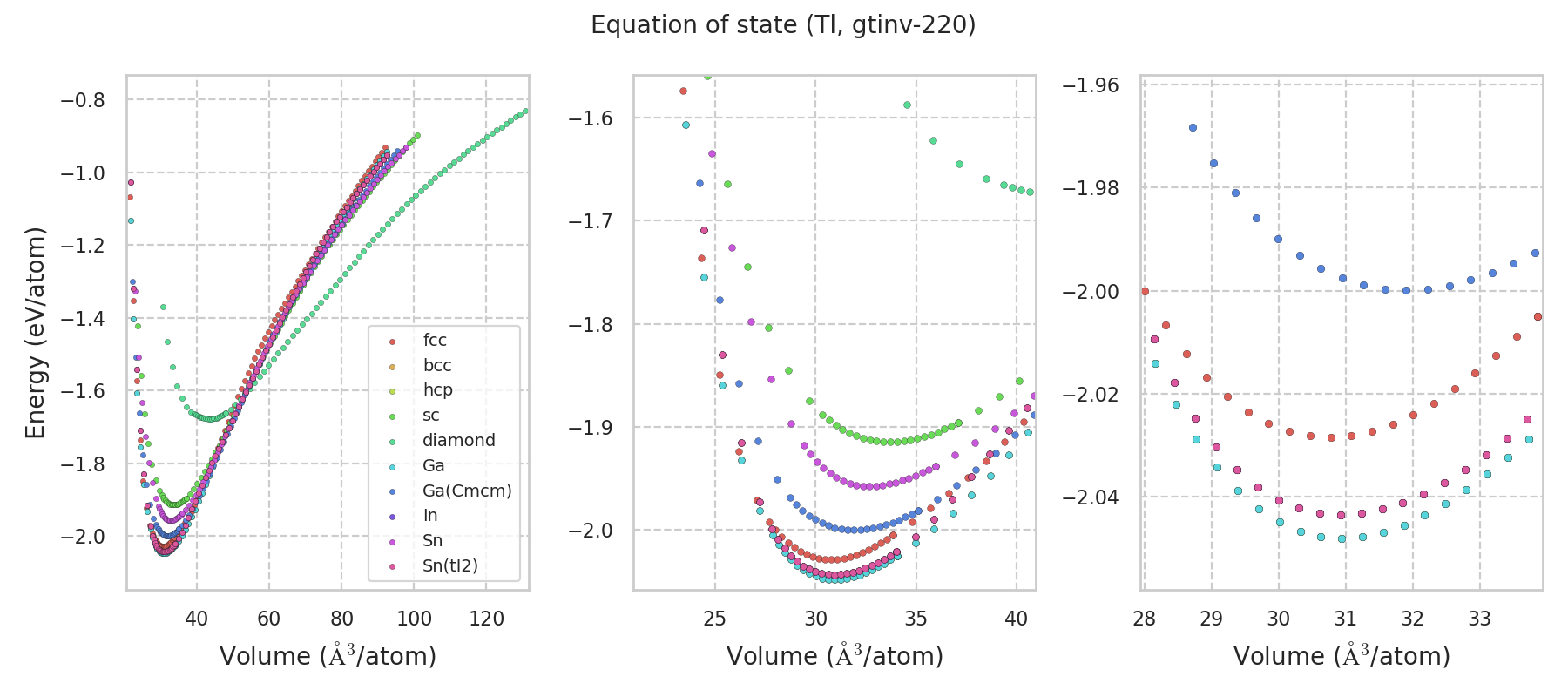

Equation of state

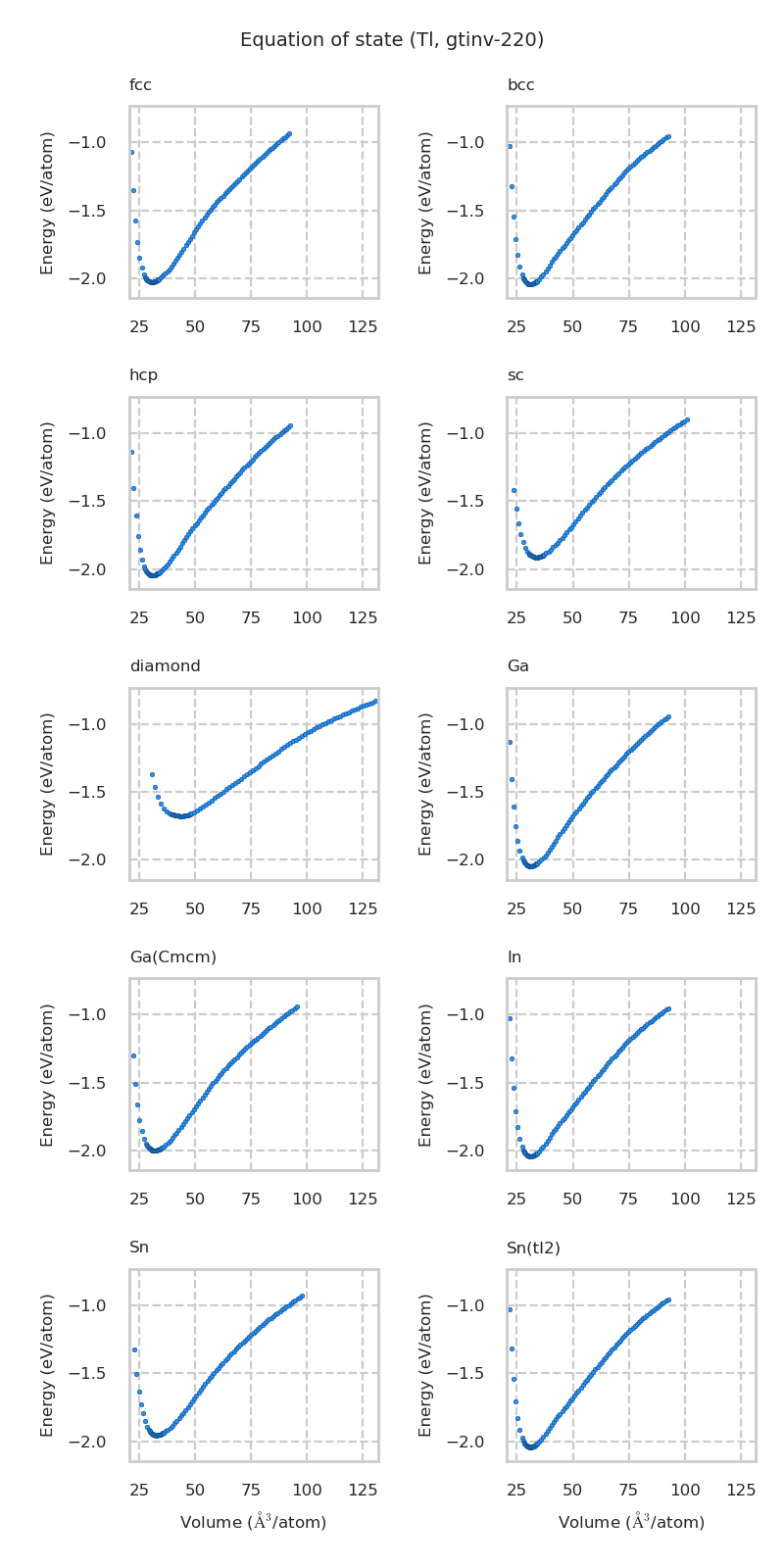

Equation of state for each structure

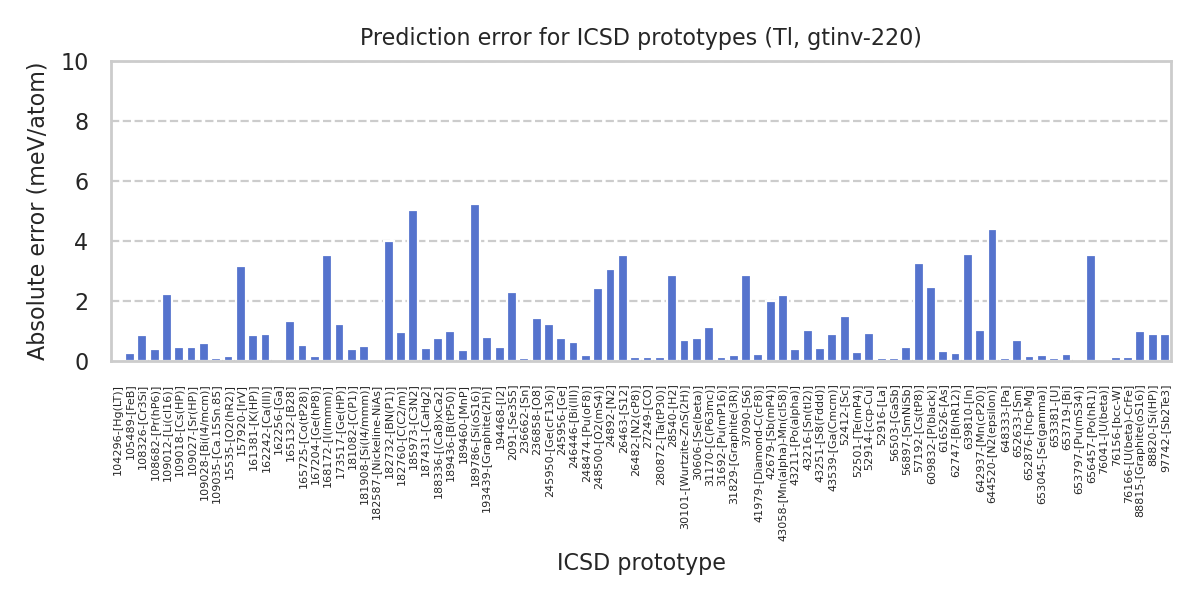

Prototype structure energy

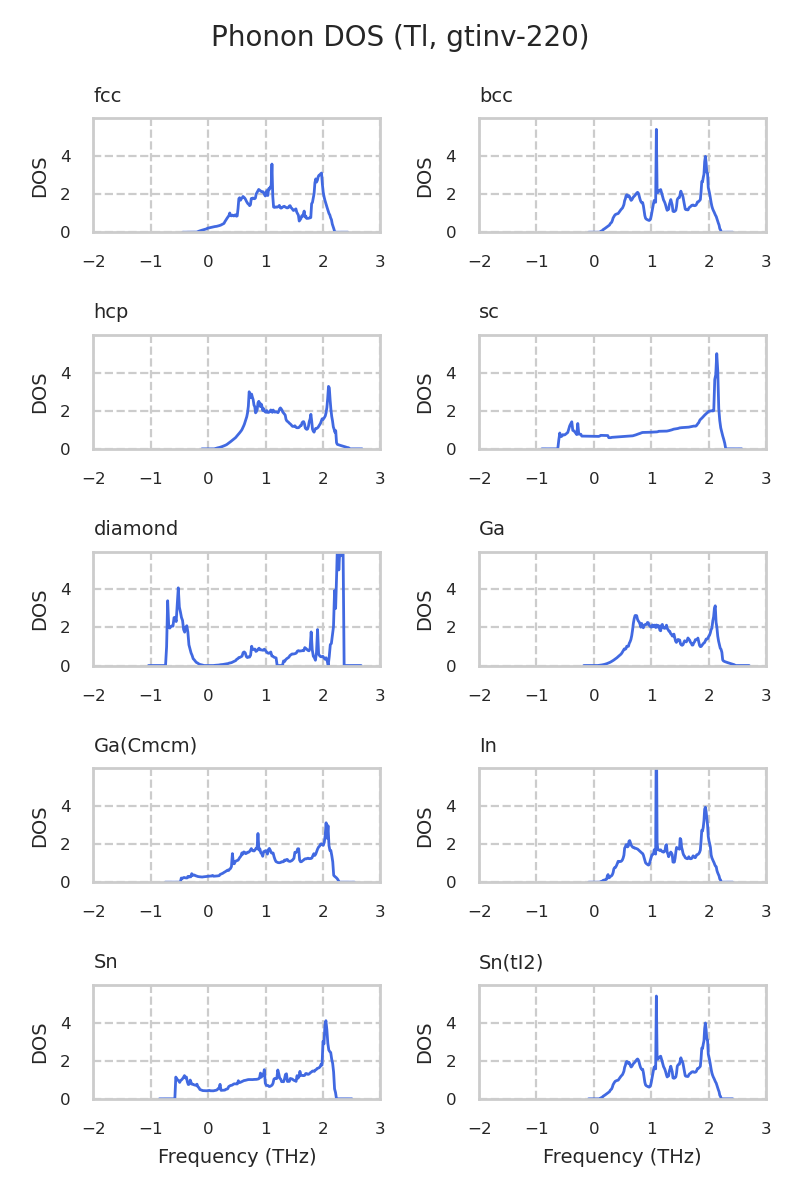

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-31692-[Pu(mP16)]	-2.04691	-2.04678
icsd-652876-[hcp-Mg]	-2.04688	-2.04703
icsd-653381-[U]	-2.04684	-2.04693
icsd-52501-[Te(mP4)]	-2.04674	-2.04703
icsd-236858-[O8]	-2.04602	-2.04742
icsd-42679-[Sb(mP4)]	-2.04445	-2.04644
icsd-656457-[Po(hR1)]	-2.04344	-2.04698
icsd-648333-[Pa]	-2.04344	-2.04352
icsd-76156-[bcc-W]	-2.04342	-2.04353
icsd-644520-[N2(epsilon)]	-2.04334	-2.04775
icsd-43216-[Sn(tI2)]	-2.0433	-2.04228
icsd-246446-[Bi(III)]	-2.04322	-2.04384
icsd-97742-[Sb2Te3]	-2.04321	-2.04409
icsd-109012-[Li(cI16)]	-2.04285	-2.04508
icsd-52412-[Sc]	-2.04283	-2.04433
icsd-157920-[IrV]	-2.04268	-2.04586
icsd-194468-[I2]	-2.04251	-2.04207
icsd-652633-[Sm]	-2.03633	-2.03564
icsd-30606-[Se(beta)]	-2.03559	-2.03634
icsd-43058-[Mn(alpha)-Mn(cI58)]	-2.03396	-2.03614
icsd-187431-[CaHg2]	-2.03374	-2.03417
icsd-56897-[SmNiSb]	-2.03373	-2.03419
icsd-161381-[K(HP)]	-2.03131	-2.03046
icsd-182760-[C(C2/m)]	-2.03034	-2.02938
icsd-52916-[La]	-2.03006	-2.02999
icsd-182587-[Nickeline-NiAs]	-2.03003	-2.03006
icsd-642937-[Mn(cP20)]	-2.02914	-2.02813
icsd-76166-[U(beta)-CrFe]	-2.02857	-2.02844
icsd-104296-[Hg(LT)]	-2.02851	-2.02856
icsd-168172-[I(Immm)]	-2.0285	-2.03204
icsd-52914-[ccp-Cu]	-2.02849	-2.0294
icsd-280872-[Ta(tP30)]	-2.02848	-2.02837
icsd-639810-[In]	-2.02848	-2.03205
icsd-31829-[Graphite(3R)]	-2.02847	-2.02865
icsd-15535-[O2(hR2)]	-2.02846	-2.02862
icsd-653045-[Se(gamma)]	-2.02842	-2.02859
icsd-76041-[U(beta)]	-2.02802	-2.02804
icsd-248500-[O2(mS4)]	-2.02745	-2.02502
icsd-108682-[Pr(hP6)]	-2.02725	-2.02764
icsd-189786-[Si(oS16)]	-2.02486	-2.03008
icsd-57192-[Cs(tP8)]	-2.02454	-2.02779
icsd-653797-[Pu(mS34)]	-2.02293	-2.02299
icsd-248474-[Pu(oF8)]	-2.02009	-2.02027
icsd-26482-[N2(cP8)]	-2.01903	-2.01915
icsd-27249-[CO]	-2.01901	-2.01912
icsd-108326-[Cr3Si]	-2.01363	-2.01279
icsd-31170-[C(P63mc)]	-2.01353	-2.0124
icsd-2091-[Se3S5]	-2.00858	-2.01086
icsd-165725-[Co(tP28)]	-2.00694	-2.00642
icsd-105489-[FeB]	-2.00424	-2.00451
icsd-24892-[N2]	-2.00285	-2.00589
icsd-609832-[P(black)]	-2.00204	-2.00449
icsd-43539-[Ga(Cmcm)]	-1.99964	-1.99875
icsd-26463-[S12]	-1.99442	-1.99794
icsd-165132-[B28]	-1.993	-1.99432
icsd-37090-[S6]	-1.98792	-1.98505
icsd-28540-[H2]	-1.98309	-1.98595
icsd-43251-[S8(Fddd)]	-1.98035	-1.98076
icsd-189460-[MnP]	-1.97642	-1.97607
icsd-109035-[Ca.15Sn.85]	-1.96401	-1.96393
icsd-162242-[Ca(III)]	-1.96376	-1.96465
icsd-109018-[Cs(HP)]	-1.9612	-1.96075
icsd-173517-[Ge(HP)]	-1.96021	-1.96145
icsd-653719-[Bi]	-1.95755	-1.95733
icsd-236662-[Sn]	-1.95739	-1.95729
icsd-56503-[GaSb]	-1.95738	-1.95731
icsd-188336-[(Ca8)xCa2]	-1.95324	-1.95397
icsd-162256-[Ga]	-1.94563	-1.94569
icsd-189436-[B(tP50)]	-1.91595	-1.91695
icsd-616526-[As]	-1.91445	-1.91414
icsd-109027-[Sr(HP)]	-1.91445	-1.91399
icsd-181082-[C(P1)]	-1.91445	-1.91483
icsd-43211-[Po(alpha)]	-1.91444	-1.91483
icsd-182732-[BN(P1)]	-1.91443	-1.91042
icsd-109028-[Bi(I4/mcm)]	-1.8797	-1.87911
icsd-62747-[B(hR12)]	-1.8741	-1.87383
icsd-193439-[Graphite(2H)]	-1.83095	-1.83174
icsd-245950-[Ge(cF136)]	-1.82955	-1.82833
icsd-88815-[Graphite(oS16)]	-1.81522	-1.81423
icsd-185973-[C3N2]	-1.79356	-1.78855
icsd-245956-[Ge]	-1.76125	-1.76201
icsd-88820-[Si(HP)]	-1.76107	-1.76197
icsd-41979-[Diamond-C(cF8)]	-1.67784	-1.67805
icsd-167204-[Ge(hP8)]	-1.67651	-1.67665
icsd-30101-[Wurtzite-ZnS(2H)]	-1.66944	-1.67014
icsd-181908-[Si(I4/mmm)]	-1.66048	-1.66

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.942	3.597	3.597	5.523	90.0	90.0	120.0
DFT	31.123	3.561	3.561	5.668	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
40.6	32.1	27.4	0.0	0.0	0.0
32.1	40.6	27.4	0.0	0.0	0.0
27.4	27.4	41.5	0.0	0.0	0.0
0.0	0.0	0.0	9.8	0.0	0.0
0.0	0.0	0.0	0.0	9.8	0.0
0.0	0.0	0.0	0.0	0.0	4.2

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.927	3.955	3.955	3.955	90.0	90.0	90.0
DFT	30.994	3.93	3.93	4.013	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
32.9	27.4	27.4	0.0	0.0	0.0
27.4	32.9	27.4	0.0	0.0	0.0
27.4	27.4	32.9	0.0	0.0	0.0
0.0	0.0	0.0	7.9	0.0	0.0
0.0	0.0	0.0	0.0	7.9	0.0
0.0	0.0	0.0	0.0	0.0	7.9

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.677	6.261	6.261	3.335	90.0	90.0	90.0
DFT	32.855	6.265	6.265	3.349	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
21.6	37.7	20.5	0.0	0.0	0.0
37.7	21.6	20.5	0.0	0.0	0.0
20.5	20.5	43.4	0.0	0.0	0.0
0.0	0.0	0.0	-0.9	0.0	0.0
0.0	0.0	0.0	0.0	-0.9	0.0
0.0	0.0	0.0	0.0	0.0	-7.0

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.927	3.955	3.955	3.955	90.0	90.0	90.0
DFT	31.043	3.96	3.96	3.96	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
32.9	27.4	27.4	0.0	0.0	0.0
27.4	32.9	27.4	0.0	0.0	0.0
27.4	27.4	32.9	0.0	0.0	0.0
0.0	0.0	0.0	7.9	0.0	0.0
0.0	0.0	0.0	0.0	7.9	0.0
0.0	0.0	0.0	0.0	0.0	7.9

Lattice parameters (In)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.927	3.955	3.955	3.955	90.0	90.0	90.0
DFT	30.672	3.549	3.549	4.87	90.0	90.0	90.0

Elastic constants (In)

1	2	3	4	5	6
32.9	27.4	27.4	0.0	0.0	0.0
27.4	32.9	27.4	0.0	0.0	0.0
27.4	27.4	32.9	0.0	0.0	0.0
0.0	0.0	0.0	7.9	0.0	0.0
0.0	0.0	0.0	0.0	7.9	0.0
0.0	0.0	0.0	0.0	0.0	7.9

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.778	4.975	4.975	4.975	90.0	90.0	90.0
DFT	30.7	4.971	4.971	4.971	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
31.7	30.1	30.1	0.0	0.0	0.0
30.1	31.7	30.1	0.0	0.0	0.0
30.1	30.1	31.7	0.0	0.0	0.0
0.0	0.0	0.0	8.1	0.0	0.0
0.0	0.0	0.0	0.0	8.1	0.0
0.0	0.0	0.0	0.0	0.0	8.1

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	43.703	7.045	7.045	7.045	90.0	90.0	90.0
DFT	43.59	7.039	7.039	7.039	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
5.4	12.8	12.8	0.0	0.0	0.0
12.8	5.4	12.8	0.0	0.0	0.0
12.8	12.8	5.4	0.0	0.0	0.0
0.0	0.0	0.0	-4.3	0.0	0.0
0.0	0.0	0.0	0.0	-4.3	0.0
0.0	0.0	0.0	0.0	0.0	-4.3

Lattice parameters (Ga)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.942	7.194	7.194	6.591	74.17	123.07	120.0
DFT	33.115	6.359	6.625	6.288	90.0	90.0	90.0

Elastic constants (Ga)

1	2	3	4	5	6
40.6	32.1	27.4	0.0	0.0	0.0
32.1	40.6	27.4	0.0	0.0	0.0
27.4	27.4	41.5	0.0	0.0	0.0
0.0	0.0	0.0	9.8	0.0	0.0
0.0	0.0	0.0	0.0	9.8	0.0
0.0	0.0	0.0	0.0	0.0	4.2

Lattice parameters (Ga(Cmcm))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.906	3.315	11.399	3.377	90.0	90.0	90.0
DFT	31.774	3.281	11.436	3.387	90.0	90.0	90.0

Elastic constants (Ga(Cmcm))

1	2	3	4	5	6
29.9	13.2	16.3	0.0	0.0	0.0
13.2	33.7	21.9	0.0	0.0	0.0
16.3	21.9	43.6	0.0	0.0	0.0
0.0	0.0	0.0	5.6	0.0	0.0
0.0	0.0	0.0	0.0	-4.3	0.0
0.0	0.0	0.0	0.0	0.0	-15.4

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	33.709	3.23	3.23	3.23	90.0	90.0	90.0
DFT	33.764	3.232	3.232	3.232	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
44.8	9.0	9.0	0.0	0.0	0.0
9.0	44.8	9.0	0.0	0.0	0.0
9.0	9.0	44.8	0.0	0.0	0.0
0.0	0.0	0.0	-4.9	0.0	0.0
0.0	0.0	0.0	0.0	-4.9	0.0
0.0	0.0	0.0	0.0	0.0	-4.9
