gtinv-174 (V-2021-08-25-all-icsd)

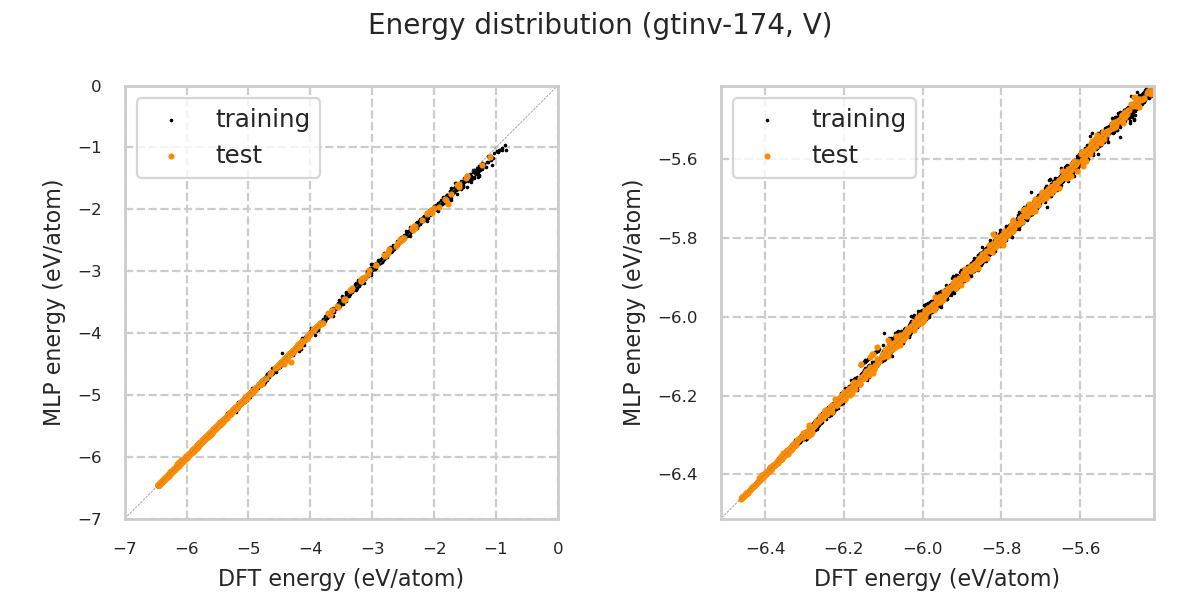

Energy distribution

Equation of state

Equation of state for each structure

Prototype structure energy

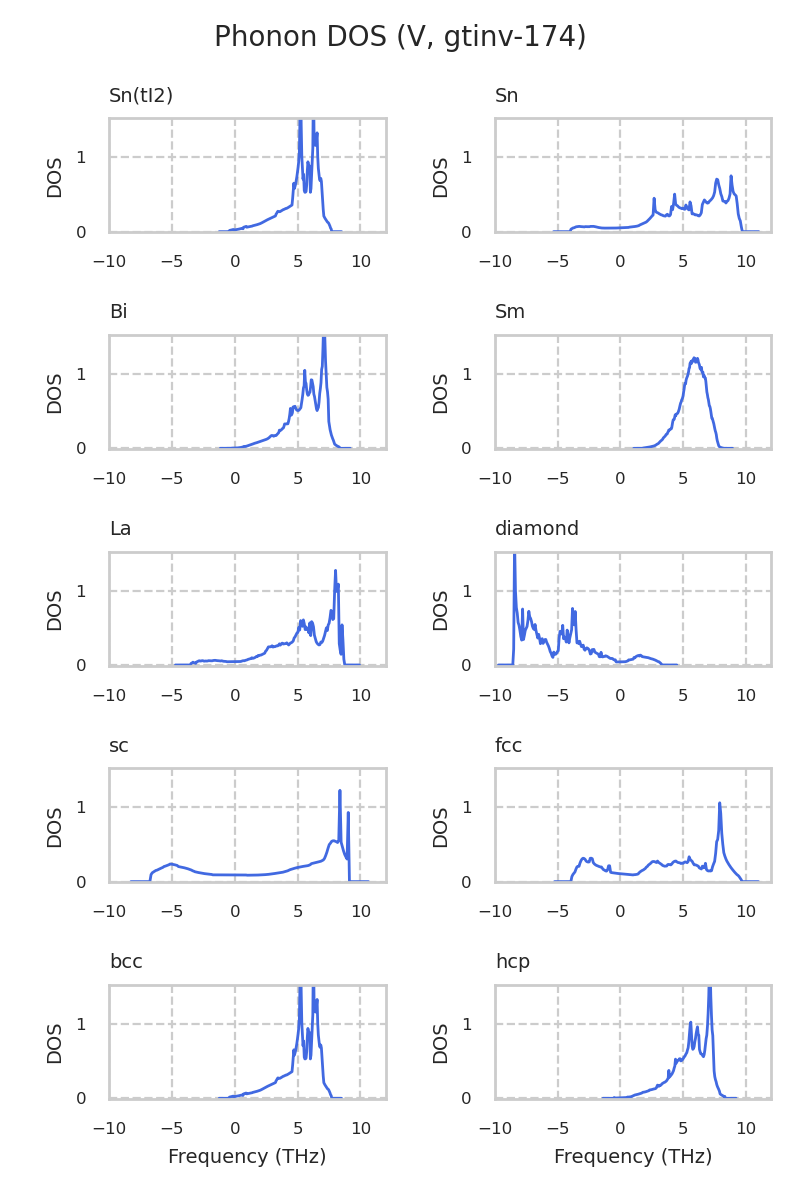

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-653719-[Bi]	-6.46345	-6.46248
icsd-2091-[Se3S5]	-6.46342	-6.46227
icsd-105489-[FeB]	-6.45906	-6.45738
icsd-97742-[Sb2Te3]	-6.45894	-6.45811
icsd-656457-[Po(hR1)]	-6.45891	-6.45828
icsd-30606-[Se(beta)]	-6.45885	-6.45808
icsd-31829-[Graphite(3R)]	-6.45884	-6.45838
icsd-648333-[Pa]	-6.45883	-6.4581
icsd-42679-[Sb(mP4)]	-6.45883	-6.4581
icsd-43216-[Sn(tI2)]	-6.45883	-6.45811
icsd-246446-[Bi(III)]	-6.45883	-6.45811
icsd-52412-[Sc]	-6.45883	-6.45811
icsd-157920-[IrV]	-6.45883	-6.4581
icsd-76156-[bcc-W]	-6.45882	-6.45811
icsd-194468-[I2]	-6.45881	-6.45805
icsd-109012-[Li(cI16)]	-6.4588	-6.45755
icsd-76166-[U(beta)-CrFe]	-6.40904	-6.41524
icsd-76041-[U(beta)]	-6.40903	-6.41525
icsd-280872-[Ta(tP30)]	-6.40872	-6.4153
icsd-108326-[Cr3Si]	-6.40842	-6.4071
icsd-57192-[Cs(tP8)]	-6.38592	-6.38449
icsd-52501-[Te(mP4)]	-6.37942	-6.38617
icsd-639810-[In]	-6.37643	-6.37726
icsd-168172-[I(Immm)]	-6.37637	-6.37719
icsd-248474-[Pu(oF8)]	-6.36346	-6.3613
icsd-31692-[Pu(mP16)]	-6.35262	-6.35872
icsd-653381-[U]	-6.35243	-6.35894
icsd-52916-[La]	-6.3488	-6.34401
icsd-193439-[Graphite(2H)]	-6.34447	-6.34669
icsd-31170-[C(P63mc)]	-6.34435	-6.34669
icsd-56897-[SmNiSb]	-6.3396	-6.34058
icsd-187431-[CaHg2]	-6.33953	-6.34058
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.33859	-6.3434
icsd-653797-[Pu(mS34)]	-6.32794	-6.32928
icsd-642937-[Mn(cP20)]	-6.30896	-6.29516
icsd-189786-[Si(oS16)]	-6.26432	-6.27214
icsd-248500-[O2(mS4)]	-6.24682	-6.24992
icsd-108682-[Pr(hP6)]	-6.24569	-6.25205
icsd-165725-[Co(tP28)]	-6.2405	-6.22777
icsd-15535-[O2(hR2)]	-6.2255	-6.22031
icsd-104296-[Hg(LT)]	-6.22541	-6.22027
icsd-653045-[Se(gamma)]	-6.22537	-6.22026
icsd-236858-[O8]	-6.21954	-6.21734
icsd-609832-[P(black)]	-6.21696	-6.21651
icsd-161381-[K(HP)]	-6.20943	-6.2138
icsd-652876-[hcp-Mg]	-6.20635	-6.20005
icsd-52914-[ccp-Cu]	-6.20379	-6.20096
icsd-616526-[As]	-6.20378	-6.20056
icsd-245956-[Ge]	-6.19122	-6.19955
icsd-182587-[Nickeline-NiAs]	-6.18829	-6.18824
icsd-652633-[Sm]	-6.18137	-6.18209
icsd-43251-[S8(Fddd)]	-6.15675	-6.15656
icsd-182760-[C(C2/m)]	-6.12205	-6.15817
icsd-165132-[B28]	-6.09436	-6.10195
icsd-24892-[N2]	-6.08887	-6.08788
icsd-37090-[S6]	-6.08887	-6.08857
icsd-173517-[Ge(HP)]	-6.06791	-6.08418
icsd-189460-[MnP]	-6.04655	-6.0497
icsd-182732-[BN(P1)]	-6.04205	-6.09727
icsd-236662-[Sn]	-6.02538	-6.02153
icsd-56503-[GaSb]	-6.02537	-6.02153
icsd-26463-[S12]	-6.01256	-6.02069
icsd-109035-[Ca.15Sn.85]	-6.00113	-6.00174
icsd-162242-[Ca(III)]	-6.00105	-6.00193
icsd-43539-[Ga(Cmcm)]	-5.97948	-5.98592
icsd-109018-[Cs(HP)]	-5.96769	-5.96667
icsd-189436-[B(tP50)]	-5.94233	-5.95028
icsd-109028-[Bi(I4/mcm)]	-5.94136	-5.93956
icsd-162256-[Ga]	-5.93714	-5.93957
icsd-188336-[(Ca8)xCa2]	-5.83597	-5.83398
icsd-181082-[C(P1)]	-5.65469	-5.6546
icsd-28540-[H2]	-5.65468	-5.65283
icsd-43211-[Po(alpha)]	-5.65468	-5.65456
icsd-30101-[Wurtzite-ZnS(2H)]	-5.65468	-5.6504
icsd-109027-[Sr(HP)]	-5.65466	-5.65306
icsd-62747-[B(hR12)]	-5.57371	-5.58107
icsd-167204-[Ge(hP8)]	-5.46759	-5.47147
icsd-88820-[Si(HP)]	-5.16503	-5.16502
icsd-644520-[N2(epsilon)]	-4.99796	-4.99929
icsd-245950-[Ge(cF136)]	-4.8287	-4.82888
icsd-88815-[Graphite(oS16)]	-4.55295	-4.55372
icsd-185973-[C3N2]	-4.22013	-4.22133
icsd-41979-[Diamond-C(cF8)]	-4.15326	-4.15376
icsd-181908-[Si(I4/mmm)]	-4.12301	-4.1219

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.168	2.642	2.397	4.362	90.0	90.0	107.6
DFT	13.591	2.585	2.585	4.696	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
215.6	177.6	186.4	0.0	0.0	21.0
177.6	225.5	144.0	0.0	0.0	19.1
186.4	144.0	252.8	0.0	0.0	-28.6
0.0	0.0	0.0	24.7	-29.7	0.0
0.0	0.0	0.0	-29.7	64.0	0.0
21.0	19.1	-28.6	0.0	0.0	58.6

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.168	2.642	2.983	19.735	90.61	85.1	130.0
DFT	13.63	2.877	2.877	17.107	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
215.6	177.6	186.4	0.0	0.1	-21.0
177.6	225.5	144.0	0.1	0.0	-19.1
186.4	144.0	252.7	0.0	0.1	28.6
0.0	0.1	0.0	24.7	29.7	-0.8
0.1	0.0	0.1	29.7	64.0	-1.9
-21.0	-19.1	28.6	-0.8	-1.9	58.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.337	2.341	5.17	8.815	90.0	90.0	90.0
DFT	13.39	2.244	5.144	9.279	90.0	90.0	90.0

Elastic constants (La)

1	2	3	4	5	6
250.3	155.6	192.8	0.0	0.0	0.0
155.6	277.5	149.1	0.0	0.0	0.0
192.8	149.1	220.1	0.0	0.0	0.0
0.0	0.0	0.0	39.0	0.0	0.0
0.0	0.0	0.0	0.0	-34.9	0.0
0.0	0.0	0.0	0.0	0.0	-839779.9

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.228	2.98	2.98	2.98	90.0	90.0	90.0
DFT	13.212	2.978	2.978	2.978	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
280.3	137.6	137.6	0.0	0.0	0.0
137.6	280.3	137.6	0.0	0.0	0.0
137.6	137.6	280.3	0.0	0.0	0.0
0.0	0.0	0.0	-17.1	0.0	0.0
0.0	0.0	0.0	0.0	-17.1	0.0
0.0	0.0	0.0	0.0	0.0	-17.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.811	4.648	4.648	2.557	90.0	90.0	90.0
DFT	13.646	4.591	4.591	2.59	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
222.3	81.2	94.7	0.0	0.0	0.0
81.2	222.3	94.7	0.0	0.0	0.0
94.7	94.7	332.7	0.0	0.0	0.0
0.0	0.0	0.0	18.8	0.0	0.0
0.0	0.0	0.0	0.0	18.8	0.0
0.0	0.0	0.0	0.0	0.0	-103.8

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.228	2.98	2.98	2.98	90.0	90.0	90.0
DFT	13.206	2.978	2.978	2.978	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
280.3	137.6	137.6	0.0	0.0	0.0
137.6	280.3	137.6	0.0	0.0	0.0
137.6	137.6	280.3	0.0	0.0	0.0
0.0	0.0	0.0	-17.1	0.0	0.0
0.0	0.0	0.0	0.0	-17.1	0.0
0.0	0.0	0.0	0.0	0.0	-17.1

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.607	3.79	3.79	3.79	90.0	90.0	90.0
DFT	13.65	3.794	3.794	3.794	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
25.3	265.0	265.0	0.0	0.0	0.0
265.0	25.3	265.0	0.0	0.0	0.0
265.0	265.0	25.3	0.0	0.0	0.0
0.0	0.0	0.0	-23.3	0.0	0.0
0.0	0.0	0.0	0.0	-23.3	0.0
0.0	0.0	0.0	0.0	0.0	-23.3

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.801	5.222	5.222	5.222	90.0	90.0	90.0
DFT	17.68	5.21	5.21	5.21	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
-12.8	63.4	63.4	0.0	0.0	-123891.5
63.4	-12.8	63.4	0.0	0.0	-123887.3
63.4	63.4	-12.8	0.0	0.0	50176.1
0.0	0.0	0.0	-2087395.1	0.0	0.0
0.0	0.0	0.0	0.0	-2087395.1	0.0
-123891.5	-123887.3	50176.1	0.0	0.0	-2514232.3

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.278	2.426	2.426	2.426	90.0	90.0	90.0
DFT	14.262	2.425	2.425	2.425	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
238.4	85.7	85.7	0.0	0.0	0.0
85.7	238.4	85.7	0.0	0.0	0.0
85.7	85.7	238.4	0.0	0.0	0.0
0.0	0.0	0.0	-85.4	0.0	0.0
0.0	0.0	0.0	0.0	-85.4	0.0
0.0	0.0	0.0	0.0	0.0	-85.4

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	13.168	4.362	4.362	2.397	90.0	90.0	120.0
DFT	13.179	4.394	4.394	2.365	90.0	90.0	120.0

Elastic constants (Bi)

1	2	3	4	5	6
252.8	166.1	164.4	-35.6	0.0	0.0
166.1	252.8	164.4	35.6	0.0	0.0
164.4	164.4	214.7	0.0	0.0	0.0
-35.6	35.6	0.0	45.4	0.0	0.0
0.0	0.0	0.0	0.0	45.4	-35.6
0.0	0.0	0.0	0.0	-35.6	43.3
