gtinv-204 (W-2021-08-26-all-icsd)

Energy distribution

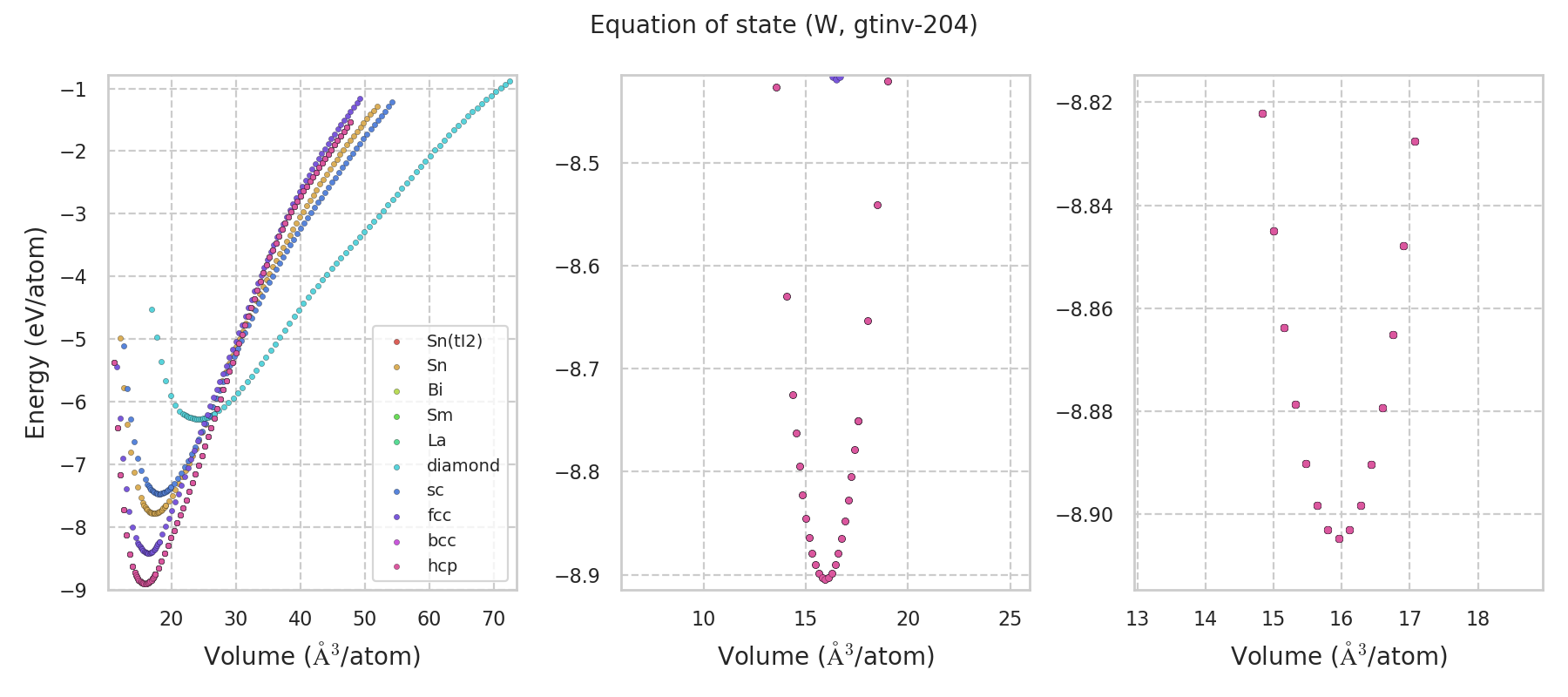

Equation of state

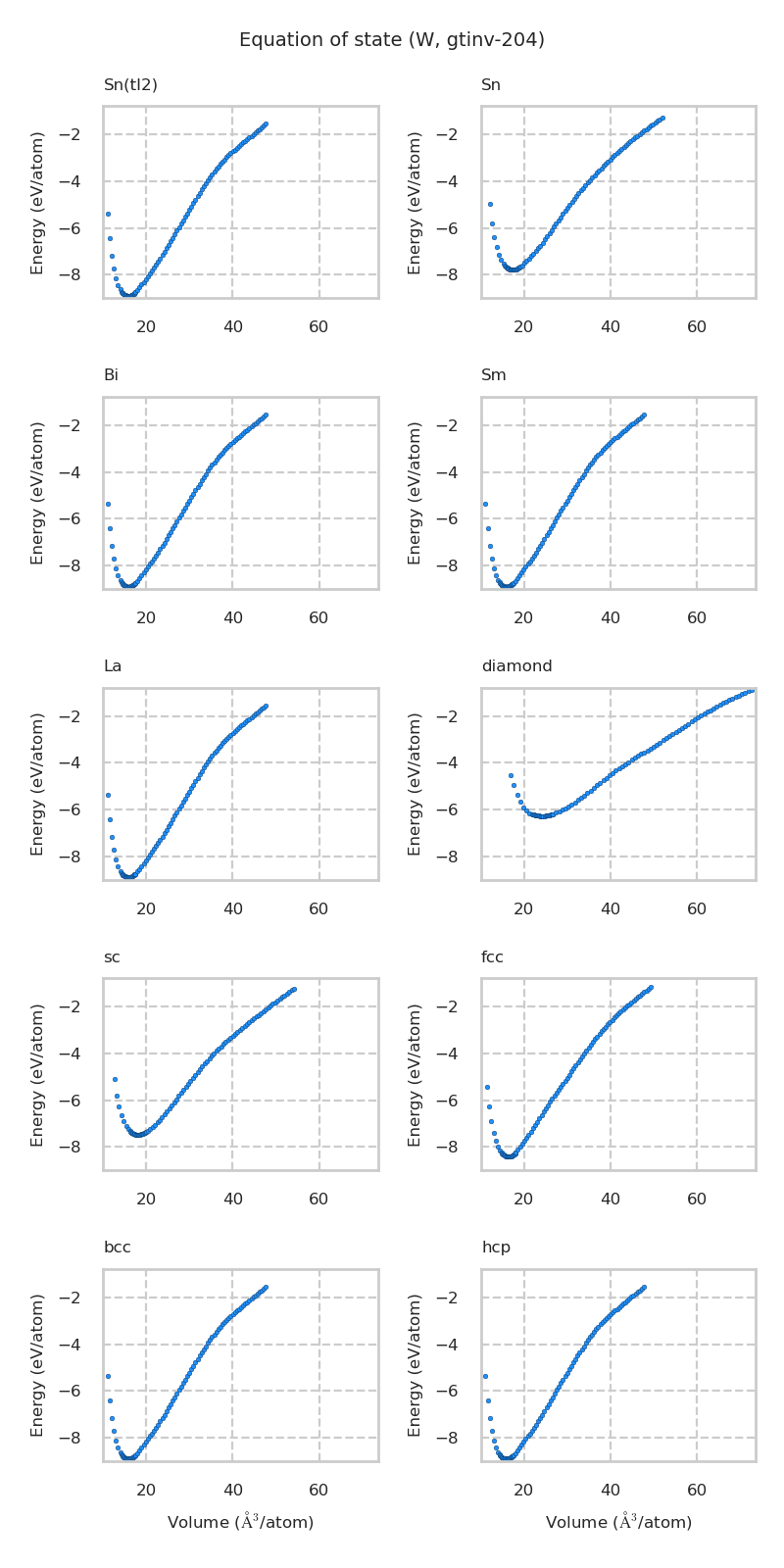

Equation of state for each structure

Prototype structure energy

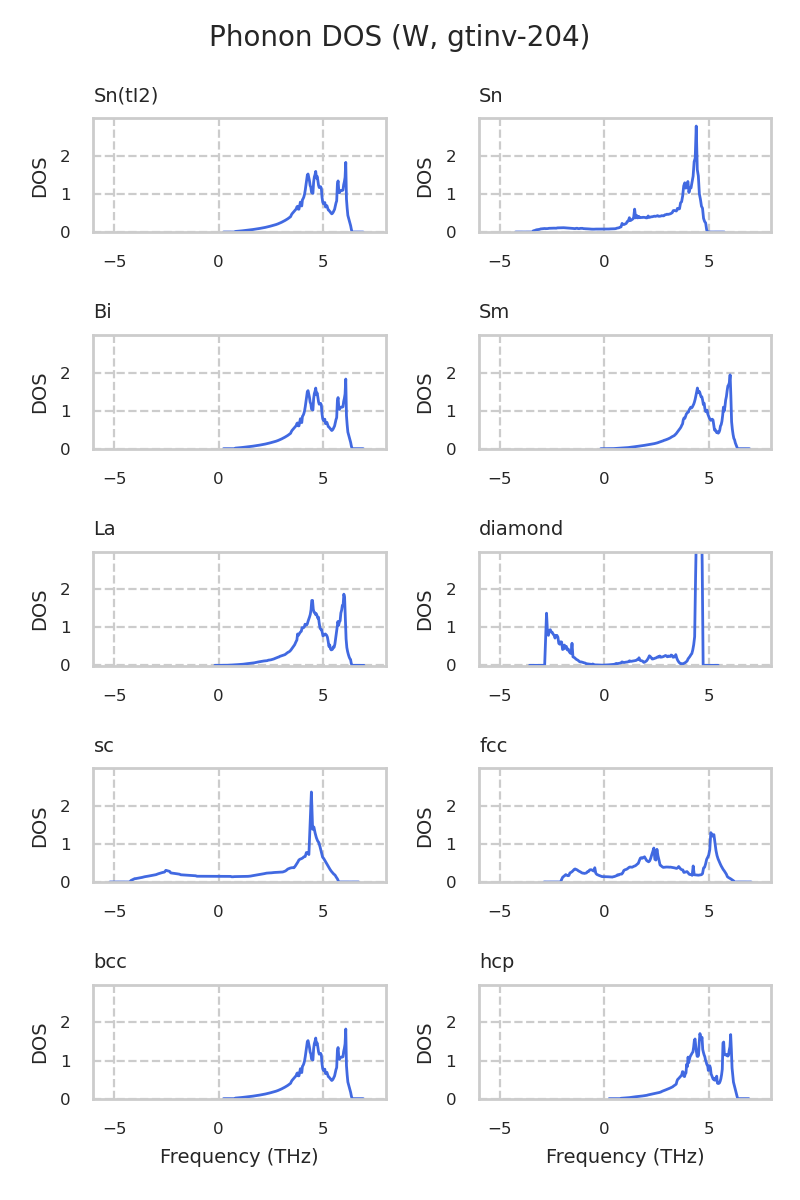

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-109012-[Li(cI16)]	-8.90464	-8.91157
icsd-105489-[FeB]	-8.90463	-8.91148
icsd-648333-[Pa]	-8.90448	-8.90314
icsd-76156-[bcc-W]	-8.90448	-8.90313
icsd-43216-[Sn(tI2)]	-8.90448	-8.90314
icsd-656457-[Po(hR1)]	-8.90448	-8.90401
icsd-246446-[Bi(III)]	-8.90448	-8.90314
icsd-157920-[IrV]	-8.90448	-8.90315
icsd-97742-[Sb2Te3]	-8.90448	-8.90338
icsd-31829-[Graphite(3R)]	-8.90447	-8.904
icsd-194468-[I2]	-8.90447	-8.90466
icsd-236858-[O8]	-8.90447	-8.9046
icsd-52412-[Sc]	-8.90447	-8.90465
icsd-42679-[Sb(mP4)]	-8.90446	-8.90465
icsd-31692-[Pu(mP16)]	-8.90446	-8.90338
icsd-162256-[Ga]	-8.90446	-8.90465
icsd-652876-[hcp-Mg]	-8.90445	-8.90464
icsd-653719-[Bi]	-8.90445	-8.90464
icsd-108326-[Cr3Si]	-8.82078	-8.8228
icsd-76041-[U(beta)]	-8.73078	-8.73188
icsd-280872-[Ta(tP30)]	-8.73075	-8.7319
icsd-76166-[U(beta)-CrFe]	-8.73074	-8.73191
icsd-30606-[Se(beta)]	-8.68133	-8.70618
icsd-43058-[Mn(alpha)-Mn(cI58)]	-8.61326	-8.61363
icsd-52501-[Te(mP4)]	-8.61241	-8.62079
icsd-189786-[Si(oS16)]	-8.61233	-8.6208
icsd-248474-[Pu(oF8)]	-8.61202	-8.61987
icsd-57192-[Cs(tP8)]	-8.60596	-8.59721
icsd-165725-[Co(tP28)]	-8.58691	-8.58834
icsd-642937-[Mn(cP20)]	-8.56825	-8.57298
icsd-653797-[Pu(mS34)]	-8.55518	-8.5659
icsd-168172-[I(Immm)]	-8.52373	-8.52257
icsd-248500-[O2(mS4)]	-8.52322	-8.52167
icsd-161381-[K(HP)]	-8.50495	-8.50729
icsd-104296-[Hg(LT)]	-8.49018	-8.48928
icsd-616526-[As]	-8.49011	-8.48929
icsd-26482-[N2(cP8)]	-8.48978	-8.49228
icsd-27249-[CO]	-8.48978	-8.49228
icsd-108682-[Pr(hP6)]	-8.48972	-8.49609
icsd-653381-[U]	-8.4681	-8.45788
icsd-52916-[La]	-8.41721	-8.41617
icsd-52914-[ccp-Cu]	-8.41474	-8.41133
icsd-652633-[Sm]	-8.41168	-8.40994
icsd-37090-[S6]	-8.3748	-8.38391
icsd-182760-[C(C2/m)]	-8.37213	-8.37633
icsd-187431-[CaHg2]	-8.3657	-8.36223
icsd-56897-[SmNiSb]	-8.36568	-8.36224
icsd-609832-[P(black)]	-8.17488	-8.17514
icsd-188336-[(Ca8)xCa2]	-8.17487	-8.17514
icsd-173517-[Ge(HP)]	-8.16777	-8.15735
icsd-2091-[Se3S5]	-8.15996	-8.15996
icsd-43251-[S8(Fddd)]	-8.15084	-8.15147
icsd-43539-[Ga(Cmcm)]	-8.11468	-8.11625
icsd-26463-[S12]	-8.06242	-8.07045
icsd-165132-[B28]	-8.05585	-8.06845
icsd-15535-[O2(hR2)]	-7.9777	-7.97693
icsd-189436-[B(tP50)]	-7.96728	-7.9694
icsd-189460-[MnP]	-7.9455	-7.94463
icsd-109018-[Cs(HP)]	-7.80508	-7.80559
icsd-236662-[Sn]	-7.78492	-7.78613
icsd-56503-[GaSb]	-7.78492	-7.78613
icsd-182587-[Nickeline-NiAs]	-7.74007	-7.74109
icsd-109035-[Ca.15Sn.85]	-7.73964	-7.74061
icsd-182732-[BN(P1)]	-7.70292	-7.7025
icsd-28540-[H2]	-7.70279	-7.70181
icsd-109028-[Bi(I4/mcm)]	-7.6472	-7.64656
icsd-62747-[B(hR12)]	-7.56633	-7.56765
icsd-109027-[Sr(HP)]	-7.47051	-7.47534
icsd-43211-[Po(alpha)]	-7.47051	-7.47396
icsd-181082-[C(P1)]	-7.47051	-7.47396
icsd-162242-[Ca(III)]	-7.47041	-7.47369
icsd-653045-[Se(gamma)]	-7.4703	-7.47102
icsd-88815-[Graphite(oS16)]	-7.43232	-7.44063
icsd-193439-[Graphite(2H)]	-7.28296	-7.28031
icsd-644520-[N2(epsilon)]	-7.27233	-7.27341
icsd-24892-[N2]	-7.22995	-7.22967
icsd-245956-[Ge]	-7.06167	-7.06437
icsd-88820-[Si(HP)]	-6.76637	-6.77045
icsd-185973-[C3N2]	-6.37446	-6.37673
icsd-30101-[Wurtzite-ZnS(2H)]	-6.33079	-6.33138
icsd-167204-[Ge(hP8)]	-6.31606	-6.31234
icsd-41979-[Diamond-C(cF8)]	-6.27582	-6.27584
icsd-245950-[Ge(cF136)]	-6.27321	-6.27845
icsd-181908-[Si(I4/mmm)]	-6.16856	-6.16863

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.955	3.172	3.172	3.172	90.0	90.0	90.0
DFT	15.902	3.168	3.168	3.168	90.0	90.0	90.0

Elastic constants (hcp)

1	2	3	4	5	6
544.9	207.4	207.4	0.0	0.0	0.0
207.4	544.9	207.4	0.0	0.0	0.0
207.4	207.4	544.9	0.0	0.0	0.0
0.0	0.0	0.0	107.9	0.0	0.0
0.0	0.0	0.0	0.0	107.9	0.0
0.0	0.0	0.0	0.0	0.0	107.9

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.955	2.747	2.747	20.31	84.83	95.17	109.47
DFT	16.278	2.771	2.771	22.033	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
463.8	247.9	247.9	0.0	0.0	0.0
247.9	484.1	227.7	0.0	0.0	28.7
247.9	227.7	484.1	0.0	0.0	-28.7
0.0	0.0	0.0	128.2	-28.7	0.9
0.0	0.0	0.0	-28.7	148.5	-4.8
0.0	28.7	-28.7	0.9	-4.8	148.5

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.955	2.747	2.747	8.971	90.0	90.0	109.47
DFT	16.28	2.772	2.772	9.784	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
463.8	247.9	247.9	0.0	0.0	0.0
247.9	484.1	227.7	0.0	0.0	28.7
247.9	227.7	484.1	0.0	0.0	-28.7
0.0	0.0	0.0	128.2	-28.7	0.0
0.0	0.0	0.0	-28.7	148.5	0.0
0.0	28.7	-28.7	0.0	0.0	148.5

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.955	3.172	3.172	3.172	90.0	90.0	90.0
DFT	15.904	3.168	3.168	3.168	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
544.9	207.4	207.4	0.0	0.0	0.0
207.4	544.9	207.4	0.0	0.0	0.0
207.4	207.4	544.9	0.0	0.0	0.0
0.0	0.0	0.0	107.9	0.0	0.0
0.0	0.0	0.0	0.0	107.9	0.0
0.0	0.0	0.0	0.0	0.0	107.9

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.368	5.101	5.101	2.67	90.0	90.0	90.0
DFT	17.329	5.088	5.088	2.678	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
536.5	141.8	168.0	0.0	0.0	0.0
141.8	536.5	168.0	0.0	0.0	0.0
168.0	168.0	389.3	0.0	0.0	0.0
0.0	0.0	0.0	-20.8	0.0	0.0
0.0	0.0	0.0	0.0	-20.8	0.0
0.0	0.0	0.0	0.0	0.0	-176.4

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.955	3.172	3.172	3.172	90.0	90.0	90.0
DFT	15.904	3.168	3.168	3.168	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
544.9	207.4	207.4	0.0	0.0	0.0
207.4	544.9	207.4	0.0	0.0	0.0
207.4	207.4	544.9	0.0	0.0	0.0
0.0	0.0	0.0	107.9	0.0	0.0
0.0	0.0	0.0	0.0	107.9	0.0
0.0	0.0	0.0	0.0	0.0	107.9

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.482	4.04	4.04	4.04	90.0	90.0	90.0
DFT	16.238	4.02	4.02	4.02	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
224.1	438.7	438.7	0.0	0.0	0.0
438.7	224.1	438.7	0.0	0.0	0.0
438.7	438.7	224.1	0.0	0.0	0.0
0.0	0.0	0.0	-44.1	0.0	0.0
0.0	0.0	0.0	0.0	-44.1	0.0
0.0	0.0	0.0	0.0	0.0	-44.1

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.258	5.79	5.79	5.79	90.0	90.0	90.0
DFT	24.21	5.786	5.786	5.786	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
81.6	124.4	124.4	0.0	0.0	0.0
124.4	81.6	124.4	0.0	0.0	0.0
124.4	124.4	81.6	0.0	0.0	0.0
0.0	0.0	0.0	-54.8	0.0	0.0
0.0	0.0	0.0	0.0	-54.8	0.0
0.0	0.0	0.0	0.0	0.0	-54.8

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.125	2.627	2.627	2.627	90.0	90.0	90.0
DFT	18.086	2.625	2.625	2.625	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
440.6	100.2	100.2	0.0	0.0	0.0
100.2	440.6	100.2	0.0	0.0	0.0
100.2	100.2	440.6	0.0	0.0	0.0
0.0	0.0	0.0	-79.2	0.0	0.0
0.0	0.0	0.0	0.0	-79.2	0.0
0.0	0.0	0.0	0.0	0.0	-79.2

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.955	3.172	3.172	3.172	90.0	90.0	90.0
DFT	15.901	3.168	3.168	3.168	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
544.9	207.4	207.4	0.0	0.0	0.0
207.4	544.9	207.4	0.0	0.0	0.0
207.4	207.4	544.9	0.0	0.0	0.0
0.0	0.0	0.0	107.9	0.0	0.0
0.0	0.0	0.0	0.0	107.9	0.0
0.0	0.0	0.0	0.0	0.0	107.9
