gtinv-262 (Y-2021-08-04-all-icsd)

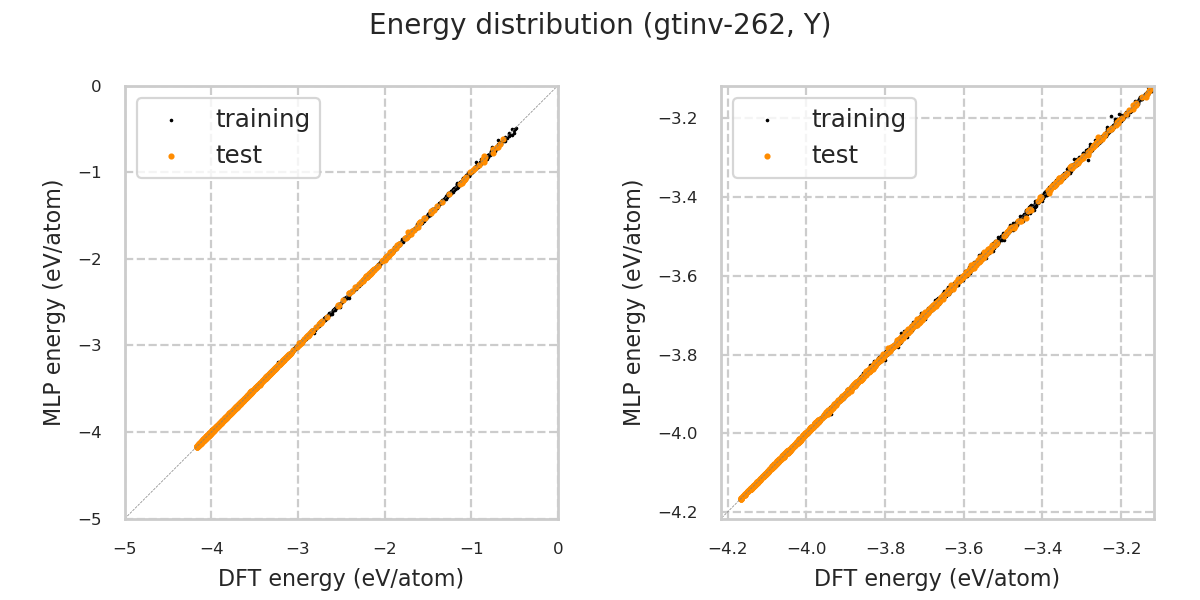

Energy distribution

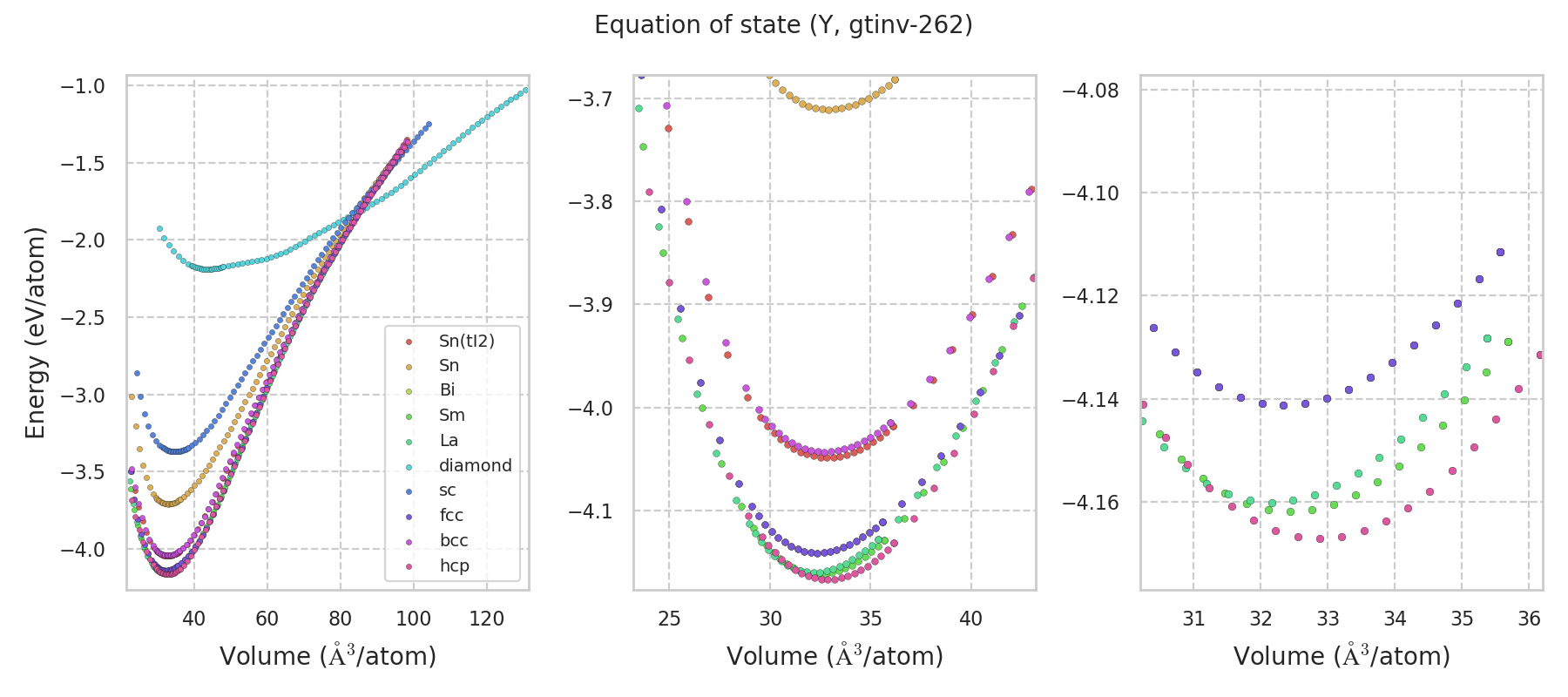

Equation of state

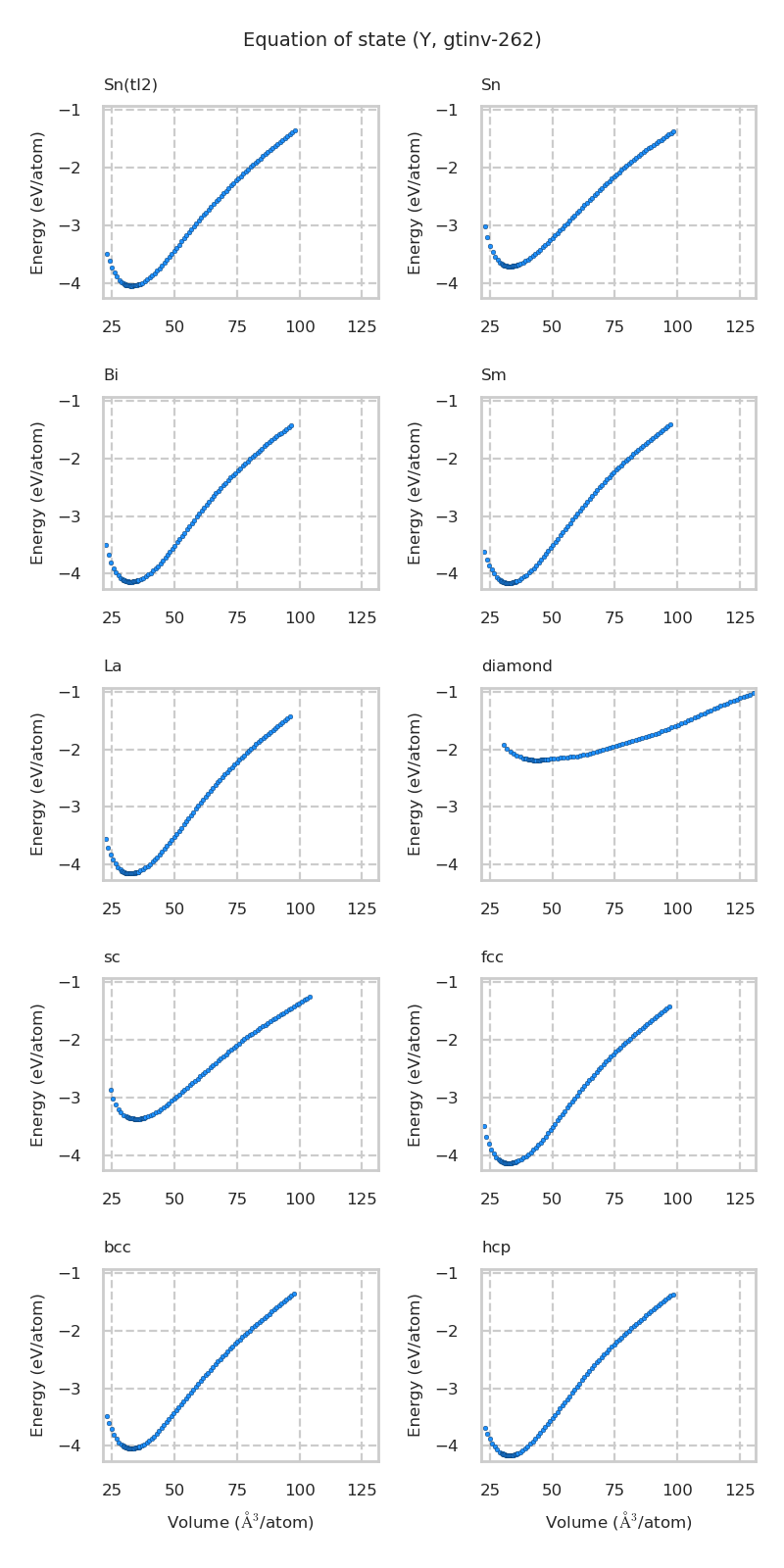

Equation of state for each structure

Prototype structure energy

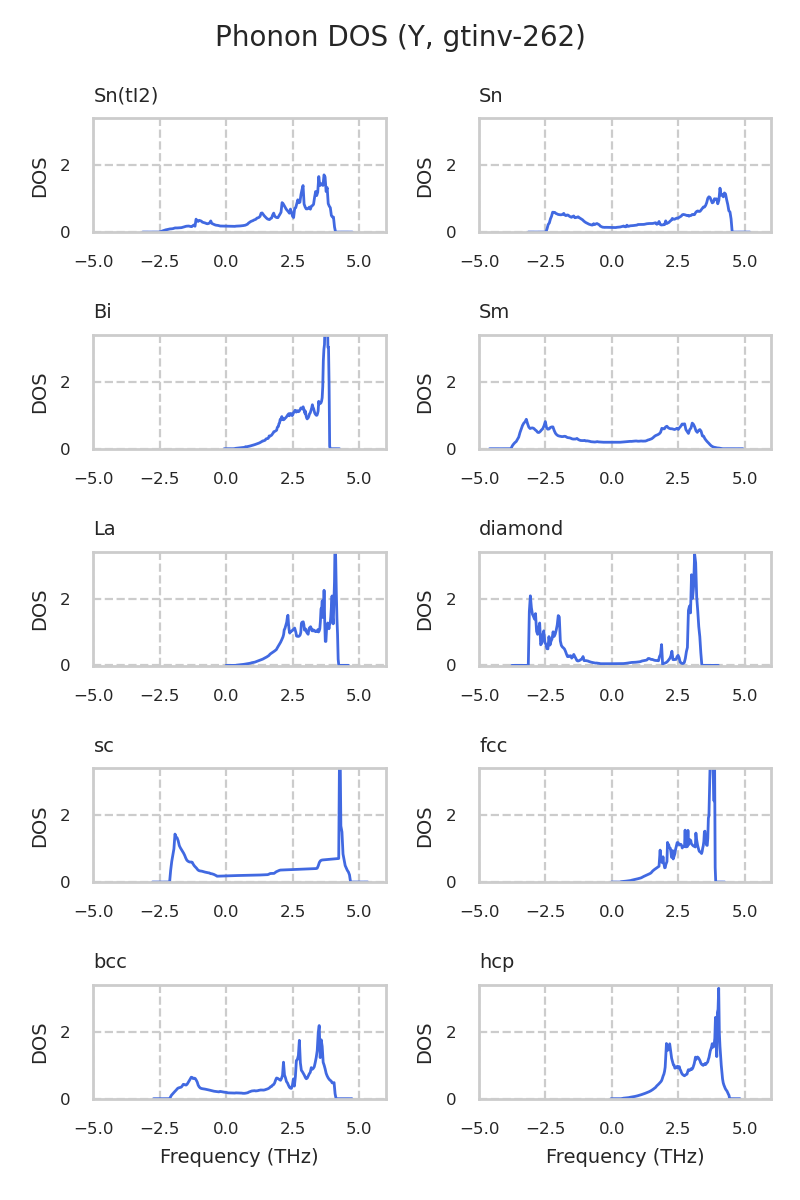

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

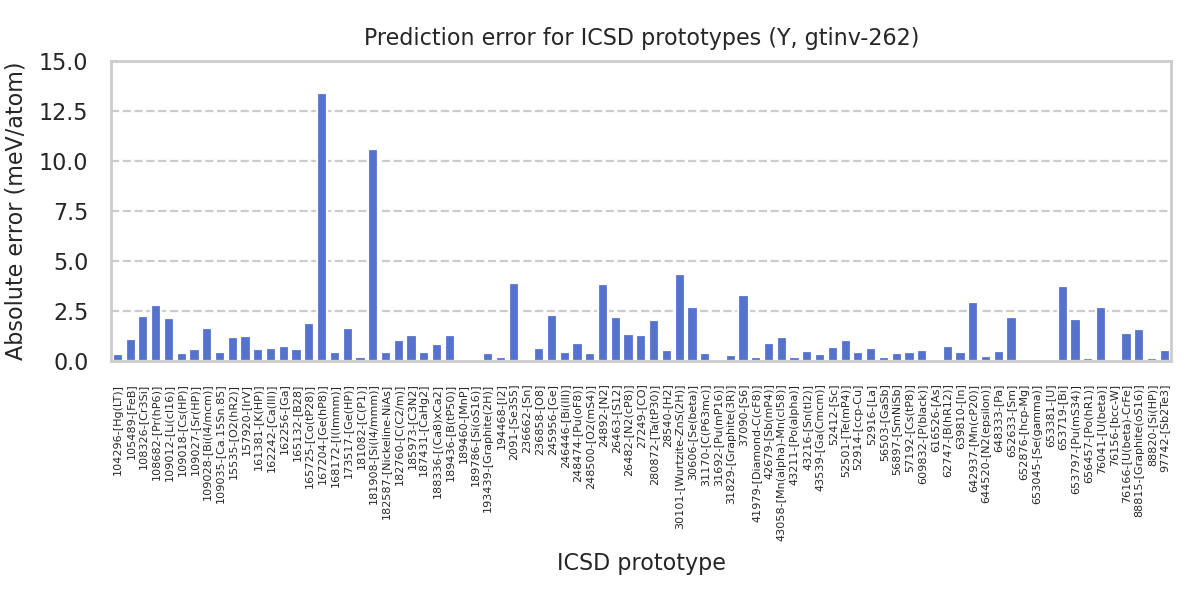

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-31692-[Pu(mP16)]	-4.16677	-4.16678
icsd-652876-[hcp-Mg]	-4.16676	-4.16673
icsd-653381-[U]	-4.16674	-4.16671
icsd-189460-[MnP]	-4.16673	-4.16675
icsd-652633-[Sm]	-4.16179	-4.16399
icsd-52916-[La]	-4.1597	-4.15908
icsd-161381-[K(HP)]	-4.15969	-4.1591
icsd-182760-[C(C2/m)]	-4.15589	-4.15691
icsd-52914-[ccp-Cu]	-4.14116	-4.14158
icsd-182587-[Nickeline-NiAs]	-4.14111	-4.14155
icsd-108682-[Pr(hP6)]	-4.14111	-4.1439
icsd-168172-[I(Immm)]	-4.14107	-4.14149
icsd-639810-[In]	-4.14107	-4.14149
icsd-104296-[Hg(LT)]	-4.14107	-4.14139
icsd-57192-[Cs(tP8)]	-4.14107	-4.14149
icsd-248500-[O2(mS4)]	-4.14101	-4.1414
icsd-31170-[C(P63mc)]	-4.12528	-4.12488
icsd-193439-[Graphite(2H)]	-4.12524	-4.12486
icsd-30606-[Se(beta)]	-4.11109	-4.11378
icsd-157920-[IrV]	-4.10854	-4.10976
icsd-187431-[CaHg2]	-4.10381	-4.10341
icsd-56897-[SmNiSb]	-4.10379	-4.1034
icsd-189786-[Si(oS16)]	-4.09894	-4.0989
icsd-109012-[Li(cI16)]	-4.09534	-4.09745
icsd-245956-[Ge]	-4.08408	-4.08634
icsd-2091-[Se3S5]	-4.07099	-4.07487
icsd-248474-[Pu(oF8)]	-4.05918	-4.05829
icsd-27249-[CO]	-4.05762	-4.05891
icsd-26482-[N2(cP8)]	-4.05761	-4.05894
icsd-43216-[Sn(tI2)]	-4.04841	-4.04794
icsd-648333-[Pa]	-4.0484	-4.04795
icsd-246446-[Bi(III)]	-4.04839	-4.04794
icsd-105489-[FeB]	-4.04838	-4.04944
icsd-162256-[Ga]	-4.04834	-4.04763
icsd-52412-[Sc]	-4.0483	-4.04763
icsd-236858-[O8]	-4.04828	-4.04764
icsd-97742-[Sb2Te3]	-4.04796	-4.04741
icsd-31829-[Graphite(3R)]	-4.04323	-4.04295
icsd-76156-[bcc-W]	-4.04322	-4.0432
icsd-656457-[Po(hR1)]	-4.04321	-4.04306
icsd-194468-[I2]	-4.04321	-4.04305
icsd-644520-[N2(epsilon)]	-4.04319	-4.04299
icsd-15535-[O2(hR2)]	-4.01276	-4.01158
icsd-30101-[Wurtzite-ZnS(2H)]	-4.01118	-4.00681
icsd-24892-[N2]	-4.01069	-4.00688
icsd-653797-[Pu(mS34)]	-4.00904	-4.01111
icsd-642937-[Mn(cP20)]	-3.98827	-3.99121
icsd-165132-[B28]	-3.98729	-3.98787
icsd-43058-[Mn(alpha)-Mn(cI58)]	-3.97763	-3.9788
icsd-173517-[Ge(HP)]	-3.972	-3.97038
icsd-109028-[Bi(I4/mcm)]	-3.9702	-3.97184
icsd-52501-[Te(mP4)]	-3.96903	-3.96798
icsd-609832-[P(black)]	-3.96588	-3.96643
icsd-76041-[U(beta)]	-3.95169	-3.949
icsd-167204-[Ge(hP8)]	-3.95069	-3.9373
icsd-43539-[Ga(Cmcm)]	-3.94756	-3.94724
icsd-76166-[U(beta)-CrFe]	-3.94139	-3.94277
icsd-280872-[Ta(tP30)]	-3.94026	-3.93821
icsd-108326-[Cr3Si]	-3.91058	-3.90832
icsd-26463-[S12]	-3.88739	-3.88523
icsd-165725-[Co(tP28)]	-3.87853	-3.87666
icsd-37090-[S6]	-3.87089	-3.86761
icsd-28540-[H2]	-3.85334	-3.85283
icsd-42679-[Sb(mP4)]	-3.80837	-3.80748
icsd-189436-[B(tP50)]	-3.79507	-3.79379
icsd-109018-[Cs(HP)]	-3.72901	-3.72863
icsd-653719-[Bi]	-3.71827	-3.71452
icsd-109035-[Ca.15Sn.85]	-3.71551	-3.71507
icsd-162242-[Ca(III)]	-3.71547	-3.71484
icsd-56503-[GaSb]	-3.71089	-3.71073
icsd-236662-[Sn]	-3.71078	-3.71068
icsd-188336-[(Ca8)xCa2]	-3.61494	-3.61414
icsd-62747-[B(hR12)]	-3.61128	-3.61202
icsd-109027-[Sr(HP)]	-3.37118	-3.37177
icsd-616526-[As]	-3.37103	-3.37109
icsd-653045-[Se(gamma)]	-3.37103	-3.37108
icsd-43211-[Po(alpha)]	-3.37101	-3.37084
icsd-181082-[C(P1)]	-3.37101	-3.37084
icsd-88815-[Graphite(oS16)]	-3.28408	-3.28568
icsd-181908-[Si(I4/mmm)]	-2.97586	-2.98646
icsd-88820-[Si(HP)]	-2.97334	-2.9732
icsd-41979-[Diamond-C(cF8)]	-2.18854	-2.18872
icsd-185973-[C3N2]	-1.98197	-1.9807

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.88	3.653	3.653	5.69	90.0	90.0	120.0
DFT	32.579	3.643	3.643	5.668	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
60.0	19.2	22.4	0.0	0.0	0.0
19.2	60.0	22.4	0.0	0.0	0.0
22.4	22.4	82.7	0.0	0.0	0.0
0.0	0.0	0.0	21.2	0.0	0.0
0.0	0.0	0.0	0.0	21.2	0.0
0.0	0.0	0.0	0.0	0.0	20.4

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.445	3.617	3.617	25.778	90.0	90.0	120.0
DFT	32.295	3.608	3.608	25.786	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
65.3	20.1	20.2	2.4	0.0	0.0
20.1	65.3	20.2	-2.4	0.0	0.0
20.2	20.2	84.0	0.0	0.0	0.0
2.4	-2.4	0.0	21.3	0.0	0.0
0.0	0.0	0.0	0.0	21.3	2.4
0.0	0.0	0.0	0.0	2.4	22.6

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.163	3.601	3.601	11.454	90.0	90.0	120.0
DFT	32.177	3.59	3.59	11.535	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
69.8	23.4	19.7	0.0	0.0	0.0
23.4	69.8	19.7	0.0	0.0	0.0
19.7	19.7	80.2	0.0	0.0	0.0
0.0	0.0	0.0	23.2	0.0	0.0
0.0	0.0	0.0	0.0	23.2	0.0
0.0	0.0	0.0	0.0	0.0	23.2

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.825	4.181	4.181	3.756	90.0	90.0	90.0
DFT	32.599	4.168	4.168	3.752	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
10.4	58.2	25.0	0.0	0.0	0.0
58.2	10.4	25.0	0.0	0.0	0.0
25.0	25.0	46.1	0.0	0.0	0.0
0.0	0.0	0.0	20.6	0.0	0.0
0.0	0.0	0.0	0.0	20.6	0.0
0.0	0.0	0.0	0.0	0.0	23.3

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.915	6.231	6.231	3.391	90.0	90.0	90.0
DFT	32.754	6.208	6.208	3.4	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
15.1	77.5	14.8	0.0	0.0	0.0
77.5	15.1	14.8	0.0	0.0	0.0
14.8	14.8	56.9	0.0	0.0	0.0
0.0	0.0	0.0	-18.4	0.0	0.0
0.0	0.0	0.0	0.0	-18.4	0.0
0.0	0.0	0.0	0.0	0.0	-26.1

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.705	4.029	4.029	4.029	90.0	90.0	90.0
DFT	32.756	4.031	4.031	4.031	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
17.8	38.3	38.3	0.0	0.0	0.0
38.3	17.8	38.3	0.0	0.0	0.0
38.3	38.3	17.8	0.0	0.0	0.0
0.0	0.0	0.0	19.5	0.0	0.0
0.0	0.0	0.0	0.0	19.5	0.0
0.0	0.0	0.0	0.0	0.0	19.5

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.342	5.058	5.058	5.058	90.0	90.0	90.0
DFT	32.167	5.048	5.048	5.048	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
55.0	27.2	27.2	0.0	0.0	0.0
27.2	55.0	27.2	0.0	0.0	0.0
27.2	27.2	55.0	0.0	0.0	0.0
0.0	0.0	0.0	29.4	0.0	0.0
0.0	0.0	0.0	0.0	29.4	0.0
0.0	0.0	0.0	0.0	0.0	29.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	43.609	7.04	7.04	7.04	90.0	90.0	90.0
DFT	42.977	7.006	7.006	7.006	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
-16.1	30.4	30.4	0.0	0.0	0.0
30.4	-16.1	30.4	0.0	0.0	0.0
30.4	30.4	-16.1	0.0	0.0	0.0
0.0	0.0	0.0	-97.0	0.0	0.0
0.0	0.0	0.0	0.0	-97.0	0.0
0.0	0.0	0.0	0.0	0.0	-97.0

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.814	3.265	3.265	3.265	90.0	90.0	90.0
DFT	34.495	3.255	3.255	3.255	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
31.5	20.4	20.4	0.0	0.0	0.0
20.4	31.5	20.4	0.0	0.0	0.0
20.4	20.4	31.5	0.0	0.0	0.0
0.0	0.0	0.0	-24.6	0.0	0.0
0.0	0.0	0.0	0.0	-24.6	0.0
0.0	0.0	0.0	0.0	0.0	-24.6

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.342	6.194	6.194	3.576	90.0	90.0	109.47
DFT	32.842	6.755	6.357	3.4	90.0	115.87	90.0

Elastic constants (Bi)

1	2	3	4	5	6
70.5	16.8	22.0	0.0	0.0	7.3
16.8	75.7	16.8	0.0	0.0	0.0
22.0	16.8	70.5	0.0	0.0	-7.3
0.0	0.0	0.0	19.1	-7.3	0.0
0.0	0.0	0.0	-7.3	24.3	0.0
7.3	0.0	-7.3	0.0	0.0	19.1
