gtinv-240 (Zn-2021-08-04-all-icsd)

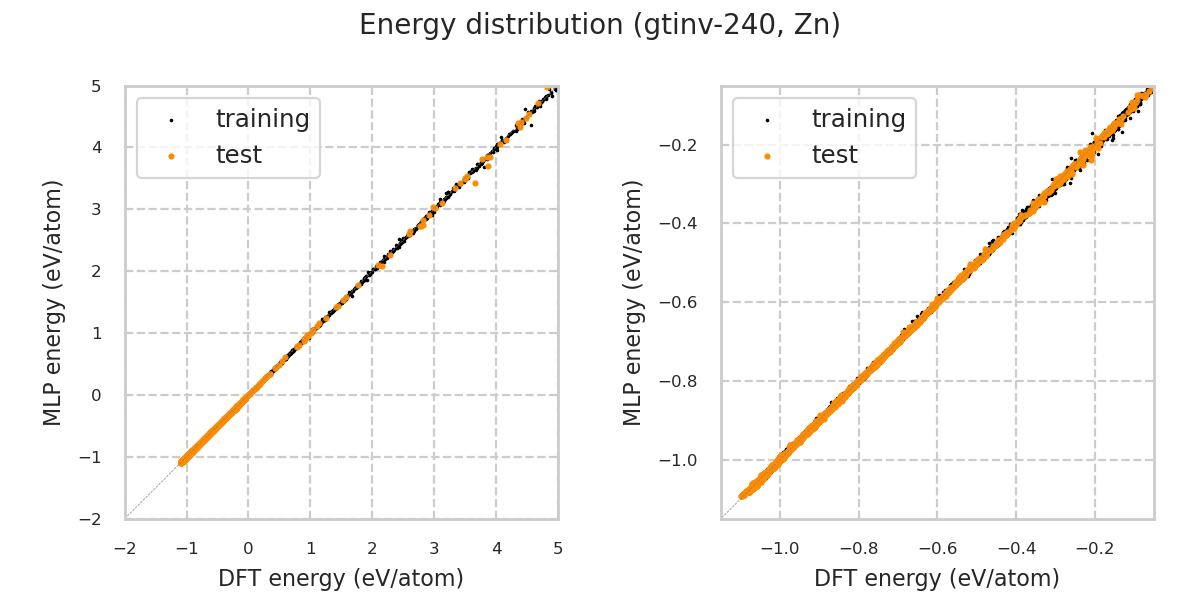

Energy distribution

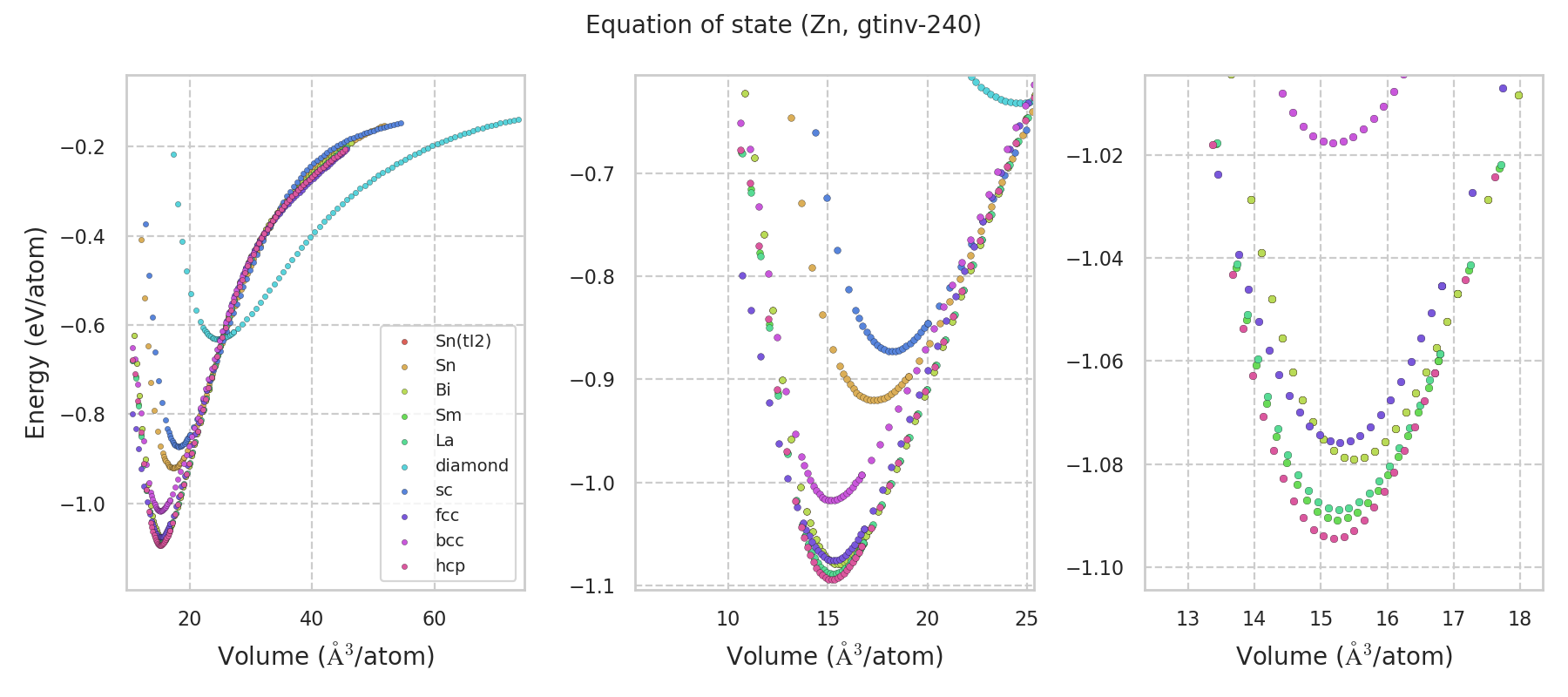

Equation of state

Equation of state for each structure

Prototype structure energy

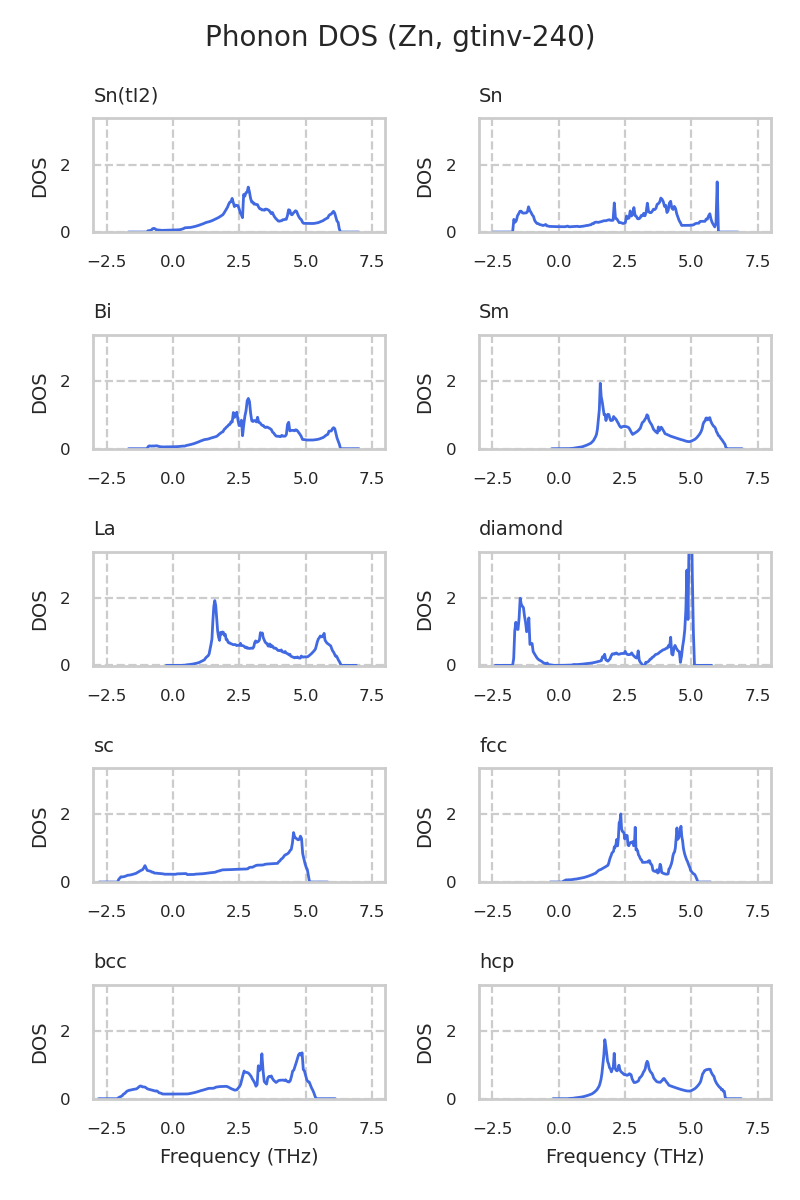

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

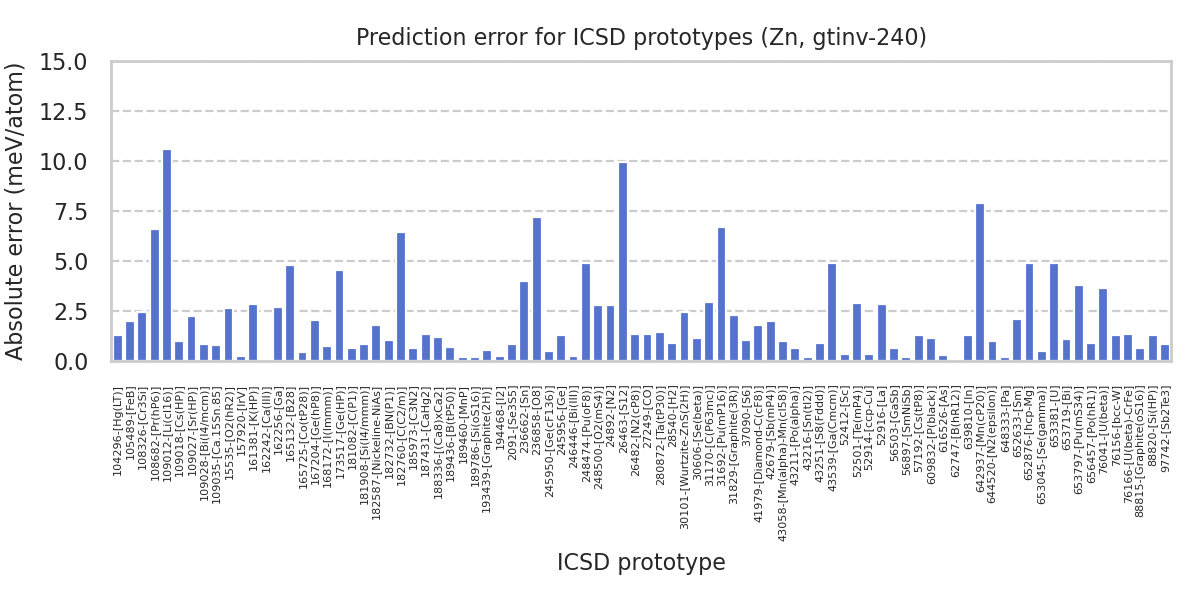

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-105489-[FeB]	-1.09384	-1.09581
icsd-652876-[hcp-Mg]	-1.09365	-1.09853
icsd-653381-[U]	-1.09357	-1.09848
icsd-236858-[O8]	-1.09301	-1.10019
icsd-31692-[Pu(mP16)]	-1.09155	-1.09826
icsd-652633-[Sm]	-1.09079	-1.09287
icsd-52916-[La]	-1.08808	-1.09094
icsd-31170-[C(P63mc)]	-1.08801	-1.09093
icsd-161381-[K(HP)]	-1.08796	-1.09081
icsd-108682-[Pr(hP6)]	-1.08393	-1.07733
icsd-52501-[Te(mP4)]	-1.08214	-1.07924
icsd-248500-[O2(mS4)]	-1.08199	-1.0792
icsd-189786-[Si(oS16)]	-1.07953	-1.07937
icsd-246446-[Bi(III)]	-1.07908	-1.07886
icsd-648333-[Pa]	-1.07904	-1.07888
icsd-43216-[Sn(tI2)]	-1.07904	-1.07888
icsd-42679-[Sb(mP4)]	-1.07889	-1.08086
icsd-97742-[Sb2Te3]	-1.07797	-1.07713
icsd-653045-[Se(gamma)]	-1.07597	-1.07552
icsd-168172-[I(Immm)]	-1.07595	-1.07668
icsd-616526-[As]	-1.07592	-1.07564
icsd-104296-[Hg(LT)]	-1.07583	-1.07713
icsd-157920-[IrV]	-1.07577	-1.07554
icsd-52914-[ccp-Cu]	-1.07565	-1.07597
icsd-639810-[In]	-1.07564	-1.07691
icsd-52412-[Sc]	-1.07564	-1.07595
icsd-194468-[I2]	-1.07554	-1.07533
icsd-57192-[Cs(tP8)]	-1.07553	-1.07684
icsd-43539-[Ga(Cmcm)]	-1.07203	-1.07693
icsd-248474-[Pu(oF8)]	-1.06763	-1.06275
icsd-109012-[Li(cI16)]	-1.06621	-1.0556
icsd-76041-[U(beta)]	-1.06481	-1.06844
icsd-642937-[Mn(cP20)]	-1.06366	-1.07156
icsd-30606-[Se(beta)]	-1.06303	-1.06413
icsd-108326-[Cr3Si]	-1.0626	-1.06504
icsd-76166-[U(beta)-CrFe]	-1.06131	-1.06263
icsd-280872-[Ta(tP30)]	-1.06115	-1.06256
icsd-165725-[Co(tP28)]	-1.05755	-1.058
icsd-653797-[Pu(mS34)]	-1.05632	-1.06008
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.05467	-1.05371
icsd-109028-[Bi(I4/mcm)]	-1.05139	-1.05222
icsd-27249-[CO]	-1.05023	-1.05159
icsd-26482-[N2(cP8)]	-1.05023	-1.05159
icsd-165132-[B28]	-1.03912	-1.03431
icsd-31829-[Graphite(3R)]	-1.03507	-1.03736
icsd-15535-[O2(hR2)]	-1.03478	-1.03743
icsd-30101-[Wurtzite-ZnS(2H)]	-1.03447	-1.0369
icsd-24892-[N2]	-1.03421	-1.03699
icsd-182760-[C(C2/m)]	-1.03402	-1.04046
icsd-2091-[Se3S5]	-1.03118	-1.03035
icsd-56897-[SmNiSb]	-1.01741	-1.0176
icsd-76156-[bcc-W]	-1.0172	-1.0159
icsd-656457-[Po(hR1)]	-1.0161	-1.01524
icsd-187431-[CaHg2]	-1.01441	-1.01575
icsd-644520-[N2(epsilon)]	-1.01412	-1.01508
icsd-189460-[MnP]	-1.01122	-1.01104
icsd-43251-[S8(Fddd)]	-0.99942	-1.00031
icsd-26463-[S12]	-0.99621	-1.00618
icsd-109018-[Cs(HP)]	-0.99274	-0.99371
icsd-188336-[(Ca8)xCa2]	-0.99053	-0.98935
icsd-28540-[H2]	-0.99049	-0.98962
icsd-609832-[P(black)]	-0.99047	-0.98935
icsd-182732-[BN(P1)]	-0.99042	-0.98938
icsd-162242-[Ca(III)]	-0.98722	-0.98716
icsd-109035-[Ca.15Sn.85]	-0.98624	-0.98703
icsd-56503-[GaSb]	-0.98595	-0.98658
icsd-182587-[Nickeline-NiAs]	-0.96523	-0.96345
icsd-162256-[Ga]	-0.94974	-0.95241
icsd-653719-[Bi]	-0.93848	-0.93737
icsd-236662-[Sn]	-0.92046	-0.91646
icsd-62747-[B(hR12)]	-0.91688	-0.91688
icsd-189436-[B(tP50)]	-0.91353	-0.91286
icsd-245956-[Ge]	-0.88325	-0.88452
icsd-88815-[Graphite(oS16)]	-0.87281	-0.87219
icsd-43211-[Po(alpha)]	-0.87279	-0.87343
icsd-181082-[C(P1)]	-0.87279	-0.87343
icsd-109027-[Sr(HP)]	-0.8725	-0.87026
icsd-185973-[C3N2]	-0.80962	-0.809
icsd-37090-[S6]	-0.78488	-0.7859
icsd-193439-[Graphite(2H)]	-0.78236	-0.78183
icsd-88820-[Si(HP)]	-0.72045	-0.72175
icsd-173517-[Ge(HP)]	-0.67711	-0.67255
icsd-245950-[Ge(cF136)]	-0.64272	-0.64321
icsd-167204-[Ge(hP8)]	-0.63702	-0.63904
icsd-41979-[Diamond-C(cF8)]	-0.63178	-0.63358
icsd-181908-[Si(I4/mmm)]	-0.62401	-0.62318

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.193	2.662	2.662	4.95	90.0	90.0	120.0
DFT	15.274	2.648	2.648	5.029	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
142.3	66.9	66.1	0.0	0.0	0.0
66.9	142.3	66.1	0.0	0.0	0.0
66.1	66.1	100.5	0.0	0.0	0.0
0.0	0.0	0.0	22.3	0.0	0.0
0.0	0.0	0.0	0.0	22.3	0.0
0.0	0.0	0.0	0.0	0.0	37.7

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.247	2.659	2.659	22.416	90.0	90.0	120.0
DFT	15.235	2.657	2.657	22.431	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
134.1	63.3	62.2	-3.0	0.0	0.0
63.3	134.1	62.2	3.0	0.0	0.0
62.2	62.2	98.2	0.0	0.0	0.0
-3.0	3.0	0.0	17.4	0.0	0.0
0.0	0.0	0.0	0.0	17.4	-3.0
0.0	0.0	0.0	0.0	-3.0	35.4

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.267	2.657	4.602	9.988	90.0	90.0	90.0
DFT	15.333	2.647	4.565	10.149	90.0	90.0	90.0

Elastic constants (La)

1	2	3	4	5	6
129.5	62.2	60.6	0.0	0.0	0.0
62.2	129.5	60.6	0.0	0.0	0.0
60.6	60.6	96.1	0.0	0.0	0.0
0.0	0.0	0.0	15.4	0.0	0.0
0.0	0.0	0.0	0.0	15.4	0.0
0.0	0.0	0.0	0.0	0.0	33.6

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.501	3.439	3.439	2.622	90.0	90.0	90.0
DFT	15.481	3.433	3.433	2.627	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
83.9	85.8	61.8	0.0	0.0	0.0
85.8	83.9	61.8	0.0	0.0	0.0
61.8	61.8	186.1	0.0	0.0	0.0
0.0	0.0	0.0	40.7	0.0	0.0
0.0	0.0	0.0	0.0	40.7	0.0
0.0	0.0	0.0	0.0	0.0	6.0

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.322	5.19	5.19	2.572	90.0	90.0	90.0
DFT	17.371	5.198	5.198	2.572	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
18.4	32.4	25.3	0.0	0.0	0.0
32.4	18.4	25.3	0.0	0.0	0.0
25.3	25.3	111.9	0.0	0.0	0.0
0.0	0.0	0.0	-15.2	0.0	0.0
0.0	0.0	0.0	0.0	-15.2	0.0
0.0	0.0	0.0	0.0	0.0	-9.8

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.184	3.12	3.12	3.12	90.0	90.0	90.0
DFT	15.373	3.133	3.133	3.133	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
34.2	89.7	89.7	0.0	0.0	0.0
89.7	34.2	89.7	0.0	0.0	0.0
89.7	89.7	34.2	0.0	0.0	0.0
0.0	0.0	0.0	6.0	0.0	0.0
0.0	0.0	0.0	0.0	6.0	0.0
0.0	0.0	0.0	0.0	0.0	6.0

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.287	3.94	3.94	3.94	90.0	90.0	90.0
DFT	15.178	3.93	3.93	3.93	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
102.9	60.0	60.0	0.0	0.0	0.0
60.0	102.9	60.0	0.0	0.0	0.0
60.0	60.0	102.9	0.0	0.0	0.0
0.0	0.0	0.0	-6.9	0.0	0.0
0.0	0.0	0.0	0.0	-6.9	0.0
0.0	0.0	0.0	0.0	0.0	-6.9

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.666	5.822	5.822	5.822	90.0	90.0	90.0
DFT	24.671	5.822	5.822	5.822	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
19.1	28.9	28.9	0.0	0.0	0.0
28.9	19.1	28.9	0.0	0.0	0.0
28.9	28.9	19.1	0.0	0.0	0.0
0.0	0.0	0.0	-14.3	0.0	0.0
0.0	0.0	0.0	0.0	-14.3	0.0
0.0	0.0	0.0	0.0	0.0	-14.3

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	18.216	2.631	2.631	2.631	90.0	90.0	90.0
DFT	18.149	2.628	2.628	2.628	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
96.8	39.7	39.7	0.0	0.0	0.0
39.7	96.8	39.7	0.0	0.0	0.0
39.7	39.7	96.8	0.0	0.0	0.0
0.0	0.0	0.0	-10.0	0.0	0.0
0.0	0.0	0.0	0.0	-10.0	0.0
0.0	0.0	0.0	0.0	0.0	-10.0

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.501	4.863	4.863	2.622	90.0	90.0	90.0
DFT	17.26	5.203	5.366	2.626	90.0	109.65	90.0

Elastic constants (Bi)

1	2	3	4	5	6
90.8	78.8	61.8	0.0	0.0	0.0
78.8	90.8	61.8	0.0	0.0	0.0
61.8	61.8	186.1	0.0	0.0	0.0
0.0	0.0	0.0	40.7	0.0	0.0
0.0	0.0	0.0	0.0	40.7	0.0
0.0	0.0	0.0	0.0	0.0	-0.9
