gtinv-242 (Zr-2021-08-25-all-icsd)

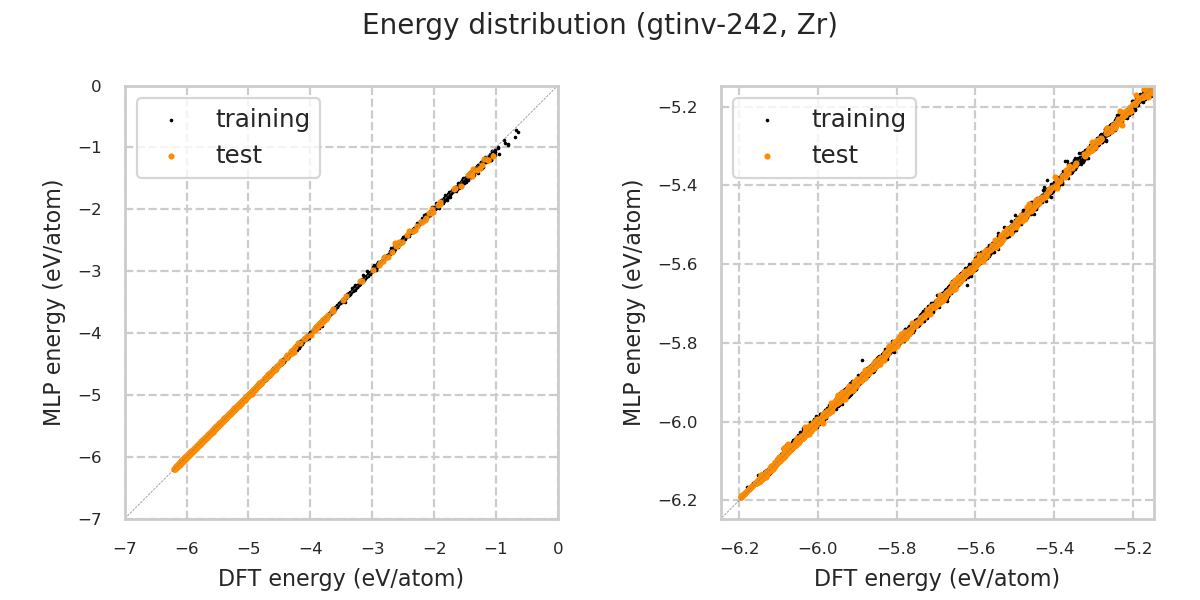

Energy distribution

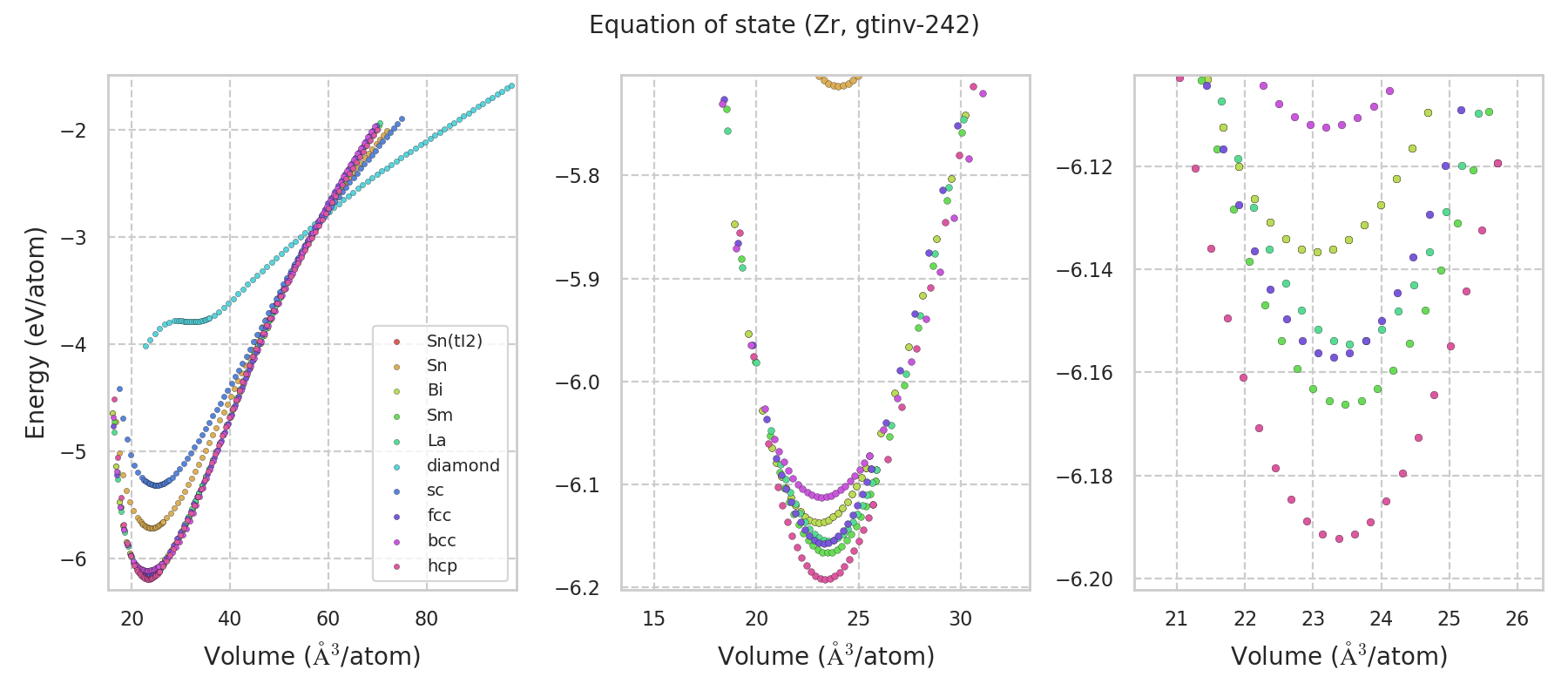

Equation of state

Equation of state for each structure

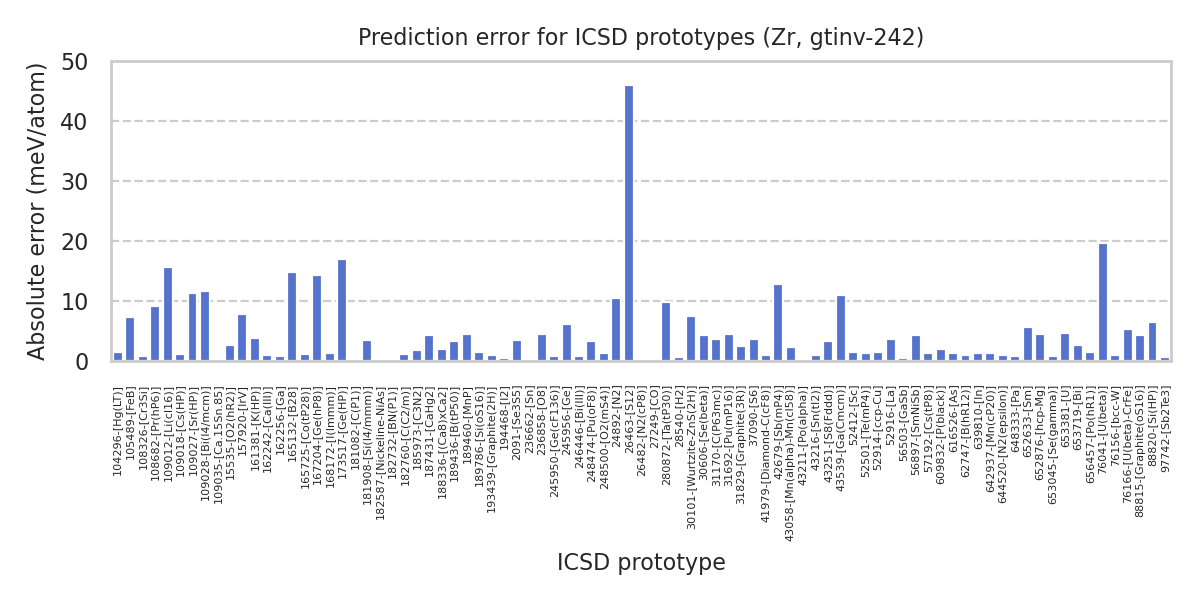

Prototype structure energy

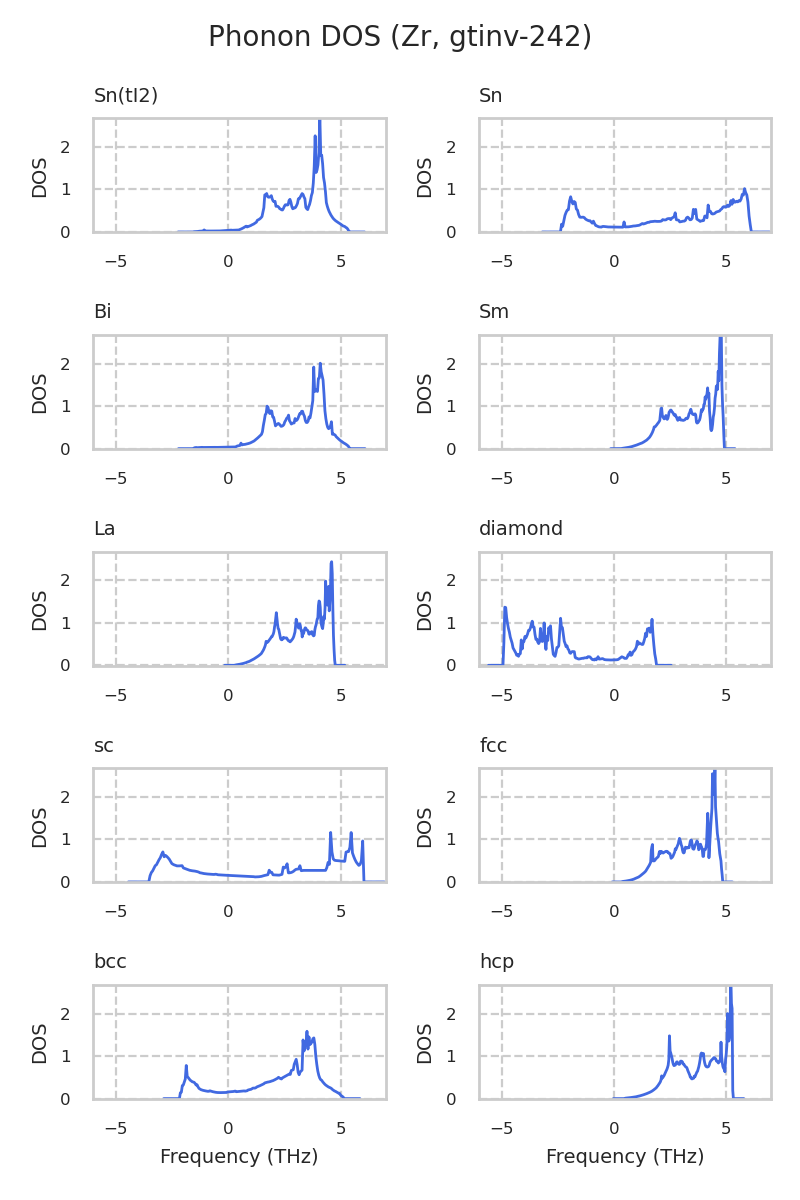

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-189460-[MnP]	-6.19128	-6.19574
icsd-652876-[hcp-Mg]	-6.19126	-6.19571
icsd-56897-[SmNiSb]	-6.19125	-6.19554
icsd-187431-[CaHg2]	-6.19125	-6.19554
icsd-31692-[Pu(mP16)]	-6.19123	-6.19571
icsd-236858-[O8]	-6.19112	-6.19557
icsd-653381-[U]	-6.19095	-6.1955
icsd-42679-[Sb(mP4)]	-6.167	-6.17972
icsd-652633-[Sm]	-6.16487	-6.17055
icsd-108682-[Pr(hP6)]	-6.15663	-6.1657
icsd-168172-[I(Immm)]	-6.15604	-6.15727
icsd-639810-[In]	-6.15591	-6.15721
icsd-52914-[ccp-Cu]	-6.15587	-6.1573
icsd-57192-[Cs(tP8)]	-6.15585	-6.15715
icsd-248500-[O2(mS4)]	-6.15577	-6.15709
icsd-189786-[Si(oS16)]	-6.15576	-6.15711
icsd-52501-[Te(mP4)]	-6.15576	-6.15708
icsd-104296-[Hg(LT)]	-6.15573	-6.15722
icsd-161381-[K(HP)]	-6.15227	-6.14857
icsd-52916-[La]	-6.15225	-6.14858
icsd-31170-[C(P63mc)]	-6.15181	-6.14818
icsd-2091-[Se3S5]	-6.14369	-6.14707
icsd-157920-[IrV]	-6.14319	-6.13544
icsd-109012-[Li(cI16)]	-6.13598	-6.15167
icsd-105489-[FeB]	-6.13563	-6.14298
icsd-43216-[Sn(tI2)]	-6.13513	-6.13419
icsd-52412-[Sc]	-6.13503	-6.13359
icsd-246446-[Bi(III)]	-6.13494	-6.13419
icsd-648333-[Pa]	-6.13494	-6.1342
icsd-182760-[C(C2/m)]	-6.13484	-6.13375
icsd-248474-[Pu(oF8)]	-6.11729	-6.11407
icsd-616526-[As]	-6.10996	-6.11117
icsd-76156-[bcc-W]	-6.10993	-6.11093
icsd-97742-[Sb2Te3]	-6.10981	-6.11034
icsd-644520-[N2(epsilon)]	-6.10967	-6.11067
icsd-194468-[I2]	-6.10965	-6.11011
icsd-656457-[Po(hR1)]	-6.10965	-6.11103
icsd-642937-[Mn(cP20)]	-6.10449	-6.10576
icsd-30606-[Se(beta)]	-6.10152	-6.10579
icsd-26482-[N2(cP8)]	-6.09535	-6.09527
icsd-27249-[CO]	-6.09532	-6.09528
icsd-245956-[Ge]	-6.09337	-6.09946
icsd-76166-[U(beta)-CrFe]	-6.07174	-6.07703
icsd-280872-[Ta(tP30)]	-6.06752	-6.07737
icsd-76041-[U(beta)]	-6.0673	-6.08696
icsd-43058-[Mn(alpha)-Mn(cI58)]	-6.06521	-6.06292
icsd-108326-[Cr3Si]	-6.05805	-6.05875
icsd-24892-[N2]	-6.04128	-6.0518
icsd-15535-[O2(hR2)]	-6.03783	-6.03518
icsd-31829-[Graphite(3R)]	-6.03773	-6.03527
icsd-609832-[P(black)]	-6.02006	-6.01817
icsd-188336-[(Ca8)xCa2]	-6.02003	-6.01815
icsd-43539-[Ga(Cmcm)]	-6.01985	-6.03078
icsd-189436-[B(tP50)]	-6.01961	-6.02294
icsd-165725-[Co(tP28)]	-6.00223	-6.00335
icsd-173517-[Ge(HP)]	-5.98668	-6.00358
icsd-167204-[Ge(hP8)]	-5.95848	-5.97271
icsd-28540-[H2]	-5.94358	-5.94415
icsd-43251-[S8(Fddd)]	-5.93874	-5.94197
icsd-165132-[B28]	-5.93265	-5.94742
icsd-37090-[S6]	-5.86191	-5.86549
icsd-26463-[S12]	-5.84267	-5.88865
icsd-109035-[Ca.15Sn.85]	-5.82742	-5.82753
icsd-193439-[Graphite(2H)]	-5.82738	-5.82822
icsd-162256-[Ga]	-5.82738	-5.82822
icsd-162242-[Ca(III)]	-5.82732	-5.82818
icsd-109018-[Cs(HP)]	-5.79237	-5.7913
icsd-653719-[Bi]	-5.73047	-5.73301
icsd-56503-[GaSb]	-5.7057	-5.70532
icsd-236662-[Sn]	-5.70565	-5.70531
icsd-62747-[B(hR12)]	-5.55459	-5.55358
icsd-109027-[Sr(HP)]	-5.31385	-5.32522
icsd-181082-[C(P1)]	-5.3132	-5.31331
icsd-182732-[BN(P1)]	-5.31273	-5.31274
icsd-653045-[Se(gamma)]	-5.31272	-5.31346
icsd-43211-[Po(alpha)]	-5.31264	-5.31292
icsd-109028-[Bi(I4/mcm)]	-5.24832	-5.25991
icsd-182587-[Nickeline-NiAs]	-5.24227	-5.24205
icsd-185973-[C3N2]	-5.17721	-5.17545
icsd-88815-[Graphite(oS16)]	-5.12852	-5.12421
icsd-88820-[Si(HP)]	-4.72338	-4.71702
icsd-245950-[Ge(cF136)]	-4.6555	-4.65625
icsd-181908-[Si(I4/mmm)]	-3.79515	-3.79862
icsd-41979-[Diamond-C(cF8)]	-3.78481	-3.78571
icsd-30101-[Wurtzite-ZnS(2H)]	-3.78419	-3.77672

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.375	3.244	3.244	5.131	90.0	90.0	120.0
DFT	23.214	3.223	3.223	5.16	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
164.7	92.2	86.9	0.0	0.0	0.0
92.2	164.7	86.9	0.0	0.0	0.0
86.9	86.9	159.3	0.0	0.0	0.0
0.0	0.0	0.0	34.0	0.0	0.0
0.0	0.0	0.0	0.0	34.0	0.0
0.0	0.0	0.0	0.0	0.0	36.2

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.471	3.226	3.226	23.441	90.0	90.0	120.0
DFT	23.21	3.215	3.215	23.331	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
139.2	89.3	82.8	3.8	0.0	0.0
89.3	139.2	82.8	-3.8	0.0	0.0
82.8	82.8	142.9	0.0	0.0	0.0
3.8	-3.8	0.0	20.7	0.0	0.0
0.0	0.0	0.0	0.0	20.7	3.8
0.0	0.0	0.0	0.0	3.8	25.0

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.538	3.208	3.208	10.563	90.0	90.0	120.0
DFT	23.227	3.214	3.214	10.386	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
127.0	89.5	81.7	0.0	0.0	0.0
89.5	127.0	81.7	0.0	0.0	0.0
81.7	81.7	143.5	0.0	0.0	0.0
0.0	0.0	0.0	14.5	0.0	0.0
0.0	0.0	0.0	0.0	14.5	0.0
0.0	0.0	0.0	0.0	0.0	18.8

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.064	3.795	3.795	3.203	90.0	90.0	90.0
DFT	22.743	3.794	3.794	3.16	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
104.5	103.9	60.2	0.0	0.0	0.0
103.9	104.5	60.2	0.0	0.0	0.0
60.2	60.2	109.0	0.0	0.0	0.0
0.0	0.0	0.0	46.6	0.0	0.0
0.0	0.0	0.0	0.0	46.6	0.0
0.0	0.0	0.0	0.0	0.0	34.3

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.014	5.627	5.627	3.034	90.0	90.0	90.0
DFT	23.421	5.53	5.53	3.063	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
10668.0	195400.1	-70771.4	61740.4	148517.5	0.0
195400.1	-401036.4	70894.0	148517.5	61740.4	0.0
-70771.4	70894.0	141.5	-63174.9	-63174.9	0.0
61740.4	148517.5	-63174.9	-5.1	0.0	0.0
148517.5	61740.4	-63174.9	0.0	-5.1	0.0
0.0	0.0	0.0	0.0	0.0	-36.1

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.19	3.593	3.593	3.593	90.0	90.0	90.0
DFT	22.673	3.566	3.566	3.566	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
43.3	76.0	76.0	0.0	0.0	0.0
76.0	43.3	76.0	0.0	0.0	0.0
76.0	76.0	43.3	0.0	0.0	0.0
0.0	0.0	0.0	34.0	0.0	0.0
0.0	0.0	0.0	0.0	34.0	0.0
0.0	0.0	0.0	0.0	0.0	34.0

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.306	4.534	4.534	4.534	90.0	90.0	90.0
DFT	23.022	4.516	4.516	4.516	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
125.2	104.9	104.9	0.0	0.0	0.0
104.9	125.2	104.9	0.0	0.0	0.0
104.9	104.9	125.2	0.0	0.0	0.0
0.0	0.0	0.0	35.1	0.0	0.0
0.0	0.0	0.0	0.0	35.1	0.0
0.0	0.0	0.0	0.0	0.0	35.1

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	32.506	6.383	6.383	6.383	90.0	90.0	90.0
DFT	30.385	6.241	6.241	6.241	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
-19.4	37.1	66.5	0.0	0.0	-37054.6
37.1	-11.2	56.5	0.0	0.0	37222.6
66.5	56.5	-35.4	0.0	0.0	-37055.0
0.0	0.0	0.0	-1116366.8	0.0	19022.9
0.0	0.0	0.0	0.0	-1116366.8	34748.5
-37054.6	37222.6	-37055.0	19022.9	34748.5	-38043.5

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.018	2.925	2.925	2.925	90.0	90.0	90.0
DFT	24.486	2.904	2.904	2.904	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
86.2	45.6	45.6	0.0	0.0	0.0
45.6	86.2	45.6	0.0	0.0	0.0
45.6	45.6	86.2	0.0	0.0	0.0
0.0	0.0	0.0	-44.1	0.0	0.0
0.0	0.0	0.0	0.0	-44.1	0.0
0.0	0.0	0.0	0.0	0.0	-44.1

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.064	5.367	5.367	3.203	90.0	90.0	90.0
DFT	23.701	5.866	5.666	3.107	90.0	113.36	90.0

Elastic constants (Bi)

1	2	3	4	5	6
138.5	70.0	60.2	0.0	0.0	0.0
70.0	138.5	60.2	0.0	0.0	0.0
60.2	60.2	109.0	0.0	0.0	0.0
0.0	0.0	0.0	46.6	0.0	0.0
0.0	0.0	0.0	0.0	46.6	0.0
0.0	0.0	0.0	0.0	0.0	0.3
