polymlp-00252-hybrid-0016 (Ag-2024-06-06-hybrid)

Energy distribution

Prototype structure energy

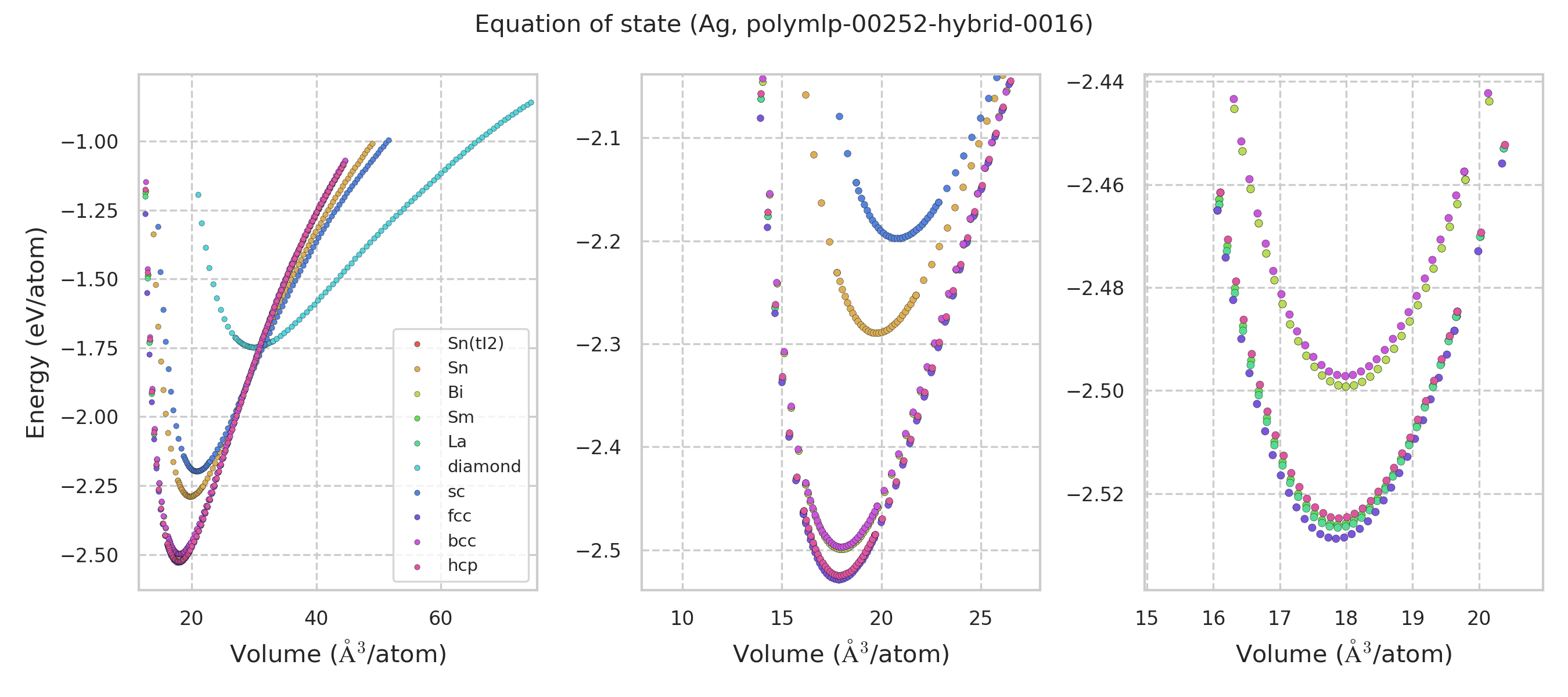

Equation of state

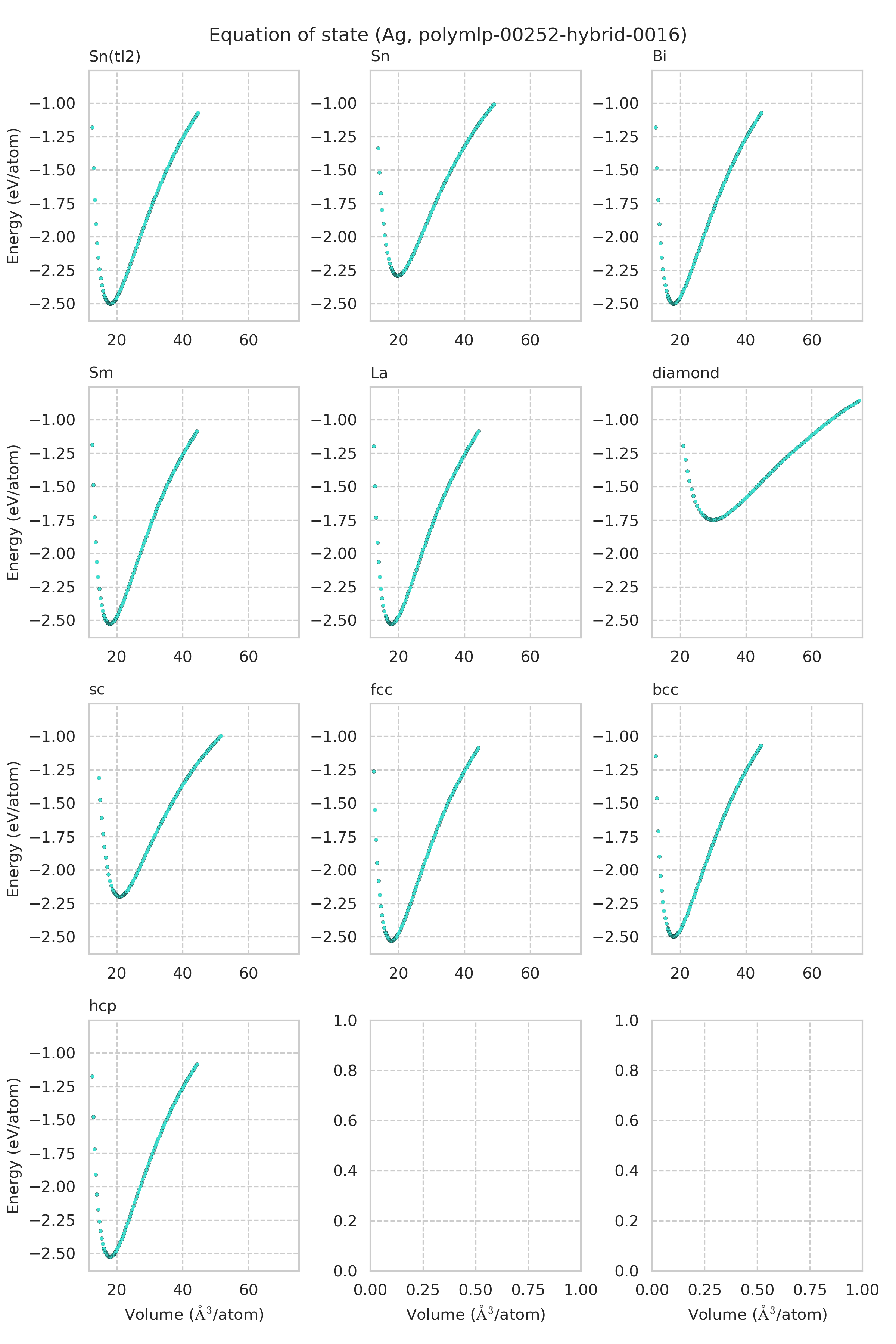

Equation of state for each structure

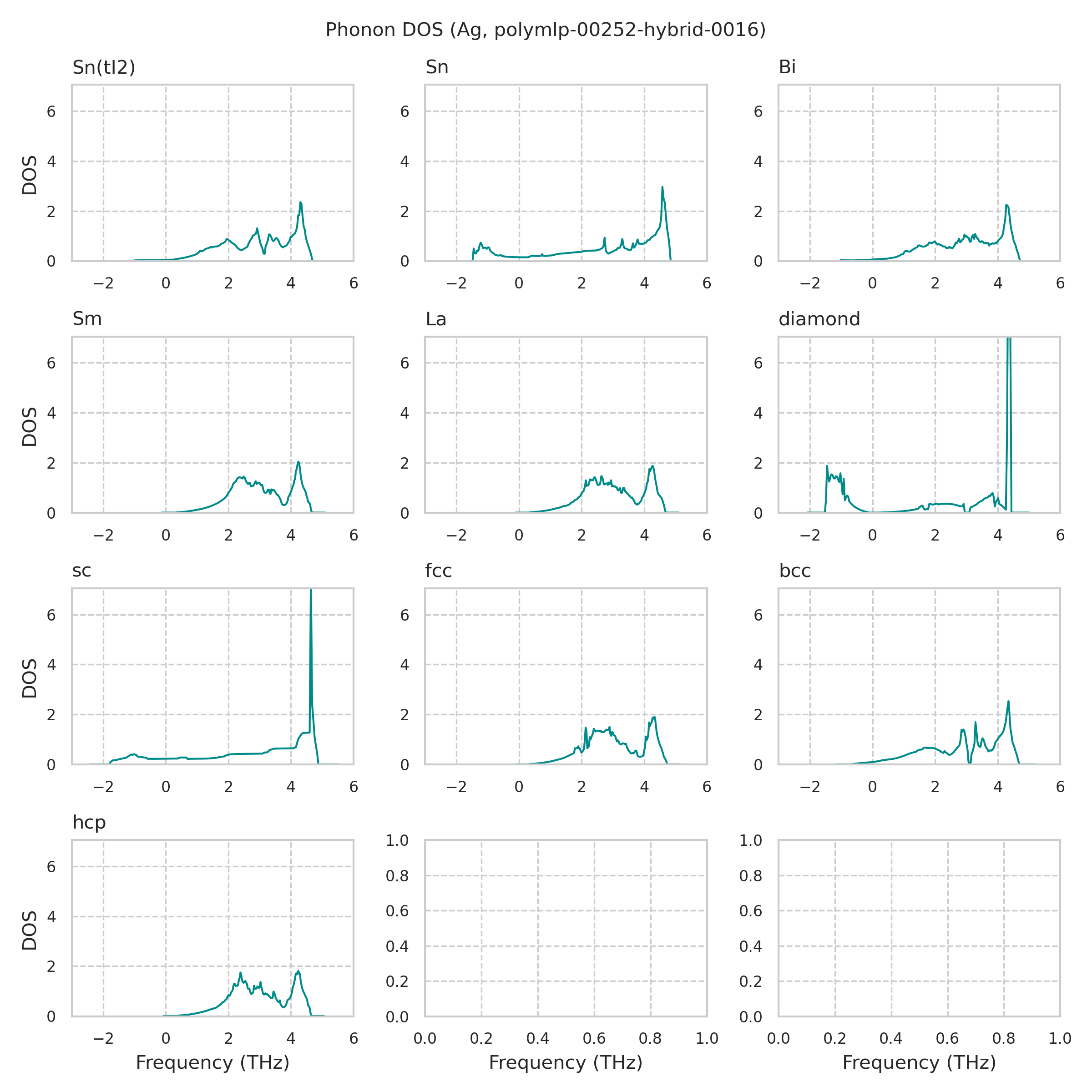

Phonon density of states

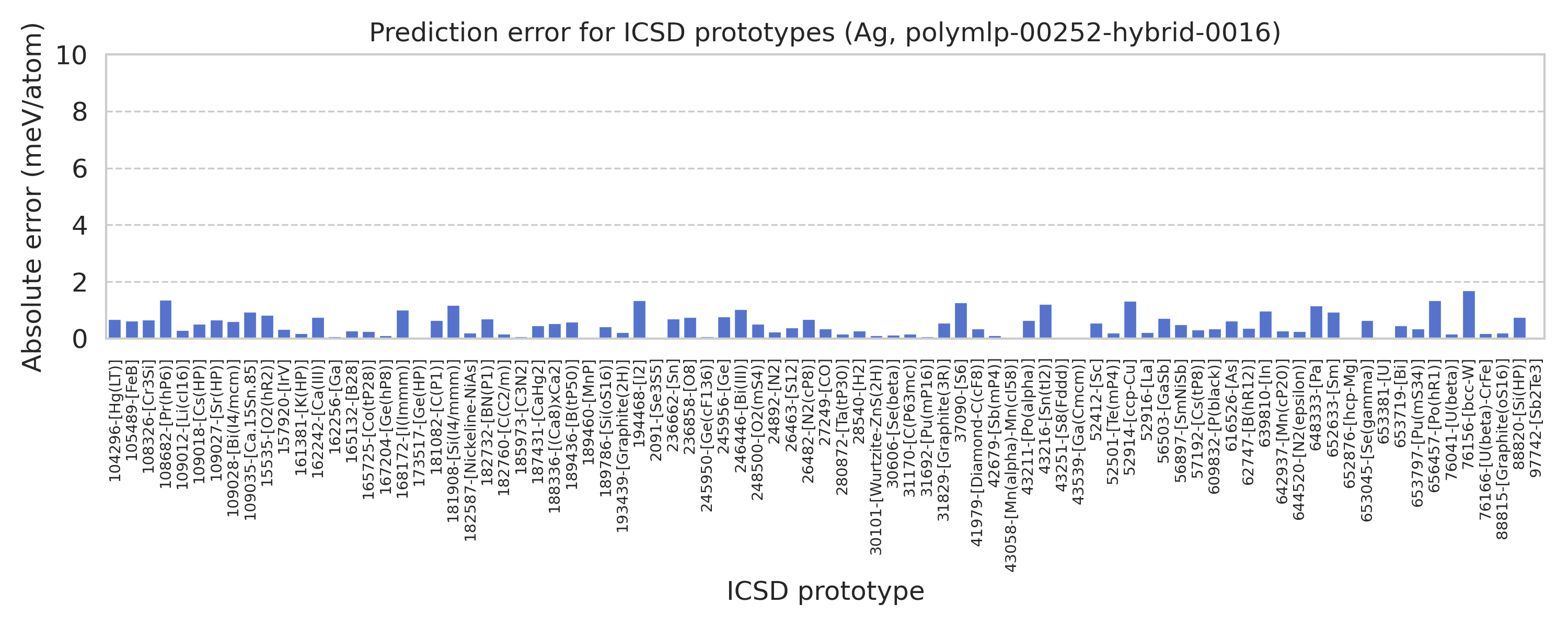

Prototype structure energy

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-104296-[Hg(LT)]	-2.52866	-2.52936
icsd-639810-[In]	-2.52866	-2.52767
icsd-236858-[O8]	-2.52865	-2.52942
icsd-168172-[I(Immm)]	-2.52865	-2.52762
icsd-194468-[I2]	-2.52863	-2.52999
icsd-57192-[Cs(tP8)]	-2.52861	-2.52894
icsd-52914-[ccp-Cu]	-2.52861	-2.52994
icsd-189786-[Si(oS16)]	-2.5286	-2.52904
icsd-248500-[O2(mS4)]	-2.52859	-2.52807
icsd-108682-[Pr(hP6)]	-2.52856	-2.52993
icsd-52916-[La]	-2.5265	-2.52626
icsd-161381-[K(HP)]	-2.52648	-2.52629
icsd-31170-[C(P63mc)]	-2.52647	-2.52629
icsd-652633-[Sm]	-2.52598	-2.52693
icsd-31692-[Pu(mP16)]	-2.52465	-2.52474
icsd-189460-[MnP]	-2.52464	-2.52463
icsd-652876-[hcp-Mg]	-2.52461	-2.52459
icsd-43539-[Ga(Cmcm)]	-2.52459	-2.52452
icsd-653381-[U]	-2.52459	-2.5246
icsd-42679-[Sb(mP4)]	-2.52446	-2.52459
icsd-157920-[IrV]	-2.50698	-2.50663
icsd-52412-[Sc]	-2.49908	-2.49965
icsd-246446-[Bi(III)]	-2.49906	-2.50011
icsd-97742-[Sb2Te3]	-2.49906	-2.49911
icsd-648333-[Pa]	-2.49906	-2.50022
icsd-43216-[Sn(tI2)]	-2.49901	-2.50023
icsd-105489-[FeB]	-2.499	-2.49963
icsd-109012-[Li(cI16)]	-2.49766	-2.49796
icsd-76156-[bcc-W]	-2.4971	-2.4954
icsd-15535-[O2(hR2)]	-2.49708	-2.49623
icsd-656457-[Po(hR1)]	-2.49707	-2.49843
icsd-642937-[Mn(cP20)]	-2.47938	-2.47909
icsd-30606-[Se(beta)]	-2.47775	-2.47789
icsd-182760-[C(C2/m)]	-2.47123	-2.4714
icsd-43058-[Mn(alpha)-Mn(cI58)]	-2.46649	-2.46655
icsd-76041-[U(beta)]	-2.46623	-2.46606
icsd-280872-[Ta(tP30)]	-2.46592	-2.46574
icsd-76166-[U(beta)-CrFe]	-2.46585	-2.46565
icsd-56897-[SmNiSb]	-2.4651	-2.46459
icsd-187431-[CaHg2]	-2.46498	-2.46452
icsd-245956-[Ge]	-2.45796	-2.45718
icsd-52501-[Te(mP4)]	-2.45792	-2.4577
icsd-653797-[Pu(mS34)]	-2.44905	-2.44941
icsd-26482-[N2(cP8)]	-2.44473	-2.44542
icsd-108326-[Cr3Si]	-2.43763	-2.43831
icsd-24892-[N2]	-2.42796	-2.42821
icsd-31829-[Graphite(3R)]	-2.42793	-2.42737
icsd-165725-[Co(tP28)]	-2.42644	-2.42671
icsd-189436-[B(tP50)]	-2.42265	-2.42325
icsd-609832-[P(black)]	-2.41234	-2.4127
icsd-165132-[B28]	-2.40743	-2.40714
icsd-37090-[S6]	-2.40314	-2.40442
icsd-109028-[Bi(I4/mcm)]	-2.39535	-2.39473
icsd-644520-[N2(epsilon)]	-2.35893	-2.3592
icsd-28540-[H2]	-2.34957	-2.34928
icsd-2091-[Se3S5]	-2.3475	-2.34743
icsd-162242-[Ca(III)]	-2.34159	-2.34082
icsd-109035-[Ca.15Sn.85]	-2.3415	-2.34055
icsd-109018-[Cs(HP)]	-2.3294	-2.32888
icsd-653719-[Bi]	-2.29937	-2.29889
icsd-162256-[Ga]	-2.29433	-2.29442
icsd-56503-[GaSb]	-2.2893	-2.29003
icsd-236662-[Sn]	-2.2893	-2.29002
icsd-43251-[S8(Fddd)]	-2.27224	-2.27222
icsd-188336-[(Ca8)xCa2]	-2.26381	-2.26326
icsd-62747-[B(hR12)]	-2.23169	-2.23206
icsd-182587-[Nickeline-NiAs]	-2.22549	-2.22528
icsd-616526-[As]	-2.19756	-2.19821
icsd-181082-[C(P1)]	-2.19755	-2.19821
icsd-43211-[Po(alpha)]	-2.19755	-2.19821
icsd-109027-[Sr(HP)]	-2.19755	-2.19821
icsd-653045-[Se(gamma)]	-2.19754	-2.19819
icsd-182732-[BN(P1)]	-2.19754	-2.19825
icsd-88815-[Graphite(oS16)]	-2.15807	-2.15829
icsd-185973-[C3N2]	-2.10335	-2.10343
icsd-181908-[Si(I4/mmm)]	-2.08539	-2.0842
icsd-26463-[S12]	-2.07191	-2.0723
icsd-193439-[Graphite(2H)]	-1.94271	-1.94247
icsd-88820-[Si(HP)]	-1.85399	-1.85475
icsd-173517-[Ge(HP)]	-1.82205	-1.82199
icsd-30101-[Wurtzite-ZnS(2H)]	-1.74995	-1.75006
icsd-167204-[Ge(hP8)]	-1.74874	-1.74861
icsd-41979-[Diamond-C(cF8)]	-1.74755	-1.74719
icsd-27249-[CO]	-1.74749	-1.74713
icsd-245950-[Ge(cF136)]	-1.74519	-1.74528

Lattice constants

Lattice constants [Sn(tI2)] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
35.9908	3.4206	3.4206	3.0759	90.0	90.0	90.0

Lattice constants [Sn] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
78.9911	5.3263	5.3263	2.7843	90.0	90.0	90.0

Lattice constants [Bi] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
35.9908	3.4206	3.4206	3.0759	90.0	90.0	90.0

Lattice constants [Sm] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
160.8573	2.9303	2.9303	21.6313	90.0	90.0	120.0

Lattice constants [La] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
71.4794	2.9311	2.9311	9.6068	90.0	90.0	120.0

Lattice constants [diamond] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
240.0787	6.2151	6.2151	6.2151	90.0	90.0	90.0

Lattice constants [sc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
20.7956	2.7499	2.7499	2.7499	90.0	90.0	90.0

Lattice constants [fcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
71.3806	4.1482	4.1482	4.1482	90.0	90.0	90.0

Lattice constants [bcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
35.959	3.3007	3.3007	3.3007	90.0	90.0	90.0

Lattice constants [hcp] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
35.7736	2.9293	2.9293	4.814	90.0	90.0	120.0

Elastic constants

Elastic constants [Sn(tI2)]

1	2	3	4	5	6
81.1	97.5	84.2	0.0	0.0	0.0
97.5	81.1	84.2	0.0	0.0	0.0
84.2	84.2	104.8	0.0	0.0	0.0
0.0	0.0	0.0	46.2	0.0	0.0
0.0	0.0	0.0	0.0	46.2	0.0
0.0	0.0	0.0	0.0	0.0	59.8

Elastic constants [Sn]

1	2	3	4	5	6
172.9	16.1	29.1	0.0	0.0	0.0
16.1	172.9	29.1	0.0	0.0	0.0
29.1	29.1	177.1	0.0	0.0	0.0
0.0	0.0	0.0	0.2	0.0	0.0
0.0	0.0	0.0	0.0	0.2	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Bi]

1	2	3	4	5	6
148.6	29.9	84.2	0.0	0.0	0.0
29.9	148.6	84.2	0.0	0.0	0.0
84.2	84.2	104.8	0.0	0.0	0.0
0.0	0.0	0.0	46.5	0.0	0.0
0.0	0.0	0.0	0.0	46.5	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Sm]

1	2	3	4	5	6
136.9	71.9	61.9	4.8	0.0	0.0
71.9	136.8	61.8	0.0	0.0	0.0
61.9	61.8	147.2	0.0	0.0	0.0
4.8	0.0	0.0	23.2	0.0	0.0
0.0	0.0	0.0	0.0	23.2	4.7
0.0	0.0	0.0	0.0	4.7	32.5

Elastic constants [La]

1	2	3	4	5	6
138.2	73.0	62.2	0.0	0.0	0.0
73.0	138.1	62.2	0.0	0.0	0.0
62.2	62.2	144.8	0.0	0.0	0.0
0.0	0.0	0.0	23.2	0.0	0.0
0.0	0.0	0.0	0.0	23.2	0.0
0.0	0.0	0.0	0.0	0.0	32.6

Elastic constants [diamond]

1	2	3	4	5	6
25.2	32.9	32.9	0.0	0.0	0.0
32.9	25.2	32.9	0.0	0.0	0.0
32.9	32.9	25.2	0.0	0.0	0.0
0.0	0.0	0.0	22.1	0.0	0.0
0.0	0.0	0.0	0.0	22.1	0.0
0.0	0.0	0.0	0.0	0.0	22.1

Elastic constants [sc]

1	2	3	4	5	6
180.9	8.9	8.9	0.0	0.0	0.0
8.9	180.9	8.9	0.0	0.0	0.0
8.9	8.9	180.9	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [fcc]

1	2	3	4	5	6
111.1	80.9	80.9	0.0	0.0	0.0
80.9	111.1	80.9	0.0	0.0	0.0
80.9	80.9	111.1	0.0	0.0	0.0
0.0	0.0	0.0	41.8	0.0	0.0
0.0	0.0	0.0	0.0	41.8	0.0
0.0	0.0	0.0	0.0	0.0	41.8

Elastic constants [bcc]

1	2	3	4	5	6
80.1	91.2	91.2	0.0	0.0	0.0
91.2	80.1	91.2	0.0	0.0	0.0
91.2	91.2	80.1	0.0	0.0	0.0
0.0	0.0	0.0	52.4	0.0	0.0
0.0	0.0	0.0	0.0	52.4	0.0
0.0	0.0	0.0	0.0	0.0	52.4

Elastic constants [hcp]

1	2	3	4	5	6
135.7	70.7	61.0	0.0	0.0	0.0
70.7	135.6	61.0	0.0	0.0	0.0
61.0	61.0	147.3	0.0	0.0	0.0
0.0	0.0	0.0	23.2	0.0	0.0
0.0	0.0	0.0	0.0	23.1	0.0
0.0	0.0	0.0	0.0	0.0	32.4
