polymlp-00154 (Ca-2024-06-05)

Energy distribution

Prototype structure energy

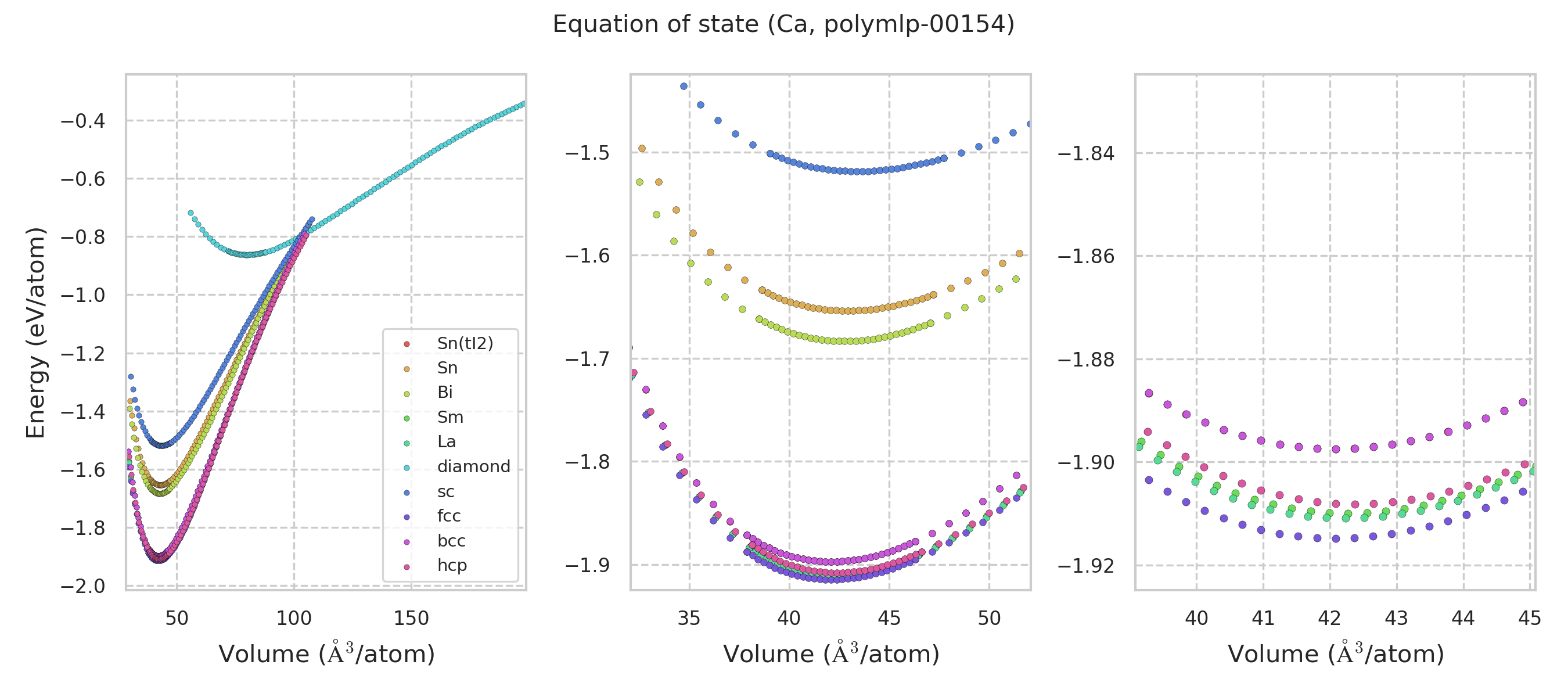

Equation of state

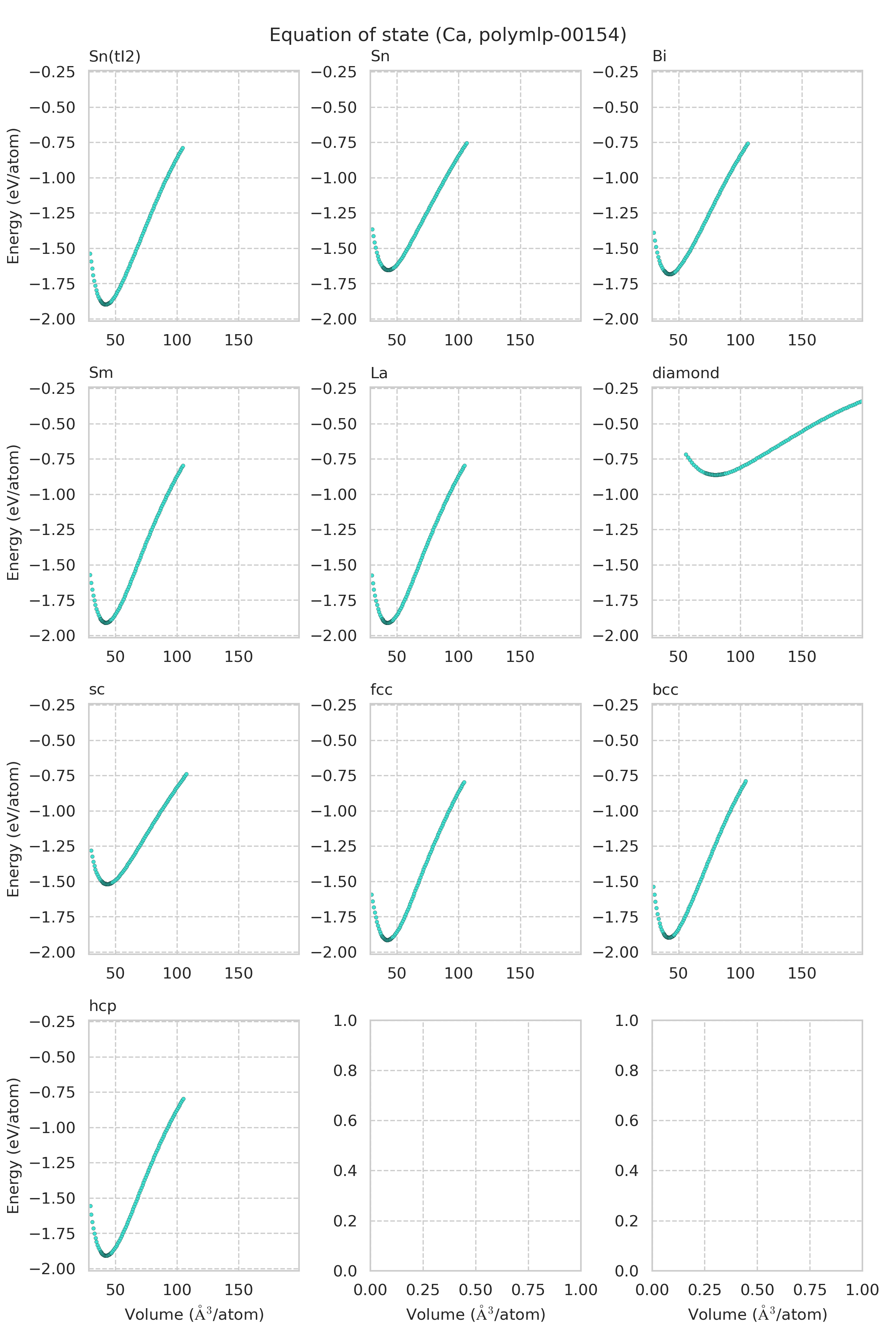

Equation of state for each structure

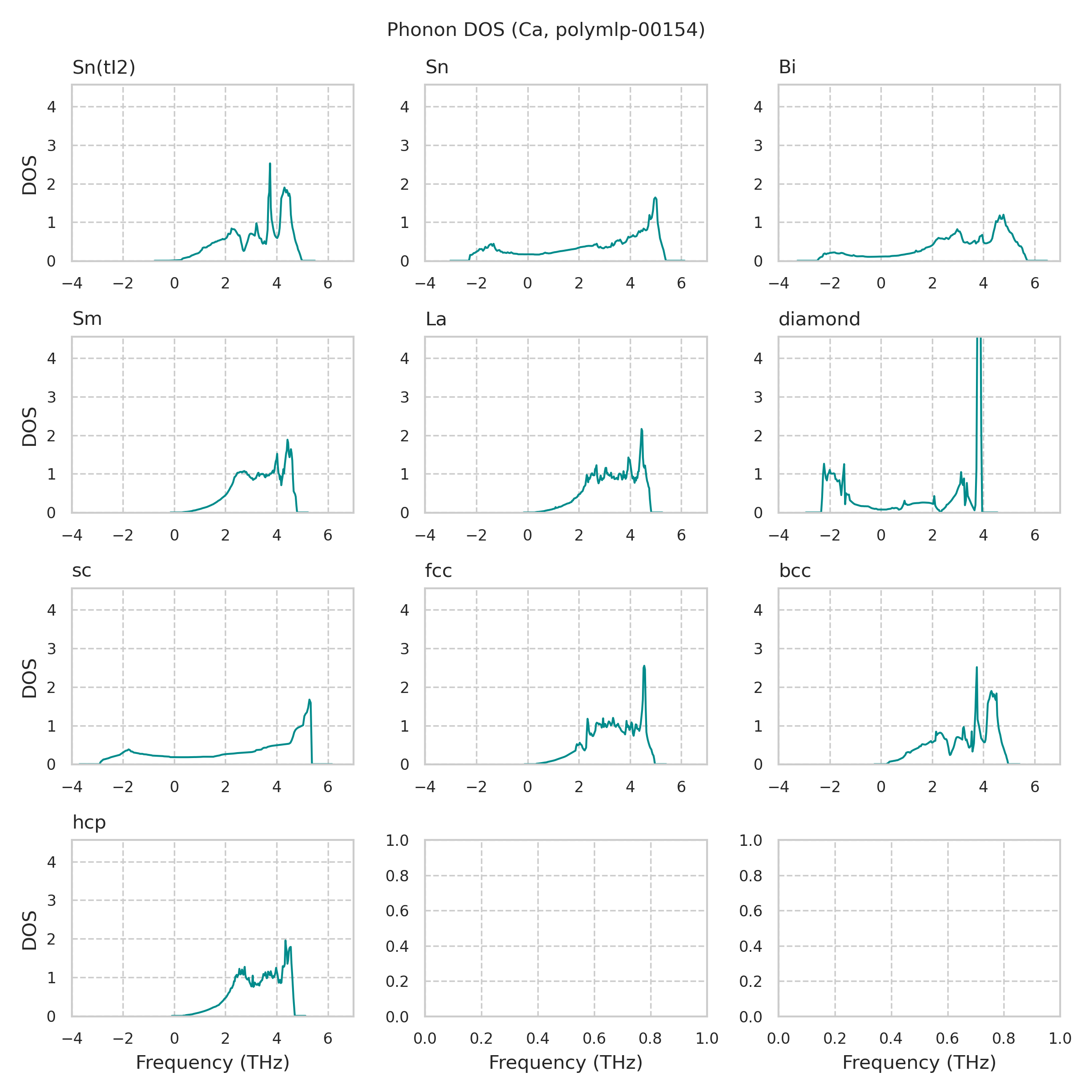

Phonon density of states

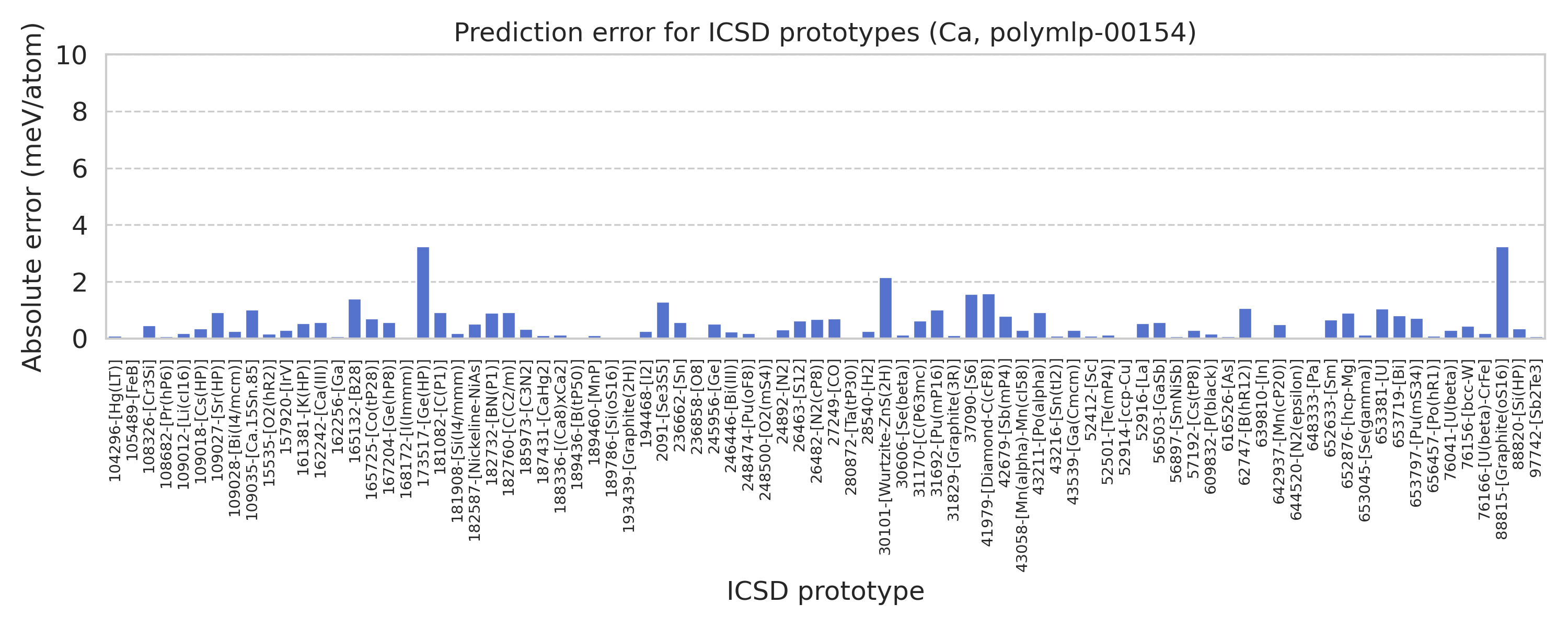

Prototype structure energy

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-52914-[ccp-Cu]	-1.91482	-1.91481
icsd-104296-[Hg(LT)]	-1.91482	-1.91492
icsd-15535-[O2(hR2)]	-1.91481	-1.91463
icsd-168172-[I(Immm)]	-1.9148	-1.91478
icsd-236858-[O8]	-1.91479	-1.91478
icsd-57192-[Cs(tP8)]	-1.91478	-1.91447
icsd-189786-[Si(oS16)]	-1.91477	-1.91473
icsd-52501-[Te(mP4)]	-1.91476	-1.91461
icsd-639810-[In]	-1.91472	-1.91472
icsd-248500-[O2(mS4)]	-1.91469	-1.91469
icsd-108682-[Pr(hP6)]	-1.91454	-1.91463
icsd-52916-[La]	-1.91093	-1.91039
icsd-161381-[K(HP)]	-1.91092	-1.91038
icsd-182587-[Nickeline-NiAs]	-1.91092	-1.9104
icsd-31170-[C(P63mc)]	-1.91056	-1.90993
icsd-652633-[Sm]	-1.90992	-1.9106
icsd-652876-[hcp-Mg]	-1.90817	-1.90909
icsd-31692-[Pu(mP16)]	-1.9079	-1.90892
icsd-653381-[U]	-1.90783	-1.90889
icsd-157920-[IrV]	-1.89837	-1.89868
icsd-97742-[Sb2Te3]	-1.89752	-1.8976
icsd-616526-[As]	-1.89746	-1.89737
icsd-76156-[bcc-W]	-1.89746	-1.89701
icsd-246446-[Bi(III)]	-1.89745	-1.8972
icsd-656457-[Po(hR1)]	-1.89745	-1.89735
icsd-105489-[FeB]	-1.89743	-1.89736
icsd-52412-[Sc]	-1.89742	-1.89752
icsd-43216-[Sn(tI2)]	-1.89738	-1.89729
icsd-194468-[I2]	-1.89738	-1.89711
icsd-648333-[Pa]	-1.89737	-1.89731
icsd-109012-[Li(cI16)]	-1.89725	-1.89706
icsd-30606-[Se(beta)]	-1.888	-1.88815
icsd-76166-[U(beta)-CrFe]	-1.88224	-1.88245
icsd-76041-[U(beta)]	-1.88223	-1.88254
icsd-280872-[Ta(tP30)]	-1.88218	-1.88213
icsd-248474-[Pu(oF8)]	-1.88055	-1.88036
icsd-642937-[Mn(cP20)]	-1.878	-1.87851
icsd-108326-[Cr3Si]	-1.87544	-1.87591
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.8685	-1.86819
icsd-187431-[CaHg2]	-1.8599	-1.85978
icsd-56897-[SmNiSb]	-1.85988	-1.8598
icsd-653797-[Pu(mS34)]	-1.85694	-1.85766
icsd-26482-[N2(cP8)]	-1.83997	-1.84066
icsd-27249-[CO]	-1.83996	-1.84067
icsd-2091-[Se3S5]	-1.8342	-1.83551
icsd-165725-[Co(tP28)]	-1.83155	-1.83226
icsd-189436-[B(tP50)]	-1.81404	-1.8141
icsd-167204-[Ge(hP8)]	-1.79474	-1.79533
icsd-43539-[Ga(Cmcm)]	-1.7886	-1.7883
icsd-609832-[P(black)]	-1.78463	-1.78445
icsd-37090-[S6]	-1.75775	-1.75934
icsd-109028-[Bi(I4/mcm)]	-1.75688	-1.75715
icsd-644520-[N2(epsilon)]	-1.70821	-1.70825
icsd-109035-[Ca.15Sn.85]	-1.68353	-1.6825
icsd-42679-[Sb(mP4)]	-1.67185	-1.67104
icsd-189460-[MnP]	-1.66862	-1.6685
icsd-109018-[Cs(HP)]	-1.66755	-1.66719
icsd-653719-[Bi]	-1.65526	-1.65445
icsd-236662-[Sn]	-1.65391	-1.65332
icsd-56503-[GaSb]	-1.6539	-1.65332
icsd-162256-[Ga]	-1.63911	-1.63903
icsd-188336-[(Ca8)xCa2]	-1.59792	-1.59778
icsd-182732-[BN(P1)]	-1.5187	-1.51778
icsd-181082-[C(P1)]	-1.5187	-1.51777
icsd-109027-[Sr(HP)]	-1.51868	-1.51776
icsd-43211-[Po(alpha)]	-1.51868	-1.51776
icsd-31829-[Graphite(3R)]	-1.51868	-1.51856
icsd-653045-[Se(gamma)]	-1.51864	-1.5185
icsd-162242-[Ca(III)]	-1.51817	-1.51759
icsd-173517-[Ge(HP)]	-1.41034	-1.40709
icsd-88815-[Graphite(oS16)]	-1.39312	-1.39638
icsd-185973-[C3N2]	-1.37868	-1.37902
icsd-62747-[B(hR12)]	-1.33373	-1.33266
icsd-26463-[S12]	-1.33232	-1.33167
icsd-193439-[Graphite(2H)]	-1.26796	-1.26801
icsd-165132-[B28]	-1.26345	-1.26203
icsd-28540-[H2]	-1.26242	-1.26216
icsd-182760-[C(C2/m)]	-1.16807	-1.16714
icsd-88820-[Si(HP)]	-1.16032	-1.15995
icsd-245956-[Ge]	-1.1603	-1.15977
icsd-24892-[N2]	-1.13897	-1.1393
icsd-30101-[Wurtzite-ZnS(2H)]	-0.8667	-0.86454
icsd-41979-[Diamond-C(cF8)]	-0.86226	-0.86386
icsd-181908-[Si(I4/mmm)]	-0.85087	-0.85066

Lattice constants

Lattice constants [Sn(tI2)] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
84.1784	4.4137	4.4137	4.321	90.0	90.0	90.0

Lattice constants [Sn] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
171.6741	6.8247	6.8247	3.6858	90.0	90.0	90.0

Lattice constants [Bi] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
42.7707	3.7562	3.7562	3.5004	90.0	90.0	120.0

Lattice constants [Sm] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
380.4648	3.9004	3.9004	28.8778	90.0	90.0	120.0

Lattice constants [La] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
168.9262	3.9008	3.9008	12.8193	90.0	90.0	120.0

Lattice constants [diamond] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
639.0258	8.6134	8.6134	8.6134	90.0	90.0	90.0

Lattice constants [sc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
43.3791	3.5137	3.5137	3.5137	90.0	90.0	90.0

Lattice constants [fcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
168.3445	5.5216	5.5216	5.5216	90.0	90.0	90.0

Lattice constants [bcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
84.1808	4.3827	4.3827	4.3827	90.0	90.0	90.0

Lattice constants [hcp] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
84.7485	3.9014	3.9014	6.4292	90.0	90.0	120.0

Elastic constants

Elastic constants [Sn(tI2)]

1	2	3	4	5	6
16.0	18.0	16.6	0.0	0.0	0.0
18.0	16.0	16.6	0.0	0.0	0.0
16.6	16.6	17.2	0.0	0.0	0.0
0.0	0.0	0.0	15.4	0.0	0.0
0.0	0.0	0.0	0.0	15.4	0.0
0.0	0.0	0.0	0.0	0.0	16.3

Elastic constants [Sn]

1	2	3	4	5	6
49.4	0.0	0.0	0.0	0.0	0.0
0.0	49.4	0.0	0.0	0.0	0.0
0.0	0.0	45.9	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Bi]

1	2	3	4	5	6
42.7	0.0	14.8	0.0	0.0	0.0
0.0	56.3	0.0	0.0	0.0	0.0
14.8	0.0	42.7	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	13.9	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Sm]

1	2	3	4	5	6
33.4	10.0	7.4	1.7	0.0	0.0
10.0	33.4	7.4	0.0	0.0	0.0
7.4	7.4	40.5	0.0	0.0	0.0
1.7	0.0	0.0	7.1	0.0	0.0
0.0	0.0	0.0	0.0	7.1	1.7
0.0	0.0	0.0	0.0	1.7	11.7

Elastic constants [La]

1	2	3	4	5	6
33.3	10.2	7.3	0.0	0.0	0.0
10.2	33.3	7.3	0.0	0.0	0.0
7.3	7.3	39.5	0.0	0.0	0.0
0.0	0.0	0.0	7.1	0.0	0.0
0.0	0.0	0.0	0.0	7.1	0.0
0.0	0.0	0.0	0.0	0.0	11.6

Elastic constants [diamond]

1	2	3	4	5	6
0.6	6.1	6.1	0.0	0.0	0.0
6.1	0.6	6.1	0.0	0.0	0.0
6.1	6.1	0.6	0.0	0.0	0.0
0.0	0.0	0.0	3.6	0.0	0.0
0.0	0.0	0.0	0.0	3.6	0.0
0.0	0.0	0.0	0.0	0.0	3.6

Elastic constants [sc]

1	2	3	4	5	6
48.6	0.0	0.0	0.0	0.0	0.0
0.0	48.6	0.0	0.0	0.0	0.0
0.0	0.0	48.6	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [fcc]

1	2	3	4	5	6
22.4	14.6	14.6	0.0	0.0	0.0
14.6	22.4	14.6	0.0	0.0	0.0
14.6	14.6	22.4	0.0	0.0	0.0
0.0	0.0	0.0	14.9	0.0	0.0
0.0	0.0	0.0	0.0	14.9	0.0
0.0	0.0	0.0	0.0	0.0	14.9

Elastic constants [bcc]

1	2	3	4	5	6
16.4	17.0	17.0	0.0	0.0	0.0
17.0	16.4	17.0	0.0	0.0	0.0
17.0	17.0	16.4	0.0	0.0	0.0
0.0	0.0	0.0	15.7	0.0	0.0
0.0	0.0	0.0	0.0	15.7	0.0
0.0	0.0	0.0	0.0	0.0	15.7

Elastic constants [hcp]

1	2	3	4	5	6
33.4	9.8	8.0	0.0	0.0	0.0
9.8	33.4	8.0	0.0	0.0	0.0
8.0	8.0	42.3	0.0	0.0	0.0
0.0	0.0	0.0	7.1	0.0	0.0
0.0	0.0	0.0	0.0	7.1	0.0
0.0	0.0	0.0	0.0	0.0	11.9
