polymlp-00210 (Cs-2024-06-05)

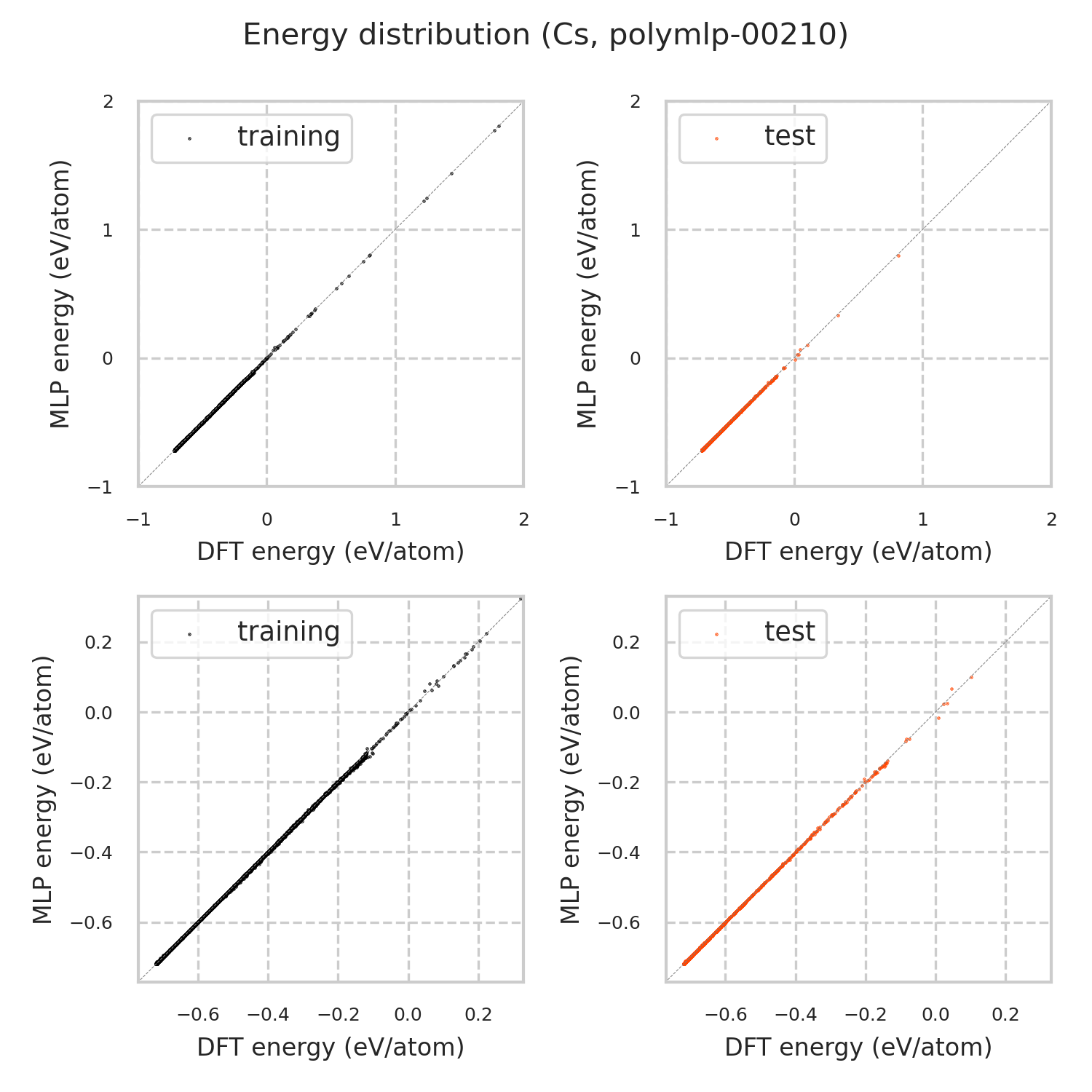

Energy distribution

Prototype structure energy

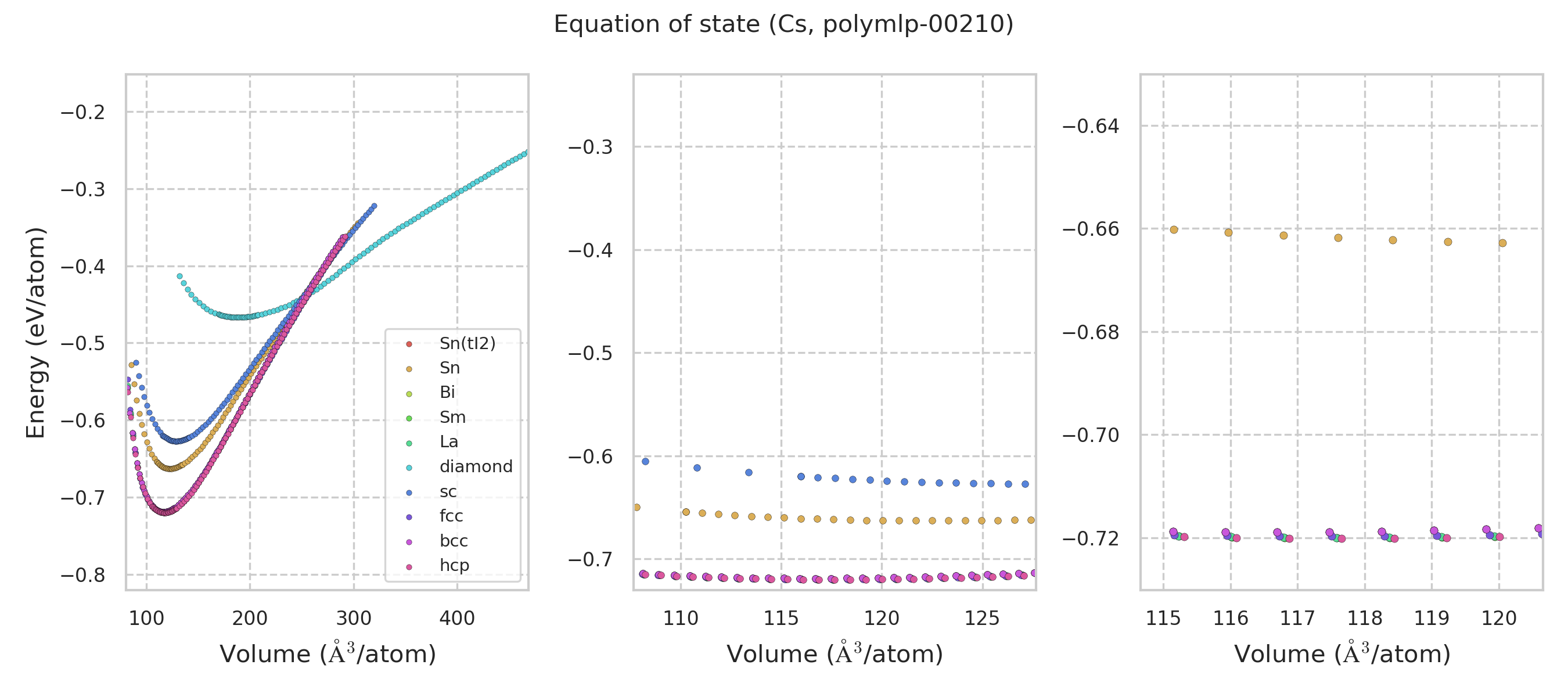

Equation of state

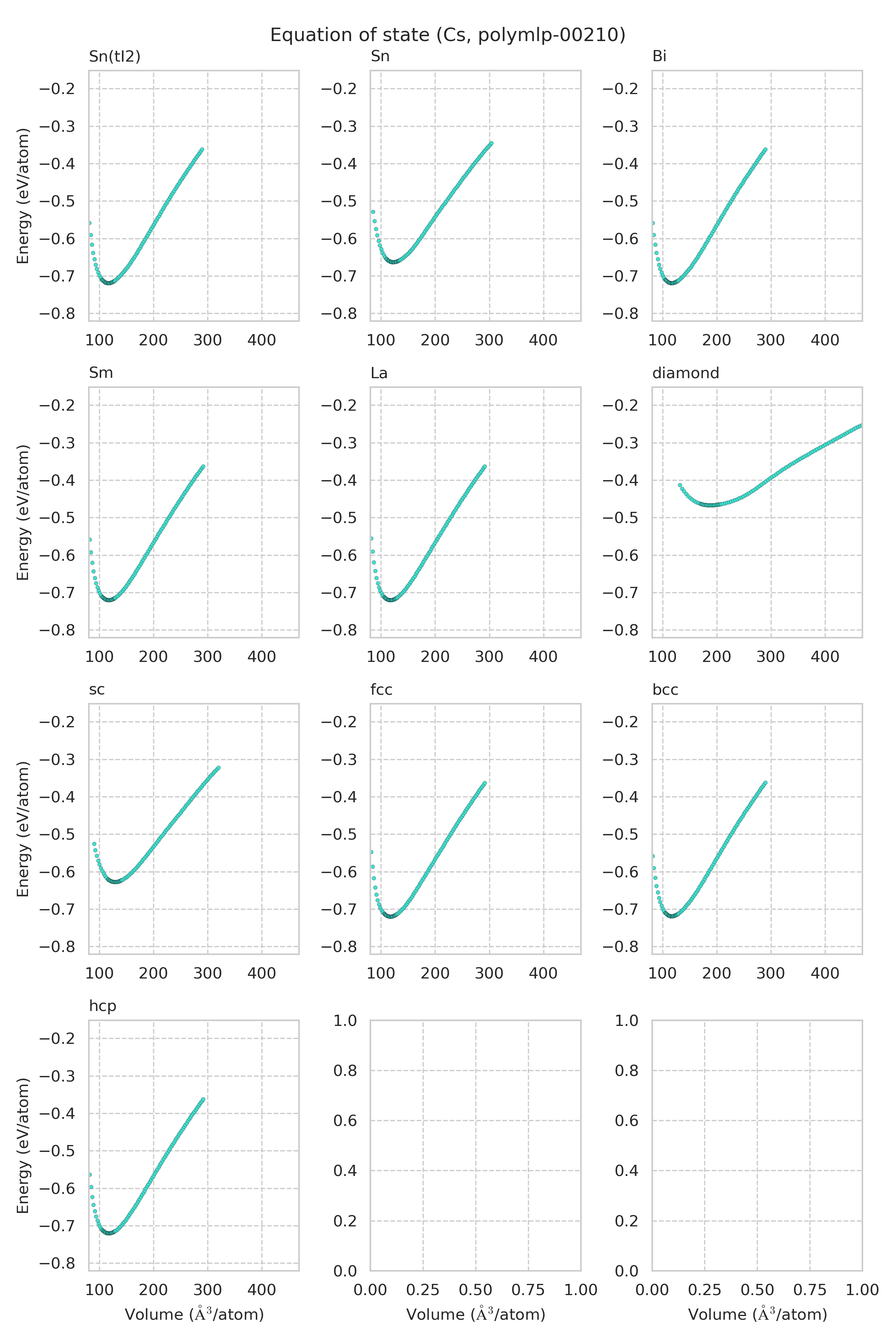

Equation of state for each structure

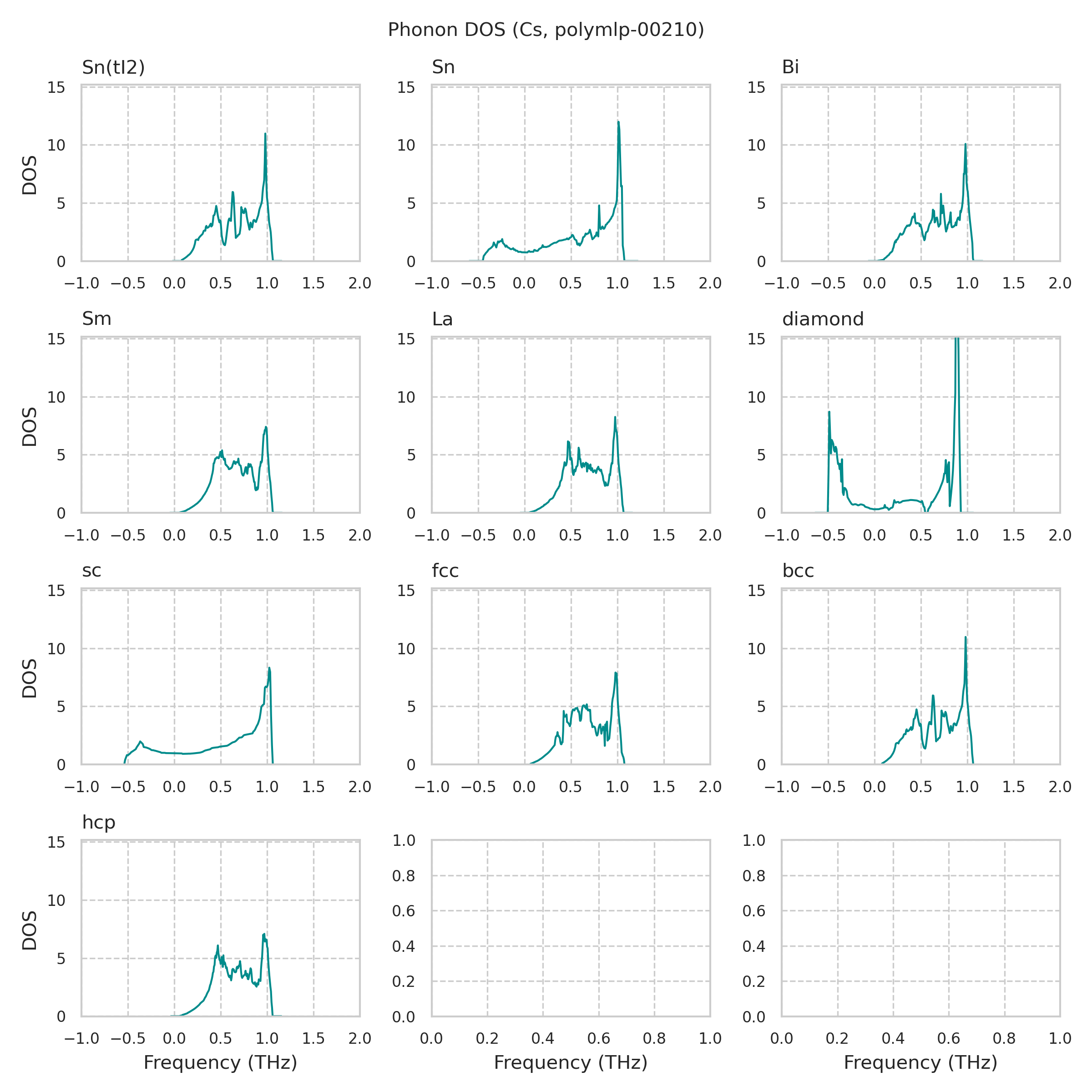

Phonon density of states

Prototype structure energy

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-161381-[K(HP)]	-0.71991	-0.72015
icsd-652876-[hcp-Mg]	-0.71984	-0.72019
icsd-652633-[Sm]	-0.71981	-0.71971
icsd-182587-[Nickeline-NiAs]	-0.71978	-0.72
icsd-52916-[La]	-0.71974	-0.71999
icsd-104296-[Hg(LT)]	-0.71969	-0.71971
icsd-52914-[ccp-Cu]	-0.71965	-0.71961
icsd-31829-[Graphite(3R)]	-0.71963	-0.71953
icsd-31170-[C(P63mc)]	-0.71962	-0.71983
icsd-653045-[Se(gamma)]	-0.71953	-0.71942
icsd-168172-[I(Immm)]	-0.71943	-0.71993
icsd-189460-[MnP]	-0.71939	-0.71935
icsd-236858-[O8]	-0.71919	-0.71929
icsd-108682-[Pr(hP6)]	-0.71918	-0.71921
icsd-157920-[IrV]	-0.71915	-0.71914
icsd-2091-[Se3S5]	-0.71913	-0.7189
icsd-639810-[In]	-0.71897	-0.71954
icsd-76156-[bcc-W]	-0.7188	-0.71952
icsd-656457-[Po(hR1)]	-0.71868	-0.71906
icsd-52501-[Te(mP4)]	-0.71862	-0.71878
icsd-105489-[FeB]	-0.71861	-0.71863
icsd-97742-[Sb2Te3]	-0.71855	-0.71911
icsd-648333-[Pa]	-0.71853	-0.71924
icsd-246446-[Bi(III)]	-0.71846	-0.71914
icsd-43216-[Sn(tI2)]	-0.71845	-0.71912
icsd-52412-[Sc]	-0.71839	-0.71862
icsd-31692-[Pu(mP16)]	-0.71835	-0.71828
icsd-42679-[Sb(mP4)]	-0.71825	-0.71857
icsd-653381-[U]	-0.71794	-0.71832
icsd-248500-[O2(mS4)]	-0.71789	-0.71822
icsd-109012-[Li(cI16)]	-0.71739	-0.71747
icsd-194468-[I2]	-0.71712	-0.71742
icsd-248474-[Pu(oF8)]	-0.71308	-0.71355
icsd-189786-[Si(oS16)]	-0.71207	-0.71175
icsd-76166-[U(beta)-CrFe]	-0.71174	-0.71181
icsd-280872-[Ta(tP30)]	-0.71158	-0.71169
icsd-76041-[U(beta)]	-0.71092	-0.71101
icsd-56897-[SmNiSb]	-0.71071	-0.71063
icsd-187431-[CaHg2]	-0.71066	-0.71057
icsd-108326-[Cr3Si]	-0.71037	-0.71045
icsd-57192-[Cs(tP8)]	-0.70957	-0.70926
icsd-43058-[Mn(alpha)-Mn(cI58)]	-0.7088	-0.70893
icsd-642937-[Mn(cP20)]	-0.70858	-0.70814
icsd-182760-[C(C2/m)]	-0.70791	-0.7079
icsd-653797-[Pu(mS34)]	-0.70617	-0.70605
icsd-26482-[N2(cP8)]	-0.7032	-0.70347
icsd-245956-[Ge]	-0.70276	-0.70302
icsd-165725-[Co(tP28)]	-0.69642	-0.69635
icsd-30606-[Se(beta)]	-0.69574	-0.69573
icsd-15535-[O2(hR2)]	-0.69401	-0.69404
icsd-43539-[Ga(Cmcm)]	-0.69203	-0.69229
icsd-609832-[P(black)]	-0.69164	-0.69163
icsd-173517-[Ge(HP)]	-0.68367	-0.684
icsd-37090-[S6]	-0.67853	-0.67902
icsd-109028-[Bi(I4/mcm)]	-0.67847	-0.67842
icsd-43251-[S8(Fddd)]	-0.67722	-0.67729
icsd-165132-[B28]	-0.67561	-0.67506
icsd-644520-[N2(epsilon)]	-0.67441	-0.67451
icsd-109035-[Ca.15Sn.85]	-0.66874	-0.66898
icsd-109018-[Cs(HP)]	-0.66632	-0.66638
icsd-26463-[S12]	-0.66443	-0.66473
icsd-653719-[Bi]	-0.66356	-0.66352
icsd-236662-[Sn]	-0.6629	-0.66292
icsd-56503-[GaSb]	-0.66288	-0.6629
icsd-189436-[B(tP50)]	-0.65104	-0.65094
icsd-188336-[(Ca8)xCa2]	-0.64754	-0.64769
icsd-162256-[Ga]	-0.62935	-0.62965
icsd-616526-[As]	-0.62744	-0.62729
icsd-28540-[H2]	-0.62741	-0.62789
icsd-43211-[Po(alpha)]	-0.62738	-0.62766
icsd-181082-[C(P1)]	-0.62735	-0.62764
icsd-162242-[Ca(III)]	-0.62733	-0.62782
icsd-181908-[Si(I4/mmm)]	-0.62732	-0.62761
icsd-109027-[Sr(HP)]	-0.62732	-0.62761
icsd-182732-[BN(P1)]	-0.62697	-0.62726
icsd-62747-[B(hR12)]	-0.62142	-0.6216
icsd-185973-[C3N2]	-0.57654	-0.57578
icsd-193439-[Graphite(2H)]	-0.56167	-0.56094
icsd-88820-[Si(HP)]	-0.55736	-0.5574
icsd-88815-[Graphite(oS16)]	-0.55265	-0.55418
icsd-30101-[Wurtzite-ZnS(2H)]	-0.46714	-0.46708
icsd-24892-[N2]	-0.46701	-0.46708
icsd-41979-[Diamond-C(cF8)]	-0.46689	-0.4652
icsd-167204-[Ge(hP8)]	-0.4665	-0.46684

Lattice constants

Lattice constants [Sn(tI2)] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
233.393	6.1569	6.1569	6.157	90.0	90.0	90.0

Lattice constants [Sn] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
490.0089	9.6803	9.6803	5.2291	90.0	90.0	90.0

Lattice constants [Bi] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
233.3942	6.1569	6.1569	6.1569	90.0	90.0	90.0

Lattice constants [Sm] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
1058.272	5.5041	5.5041	40.3364	90.0	90.0	120.0

Lattice constants [La] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
940.6089	5.5017	9.5291	17.9416	90.0	90.0	90.0

Lattice constants [diamond] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
1509.4712	11.4712	11.4712	11.4712	90.0	90.0	90.0

Lattice constants [sc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
128.8505	5.0508	5.0508	5.0508	90.0	90.0	90.0

Lattice constants [fcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
470.0443	7.7752	7.7752	7.7752	90.0	90.0	90.0

Lattice constants [bcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
233.3941	6.1569	6.1569	6.1569	90.0	90.0	90.0

Lattice constants [hcp] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
470.6264	5.5086	9.5412	8.9542	90.0	90.0	90.0

Elastic constants

Elastic constants [Sn(tI2)]

1	2	3	4	5	6
2.3	2.0	2.0	0.0	0.0	0.0
2.0	2.3	2.0	0.0	0.0	0.0
2.0	2.0	2.3	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	1.4

Elastic constants [Sn]

1	2	3	4	5	6
4.7	0.0	0.7	0.0	0.0	0.0
0.0	4.7	0.7	0.0	0.0	0.0
0.7	0.7	4.1	0.0	0.0	0.0
0.0	0.0	0.0	0.1	0.0	0.0
0.0	0.0	0.0	0.0	0.1	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Bi]

1	2	3	4	5	6
3.6	0.7	2.0	0.0	0.0	0.0
0.7	3.6	2.0	0.0	0.0	0.0
2.0	2.0	2.3	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	0.2

Elastic constants [Sm]

1	2	3	4	5	6
3.3	1.3	1.0	0.2	0.0	0.0
1.3	3.3	1.0	0.0	0.0	0.0
1.0	1.0	3.7	0.0	0.0	0.0
0.2	0.0	0.0	0.6	0.0	0.0
0.0	0.0	0.0	0.0	0.6	0.2
0.0	0.0	0.0	0.0	0.2	1.0

Elastic constants [La]

1	2	3	4	5	6
3.3	1.3	0.9	0.0	0.0	0.0
1.3	3.3	0.9	0.0	0.0	0.0
0.9	0.9	3.7	0.0	0.0	0.0
0.0	0.0	0.0	0.6	0.0	0.0
0.0	0.0	0.0	0.0	0.6	0.0
0.0	0.0	0.0	0.0	0.0	1.0

Elastic constants [diamond]

1	2	3	4	5	6
0.0	0.9	0.9	0.0	0.0	0.0
0.9	0.0	0.9	0.0	0.0	0.0
0.9	0.9	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.5	0.0	0.0
0.0	0.0	0.0	0.0	0.5	0.0
0.0	0.0	0.0	0.0	0.0	0.5

Elastic constants [sc]

1	2	3	4	5	6
4.9	0.0	0.0	0.0	0.0	0.0
0.0	4.9	0.0	0.0	0.0	0.0
0.0	0.0	4.9	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [fcc]

1	2	3	4	5	6
2.2	1.8	1.8	0.0	0.0	0.0
1.8	2.2	1.8	0.0	0.0	0.0
1.8	1.8	2.2	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	1.4

Elastic constants [bcc]

1	2	3	4	5	6
2.3	2.0	2.0	0.0	0.0	0.0
2.0	2.3	2.0	0.0	0.0	0.0
2.0	2.0	2.3	0.0	0.0	0.0
0.0	0.0	0.0	1.4	0.0	0.0
0.0	0.0	0.0	0.0	1.4	0.0
0.0	0.0	0.0	0.0	0.0	1.4

Elastic constants [hcp]

1	2	3	4	5	6
3.3	1.3	1.0	0.0	0.0	0.0
1.3	3.3	1.0	0.0	0.0	0.0
1.0	1.0	3.6	0.0	0.0	0.0
0.0	0.0	0.0	0.6	0.0	0.0
0.0	0.0	0.0	0.0	0.6	0.0
0.0	0.0	0.0	0.0	0.0	1.0
