polymlp-00106 (Li-2024-06-05)

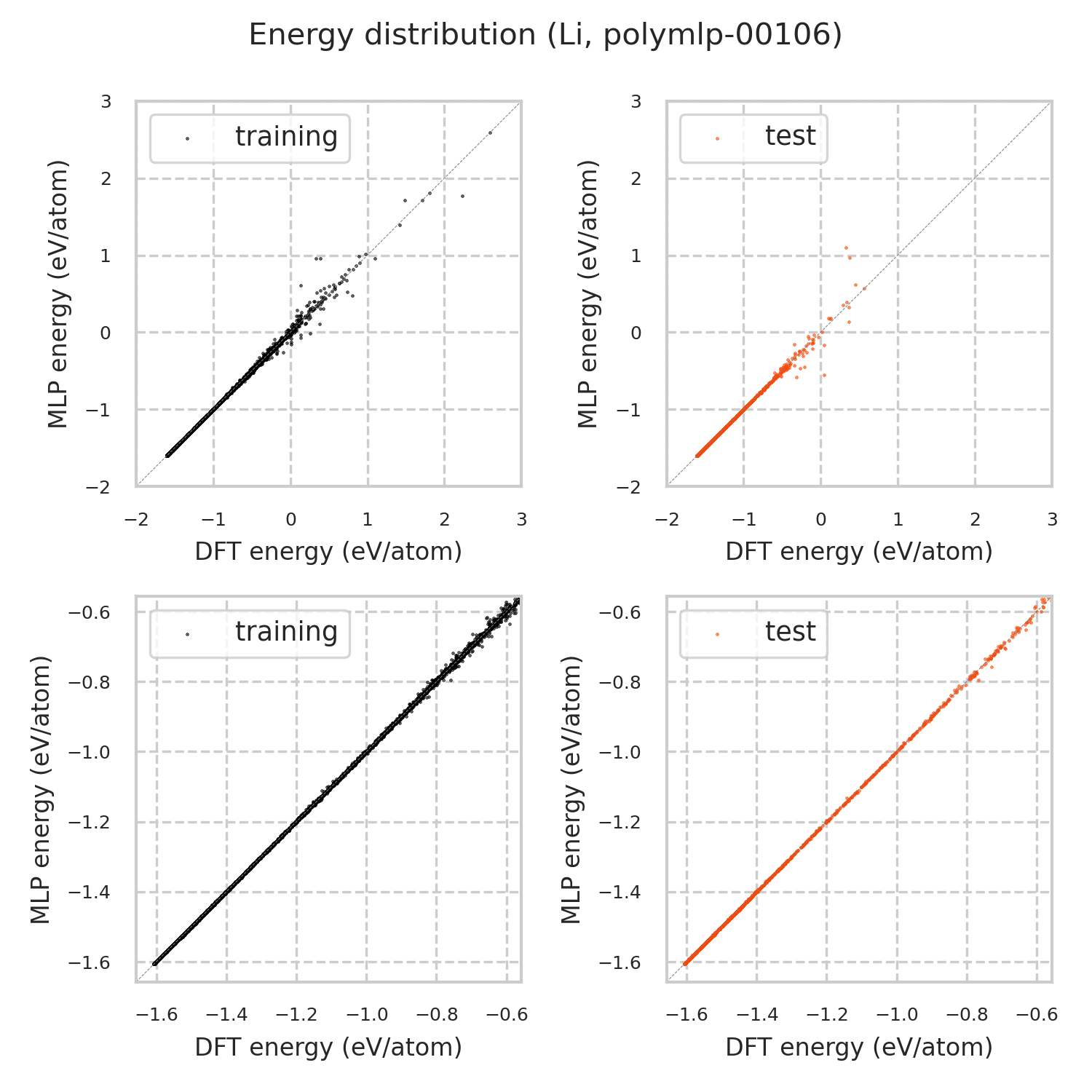

Energy distribution

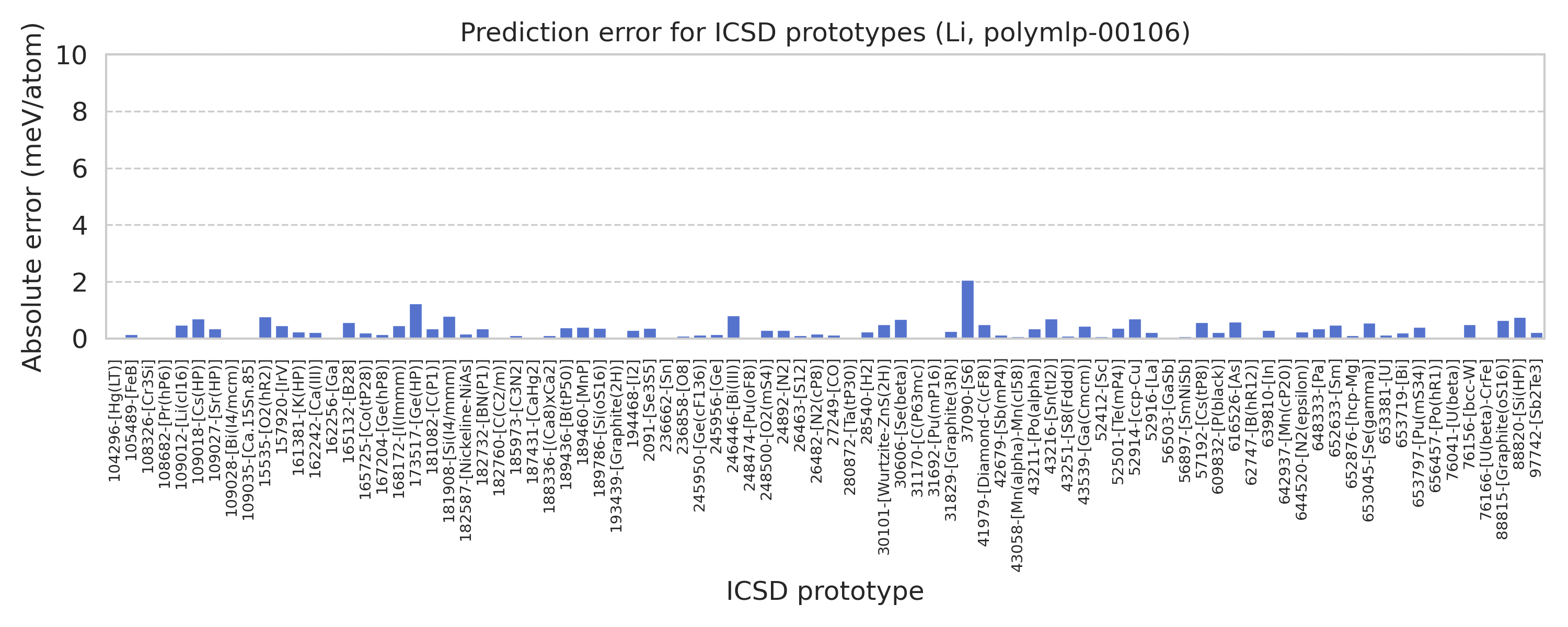

Prototype structure energy

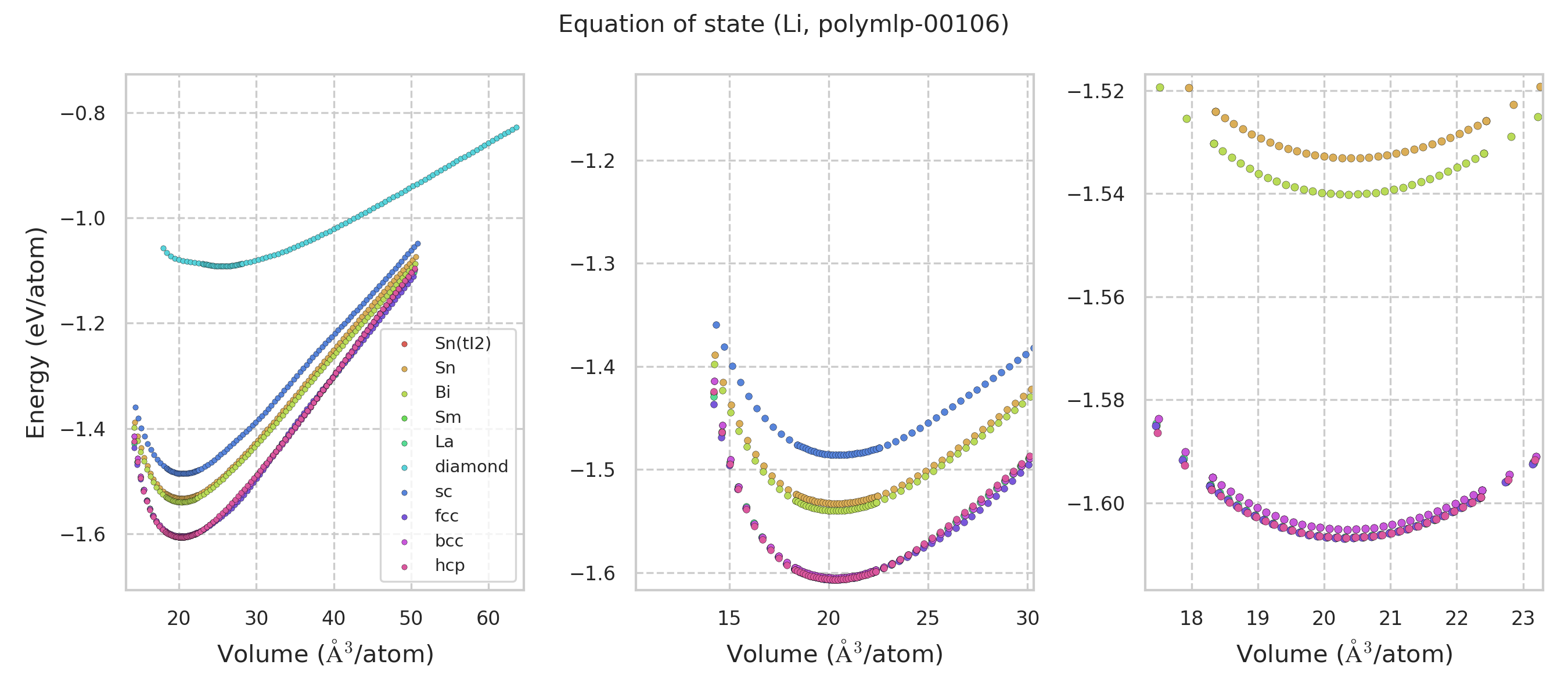

Equation of state

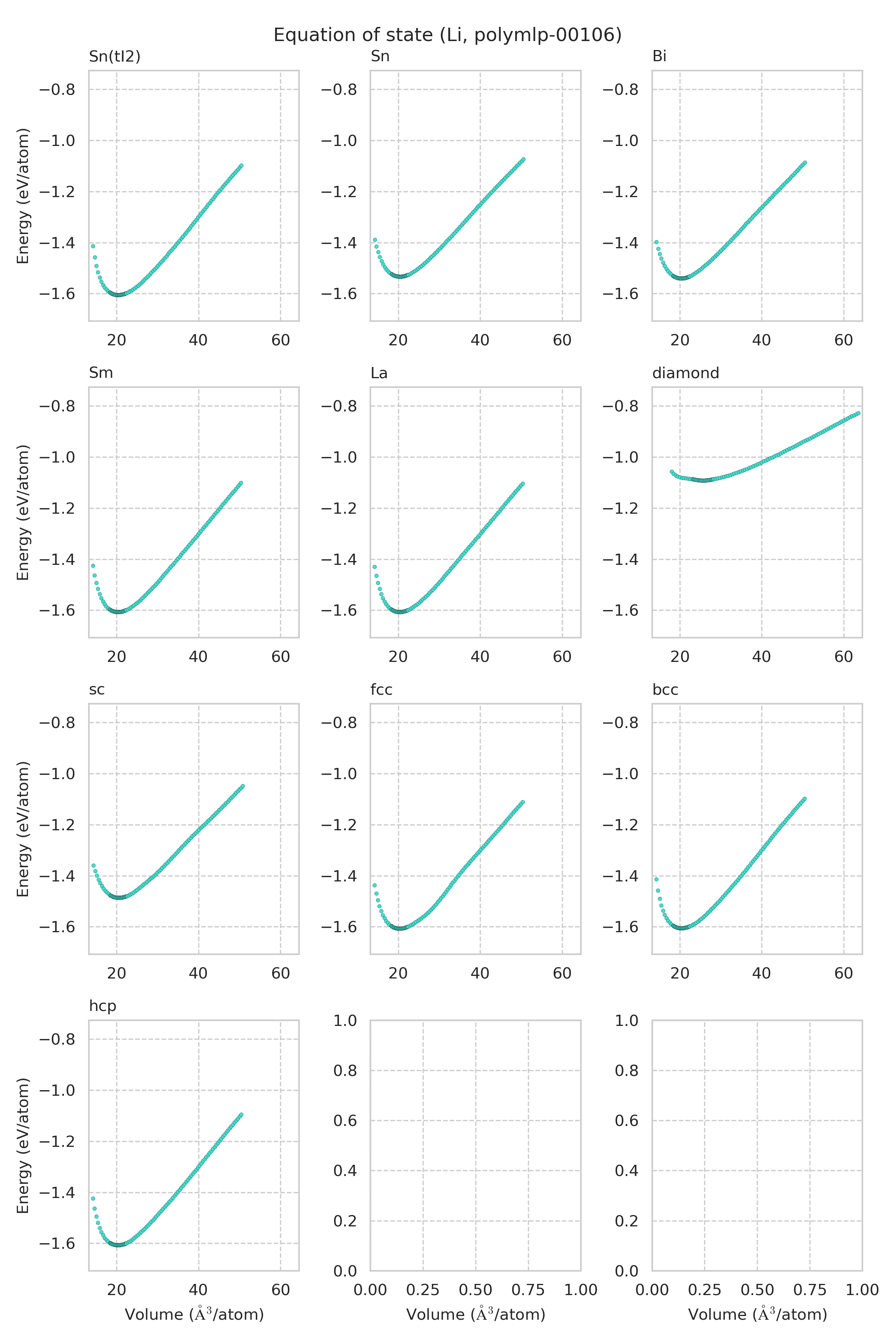

Equation of state for each structure

Phonon density of states

Prototype structure energy

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-104296-[Hg(LT)]	-1.60689	-1.60686
icsd-52914-[ccp-Cu]	-1.60687	-1.60616
icsd-652633-[Sm]	-1.60681	-1.60632
icsd-189786-[Si(oS16)]	-1.6068	-1.60718
icsd-652876-[hcp-Mg]	-1.60673	-1.60685
icsd-161381-[K(HP)]	-1.60672	-1.60698
icsd-52916-[La]	-1.60668	-1.60691
icsd-168172-[I(Immm)]	-1.60667	-1.60713
icsd-52501-[Te(mP4)]	-1.60664	-1.60702
icsd-31692-[Pu(mP16)]	-1.60652	-1.60653
icsd-57192-[Cs(tP8)]	-1.60639	-1.60698
icsd-248500-[O2(mS4)]	-1.60634	-1.60666
icsd-108682-[Pr(hP6)]	-1.60631	-1.60629
icsd-639810-[In]	-1.6063	-1.60599
icsd-653381-[U]	-1.60622	-1.60608
icsd-157920-[IrV]	-1.6057	-1.60618
icsd-76156-[bcc-W]	-1.60516	-1.60466
icsd-656457-[Po(hR1)]	-1.60514	-1.6052
icsd-31829-[Graphite(3R)]	-1.60509	-1.60536
icsd-52412-[Sc]	-1.60508	-1.60517
icsd-648333-[Pa]	-1.60506	-1.60541
icsd-97742-[Sb2Te3]	-1.60503	-1.60479
icsd-182760-[C(C2/m)]	-1.60502	-1.60495
icsd-43216-[Sn(tI2)]	-1.6049	-1.60562
icsd-105489-[FeB]	-1.60485	-1.605
icsd-194468-[I2]	-1.60473	-1.60444
icsd-246446-[Bi(III)]	-1.6046	-1.60542
icsd-109012-[Li(cI16)]	-1.60414	-1.60462
icsd-248474-[Pu(oF8)]	-1.59785	-1.5979
icsd-187431-[CaHg2]	-1.59422	-1.59415
icsd-56897-[SmNiSb]	-1.59418	-1.59409
icsd-76166-[U(beta)-CrFe]	-1.5927	-1.59268
icsd-280872-[Ta(tP30)]	-1.5926	-1.59259
icsd-76041-[U(beta)]	-1.59256	-1.59254
icsd-108326-[Cr3Si]	-1.59017	-1.59012
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.58875	-1.58883
icsd-653797-[Pu(mS34)]	-1.58552	-1.58594
icsd-642937-[Mn(cP20)]	-1.58481	-1.58478
icsd-27249-[CO]	-1.57712	-1.57726
icsd-26482-[N2(cP8)]	-1.57705	-1.57723
icsd-15535-[O2(hR2)]	-1.57204	-1.57125
icsd-24892-[N2]	-1.5718	-1.57149
icsd-236858-[O8]	-1.57127	-1.57117
icsd-609832-[P(black)]	-1.56846	-1.5687
icsd-43539-[Ga(Cmcm)]	-1.56814	-1.56859
icsd-165725-[Co(tP28)]	-1.56695	-1.56716
icsd-109035-[Ca.15Sn.85]	-1.54015	-1.54013
icsd-109028-[Bi(I4/mcm)]	-1.54009	-1.54014
icsd-182587-[Nickeline-NiAs]	-1.53808	-1.53789
icsd-109018-[Cs(HP)]	-1.53677	-1.53748
icsd-2091-[Se3S5]	-1.53591	-1.53628
icsd-644520-[N2(epsilon)]	-1.53513	-1.53538
icsd-43251-[S8(Fddd)]	-1.53362	-1.53372
icsd-37090-[S6]	-1.53342	-1.53134
icsd-653719-[Bi]	-1.53319	-1.53298
icsd-236662-[Sn]	-1.53309	-1.53311
icsd-56503-[GaSb]	-1.53308	-1.53309
icsd-30606-[Se(beta)]	-1.53068	-1.53138
icsd-42679-[Sb(mP4)]	-1.52547	-1.52534
icsd-162256-[Ga]	-1.52029	-1.52024
icsd-165132-[B28]	-1.50566	-1.50507
icsd-189460-[MnP]	-1.50039	-1.50081
icsd-162242-[Ca(III)]	-1.48603	-1.48627
icsd-616526-[As]	-1.48595	-1.48534
icsd-109027-[Sr(HP)]	-1.48594	-1.48558
icsd-181082-[C(P1)]	-1.48594	-1.48557
icsd-182732-[BN(P1)]	-1.48591	-1.48554
icsd-43211-[Po(alpha)]	-1.48591	-1.48555
icsd-653045-[Se(gamma)]	-1.48588	-1.48531
icsd-62747-[B(hR12)]	-1.44072	-1.44073
icsd-173517-[Ge(HP)]	-1.43018	-1.43143
icsd-245956-[Ge]	-1.37595	-1.37611
icsd-88820-[Si(HP)]	-1.37588	-1.37665
icsd-26463-[S12]	-1.36608	-1.36596
icsd-245950-[Ge(cF136)]	-1.33929	-1.33944
icsd-193439-[Graphite(2H)]	-1.32222	-1.32214
icsd-31170-[C(P63mc)]	-1.3222	-1.32213
icsd-28540-[H2]	-1.31444	-1.31419
icsd-188336-[(Ca8)xCa2]	-1.23067	-1.2308
icsd-189436-[B(tP50)]	-1.15463	-1.15423
icsd-30101-[Wurtzite-ZnS(2H)]	-1.10122	-1.10173
icsd-167204-[Ge(hP8)]	-1.09653	-1.0967
icsd-41979-[Diamond-C(cF8)]	-1.09167	-1.09217
icsd-181908-[Si(I4/mmm)]	-1.03997	-1.03917
icsd-88815-[Graphite(oS16)]	-1.01382	-1.01317
icsd-185973-[C3N2]	-0.9247	-0.92483

Lattice constants

Lattice constants [Sn(tI2)] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
40.696	3.4397	3.4397	3.4397	90.0	90.0	90.0

Lattice constants [Sn] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
81.6166	5.3206	5.3206	2.8831	90.0	90.0	90.0

Lattice constants [Bi] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
20.371	2.941	2.941	2.7195	90.0	90.0	120.0

Lattice constants [Sm] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
182.804	3.0615	3.0615	22.5204	90.0	90.0	120.0

Lattice constants [La] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
81.2578	3.0626	3.0626	10.0035	90.0	90.0	120.0

Lattice constants [diamond] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
205.133	5.8976	5.8976	5.8976	90.0	90.0	90.0

Lattice constants [sc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
20.4906	2.7364	2.7364	2.7364	90.0	90.0	90.0

Lattice constants [fcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
81.1986	4.3303	4.3303	4.3303	90.0	90.0	90.0

Lattice constants [bcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
40.696	3.4397	3.4397	3.4397	90.0	90.0	90.0

Lattice constants [hcp] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
81.3325	3.0615	5.3026	5.0101	90.0	90.0	90.0

Elastic constants

Elastic constants [Sn(tI2)]

1	2	3	4	5	6
14.4	13.1	13.1	0.0	0.0	0.0
13.1	14.4	13.1	0.0	0.0	0.0
13.1	13.1	14.4	0.0	0.0	0.0
0.0	0.0	0.0	11.2	0.0	0.0
0.0	0.0	0.0	0.0	11.2	0.0
0.0	0.0	0.0	0.0	0.0	11.2

Elastic constants [Sn]

1	2	3	4	5	6
46.9	0.0	0.0	0.0	0.0	0.0
0.0	46.9	0.0	0.0	0.0	0.0
0.0	0.0	38.7	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Bi]

1	2	3	4	5	6
38.2	0.0	17.0	0.0	0.0	0.0
0.0	50.6	0.0	0.0	0.0	0.0
17.0	0.0	38.3	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	10.6	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Sm]

1	2	3	4	5	6
26.5	9.4	6.7	1.3	0.0	0.0
9.4	26.5	6.7	0.0	0.0	0.0
6.7	6.7	26.3	0.0	0.0	0.0
1.3	0.0	0.0	4.8	0.0	0.0
0.0	0.0	0.0	0.0	4.7	1.2
0.0	0.0	0.0	0.0	1.2	8.0

Elastic constants [La]

1	2	3	4	5	6
26.8	9.6	6.7	0.0	0.0	0.0
9.6	26.8	6.7	0.0	0.0	0.0
6.7	6.7	25.3	0.0	0.0	0.0
0.0	0.0	0.0	4.8	0.0	0.0
0.0	0.0	0.0	0.0	4.8	0.0
0.0	0.0	0.0	0.0	0.0	8.0

Elastic constants [diamond]

1	2	3	4	5	6
0.0	13.5	13.5	0.0	0.0	0.0
13.5	0.0	13.5	0.0	0.0	0.0
13.5	13.5	0.0	0.0	0.0	0.0
0.0	0.0	0.0	2.6	0.0	0.0
0.0	0.0	0.0	0.0	2.6	0.0
0.0	0.0	0.0	0.0	0.0	2.6

Elastic constants [sc]

1	2	3	4	5	6
57.8	0.0	0.0	0.0	0.0	0.0
0.0	57.8	0.0	0.0	0.0	0.0
0.0	0.0	57.8	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [fcc]

1	2	3	4	5	6
16.9	13.2	13.2	0.0	0.0	0.0
13.2	16.9	13.2	0.0	0.0	0.0
13.2	13.2	16.9	0.0	0.0	0.0
0.0	0.0	0.0	10.2	0.0	0.0
0.0	0.0	0.0	0.0	10.2	0.0
0.0	0.0	0.0	0.0	0.0	10.2

Elastic constants [bcc]

1	2	3	4	5	6
14.4	13.1	13.1	0.0	0.0	0.0
13.1	14.4	13.1	0.0	0.0	0.0
13.1	13.1	14.4	0.0	0.0	0.0
0.0	0.0	0.0	11.2	0.0	0.0
0.0	0.0	0.0	0.0	11.2	0.0
0.0	0.0	0.0	0.0	0.0	11.2

Elastic constants [hcp]

1	2	3	4	5	6
25.5	8.3	6.3	0.0	0.0	0.0
8.3	25.5	6.3	0.0	0.0	0.0
6.3	6.3	25.7	0.0	0.0	0.0
0.0	0.0	0.0	4.6	0.0	0.0
0.0	0.0	0.0	0.0	4.5	0.0
0.0	0.0	0.0	0.0	0.0	8.1
