polymlp-00151 (Na-2024-06-05)

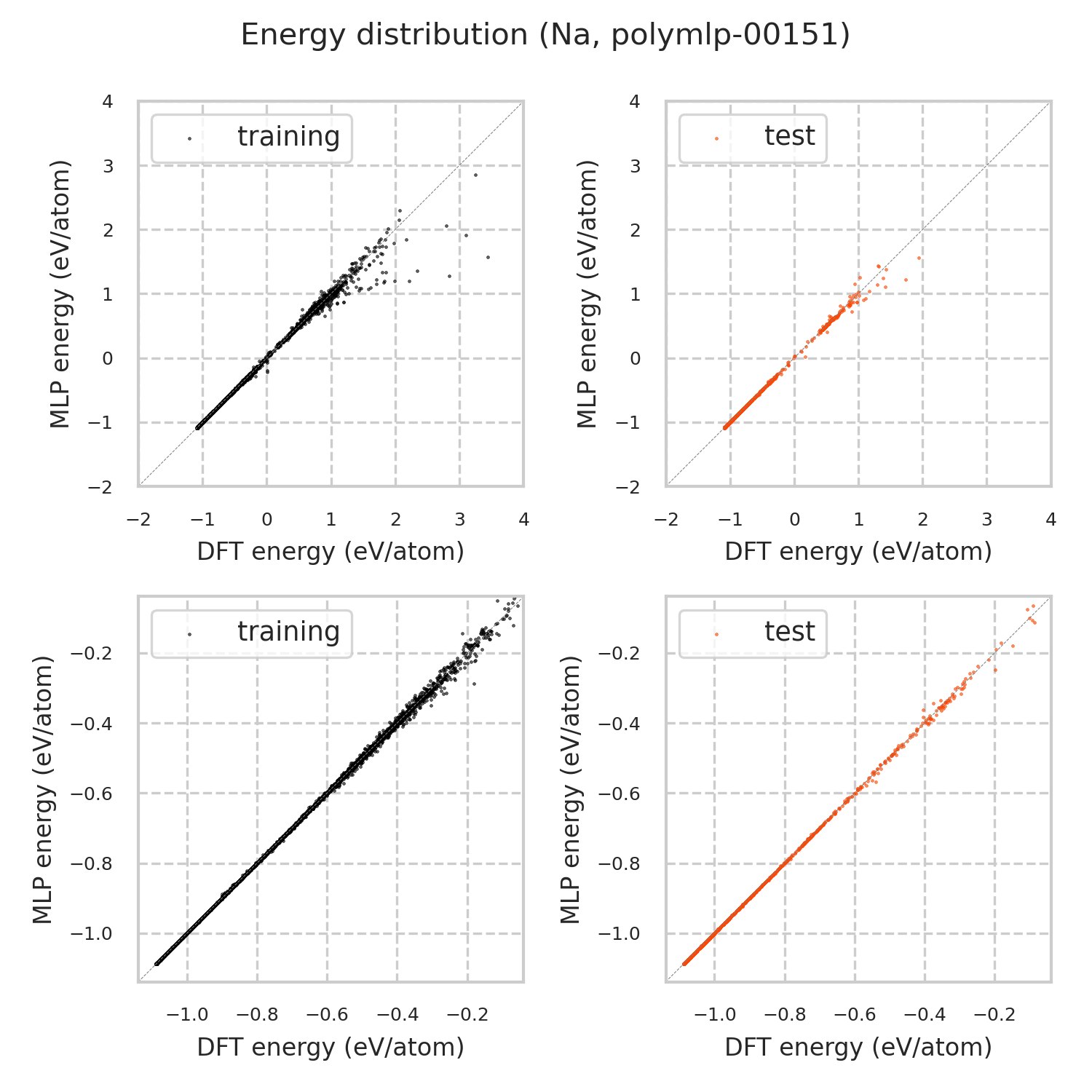

Energy distribution

Prototype structure energy

Equation of state

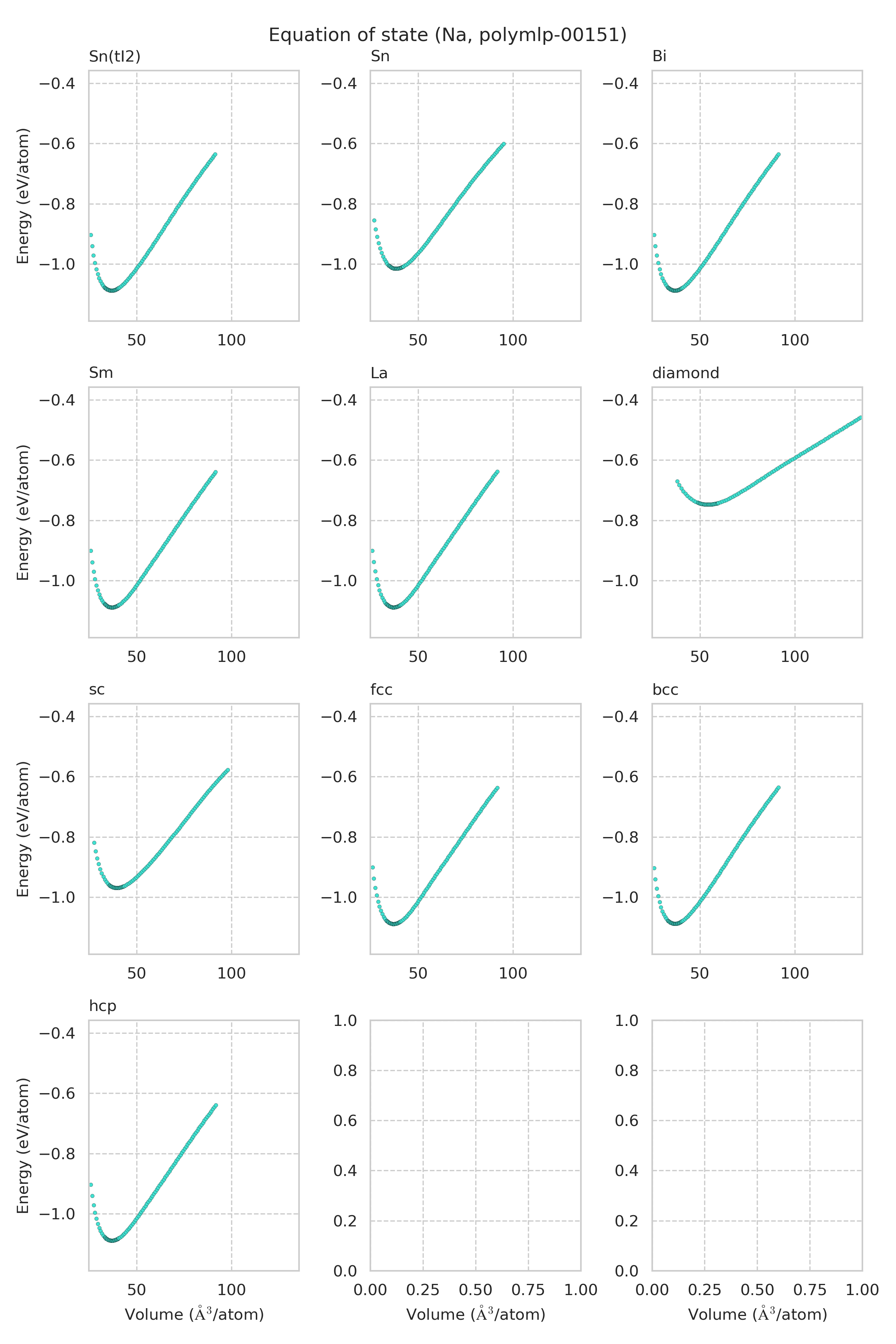

Equation of state for each structure

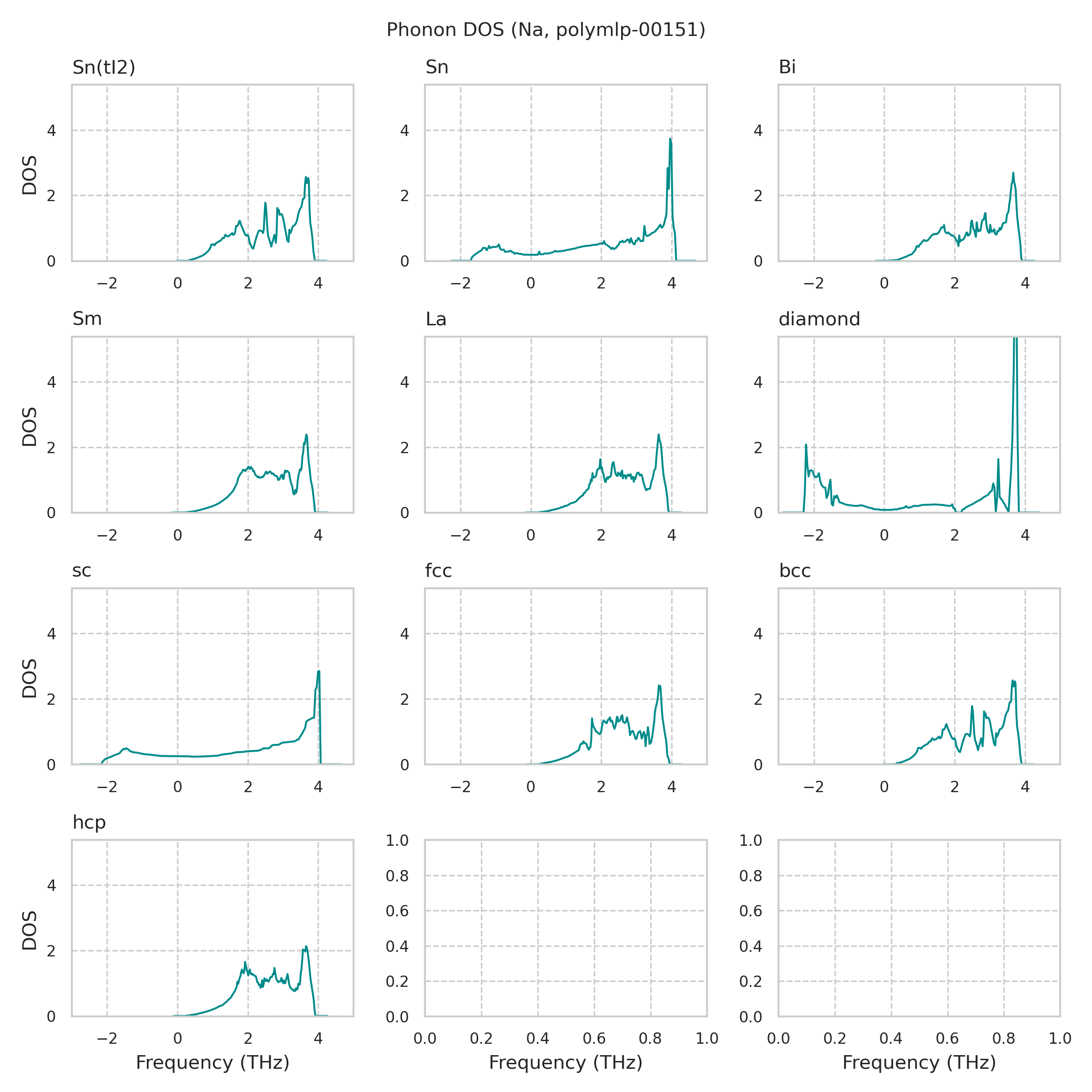

Phonon density of states

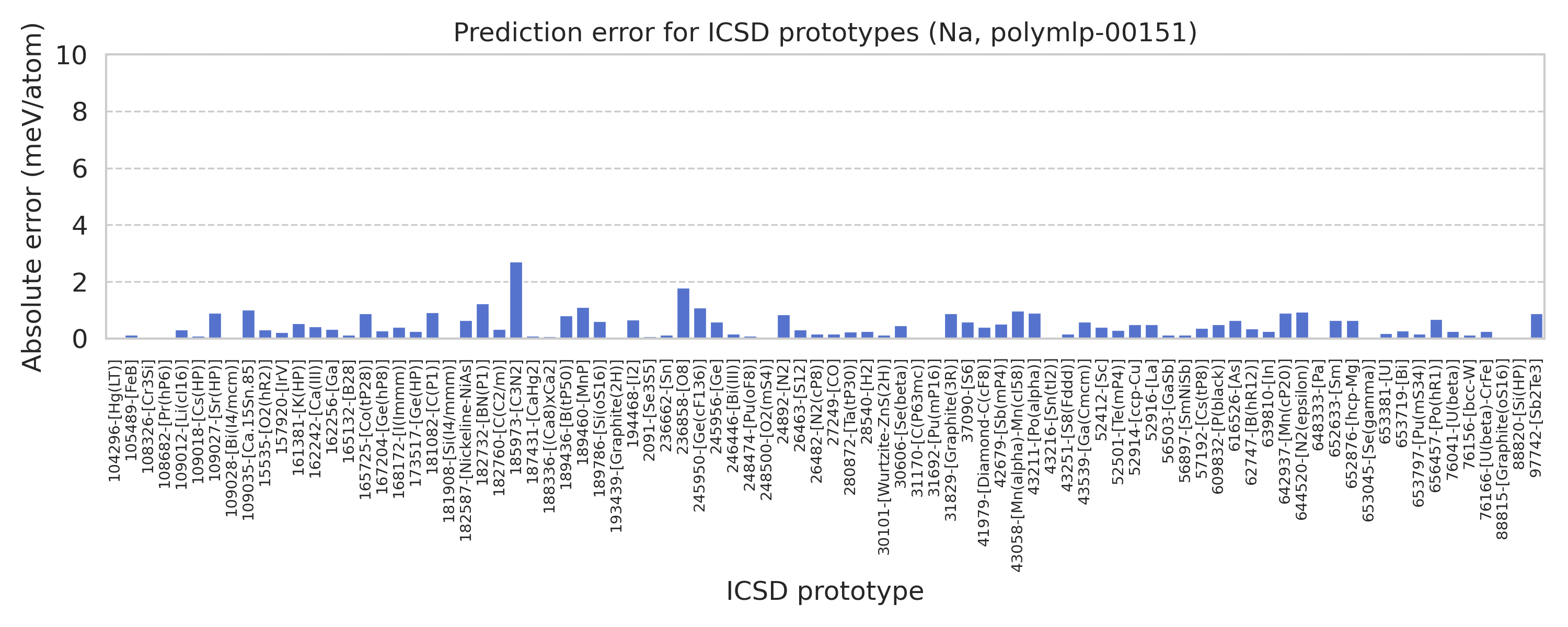

Prototype structure energy

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-652876-[hcp-Mg]	-1.08869	-1.08803
icsd-652633-[Sm]	-1.08854	-1.08787
icsd-161381-[K(HP)]	-1.0885	-1.08796
icsd-104296-[Hg(LT)]	-1.08844	-1.08837
icsd-52914-[ccp-Cu]	-1.08844	-1.08793
icsd-182587-[Nickeline-NiAs]	-1.08841	-1.08776
icsd-52916-[La]	-1.08841	-1.08791
icsd-653381-[U]	-1.08841	-1.0886
icsd-168172-[I(Immm)]	-1.08839	-1.08798
icsd-189786-[Si(oS16)]	-1.08816	-1.08878
icsd-108682-[Pr(hP6)]	-1.088	-1.08794
icsd-57192-[Cs(tP8)]	-1.08784	-1.08822
icsd-31692-[Pu(mP16)]	-1.08783	-1.08779
icsd-76156-[bcc-W]	-1.08779	-1.08764
icsd-639810-[In]	-1.08778	-1.08806
icsd-656457-[Po(hR1)]	-1.08774	-1.08843
icsd-31829-[Graphite(3R)]	-1.08767	-1.08856
icsd-97742-[Sb2Te3]	-1.08761	-1.0885
icsd-648333-[Pa]	-1.08751	-1.08749
icsd-248500-[O2(mS4)]	-1.08746	-1.0875
icsd-105489-[FeB]	-1.08745	-1.08731
icsd-194468-[I2]	-1.08745	-1.08813
icsd-43216-[Sn(tI2)]	-1.08735	-1.08742
icsd-52412-[Sc]	-1.08721	-1.08763
icsd-246446-[Bi(III)]	-1.08712	-1.08729
icsd-157920-[IrV]	-1.08687	-1.08709
icsd-109012-[Li(cI16)]	-1.08572	-1.08606
icsd-30606-[Se(beta)]	-1.0818	-1.08133
icsd-248474-[Pu(oF8)]	-1.08007	-1.08018
icsd-76166-[U(beta)-CrFe]	-1.07777	-1.07805
icsd-280872-[Ta(tP30)]	-1.07769	-1.07795
icsd-187431-[CaHg2]	-1.07768	-1.07758
icsd-56897-[SmNiSb]	-1.07768	-1.07754
icsd-76041-[U(beta)]	-1.07767	-1.07795
icsd-642937-[Mn(cP20)]	-1.07659	-1.0775
icsd-43058-[Mn(alpha)-Mn(cI58)]	-1.07544	-1.07642
icsd-108326-[Cr3Si]	-1.07376	-1.07382
icsd-653797-[Pu(mS34)]	-1.07163	-1.07146
icsd-52501-[Te(mP4)]	-1.06499	-1.06468
icsd-165725-[Co(tP28)]	-1.05653	-1.05563
icsd-609832-[P(black)]	-1.05124	-1.05072
icsd-43539-[Ga(Cmcm)]	-1.05101	-1.05041
icsd-37090-[S6]	-1.03425	-1.03364
icsd-182760-[C(C2/m)]	-1.02652	-1.02686
icsd-165132-[B28]	-1.02609	-1.02596
icsd-109035-[Ca.15Sn.85]	-1.02218	-1.02116
icsd-42679-[Sb(mP4)]	-1.01687	-1.01633
icsd-109018-[Cs(HP)]	-1.01669	-1.01658
icsd-653719-[Bi]	-1.01537	-1.01507
icsd-56503-[GaSb]	-1.01508	-1.01521
icsd-236662-[Sn]	-1.01502	-1.01517
icsd-189460-[MnP]	-1.01281	-1.01169
icsd-162256-[Ga]	-1.00816	-1.00851
icsd-43251-[S8(Fddd)]	-0.99489	-0.99471
icsd-2091-[Se3S5]	-0.98854	-0.98846
icsd-616526-[As]	-0.96917	-0.96851
icsd-43211-[Po(alpha)]	-0.96892	-0.96801
icsd-109027-[Sr(HP)]	-0.96892	-0.96801
icsd-162242-[Ca(III)]	-0.96892	-0.96848
icsd-181082-[C(P1)]	-0.96883	-0.9679
icsd-182732-[BN(P1)]	-0.96879	-0.97003
icsd-653045-[Se(gamma)]	-0.96877	-0.96875
icsd-173517-[Ge(HP)]	-0.93843	-0.93817
icsd-109028-[Bi(I4/mcm)]	-0.93292	-0.93288
icsd-185973-[C3N2]	-0.91096	-0.91369
icsd-26463-[S12]	-0.90466	-0.905
icsd-245956-[Ge]	-0.90157	-0.90097
icsd-28540-[H2]	-0.88871	-0.88898
icsd-31170-[C(P63mc)]	-0.8879	-0.88789
icsd-193439-[Graphite(2H)]	-0.88767	-0.88765
icsd-88820-[Si(HP)]	-0.86963	-0.86964
icsd-62747-[B(hR12)]	-0.84971	-0.85008
icsd-188336-[(Ca8)xCa2]	-0.84148	-0.84157
icsd-88815-[Graphite(oS16)]	-0.84138	-0.84131
icsd-189436-[B(tP50)]	-0.80088	-0.80005
icsd-30101-[Wurtzite-ZnS(2H)]	-0.74971	-0.74958
icsd-167204-[Ge(hP8)]	-0.74836	-0.74864
icsd-41979-[Diamond-C(cF8)]	-0.74737	-0.74778
icsd-181908-[Si(I4/mmm)]	-0.73219	-0.73223
icsd-245950-[Ge(cF136)]	-0.72954	-0.72845
icsd-24892-[N2]	0.43588	0.43502
icsd-15535-[O2(hR2)]	0.43844	0.43812
icsd-236858-[O8]	0.44094	0.43914
icsd-644520-[N2(epsilon)]	0.46058	0.46153
icsd-26482-[N2(cP8)]	0.4868	0.48662
icsd-27249-[CO]	0.48701	0.48683

Lattice constants

Lattice constants [Sn(tI2)] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
73.7091	4.1928	4.1928	4.1929	90.0	90.0	90.0

Lattice constants [Sn] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
153.2762	6.5709	6.5709	3.55	90.0	90.0	90.0

Lattice constants [Bi] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
73.7089	4.1928	4.1928	4.1928	90.0	90.0	90.0

Lattice constants [Sm] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
332.5034	3.7399	3.7399	27.4502	90.0	90.0	120.0

Lattice constants [La] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
147.7401	3.7392	3.7392	12.2012	90.0	90.0	120.0

Lattice constants [diamond] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
434.5802	7.5745	7.5745	7.5745	90.0	90.0	90.0

Lattice constants [sc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
39.5554	3.4072	3.4072	3.4072	90.0	90.0	90.0

Lattice constants [fcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
147.7547	5.2866	5.2866	5.2866	90.0	90.0	90.0

Lattice constants [bcc] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
73.7089	4.1928	4.1928	4.1928	90.0	90.0	90.0

Lattice constants [hcp] (MLP)

volume (ang.^3)	a (ang.)	b (ang.)	c (ang.)	alpha	beta	gamma
73.9207	3.7409	3.7409	6.0993	90.0	90.0	120.0

Elastic constants

Elastic constants [Sn(tI2)]

1	2	3	4	5	6
8.8	7.6	7.6	0.0	0.0	0.0
7.6	8.8	7.6	0.0	0.0	0.0
7.6	7.6	8.8	0.0	0.0	0.0
0.0	0.0	0.0	6.4	0.0	0.0
0.0	0.0	0.0	0.0	6.4	0.0
0.0	0.0	0.0	0.0	0.0	6.4

Elastic constants [Sn]

1	2	3	4	5	6
20.3	0.0	1.8	0.0	0.0	0.0
0.0	20.3	1.8	0.0	0.0	0.0
1.8	1.8	18.7	0.0	0.0	0.0
0.0	0.0	0.0	0.4	0.0	0.0
0.0	0.0	0.0	0.0	0.4	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [Bi]

1	2	3	4	5	6
14.6	1.8	7.6	0.0	0.0	0.0
1.8	14.6	7.6	0.0	0.0	0.0
7.6	7.6	8.8	0.0	0.0	0.0
0.0	0.0	0.0	6.4	0.0	0.0
0.0	0.0	0.0	0.0	6.4	0.0
0.0	0.0	0.0	0.0	0.0	0.6

Elastic constants [Sm]

1	2	3	4	5	6
14.0	5.5	4.0	0.8	0.0	0.0
5.5	14.0	4.0	0.0	0.0	0.0
4.0	4.0	15.5	0.0	0.0	0.0
0.8	0.0	0.0	2.7	0.0	0.0
0.0	0.0	0.0	0.0	2.7	0.8
0.0	0.0	0.0	0.0	0.8	4.2

Elastic constants [La]

1	2	3	4	5	6
14.0	5.5	4.0	0.0	0.0	0.0
5.5	14.0	4.0	0.0	0.0	0.0
4.0	4.0	15.5	0.0	0.0	0.0
0.0	0.0	0.0	2.6	0.0	0.0
0.0	0.0	0.0	0.0	2.6	0.0
0.0	0.0	0.0	0.0	0.0	4.2

Elastic constants [diamond]

1	2	3	4	5	6
0.8	4.7	4.7	0.0	0.0	0.0
4.7	0.8	4.7	0.0	0.0	0.0
4.7	4.7	0.8	0.0	0.0	0.0
0.0	0.0	0.0	1.8	0.0	0.0
0.0	0.0	0.0	0.0	1.8	0.0
0.0	0.0	0.0	0.0	0.0	1.8

Elastic constants [sc]

1	2	3	4	5	6
21.0	0.0	0.0	0.0	0.0	0.0
0.0	21.0	0.0	0.0	0.0	0.0
0.0	0.0	21.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0
0.0	0.0	0.0	0.0	0.0	0.0

Elastic constants [fcc]

1	2	3	4	5	6
9.0	7.2	7.2	0.0	0.0	0.0
7.2	9.0	7.2	0.0	0.0	0.0
7.2	7.2	9.0	0.0	0.0	0.0
0.0	0.0	0.0	5.9	0.0	0.0
0.0	0.0	0.0	0.0	5.9	0.0
0.0	0.0	0.0	0.0	0.0	5.9

Elastic constants [bcc]

1	2	3	4	5	6
8.8	7.6	7.6	0.0	0.0	0.0
7.6	8.8	7.6	0.0	0.0	0.0
7.6	7.6	8.8	0.0	0.0	0.0
0.0	0.0	0.0	6.4	0.0	0.0
0.0	0.0	0.0	0.0	6.4	0.0
0.0	0.0	0.0	0.0	0.0	6.4

Elastic constants [hcp]

1	2	3	4	5	6
14.1	5.6	4.1	0.0	0.0	0.0
5.6	14.1	4.1	0.0	0.0	0.0
4.1	4.1	15.3	0.0	0.0	0.0
0.0	0.0	0.0	2.8	0.0	0.0
0.0	0.0	0.0	0.0	2.8	0.0
0.0	0.0	0.0	0.0	0.0	4.3
