polymlp-00283 (Re-2024-06-05)¶

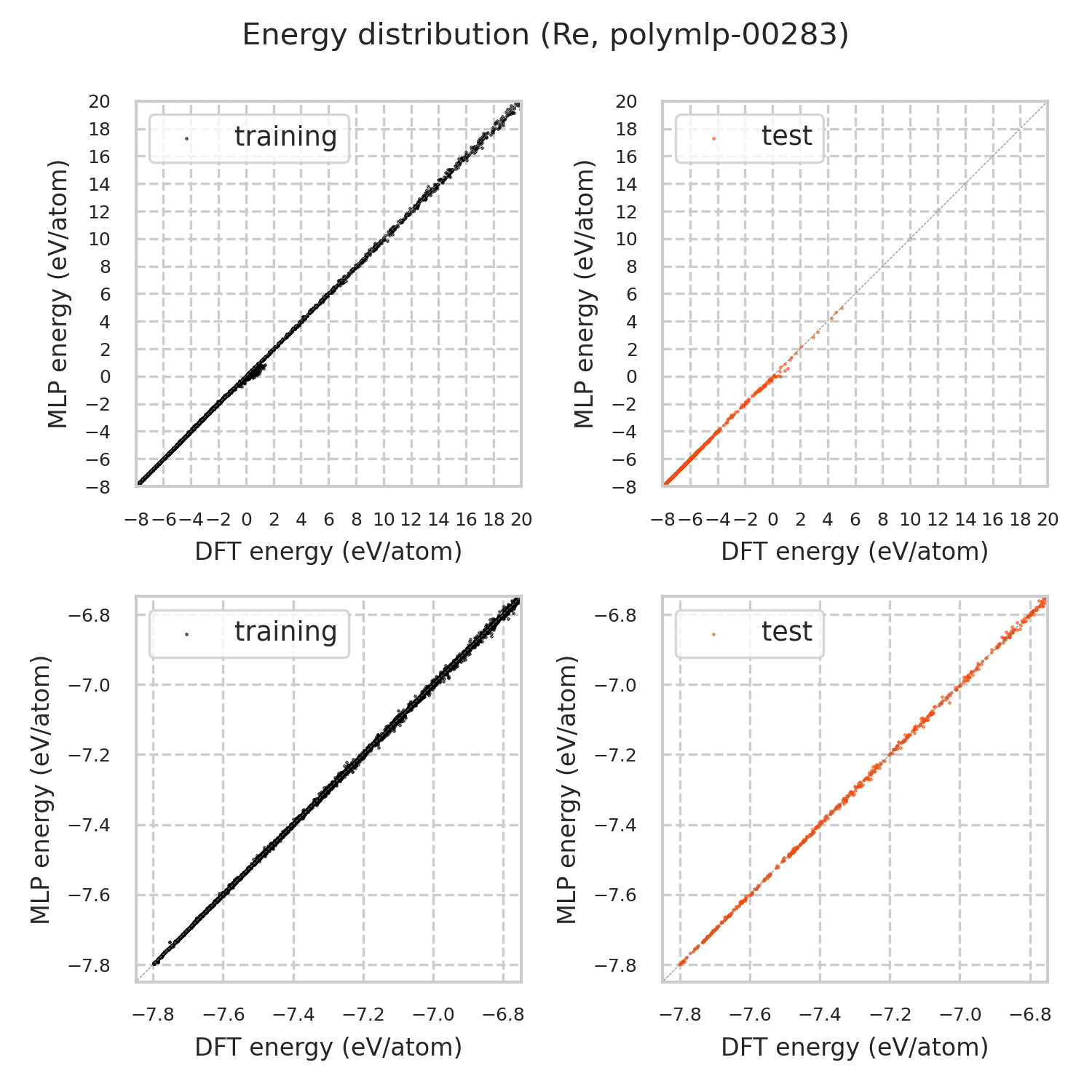

Energy distribution
Prototype structure energy

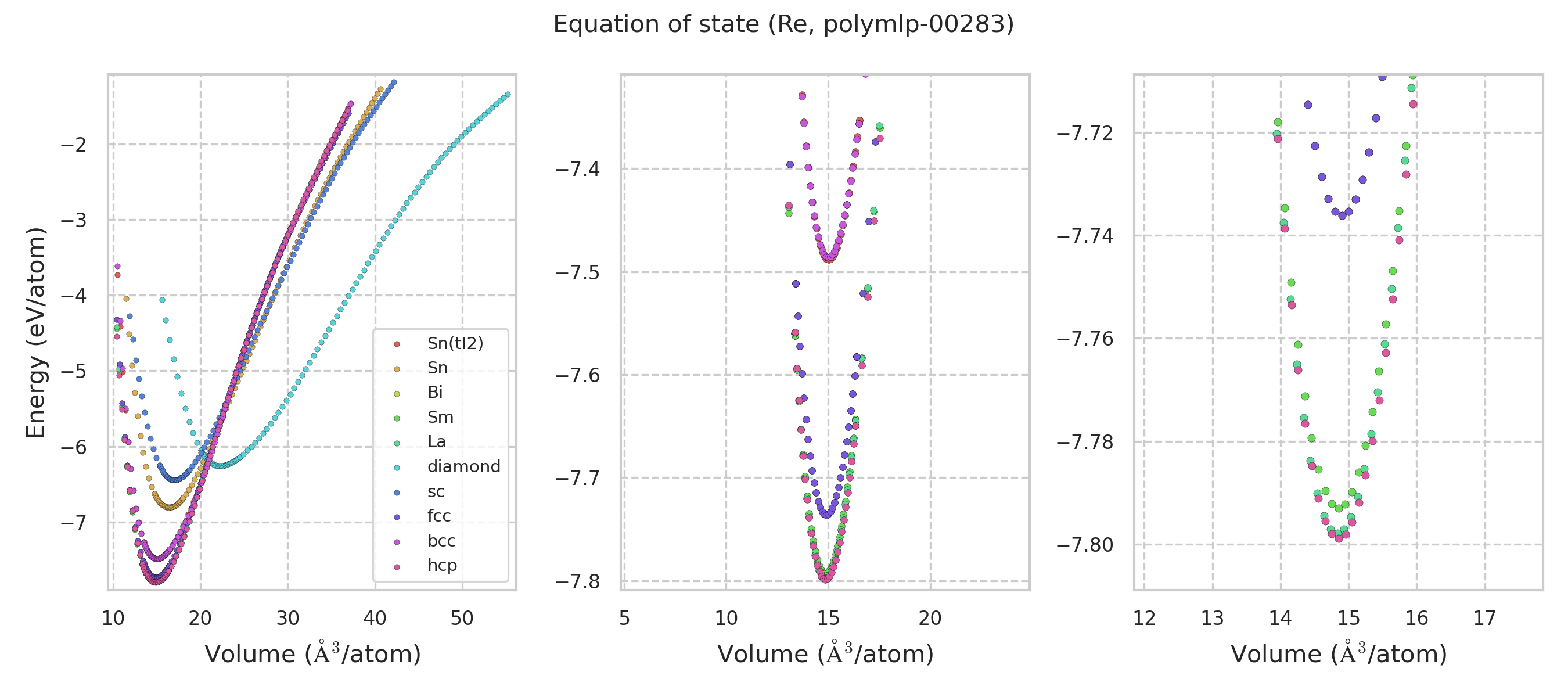

Equation of state

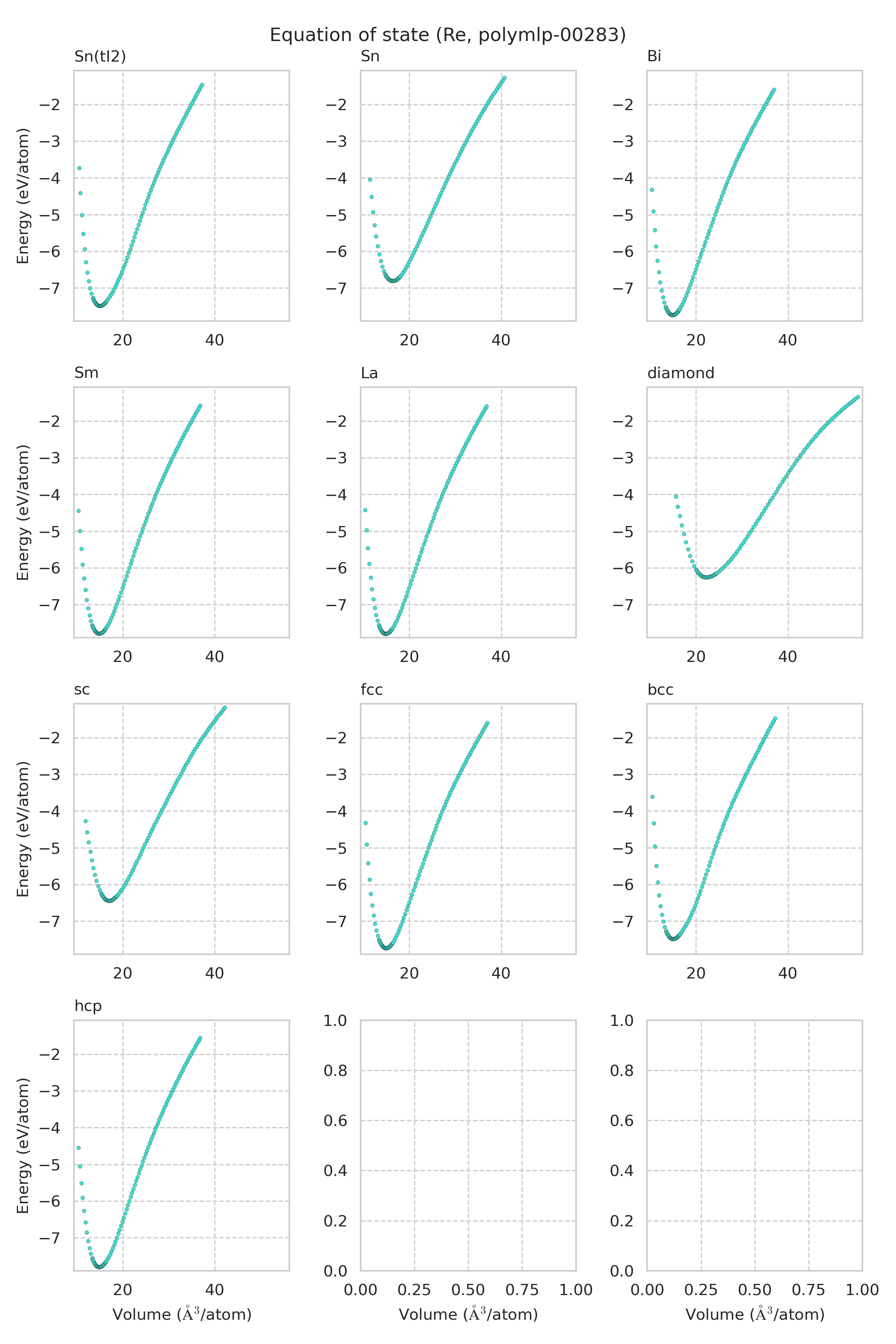

Equation of state for each structure

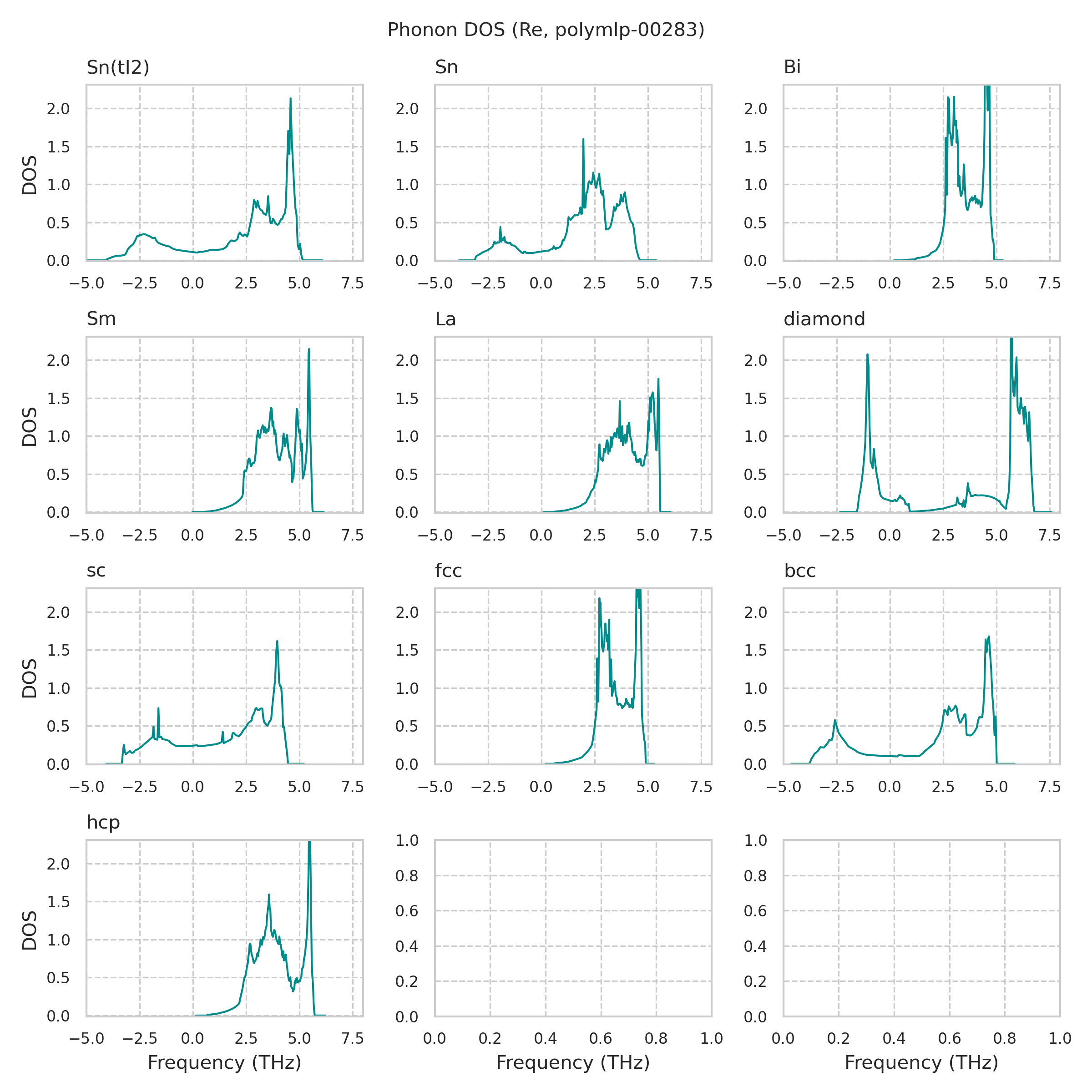

Phonon density of states

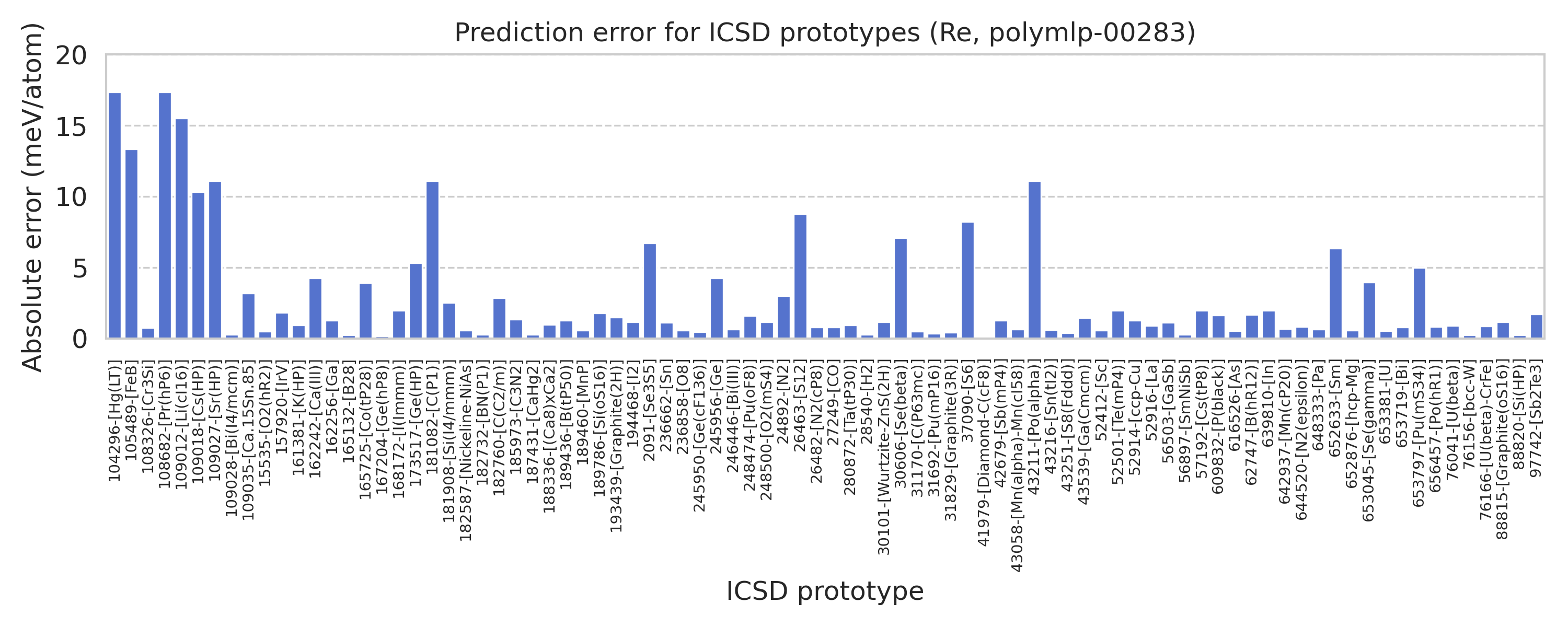

Prototype structure energy
Prototype |
MLP (eV/atom) |
DFT (eV/atom) |
---|---|---|
icsd-31692-[Pu(mP16)] |
-7.79882 |
-7.79846 |
icsd-652876-[hcp-Mg] |
-7.79882 |
-7.79825 |
icsd-653381-[U] |
-7.79882 |
-7.79826 |
icsd-189460-[MnP] |
-7.79882 |
-7.79825 |
icsd-236858-[O8] |
-7.79881 |
-7.79825 |
icsd-52916-[La] |
-7.79785 |
-7.79878 |
icsd-161381-[K(HP)] |
-7.79785 |
-7.79879 |
icsd-652633-[Sm] |
-7.79283 |
-7.78647 |
icsd-182760-[C(C2/m)] |
-7.77054 |
-7.77341 |
icsd-43058-[Mn(alpha)-Mn(cI58)] |
-7.75146 |
-7.75082 |
icsd-52914-[ccp-Cu] |
-7.73617 |
-7.73488 |
icsd-194468-[I2] |
-7.73617 |
-7.73501 |
icsd-168172-[I(Immm)] |
-7.73617 |
-7.7342 |
icsd-639810-[In] |
-7.73616 |
-7.73419 |
icsd-616526-[As] |
-7.73616 |
-7.73564 |
icsd-52501-[Te(mP4)] |
-7.73616 |
-7.73419 |
icsd-189786-[Si(oS16)] |
-7.73616 |
-7.73437 |
icsd-42679-[Sb(mP4)] |
-7.73616 |
-7.73488 |
icsd-15535-[O2(hR2)] |
-7.73616 |
-7.73567 |
icsd-157920-[IrV] |
-7.73615 |
-7.73431 |
icsd-248500-[O2(mS4)] |
-7.73615 |
-7.73498 |
icsd-57192-[Cs(tP8)] |
-7.73614 |
-7.73416 |
icsd-104296-[Hg(LT)] |
-7.73568 |
-7.75303 |
icsd-108682-[Pr(hP6)] |
-7.73565 |
-7.75302 |
icsd-642937-[Mn(cP20)] |
-7.73176 |
-7.73243 |
icsd-280872-[Ta(tP30)] |
-7.70691 |
-7.70596 |
icsd-76166-[U(beta)-CrFe] |
-7.70689 |
-7.70602 |
icsd-76041-[U(beta)] |
-7.70685 |
-7.70596 |
icsd-30606-[Se(beta)] |
-7.67107 |
-7.67817 |
icsd-165725-[Co(tP28)] |
-7.64718 |
-7.6511 |
icsd-187431-[CaHg2] |
-7.63306 |
-7.63278 |
icsd-56897-[SmNiSb] |
-7.63306 |
-7.63277 |
icsd-108326-[Cr3Si] |
-7.63129 |
-7.63053 |
icsd-653797-[Pu(mS34)] |
-7.62117 |
-7.62618 |
icsd-245956-[Ge] |
-7.60517 |
-7.60092 |
icsd-109012-[Li(cI16)] |
-7.59603 |
-7.61157 |
icsd-26482-[N2(cP8)] |
-7.55903 |
-7.55982 |
icsd-27249-[CO] |
-7.55903 |
-7.55981 |
icsd-248474-[Pu(oF8)] |
-7.50626 |
-7.50463 |
icsd-2091-[Se3S5] |
-7.49664 |
-7.50335 |
icsd-31170-[C(P63mc)] |
-7.49309 |
-7.49259 |
icsd-52412-[Sc] |
-7.48942 |
-7.48884 |
icsd-105489-[FeB] |
-7.48884 |
-7.50219 |
icsd-43216-[Sn(tI2)] |
-7.48841 |
-7.48903 |
icsd-246446-[Bi(III)] |
-7.4884 |
-7.48905 |
icsd-648333-[Pa] |
-7.48837 |
-7.48902 |
icsd-653719-[Bi] |
-7.48718 |
-7.48638 |
icsd-97742-[Sb2Te3] |
-7.48716 |
-7.48543 |
icsd-656457-[Po(hR1)] |
-7.48636 |
-7.48551 |
icsd-76156-[bcc-W] |
-7.48636 |
-7.48661 |
icsd-165132-[B28] |
-7.45827 |
-7.4585 |
icsd-43251-[S8(Fddd)] |
-7.36129 |
-7.36167 |
icsd-37090-[S6] |
-7.34102 |
-7.3328 |
icsd-43539-[Ga(Cmcm)] |
-7.31931 |
-7.32075 |
icsd-26463-[S12] |
-7.29087 |
-7.29966 |
icsd-31829-[Graphite(3R)] |
-7.21228 |
-7.21187 |
icsd-24892-[N2] |
-7.18622 |
-7.18923 |
icsd-62747-[B(hR12)] |
-7.17131 |
-7.17298 |
icsd-189436-[B(tP50)] |
-7.15208 |
-7.15337 |
icsd-188336-[(Ca8)xCa2] |
-7.14956 |
-7.15055 |
icsd-609832-[P(black)] |
-7.10835 |
-7.11 |
icsd-109028-[Bi(I4/mcm)] |
-7.0933 |
-7.09357 |
icsd-182732-[BN(P1)] |
-6.97931 |
-6.97961 |
icsd-28540-[H2] |
-6.97931 |
-6.9796 |
icsd-173517-[Ge(HP)] |
-6.97414 |
-6.97945 |
icsd-182587-[Nickeline-NiAs] |
-6.89734 |
-6.89676 |
icsd-56503-[GaSb] |
-6.80739 |
-6.80852 |
icsd-236662-[Sn] |
-6.80738 |
-6.80851 |
icsd-109018-[Cs(HP)] |
-6.79041 |
-6.80075 |
icsd-109035-[Ca.15Sn.85] |
-6.77687 |
-6.78006 |
icsd-162242-[Ca(III)] |
-6.77686 |
-6.78112 |
icsd-162256-[Ga] |
-6.74303 |
-6.74431 |
icsd-88815-[Graphite(oS16)] |
-6.6945 |
-6.69568 |
icsd-181908-[Si(I4/mmm)] |
-6.5532 |
-6.55574 |
icsd-644520-[N2(epsilon)] |
-6.50032 |
-6.50114 |
icsd-88820-[Si(HP)] |
-6.48609 |
-6.48633 |
icsd-109027-[Sr(HP)] |
-6.44526 |
-6.43415 |
icsd-43211-[Po(alpha)] |
-6.44526 |
-6.43415 |
icsd-181082-[C(P1)] |
-6.44526 |
-6.43415 |
icsd-193439-[Graphite(2H)] |
-6.42141 |
-6.42289 |
icsd-653045-[Se(gamma)] |
-6.33665 |
-6.33269 |
icsd-41979-[Diamond-C(cF8)] |
-6.25889 |
-6.25877 |
icsd-167204-[Ge(hP8)] |
-6.25289 |
-6.25272 |
icsd-30101-[Wurtzite-ZnS(2H)] |
-6.25216 |
-6.25331 |
icsd-245950-[Ge(cF136)] |
-6.18971 |
-6.18924 |
icsd-185973-[C3N2] |
-6.17635 |
-6.17769 |
Lattice constants
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
30.0236 |
3.1946 |
3.1946 |
2.942 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
65.5453 |
5.0248 |
5.0248 |
2.5959 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
59.606 |
3.9063 |
3.9063 |
3.9063 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
133.6658 |
2.7701 |
2.7701 |
20.1136 |
90.0 |
90.0 |
120.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
59.3396 |
2.7713 |
2.7713 |
8.922 |
90.0 |
90.0 |
120.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
178.1012 |
5.6263 |
5.6263 |
5.6263 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
17.0107 |
2.5718 |
2.5718 |
2.5718 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
59.606 |
3.9063 |
3.9063 |
3.9063 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
29.9952 |
3.1071 |
3.1071 |
3.1071 |
90.0 |
90.0 |
90.0 |
volume (ang.^3) |
a (ang.) |
b (ang.) |
c (ang.) |
alpha |
beta |
gamma |
---|---|---|---|---|---|---|
29.7074 |
2.7695 |
2.7695 |
4.4722 |
90.0 |
90.0 |
120.0 |
Elastic constants
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
315.5 |
410.1 |
358.3 |
0.0 |
0.0 |
0.0 |
410.1 |
315.5 |
358.3 |
0.0 |
0.0 |
0.0 |
358.3 |
358.3 |
409.2 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
226.3 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
226.3 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
222.8 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
434.0 |
190.3 |
209.6 |
0.0 |
0.0 |
0.0 |
190.3 |
434.0 |
209.6 |
0.0 |
0.0 |
0.0 |
209.6 |
209.6 |
453.2 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
35.4 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
35.4 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
594.8 |
285.4 |
285.4 |
0.0 |
0.0 |
0.0 |
285.4 |
594.8 |
285.4 |
0.0 |
0.0 |
0.0 |
285.4 |
285.4 |
594.8 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
233.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
233.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
233.0 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
652.3 |
263.3 |
232.4 |
12.7 |
0.0 |
0.0 |
263.3 |
652.3 |
232.4 |
0.0 |
0.0 |
0.0 |
232.4 |
232.4 |
744.6 |
0.2 |
0.0 |
0.0 |
12.7 |
0.0 |
0.2 |
162.1 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
161.9 |
12.3 |
0.0 |
0.0 |
0.0 |
0.0 |
12.3 |
197.0 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
679.3 |
275.1 |
243.3 |
0.0 |
0.0 |
0.0 |
275.1 |
679.3 |
243.3 |
0.0 |
0.0 |
0.0 |
243.3 |
243.3 |
748.2 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
171.3 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
171.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
204.4 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
261.6 |
208.9 |
208.9 |
0.0 |
0.0 |
0.0 |
208.9 |
261.6 |
208.9 |
0.0 |
0.0 |
0.0 |
208.9 |
208.9 |
261.6 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
23.6 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
23.6 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
23.6 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
310.3 |
316.7 |
316.7 |
0.0 |
0.0 |
0.0 |
316.7 |
310.3 |
316.7 |
0.0 |
0.0 |
0.0 |
316.7 |
316.7 |
310.3 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
594.8 |
285.4 |
285.4 |
0.0 |
0.0 |
0.0 |
285.4 |
594.8 |
285.4 |
0.0 |
0.0 |
0.0 |
285.4 |
285.4 |
594.8 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
233.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
233.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
233.0 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
332.7 |
364.3 |
364.3 |
0.0 |
0.0 |
0.0 |
364.3 |
332.7 |
364.3 |
0.0 |
0.0 |
0.0 |
364.3 |
364.3 |
332.7 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
218.7 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
218.7 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
218.7 |
1 |
2 |
3 |
4 |
5 |
6 |
---|---|---|---|---|---|
644.9 |
266.9 |
243.7 |
0.0 |
0.0 |
0.0 |
266.9 |
644.9 |
243.7 |
0.0 |
0.0 |
0.0 |
243.7 |
243.7 |
776.9 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
160.5 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
160.5 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
192.2 |
