gtinv-436 (Ca-Ga-2022-06-12)

Energy distribution

Convex hull (formation energy)

Stable structures

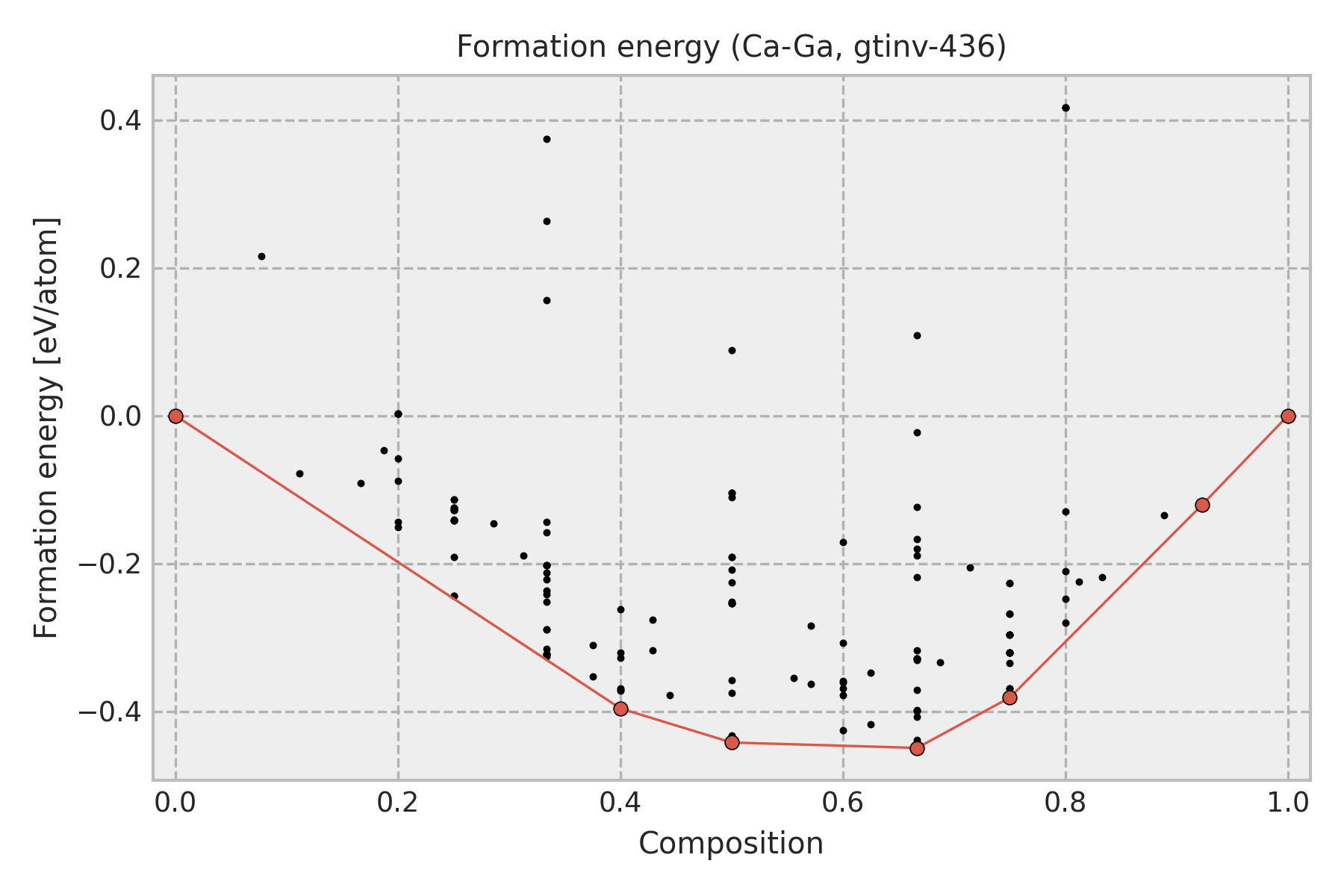

Convex hull (formation energy)

Composition	Formation energy (eV/atom)	Structure
0.0	0.0	Ca
0.4	-0.3961	icsd-73839-01-[Ni3S2]
0.5	-0.4422	icsd-42428-01-[Fe3Pt]
0.5	-0.4422	icsd-102712-01-[CoU]
0.5	-0.4422	icsd-108707-01-[HgMn]
0.5	-0.4422	icsd-633467-01-[FeSe(tP2)]
0.5	-0.4422	icsd-59508-01-[AuCu]
0.5	-0.4422	icsd-106325-01-[BiIn]
0.5	-0.4422	icsd-650527-01-[CsCl]
0.5	-0.4422	icsd-168897-01-[LaI]
0.5	-0.4422	icsd-618702-01-[ScTe]
0.5	-0.4422	icsd-611618-01-[TiAs]
0.5	-0.4422	icsd-52294-01-[GeTe(supercell)]
0.5	-0.4422	icsd-626692-01-[Nickeline-NiAs]
0.5	-0.4422	icsd-639037-01-[HgIn]
0.6667	-0.4495	icsd-610464-10-[PbClF/Cu2Sb]
0.75	-0.3814	icsd-635208-10-[CoGa3]
0.9231	-0.1204	icsd-58745-01-[Fe6Ge6Mg]
1.0	0.0	Ga

The convex hull and stable structures are obtained by performing local structure optimizations only from structure prototypes used for estimating the MLP. Therefore, they are often inconsistent with experimental structures and/or theoretical globally-stable structures. In addition, the prototype is used as the structure legend in the figure. Therefore, the structure type of the converged structure is sometimes different from that shown in the legend even if the potential energy surface predicted by MLP is almost the same as the true one.

Equation of state for each structure

Prototype structure energy

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

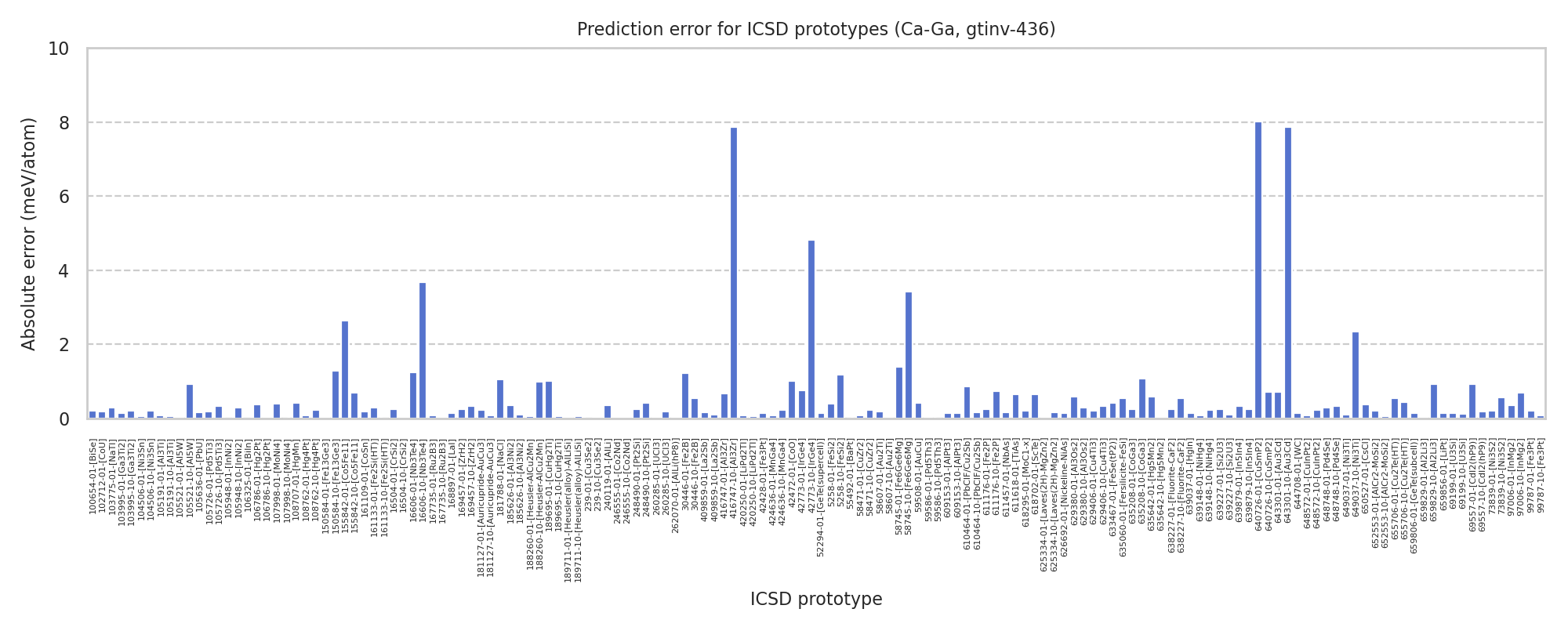

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-610464-10-[PbClF/Cu2Sb]	-2.8394	-2.83956
icsd-246555-10-[Co2Nd]	-2.83489	-2.8349
icsd-625334-01-[Laves(2H)-MgZn2]	-2.82905	-2.82903
icsd-104506-01-[Ni3Sn]	-2.81852	-2.81857
icsd-260285-01-[UCl3]	-2.8185	-2.81848
icsd-409859-10-[La2Sb]	-2.78748	-2.78757
icsd-649037-01-[Ni3Ti]	-2.78438	-2.78448
icsd-59586-01-[Pd5Th3]	-2.77759	-2.77763
icsd-99787-10-[Fe3Pt]	-2.76996	-2.77004
icsd-181127-10-[Auricupride-AuCu3]	-2.76996	-2.77004
icsd-648572-01-[CuInPt2]	-2.76996	-2.77004
icsd-69199-01-[U3Si]	-2.76996	-2.77011
icsd-609153-01-[AlPt3]	-2.76996	-2.77011
icsd-189711-01-[Heusler(alloy)-AlLiSi]	-2.76145	-2.76143
icsd-416747-01-[Al3Zr]	-2.7451	-2.74577
icsd-640726-10-[CuSmP2]	-2.74505	-2.74576
icsd-643301-01-[Au3Cd]	-2.74503	-2.74576
icsd-155842-10-[Co5Fe11]	-2.73738	-2.73808
icsd-107998-10-[MoNi4]	-2.72179	-2.7218
icsd-58607-10-[Au2Ti]	-2.71893	-2.71898
icsd-652553-10-[AlCr2-MoSi2]	-2.71892	-2.71898
icsd-58471-01-[CuZr2]	-2.71891	-2.71899
icsd-103995-01-[Ga3Ti2]	-2.71848	-2.71863
icsd-150584-10-[Fe13Ge3]	-2.71815	-2.71943
icsd-420250-01-[LiPd2Tl]	-2.7167	-2.71678
icsd-105191-01-[Al3Ti]	-2.7167	-2.71678
icsd-650527-01-[CsCl]	-2.7134	-2.71377
icsd-102712-01-[CoU]	-2.71335	-2.71317
icsd-106325-01-[BiIn]	-2.71335	-2.71334
icsd-108707-01-[HgMn]	-2.71334	-2.71375
icsd-59508-01-[AuCu]	-2.71334	-2.71375
icsd-633467-01-[FeSe(tP2)]	-2.71334	-2.71375
icsd-42428-01-[Fe3Pt]	-2.71332	-2.71318
icsd-105726-01-[Pd5Ti3]	-2.70751	-2.70733
icsd-611176-01-[Fe2P]	-2.70604	-2.7063
icsd-618295-01-[MoC1-x]	-2.70366	-2.70346
icsd-629380-10-[Al3Os2]	-2.70149	-2.70178
icsd-239-10-[Cu3Se2]	-2.70138	-2.70136
icsd-167735-10-[Ru2B3]	-2.6954	-2.69545
icsd-42773-10-[IrGe4]	-2.67982	-2.68464
icsd-161133-10-[Fe2Si(HT)]	-2.67671	-2.67672
icsd-105948-01-[InNi2]	-2.67671	-2.67672
icsd-189695-01-[CuHg2Ti]	-2.67582	-2.67481
icsd-188260-10-[Heusler-AlCu2Mn]	-2.67581	-2.67481
icsd-639879-10-[In5In4]	-2.66563	-2.66539
icsd-105521-10-[Al5W]	-2.65125	-2.65031
icsd-659829-01-[Al2Li3]	-2.64998	-2.64995
icsd-16606-01-[Nb3Te4]	-2.64736	-2.64611
icsd-58745-01-[Fe6Ge6Mg]	-2.64583	-2.64722
icsd-262070-01-[AlLi(hP8)]	-2.62952	-2.62954
icsd-635642-01-[Hg5Mn2]	-2.62892	-2.62833
icsd-16504-01-[CrSi2]	-2.62303	-2.62278
icsd-648748-10-[Pd4Se]	-2.61406	-2.61439
icsd-639879-01-[In5In4]	-2.60895	-2.60928
icsd-30446-01-[Fe2B]	-2.60832	-2.60955
icsd-629406-10-[Cu4Ti3]	-2.60495	-2.60528
icsd-97006-10-[InMg2]	-2.60112	-2.60043
icsd-106786-10-[Hg2Pt]	-2.57965	-2.57962
icsd-639227-01-[Si2U3]	-2.57125	-2.5715
icsd-629380-01-[Al3Os2]	-2.57107	-2.57166
icsd-655706-10-[Cu2Te(HT)]	-2.55741	-2.55785
icsd-105726-10-[Pd5Ti3]	-2.53498	-2.53532
icsd-16606-10-[Nb3Te4]	-2.53459	-2.53828
icsd-103995-10-[Ga3Ti2]	-2.52717	-2.52696
icsd-611457-01-[NbAs]	-2.5247	-2.52486
icsd-105636-01-[PbU]	-2.5247	-2.52487
icsd-635060-01-[Fersilicite-FeSi]	-2.52284	-2.5223
icsd-69557-10-[CdI2(hP9)]	-2.52216	-2.52236
icsd-185626-01-[Al3Ni2]	-2.52026	-2.52062
icsd-639227-10-[Si2U3]	-2.51382	-2.51392
icsd-5258-01-[FeSi2]	-2.51323	-2.51283
icsd-55492-01-[BaPt]	-2.49628	-2.49628
icsd-629406-01-[Cu4Ti3]	-2.49628	-2.49607
icsd-59586-10-[Pd5Th3]	-2.49267	-2.49267
icsd-52294-01-[GeTe(supercell)]	-2.47905	-2.4789
icsd-639037-01-[HgIn]	-2.47904	-2.4789
icsd-659806-01-[GeTe(subcell)]	-2.47904	-2.4789
icsd-58471-10-[CuZr2]	-2.47495	-2.47472
icsd-652553-01-[AlCr2-MoSi2]	-2.47494	-2.47473
icsd-58607-01-[Au2Ti]	-2.47491	-2.47473
icsd-611176-10-[Fe2P]	-2.46943	-2.46869
icsd-100654-01-[BiSe]	-2.46763	-2.46742
icsd-30446-10-[Fe2B]	-2.46763	-2.46818
icsd-611618-01-[TiAs]	-2.46166	-2.46099
icsd-618702-01-[ScTe]	-2.46165	-2.46099
icsd-644708-01-[WC]	-2.46161	-2.46146
icsd-659856-01-[LiPt]	-2.46159	-2.46145
icsd-73839-10-[Ni3S2]	-2.45984	-2.45928
icsd-185626-10-[Al3Ni2]	-2.45971	-2.45961
icsd-239-01-[Cu3Se2]	-2.45866	-2.45865
icsd-168897-01-[LaI]	-2.44717	-2.44703
icsd-626692-01-[Nickeline-NiAs]	-2.44717	-2.44703
icsd-105948-10-[InNi2]	-2.44089	-2.4406
icsd-161133-01-[Fe2Si(HT)]	-2.44089	-2.4406
icsd-635208-10-[CoGa3]	-2.40609	-2.40717
icsd-610464-01-[PbClF/Cu2Sb]	-2.40235	-2.40149
icsd-106786-01-[Hg2Pt]	-2.38903	-2.3894
icsd-240119-01-[AlLi]	-2.38144	-2.38109
icsd-103775-01-[NaTl]	-2.38143	-2.38113
icsd-181788-01-[NaCl]	-2.37535	-2.3764
icsd-42472-01-[CoO]	-2.37535	-2.37636
icsd-5258-10-[FeSi2]	-2.37322	-2.37204
icsd-409859-01-[La2Sb]	-2.36196	-2.36211
icsd-638227-01-[Fluorite-CaF2]	-2.35489	-2.35514
icsd-248490-01-[Pt2Si]	-2.35489	-2.35513
icsd-169457-01-[ZrH2]	-2.35486	-2.35511
icsd-155842-01-[Co5Fe11]	-2.32576	-2.32841
icsd-16504-10-[CrSi2]	-2.31019	-2.31016
icsd-69557-01-[CdI2(hP9)]	-2.29441	-2.29534
icsd-635208-01-[CoGa3]	-2.28228	-2.28202
icsd-169457-10-[ZrH2]	-2.28086	-2.2812
icsd-248490-10-[Pt2Si]	-2.28075	-2.28117
icsd-638227-10-[Fluorite-CaF2]	-2.28074	-2.28128
icsd-659829-10-[Al2Li3]	-2.27406	-2.27314
icsd-635642-10-[Hg5Mn2]	-2.26314	-2.2631
icsd-104506-10-[Ni3Sn]	-2.26186	-2.26165
icsd-260285-10-[UCl3]	-2.26185	-2.26167
icsd-649037-10-[Ni3Ti]	-2.23304	-2.23071
icsd-643301-10-[Au3Cd]	-2.23096	-2.23885
icsd-416747-10-[Al3Zr]	-2.23096	-2.23884
icsd-640726-01-[CuSmP2]	-2.23084	-2.23886
icsd-181127-01-[Auricupride-AuCu3]	-2.22073	-2.22051
icsd-609153-10-[AlPt3]	-2.22073	-2.22059
icsd-648572-10-[CuInPt2]	-2.22073	-2.22051
icsd-69199-10-[U3Si]	-2.22073	-2.2206
icsd-99787-01-[Fe3Pt]	-2.22073	-2.22051
icsd-648748-01-[Pd4Se]	-2.20776	-2.20806
icsd-420250-10-[LiPd2Tl]	-2.20671	-2.20665
icsd-105191-10-[Al3Ti]	-2.20671	-2.20665
icsd-188260-01-[Heusler-AlCu2Mn]	-2.20662	-2.20668
icsd-189695-10-[CuHg2Ti]	-2.20662	-2.20668
icsd-42773-01-[IrGe4]	-2.1943	-2.19507
icsd-161109-01-[CoSn]	-2.18196	-2.18177
icsd-167735-01-[Ru2B3]	-2.14389	-2.14397
icsd-107998-01-[MoNi4]	-2.115	-2.11461
icsd-150584-01-[Fe13Ge3]	-2.09469	-2.09465
icsd-639148-10-[NiHg4]	-2.06827	-2.06803
icsd-108762-10-[Hg4Pt]	-2.06827	-2.06803
icsd-424636-10-[MnGa4]	-2.06827	-2.06803
icsd-639148-01-[NiHg4]	-2.05461	-2.05468
icsd-108762-01-[Hg4Pt]	-2.05461	-2.05468
icsd-424636-01-[MnGa4]	-2.05461	-2.05468
icsd-97006-01-[InMg2]	-2.04791	-2.04826
icsd-105521-01-[Al5W]	-2.03951	-2.03953
icsd-73839-01-[Ni3S2]	-2.01231	-2.0121
icsd-655706-01-[Cu2Te(HT)]	-1.99457	-1.99403
icsd-625334-10-[Laves(2H)-MgZn2]	-1.90433	-1.90449
icsd-189711-10-[Heusler(alloy)-AlLiSi]	-1.88925	-1.88918
icsd-246555-01-[Co2Nd]	-1.77826	-1.7783
icsd-58745-10-[Fe6Ge6Mg]	-1.75281	-1.75625

Lattice parameters (CoU(Ba)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.855	7.354	7.354	7.354	90.0	90.0	90.0
DFT	24.817	7.35	7.35	7.35	90.0	90.0	90.0

Elastic constants (CoU(Ba)(x=0.50))

1	2	3	4	5	6
64.0	29.0	29.0	0.0	0.0	0.0
29.0	64.0	29.0	0.0	0.0	0.0
29.0	29.0	64.0	0.0	0.0	0.0
0.0	0.0	0.0	39.7	0.0	0.0
0.0	0.0	0.0	0.0	39.7	0.0
0.0	0.0	0.0	0.0	0.0	39.7

Lattice parameters (InNi2(B82)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.435	5.366	5.366	7.082	90.0	90.0	120.0
DFT	28.945	5.361	5.361	6.978	90.0	90.0	120.0

Elastic constants (InNi2(B82)(x=0.33))

1	2	3	4	5	6
43.2	32.1	14.6	0.0	0.0	0.0
32.1	43.2	14.6	0.0	0.0	0.0
14.6	14.6	45.0	0.0	0.0	0.0
0.0	0.0	0.0	15.6	0.0	0.0
0.0	0.0	0.0	0.0	15.6	0.0
0.0	0.0	0.0	0.0	0.0	5.5

Lattice parameters (WC(Bh)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.404	3.799	3.799	4.546	90.0	90.0	120.0
DFT	28.27	3.765	3.765	4.605	90.0	90.0	120.0

Elastic constants (WC(Bh)(x=0.50))

1	2	3	4	5	6
33.0	32.5	29.2	0.0	0.0	0.0
32.5	33.0	29.2	0.0	0.0	0.0
29.2	29.2	53.9	0.0	0.0	0.0
0.0	0.0	0.0	23.0	0.0	0.0
0.0	0.0	0.0	0.0	23.0	0.0
0.0	0.0	0.0	0.0	0.0	0.3

Lattice parameters (MoNi4(D1a)(x=0.20))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	34.362	7.822	7.822	5.616	90.0	90.0	90.0
DFT	34.352	7.783	7.783	5.671	90.0	90.0	90.0

Elastic constants (MoNi4(D1a)(x=0.20))

1	2	3	4	5	6
33.6	19.6	10.7	0.0	0.0	-15.7
19.6	25.1	9.2	0.0	0.0	13.4
10.7	9.2	16.6	0.0	0.0	0.0
0.0	0.0	0.0	8.2	0.0	0.0
0.0	0.0	0.0	0.0	8.2	0.0
-15.7	13.4	0.0	0.0	0.0	12.1

Lattice parameters (Al3Ti(D022)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.987	4.368	4.368	8.799	90.0	90.0	90.0
DFT	21.071	4.344	4.344	8.932	90.0	90.0	90.0

Elastic constants (Al3Ti(D022)(x=0.75))

1	2	3	4	5	6
53.1	34.0	34.9	0.0	0.0	0.0
34.0	53.1	34.9	0.0	0.0	0.0
34.9	34.9	64.9	0.0	0.0	0.0
0.0	0.0	0.0	8.5	0.0	0.0
0.0	0.0	0.0	0.0	8.5	0.0
0.0	0.0	0.0	0.0	0.0	31.1

Lattice parameters (CsCl(B2)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.855	3.677	3.677	3.677	90.0	90.0	90.0
DFT	24.834	3.676	3.676	3.676	90.0	90.0	90.0

Elastic constants (CsCl(B2)(x=0.50))

1	2	3	4	5	6
64.0	29.0	29.0	0.0	0.0	0.0
29.0	64.0	29.0	0.0	0.0	0.0
29.0	29.0	64.0	0.0	0.0	0.0
0.0	0.0	0.0	39.7	0.0	0.0
0.0	0.0	0.0	0.0	39.7	0.0
0.0	0.0	0.0	0.0	0.0	39.7

Lattice parameters (AuCu3(L12)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.416	5.009	5.009	5.009	90.0	90.0	90.0
DFT	31.189	4.997	4.997	4.997	90.0	90.0	90.0

Elastic constants (AuCu3(L12)(x=0.25))

1	2	3	4	5	6
21.9	12.8	12.8	0.0	0.0	0.0
12.8	21.9	12.8	0.0	0.0	0.0
12.8	12.8	21.9	0.0	0.0	0.0
0.0	0.0	0.0	22.0	0.0	0.0
0.0	0.0	0.0	0.0	22.0	0.0
0.0	0.0	0.0	0.0	0.0	22.0

Lattice parameters (Cu2Sb(C38)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.364	4.667	4.667	8.366	90.0	90.0	90.0
DFT	31.002	4.722	4.722	8.342	90.0	90.0	90.0

Elastic constants (Cu2Sb(C38)(x=0.33))

1	2	3	4	5	6
39.3	35.1	31.3	0.0	0.0	0.0
35.1	39.3	31.3	0.0	0.0	0.0
31.3	31.3	76.1	0.0	0.0	0.0
0.0	0.0	0.0	17.9	0.0	0.0
0.0	0.0	0.0	0.0	17.9	0.0
0.0	0.0	0.0	0.0	0.0	23.6

Lattice parameters (Al3Zr(D023)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.852	4.37	4.37	17.47	90.0	90.0	90.0
DFT	20.873	4.424	4.424	17.06	90.0	90.0	90.0

Elastic constants (Al3Zr(D023)(x=0.75))

1	2	3	4	5	6
68.5	25.1	26.7	0.0	0.0	0.0
25.1	68.5	26.7	0.0	0.0	0.0
26.7	26.7	35.7	0.0	0.0	0.0
0.0	0.0	0.0	23.7	0.0	0.0
0.0	0.0	0.0	0.0	23.7	0.0
0.0	0.0	0.0	0.0	0.0	30.6

Lattice parameters (FeSi(B20)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	26.552	5.967	5.967	5.967	90.0	90.0	90.0
DFT	26.633	5.973	5.973	5.973	90.0	90.0	90.0

Elastic constants (FeSi(B20)(x=0.50))

1	2	3	4	5	6
26.6	42.8	42.8	0.0	0.0	0.0
42.8	26.6	42.8	0.0	0.0	0.0
42.8	42.8	26.6	0.0	0.0	0.0
0.0	0.0	0.0	-398052.9	0.0	0.0
0.0	0.0	0.0	0.0	-398052.9	0.0
0.0	0.0	0.0	0.0	0.0	-398052.9

Lattice parameters (Si2U3(D5a)(x=0.40))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	28.05	8.297	8.297	4.075	90.0	90.0	90.0
DFT	28.381	8.382	8.382	4.04	90.0	90.0	90.0

Elastic constants (Si2U3(D5a)(x=0.40))

1	2	3	4	5	6
57.8	17.1	31.2	0.0	0.0	0.0
17.1	57.8	31.2	0.0	0.0	0.0
31.2	31.2	54.9	0.0	0.0	0.0
0.0	0.0	0.0	27.7	0.0	0.0
0.0	0.0	0.0	0.0	27.7	0.0
0.0	0.0	0.0	0.0	0.0	23.2

Lattice parameters (Ni3Sn(D019)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.997	7.572	7.572	5.155	90.0	90.0	120.0
DFT	30.812	7.222	7.222	5.458	90.0	90.0	120.0

Elastic constants (Ni3Sn(D019)(x=0.25))

1	2	3	4	5	6
29.4	24.6	27.4	0.0	0.0	0.0
24.6	29.4	27.4	0.0	0.0	0.0
27.4	27.4	50.6	0.0	0.0	0.0
0.0	0.0	0.0	22.5	0.0	0.0
0.0	0.0	0.0	0.0	22.5	0.0
0.0	0.0	0.0	0.0	0.0	2.4

Lattice parameters (Fe2P(C22)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.649	4.342	14.878	6.868	90.0	90.0	90.0
DFT	24.877	4.315	15.185	6.834	90.0	90.0	90.0

Elastic constants (Fe2P(C22)(x=0.67))

1	2	3	4	5	6
52.5	18.5	38.4	0.0	0.0	0.0
18.5	43.8	19.7	0.0	0.0	0.0
38.4	19.7	51.6	0.0	0.0	0.0
0.0	0.0	0.0	-3.6	0.0	0.0
0.0	0.0	0.0	0.0	8.7	0.0
0.0	0.0	0.0	0.0	0.0	-9.0

Lattice parameters (Cu2Sb(C38)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.876	4.345	4.345	7.27	90.0	90.0	90.0
DFT	22.9	4.362	4.362	7.22	90.0	90.0	90.0

Elastic constants (Cu2Sb(C38)(x=0.67))

1	2	3	4	5	6
62.2	24.4	35.4	0.0	0.0	0.0
24.4	62.2	35.4	0.0	0.0	0.0
35.4	35.4	64.8	0.0	0.0	0.0
0.0	0.0	0.0	27.9	0.0	0.0
0.0	0.0	0.0	0.0	27.9	0.0
0.0	0.0	0.0	0.0	0.0	37.2

Lattice parameters (Ni3Sn(D019)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.189	6.57	6.57	4.535	90.0	90.0	120.0
DFT	21.161	6.552	6.552	4.554	90.0	90.0	120.0

Elastic constants (Ni3Sn(D019)(x=0.75))

1	2	3	4	5	6
48.5	32.6	39.4	0.0	0.0	0.0
32.6	48.5	39.4	0.0	0.0	0.0
39.4	39.4	91.8	0.0	0.0	0.0
0.0	0.0	0.0	25.5	0.0	0.0
0.0	0.0	0.0	0.0	25.5	0.0
0.0	0.0	0.0	0.0	0.0	7.9

Lattice parameters (Ni3Ti(D024)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.388	6.217	6.217	9.747	90.0	90.0	120.0
DFT	20.552	6.235	6.235	9.769	90.0	90.0	120.0

Elastic constants (Ni3Ti(D024)(x=0.75))

1	2	3	4	5	6
58.7	20.9	22.5	0.0	0.0	0.0
20.9	58.7	22.5	0.0	0.0	0.0
22.5	22.5	77.7	0.0	0.0	0.0
0.0	0.0	0.0	30.1	0.0	0.0
0.0	0.0	0.0	0.0	30.1	0.0
0.0	0.0	0.0	0.0	0.0	18.9

Lattice parameters (Fe2P(C22)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.032	8.351	8.351	4.475	90.0	90.0	120.0
DFT	30.271	8.701	8.701	4.156	90.0	90.0	120.0

Elastic constants (Fe2P(C22)(x=0.33))

1	2	3	4	5	6
54.6	26.3	39.8	0.0	0.0	0.0
26.3	54.6	39.8	0.0	0.0	0.0
39.8	39.8	54.8	0.0	0.0	0.0
0.0	0.0	0.0	27.3	0.0	0.0
0.0	0.0	0.0	0.0	27.3	0.0
0.0	0.0	0.0	0.0	0.0	14.2

Lattice parameters (MoNi4(D1a)(x=0.80))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.056	6.944	6.944	4.626	90.0	90.0	109.24
DFT	20.913	6.951	6.951	4.329	90.0	90.0	90.0

Elastic constants (MoNi4(D1a)(x=0.80))

1	2	3	4	5	6
71.1	35.0	48.0	0.0	0.0	18.8
35.0	93.3	46.9	0.0	0.0	13.0
48.0	46.9	80.1	0.0	0.0	-1.6
0.0	0.0	0.0	11.0	27.7	0.0
0.0	0.0	0.0	27.7	-8.4	0.0
18.8	13.0	-1.6	0.0	0.0	16.3

Lattice parameters (MgZn2(C14)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.832	13.28	7.729	7.229	108.43	81.96	146.1
DFT	35.783	8.109	8.109	7.541	90.0	90.0	120.0

Elastic constants (MgZn2(C14)(x=0.33))

1	2	3	4	5	6
38.8	15.3	23.9	4.1	-6.3	-4.8
15.3	33.1	19.6	0.0	-5.5	0.2
23.9	19.6	43.9	-4.1	1.5	-4.3
4.1	0.0	-4.1	13.0	-3.7	2.5
-6.3	-5.5	1.5	-3.7	12.1	3.6
-4.8	0.2	-4.3	2.5	3.6	14.2

Lattice parameters (CrSi2(C40)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.06	6.034	6.0	8.334	87.0	95.45	136.27
DFT	23.529	5.381	5.381	8.443	90.0	90.0	120.0

Elastic constants (CrSi2(C40)(x=0.67))

1	2	3	4	5	6
79.6	34.1	28.2	-4.7	4.8	10.5
34.1	96.5	31.1	-1.7	0.4	-8.5
28.2	31.1	71.2	-1.2	9.3	2.3
-4.7	-1.7	-1.2	18.6	-1.1	3.4
4.8	0.4	9.3	-1.1	8.3	-2.6
10.5	-8.5	2.3	3.4	-2.6	27.0

Lattice parameters (AlCu2Mn(L21)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.012	6.953	6.953	6.953	90.0	90.0	90.0
DFT	21.232	6.978	6.978	6.978	90.0	90.0	90.0

Elastic constants (AlCu2Mn(L21)(x=0.75))

1	2	3	4	5	6
27.0	48.3	48.3	0.0	0.0	0.0
48.3	27.0	48.3	0.0	0.0	0.0
48.3	48.3	27.0	0.0	0.0	0.0
0.0	0.0	0.0	3.6	0.0	0.0
0.0	0.0	0.0	0.0	3.6	0.0
0.0	0.0	0.0	0.0	0.0	3.6

Lattice parameters (InNi2(B82)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.311	5.747	5.747	6.035	90.0	90.0	137.81
DFT	22.26	5.023	5.023	6.112	90.0	90.0	120.0

Elastic constants (InNi2(B82)(x=0.67))

1	2	3	4	5	6
77.1	33.4	17.1	0.0	0.0	13.5
33.4	98.0	39.3	0.0	0.0	-4.0
17.1	39.3	82.0	0.0	0.0	10.1
0.0	0.0	0.0	26.0	4.0	0.0
0.0	0.0	0.0	4.0	17.3	0.0
13.5	-4.0	10.1	0.0	0.0	28.8

Lattice parameters (AuCu3(L12)(x=0.75))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	20.425	4.339	4.339	4.339	90.0	90.0	90.0
DFT	20.446	4.341	4.341	4.341	90.0	90.0	90.0

Elastic constants (AuCu3(L12)(x=0.75))

1	2	3	4	5	6
77.7	27.0	27.0	0.0	0.0	0.0
27.0	77.7	27.0	0.0	0.0	0.0
27.0	27.0	77.7	0.0	0.0	0.0
0.0	0.0	0.0	37.5	0.0	0.0
0.0	0.0	0.0	0.0	37.5	0.0
0.0	0.0	0.0	0.0	0.0	37.5

Lattice parameters (NiAs(B81)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.855	3.677	3.677	7.354	90.0	90.0	90.0
DFT	27.771	3.656	3.656	9.596	90.0	90.0	120.0

Elastic constants (NiAs(B81)(x=0.50))

1	2	3	4	5	6
64.0	29.0	29.0	0.0	0.0	0.0
29.0	64.0	29.0	0.0	0.0	0.0
29.0	29.0	64.0	0.0	0.0	0.0
0.0	0.0	0.0	39.7	0.0	0.0
0.0	0.0	0.0	0.0	39.7	0.0
0.0	0.0	0.0	0.0	0.0	39.7

Lattice parameters (Al3Ti(D022)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.406	5.119	5.119	9.284	90.0	90.0	90.0
DFT	30.669	5.559	5.559	7.938	90.0	90.0	90.0

Elastic constants (Al3Ti(D022)(x=0.25))

1	2	3	4	5	6
20.7	17.6	16.1	0.0	0.0	0.0
17.6	20.7	16.1	0.0	0.0	0.0
16.1	16.1	27.3	0.0	0.0	0.0
0.0	0.0	0.0	20.7	0.0	0.0
0.0	0.0	0.0	0.0	20.7	0.0
0.0	0.0	0.0	0.0	0.0	16.1

Lattice parameters (Si2U3(D5a)(x=0.60))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	26.046	8.535	8.535	3.575	90.0	90.0	90.0
DFT	26.081	8.562	8.562	3.557	90.0	90.0	90.0

Elastic constants (Si2U3(D5a)(x=0.60))

1	2	3	4	5	6
34.9	58.8	25.7	0.0	0.0	0.0
58.8	34.9	25.7	0.0	0.0	0.0
25.7	25.7	51.9	0.0	0.0	0.0
0.0	0.0	0.0	16.0	0.0	0.0
0.0	0.0	0.0	0.0	16.0	0.0
0.0	0.0	0.0	0.0	0.0	34.6

Lattice parameters (MgZn2(C14)(x=0.67))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	21.345	5.628	5.628	9.336	90.0	90.0	120.0
DFT	21.313	5.629	5.629	9.319	90.0	90.0	120.0

Elastic constants (MgZn2(C14)(x=0.67))

1	2	3	4	5	6
95.3	29.8	40.7	0.0	0.0	0.0
29.8	95.3	40.7	0.0	0.0	0.0
40.7	40.7	73.9	0.0	0.0	0.0
0.0	0.0	0.0	27.0	0.0	0.0
0.0	0.0	0.0	0.0	27.0	0.0
0.0	0.0	0.0	0.0	0.0	32.7

Lattice parameters (CrSi2(C40)(x=0.33))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	29.476	5.871	5.871	8.886	90.0	90.0	120.0
DFT	29.477	5.869	5.869	8.892	90.0	90.0	120.0

Elastic constants (CrSi2(C40)(x=0.33))

1	2	3	4	5	6
44.8	24.2	13.9	0.0	0.0	0.0
24.2	44.8	13.9	0.0	0.0	0.0
13.9	13.9	72.8	0.0	0.0	0.0
0.0	0.0	0.0	26627.6	-10805.2	0.0
0.0	0.0	0.0	-10805.2	54035.4	0.0
0.0	0.0	0.0	0.0	0.0	10.3

Lattice parameters (NaTl(B32)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.658	7.432	7.432	7.432	90.0	90.0	90.0
DFT	25.699	7.436	7.436	7.436	90.0	90.0	90.0

Elastic constants (NaTl(B32)(x=0.50))

1	2	3	4	5	6
0.6	36.4	36.4	0.0	0.0	0.0
36.4	0.6	36.4	0.0	0.0	0.0
36.4	36.4	0.6	0.0	0.0	0.0
0.0	0.0	0.0	-49.4	0.0	0.0
0.0	0.0	0.0	0.0	-49.4	0.0
0.0	0.0	0.0	0.0	0.0	-49.4

Lattice parameters (Ni3Ti(D024)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.07	7.109	7.109	11.36	90.0	90.0	120.0
DFT	30.979	7.13	7.13	11.258	90.0	90.0	120.0

Elastic constants (Ni3Ti(D024)(x=0.25))

1	2	3	4	5	6
31.3	12.4	6.5	0.0	0.0	0.2
12.4	31.3	6.5	0.0	0.0	0.0
6.5	6.5	38.4	0.0	0.0	0.0
0.0	0.0	0.0	4.4	0.0	0.0
0.0	0.0	0.0	0.0	4.4	0.0
0.2	0.0	0.0	0.0	0.0	9.4

Lattice parameters (Al3Zr(D023)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.905	5.104	5.104	18.981	90.0	90.0	90.0
DFT	30.652	5.241	5.241	17.854	90.0	90.0	90.0

Elastic constants (Al3Zr(D023)(x=0.25))

1	2	3	4	5	6
30.9	9.8	17.3	0.0	0.0	0.0
9.8	30.9	17.3	0.0	0.0	0.0
17.3	17.3	23.9	0.0	0.0	0.0
0.0	0.0	0.0	20.7	0.0	0.0
0.0	0.0	0.0	0.0	20.7	0.0
0.0	0.0	0.0	0.0	0.0	18.9

Lattice parameters (AuCu(L10)(x=0.50))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.855	3.677	3.677	3.677	90.0	90.0	90.0
DFT	24.767	3.668	3.668	3.681	90.0	90.0	90.0

Elastic constants (AuCu(L10)(x=0.50))

1	2	3	4	5	6
64.0	29.0	29.0	0.0	0.0	0.0
29.0	64.0	29.0	0.0	0.0	0.0
29.0	29.0	64.0	0.0	0.0	0.0
0.0	0.0	0.0	39.7	0.0	0.0
0.0	0.0	0.0	0.0	39.7	0.0
0.0	0.0	0.0	0.0	0.0	39.7

Lattice parameters (AlCu2Mn(L21)(x=0.25))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	30.872	7.905	7.905	7.905	90.0	90.0	90.0
DFT	30.604	7.882	7.882	7.882	90.0	90.0	90.0

Elastic constants (AlCu2Mn(L21)(x=0.25))

1	2	3	4	5	6
25.3	26.5	26.5	0.0	0.0	0.0
26.5	25.3	26.5	0.0	0.0	0.0
26.5	26.5	25.3	0.0	0.0	0.0
0.0	0.0	0.0	15.5	0.0	0.0
0.0	0.0	0.0	0.0	15.5	0.0
0.0	0.0	0.0	0.0	0.0	15.5
