gtinv-223 (Re-2021-08-25-all-icsd)

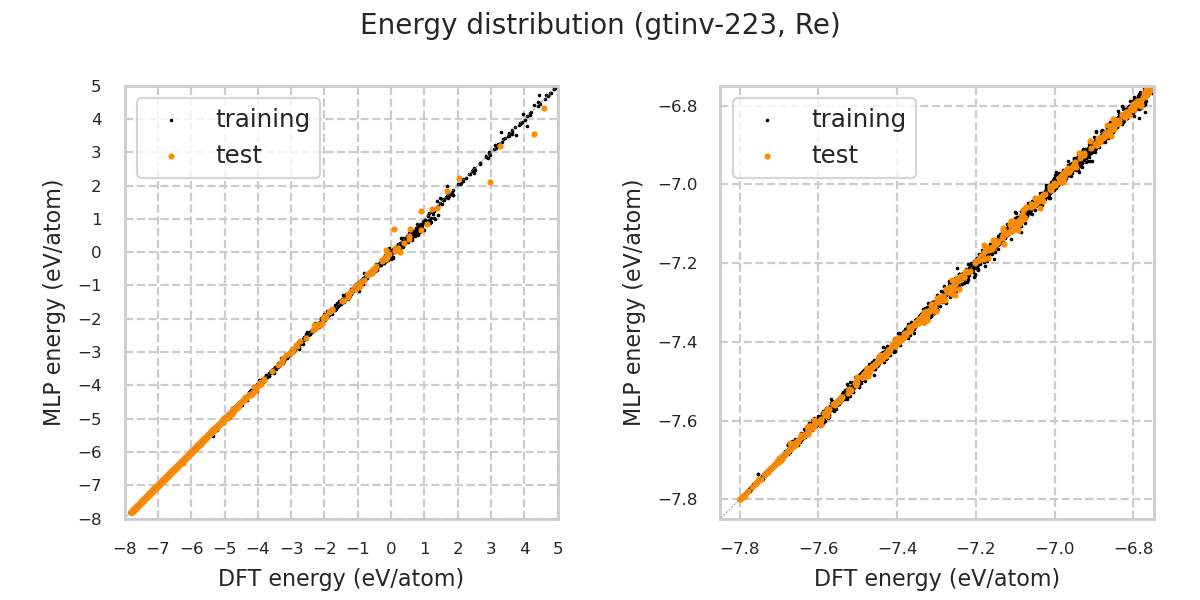

Energy distribution

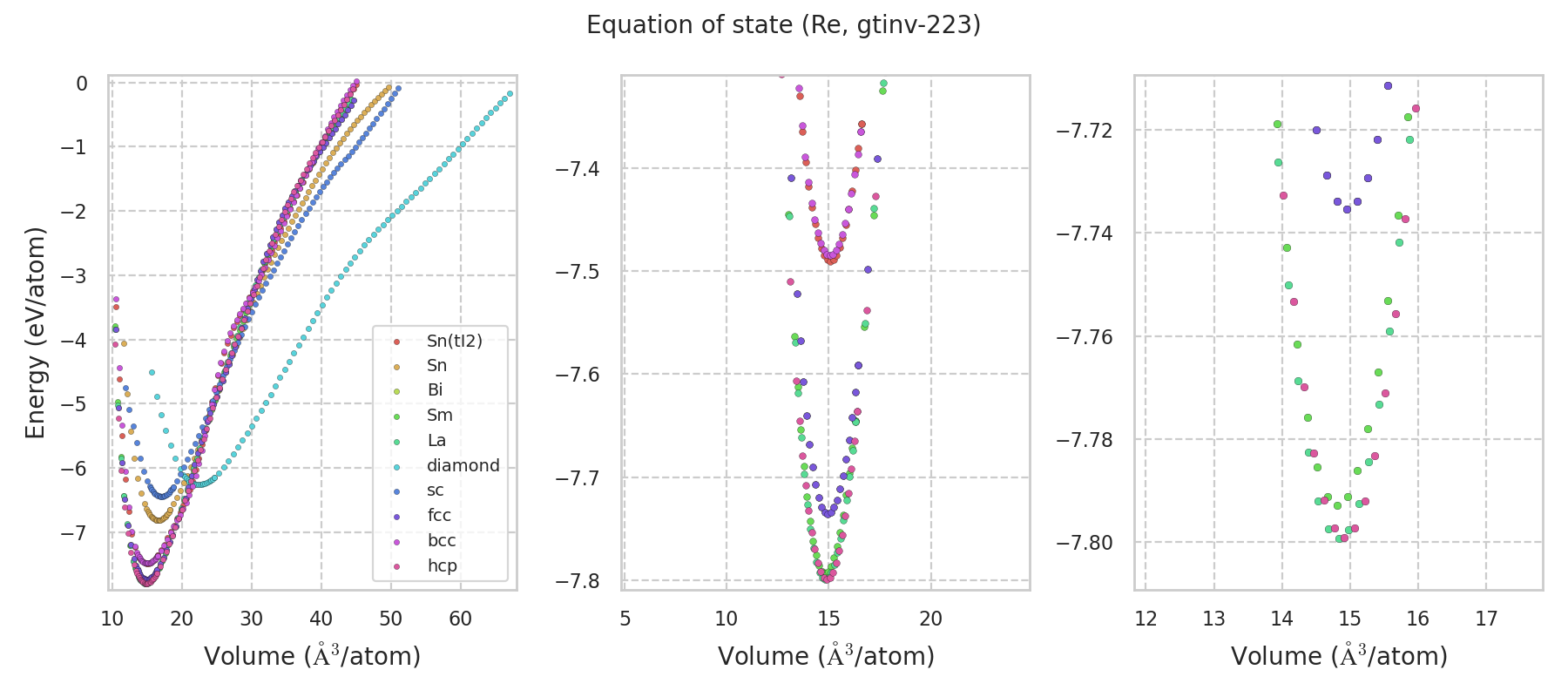

Equation of state

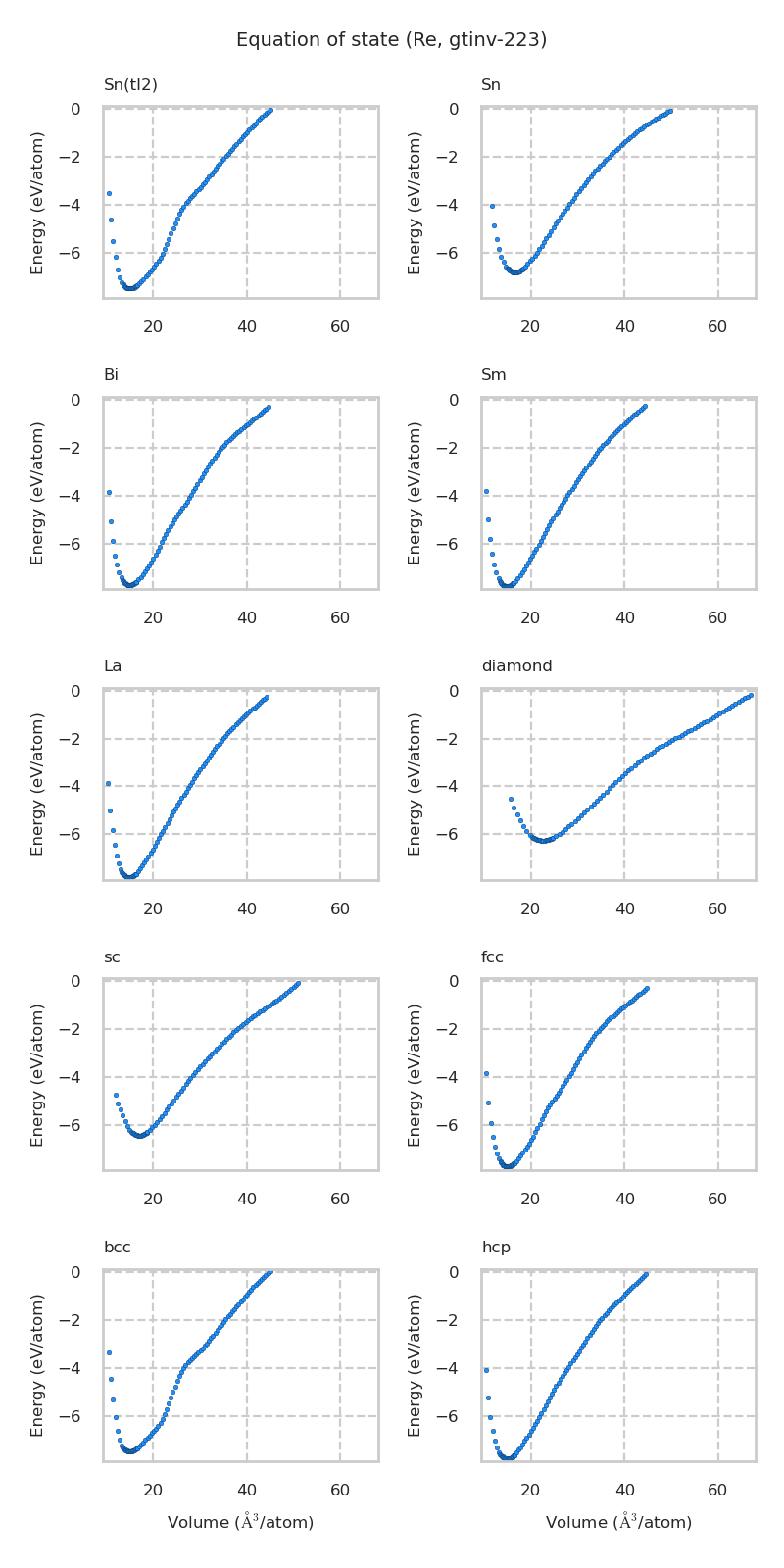

Equation of state for each structure

Prototype structure energy

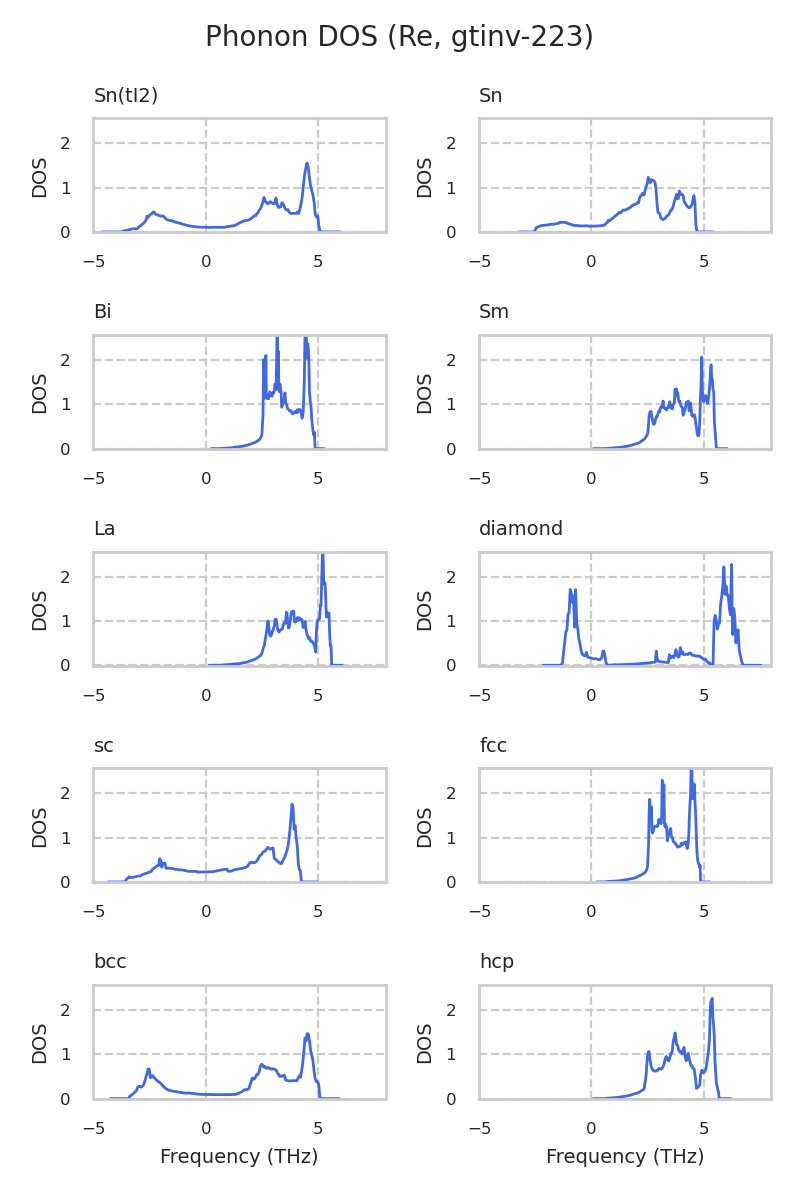

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

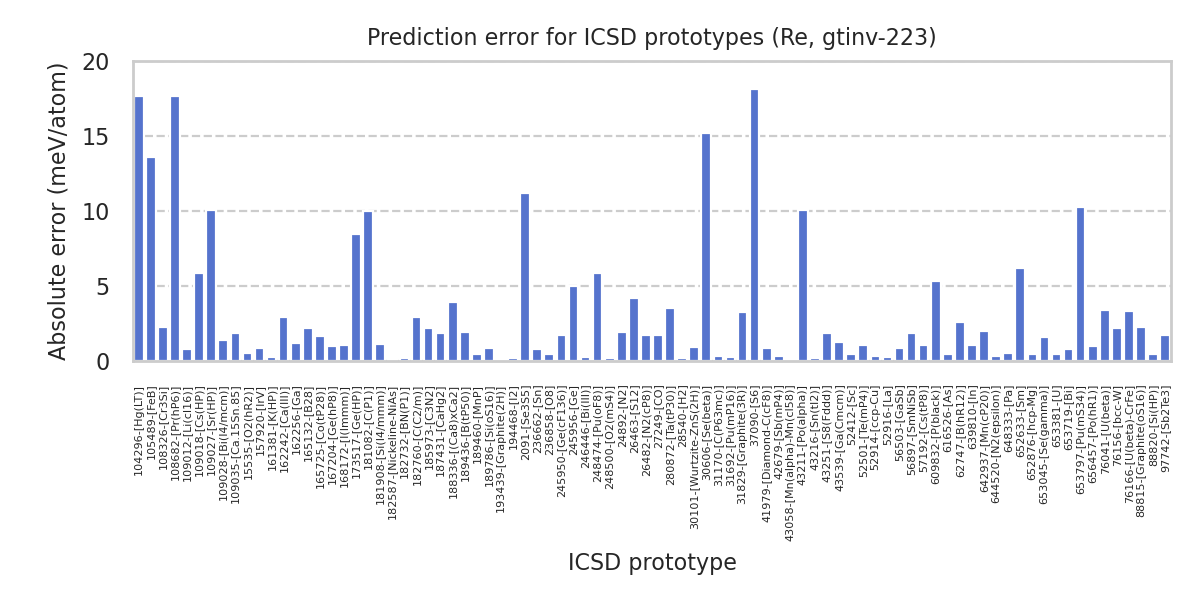

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-653381-[U]	-7.79872	-7.79826
icsd-652876-[hcp-Mg]	-7.79871	-7.79825
icsd-189460-[MnP]	-7.7987	-7.79825
icsd-31692-[Pu(mP16)]	-7.79868	-7.79846
icsd-236858-[O8]	-7.79867	-7.79825
icsd-161381-[K(HP)]	-7.79852	-7.79879
icsd-52916-[La]	-7.79851	-7.79878
icsd-652633-[Sm]	-7.79264	-7.78647
icsd-182760-[C(C2/m)]	-7.7705	-7.77341
icsd-43058-[Mn(alpha)-Mn(cI58)]	-7.75084	-7.75082
icsd-104296-[Hg(LT)]	-7.73537	-7.75303
icsd-108682-[Pr(hP6)]	-7.73534	-7.75302
icsd-189786-[Si(oS16)]	-7.73521	-7.73437
icsd-168172-[I(Immm)]	-7.73521	-7.7342
icsd-52914-[ccp-Cu]	-7.73521	-7.73488
icsd-194468-[I2]	-7.73521	-7.73501
icsd-639810-[In]	-7.73521	-7.73419
icsd-52501-[Te(mP4)]	-7.7352	-7.73419
icsd-42679-[Sb(mP4)]	-7.7352	-7.73488
icsd-616526-[As]	-7.73519	-7.73564
icsd-15535-[O2(hR2)]	-7.73519	-7.73567
icsd-157920-[IrV]	-7.73518	-7.73431
icsd-57192-[Cs(tP8)]	-7.73517	-7.73416
icsd-248500-[O2(mS4)]	-7.73517	-7.73498
icsd-642937-[Mn(cP20)]	-7.73049	-7.73243
icsd-280872-[Ta(tP30)]	-7.70948	-7.70596
icsd-76166-[U(beta)-CrFe]	-7.70934	-7.70602
icsd-76041-[U(beta)]	-7.70933	-7.70596
icsd-30606-[Se(beta)]	-7.66298	-7.67817
icsd-165725-[Co(tP28)]	-7.64945	-7.6511
icsd-187431-[CaHg2]	-7.63463	-7.63278
icsd-56897-[SmNiSb]	-7.63462	-7.63277
icsd-108326-[Cr3Si]	-7.63279	-7.63053
icsd-653797-[Pu(mS34)]	-7.6159	-7.62618
icsd-109012-[Li(cI16)]	-7.61236	-7.61157
icsd-245956-[Ge]	-7.60593	-7.60092
icsd-27249-[CO]	-7.55808	-7.55981
icsd-26482-[N2(cP8)]	-7.55808	-7.55982
icsd-248474-[Pu(oF8)]	-7.51046	-7.50463
icsd-31170-[C(P63mc)]	-7.49229	-7.49259
icsd-2091-[Se3S5]	-7.49212	-7.50335
icsd-43216-[Sn(tI2)]	-7.48888	-7.48903
icsd-246446-[Bi(III)]	-7.48883	-7.48905
icsd-105489-[FeB]	-7.48857	-7.50219
icsd-648333-[Pa]	-7.48852	-7.48902
icsd-52412-[Sc]	-7.48839	-7.48884
icsd-653719-[Bi]	-7.48718	-7.48638
icsd-97742-[Sb2Te3]	-7.48716	-7.48543
icsd-656457-[Po(hR1)]	-7.4845	-7.48551
icsd-76156-[bcc-W]	-7.48447	-7.48661
icsd-165132-[B28]	-7.46065	-7.4585
icsd-43251-[S8(Fddd)]	-7.35984	-7.36167
icsd-37090-[S6]	-7.35093	-7.3328
icsd-43539-[Ga(Cmcm)]	-7.32198	-7.32075
icsd-26463-[S12]	-7.29545	-7.29966
icsd-31829-[Graphite(3R)]	-7.2086	-7.21187
icsd-24892-[N2]	-7.18734	-7.18923
icsd-62747-[B(hR12)]	-7.17039	-7.17298
icsd-189436-[B(tP50)]	-7.15148	-7.15337
icsd-188336-[(Ca8)xCa2]	-7.14663	-7.15055
icsd-609832-[P(black)]	-7.10465	-7.11
icsd-109028-[Bi(I4/mcm)]	-7.09218	-7.09357
icsd-173517-[Ge(HP)]	-6.98793	-6.97945
icsd-28540-[H2]	-6.97946	-6.9796
icsd-182732-[BN(P1)]	-6.97944	-6.97961
icsd-182587-[Nickeline-NiAs]	-6.89677	-6.89676
icsd-236662-[Sn]	-6.80771	-6.80851
icsd-56503-[GaSb]	-6.8077	-6.80852
icsd-109018-[Cs(HP)]	-6.79487	-6.80075
icsd-109035-[Ca.15Sn.85]	-6.77821	-6.78006
icsd-162242-[Ca(III)]	-6.7782	-6.78112
icsd-162256-[Ga]	-6.74314	-6.74431
icsd-88815-[Graphite(oS16)]	-6.69347	-6.69568
icsd-181908-[Si(I4/mmm)]	-6.55461	-6.55574
icsd-644520-[N2(epsilon)]	-6.50146	-6.50114
icsd-88820-[Si(HP)]	-6.48677	-6.48633
icsd-109027-[Sr(HP)]	-6.44419	-6.43415
icsd-43211-[Po(alpha)]	-6.44418	-6.43415
icsd-181082-[C(P1)]	-6.44418	-6.43415
icsd-193439-[Graphite(2H)]	-6.42301	-6.42289
icsd-653045-[Se(gamma)]	-6.33115	-6.33269
icsd-41979-[Diamond-C(cF8)]	-6.25792	-6.25877
icsd-30101-[Wurtzite-ZnS(2H)]	-6.25243	-6.25331
icsd-167204-[Ge(hP8)]	-6.25172	-6.25272
icsd-245950-[Ge(cF136)]	-6.19093	-6.18924
icsd-185973-[C3N2]	-6.17988	-6.17769

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.915	2.776	2.776	4.471	90.0	90.0	120.0
DFT	14.853	2.77	2.77	4.471	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
672.3	279.5	247.3	0.0	0.0	0.0
279.5	672.3	247.3	0.0	0.0	0.0
247.3	247.3	533.3	0.0	0.0	0.0
0.0	0.0	0.0	161.8	0.0	0.0
0.0	0.0	0.0	0.0	161.8	0.0
0.0	0.0	0.0	0.0	0.0	196.4

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.812	2.767	2.767	20.109	90.0	90.0	120.0
DFT	14.859	2.772	2.772	20.097	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
730.0	290.4	220.7	31.1	0.0	0.0
290.4	730.0	220.7	-31.1	0.0	0.0
220.7	220.7	529.5	0.0	0.0	0.0
31.1	-31.1	0.0	165.3	0.0	0.0
0.0	0.0	0.0	0.0	165.3	31.1
0.0	0.0	0.0	0.0	31.1	219.8

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.83	2.778	2.778	8.875	90.0	90.0	120.0
DFT	14.843	2.771	2.771	8.927	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
719.3	264.3	219.1	0.0	0.0	0.0
264.3	719.3	219.1	0.0	0.0	0.0
219.1	219.1	500.3	0.0	0.0	0.0
0.0	0.0	0.0	177.6	0.0	0.0
0.0	0.0	0.0	0.0	177.6	0.0
0.0	0.0	0.0	0.0	0.0	227.5

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.076	3.184	3.184	2.974	90.0	90.0	90.0
DFT	15.017	3.201	3.201	2.932	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
234.6	429.5	270.9	0.0	0.0	0.0
429.5	234.6	270.9	0.0	0.0	0.0
270.9	270.9	365.4	0.0	0.0	0.0
0.0	0.0	0.0	201.5	0.0	0.0
0.0	0.0	0.0	0.0	201.5	0.0
0.0	0.0	0.0	0.0	0.0	261.1

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	16.62	5.103	5.103	2.553	90.0	90.0	90.0
DFT	16.363	5.023	5.023	2.595	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
550.9	203.2	242.4	0.0	0.0	0.0
203.2	550.9	242.4	0.0	0.0	0.0
242.4	242.4	617.0	0.0	0.0	0.0
0.0	0.0	0.0	25.0	0.0	0.0
0.0	0.0	0.0	0.0	25.0	0.0
0.0	0.0	0.0	0.0	0.0	-9.9

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	15.055	3.111	3.111	3.111	90.0	90.0	90.0
DFT	14.992	3.107	3.107	3.107	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
197.5	313.9	313.9	0.0	0.0	0.0
313.9	197.5	313.9	0.0	0.0	0.0
313.9	313.9	197.5	0.0	0.0	0.0
0.0	0.0	0.0	242.6	0.0	0.0
0.0	0.0	0.0	0.0	242.6	0.0
0.0	0.0	0.0	0.0	0.0	242.6

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.955	3.911	3.911	3.911	90.0	90.0	90.0
DFT	14.902	3.906	3.906	3.906	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
530.5	249.6	249.6	0.0	0.0	0.0
249.6	530.5	249.6	0.0	0.0	0.0
249.6	249.6	530.5	0.0	0.0	0.0
0.0	0.0	0.0	201.5	0.0	0.0
0.0	0.0	0.0	0.0	201.5	0.0
0.0	0.0	0.0	0.0	0.0	201.5

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	22.417	5.639	5.639	5.639	90.0	90.0	90.0
DFT	22.247	5.625	5.625	5.625	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
214.8	131.8	131.8	0.0	0.0	0.0
131.8	214.8	131.8	0.0	0.0	0.0
131.8	131.8	214.8	0.0	0.0	0.0
0.0	0.0	0.0	-29.0	0.0	0.0
0.0	0.0	0.0	0.0	-29.0	0.0
0.0	0.0	0.0	0.0	0.0	-29.0

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	17.071	2.575	2.575	2.575	90.0	90.0	90.0
DFT	16.992	2.571	2.571	2.571	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
323.6	294.0	294.0	0.0	0.0	0.0
294.0	323.6	294.0	0.0	0.0	0.0
294.0	294.0	323.6	0.0	0.0	0.0
0.0	0.0	0.0	-116.7	0.0	0.0
0.0	0.0	0.0	0.0	-116.7	0.0
0.0	0.0	0.0	0.0	0.0	-116.7

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	14.955	3.911	3.911	3.911	90.0	90.0	90.0
DFT	14.996	4.356	4.357	3.161	90.0	90.0	90.0

Elastic constants (Bi)

1	2	3	4	5	6
530.5	249.6	249.6	0.0	0.0	0.0
249.6	530.5	249.6	0.0	0.0	0.0
249.6	249.6	530.5	0.0	0.0	0.0
0.0	0.0	0.0	201.5	0.0	0.0
0.0	0.0	0.0	0.0	201.5	0.0
0.0	0.0	0.0	0.0	0.0	201.5
