gtinv-257 (Sc-2021-08-04-all-icsd)

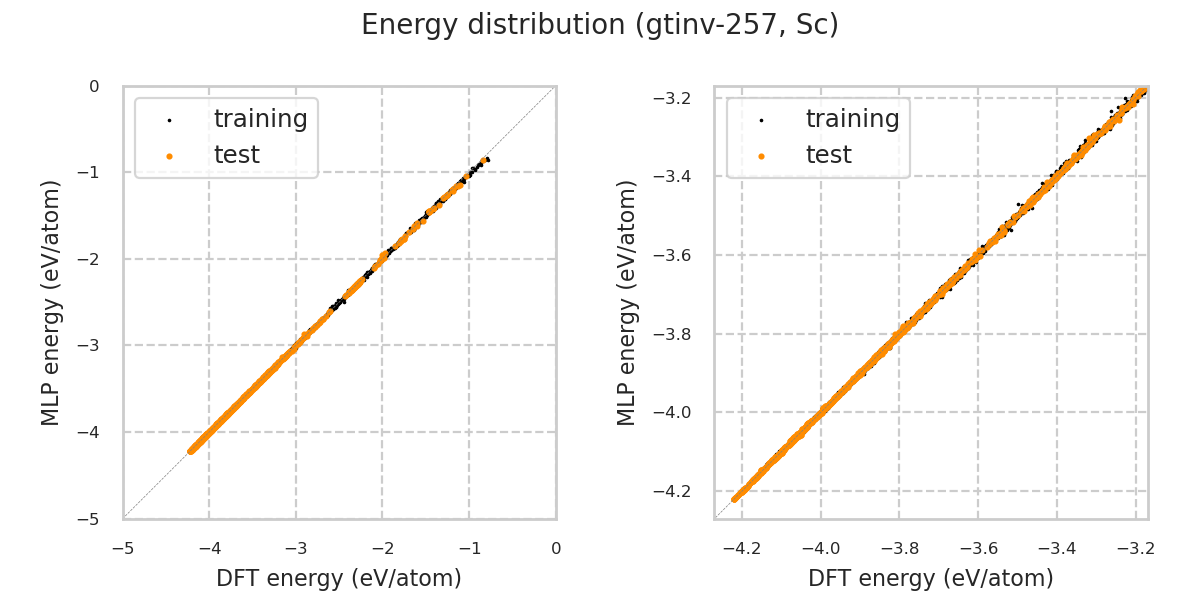

Energy distribution

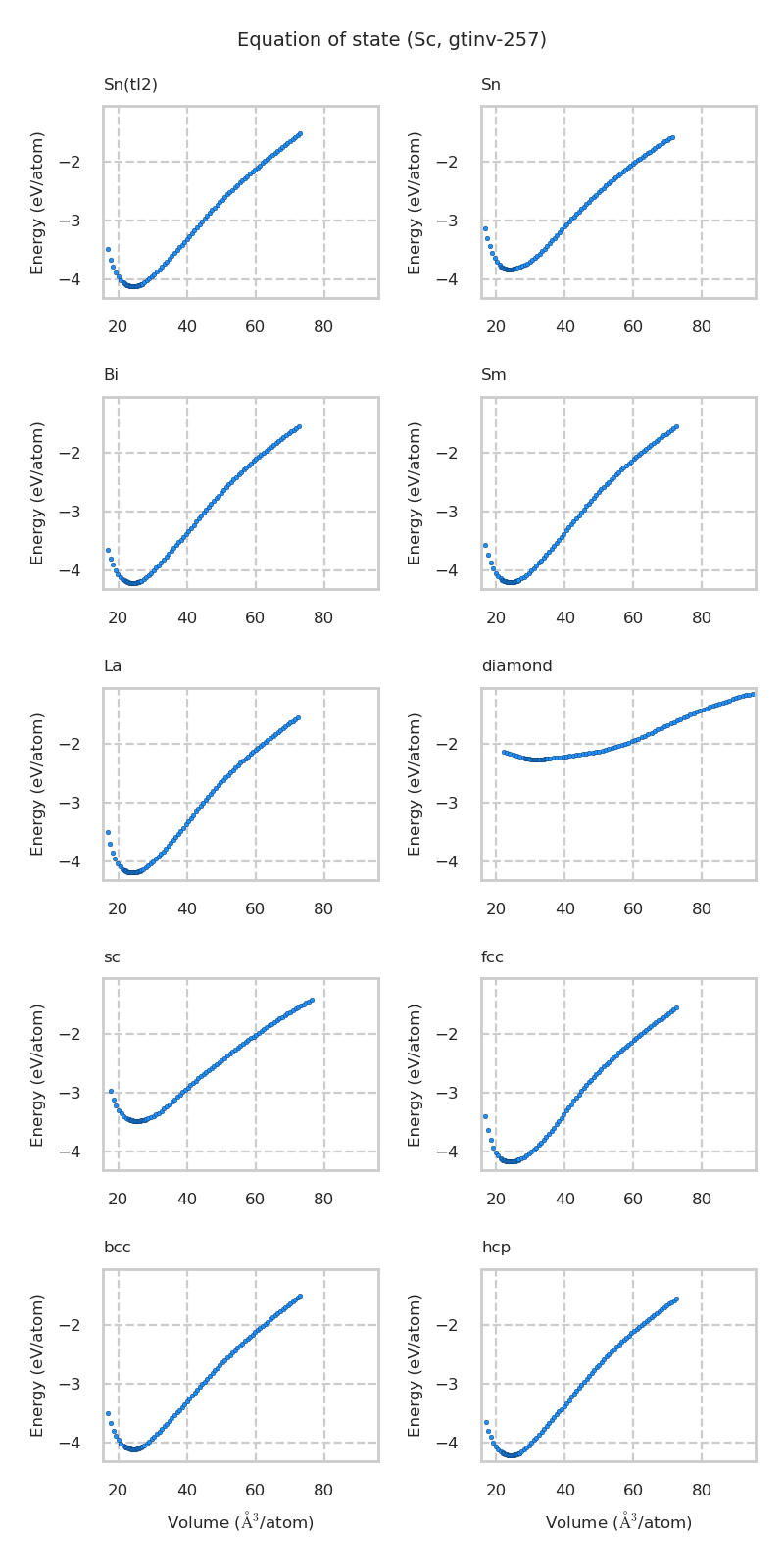

Equation of state

Equation of state for each structure

Prototype structure energy

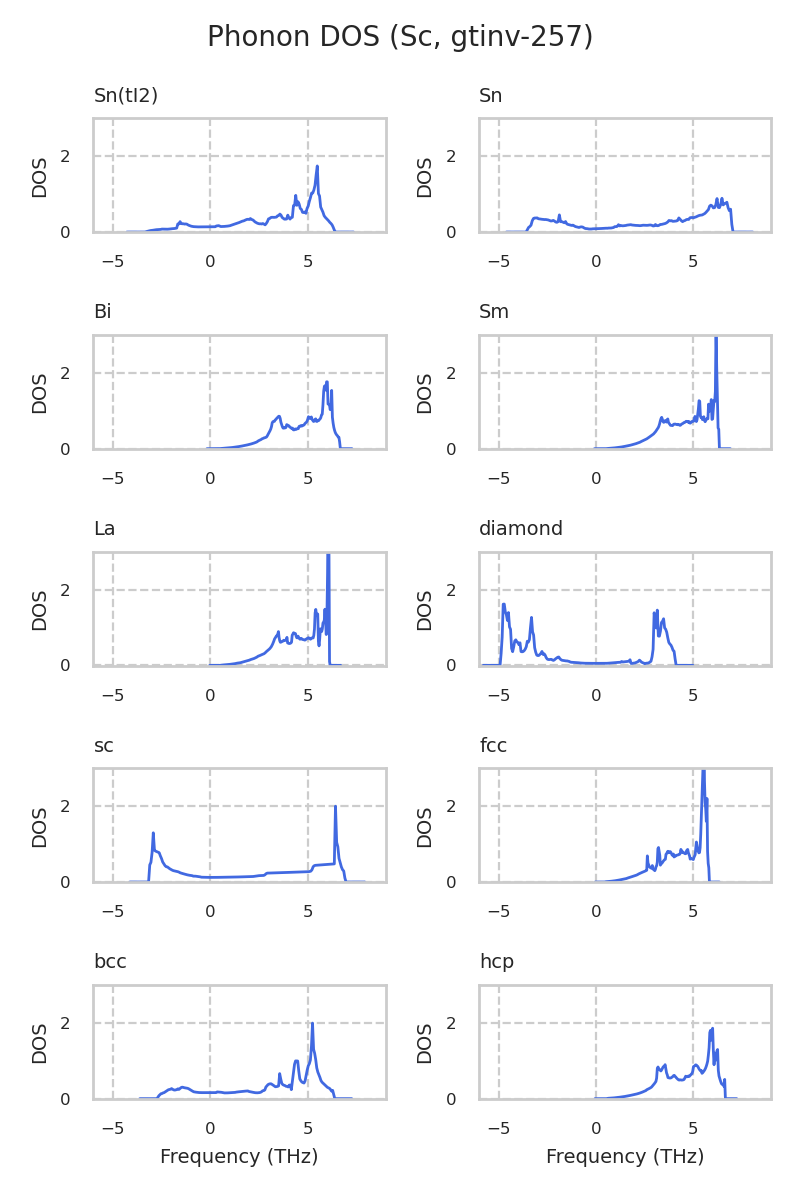

Phonon density of states

Prototype structure energy, Lattice constants, Elastic constants

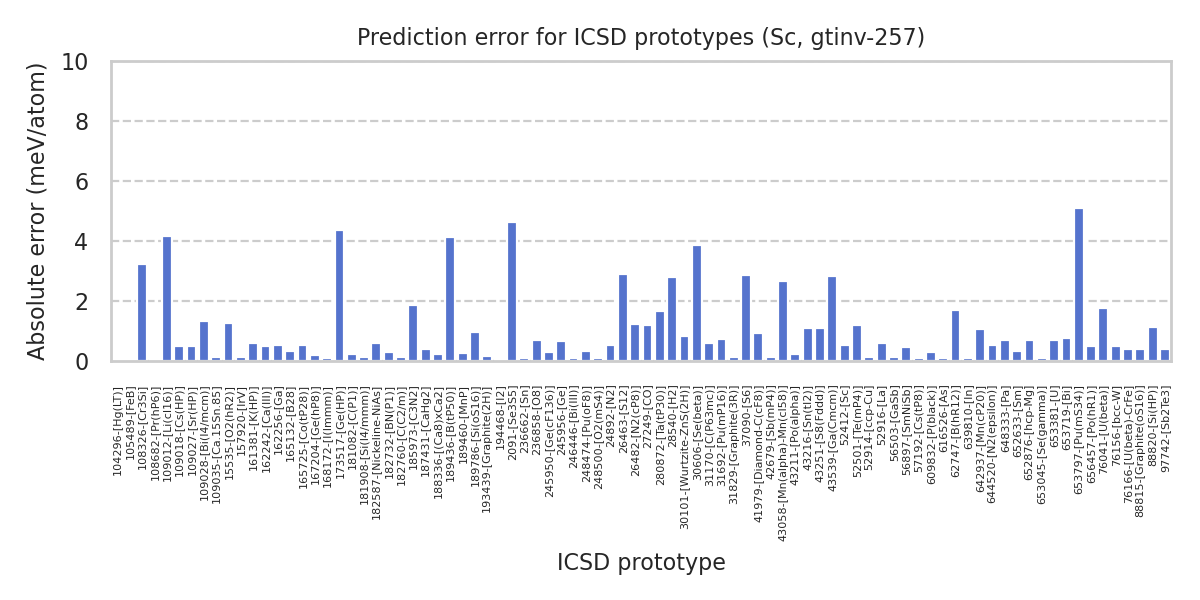

Prototype structure energy

Prototype	MLP (eV/atom)	DFT (eV/atom)
icsd-653381-[U]	-4.22041	-4.21972
icsd-652876-[hcp-Mg]	-4.2204	-4.21971
icsd-236858-[O8]	-4.22038	-4.2197
icsd-31692-[Pu(mP16)]	-4.22036	-4.21965
icsd-652633-[Sm]	-4.20549	-4.20579
icsd-52916-[La]	-4.19737	-4.19679
icsd-31170-[C(P63mc)]	-4.19737	-4.19679
icsd-161381-[K(HP)]	-4.19735	-4.19677
icsd-182587-[Nickeline-NiAs]	-4.19733	-4.19675
icsd-189786-[Si(oS16)]	-4.17341	-4.17436
icsd-168172-[I(Immm)]	-4.1719	-4.17199
icsd-104296-[Hg(LT)]	-4.1719	-4.17193
icsd-42679-[Sb(mP4)]	-4.1719	-4.17201
icsd-246446-[Bi(III)]	-4.1719	-4.17199
icsd-52914-[ccp-Cu]	-4.1719	-4.172
icsd-57192-[Cs(tP8)]	-4.17189	-4.17199
icsd-248500-[O2(mS4)]	-4.17188	-4.17197
icsd-182760-[C(C2/m)]	-4.17187	-4.17198
icsd-639810-[In]	-4.17185	-4.17195
icsd-108682-[Pr(hP6)]	-4.1718	-4.17184
icsd-187431-[CaHg2]	-4.16468	-4.16428
icsd-56897-[SmNiSb]	-4.16466	-4.16421
icsd-157920-[IrV]	-4.15085	-4.15074
icsd-109012-[Li(cI16)]	-4.14782	-4.152
icsd-2091-[Se3S5]	-4.13218	-4.13681
icsd-43216-[Sn(tI2)]	-4.11653	-4.11545
icsd-648333-[Pa]	-4.11629	-4.1156
icsd-162256-[Ga]	-4.11616	-4.11563
icsd-52412-[Sc]	-4.11616	-4.11564
icsd-194468-[I2]	-4.11579	-4.11576
icsd-105489-[FeB]	-4.11569	-4.11572
icsd-656457-[Po(hR1)]	-4.11536	-4.11585
icsd-97742-[Sb2Te3]	-4.11536	-4.11574
icsd-76156-[bcc-W]	-4.11535	-4.11585
icsd-248474-[Pu(oF8)]	-4.11151	-4.1112
icsd-26482-[N2(cP8)]	-4.09938	-4.1006
icsd-27249-[CO]	-4.09938	-4.10056
icsd-280872-[Ta(tP30)]	-4.08845	-4.0868
icsd-189436-[B(tP50)]	-4.07053	-4.07466
icsd-653797-[Pu(mS34)]	-4.06717	-4.07227
icsd-642937-[Mn(cP20)]	-4.04693	-4.04799
icsd-43058-[Mn(alpha)-Mn(cI58)]	-4.03955	-4.0422
icsd-609832-[P(black)]	-4.03094	-4.03123
icsd-52501-[Te(mP4)]	-4.02656	-4.02538
icsd-43251-[S8(Fddd)]	-4.02641	-4.02751
icsd-109028-[Bi(I4/mcm)]	-4.02029	-4.01899
icsd-76041-[U(beta)]	-4.01427	-4.0125
icsd-76166-[U(beta)-CrFe]	-4.00719	-4.0068
icsd-43539-[Ga(Cmcm)]	-4.0016	-3.99878
icsd-30606-[Se(beta)]	-3.99263	-3.99651
icsd-108326-[Cr3Si]	-3.98245	-3.97922
icsd-165725-[Co(tP28)]	-3.93773	-3.93721
icsd-644520-[N2(epsilon)]	-3.92029	-3.91977
icsd-37090-[S6]	-3.91643	-3.91357
icsd-189460-[MnP]	-3.85141	-3.85116
icsd-653719-[Bi]	-3.82589	-3.82516
icsd-56503-[GaSb]	-3.82539	-3.82527
icsd-236662-[Sn]	-3.82538	-3.82528
icsd-62747-[B(hR12)]	-3.81351	-3.8152
icsd-109018-[Cs(HP)]	-3.81287	-3.81239
icsd-109035-[Ca.15Sn.85]	-3.80424	-3.80411
icsd-188336-[(Ca8)xCa2]	-3.70783	-3.70763
icsd-245956-[Ge]	-3.55162	-3.55098
icsd-173517-[Ge(HP)]	-3.48262	-3.48699
icsd-185973-[C3N2]	-3.47908	-3.48093
icsd-43211-[Po(alpha)]	-3.47662	-3.4764
icsd-181082-[C(P1)]	-3.47662	-3.4764
icsd-31829-[Graphite(3R)]	-3.4766	-3.47649
icsd-616526-[As]	-3.4766	-3.47652
icsd-653045-[Se(gamma)]	-3.47659	-3.47649
icsd-182732-[BN(P1)]	-3.47636	-3.47663
icsd-162242-[Ca(III)]	-3.47609	-3.47659
icsd-109027-[Sr(HP)]	-3.47606	-3.47656
icsd-165132-[B28]	-3.42514	-3.42545
icsd-193439-[Graphite(2H)]	-3.38559	-3.38544
icsd-26463-[S12]	-3.35713	-3.35423
icsd-245950-[Ge(cF136)]	-3.33833	-3.3386
icsd-88815-[Graphite(oS16)]	-3.33773	-3.3381
icsd-28540-[H2]	-3.1829	-3.18569
icsd-88820-[Si(HP)]	-3.14735	-3.14623
icsd-24892-[N2]	-2.95911	-2.95859
icsd-30101-[Wurtzite-ZnS(2H)]	-2.29946	-2.30028
icsd-167204-[Ge(hP8)]	-2.2859	-2.28571
icsd-41979-[Diamond-C(cF8)]	-2.26906	-2.26998
icsd-15535-[O2(hR2)]	-2.2688	-2.27004
icsd-181908-[Si(I4/mmm)]	-2.25498	-2.25485

Lattice parameters (hcp)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.264	3.309	3.309	5.118	90.0	90.0	120.0
DFT	24.234	3.302	3.302	5.132	90.0	90.0	120.0

Elastic constants (hcp)

1	2	3	4	5	6
90.8	36.3	35.1	0.0	0.0	0.0
36.3	90.8	35.1	0.0	0.0	0.0
35.1	35.1	100.3	0.0	0.0	0.0
0.0	0.0	0.0	28.4	0.0	0.0
0.0	0.0	0.0	0.0	28.4	0.0
0.0	0.0	0.0	0.0	0.0	27.2

Lattice parameters (Sm)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.22	3.286	3.286	23.312	90.0	90.0	120.0
DFT	24.205	3.285	3.285	23.314	90.0	90.0	120.0

Elastic constants (Sm)

1	2	3	4	5	6
88.4	32.9	31.9	3.3	0.0	0.0
32.9	88.4	31.9	-3.3	0.0	0.0
31.9	31.9	102.7	0.0	0.0	0.0
3.3	-3.3	0.0	25.8	0.0	0.0
0.0	0.0	0.0	0.0	25.8	3.3
0.0	0.0	0.0	0.0	3.3	27.8

Lattice parameters (La)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.188	3.275	3.275	10.419	90.0	90.0	120.0
DFT	24.211	3.274	3.274	10.434	90.0	90.0	120.0

Elastic constants (La)

1	2	3	4	5	6
84.9	32.1	29.5	0.0	0.0	0.0
32.1	84.9	29.5	0.0	0.0	0.0
29.5	29.5	103.5	0.0	0.0	0.0
0.0	0.0	0.0	24.3	0.0	0.0
0.0	0.0	0.0	0.0	24.3	0.0
0.0	0.0	0.0	0.0	0.0	26.4

Lattice parameters (Sn(tI2))

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.407	3.755	3.755	3.461	90.0	90.0	90.0
DFT	24.402	3.718	3.718	3.531	90.0	90.0	90.0

Elastic constants (Sn(tI2))

1	2	3	4	5	6
44.7	74.5	50.5	0.0	0.0	0.0
74.5	44.7	50.5	0.0	0.0	0.0
50.5	50.5	68.4	0.0	0.0	0.0
0.0	0.0	0.0	24.5	0.0	0.0
0.0	0.0	0.0	0.0	24.5	0.0
0.0	0.0	0.0	0.0	0.0	28.0

Lattice parameters (Sn)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	23.847	5.581	5.581	3.062	90.0	90.0	90.0
DFT	24.088	5.579	5.579	3.095	90.0	90.0	90.0

Elastic constants (Sn)

1	2	3	4	5	6
47.8	60.2	30.1	0.0	0.0	0.0
60.2	47.8	30.1	0.0	0.0	0.0
30.1	30.1	86.2	0.0	0.0	0.0
0.0	0.0	0.0	-15.9	0.0	0.0
0.0	0.0	0.0	0.0	-15.9	0.0
0.0	0.0	0.0	0.0	0.0	-29.2

Lattice parameters (bcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.428	3.656	3.656	3.656	90.0	90.0	90.0
DFT	24.377	3.653	3.653	3.653	90.0	90.0	90.0

Elastic constants (bcc)

1	2	3	4	5	6
48.0	61.5	61.5	0.0	0.0	0.0
61.5	48.0	61.5	0.0	0.0	0.0
61.5	61.5	48.0	0.0	0.0	0.0
0.0	0.0	0.0	23.9	0.0	0.0
0.0	0.0	0.0	0.0	23.9	0.0
0.0	0.0	0.0	0.0	0.0	23.9

Lattice parameters (fcc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.215	4.592	4.592	4.592	90.0	90.0	90.0
DFT	24.25	4.595	4.595	4.595	90.0	90.0	90.0

Elastic constants (fcc)

1	2	3	4	5	6
68.3	40.3	40.3	0.0	0.0	0.0
40.3	68.3	40.3	0.0	0.0	0.0
40.3	40.3	68.3	0.0	0.0	0.0
0.0	0.0	0.0	29.4	0.0	0.0
0.0	0.0	0.0	0.0	29.4	0.0
0.0	0.0	0.0	0.0	0.0	29.4

Lattice parameters (diamond)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	31.641	6.326	6.326	6.326	90.0	90.0	90.0
DFT	31.144	6.292	6.292	6.292	90.0	90.0	90.0

Elastic constants (diamond)

1	2	3	4	5	6
-30.7	40.7	40.7	0.0	0.0	66833.7
40.7	-30.7	40.7	0.0	0.0	60925.1
40.7	40.7	-30.7	0.0	0.0	83810.6
0.0	0.0	0.0	-54.2	0.0	-15207.0
0.0	0.0	0.0	0.0	-54.3	15206.8
66833.7	60925.1	83810.6	-15207.0	15206.8	-452153.0

Lattice parameters (sc)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	25.488	2.943	2.943	2.943	90.0	90.0	90.0
DFT	25.449	2.941	2.941	2.941	90.0	90.0	90.0

Elastic constants (sc)

1	2	3	4	5	6
43.0	31.8	31.8	0.0	0.0	0.0
31.8	43.0	31.8	0.0	0.0	0.0
31.8	31.8	43.0	0.0	0.0	0.0
0.0	0.0	0.0	-32.2	0.0	0.0
0.0	0.0	0.0	0.0	-32.2	0.0
0.0	0.0	0.0	0.0	0.0	-32.2

Lattice parameters (Bi)

	V (A^3/atom)	a (A)	b (A)	c (A)	alpha	beta	gamma
MLP	24.264	6.095	6.095	3.309	74.25	105.75	65.76
DFT	24.113	6.26	5.653	3.095	90.0	118.28	90.0

Elastic constants (Bi)

1	2	3	4	5	6
96.0	36.6	35.5	0.0	0.0	2.8
36.6	92.1	36.0	0.0	0.0	1.5
35.5	36.0	90.8	0.0	0.0	-0.5
0.0	0.0	0.0	27.6	0.5	-0.1
0.0	0.0	0.0	0.5	28.0	-6.8
2.8	1.5	-0.5	-0.1	-6.8	29.9
